Scope of Application

It is suitable for automatic quantitative packaging of materials with good fluidity (such as: rice, white sugar, feed, plastic granules, etc.).

Features

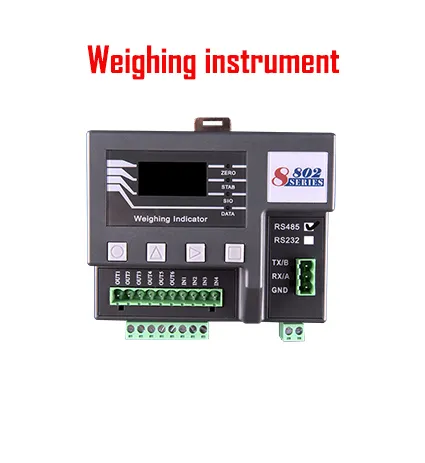

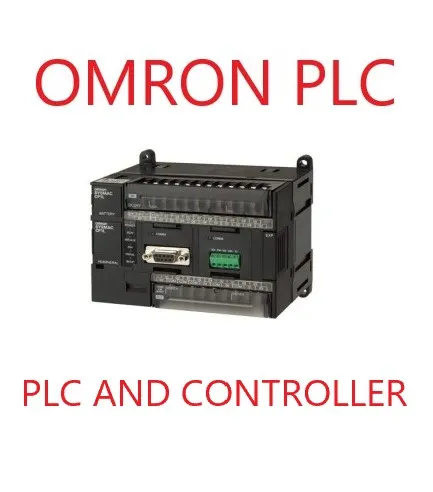

• 1 Dual-Core Control Technology: Weighing instrument + PLC dual-core control technology, the number of A/D conversions reaches 480 times per second. It ensures the strict requirements of the weighing speed and weighing accuracy of the machine.

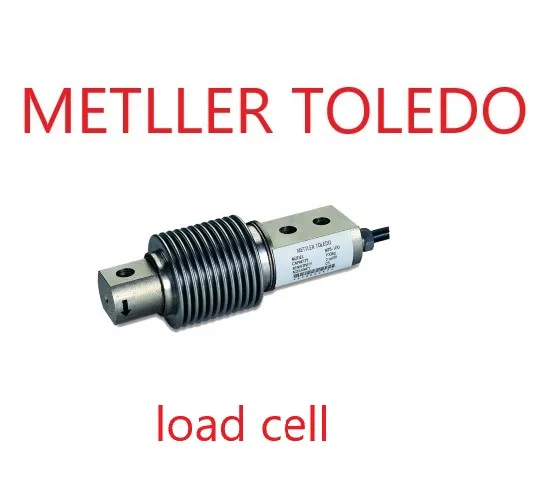

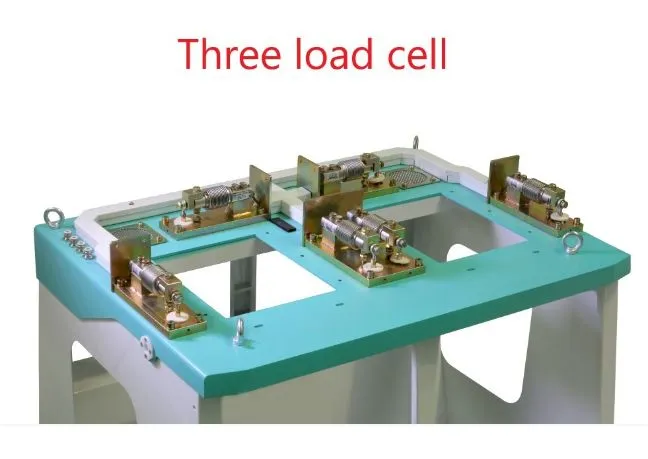

• 2 Three-Sensor Structure: We adopt the three-sensor structure, the layout of the weighing hoppers is balanced, and the force is reasonable, which improves the service life of the machine, and is not disturbed by the vibration of the workshop machine, and has high stability and anti-interference ability.

• 3 Friendly Interface: Friendly man-machine interface, simple and convenient equipment operation, reduce labor intensity, improve the intelligent level of workshop operation, intelligent storage of production reports, and data communication functions.
• 4 Intelligent One-Key Replacement: For different packages, the feeding device is automatically switched, and the conveyor is quickly switched to the appropriate position according to different packages. For different packages and different types of materials, the system automatically adjusts the weighing accuracy and speed to achieve the best weighing state of the system.
• 5 Safety and Sanitation: In order to ensure food safety, the material contact parts such as feeding and weighing barrels are all made of stainless steel. The interior is polished smoothly to eliminate dead ends and no residual materials, so as to prevent the remaining rice from mildew and rancidity affecting the quality of rice.
• 6 Rodent & Corrosion Protection: To eliminate rodent infestation and acid corrosion, we have adopted a closed studio, all lines, sensors, and solenoid valves are equipped with steel wire grooves or protective iron boxes, which also isolate the corrosion and wear of rice flour and water vapor on the cylinder and sensors. The trouble-free running time of the equipment is extended.

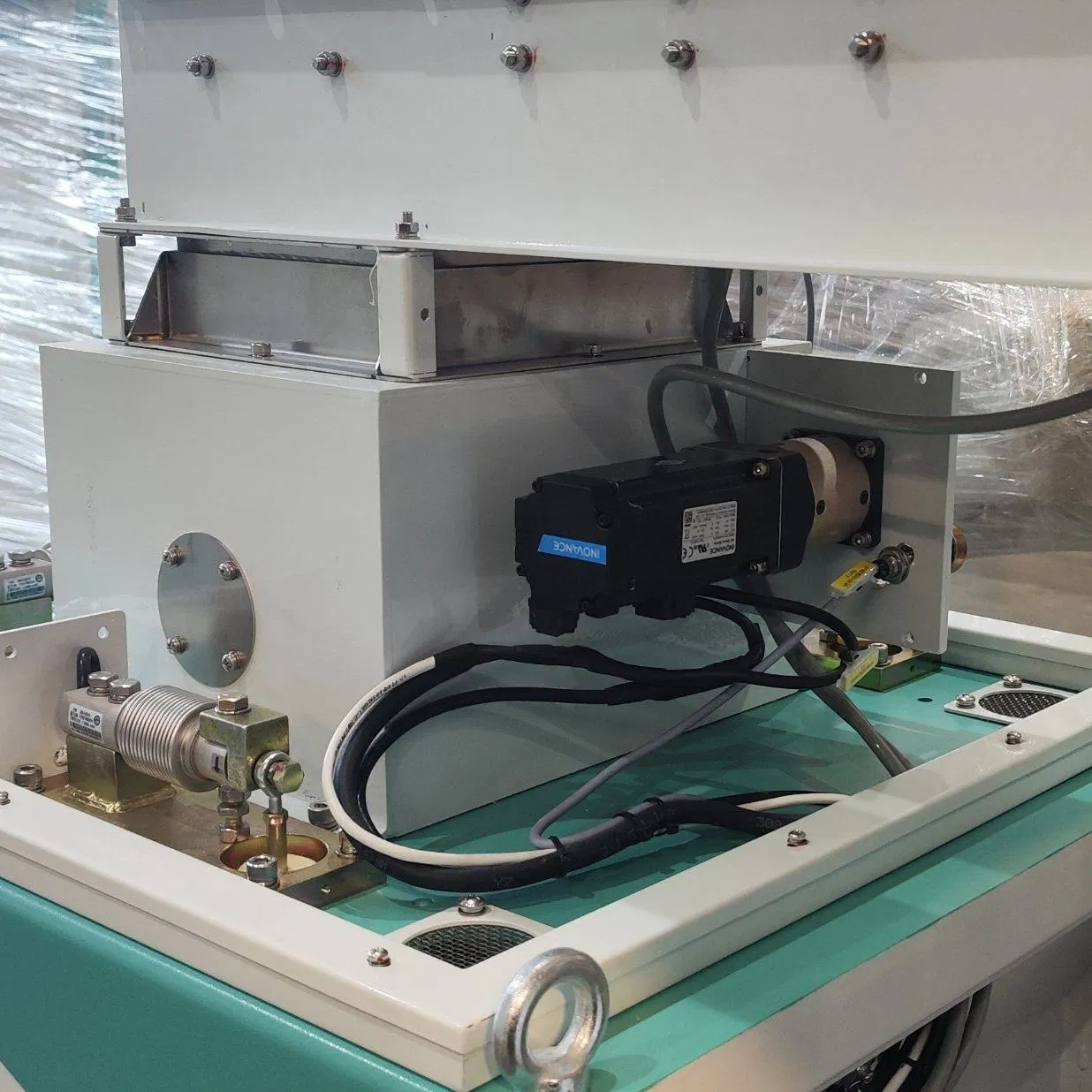

• 7 Servo Transmission Design: Servo transmission design, reliable structure. Servo control speed, position accuracy is very accurate. Make the weighing action faster and more accurate.

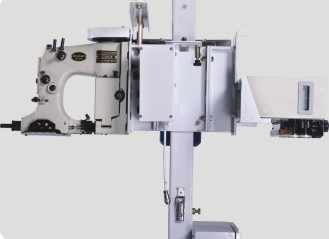

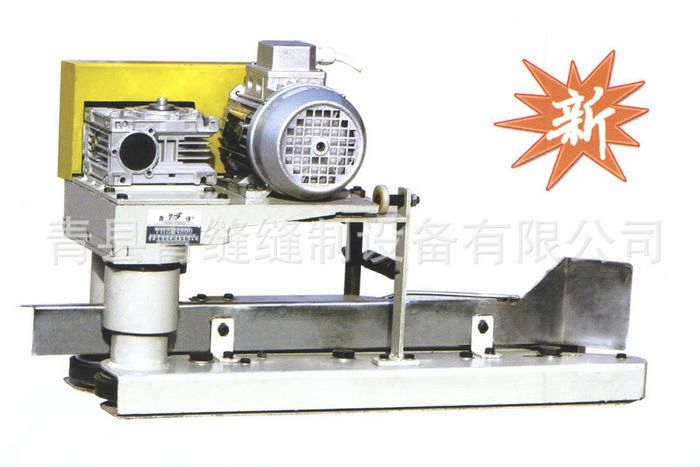

• 8 Multi-Functional Sealing Method: Light and easy to turn, rotating column, multi-functional sealing method, according to different packaging and different sealing forms, a sewing machine and a heat sealing machine that can be switched by rotating are designed, so that users can feel the convenient and easy-to-use experience.
• 9 Left/Right Hand Ergonomics: The pocket switch with interchangeable left and right is specially designed to achieve the operation mode without difference between left and right hands.
• 10 Adjustable Sliding Column: Suitable for a variety of operation modes, allowing you to make ordinary bag sewing, hemming bag sewing, heat sealing bag sewing, and operating distance as you like. (Optional folding, heat sealing machine)
• 11 Intelligent Oil Supply: The intelligent multi-point oil supply spray lubrication system of the sewing machine, we reasonably arrange the oil injection pipelines at more than a dozen key points of the sewing machine regularly and quantitatively. (Optional)
• 12 Freshness Preservation: Keep the freshness firmly locked. It has fresh-keeping gas input function to meet customers' personalized needs for rice packaging. (Optional)

Technical Parameters

Main Configuration

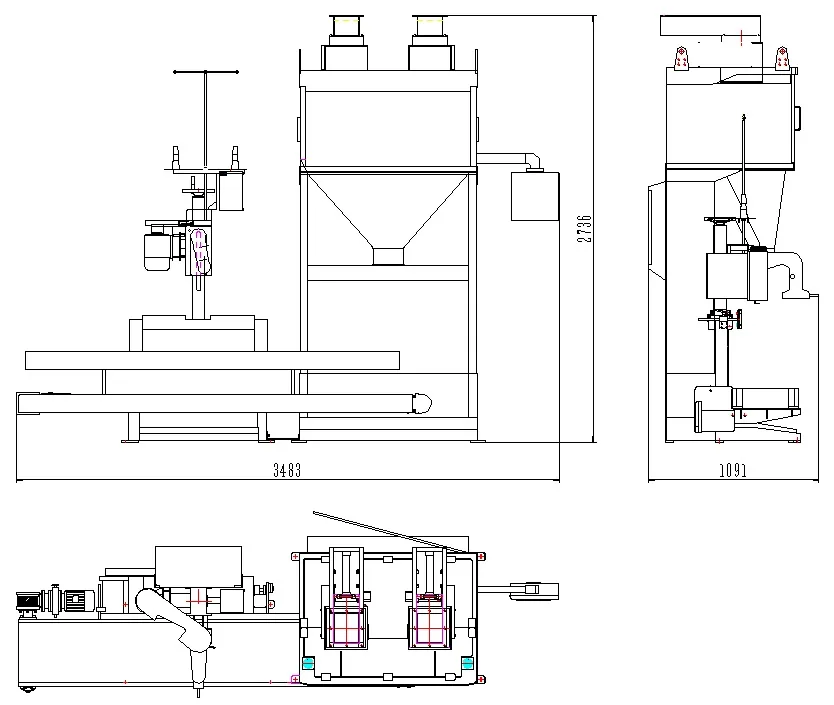

Product Sample Drawing
