Automatic Weighing, Palletizing and Packaging System for Valve Bags of Chemical Products

Overview

Valve Pocket Automatic Weighing And Palletizing Packing System

Scope of application: Applicable to 10-50kg paper, PE/PE and PP/PP valve bags and composite valve bags.

Model NO.	Bag Packing Machine
Automatic Grade	Automatic
Material Type	Powder
Filling Valve Head	Single-Head
Feed Cylinder Structure	Multi-Room Feeding
Dosing Device	Plunger
Filling Principle	Pressure
Packaging Container Lifting Structure	Chute Pneumatic Combination Lifting
Structure	Powder.Granule.Liquid Filling
Packaging	Bag
Packaging Material	Composite Materials
Production Speed	4-20 Bags/H
Suitable Industry	Chemicals
Design	Could Be Customized
Machine Material	SUS304
Accuracy	±0.1%
Transport Package	Wooden Case
Specification	CE ISO SGS Approved
HS Code	8422303090
Production Capacity	25 Sets Per Month

Package Size	5000.00cm * 1800.00cm * 1800.00cm
Package Gross Weight	1000.000kg

For different materials and different flow characteristics have very good adaptability.
High speed clean filling.
Continuous filling (no clogging, no bridging).
Maintain a very good weight accuracy when the machine is in the high-speed filling process.
Easy maintenance and cleaning.
Auto adjustment for different packing materials and different packing bags (optional).

Product Parameters

Main Parameters
Compressed air consumption	40-45 m³/h
Air pressure	>6 bar
Total dust removal air volume	2000m³/h
Applicable bag size range	Bag length: 400mm-550mm Bag width: maximum 500mm Thickness of bag bottom: 100-120mm

Application

Applicable Bag Type:

Scope of application: Applicable to 10-50kg paper, PE/PE and PP/PP valve bags and composite valve bags.

Main Configuration

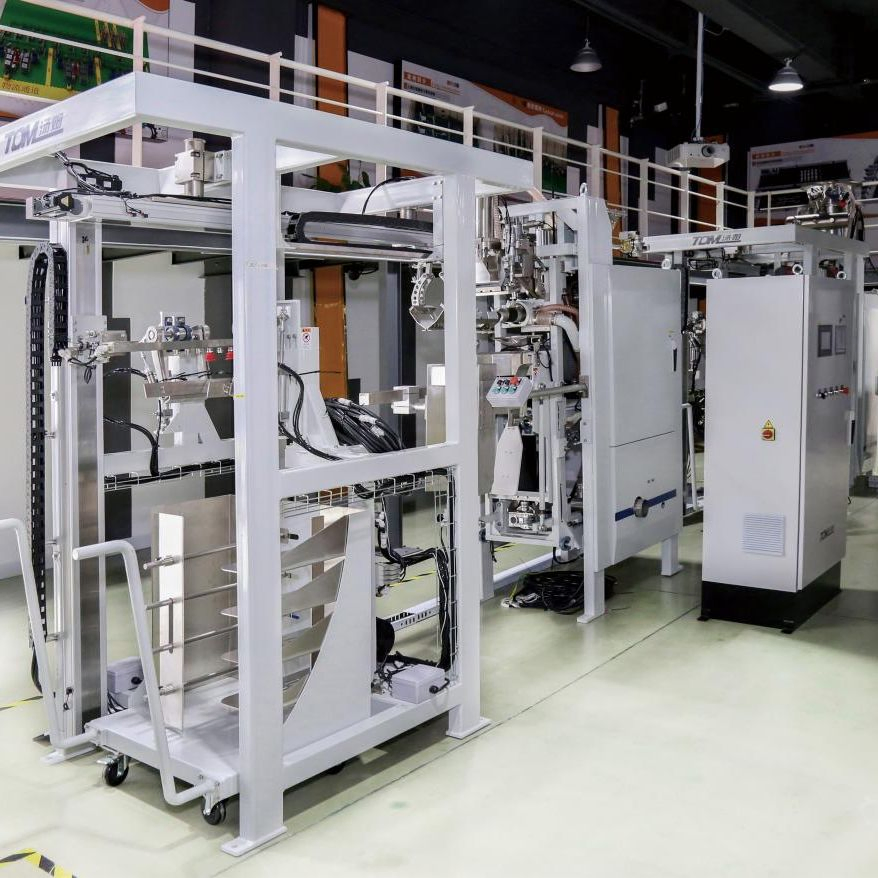

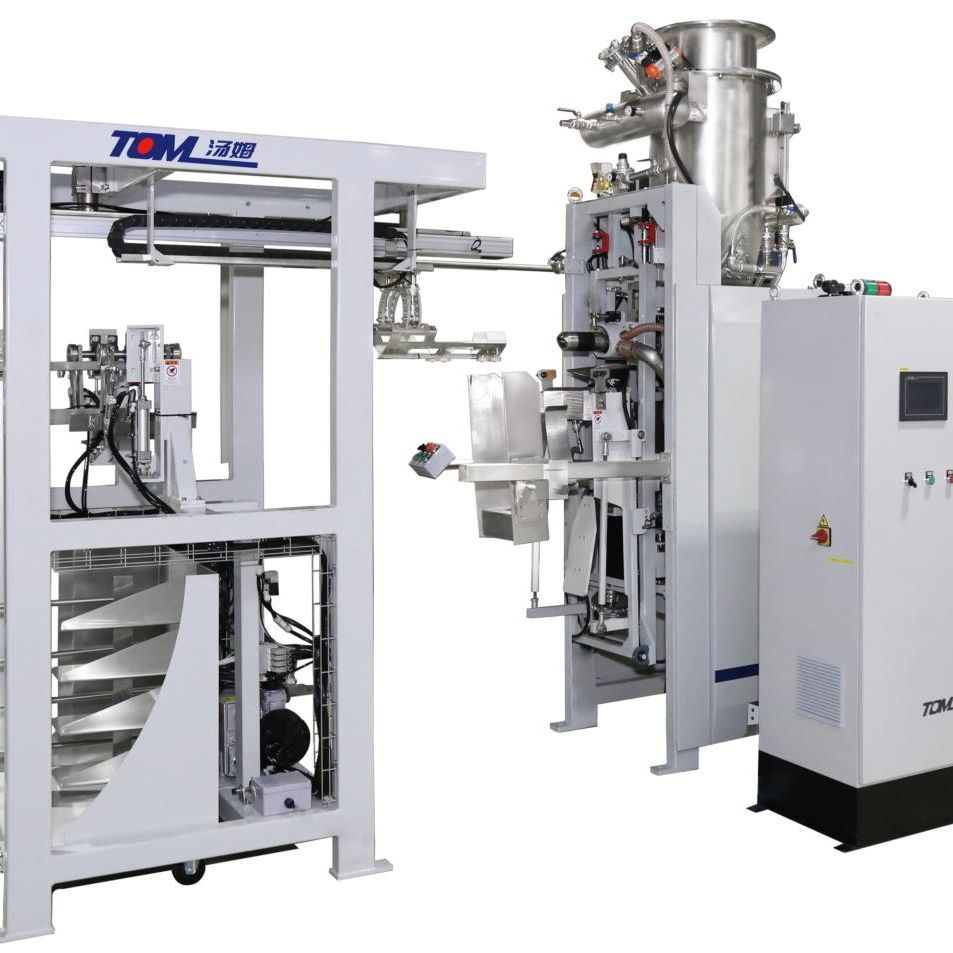

Intelligent Valve Pocket Packaging Machine

Packaging range: 10-50kg
Packing speed: 7-8 tons / hour (25kg / bag, tile adhesive)
Measuring accuracy: ±100-150g/bag
Compressed air consumption: 40-45 m³/h
Air pressure: ≥ 6 bar
Total air volume of dust removal: 2000 m³/h
Temperature range: -5 ºC to 45 ºC
Applicable bag size: Bag length: 400mm-550mm, Bag width: max 500mm, Thickness of bag bottom: 100-120mm

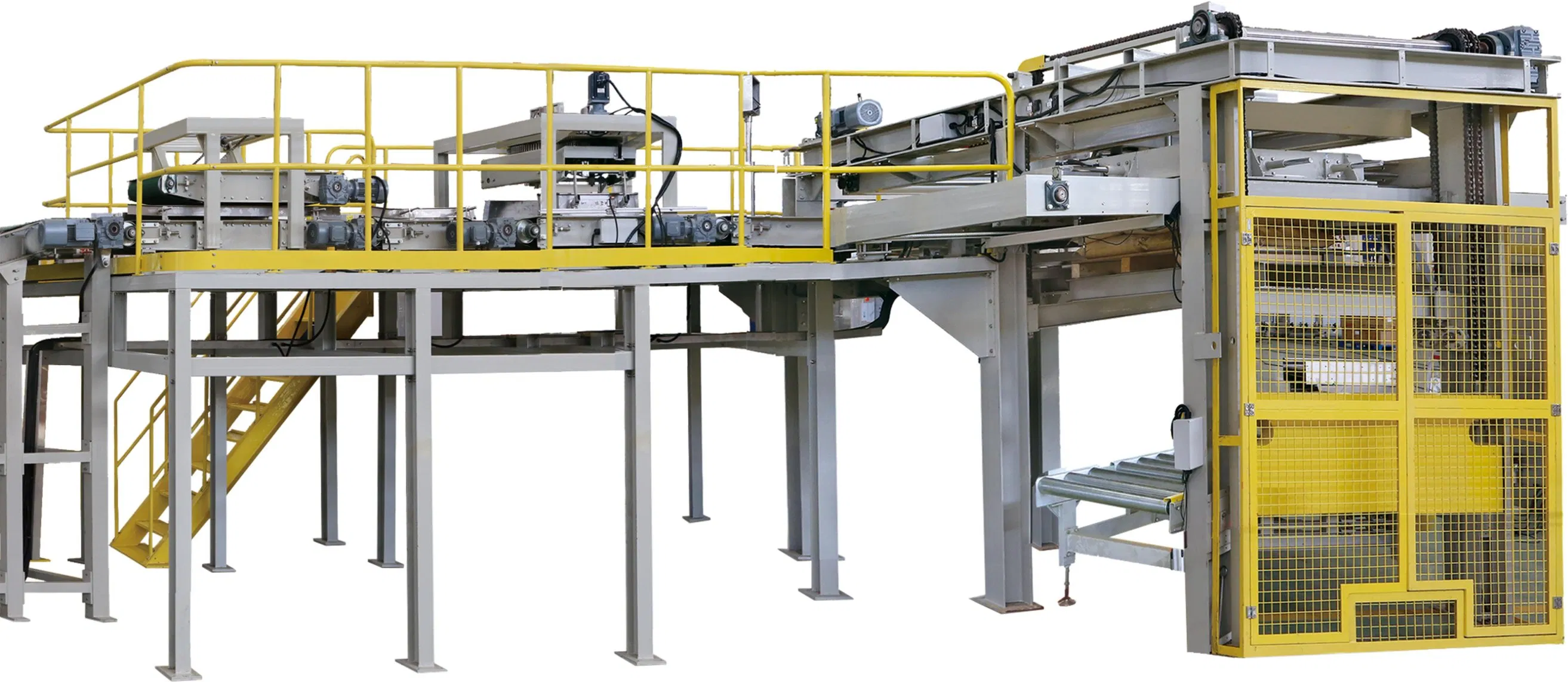

High-level Palletizer

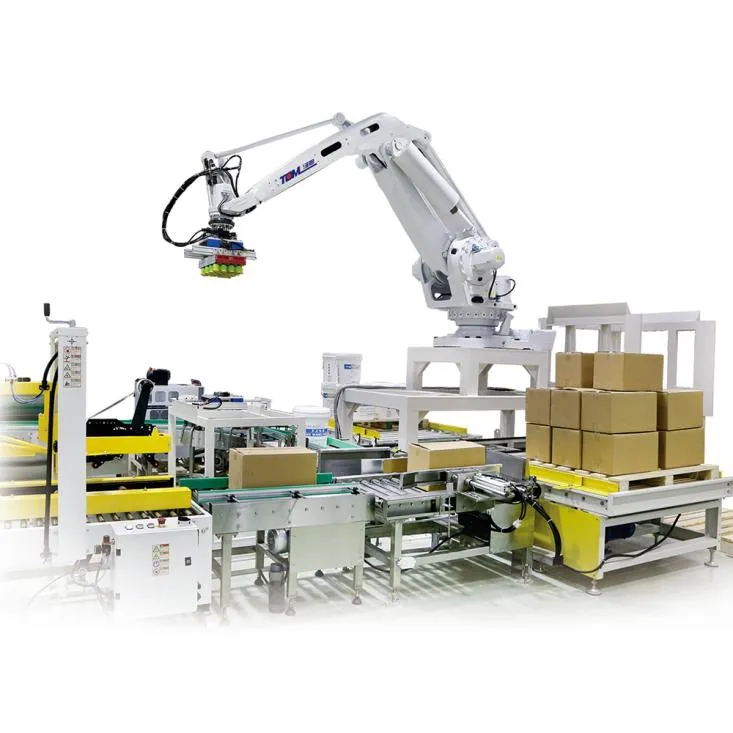

Robot Palletizer

Frequently Asked Questions

Q1: What types of packaging bags are compatible with this system?

A: This packaging system is designed for 10-50kg paper, PE/PE, PP/PP valve bags, and composite valve bags.

Q2: What is the weighing accuracy of the intelligent valve pocket packaging machine?

A: The measuring accuracy of the intelligent valve pocket packaging machine is within ±100-150g per bag.

Q3: How many packages can the high-level palletizer handle per hour?

A: The high-level palletizer has a packaging capacity of 500 to 1500 packages per hour with a weighing accuracy of ≤ ±0.2%.

Q4: What are the main specifications of the robot palletizer?

A: The robot palletizer features a maximum load capacity of 110kg, a reset positioning accuracy of 0.1mm, and a maximum arrival distance of 2400mm.

Q5: What are the required air pressure and air consumption for the packaging system?

A: The compressed air consumption is 40-45 m³/h, and the required air pressure is greater than or equal to 6 bar.

Q6: What is the applicable size range for the packing bags?

A: The system supports bag lengths from 400mm to 550mm, a maximum bag width of 500mm, and a bag bottom thickness of 100-120mm.
