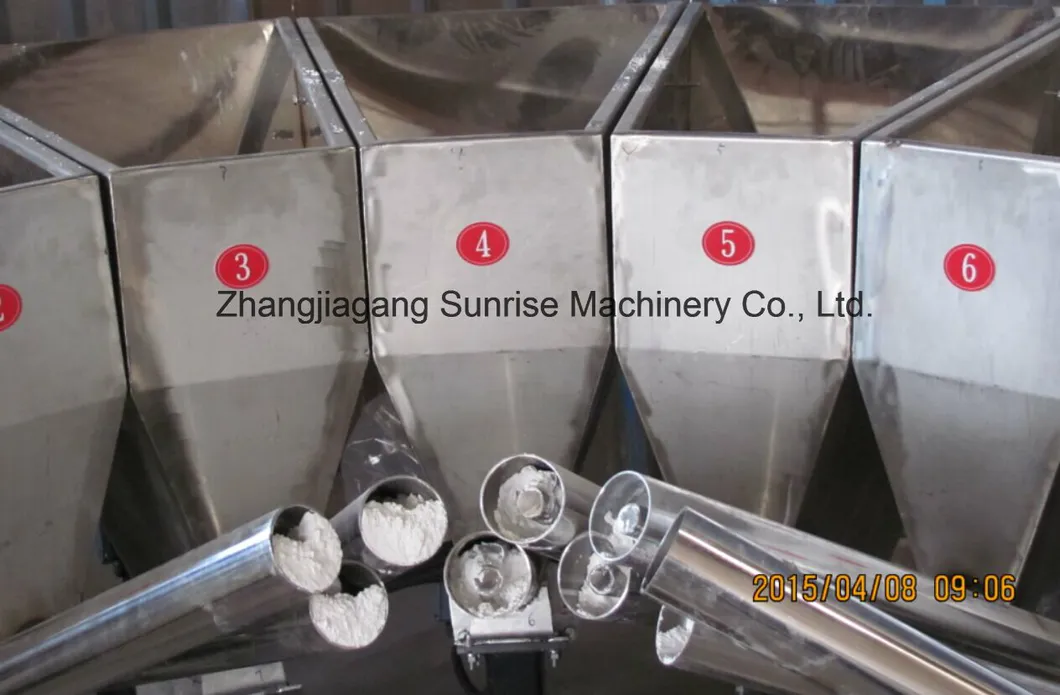

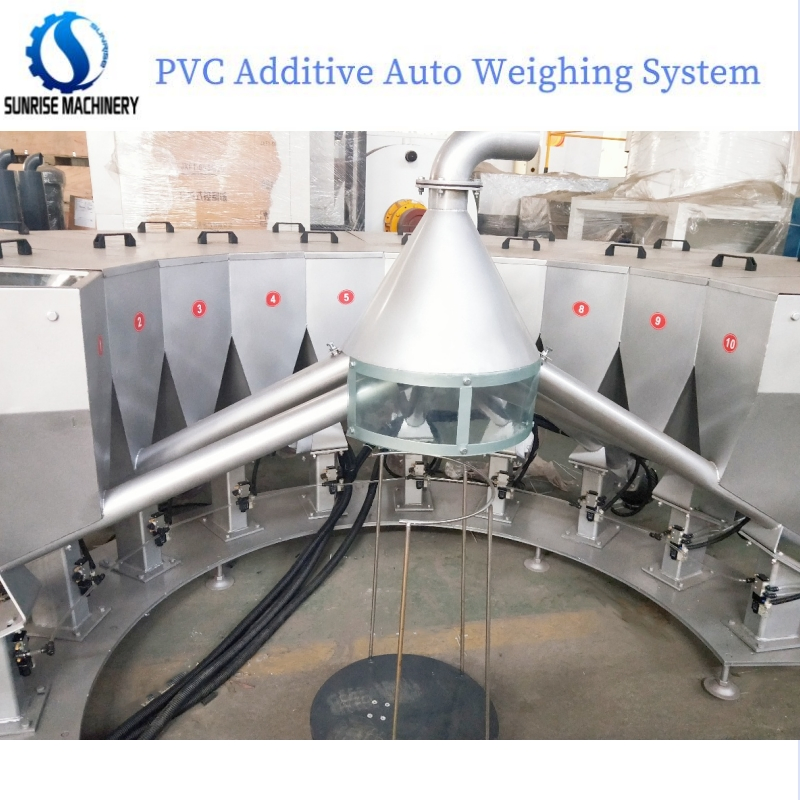

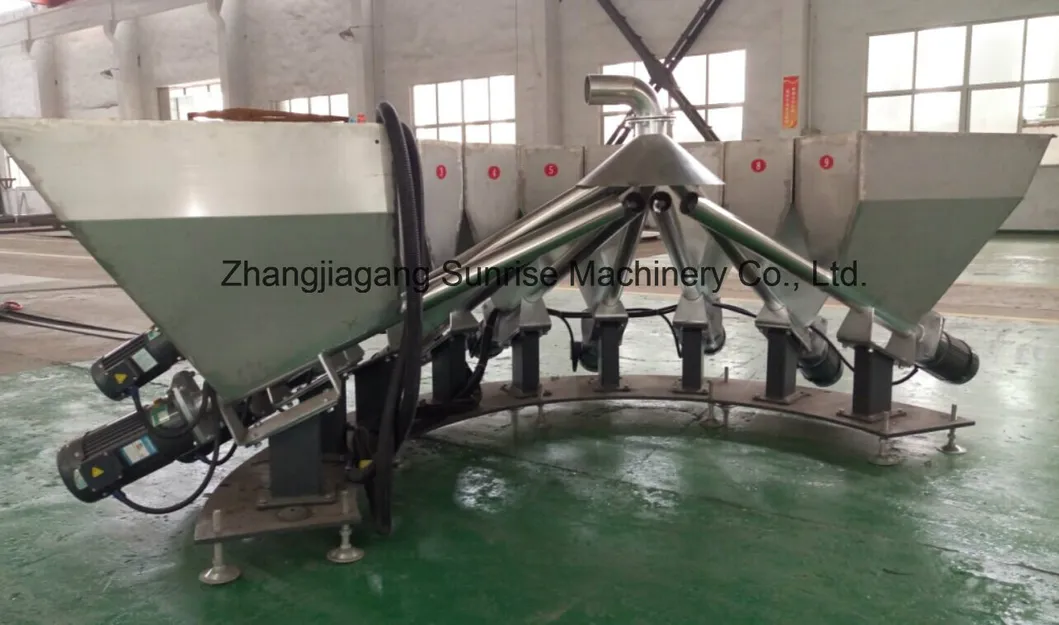

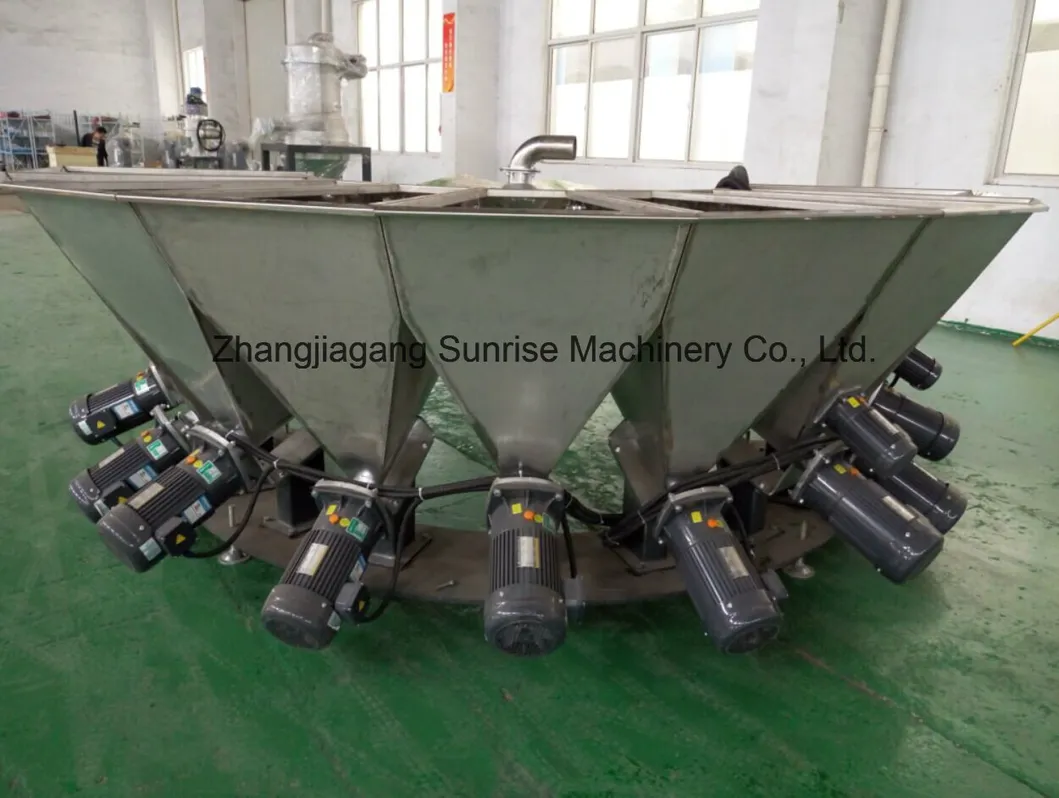

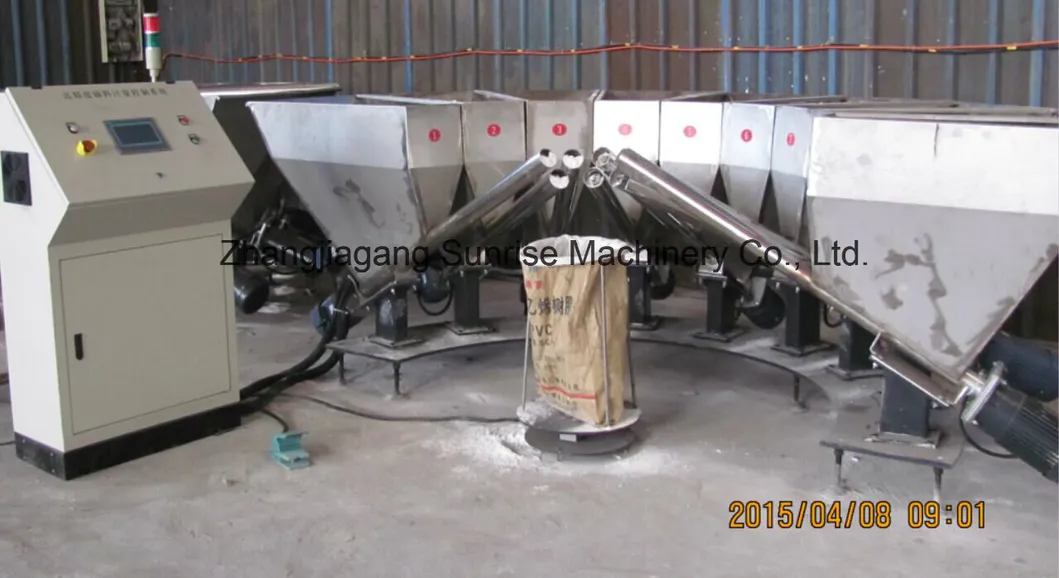

The small additive auto weighing system is developed especially for PVC pipe and profile production to replace manual weighing. It automatically weighs powder additives in PVC pipe and profile formulas (except PVC and CACO3). The operator only needs to manually weigh PVC and CACO3; for other powder additives, this auto weighing system measures the required quantity for one batch automatically. This system prevents manual weighing errors and keeps the workshop clean. It can automatically weigh 6-9 kinds of powder or granules additives.
Adopts first-class weighing sensors and advanced designs to achieve high formula accuracy.
Automatically adjusts feeding speed according to additive weight. Equipped with a high-power feeding motor for fast, stable, and accurate feeding.
The control system uses international brand Siemens products for stable and durable performance.

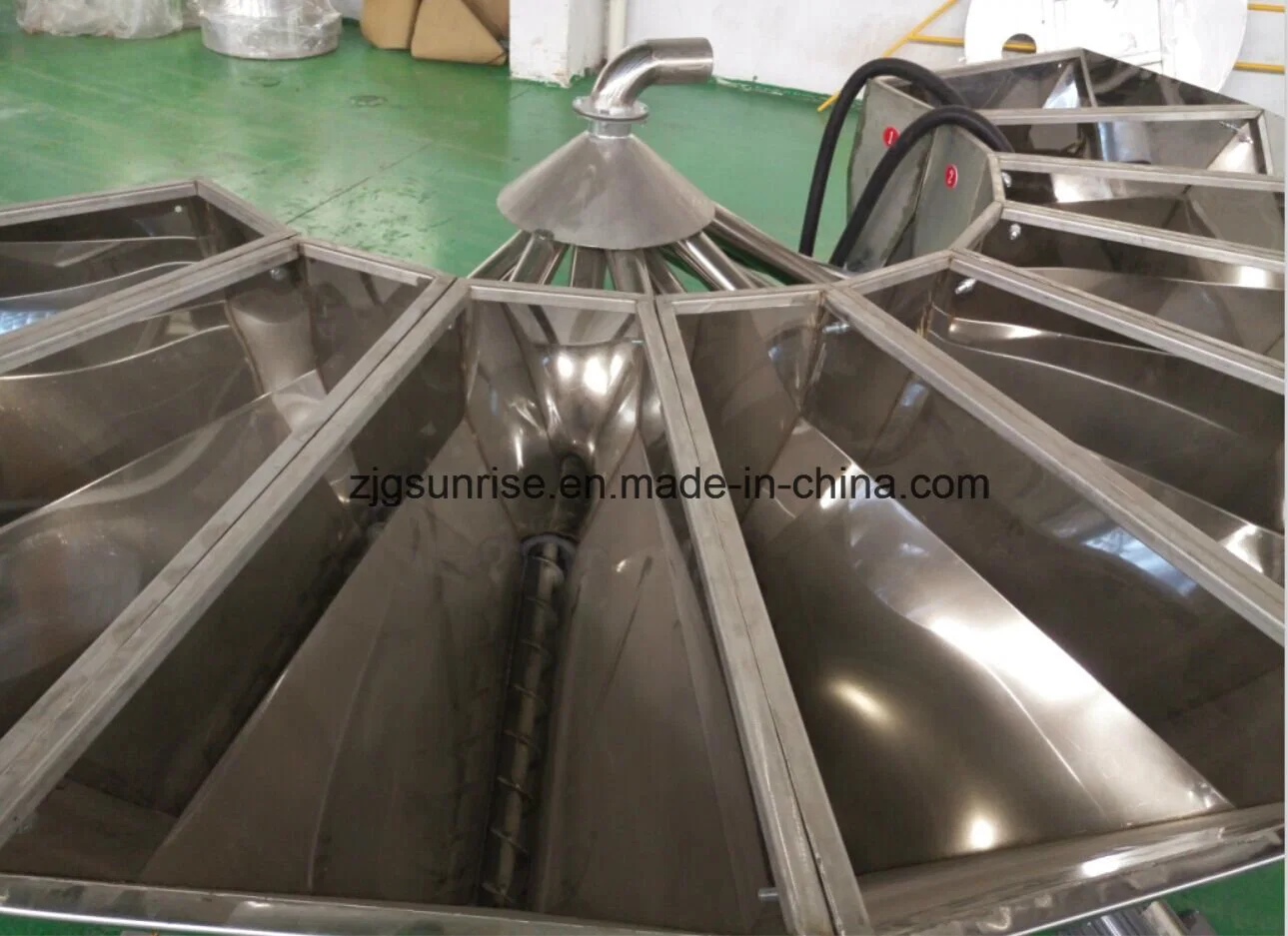

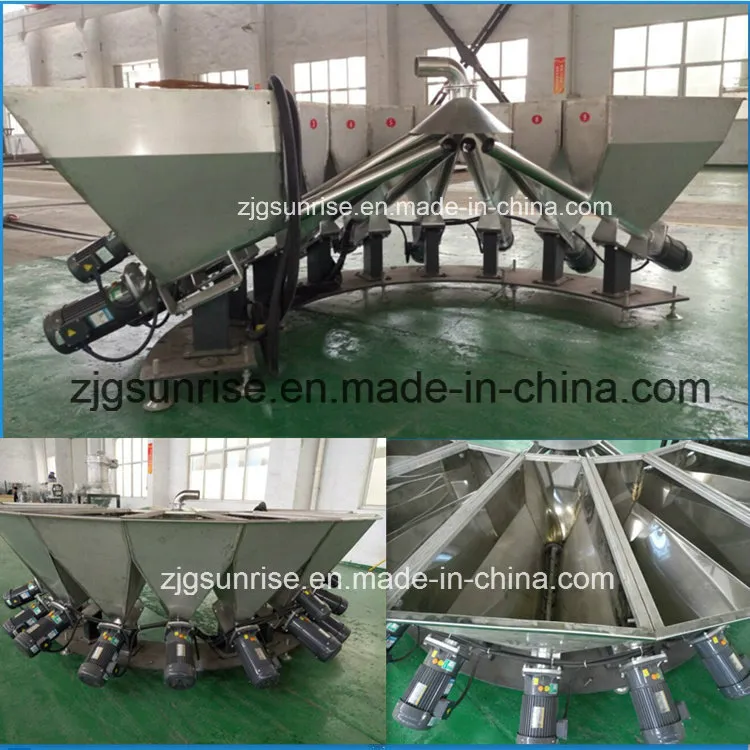

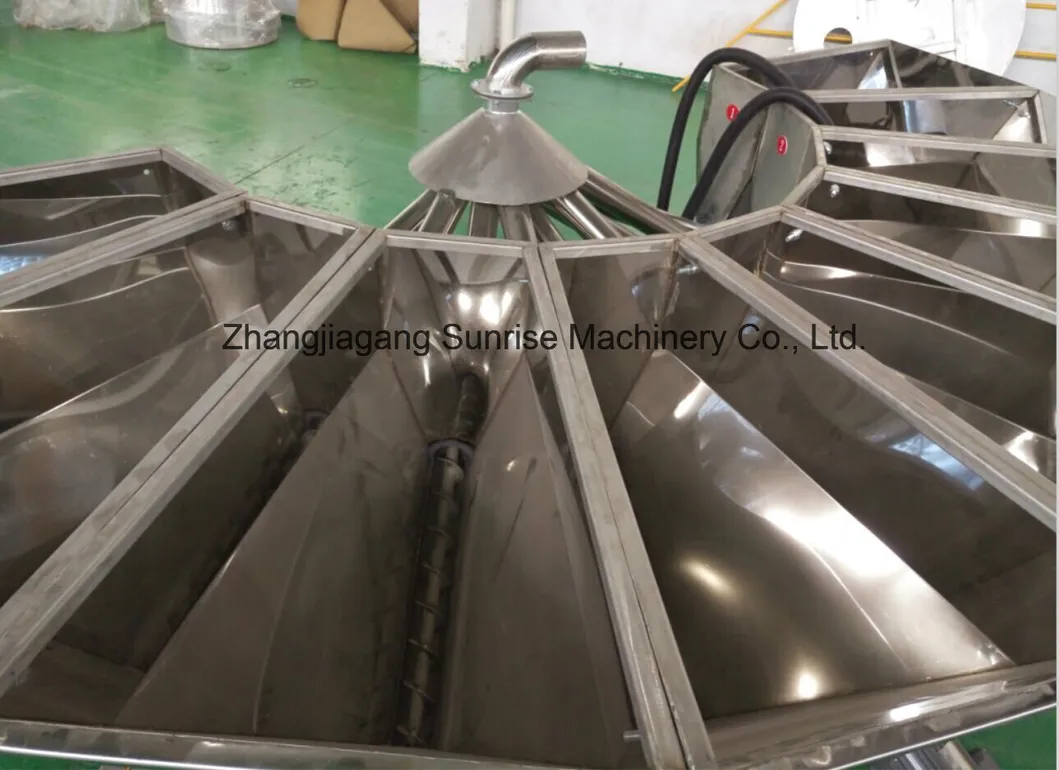

Composed of individual small silos. Pre-wired cables between silos and the control cabinet simplify system installation.

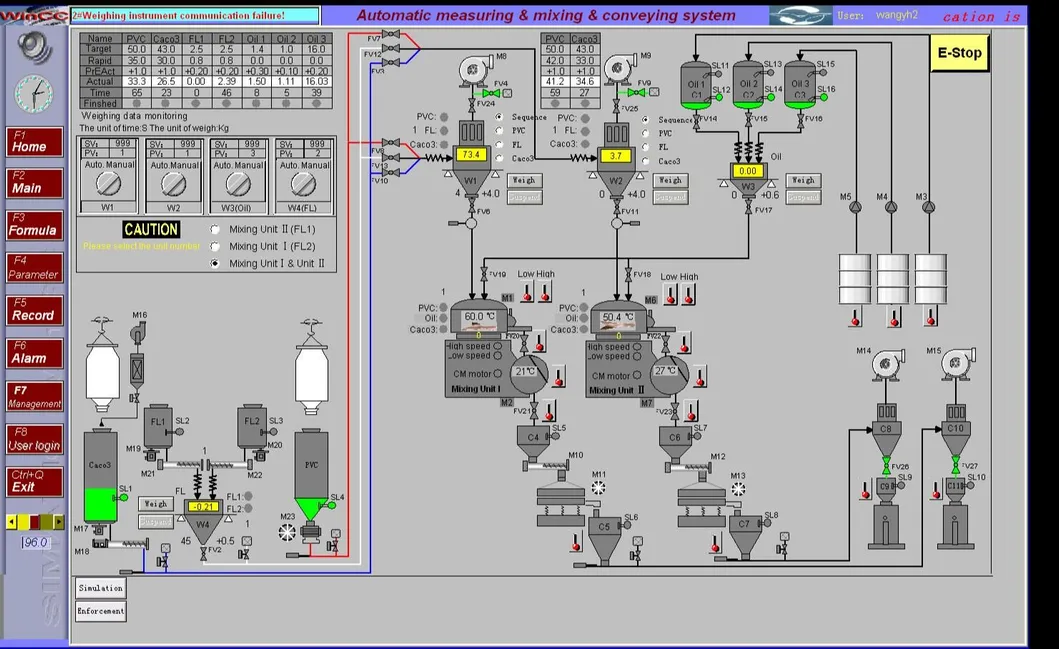

User-friendly operation interface with diagrams and symbols. Parameters can be set on the touch screen without program revision.

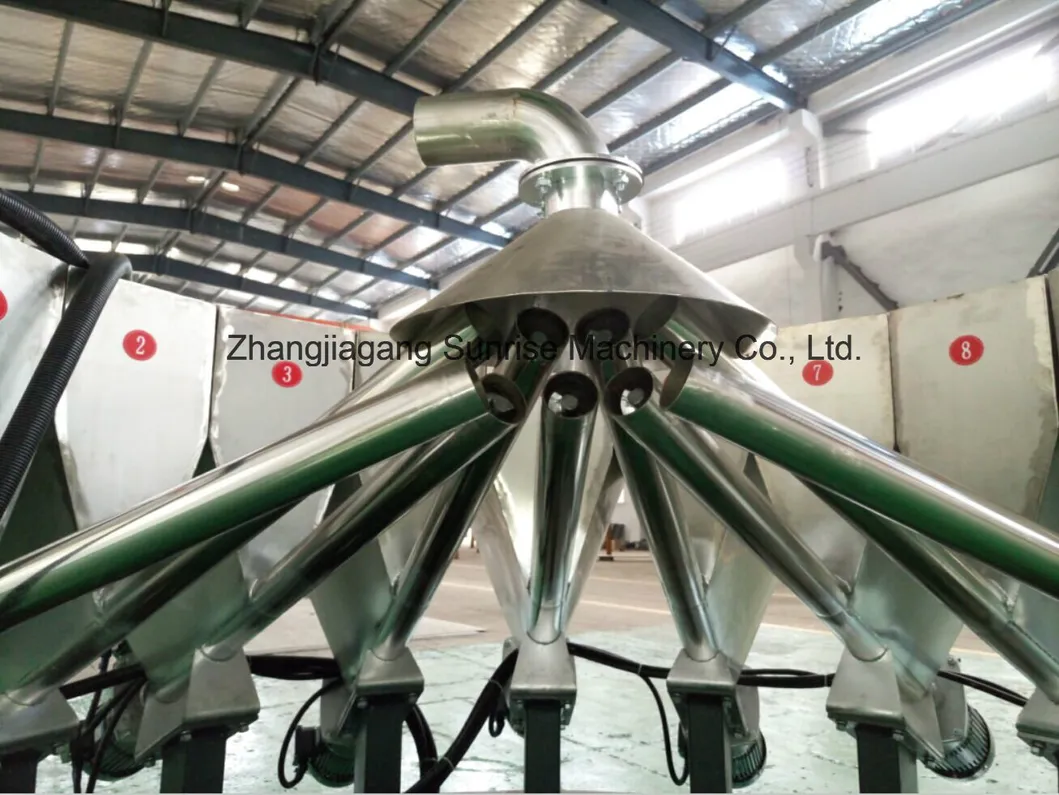

Silos are made of stainless steel. Electrical parts are from internationally recognized brands with CE or UL certificates.

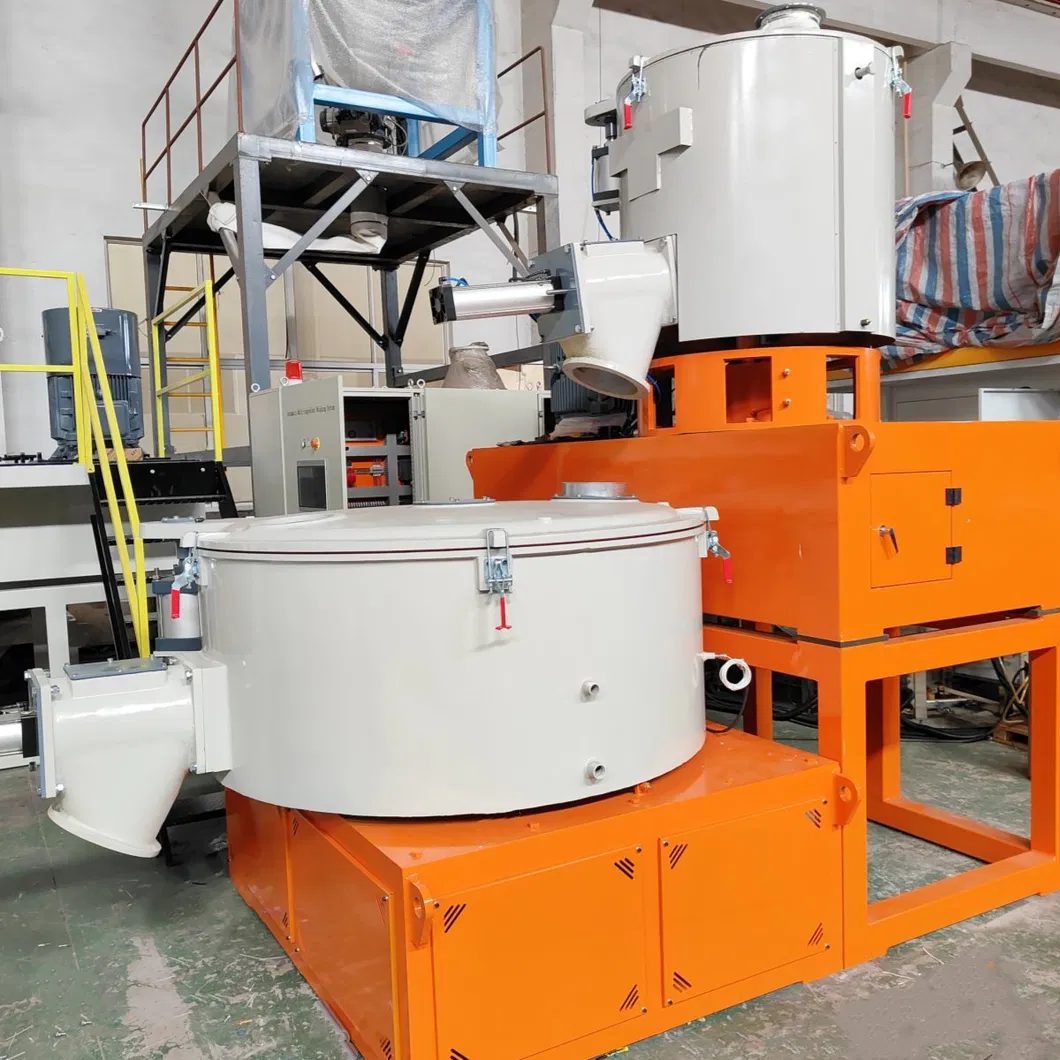

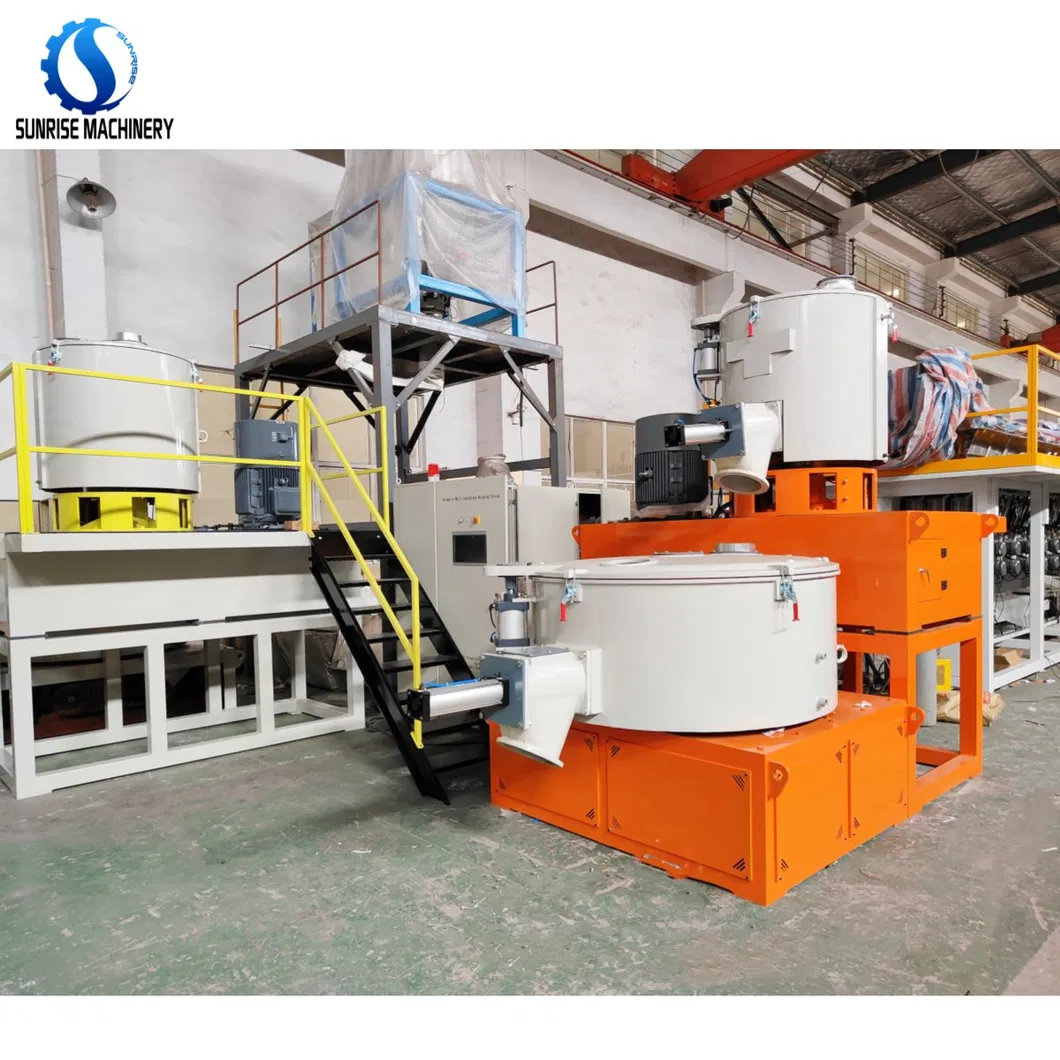

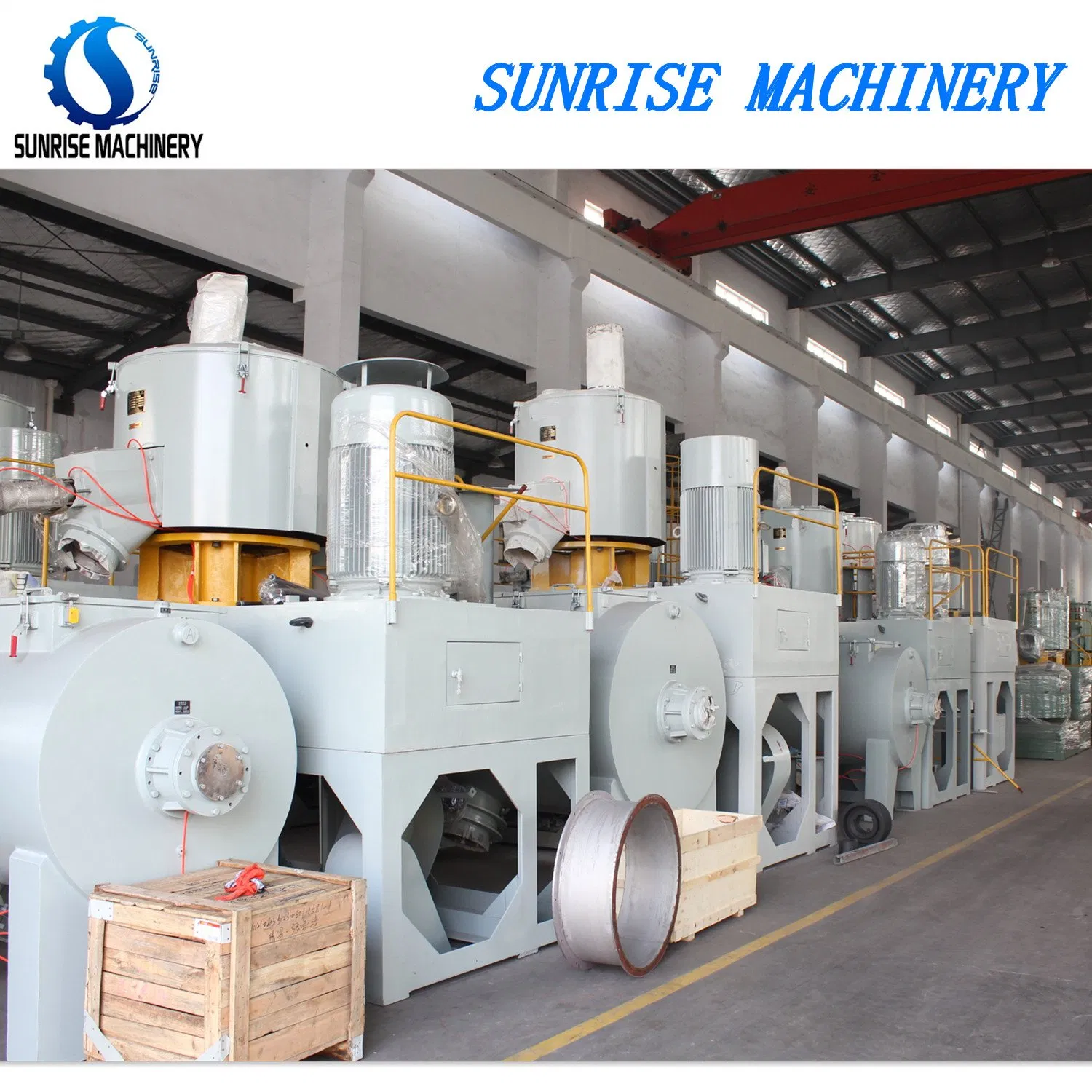

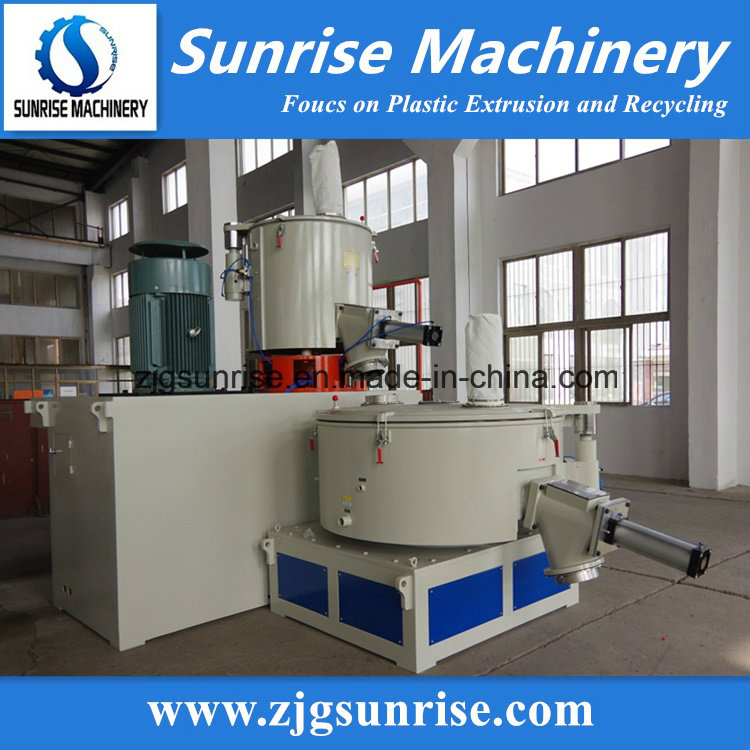

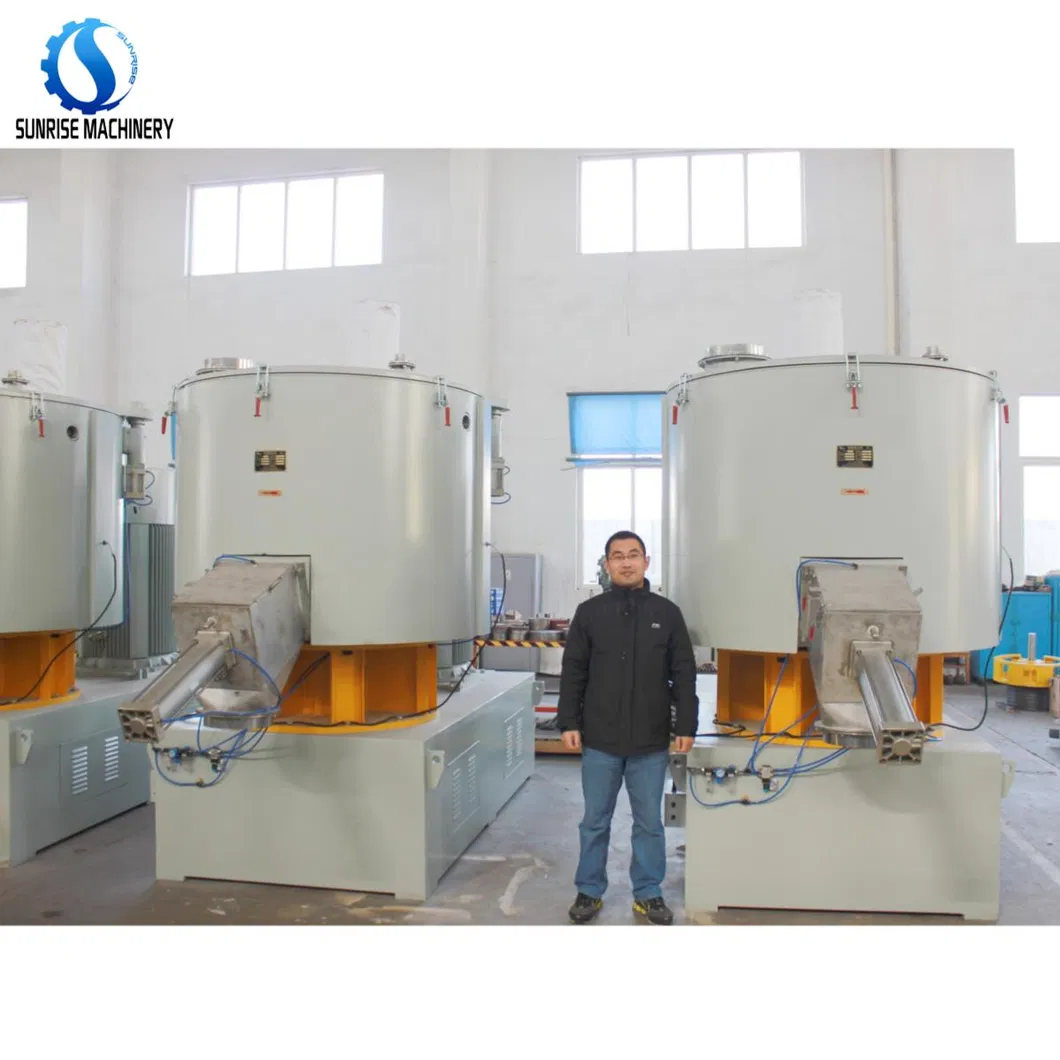

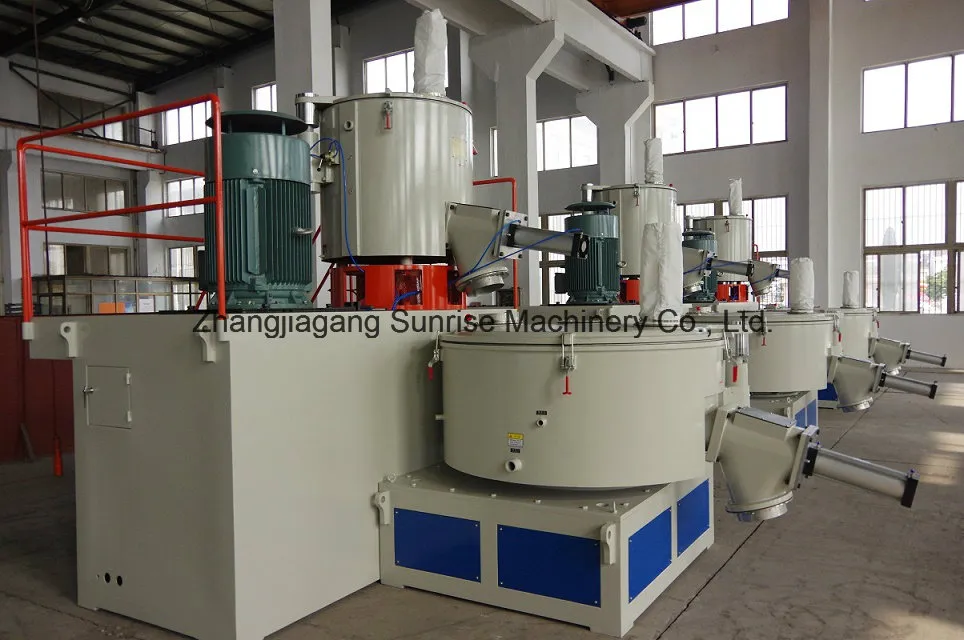

The PVC high speed mixer is designed for mixing PVC powder, CACO3, and other additives. This equipment is widely used for material preparation in PVC pipe, profile, SPC flooring, and cable production. The mixer is composed of a high-speed mixer (hot mixer), a cooling mixer, and a control cabinet.

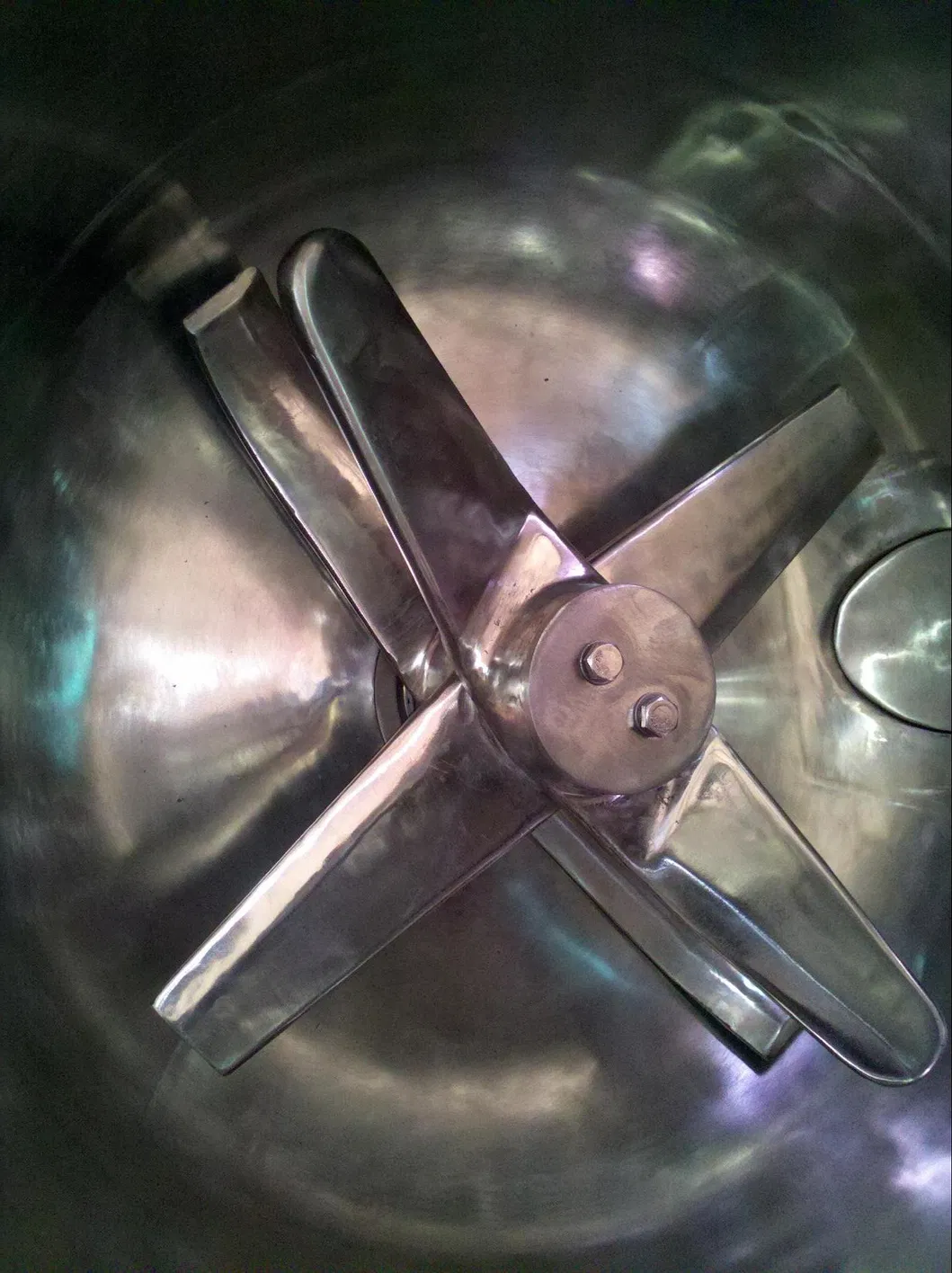

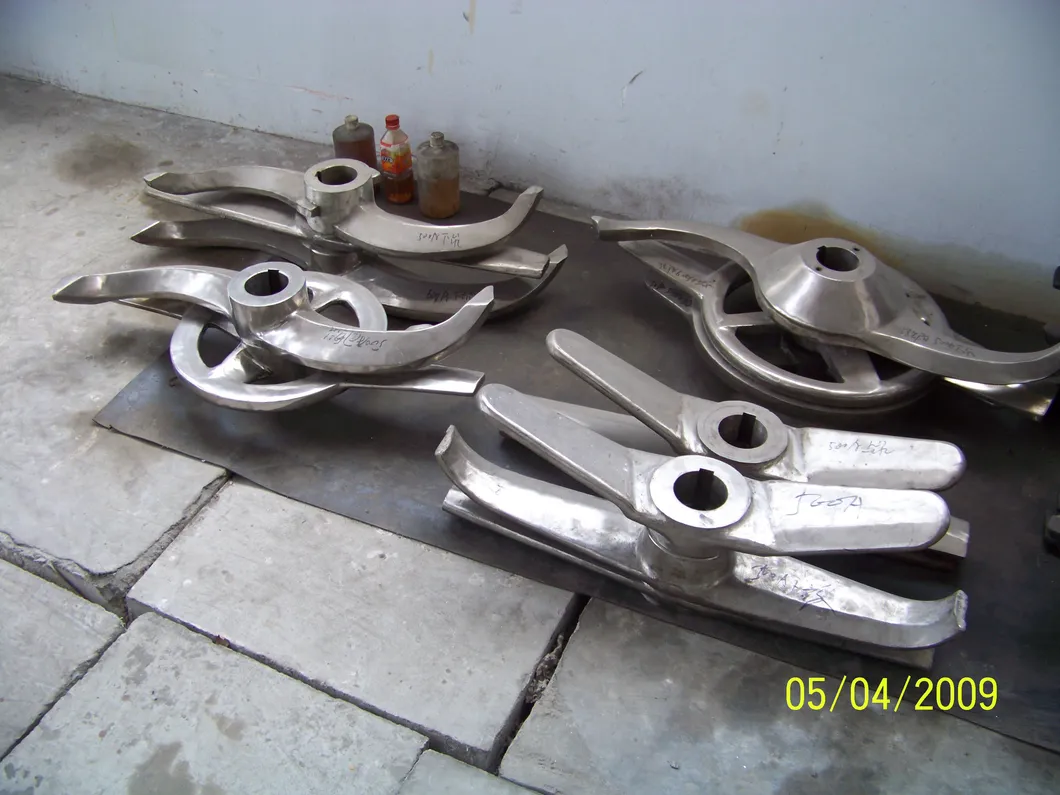

It features 6-8mm stainless steel SUS304 for the internal wall construction with fine polishing. This design guarantees long-lasting operation under high friction. The mixing blades pass static and dynamic balance testing, and the main shaft adopts fine sealing to prevent material leakage.

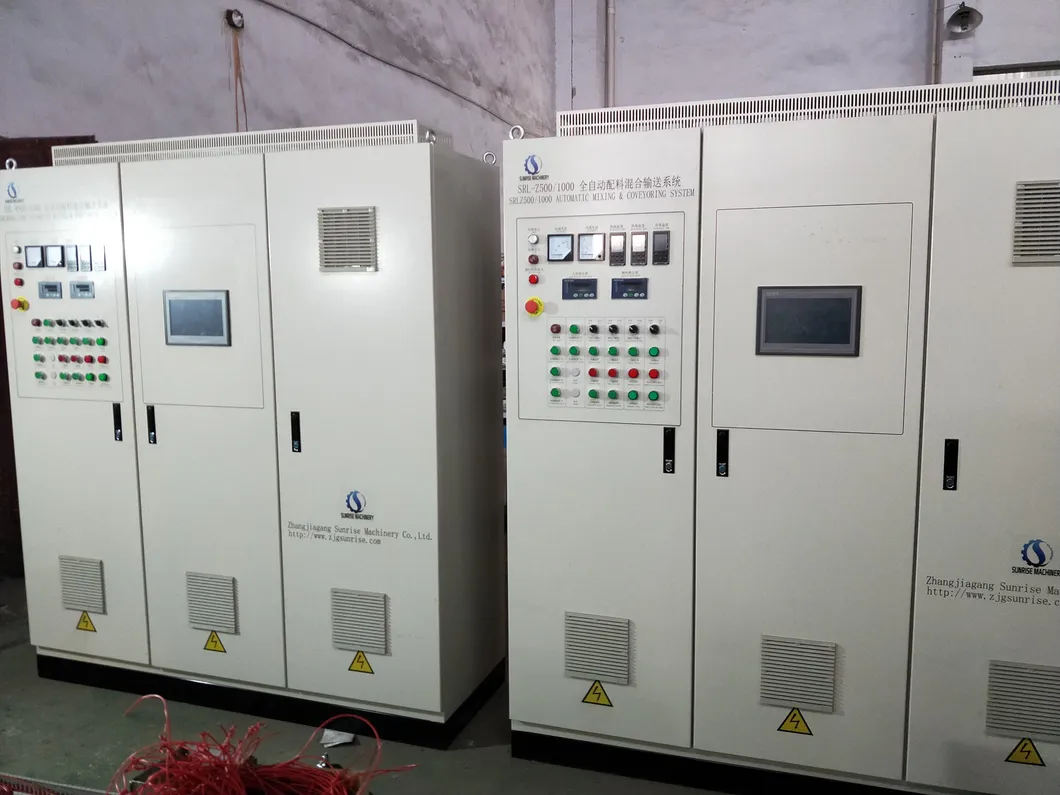

Top brand electrical components such as Siemens, ABB, and Omron are used for the control system, along with quality pneumatic elements. Siemens touch screens and PLC controls are available to meet specific requirements.

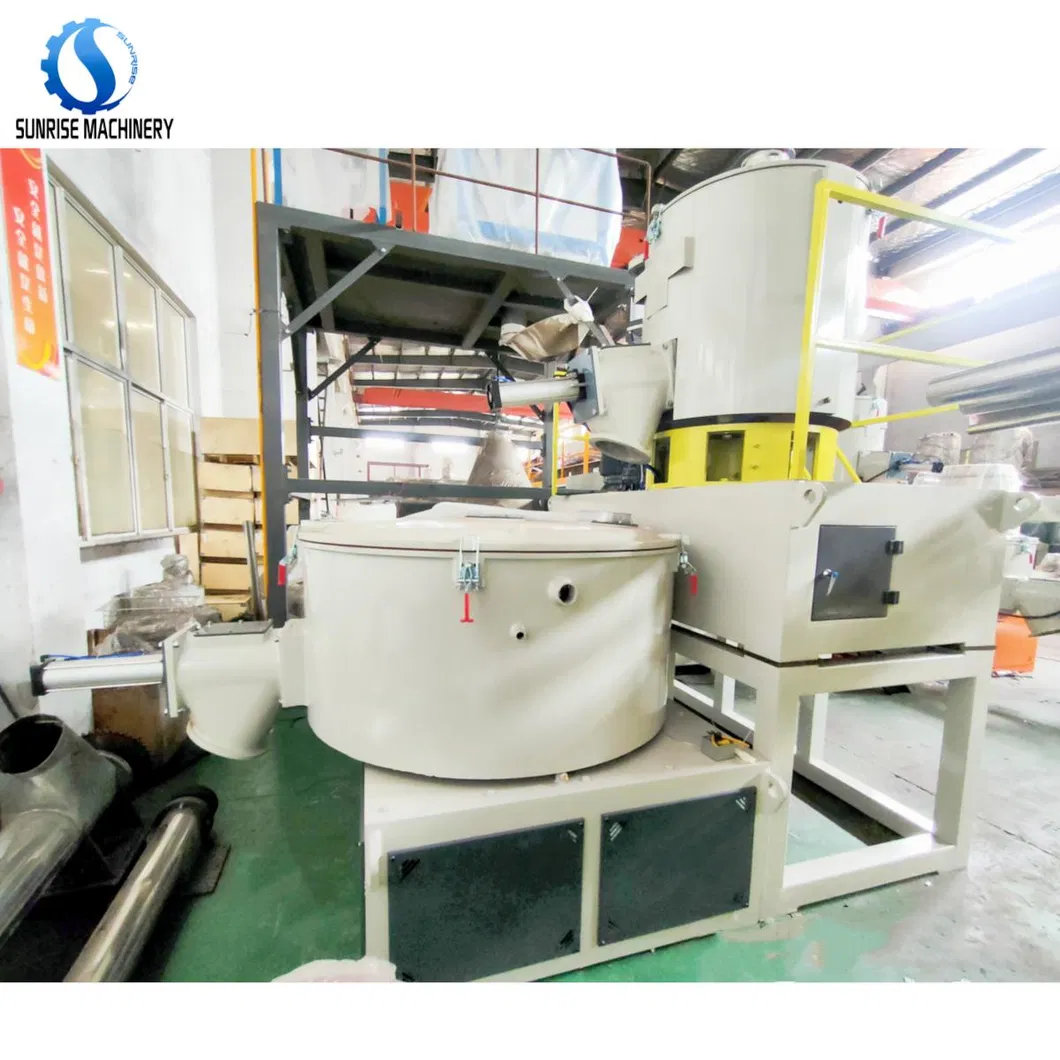

| Model | SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 | SRL-Z800/1600 |
|---|---|---|---|---|---|
| Total volume (L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
| Effective Volume (L) | 65/130 | 150/320 | 200/360 | 375/650 | 600/1024 |
| Rotating Speed (RPM) | 650/1300-180 | 475/950-87 | 475/950-87 | 430/860-60 | 357/714-50 |
| Mixing time (Min.) | 8-10 | 8-10 | 8-12 | 8-10 | 8-12 |
| Motor power (KW) | 14/22-7.5 | 30/42/11 | 40/55/11 | 55/75/15 | 83/110/22 |
| Overall dimension(mm) | 2500*2000*2200 | 4580*2240*2470 | 4800*2640*2480 | 5600*3000*3100 | 6230*4230*4480 |
| Weight(kg) | 2500 | 3600 | 4500 | 5800 | 8300 |

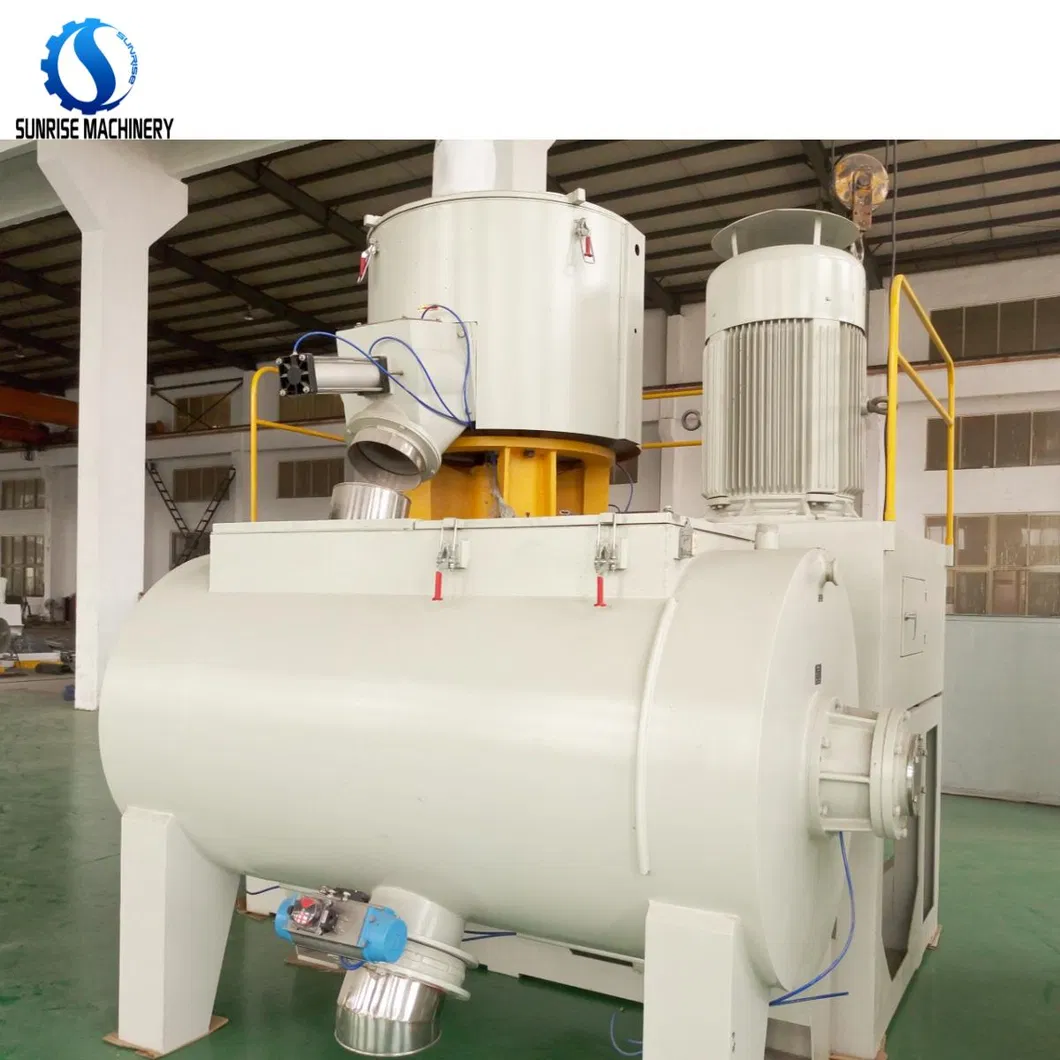

| Model | Capacity (L) | Effective Capacity (L) | Blade Rotating Speed (RPM) | Motor Power (KW) | Capacity (kg/batch) |
|---|---|---|---|---|---|
| SRL-W500/2000 | 500/2000 | 375/1200 | 430/860-80 | 55/75-18.5 | 150-170 |
| SRL-W800/2500 | 800/2500 | 560/1500 | 357/714-80 | 83/110-22 | 240-260 |
| SRL-W1000/3500 | 1000/3500 | 700/2000 | 325/650-80 | 110/160-37 | 300-330 |
| SRL-W1300/4500 | 1300/4500 | 910/2450 | 300/600-80 | 132/200-37 | 400-450 |

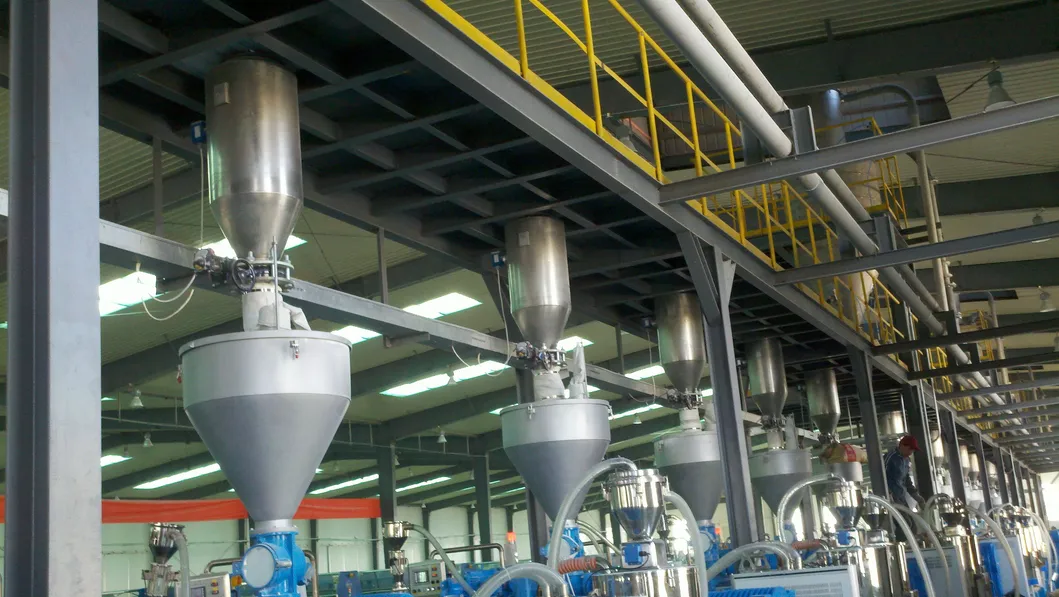

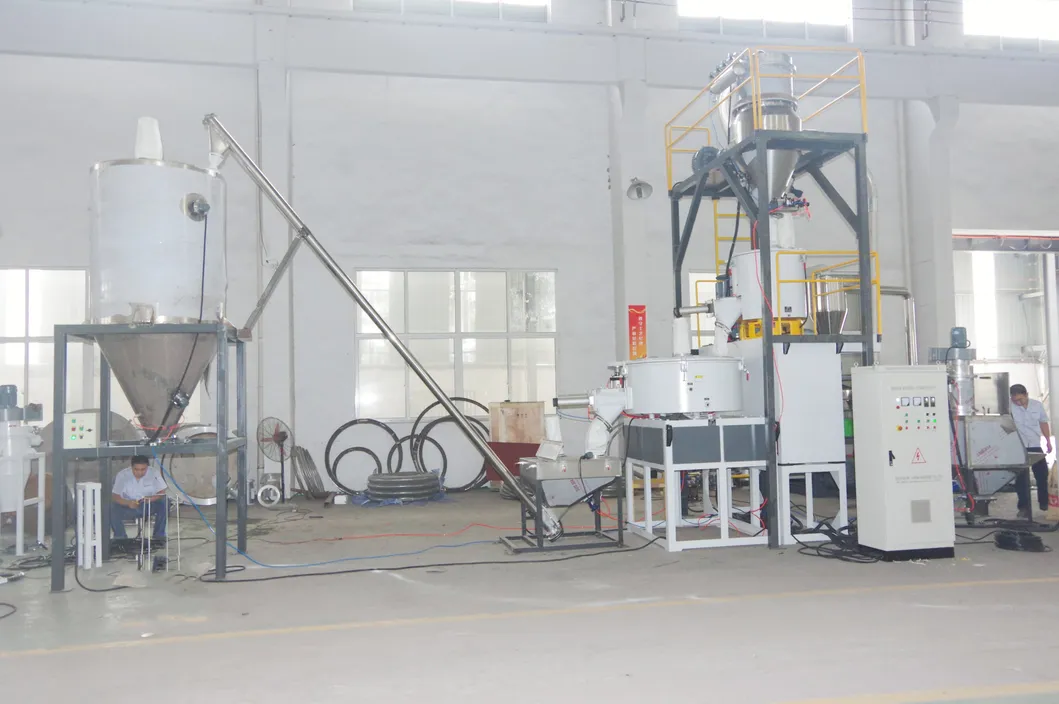

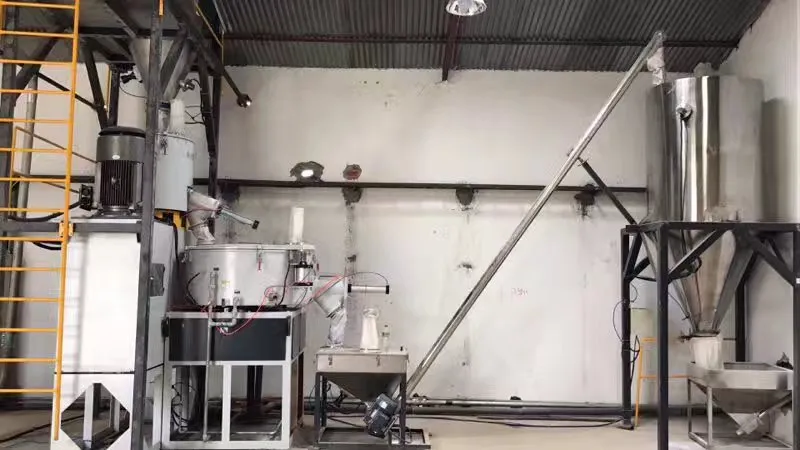

Screw feeder and vacuum feeder systems are available for your selection. The vacuum feeder saves feeding time and includes a dust filter to reduce dust in the workshop. The dryblend can be fed into the transition silo by a screw feeder.

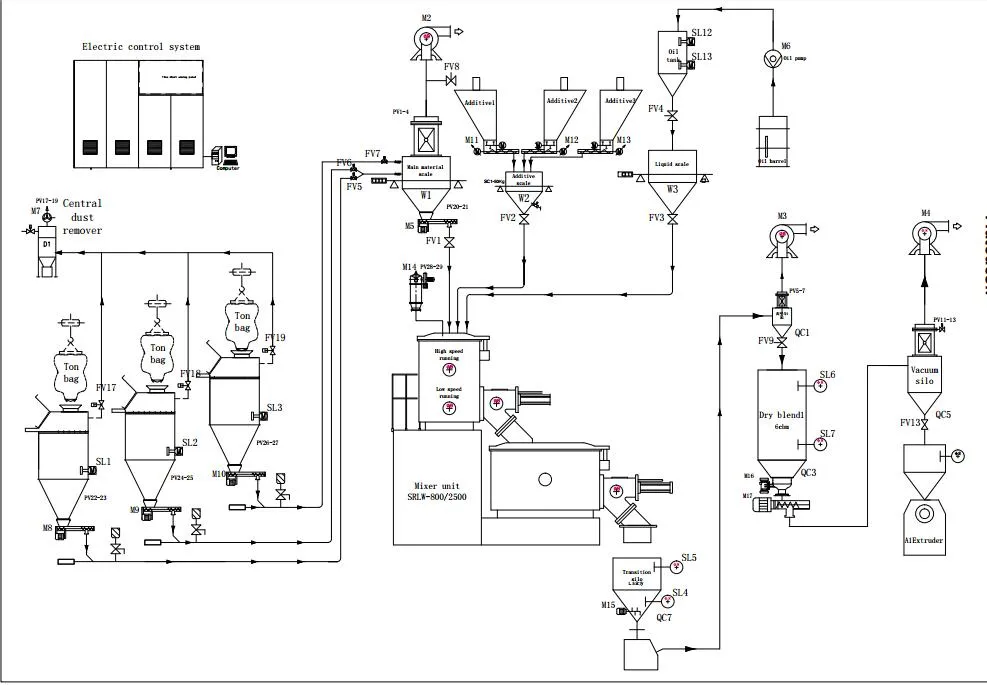

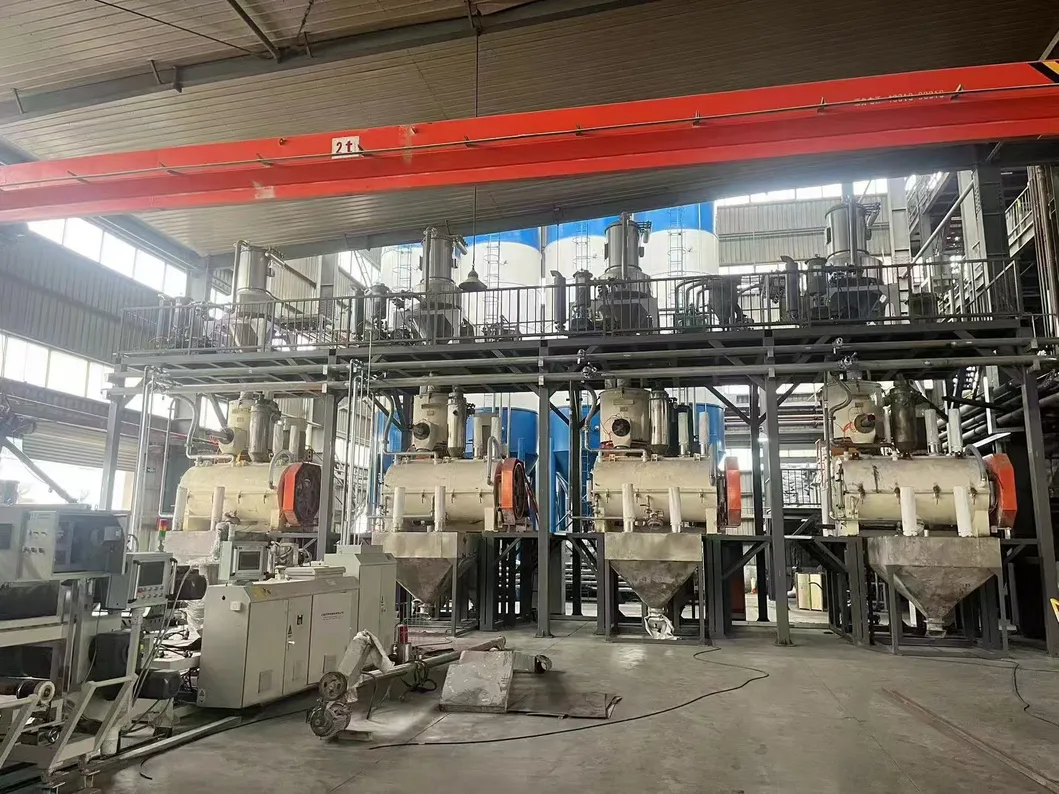

This system is designed to automatically weigh 6-10 kinds of powder or granule additives. Experience in PVC auto weighing, mixing, and conveying systems helps reduce labor, decrease manual errors, control dust, and increase overall production efficiency. The complete system can be controlled using a Siemens PLC, with options for touch screen or computer control interfaces. The system handles auto-weighing of PVC, Calcium, and other additives, followed by auto-mixing, discharging, and feeding into the extruders.
