Basic Info
| Model NO. |
Weighing |
| Automatic Grade |
Automatic |
| Application |
Cleaning, Detergent, Cosmetics, Drinks, Dairy Products, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour |
| Type |
Forming Filling Sealing Machine |
| Forming Species |
Bag Moulding |
| Forming Function |
Forming, Filling, Seal |
| Driven Type |
Electric |
| Material Type |
Grain |
| Packaging |
Bag |
| Packaging Material |
Plastic |
| Function |
Filling, Labeling, Sealing, Counting |
| Core Components |
PLC, Motor |
| Material |
Stainless Steel |
| Application Industry |
Weighing and Packaging Industry |
| Transport Package |
Standard Wooden Case |
| HS Code |
8423301010 |
| Production Capacity |
200 Sets Per Month |
Packaging & Delivery
| Package Size |
1580.00cm * 1490.00cm * 1560.00cm |
| Package Gross Weight |
600.000kg |

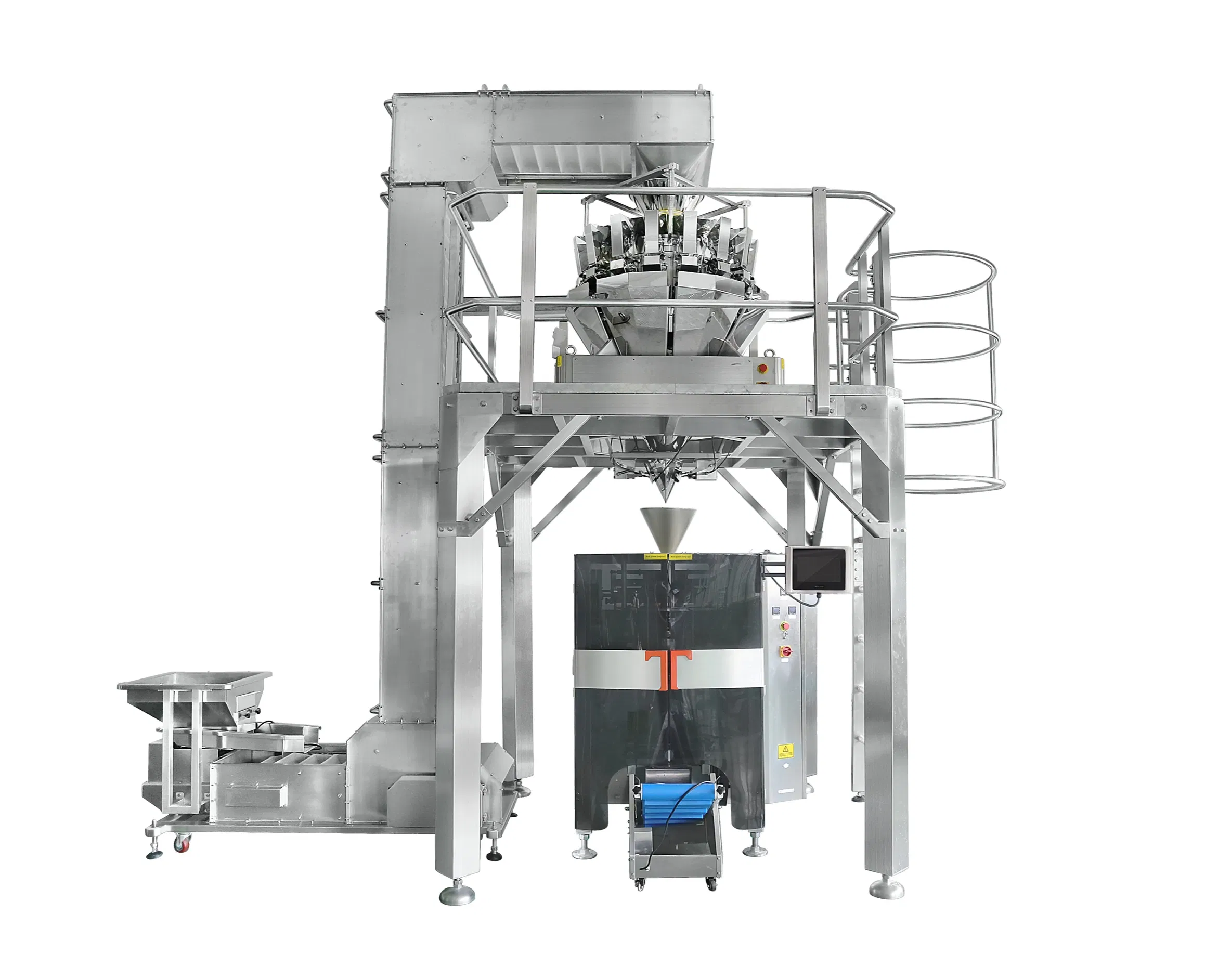

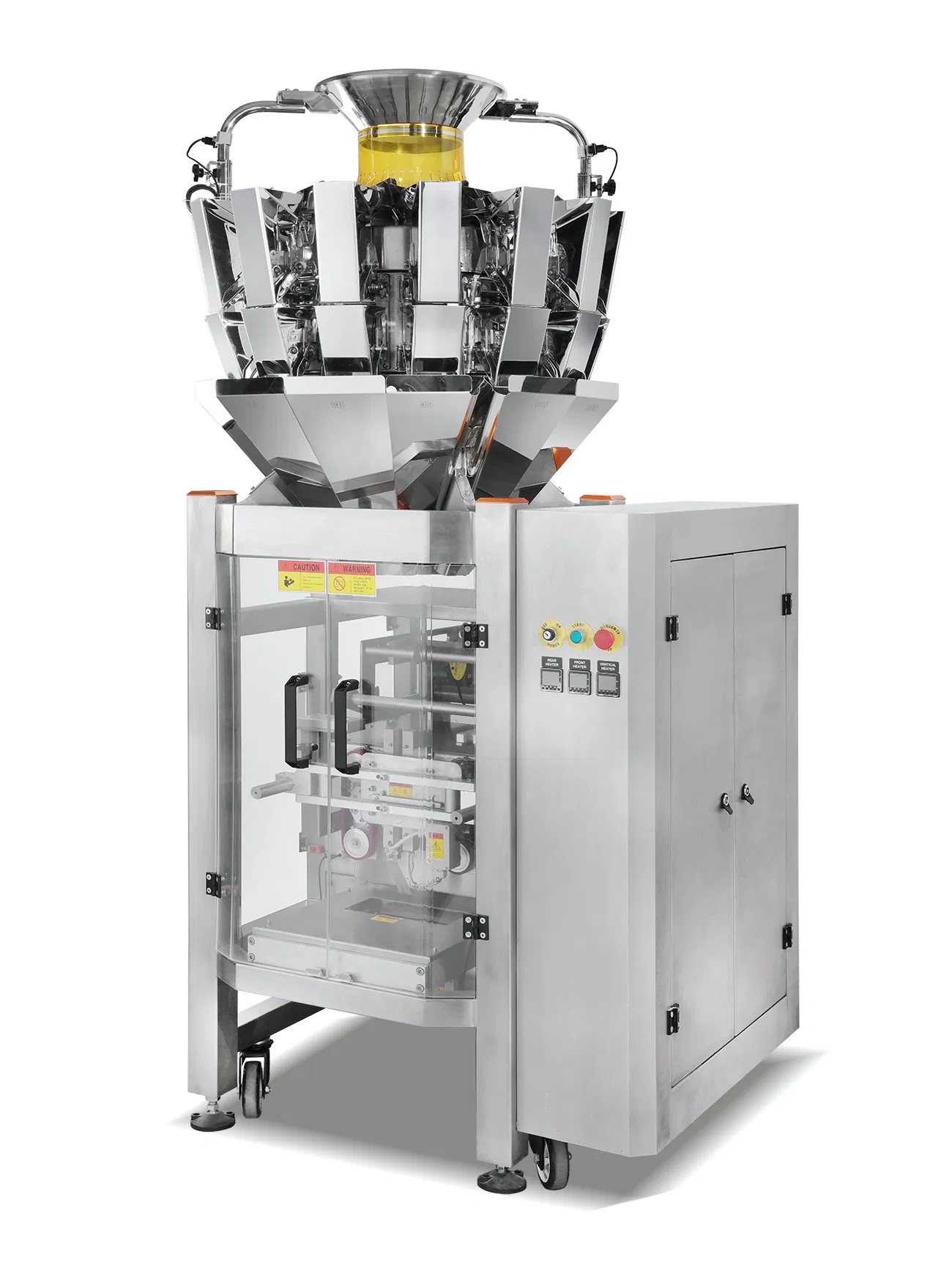

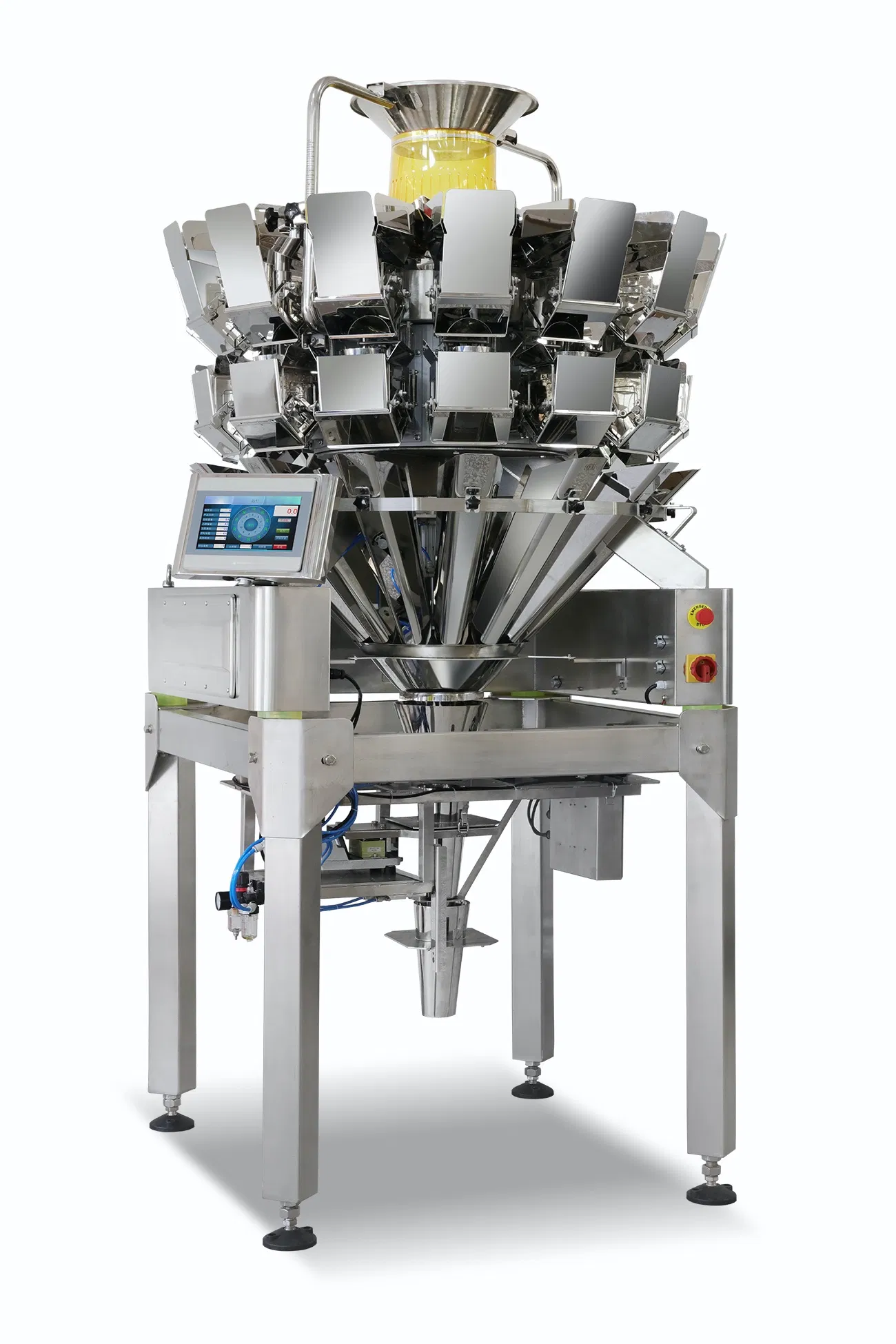

Product Description

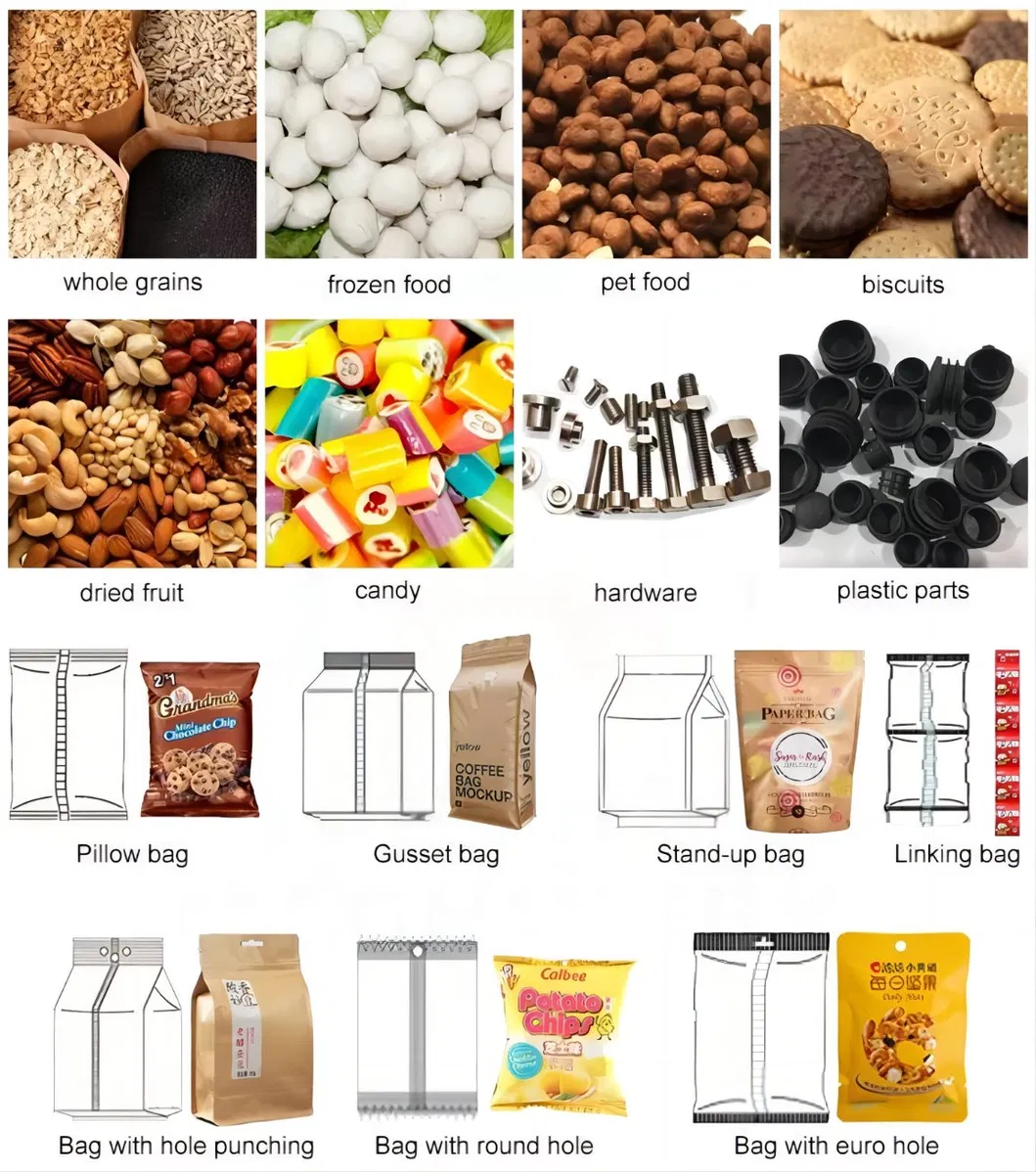

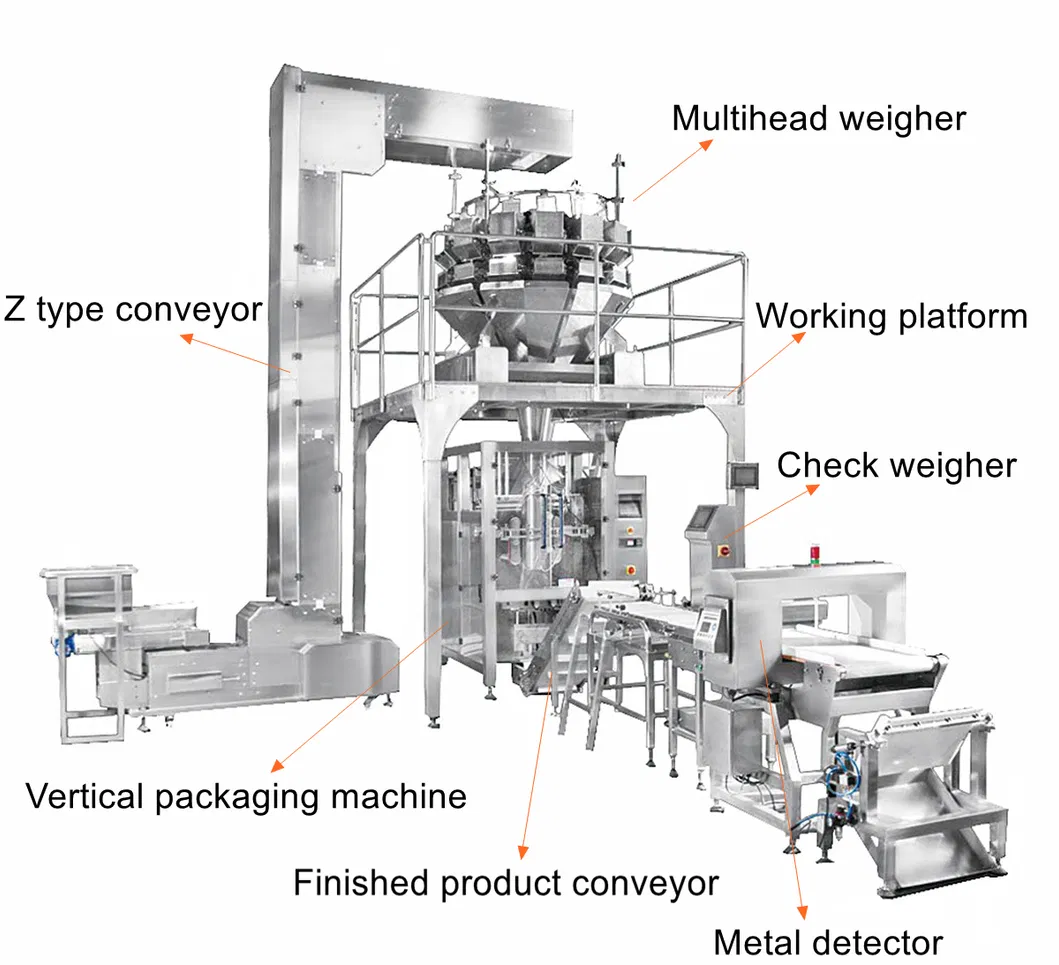

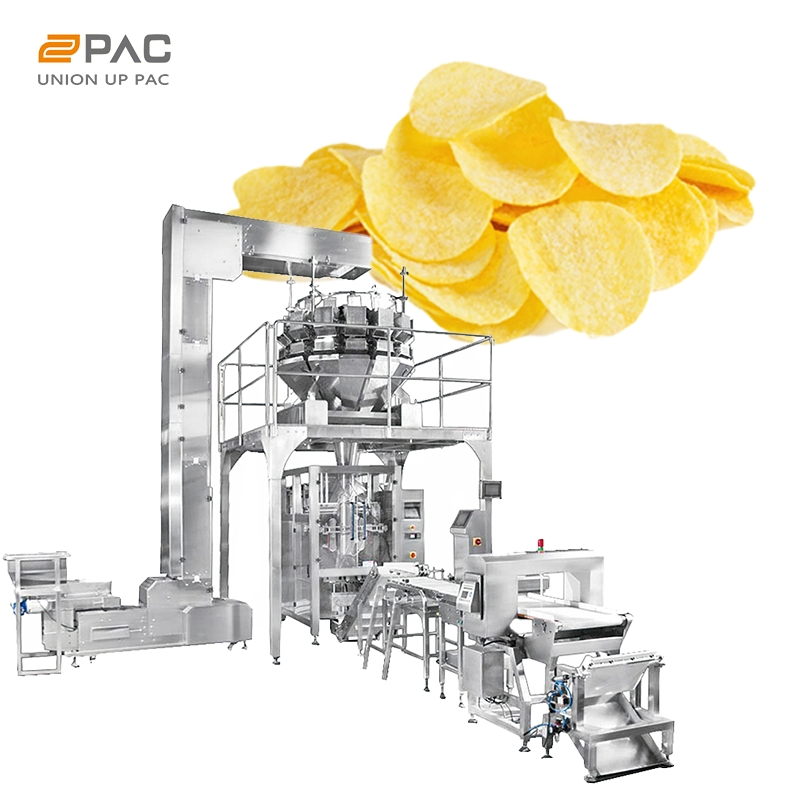

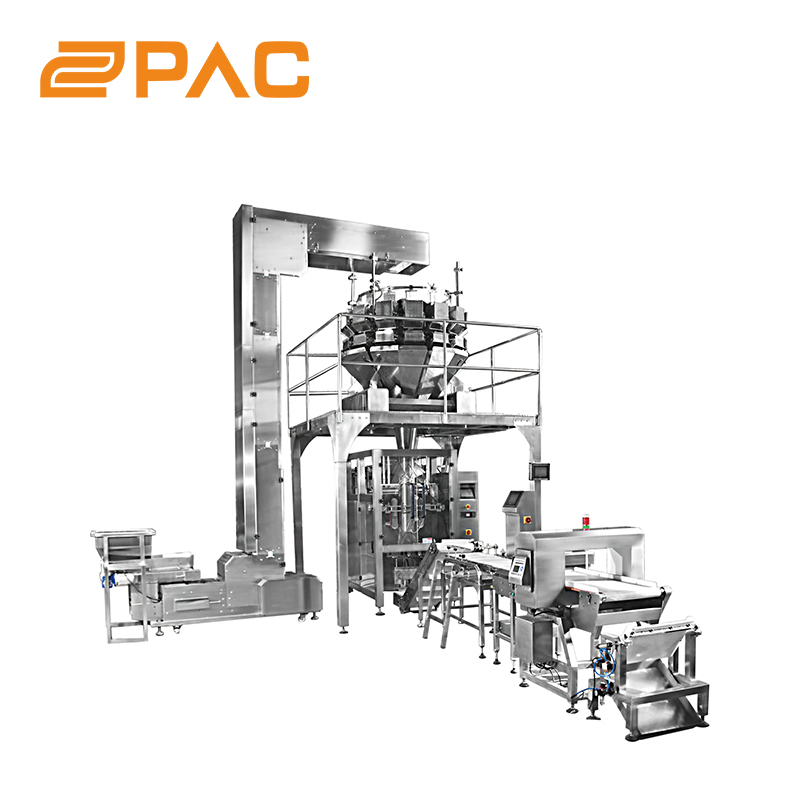

It is suitable for weighing granule, slice, roll or irregular shape products such as candy, seed, jelly, fries, coffee granule, peanut, puffy food, biscuit, chocolate, nut, pet food, frozen feeds, etc. It is also suitable for weighing small hardware and plastic components.
Key Features
- Fully automatic finishing whole process of feeding, weighing, filling bag, date printing, finished product output.
- High accuracy and high speed.
- Applicable to a wide range of materials.
- Applicable to the customer who without special requirements of packaging and material is widely used.
Product Parameters
| Model of Packing Machines |
320VFFS |
420VFFS |
520VFFS |
620VFFS |
720VFFS |
| Packing Speed |
10-80p/M |
10-70p/M |
10-60p/M |
10-50p/M |
10-45p/M |
| Bag Size |
50-200mm(L)*60-150mm(W) |
60-300mm(L)*60-200mm(W) |
50-350mm(L)*50-250mm(W) |
20-400mm(L)*100-300mm(W) |
20-450mm(L)*140-350mm(W) |
| Film Width |
140-320mm |
140-420mm |
120-520mm |
620mm |
720mm |
| Bag Type |

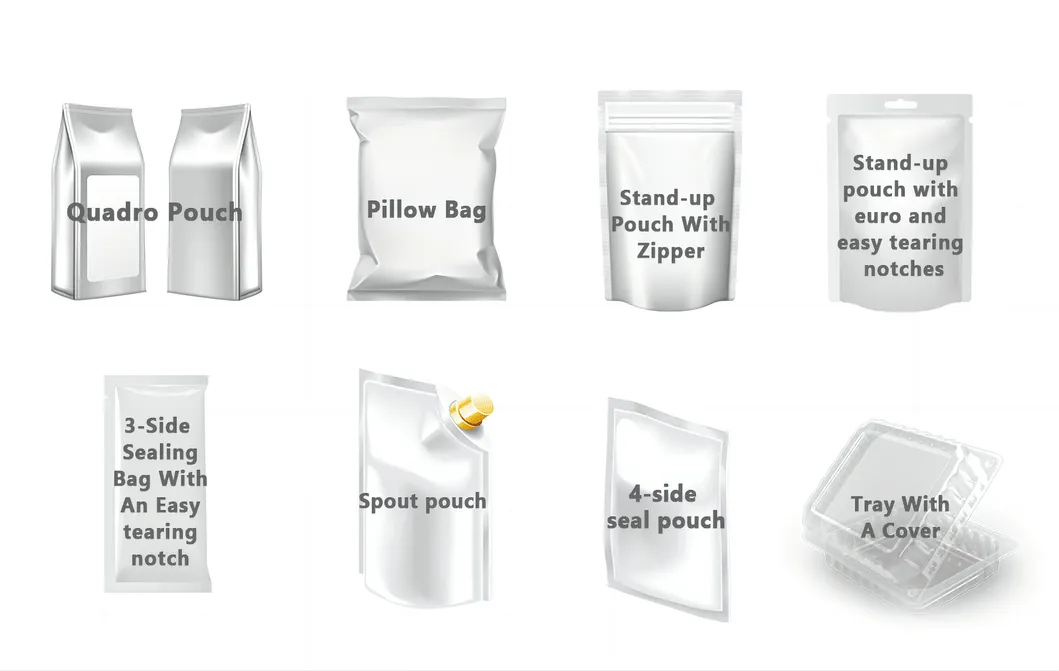

Pillow bag, gusset bag, hole punching bag, vacuum bag, quad seal bag |
| Film Thickness |
0.04-0.09mm |
0.04-0.09mm |
0.04-0.09mm |
0.04-0.09mm |
0.06-0.12mm |
| Film Material |
BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET, PET/PE |
| Pulling Belt Type |
Single/dual belt |
Single/dual belt |
Synchronous belt film pulling |
Synchronous servo motor belt film pulling |
Synchronous servo motor belt film pulling |
| Air Consumption |
0.8Mpa 0.25m³/min |
0.8Mpa 0.5m³/min |
0.7Mpa 0.4m³/min |
0.7Mpa 0.5m³/min |
0.7Mpa 0.65m³/min |
| Power Supply |
Single phase 220V 50/60Hz, 2.2kw |
Single phase 220V 50/60Hz, 2.2kw |
Single phase 220V 50/60Hz, 3.4kw |
Single phase 220V 50/60Hz, 4.0kw |
Single phase 220V 50/60Hz, 4.5kw |
| Machine Dimension |
1115*800*1370mm |
1530*970*1600mm |
1560*1160*1530mm |
1250*1600*1700mm |
1360*1630*1900mm |
| Machine Weight |
300kg |
450kg |
480kg |
800kg |
900kg |

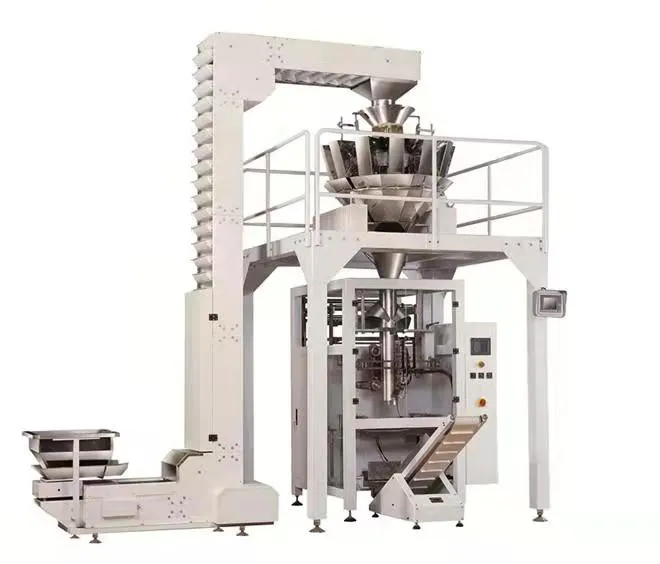

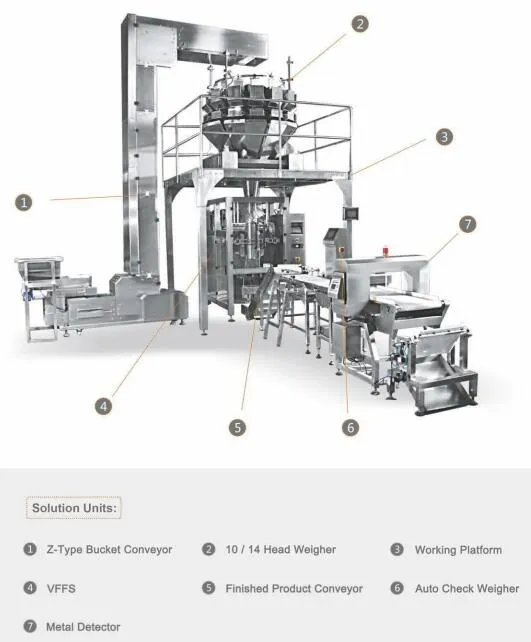

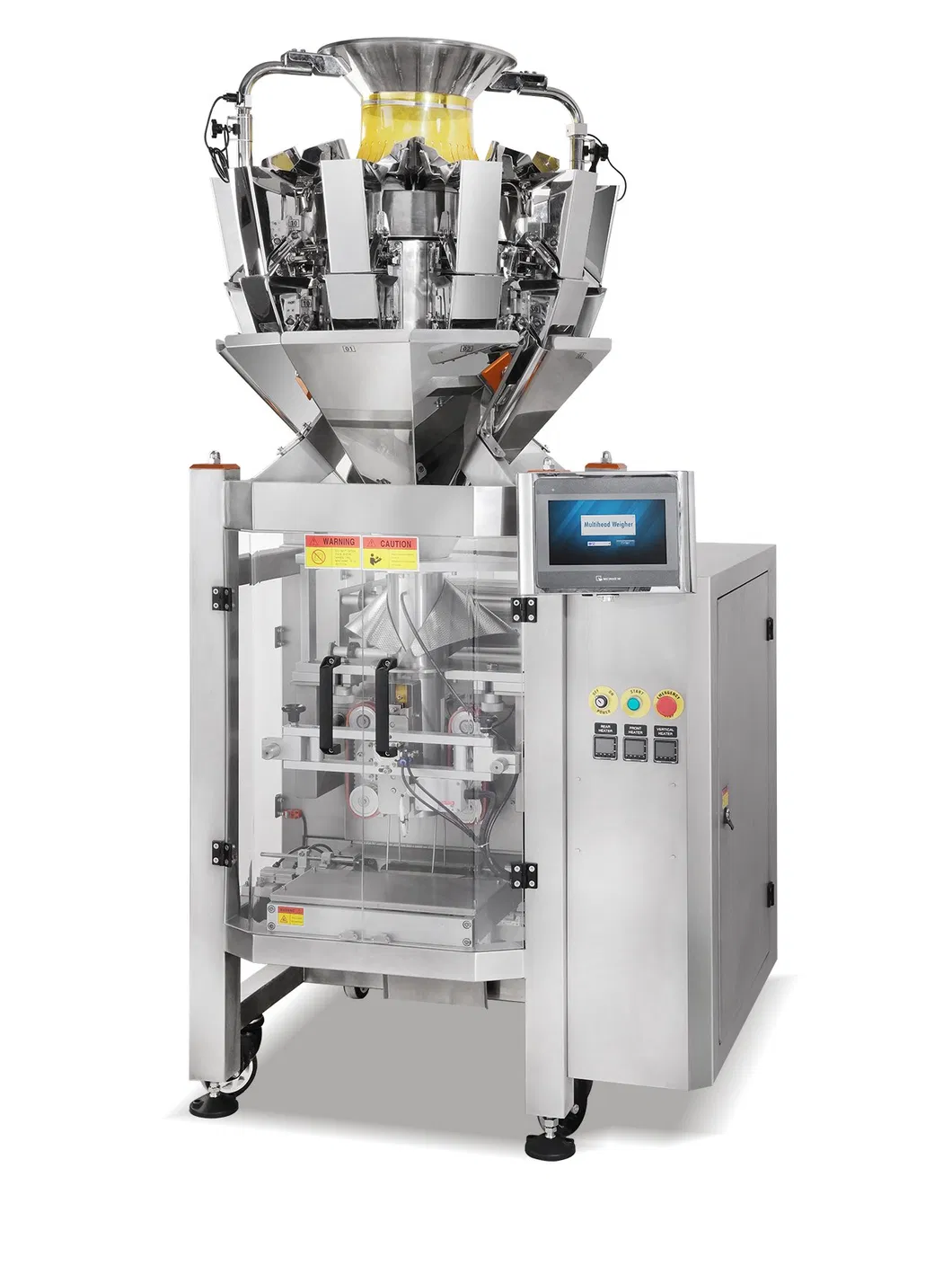

Compatible Systems
Frequently Asked Questions
How are the machines designed for installation?
Our machines are designed to be easy to install, and an installation video is also available to guide you through the setup process.
Can you arrange engineers for overseas installation?
Yes. If needed, we can arrange professional engineers to provide installation and support services overseas, provided that the buyers bear the related travel and service costs.
Do you have aftersales service for this machine?
We have an experienced after-sales team ready to solve problems for our buyers. Buyers can describe the problems to us by email or telephone. In some cases, we will need you to provide images and videos of the issue for our engineers' reference. We will work with you to find the most effective solution in the shortest possible time. If necessary, we can arrange for an engineer to visit the buyer's factory to resolve the issue as soon as possible.
How about your warranty?
We offer a one-year warranty and life-long maintenance support. During the first year, if any parts break due to non-human factors (excluding parts in the 1% free spare parts list), we will supply the new replacement parts free of charge.
Do you provide OEM services?
Yes, OEM service is available. Our design team can help turn your private specifications and requirements into reality. We will protect your sales area, design ideas, and all associated private information.
