Product Description
Both semi-automatic dosing systems and fully automatic dosing systems are available to work with the heating mixer for quick and precise preparation of raw materials. These automatic dosing systems serve as essential upstream auxiliary equipment for PVC mixers.

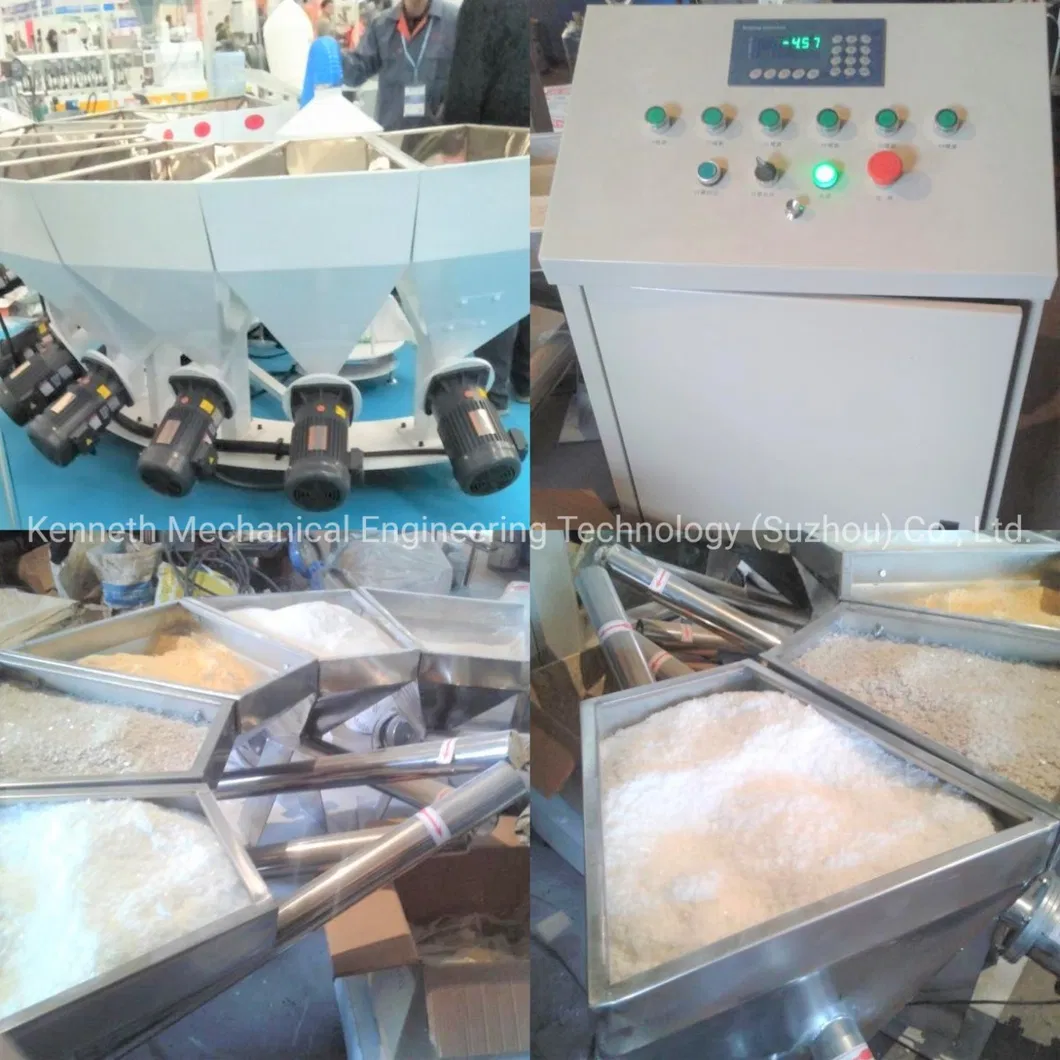

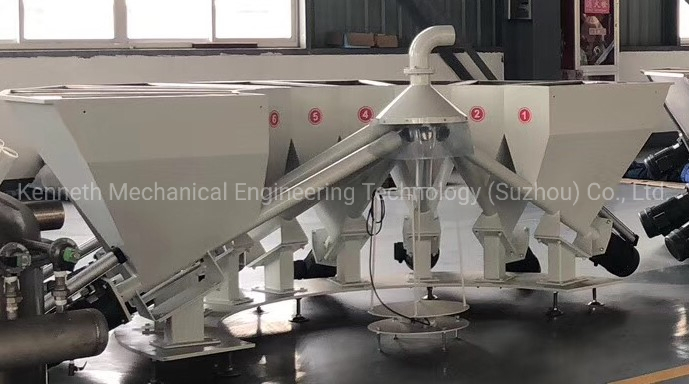

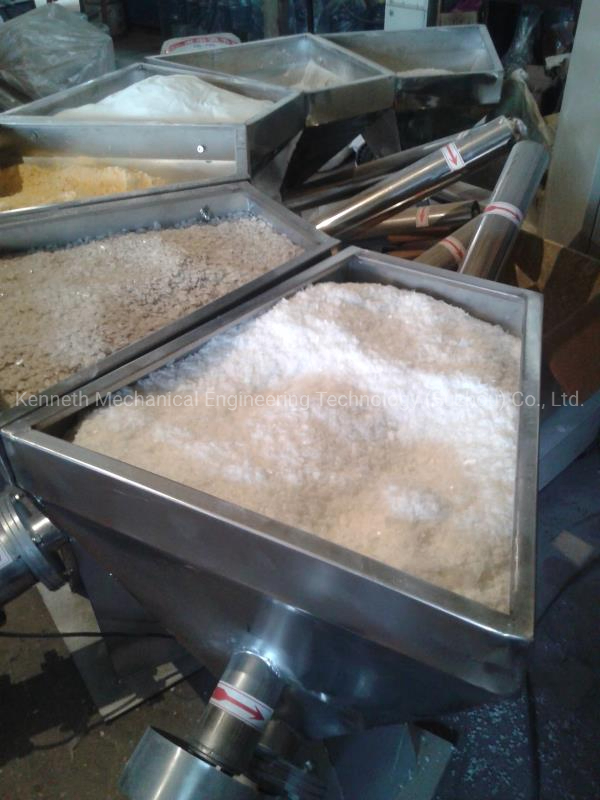

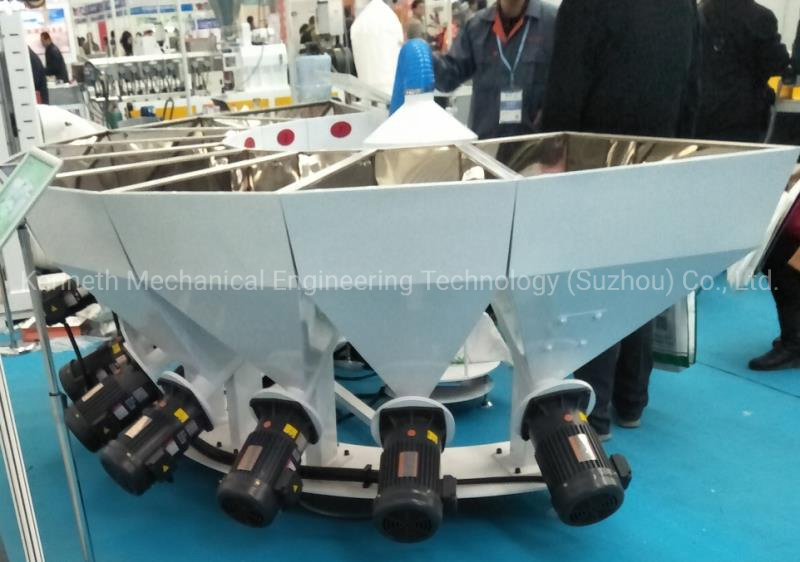

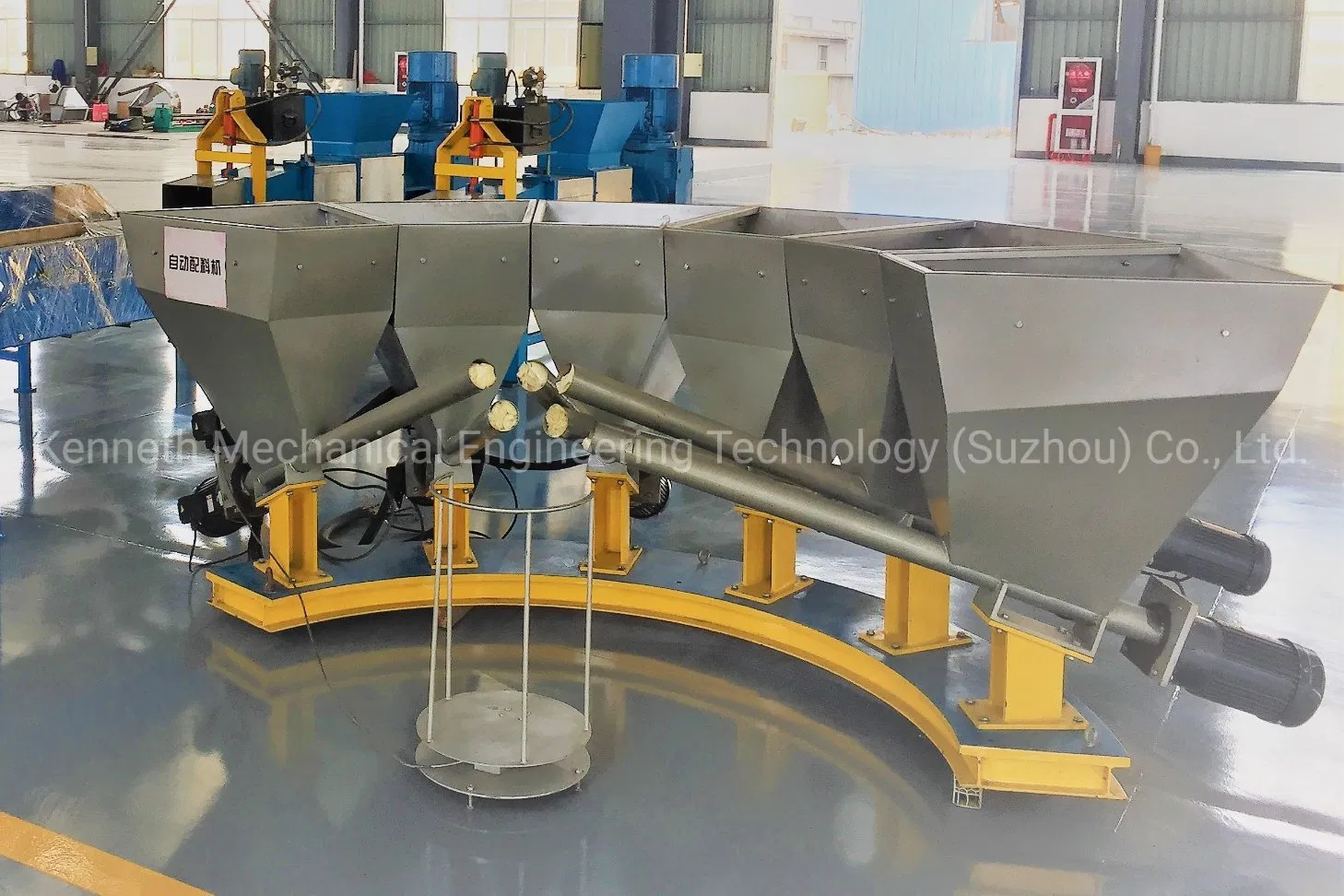

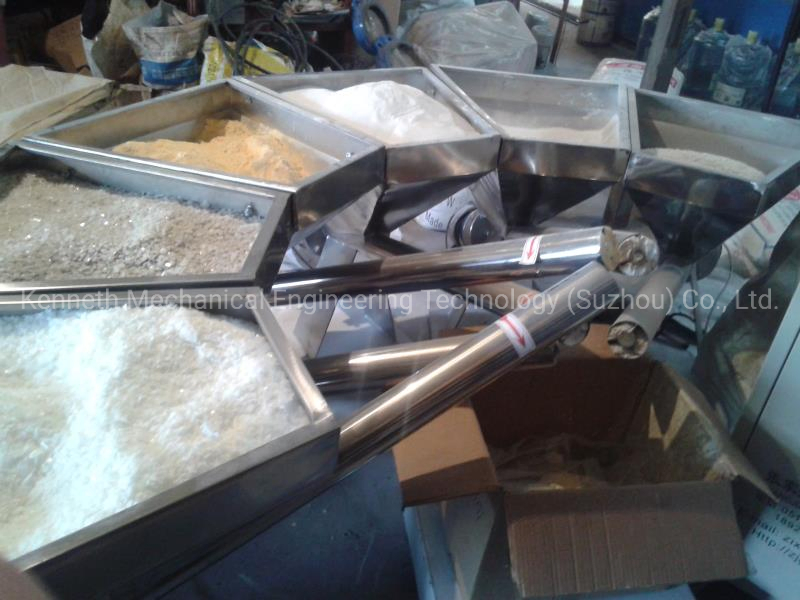

Automatic Additive Doser: This automatic dosing equipment is specially designed for weighing solid additive ingredients requested by the PVC formula. The solids can be powders, granules, or crushed chips from recycling. Each solid additive corresponds to one stainless steel bin equipped with an individual screw feeder. Inverter-controlled screw feeders feed each additive onto the scale one by one according to the formula. The entire automatic dosing cycle takes only several minutes with an accuracy within 0.3%. The dosed batch of additives is then fed into the mixer along with the PVC resin and high-proportion calcium carbonate filler for the mixing process.
Frequently Asked Questions
What types of materials can the Automatic Additive Doser handle?
The system is designed to handle solid additive ingredients, including powders, granules, and crushed chips from recycling materials.
What is the weighing accuracy of the dosing system?
The system offers high-accuracy automatic weighing within a margin of 0.3%, ensuring precise adherence to your specific formula.
What are the specifications of the dumping bin?
The dumping bin is made of durable SS304 stainless steel with a thickness of 2mm. It has a standard capacity of 120 to 160 liters, and customized sizes are available upon request.
What control components are integrated into the system?

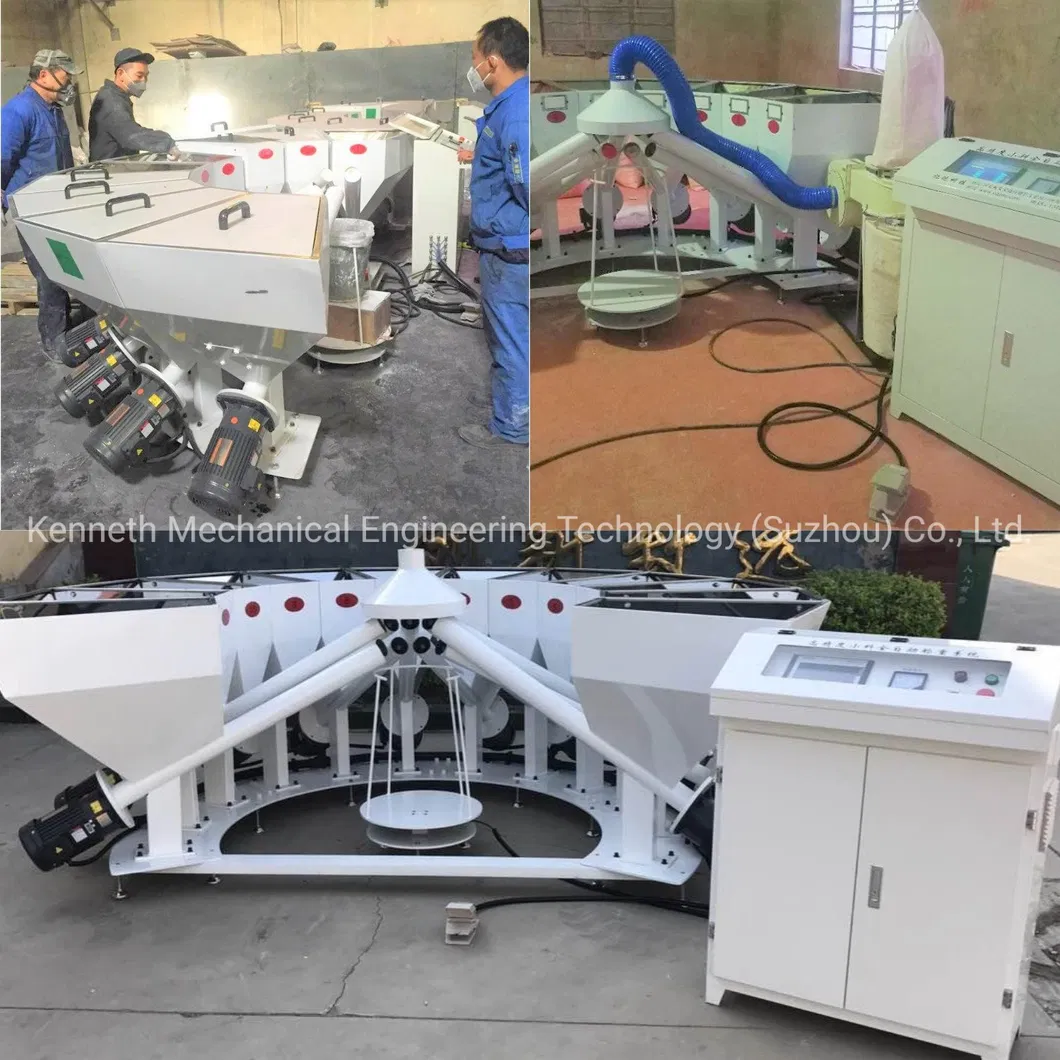

The unit features an individual electrical control cabinet equipped with a premium Siemens PLC and an intuitive touch screen interface, supporting both manual and automatic modes.
What is the monthly production capacity and shipping standard?
The production capacity is 50 sets per month. For transport, the equipment is packaged securely using protective plastic film and robust wooden boxes.
