Designed for continuous 24/7 operation with robust construction, minimal downtime, and high resistance to harsh industrial environments.
Integrated control systems, vision systems, force sensing, and collaborative configurations enable high-speed, high-accuracy task execution.
A comprehensive payload capacity range—from 0.5 kg to 2300 kg—engineered to suit diverse application requirements across all manufacturing sectors.
Industry-specific software packages and compatible peripherals facilitate fast deployment, simplified programming, and seamless system connectivity.
Extensive local service support, specialized training programs, and direct assistance to guarantee maximum operational performance and continuous uptime.
Long operational life cycles, high energy efficiency, and minimized maintenance overhead work together to deliver an outstanding return on investment.

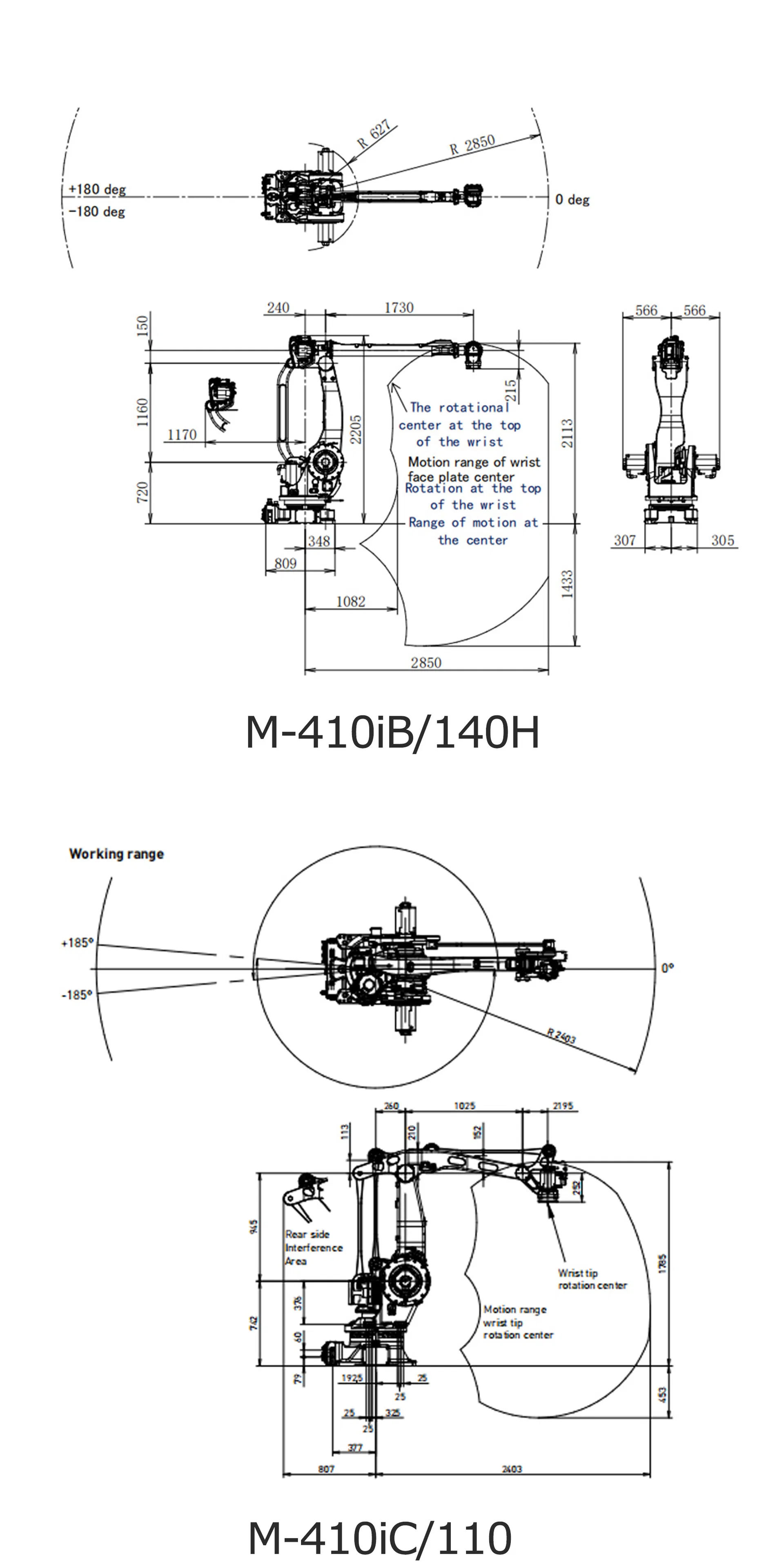

| Parameters and Characteristics | |||
|---|---|---|---|

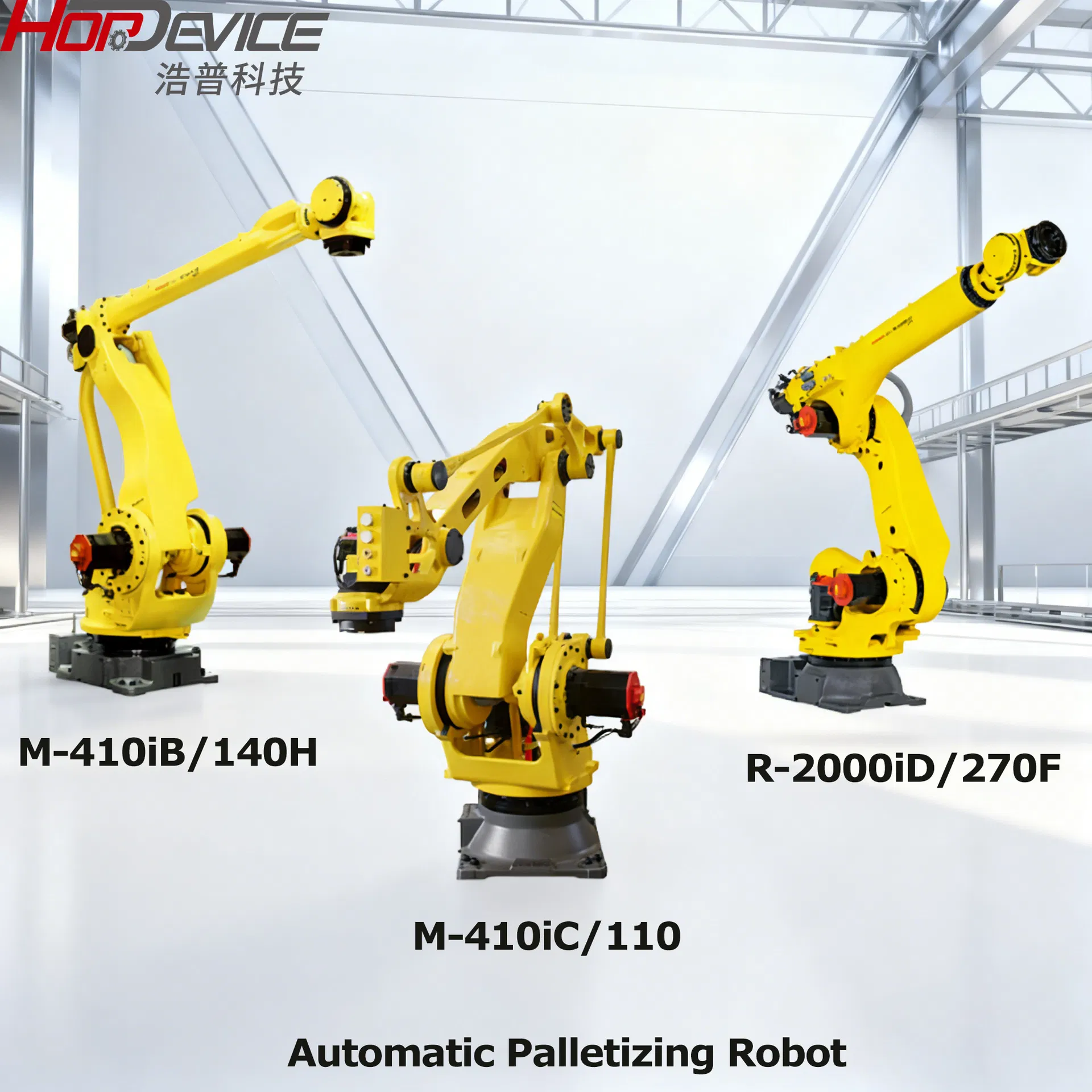

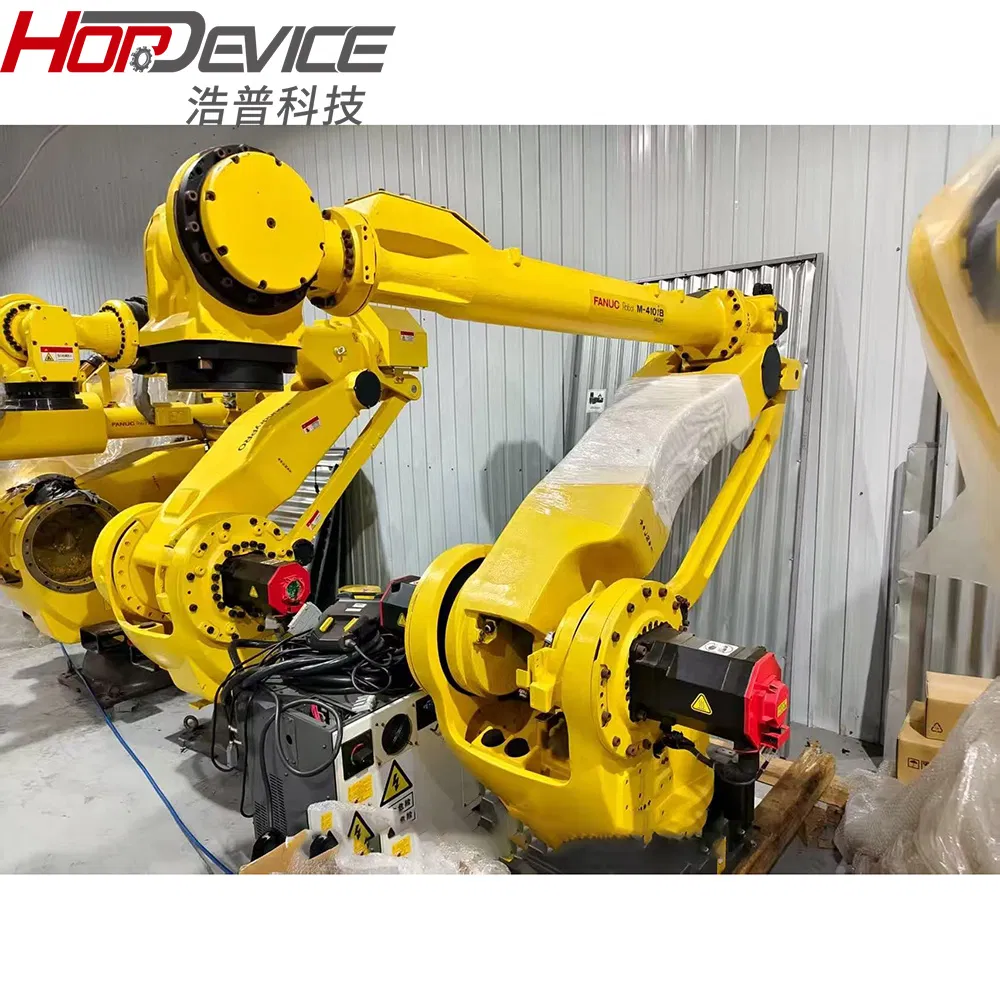

| Version | M-410iB/140H | M-410iC/110 | |
| Max Load Capacity at wrist [kg] | 140 | 110 | |
| Reach [mm] | 2850 | 2403 | |
| Controlled axes | 5 | 4 | |
| Repeatability [mm] | ±0.2 | ±0.05 | |
| Mechanical weight [kg] | 1200 | 1030 | |
| MOTION RANGE [°] | J1 | 360 | 370 |
| J2 | 155 | 125 | |
| J3 | 112 | 140 | |
| J4 | 20 | 720 | |
| J5 | 720 | / | |
| MAXIMUM SPEED [°/s] | J1 | 140 | 145 |
| J2 | 115 | 130 | |
| J3 | 135 | 140 | |
| J4 | 135 | 420 | |
| J5 | 420 | / | |
| J4 Moment/Inertia Nm/kgm² | 147 | 53 | |
| J5 Moment/Inertia Nm/kgm² | 53 | / | |
| Average power consumption (kw) | 3 | 3 | |
| PROTECTION | Body Standard/optional | IP54 | |
| Wrist and J3 Arm Standard | IP54 | ||

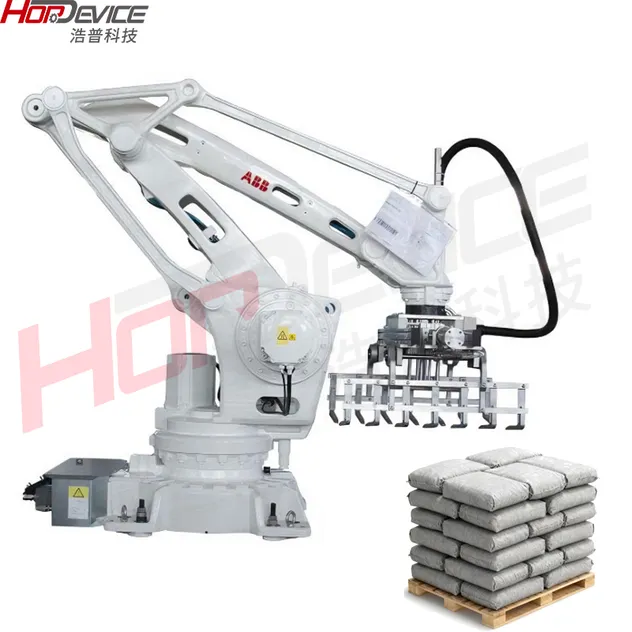

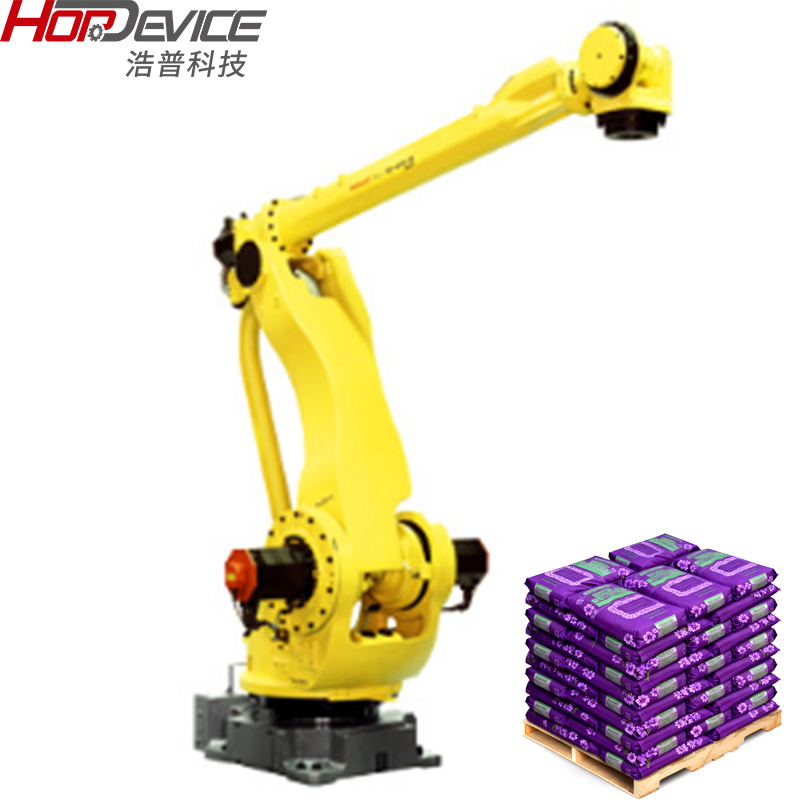

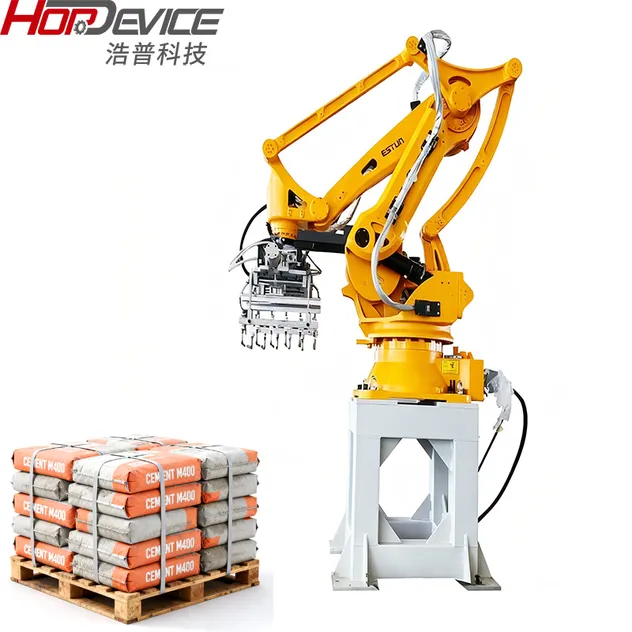

The palletizing and handling robot workstation is an automated solution that integrates robots with peripheral equipment such as conveyors, end effectors, and pallet feeders. Utilizing high-precision robotics and sensing technologies like vision-guided positioning, it enables accurate material grasping and adaptive stacking adjustment to ensure stable and orderly pallet loads.
Designed for high adaptability, it handles diverse materials and heavy loads even in challenging environments involving high temperature, dust, or hazardous conditions. Widely used in food and beverage, chemicals, logistics, pharmaceuticals, and electronics, it enhances operational efficiency and workplace safety by replacing manual palletizing tasks.
High efficiency automatic robotic palletiser for stacking, palletizing robot, palletizer can be used in any production line, providing intelligent mechanization for production sites. It is a palletising logistic system which can be used in the industries of beer, water, soft drink, milk, beverage, foodstuff etc. It is widely used for cartons, plastic crates, bottles, bags, barrels, shrink wrapped products and cans etc.
Yes, we are a professional manufacturer specialized in palletizing robots, packaging machines, conveyors etc. for more than 15 years and we have a strong design & technical team. We can design and manufacture as per your requirements.
Please provide us the details of your project and the workpiece requirements such as engineering drawings and dimensions.
We can send the machinery to your designated port by sea or other delivery terms you require. Please tell us your nearest port or detailed address with code. We cooperate with reliable shipping agents to ensure safe, convenient, and timely delivery.
Payment terms: 30% down payment against order by T/T, the balance of 70% to be paid on delivery.
Minimum order quantity: 1 set, FOB Shanghai.
Delivery time: about 20-30 working days after receipt of formal order and 30% deposit.
Warranty: 12 months following delivery. We offer online services 24 hours all day long.
All goods are wrapped securely with protective film and then packed in durable wooden boxes.
Our technical engineers are available to service machinery overseas to help customers solve machine integration and optimization issues.
