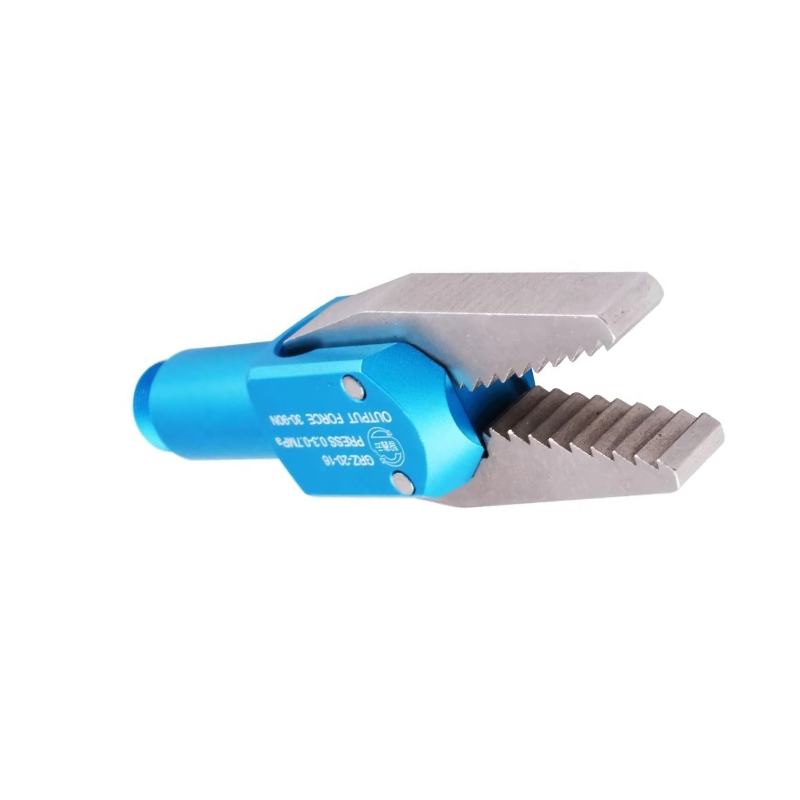

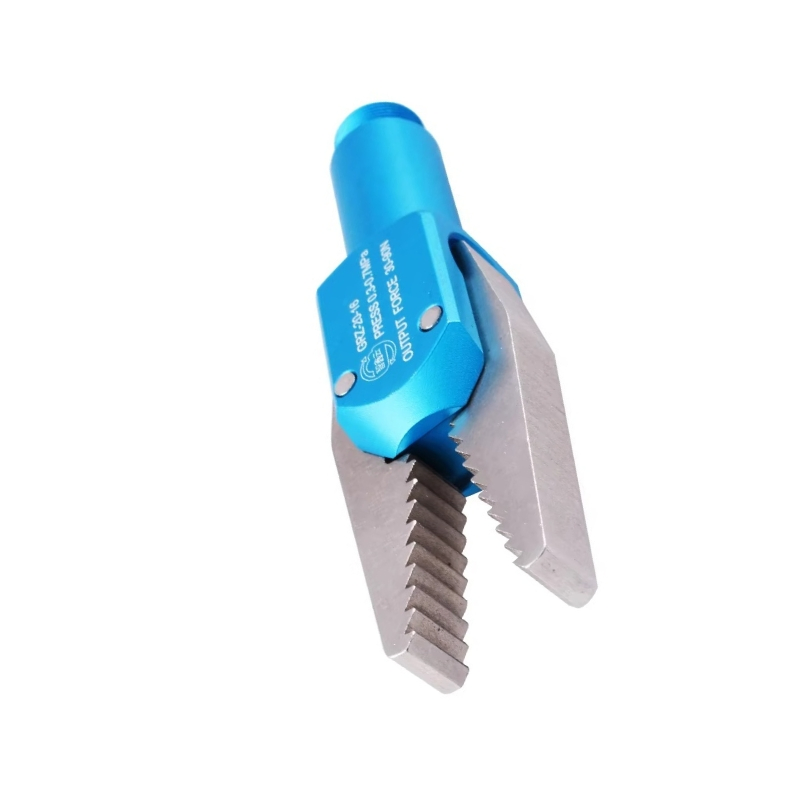

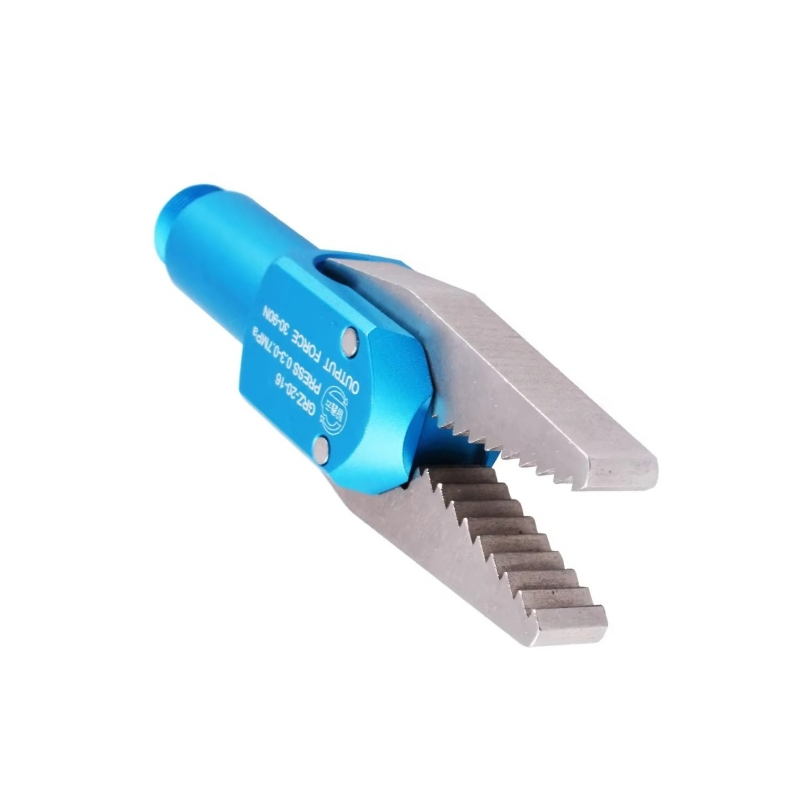

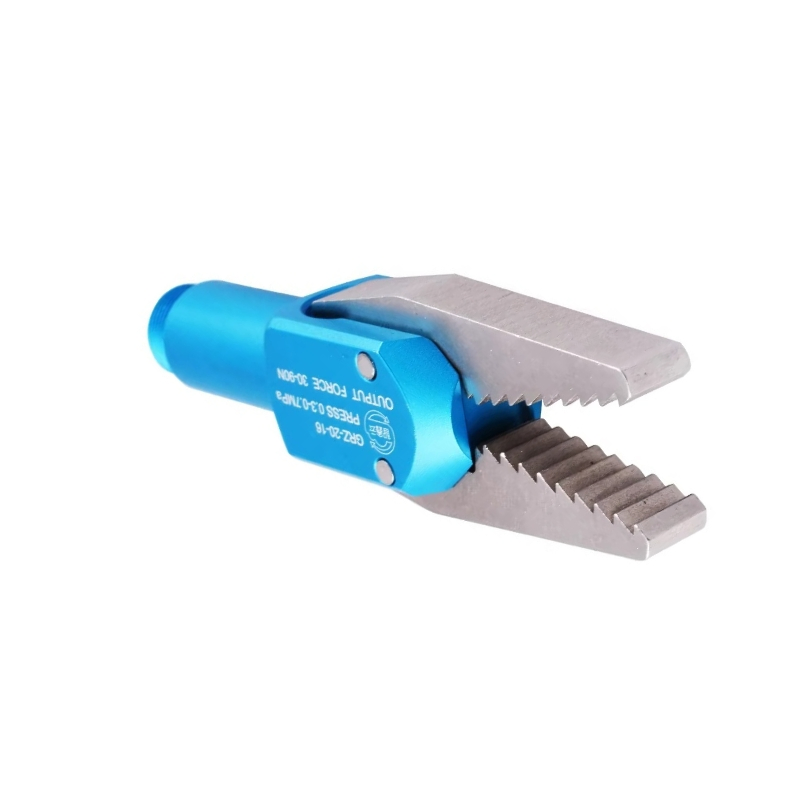

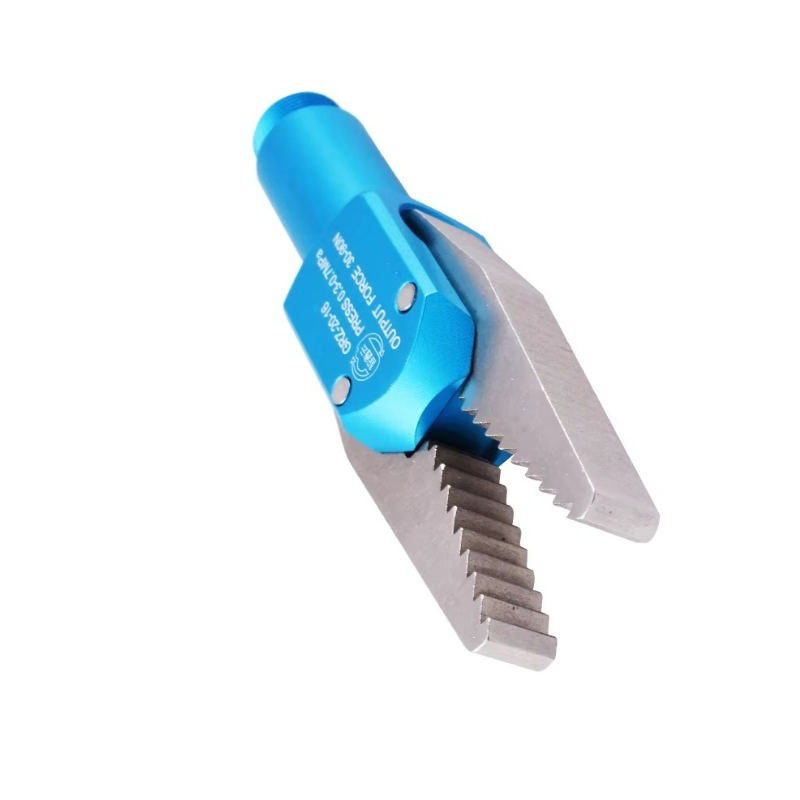

Grz-20-16jl Pneumatic Finger Gripper, End of Arm Tool for Industrial Robots, High-Performance Stainless Steel & Aluminum Alloy
1 / 5
Grz-20-16jl Pneumatic Finger Gripper, End of Arm Tool for Industrial Robots, High-Performance Stainless Steel & Aluminum Alloy
Assembly Line, Machining, Packaging, Manipulator and Robot Arm
Package
Carton/Wooden
Material
Aluminium Alloy + Iron
Application
Automatic Robot Arm Painting Stamping Manipulator
Usage Life
300,000 Times
Color
Blue
Work Pressure
0.5-0.6MPa
Transport Package
Carton or Wooden
Specification
aluminum
Origin
China
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description
Key Features

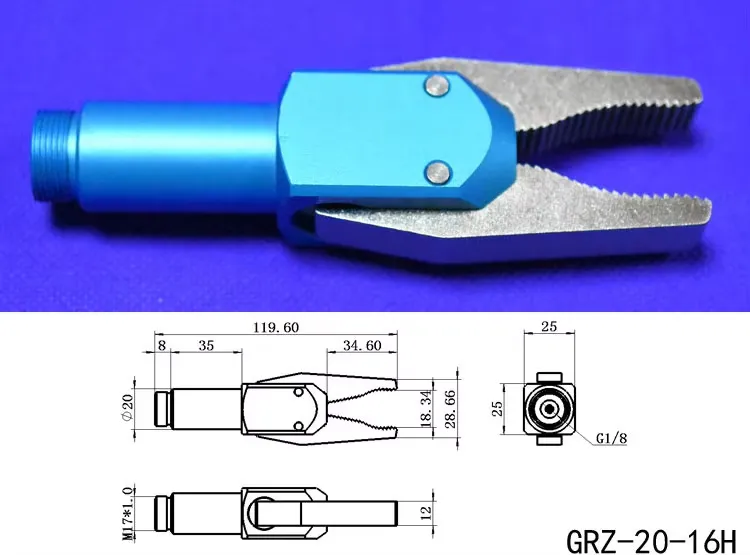

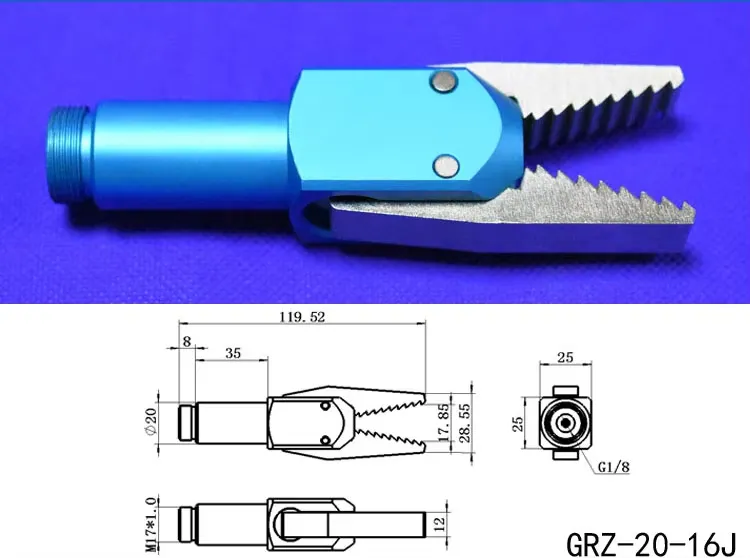

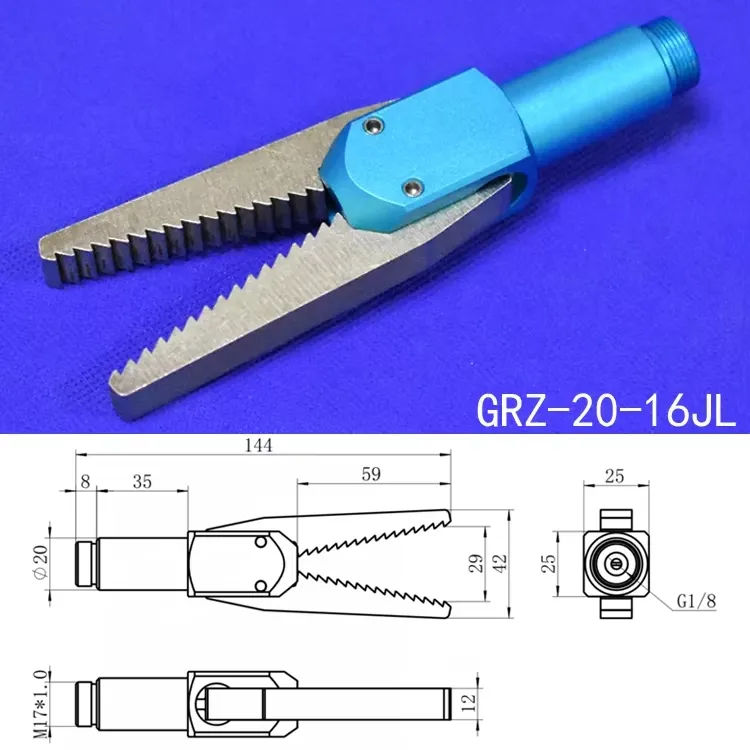

Four Available Models: Offers selection between GRZ-20-16H, GRZ-20-16J, GRZ-20-16Y, and GRZ-20-16JL. When the air pressure is 0.6MPa, the system generates a theoretical output force of 70N.
Differentiated Finger Design: The primary distinction between the gripper models is the specific design and shape of the fingers to accommodate diverse gripping tasks.

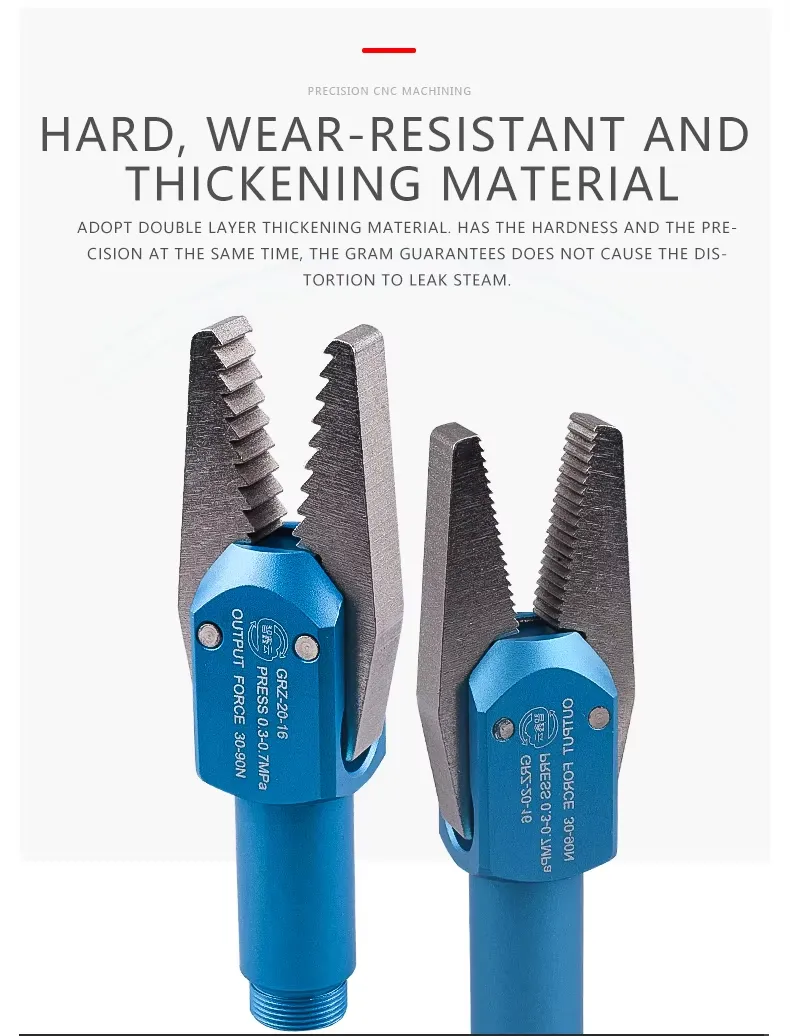

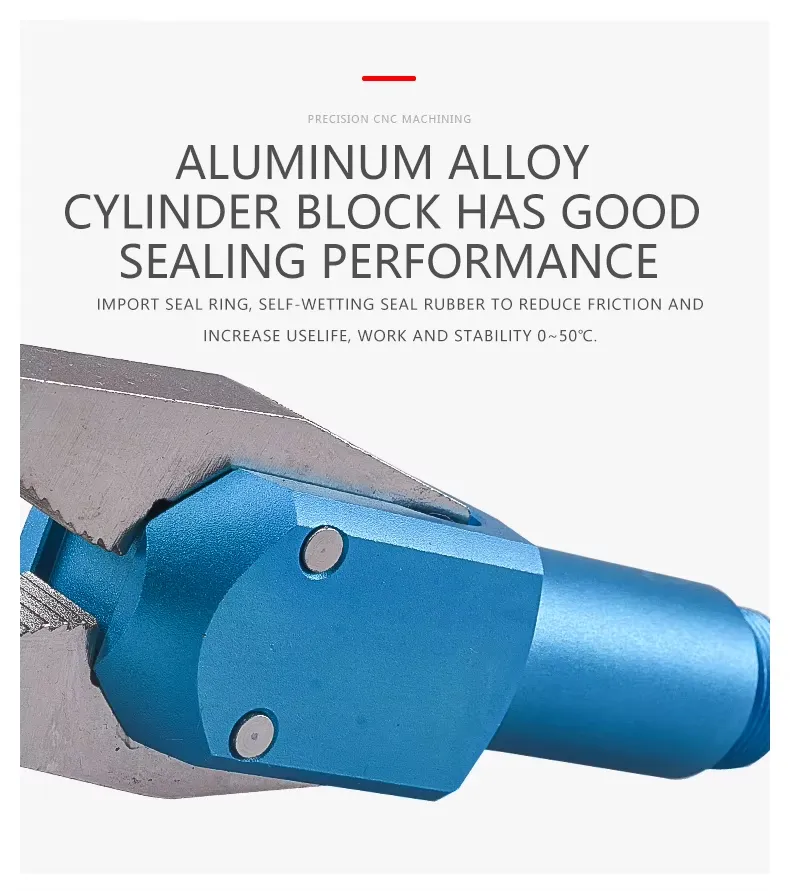

Premium Construction: Built from robust hard aluminum alloy combined with stainless iron, delivering lightweight efficiency alongside an extended service life.

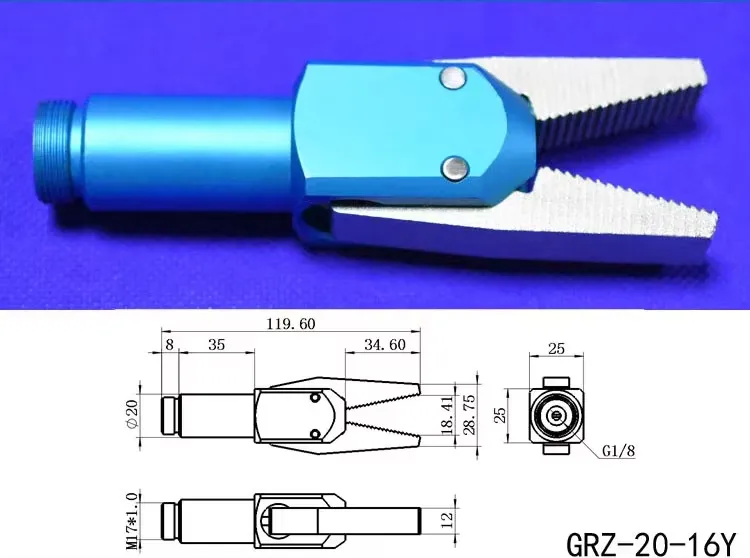

Product Parameters
Item
Value
Applicable Industries
Machinery Repair Shops
After Warranty Service
Video technical support, Online support
Place of Origin
China
After-sales Service Provided
Online support
Material
Aluminum + Iron
Color
Blue
Work pressure
0.5-0.6Mpa
Type
"Y" Type
Usage life
More than 300,000 times
Packaging & Shipping
Frequently Asked Questions
QWhat is the main application of the GRZ-20-16JL pneumatic gripper?
The gripper is designed for assembly lines, machining processes, packaging applications, and robotic arms, especially in automatic robot arm painting and stamping systems.
QWhat is the expected operating lifetime of this gripper?
This product features a high-performance design that guarantees a long service life of more than 300,000 cycles.
QWhat are the differences between the four available models (H, J, Y, JL)?
The main difference lies in the specific design and shape of the fingers, allowing users to choose the optimal match for their particular handling task.
QWhat is the required working pressure and output force?
The recommended working pressure ranges from 0.5 to 0.6 MPa. At 0.6 MPa of air pressure, the gripper achieves a theoretical output force of 70N.
QWhat materials are used in its construction?
It is constructed using a high-quality combination of hard aluminum alloy and stainless iron, providing a lightweight structure with high structural strength.
QWhat are the package measurements and gross weight?
The individual package dimensions are 10.00cm * 10.00cm * 10.00cm, with a standard gross shipping weight of 1.000kg.
