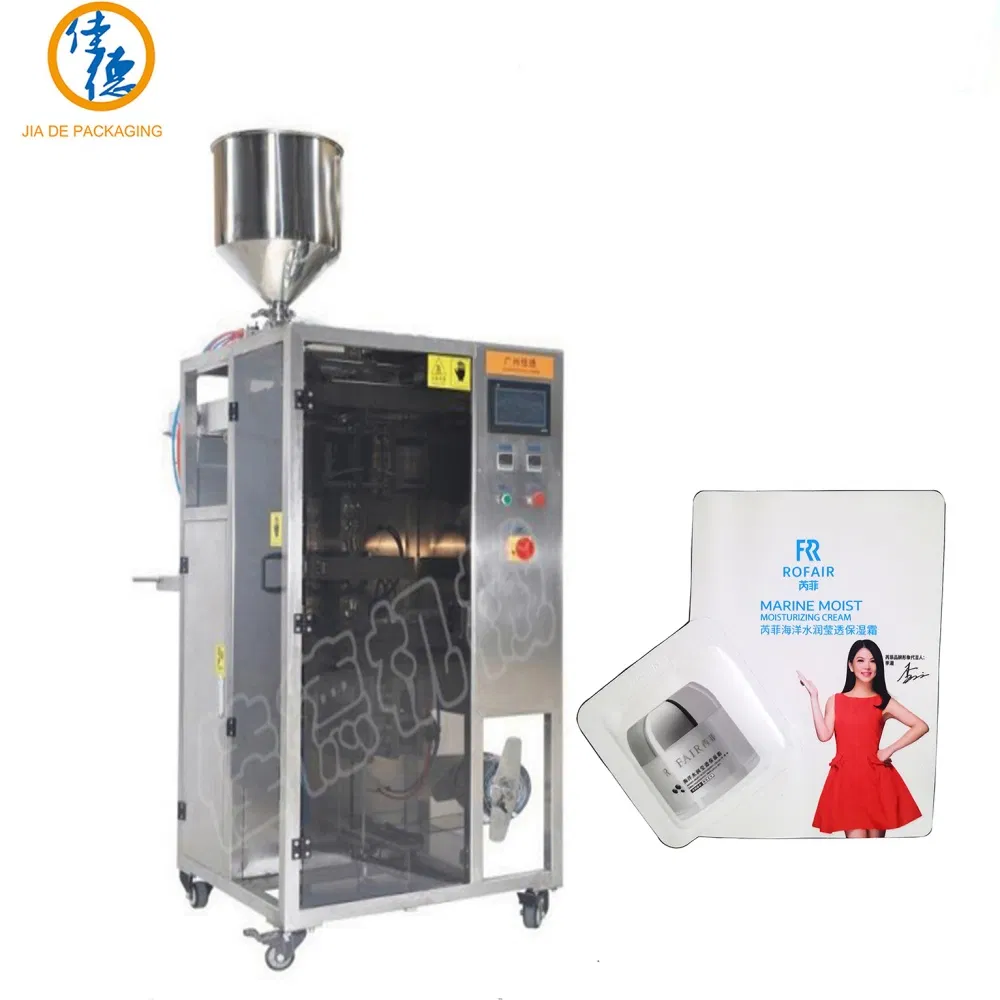

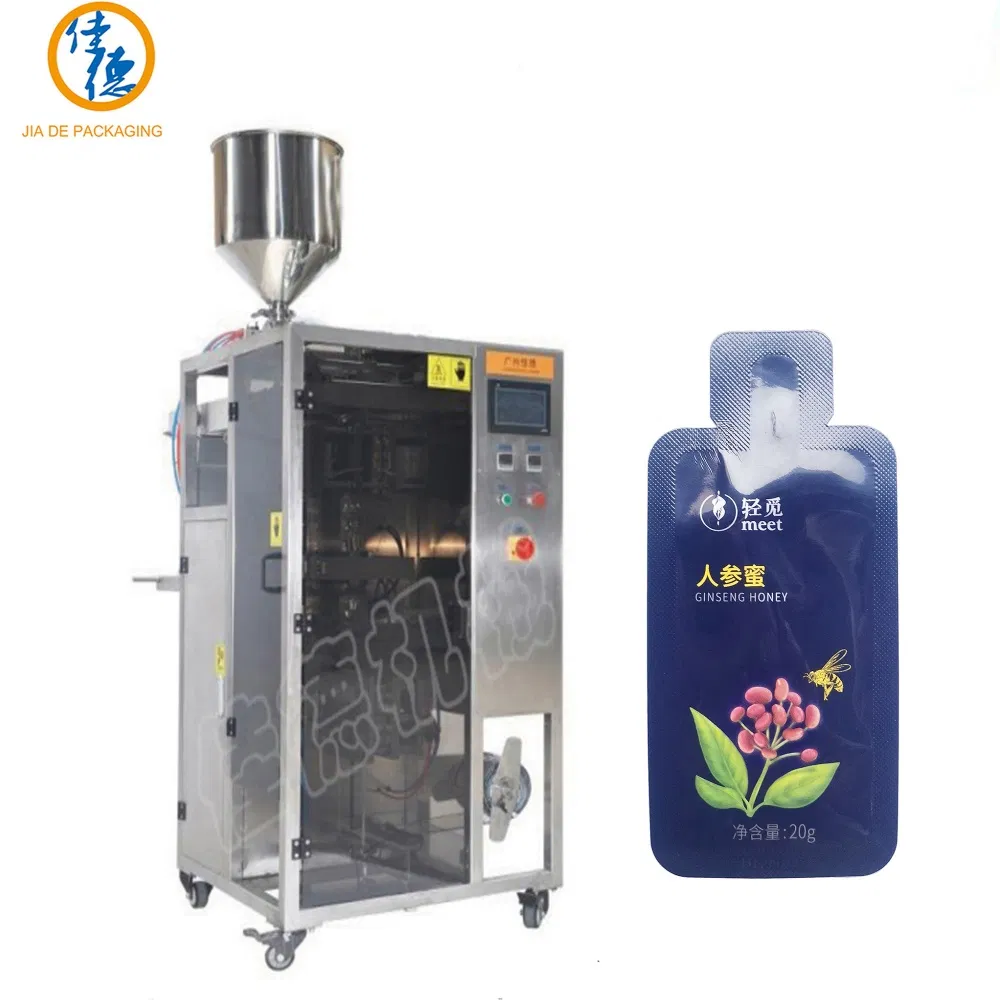

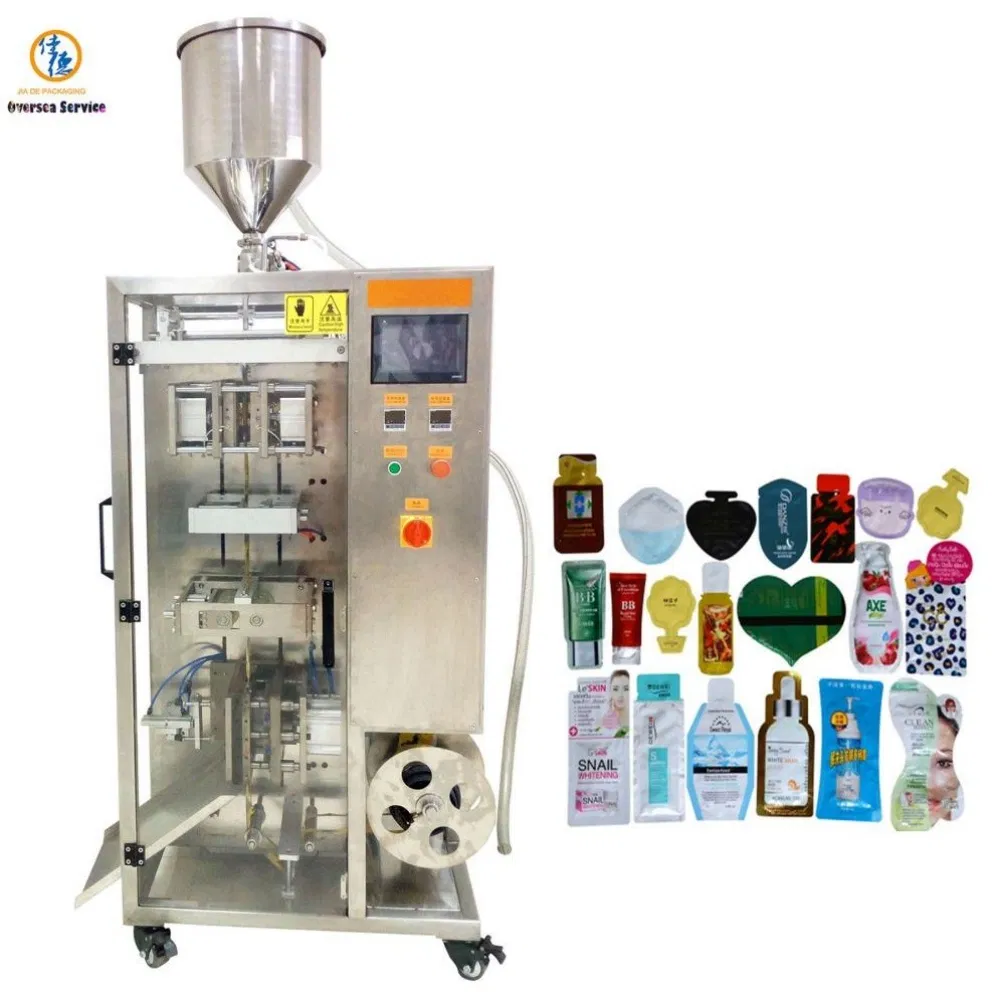

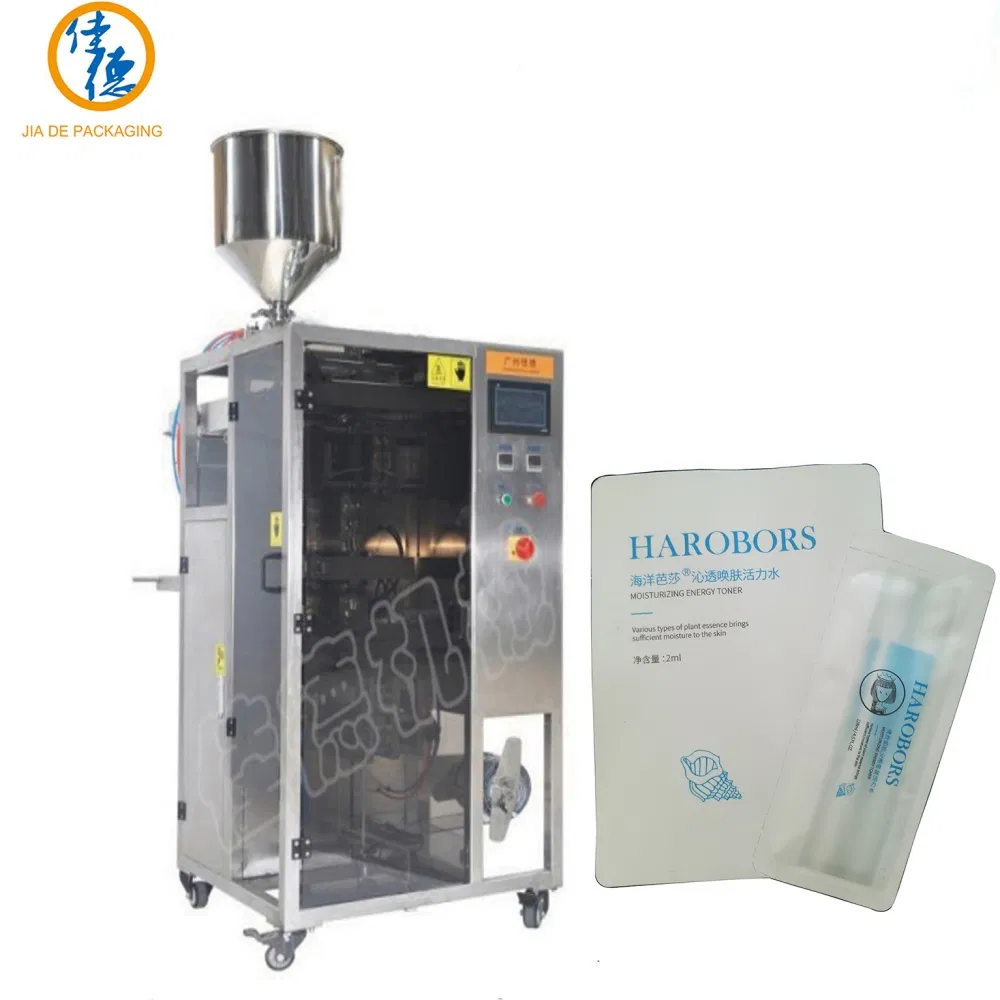

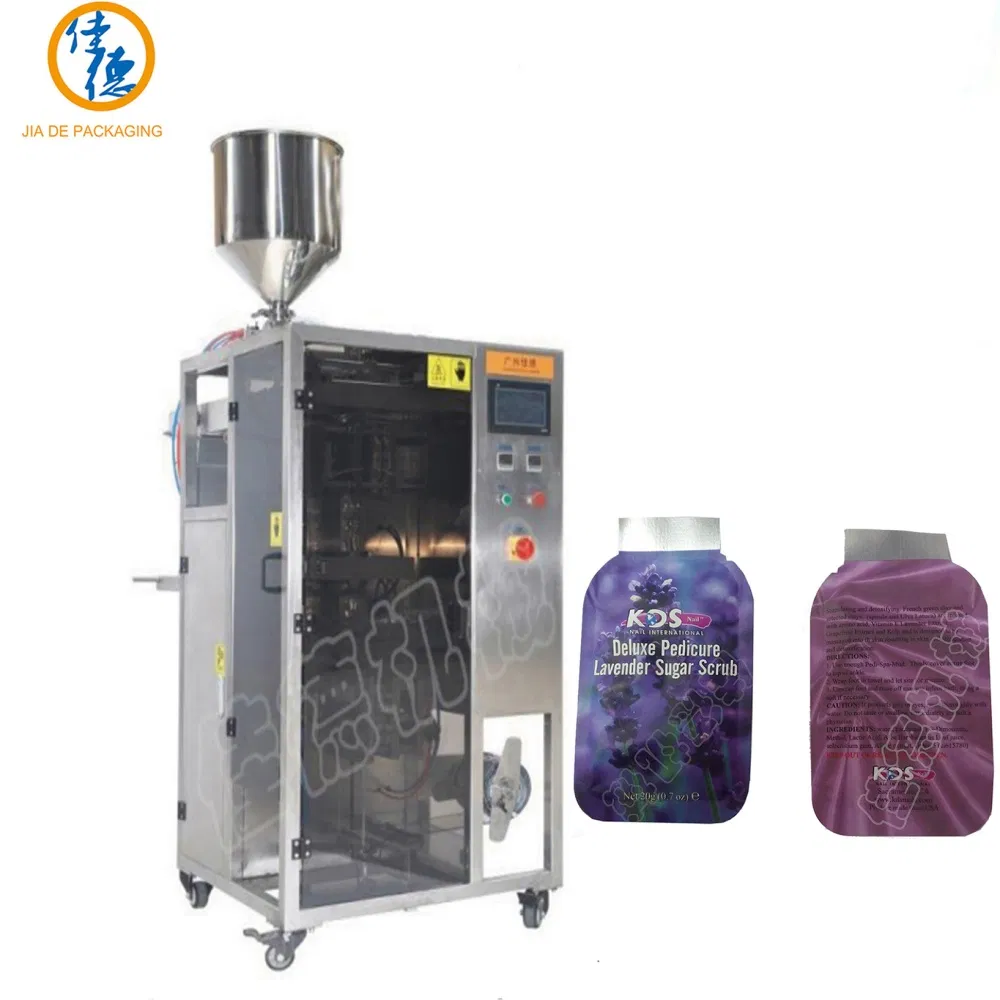

Reliable JD-BY50Y Irregular Sachet Packing System for Liquids
Application Range: It suits for all kinds of liquid & paste products in food, chemical and pharmaceuticals industries. Such as: Energy gel, wolfberry liquid, juice, Prune drink, Plant-based drink, Enzyme drink, etc.
Key Specifications & Features

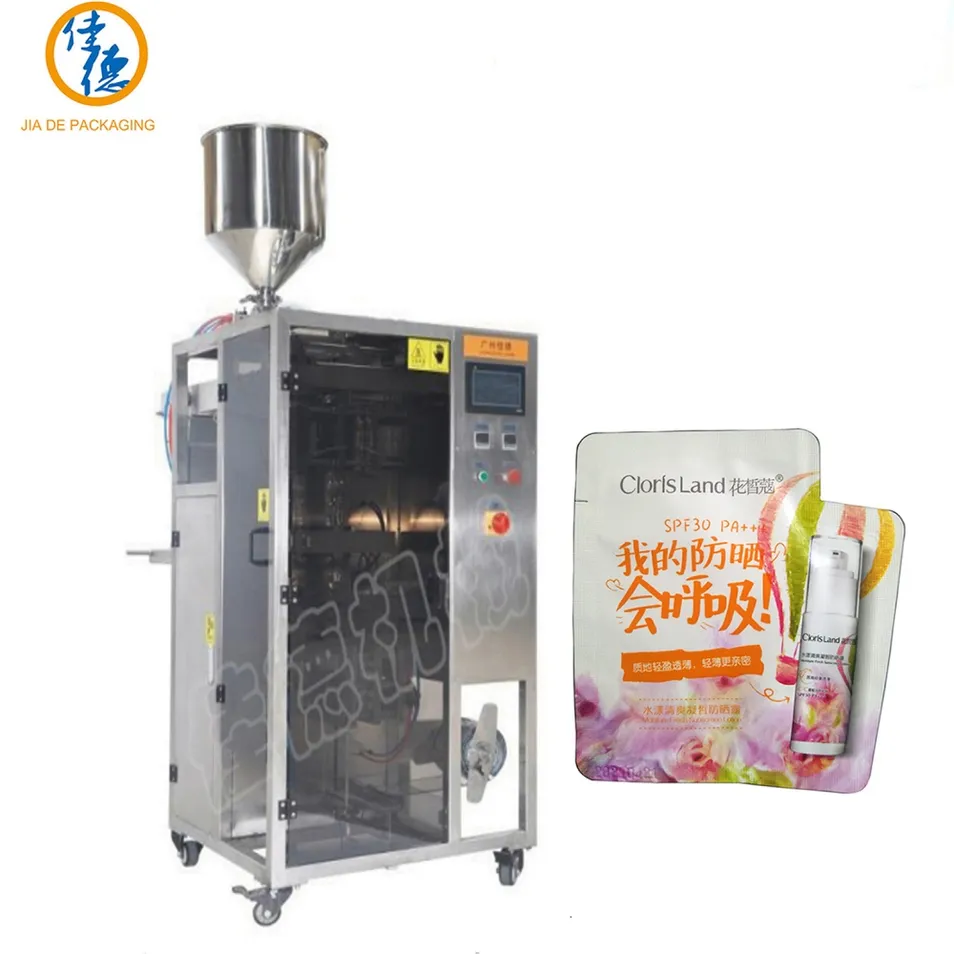

JD-BY50Y Liquid Packing System
1. Top-Tier Electrical Components Equipped with Siemens PLC, Omron temperature controller & relays, SUNX photocell and AirTac cylinders for stable, reliable performance.
2. GMP-Compliant SUS304 Build Machine cabinet and material contact parts are made of SUS304 stainless steel, meeting GMP hygiene standards.
3. Servo-Driven Sealing Servo motor heat-seal pulling system supports back-side seal (2×5mm) and A+B stick seal (1×5mm) for a cleaner, more attractive finish.
4. Enhanced Safety Protection All heating and moving parts are enclosed in safety protective doors with clear warning labels.
5. Flexible Mobility Built-in casters allow easy movement and handling in different production layouts.
6. Fully Customizable Supports custom molds to create any irregular sachet shape according to your specific design.

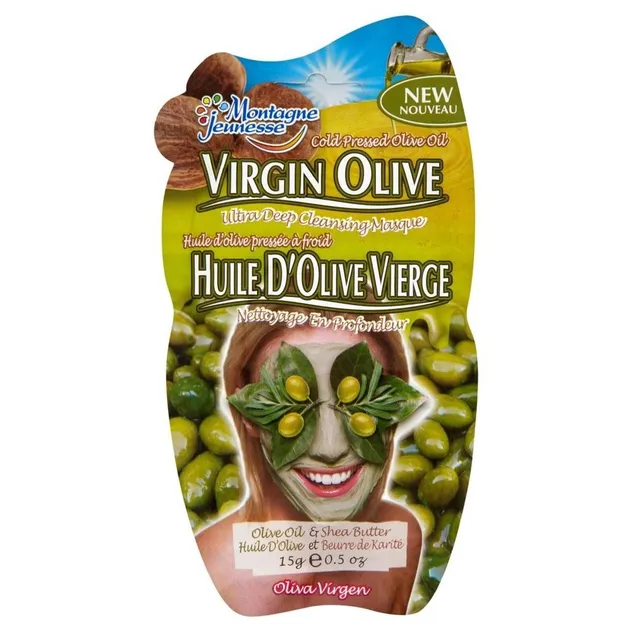

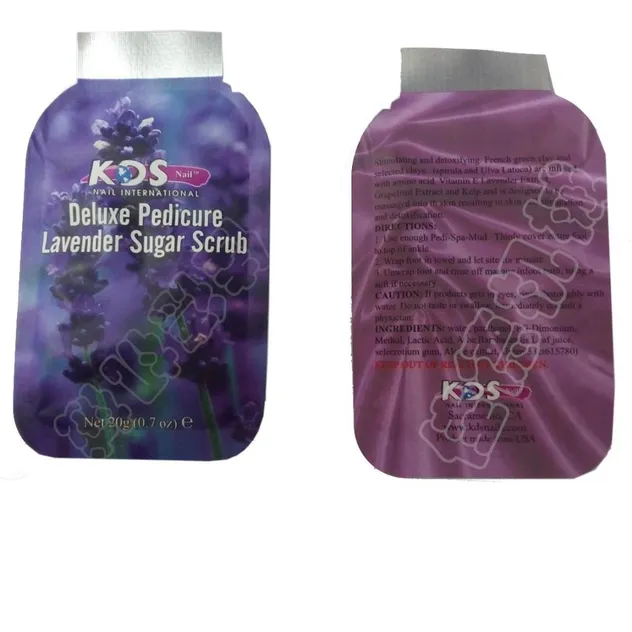

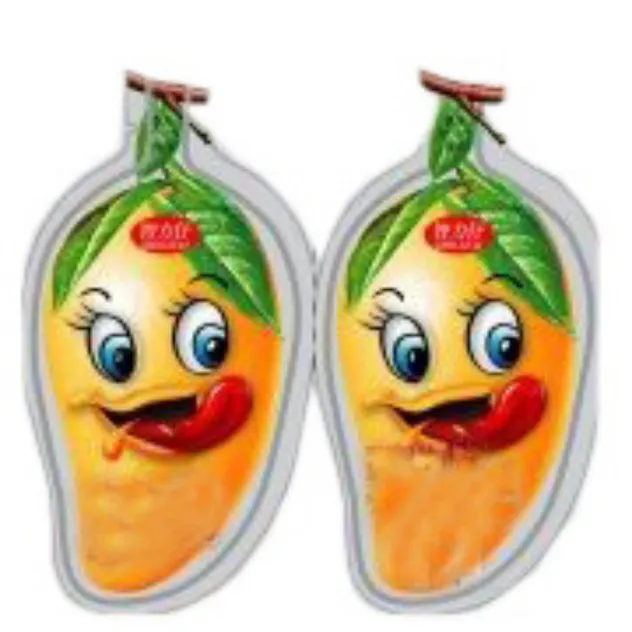

Sample Sachet
Sample Sachet
Sample Sachet
Sample Sachet
Sample Sachet
Sample Sachet
Technical Parameters
MODEL NO.JD-BY50Y
LANESSINGLE LANE
SPEED (BAG/MIN)20-45 BAG/MIN
FILL RANGE (ML)1-15 ML, 5-45 ML, 5-90 ML (CHOOSE ONE)
MEASURING WAYPLUNGER PUMP / MAGNETIC DRIVE PUMP
BAG TYPEBACK SIDE SEAL IRREGULAR SHAPED SACHET
SACHET SIZE (MM)W: 30-100; L: 50-165
CONTROL SYSTEMSIEMENS PLC AND COLOR TOUCH SCREEN
MACHINE MATERIALSTAINLESS STEEL 304
MAX. ROLL WIDTH220MM
POWER/VOLTAGE1.5KW; 220V/50-60HZ
WORKING WAYPNEUMATIC + ELECTRIC
AIR CONSUMPTION0.3CBM/MIN; 0.6 MPA
NET WEIGHT (KG)400
DIMENSION (LWH) mm850 * 1150 * 2150MM
ROLL FILM MATERIALCOMPOSITE / LAMINATED PE FILM (HEAT SEALABLE)
Product Gallery

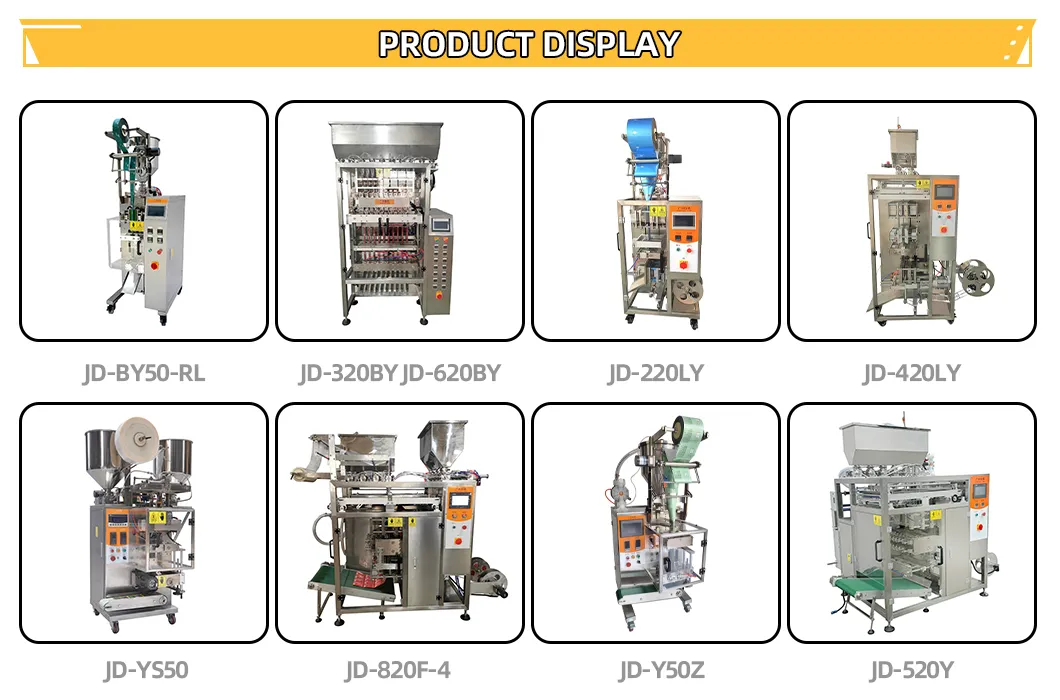

Display 1
Display 2
Service & Reliability

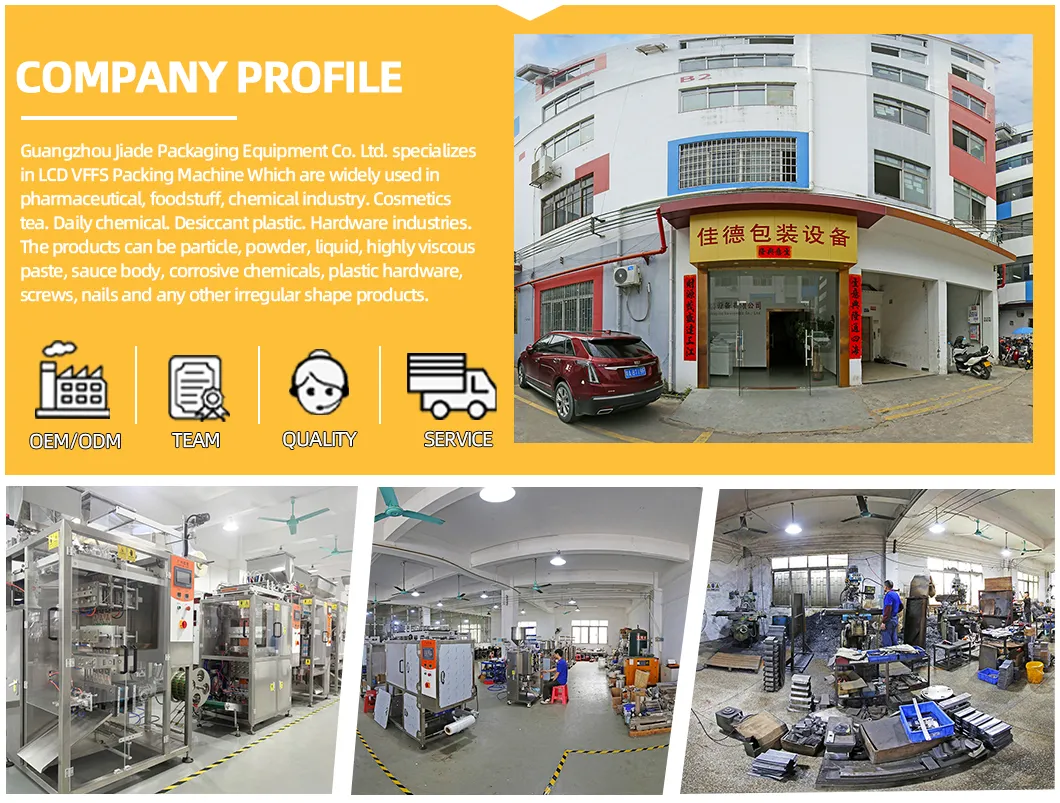

Production Facility
After-Sales Service
✓
Warranty: 1 Year (excluding quick-wear parts and man-made damage). Free spare parts delivered for quality-related issues during warranty.
✓
Installation: Detailed operation videos and manuals provided. On-site engineer training available upon request (service fees and travel expenses apply).
Why Choose Us?
● Professional manufacturer with standardized management and cost-effective equipment.
● R&D team with over 15 years of experience in packaging machinery development.
● Strict full-range inspection and testing across all production phases.
● Technical and after-sales issues resolved within 12 working hours.
● Free trial run tests using your raw materials in our factory.
Certifications & Shipping
Certifications
Packaging and Shipping
Frequently Asked Questions
1. Is the machine easy to operate?
Yes, every machine is well-adjusted before shipping. We provide a comprehensive operation manual and video to ensure you can operate it with ease.
2. What are the payment terms?
Our standard terms are a 50% deposit and the remaining 50% balance paid before delivery.
3. How is the transport handled?
Shipping is available by air, sea, or rail. If you are new to importing, simply provide your address and we will calculate all freight details for your reference.
4. Are you a manufacturer or a trading company?
We are a direct manufacturer with a professional R&D team and over 10 years of industry experience.
5. How are repairs or parts replacements handled?
We provide repair videos and send new parts if needed (free during the warranty period). For complex issues, we offer support via email, video call, or overseas engineer service.
6. How can I be sure the machine will be sent?
We provide a video of your completed machine before the balance payment is made, and we support secure payment methods for your peace of mind.
