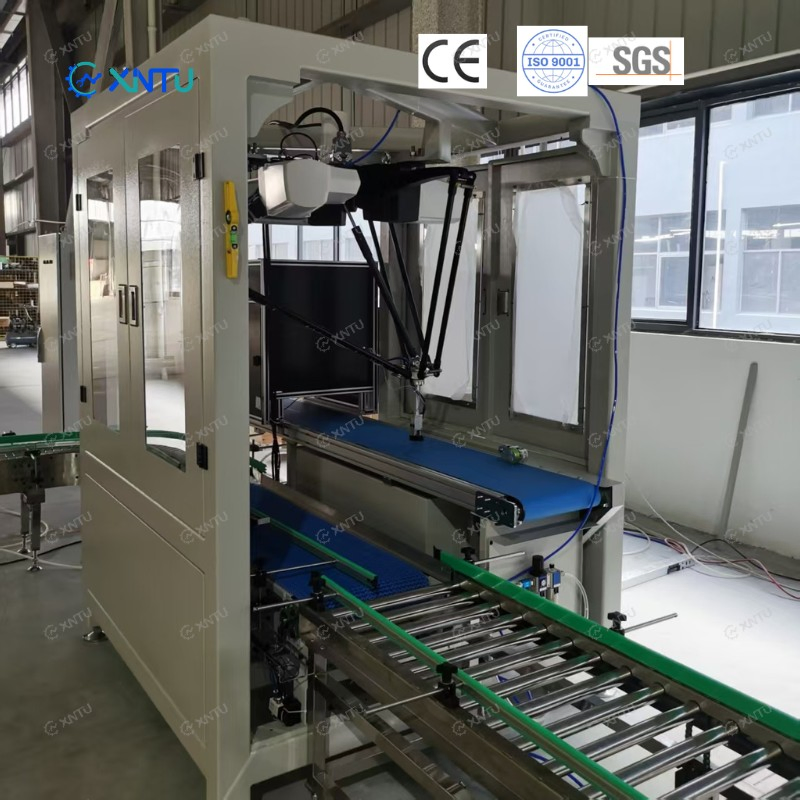

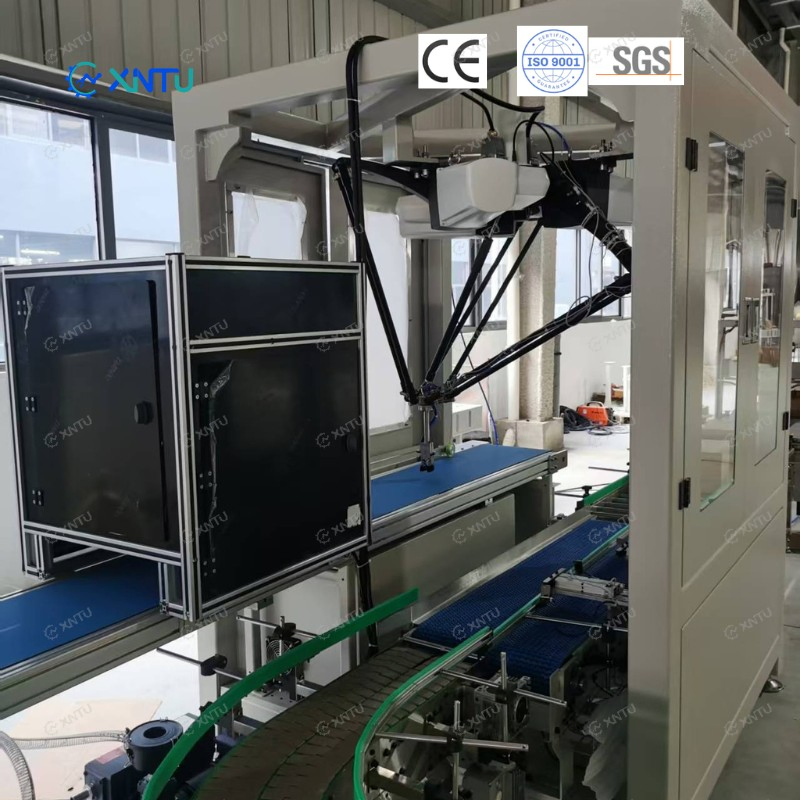

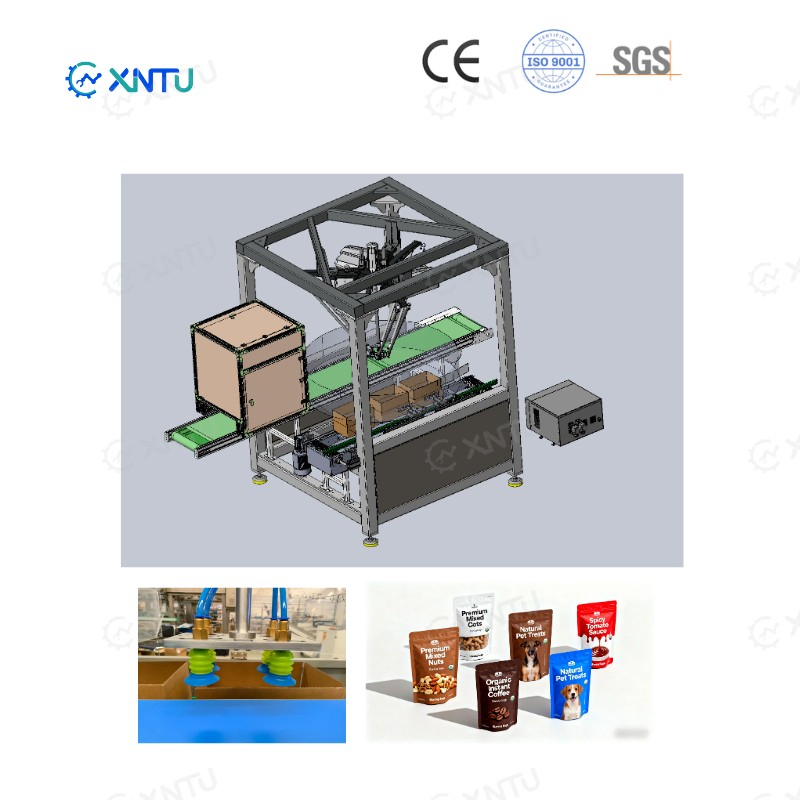

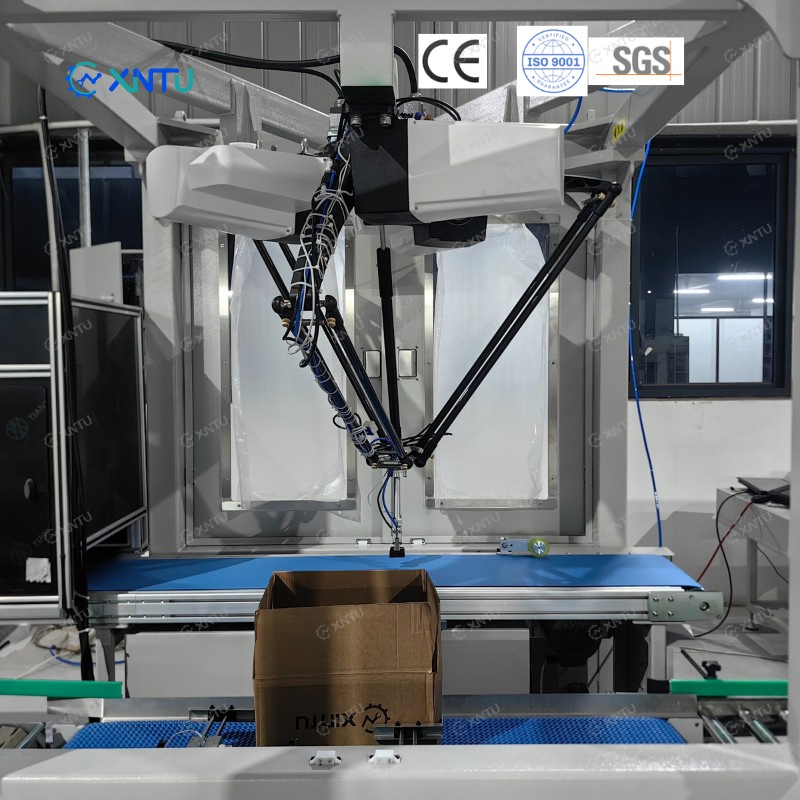

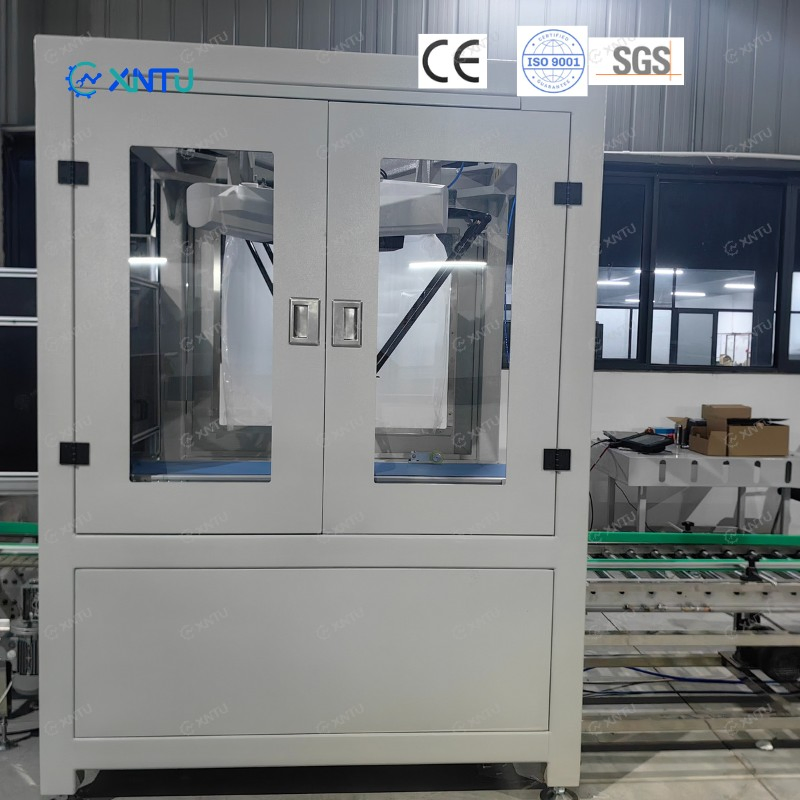

Delta Robot Tray Box Case Packer of Line Packaging System for Coffee Bag

Customization: Available
Automatic Grade: Automatic
Application: Food

Product Description

Basic Info.
Model NO. DRCP-Series
Packing Speed 30-60 PCS/Minute for Single Robot Station
Package of Products Pillow Bag/Standup Bag/Pouch/Vacuum Bag
Power Supply 380V/50Hz/8.8kw
Machine Dimension L3100mm*W1600mm*H2230mm
Grab Weight 1kg/3kg/5kg/8kg/15kg
Other Package Small Carton/Plastic Jar/Sachet/Glass Bottle
Outer Package Tray, Carton Box
Transport Package Wooden Box
Specification Length: 50-300mm; Width: 30-200mm; Height: 10-100mm
Origin China
HS Code 84223030
Production Capacity 200 Sets/Year
Product Description

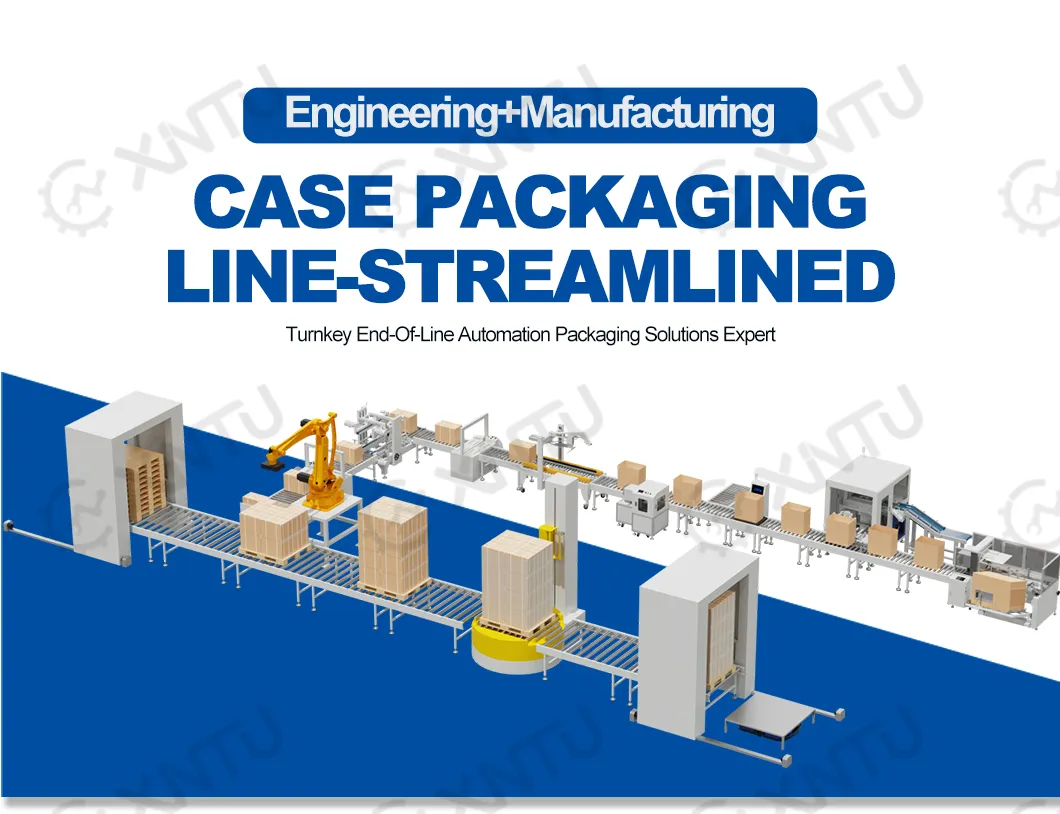

Delta Robot Case Packer Overview
Delta Robot Case Packer
High-Speed & Flexible Delta Robot Case Packer for Multi-SKU Packaging
Tailored for modern manufacturing's demand for efficiency, flexibility, and labor optimization, our Delta Robot Case Packer integrates a full set of automated modules to deliver end-to-end packaging solutions. Core components include a product sorting conveyor line, high-precision Delta robot pick-and-place system, AI-powered product vision positioning system, and carton positioning conveyor—working in seamless synchronization to eliminate manual packing bottlenecks, boost throughput, and adapt to diverse production needs.

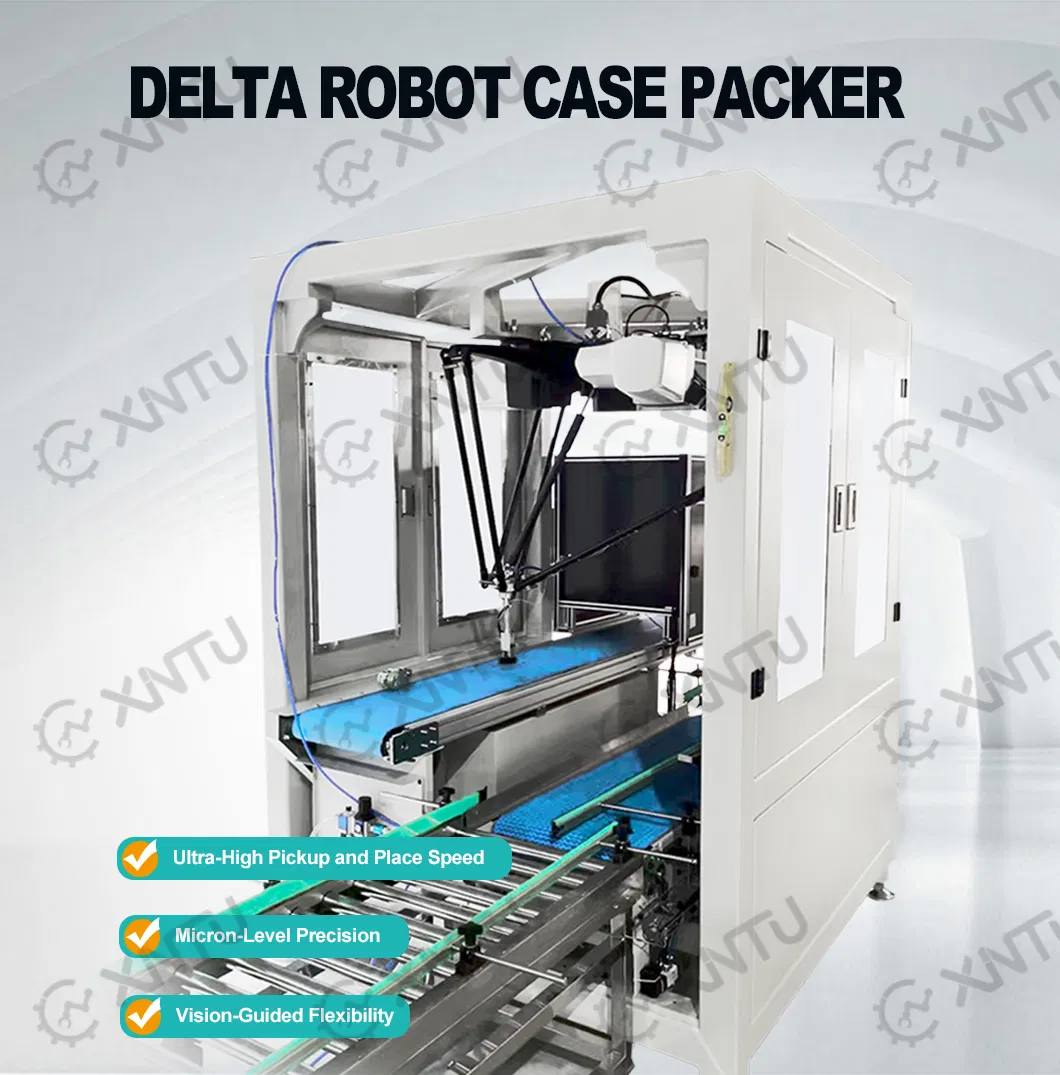

Delta Robot Case Packer Details

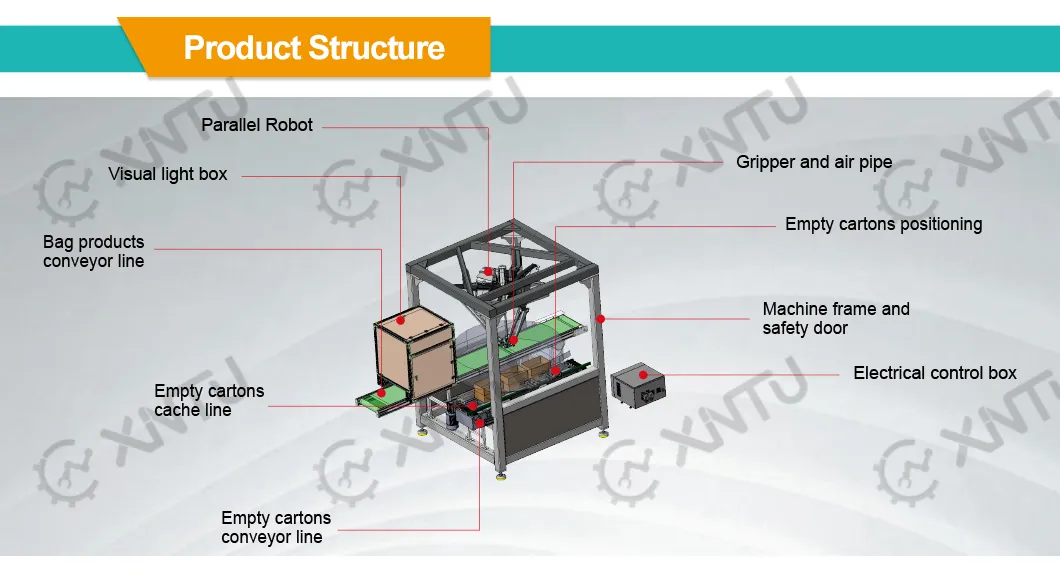

Delta Robot Case Packer Core Modules
Core Modules & Synchronized Workflow
The system operates in a continuous, precise loop to ensure stable performance:
  • Product Sorting Conveyor Line: Automatically arranges disordered products (including various bagged goods and irregular-shaped items) into uniform queues.
  • Product Vision Positioning System: Equipped with high-resolution industrial cameras and AI-driven recognition algorithms, it captures real-time product position, size, and shape data—even for irregular items.
  • Delta Robot Pick-and-Place System: The core of the solution, featuring high-speed Delta robots with customizable grippers (vacuum suction + soft mechanical clamping).
  • Carton Positioning Conveyor: Transports pre-erected cartons to the packing station, with automatic centering and clamping to maintain stability during loading.

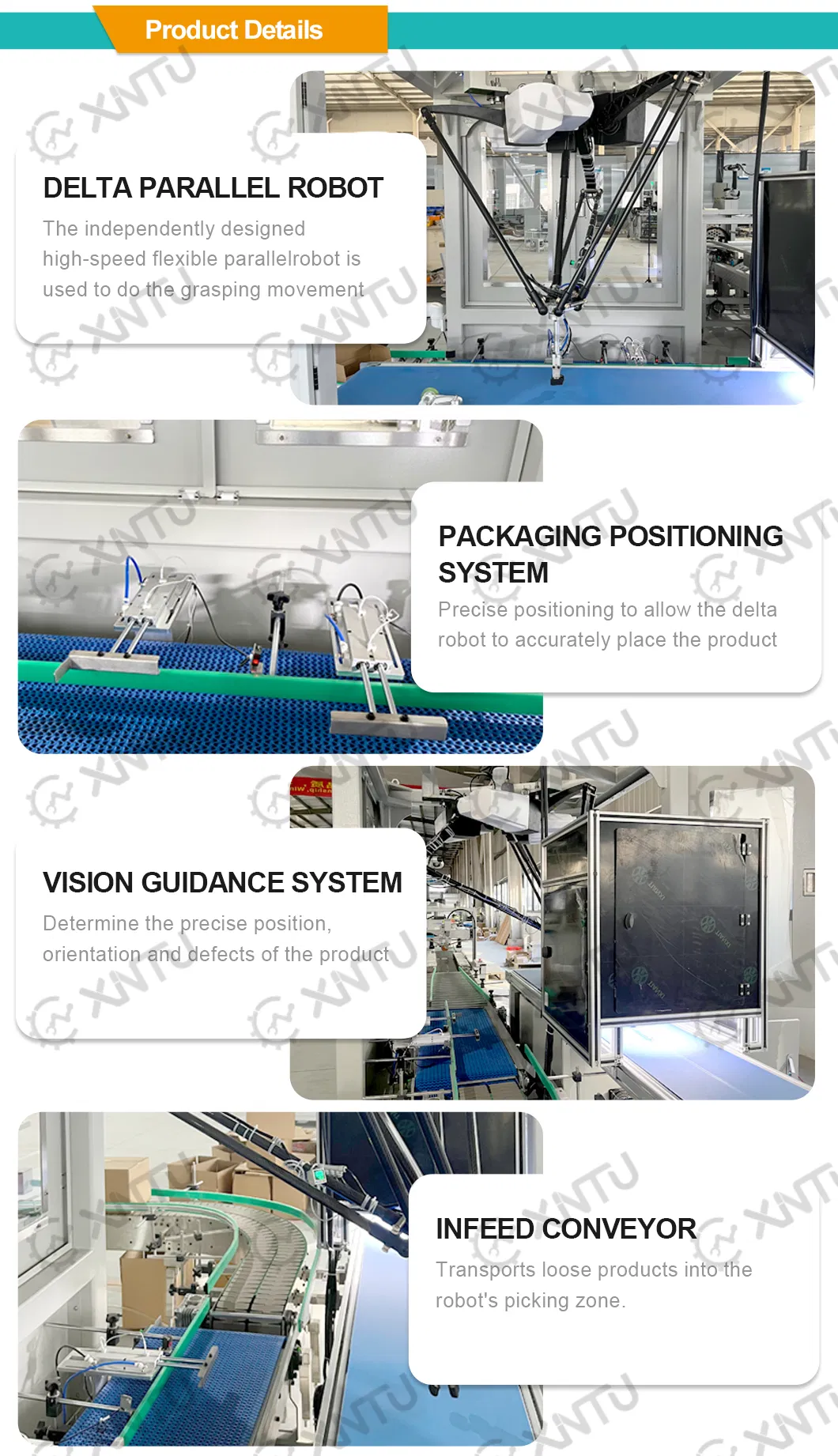

Delta Robot Case Packer Workflow
Delta Robot Case Packer Application
Industry-Specific Adaptations
Ideal for food, daily chemical, pharmaceutical, and consumer goods industries, the system excels in packing:
  • Food & Snack: Pillow bags (snacks, powder food), standup bags (nuts, coffee), vacuum bags (meat, dried goods), and sachets (condiment packs, coffee sticks).
  • Daily Chemicals: Pouches (mask, wet wipes), standup bags (detergent, pet food), and small cartons (cosmetics, skincare samples).
  • Pharmaceuticals: Sachets (medicine packs, health supplements), small glass bottles (oral liquid, essential oil), and medical gift boxes.
  • Consumer Goods: Irregular-shaped bags (toys, small tools), plastic jars (condiments, snacks), and mini aluminum cans (energy drinks, canned snacks).

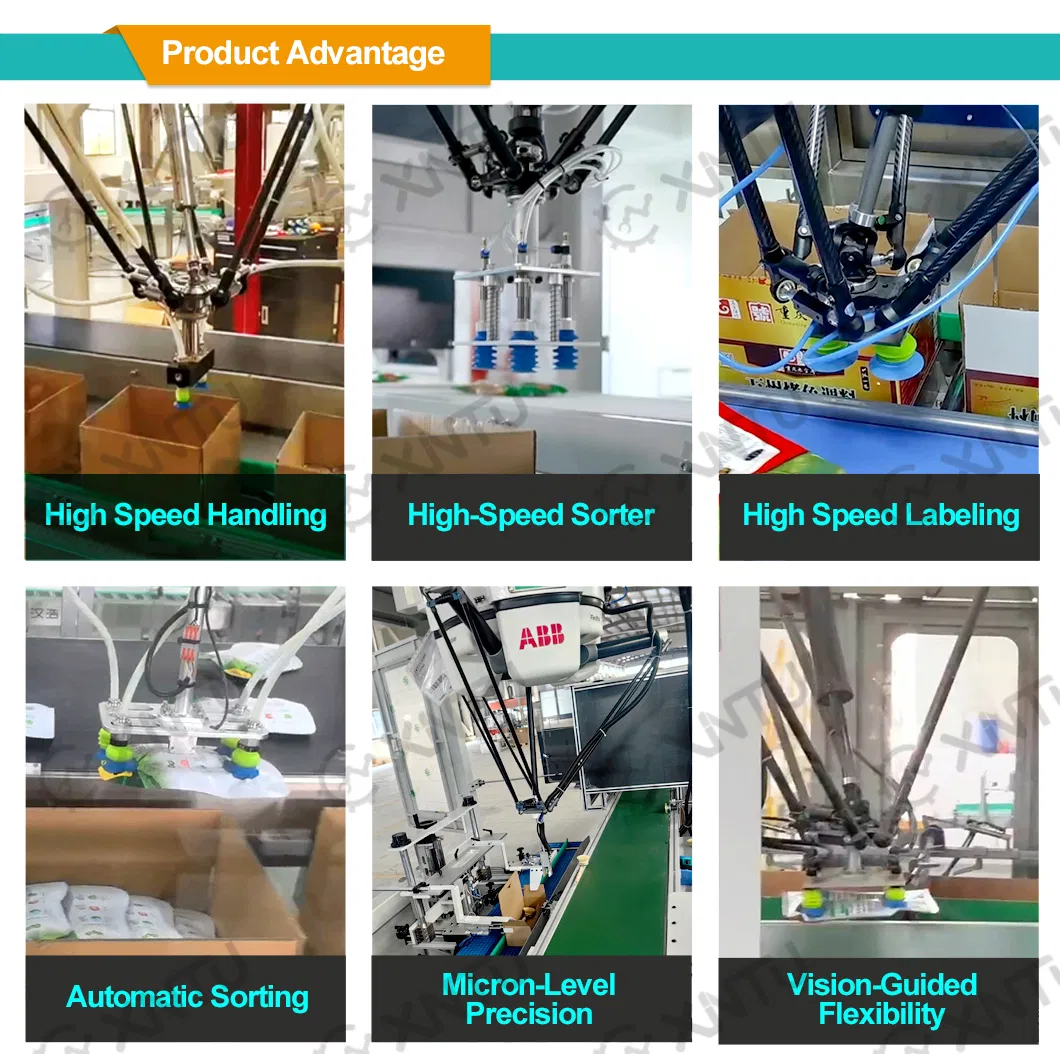

Delta Robot Case Packer Applications
Specification
Parameter Category Detailed Specifications
Equipment Type Delta Robot Case Packer (for bags & irregular products)
Pick Speed (Single Station) 30-60 picks/min (adjustable)
Max Speed (Multi-Robot Configuration) Up to 200 picks/min
Robot Configuration 1-4 Delta robots (customizable)
Applicable Products Bagged goods (pillow bags, standup bags, pouches) + irregular-shaped products
Product Size Range Length: 50-300mm; Width: 30-200mm; Height: 10-100mm (customizable for larger sizes)
Positioning Accuracy ±0.5mm (vision-guided)
Gripping Mechanism Vacuum suction + soft mechanical clamping (replaceable)
Carton Compatibility Fully customizable (based on product size & packing quantity)
Control System Siemens PLC + 10.1-inch touchscreen HMI + AI vision positioning
Power Supply 380V/50Hz/3Ph (220V/60Hz optional for regional use)
Power Consumption 8-15kW/h (per robot station)
Material Contact Parts 304 stainless steel (food-grade)
Protection Rating IP54 (IP65 optional for humid/dusty environments)
Certifications CE, ISO 9001, FDA (food contact), HACCP-compatible
1 to 1 Customized Service

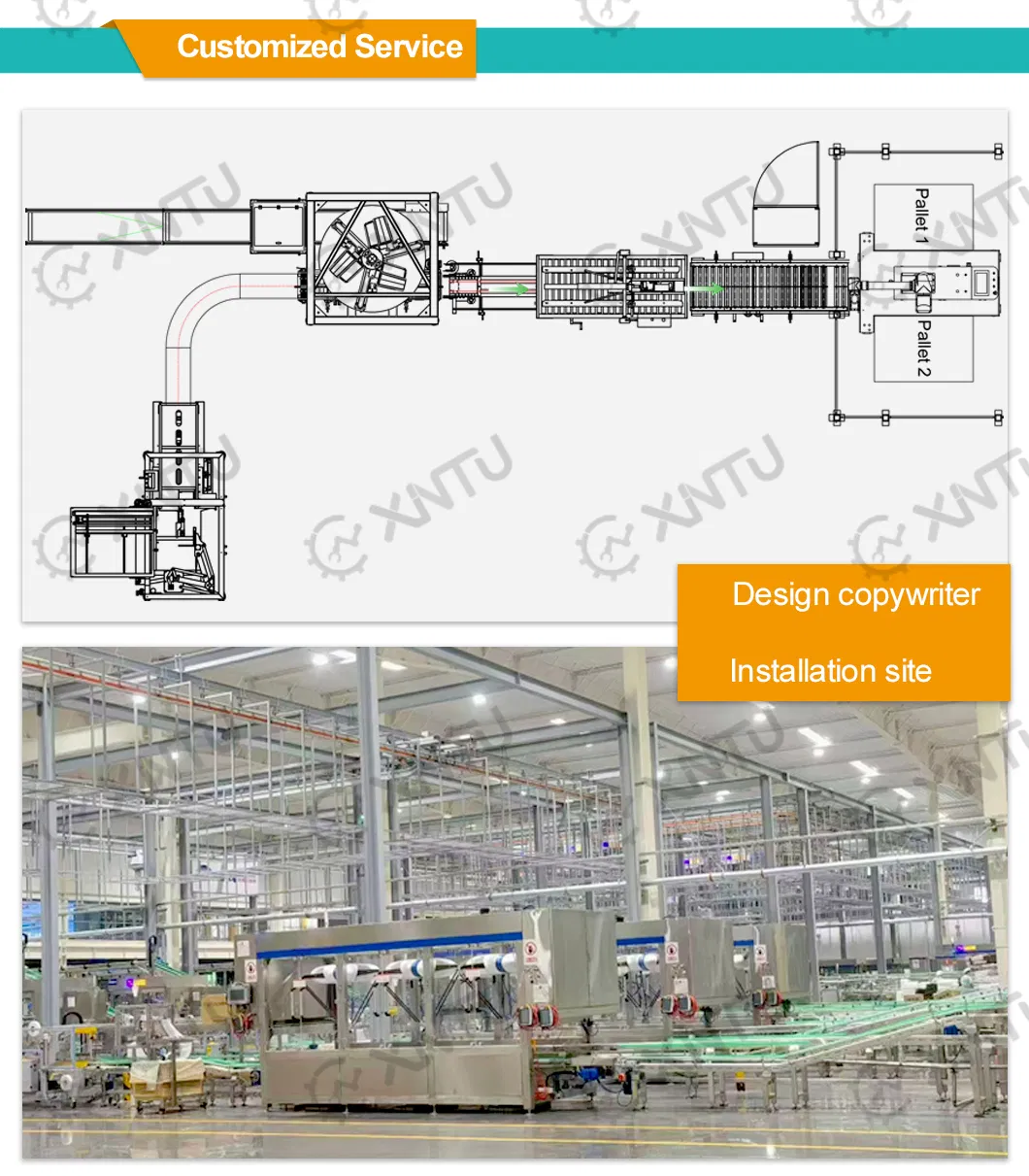

Customized Service Workflow

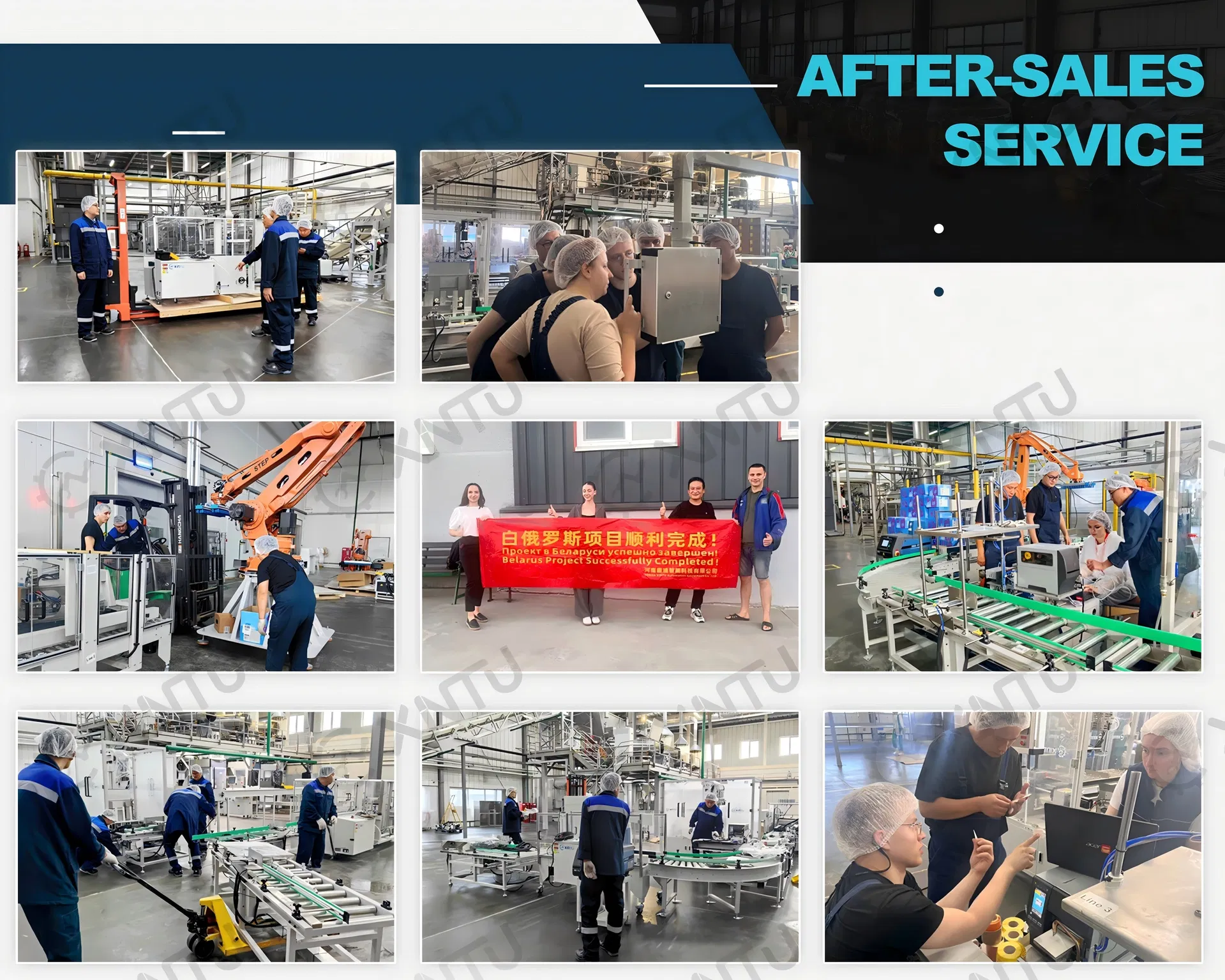

After Sales Service Details
After Sales Service
  • Warranty Flexibility: Standard 1-year comprehensive warranty (covers all components and labor). Optional extended warranty 3 years.
  • Remote Technical Support: Free 7×24-hour online consultation via phone, email, or video call.
  • On-Site Service for Custom Projects: For all customized lines, our professional after-sales team provides on-site installation, commissioning, and operator training.
  • Local Maintenance Service: Dedicated local service teams in key markets including Russia, Australia, and the United States. Enjoy fast on-site repairs, spare parts delivery, and routine maintenance without international logistics delays.
  • Lifetime Support: Beyond warranty, we offer cost-effective spare parts supply, software updates, and equipment upgrade services to extend the lifecycle of your line.
Relative Products

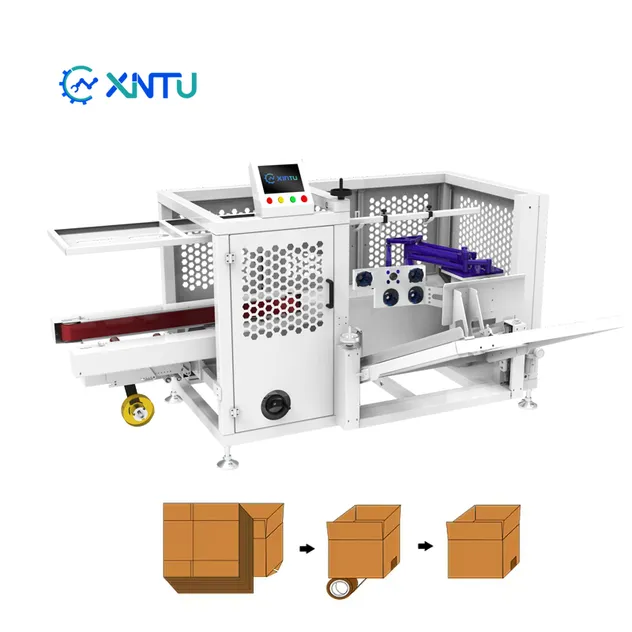

Carton Erector
Carton Erector

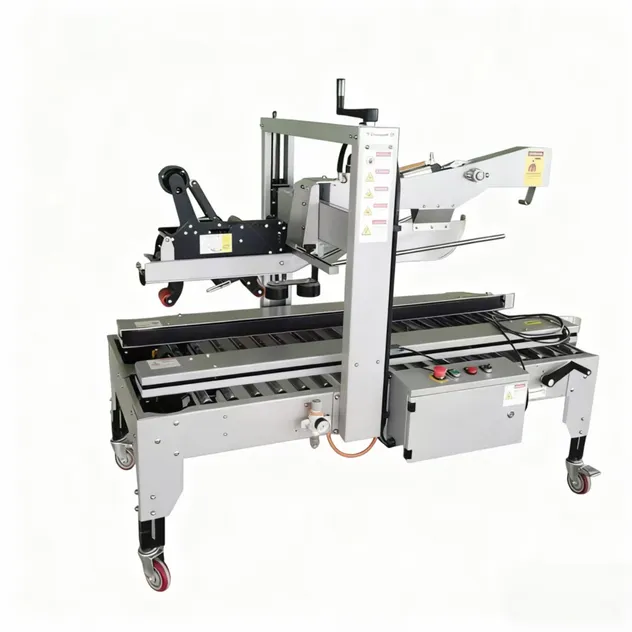

Carton Sealing Machine
Carton Sealing Machine
Robot Palletizer
Robot Palletizer
Company Profile
Production Facility 1
Production Facility 2
Production Facility 3
Quality Inspection System
Frequently Asked Questions
Q Are you a manufacturer or trade company?
We are a professional manufacturer with 10+ years of experience in automatic packaging equipment. We have our own R&D team, production factory (covering 4,000sqm), and after-sales service center—no middlemen, ensuring competitive prices and direct technical support for customers.
Q What is the speed range of the equipment?
A single packing station operates at 30-60 picks per minute. For high-volume needs, multi-robot configurations (2-4 Delta robots) are available, with a maximum speed of up to 200 picks per minute.
Q What is the delivery time?
The standard single-robot configurations lead time is 40-50 days from the date of order confirmation. For customized-multiple robots configurations, the lead time will be 60-70 days. Our production time is about 30-60 days based on your machine request.
Q What is the warranty period and after-sales support?
The entire system comes with a 1-year comprehensive warranty, with an optional extension to 3 years. We provide 7×24 remote technical support and 72-hour on-site response in key global markets, such as Russia, Australia, and the USA.
Q Can I visit your factory or see the equipment in operation?
Yes, we welcome factory visits—please inform us 1 week in advance to arrange a live demo with equipment running. If you can't visit in person, we can send a real-time video of your customized line's test run or share case videos of similar projects.
Q Do you provide installation and training services?
Yes, for all customized delta robot case packers, our professional engineers will go to your factory for on-site installation, commissioning, and training. The training includes equipment operation, daily maintenance, and troubleshooting—ensuring your team can use the line proficiently within 3-5 days.
