Product Description

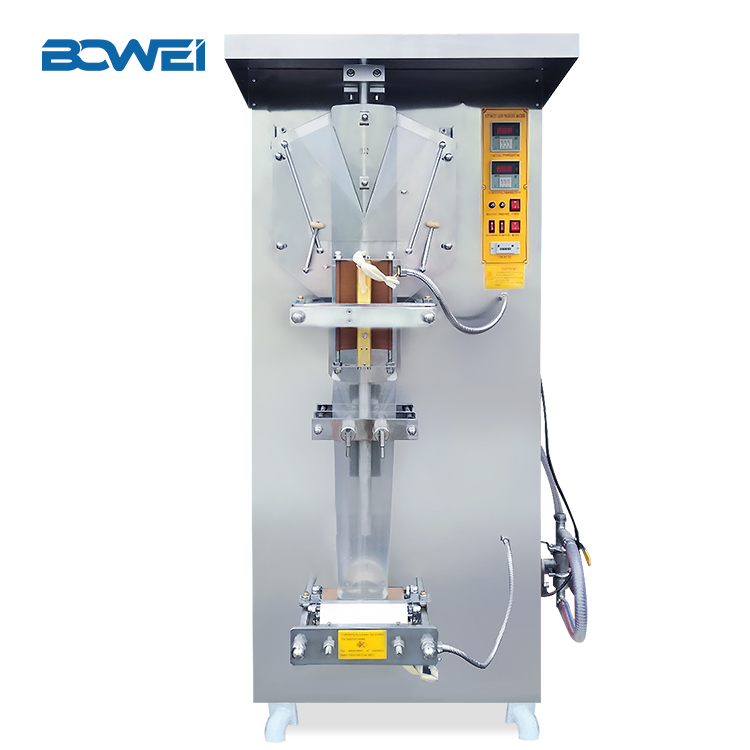

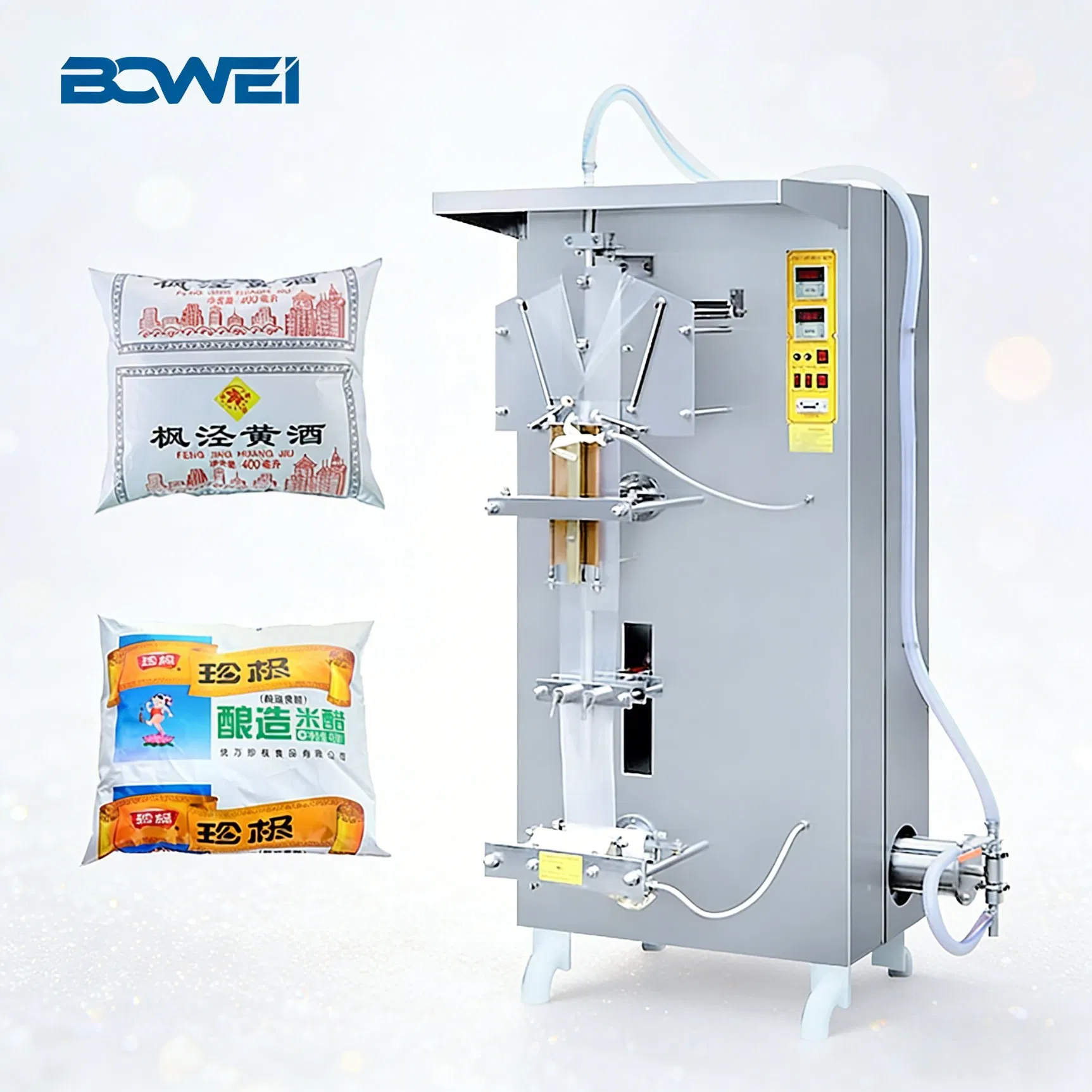

HDPE Film For Sachet 32cm Pure Water Purifier And Filling Packaging Sealing Machine System With Filter

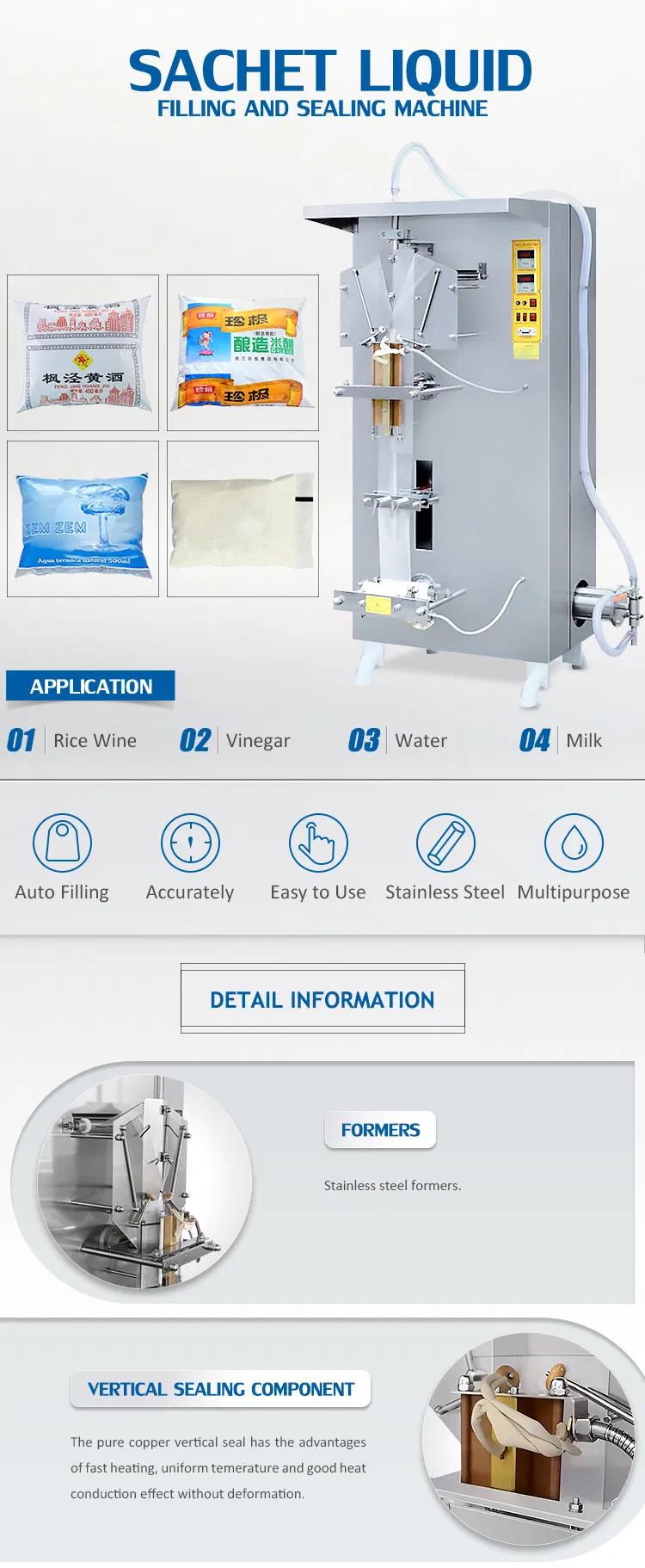

2 in 1 Sachet Liquid Pouch Filling Machine Sauce Sachet Filling Machine
- Back sealing, valve piston pump filling meter
- Film disinfection, liquid disinfection
- The finished packed products are elegant and reliable, ensuring maximum hygiene and security
- Automatically completes bag-making, metering, filling, sealing, cutting, counting, and printing batch numbers
- The body and all components in contact with the material are made of high-quality stainless steel
- Applicable for packaging liquids such as milk, soy sauce, vinegar, rice wine, and various other liquids
- Compatible packaging material: heat-sealable plastic film, such as polyethylene/PE
| 2 in 1 Sachet Liquid Pouch Filling Machine Sauce Sachet Filling Machine Specifications |
| Model |
BWLF-1000 |
BWLF-2000 |
| Bag-making Length |
50-150mm |
50-250mm |
| Bag-making Width |
40-150mm |
40-175mm |
| Packing Film Width |
100-320mm |
100-380mm |
| Packing Capacity |
50-550ml |
200-1000ml |
| Packing Speed |
2000-2200 bags/hour |
1100-1300 bags/hour |
| Power |
1.6KW |
2.5KW |
| Voltage |
220V |
220V |
| Dimension |
880*760*1800mm |
1050*850*2050mm |
| Weight |
275kg |
380kg |
Application Scope: It is applicable for packing liquid like milk, soy sauce, vinegar, rice wine and various liquids.
Packaging Material: Heat-sealable plastic film, such as polyethylene/PE.
Frequently Asked Questions (FAQ)
What kinds of liquids are compatible with this filling machine?
This system is designed to fill and package a wide variety of low-viscosity liquids, including pure water, milk, soy sauce, vinegar, rice wine, and other similar liquid products.
What packaging materials should be used?
The machine is optimized for heat-sealable plastic films, specifically Polyethylene (PE) or HDPE film with a width of up to 32cm/38cm depending on the specific model configurations.
What are the main differences between the BWLF-1000 and BWLF-2000 models?
The BWLF-1000 model has a packing capacity of 50-550ml and a higher output rate of 2000-2200 bags/hour. The BWLF-2000 model supports larger capacities of 200-1000ml at an output speed of 1100-1300 bags/hour.
Does this machine feature sterilization or disinfection systems?
Yes, this multi-functional system integrates both film sterilization and liquid disinfection processes to ensure high safety standards and packaging hygiene.
Is the packaging process fully automated?
Yes, the machine automatically executes film sterilization, bag-making, metering, liquid filling, sealing, cutting, counting, and batch code printing in a continuous, reliable cycle.
What material is the machine constructed from?
The outer body and all mechanical components that come into direct contact with the liquid are constructed using high-quality stainless steel to ensure durability, prevent contamination, and ease cleaning.
