| Model | TFZ-6540L |
|---|---|
| Power Supply | AC 220/380V 3PH 60Hz |
| Power | 1.8KW |
| Max. Packing Size | (L)≤450mm; (W)≤300mm; (H)≤380mm |
| Sealing Size | (W)650mm |
| Table Height | 800mm |
| Packing Speed | 10-15pcs/min (decide on product size) |
| Air Source | 6kgf/cm2 |
| Shrink Film | PE |
| Film Size | (W)≤550mm; (D)≤250mm; (G)≤35KG |
| Sealing Type | Sleeve type |

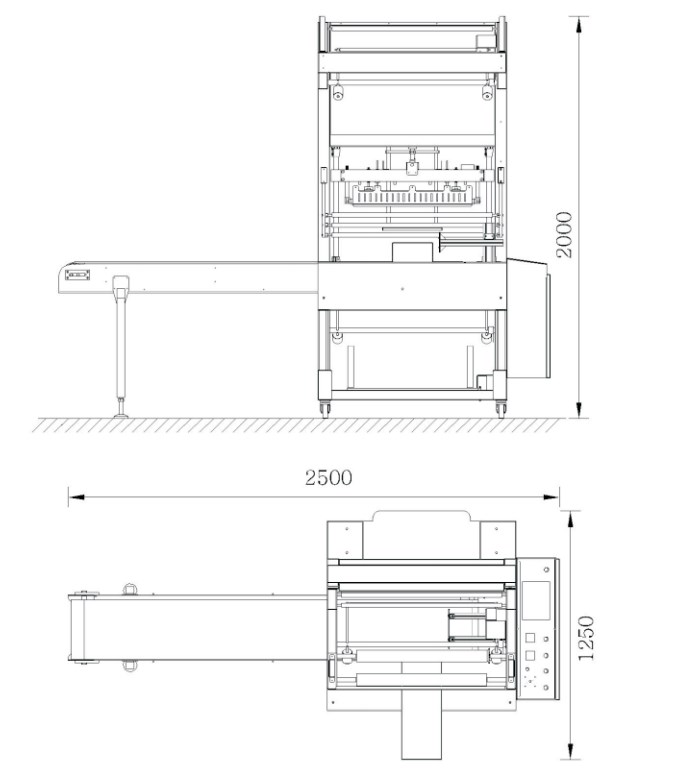

| Machine Size | L2460×W1230×H2000mm |
| Package Size | L2550×W1350×H2150mm |
| G./N. Weight | 420/330kg |
| Model | BS6040PE |
|---|---|
| Power Supply | AC 220/380V 3PH 60Hz |
| Power | 22KW |
| Table Height | 800mm |
| Conveying Load | 30KG |
| Conveyor Speed | 1-15m/min |
| Tunnel Size | L1800×W600×H400mm |
| Machine Size | L2800×W850×H1600mm |
| Package Size | L2850×W940×H1780mm |
| G./N. Weight | 540/450KG |
When the machine complete manufactured, we will send video for you check , you can also come to our factory to test and learn how to operate it.
Normally, please tell us what product you plan to pack and please send me your product size(L*W*H) with weight then we can quote exactly what you need.

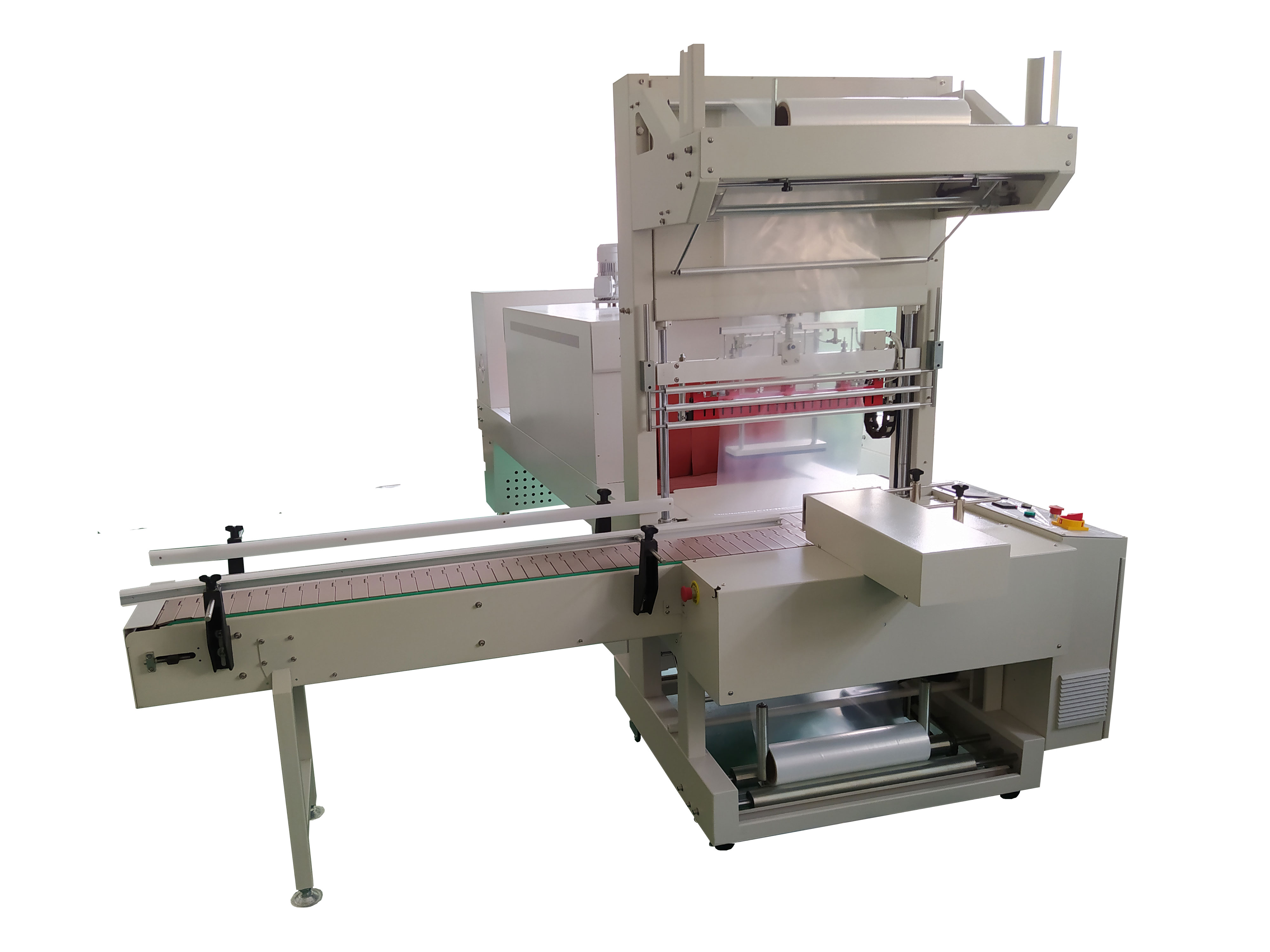

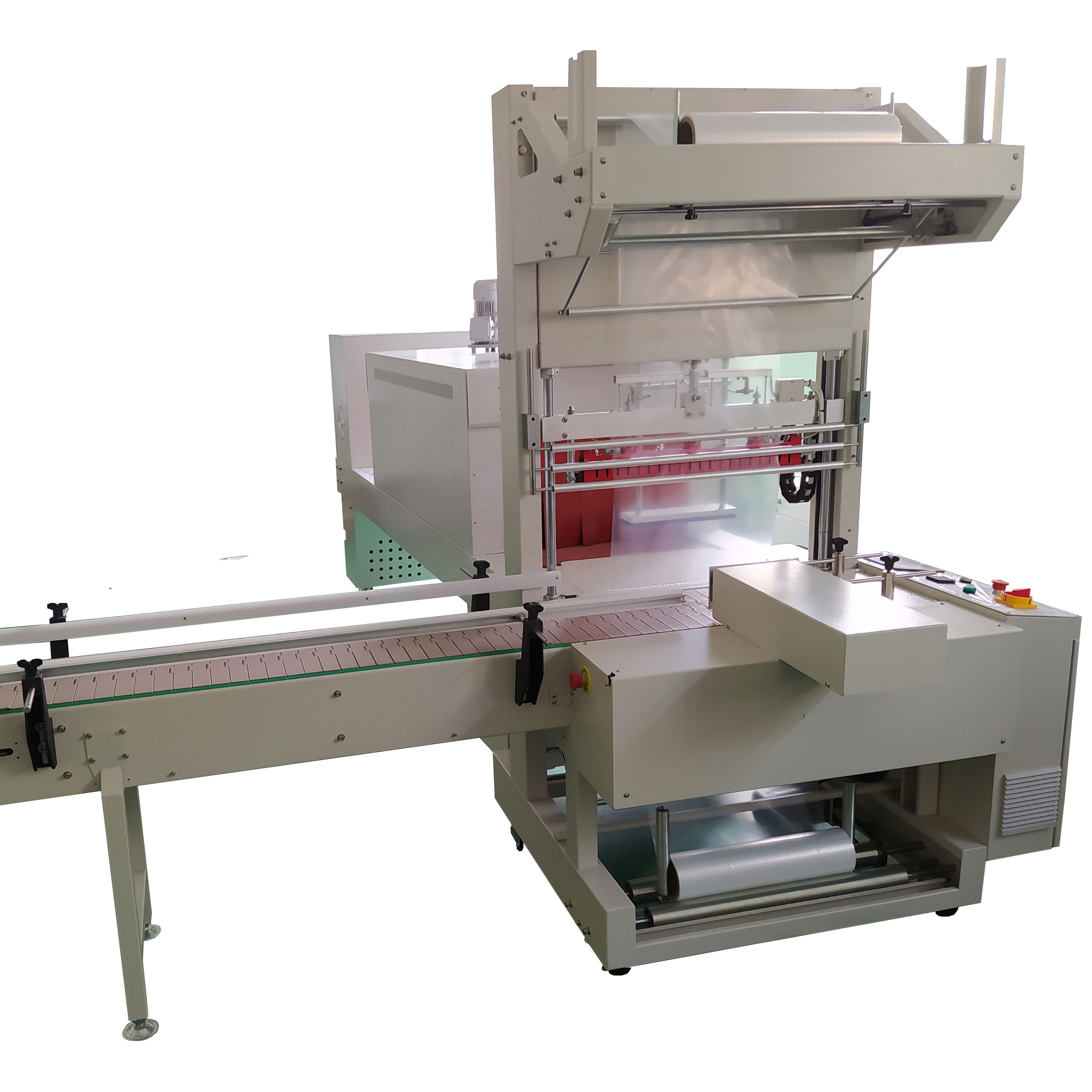

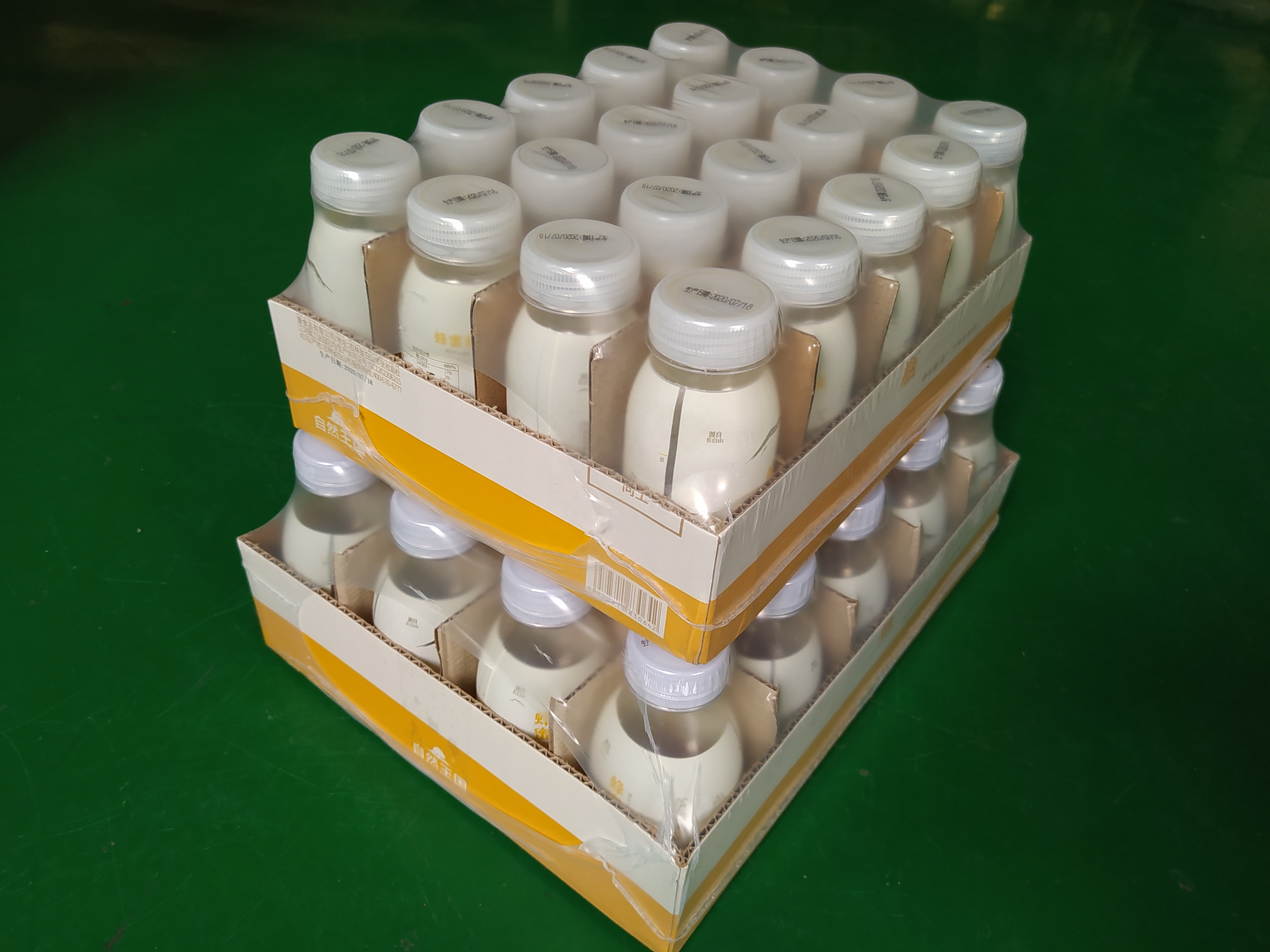

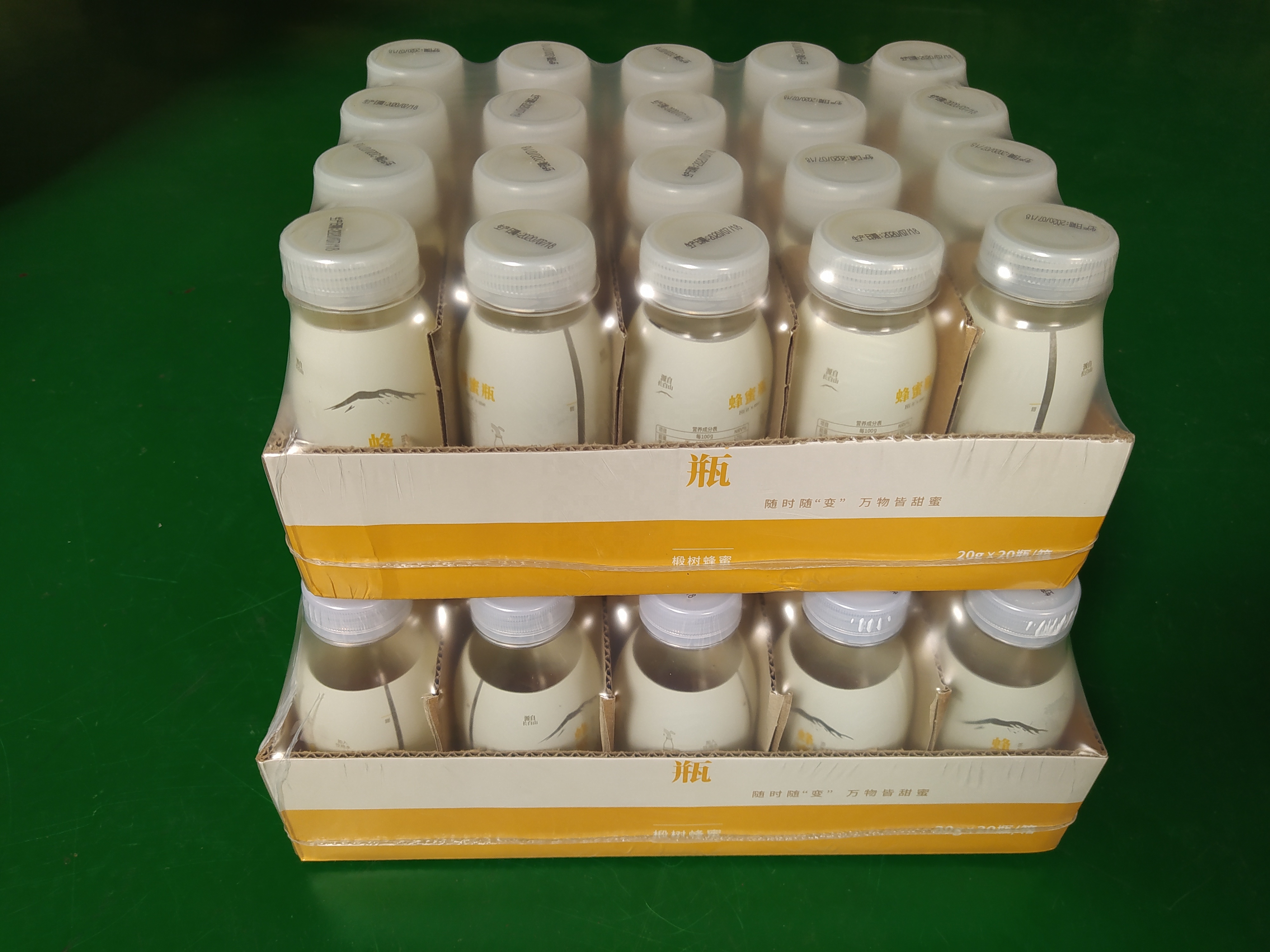

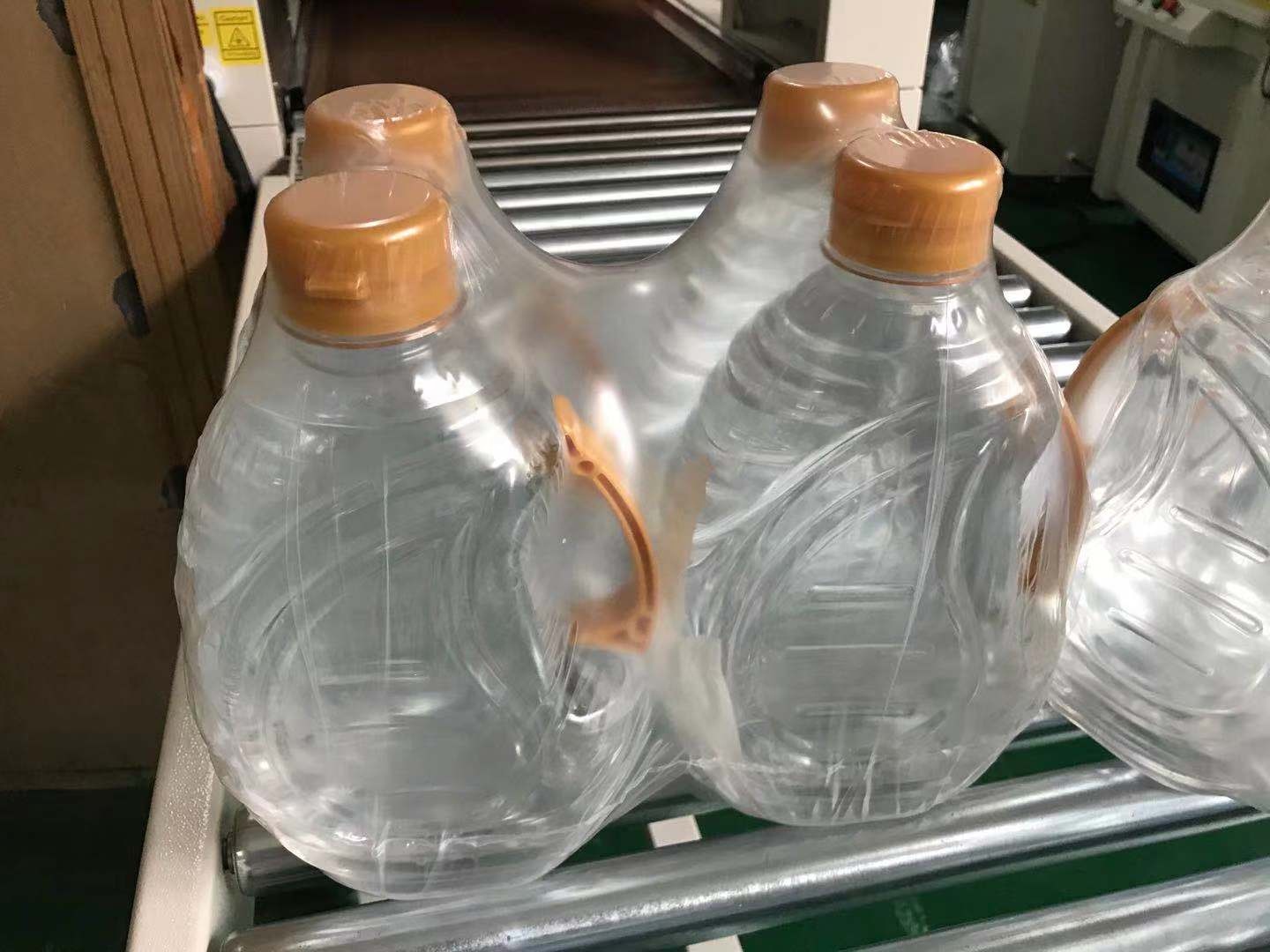

This machine is mainly applied to longer products such as cartons or paper trays containing drinks, beer, water, cans, and glass bottles for collection or single shrink wrapping.

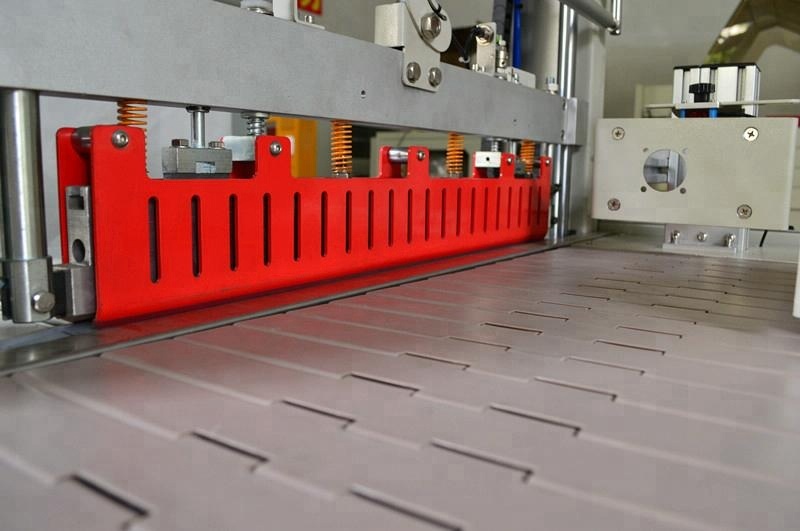

The sealing knife is made of a special steel knife coated with Daikin Teflon. This anti-stick and anti-high temperature coating ensures that the sealing will not crack, coke, or smoke during operation.
The machine adopts a Panasonic PLC programmable controller and a WEINVIEW 7-inch man machine interface, which ensures simple and reliable operation.
We pack the machines in Standard Export Wooden Cases for protection. Standard machines are regularly available in stock for prompt delivery.
