Small Box Bottle Toy Shrinking Wrapping Machine
Small Box Bottle Toy Shrinking Wrapping Machine
Small Box Bottle Toy Shrinking Wrapping Machine
Small Box Bottle Toy Shrinking Wrapping Machine
Small Box Bottle Toy Shrinking Wrapping Machine
1 / 5
Small Box Bottle Toy Shrinking Wrapping Machine
Small Box Bottle Toy Shrinking Wrapping Machine
Small Box Bottle Toy Shrinking Wrapping Machine
Small Box Bottle Toy Shrinking Wrapping Machine
Small Box Bottle Toy Shrinking Wrapping Machine

Small Box Bottle Toy Shrinking Wrapping Machine

Send Inquiry

Product Description

Small Box Bottle Toy Shrinking Wrapping Machine
Small Box Bottle Toy Shrinking Wrapping Machine
Small Box Bottle Toy Shrinking Wrapping Machine
Feature SF-20LG SF-4525
Power2.8kw9kw
Power SupplyAC 220V 1/3PH 50/60HzAC 380/220V 3PH 50/60Hz
Max. Packing Size (L×W×H)L+H≤530mm, W+H≤430mm, H≤200mm1000×300×200mm
Tunnel Size (L×W×H)/1000×450×250mm
Max. Loading Weight25kgs25kgs
Table Height750±25mm750±25mm
Packing Speed0-15m/min.0-10m/min.
Shrink FilmPOFPOF
Machine Size (L×W×H)1800×930×1050mm1300×720×1500mm
Package Size (L×W×H)1840×980×1200mm1700×800×1250mm
G./N. Weight230/185kgs315/245kgs

Key Features

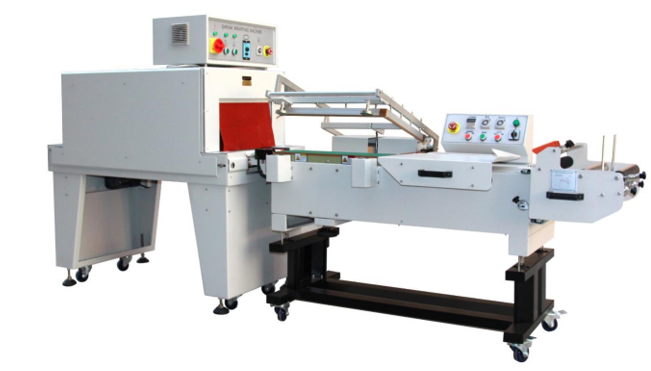

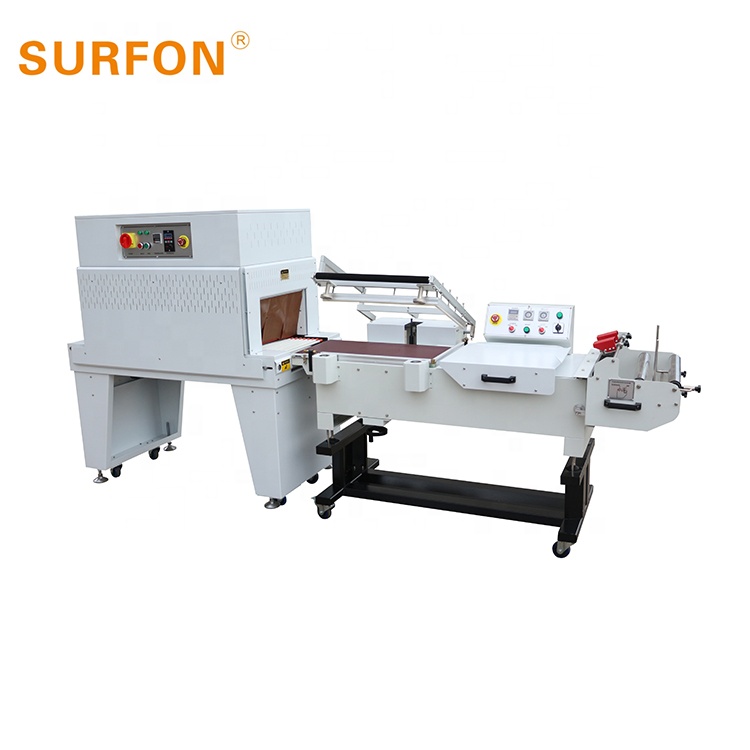

  • This machine integrates both a shrink tunnel and a sealing machine, featuring L-bar manual sealing followed by automatic transfer to the shrink chamber.
  • Conveyor height can be easily adjusted using the hand wheel.

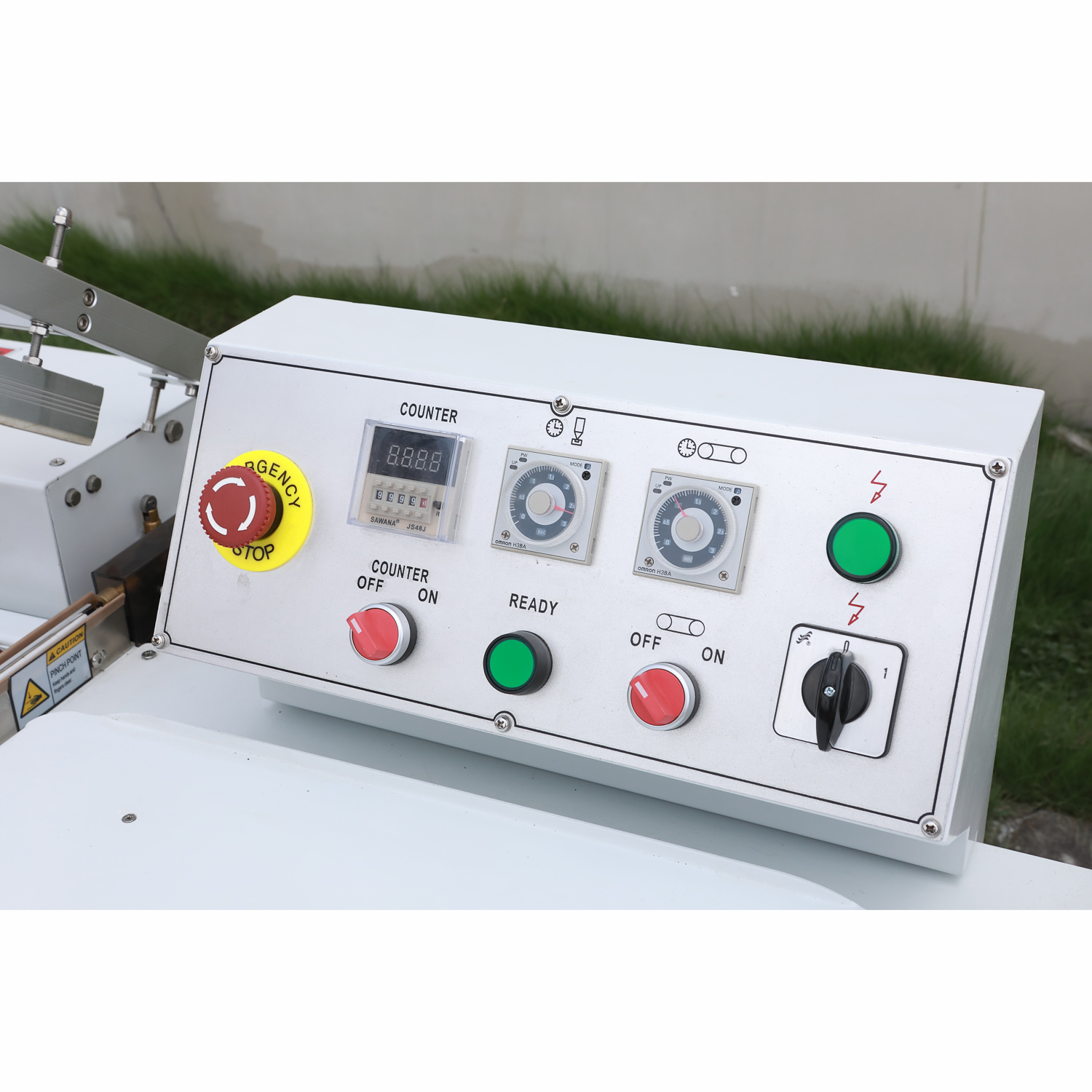

  • Sealing time is accurately controlled by a time relay.

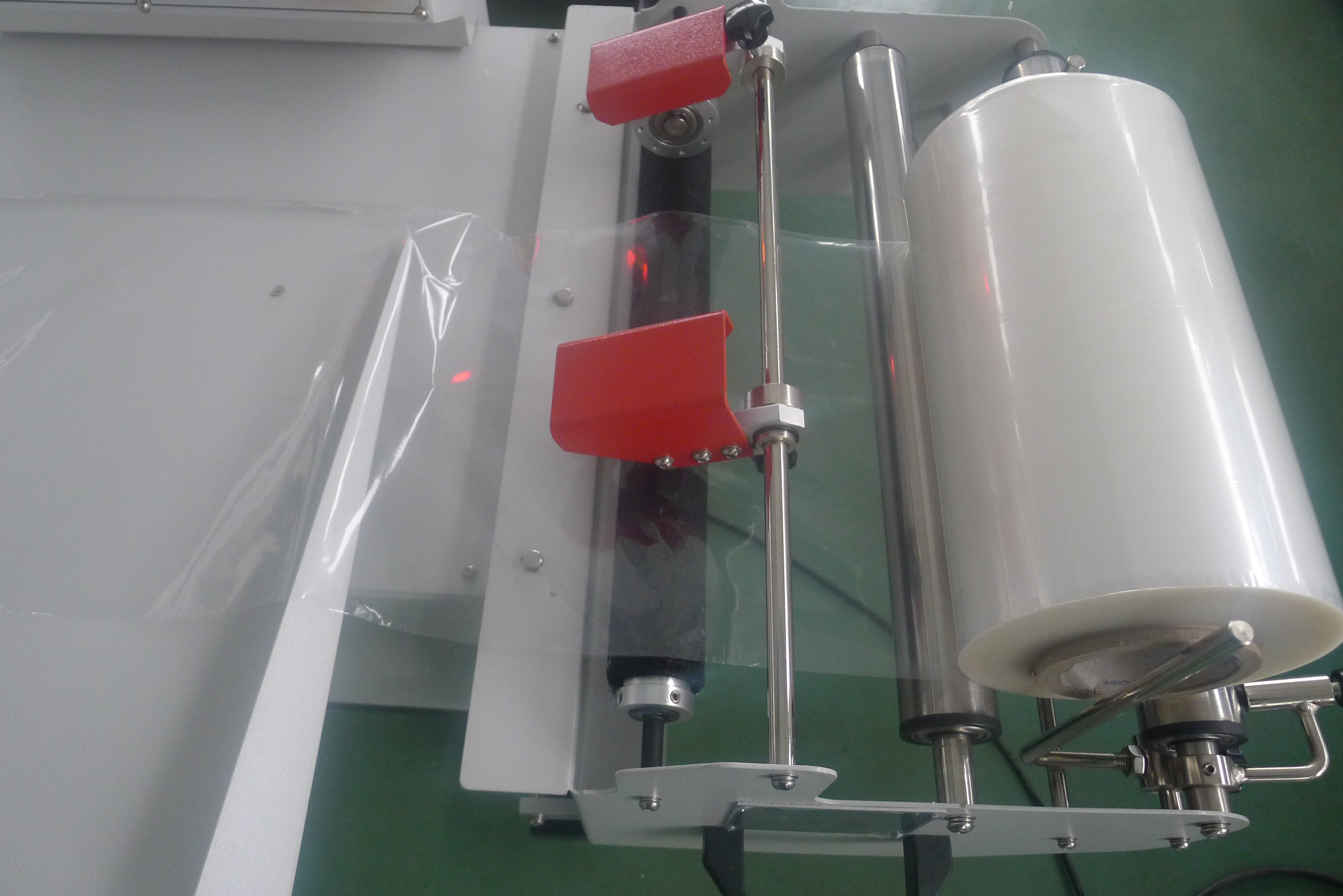

  • Sliding bracket accommodates various shrink films with a smooth punching device.
  • Equipped with an emergency stop device for immediate operation halt.
  • Imported electrical components ensure stable performance and durability.
  • Imported heat-resistant insulation curtain minimizes heat loss.
  • SF-4525 shrink tunnel utilizes stainless steel heating elements, significantly extending service life.

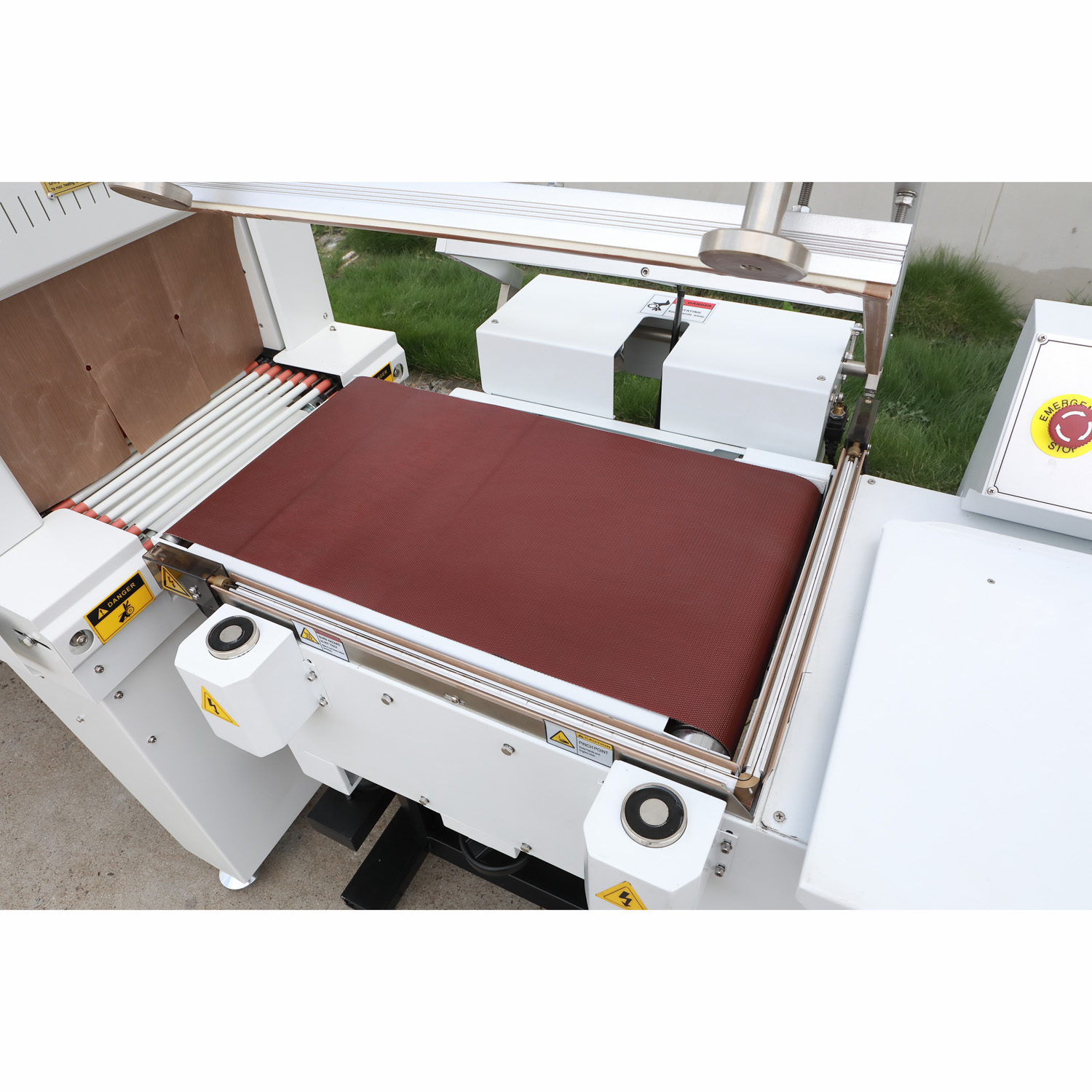

  • Chain bars are made of solid 45# steel to prevent film burning; PTFE coated mesh belts or S.S. mesh belts are available as options.
  • Advanced control systems regulate temperature and conveyor speed for optimal shrinking results on various films; micro frequency inverter used for longer service life.
  • Efficient air circulation system ensures uniform heat distribution for consistent packaging.
  • Suitable for PVC and POF film sealing and wrapping.
Shrinking Wrapping Machine
Shrinking Wrapping Machine
Shrinking Wrapping Machine
Shrinking Wrapping Machine
Shrinking Wrapping Machine
Shrinking Wrapping Machine
Shrinking Wrapping Machine

Frequently Asked Questions (FAQ)

1. What types of film can this machine handle?

This machine is specifically designed to handle PVC and POF shrink films effectively.

2. How do I adjust the conveyor height?

You can easily adjust the conveyor height to suit your packaging needs using the convenient hand wheel mechanism.

3. What is the benefit of the air circulation system?

The circulation system allows hot air to reach all surfaces of the package uniformly, ensuring a professional and consistent shrink appearance regardless of product size.

4. Are there safety mechanisms included?

Yes, the machine comes with an emergency stop device that allows for an immediate halt of operations in case of an emergency.

5. Is the sealing process automatic?

The process involves L-bar manual sealing, followed by automatic transition to the shrink chamber to finish the wrapping process efficiently.
