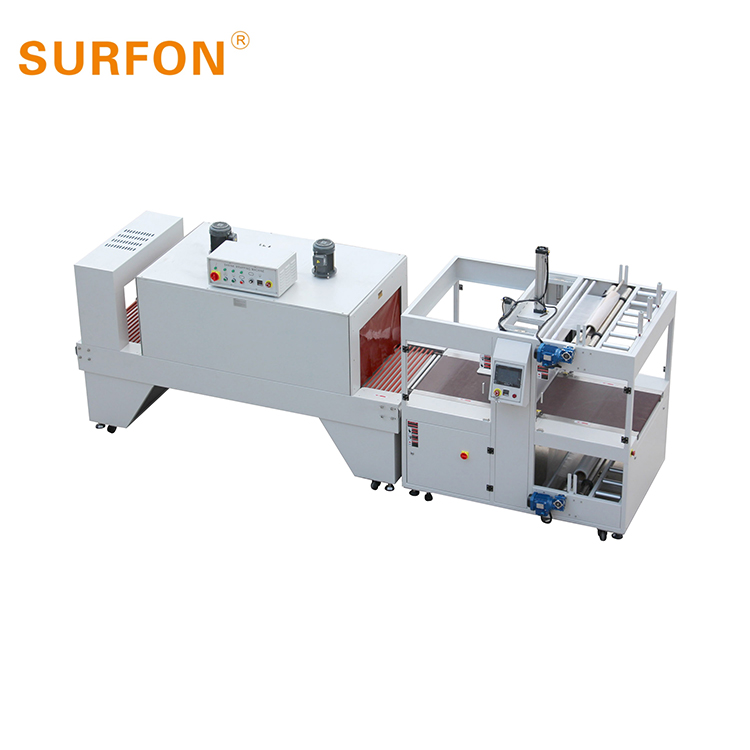

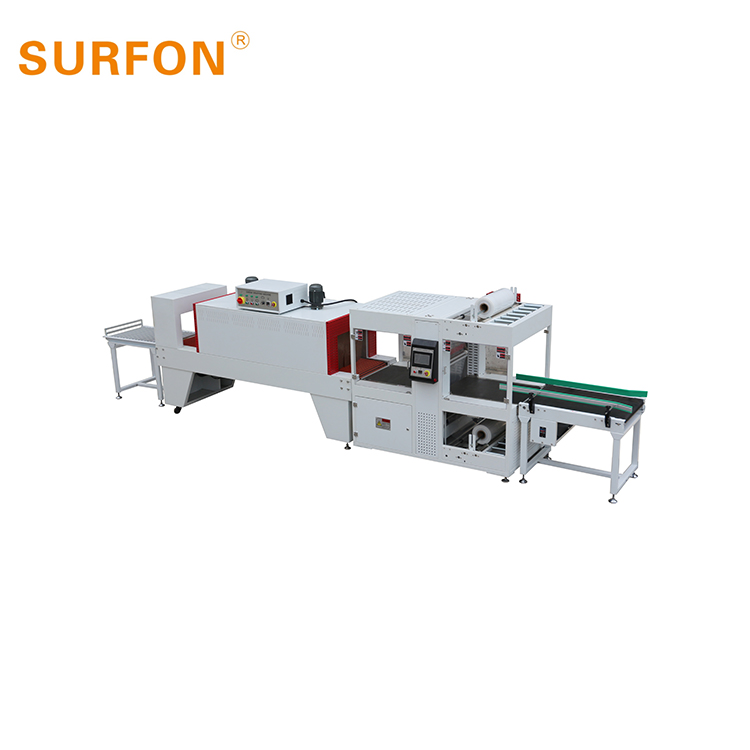

Auto Shrink Wrapping Machine Sleeve Sealer Straight Feeding Servo System
Auto Shrink Wrapping Machine Sleeve Sealer Straight Feeding Servo System
Auto Shrink Wrapping Machine Sleeve Sealer Straight Feeding Servo System
Auto Shrink Wrapping Machine Sleeve Sealer Straight Feeding Servo System
Auto Shrink Wrapping Machine Sleeve Sealer Straight Feeding Servo System
1 / 5
Auto Shrink Wrapping Machine Sleeve Sealer Straight Feeding Servo System
Auto Shrink Wrapping Machine Sleeve Sealer Straight Feeding Servo System
Auto Shrink Wrapping Machine Sleeve Sealer Straight Feeding Servo System
Auto Shrink Wrapping Machine Sleeve Sealer Straight Feeding Servo System
Auto Shrink Wrapping Machine Sleeve Sealer Straight Feeding Servo System

Auto Shrink Wrapping Machine Sleeve Sealer Straight Feeding Servo System

Send Inquiry

Product Description

Auto Shrink Wrapping Machine Sleeve Sealer Straight Feeding Servo System
Model GH-6030AZ SF-6040E
Power 2kw 18kw
Power Supply AC220V 1/3 PH 50/60Hz AC220V/380 3 PH 50/60Hz
Max Packing Size L×W×H L(unlimited)×500×300mm W500×H350mm
Tunnel Size L×W×H / 1800×600×400mm
Blade Length 670mm /
Air Temperature 0-300°C 0-300°C
Table Height 820±50mm 820±50mm
Packing Speed 25m/min. 0-25m/min
External Air Source 6-8kg/cm2 /
Shrink Film PE PE

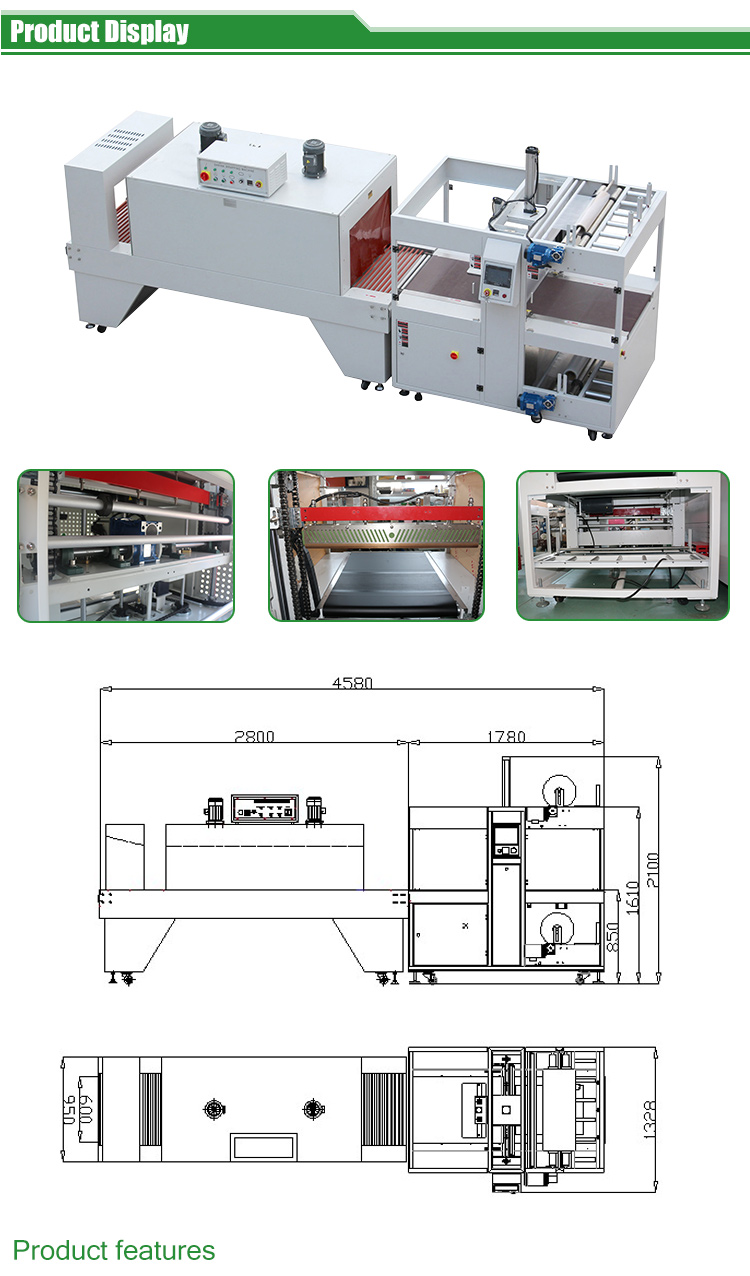

Machine Size L×W×H 950×950×1865mm 2800×950×1750mm
Packaging Size L×W×H 1000×1000×2015mm 2850×1000×1900mm
G./N. Weight 420/380kgs 625/565kgs
Auto Shrink Wrapping Machine Sleeve Sealer Straight Feeding Servo System
  • GH-6030AZS+SF-6040E fully-auto Straight Feeding Sleeve Sealer& Shrink Tunnel adopts the unique linear design and compact structure. It is very suitable for some limited space and don't need to adjust the forward direction packing. What’s more, there is no length limits;
  • It can work independently and also can connect with the production line to realize the unmanned assembly line with the function of auto feeding, film wrapping, sealing, shrinking, cooling and stereotypes.
  • The foreign advanced technology and production process make sure the stable performance.

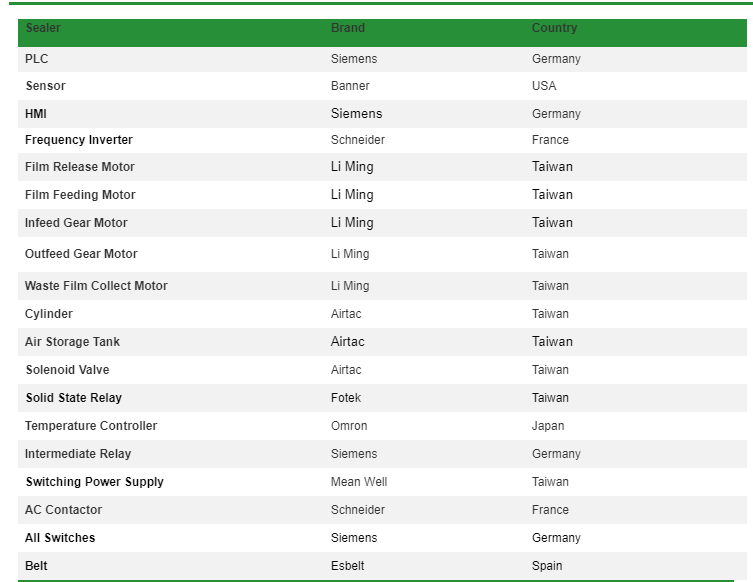

  • Siemens “PLC” programmable process controller makes it achieve the mechanical, electrical and pneumatic integration.
  • After a special modification, the light and small products can also be packed;
  • It has advantages of speed and connection compared with the common side feed machine.
  • The sealing line is solid without cracking by cutting and anti- sticking by using special blade.
  • Two groups of imported level photoelectric devices are used to accurate positioning;

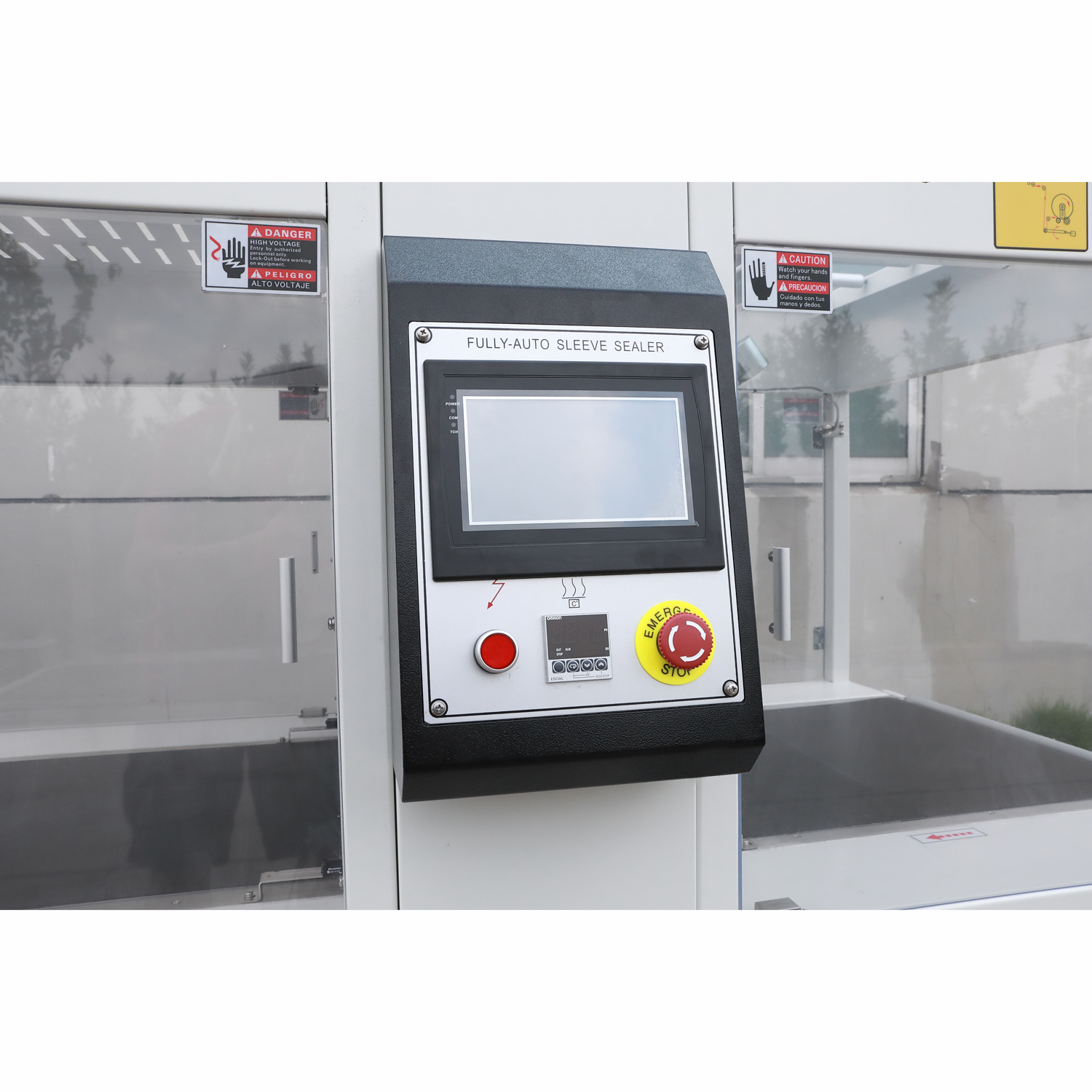

  • The imported conveyor belt is durable and the conveyor speed is controlled by frequency inverter. The user-friendly control box makes the operator’s operation much easier; The pressure device equipped behind the sealing makes sure the position is stable even for the light product during the procession.

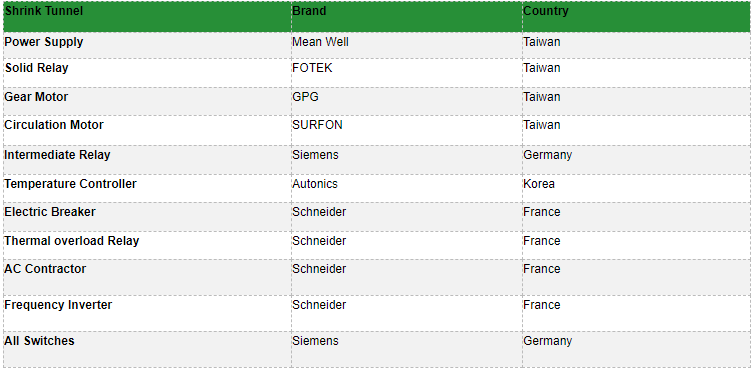

  • SF-6040E shrink tunnel adopts the imported double recycling motor; so that the hot air in the tunnel is even to have more beautiful shrink effect.
  • The outside security cover can be installed according to the customer requirement.
  • The chain conveyor made of solid steel covered with imported silicone tube is very durable. Besides the chain conveyor, we also have different conveyors according the products shape and material.
  • The frequency inverter controls the speed of the conveyor.

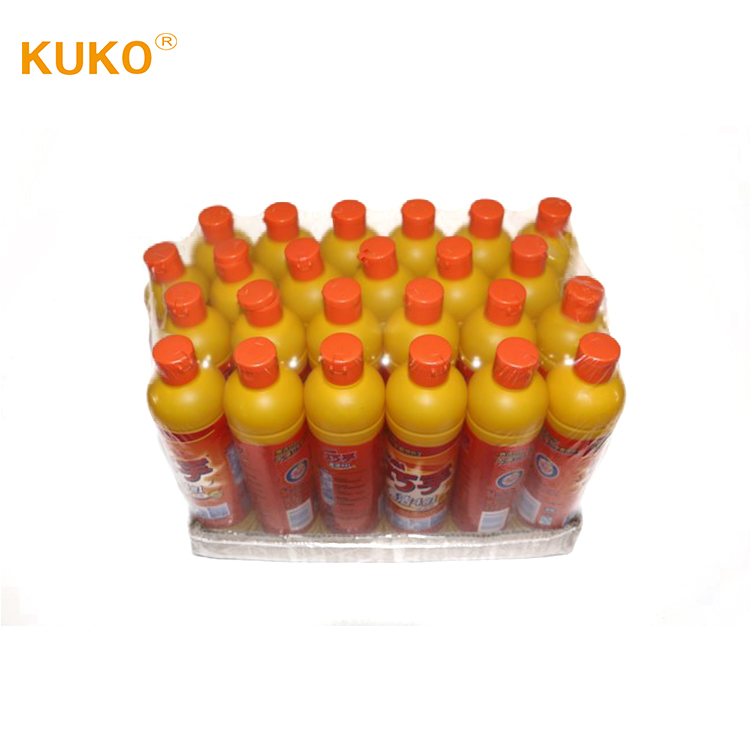

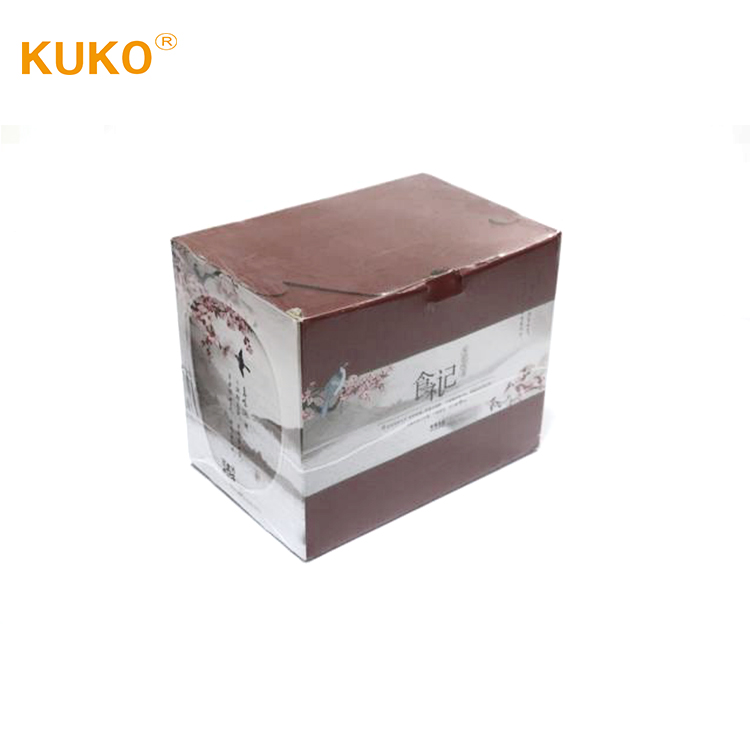

  • The separate control box makes sure the electrical components have good ventilation. This machine is mainly applied to the longer products, such as cartons or paper trays which contain drink, beer, water, can or glass bottles collection or single shrink wrapping.
Auto Shrink Wrapping Machine Sleeve Sealer Straight Feeding Servo System
Auto Shrink Wrapping Machine Sleeve Sealer Straight Feeding Servo System
Auto Shrink Wrapping Machine Sleeve Sealer Straight Feeding Servo System
Auto Shrink Wrapping Machine Sleeve Sealer Straight Feeding Servo System
Auto Shrink Wrapping Machine Sleeve Sealer Straight Feeding Servo System
Auto Shrink Wrapping Machine Sleeve Sealer Straight Feeding Servo System
Frequently Asked Questions
What types of products are suitable for this sleeve sealer and shrink tunnel?
This system is mainly applied to longer products, such as cartons or paper trays containing drinks, beer, water, cans, glass bottle collections, or single shrink wrapping items.
Can this machine handle light and small products?
Yes. After a special modification, light and small products can also be packed. The pressure device equipped behind the sealing mechanism ensures that the product remains stable during processing.
What type of shrink film is used by the GH-6030AZ and SF-6040E?
Both the sleeve sealer (GH-6030AZ) and the shrink tunnel (SF-6040E) are designed to work with PE (Polyethylene) shrink film.
What are the power and air requirements for this machine?
The GH-6030AZ sleeve sealer requires 2kw power (AC220V 1/3 PH 50/60Hz) and an external air source of 6-8 kg/cm². The SF-6040E shrink tunnel requires 18kw power (AC220V/380 3 PH 50/60Hz).
Does this system support automated assembly line integration?
Yes, it can work independently or connect directly to a production line to achieve an unmanned assembly line, supporting automatic feeding, wrapping, sealing, shrinking, cooling, and stereotypes.
What brand of programmable process controller is integrated?
The machine utilizes a Siemens "PLC" programmable process controller to successfully achieve mechanical, electrical, and pneumatic integration.
