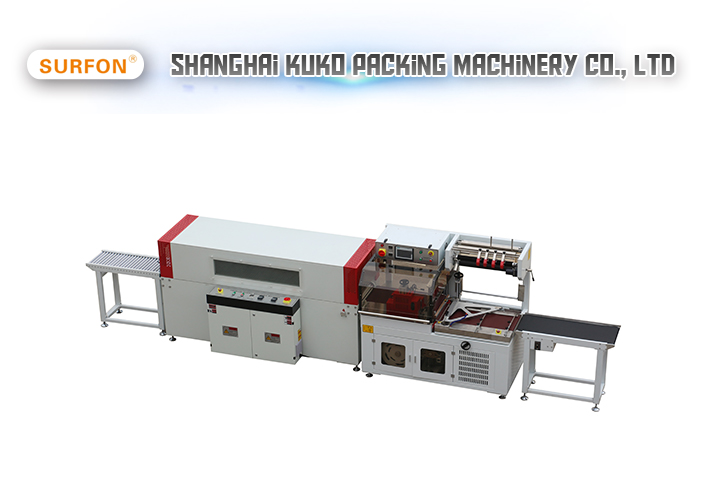

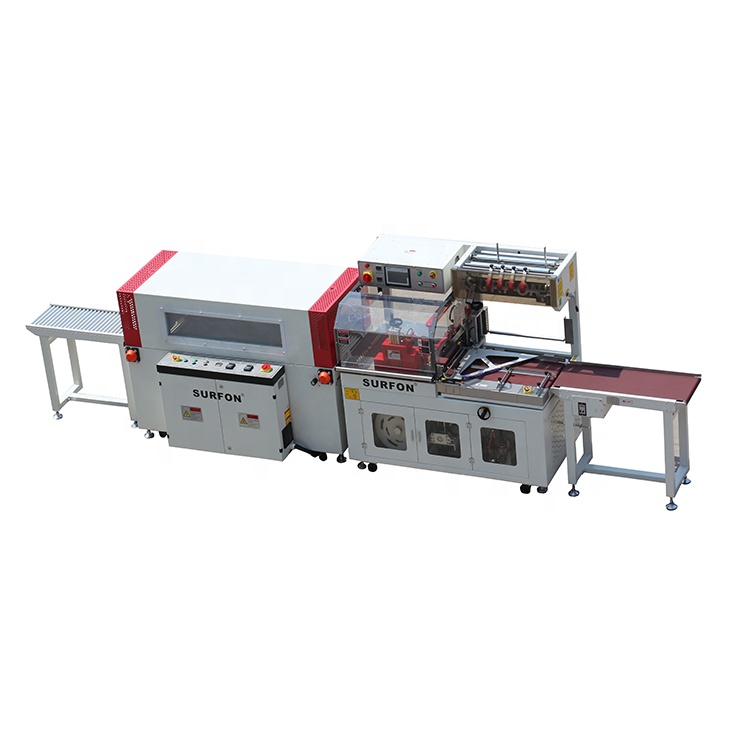

GH-3015L is an economical fully-auto unmanned operation side sealer by independent research and development, which is widely used in mass production assembly line with auto-feeding, conveying, sealing, shrinking in one time. It is high working efficiency and suits for the products of different height and width;

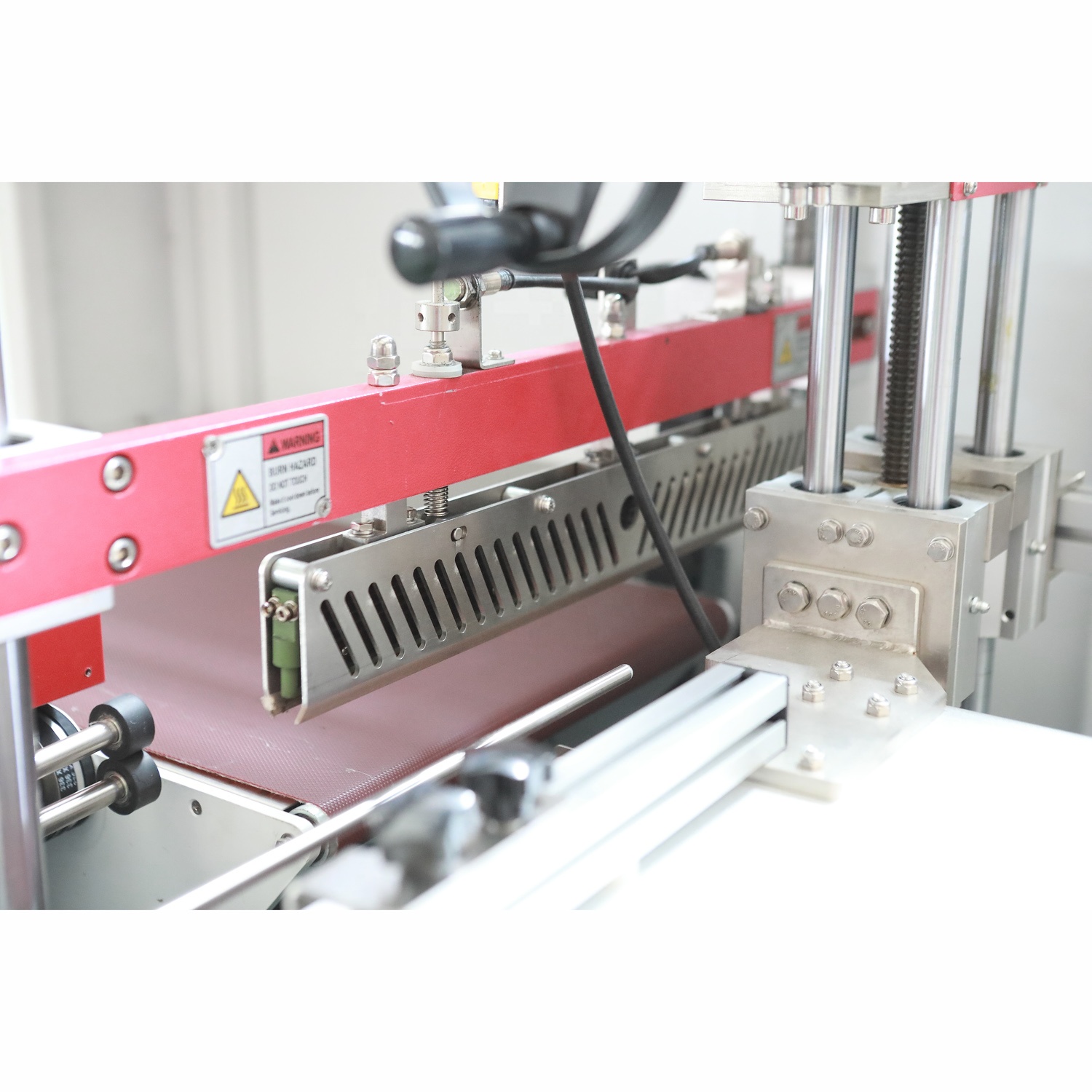

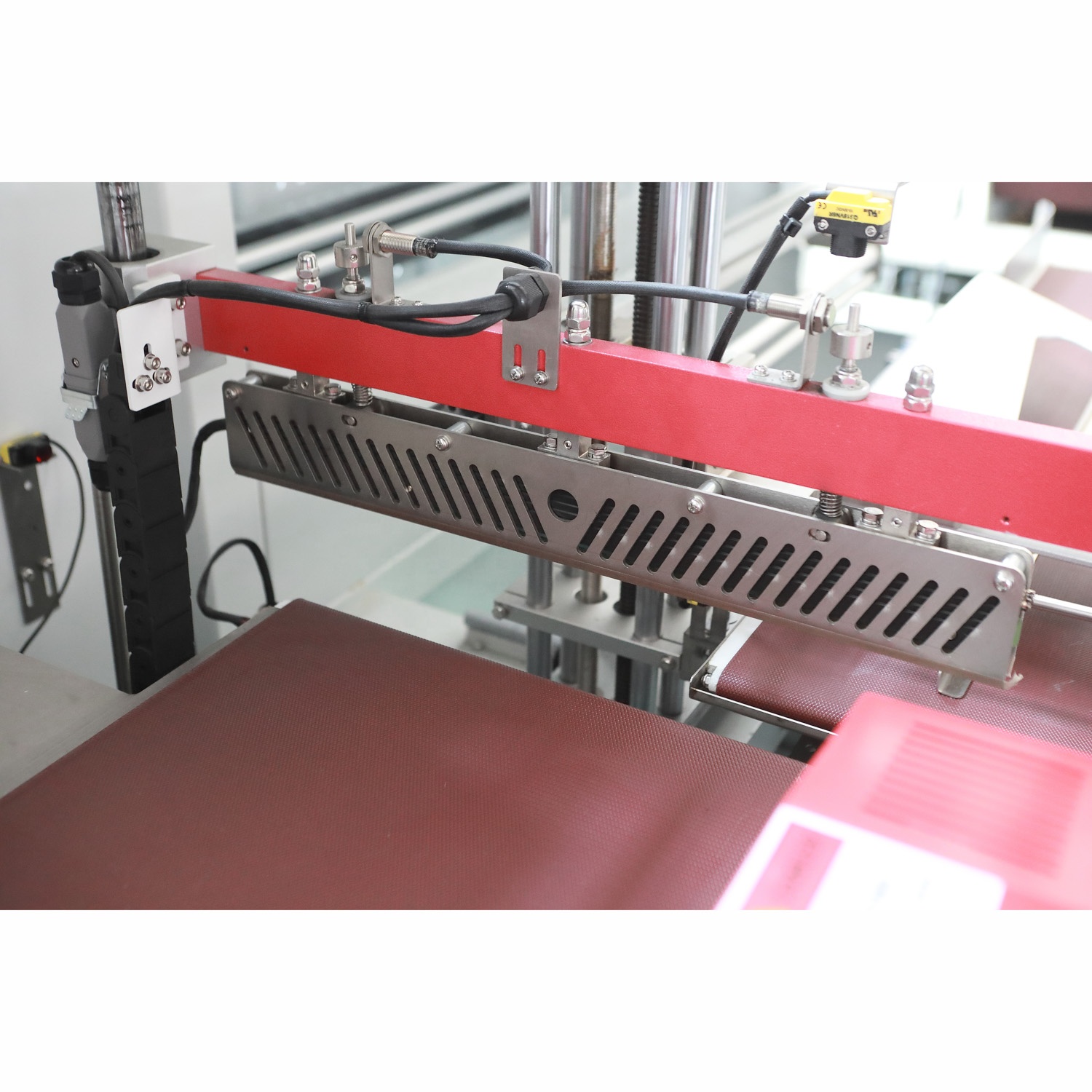

Cross sealing bar with PTFE-coated sealing blade adopts vertical driving; Side sealing system by friction with hot blade. The sealing line is straight and strong and the seal line in the middle of the product is guaranteed to achieve perfect sealing effect;
When it packs different sizes, the adjustment is very simple by rotating the hand wheel to increase the reliability;
The machine adopts advanced Siemens PLC programmable controller, with safety protection and alarm devices, while the sealing system can have a continuous sealing order without replacement; Maintenance is very simple;
Feeding length controls through a combination of electric eye detection and time relay to control precise film length that makes it easier to control the contraction effect;

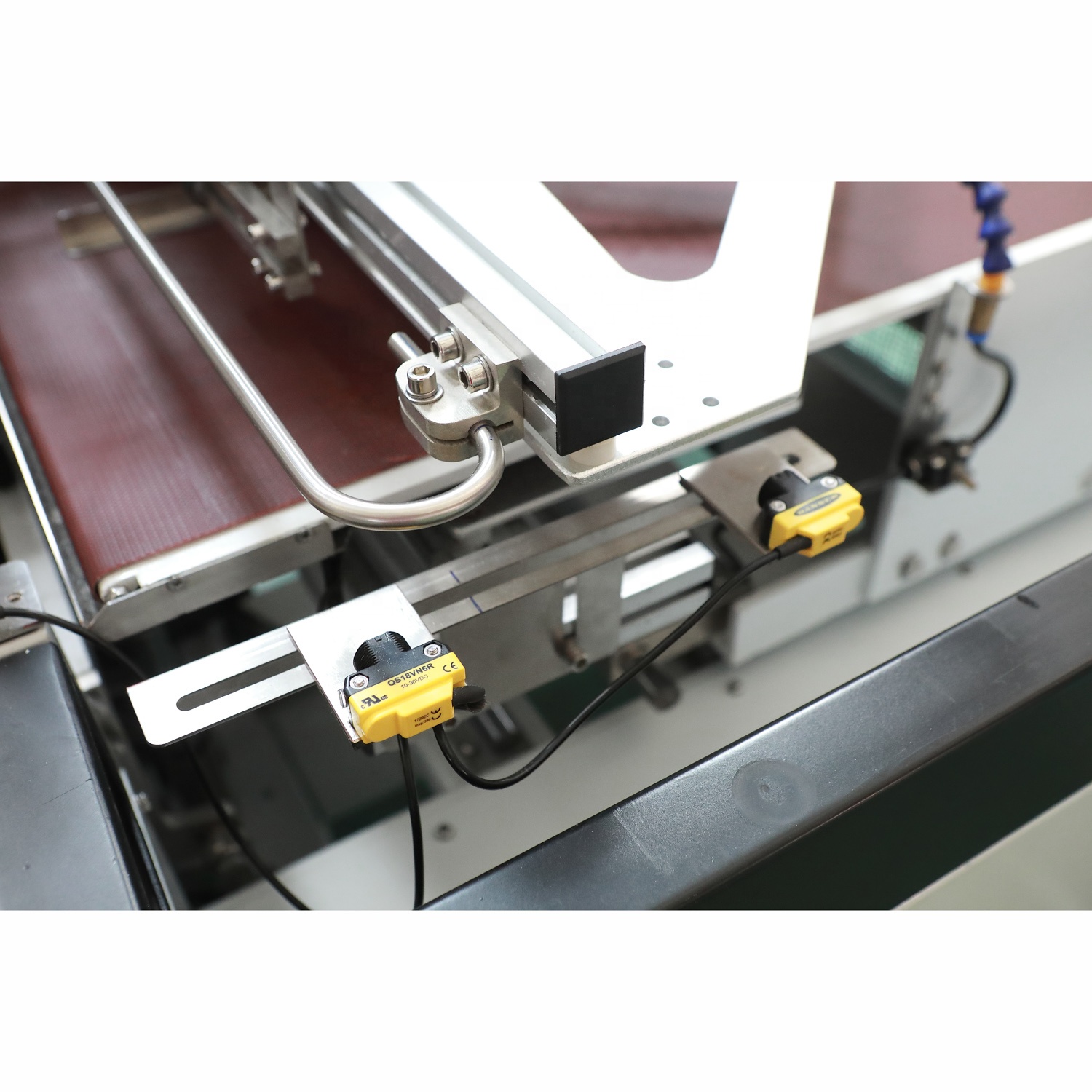

Two groups of horizontal and vertical sensors are easy to switch for thin or small packages which can easily complete sealing packaging operations;
Automatic rolling waste material : Using a separate motor to control which is not too loose or too tight to crack and is easy to remove the waste;
Front in feeding power conveyor and back non-power storage table can be selected as your demands;
SF-5030LG adopts advance blowing from the bottom of the chamber, fully use of heat to arise energy efficiency. Frequency inverters control blowing and conveyor speed separately. The blowing direction is adjustable;

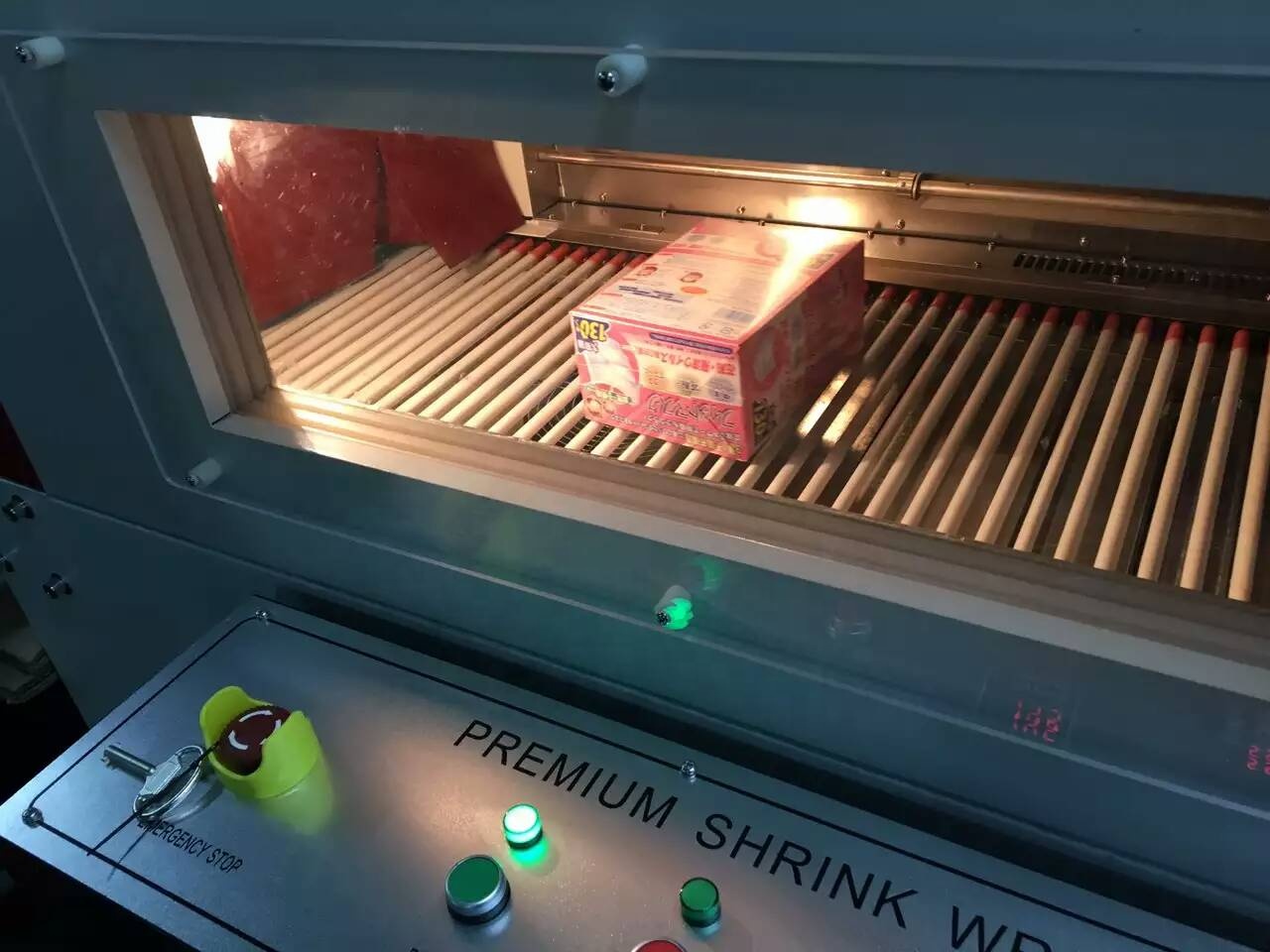

Visible window has anti-fogging function and can show the shrinking process in the chamber;
The speed of finger conveyor is adjustable which controls equal distance among products to make sure consistent sealing;
It can be used for packing aluminum, flooring, fabric rolls, MDF etc. The machine is suitable for mass production of long materials.
Technical Specifications
Model
GH-3015L
SF-5030LG
Power
1.8kw
16kw
Power Supply
AC 380/220V 3PH 50/60Hz
AC220/380V 3PH 50/60Hz
Max Packing Sizes L×W×H
L(unlimited)×W310×H120mm
W400xH200mm
Tunnel Size L×W×H
/
1500×500×300mm
Sealing Blade Length
490mm
/
Packing Speed
15m/min.
0-20m/min
External Air Source
6-8kg/cm2
/
Shrink Film
POF
POF
Machine Size L×W×H
1615×960×1550mm
1860×985×1315mm
Packaging Size L×W×H
1800×1050×1700mm
1910×1035×1465mm
G./N. Weight
560/520kgs
493/453kgs
Component Brand Configuration
Sealer Component
Brand
Country of Origin
Sensor
Banner
USA
Side Sealing Cylinder
Festo
Germany
Side Sealing Solenoid Valve
SMC
Japan
Cross Sealing Cylinder
Airtac
Taiwan
Cross Sealing Solenoid Valve
Airtac
Taiwan
Gear Motor
GPG
Taiwan
PLC
Schneider
France
Film Motor
Li Ming
Taiwan
Intermediate Relay
Siemens
Germany
Switching Power Supply
Schneider
France
Overload Relay
Schneider
France
AC Contactor
Schneider
France
Frequency Inverter
Schneider
France
Product Images

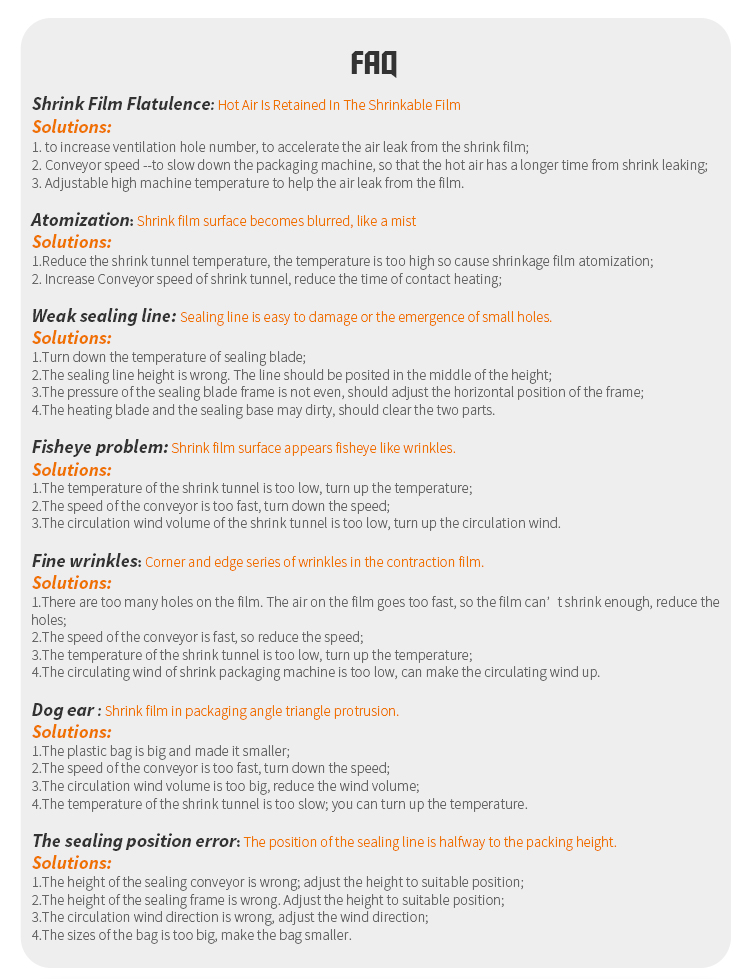

Frequently Asked Questions (FAQ)
What packaging materials are suitable for this machine?
This shrink wrapping machine configuration is designed primarily to wrap long materials such as aluminum profiles, flooring boards, fabric rolls, MDF panels, and other mass-production products.
What type of shrink film does this packaging line support?
Both the GH-3015L side sealer and the SF-5030LG shrink tunnel are optimized to work with POF (Polyolefin) shrink film.
How is the sealing quality and alignment maintained?
The machine uses a cross sealing bar with a vertical drive PTFE-coated blade and a hot blade friction side-sealing system. This layout guarantees a straight, strong seal line placed consistently in the middle of the product.
Is it easy to adjust the machine for different product sizes?
Yes. The machine height and width adjustments can be quickly configured by rotating the manual hand wheel, which ensures high reliability and quick changeovers.
How does the shrink tunnel optimize energy usage?
The SF-5030LG shrink tunnel features bottom-chamber blowing technology to fully utilize rising heat. The blowing direction is fully adjustable, and frequency inverters control the blower and conveyor speeds separately for optimal energy efficiency.
