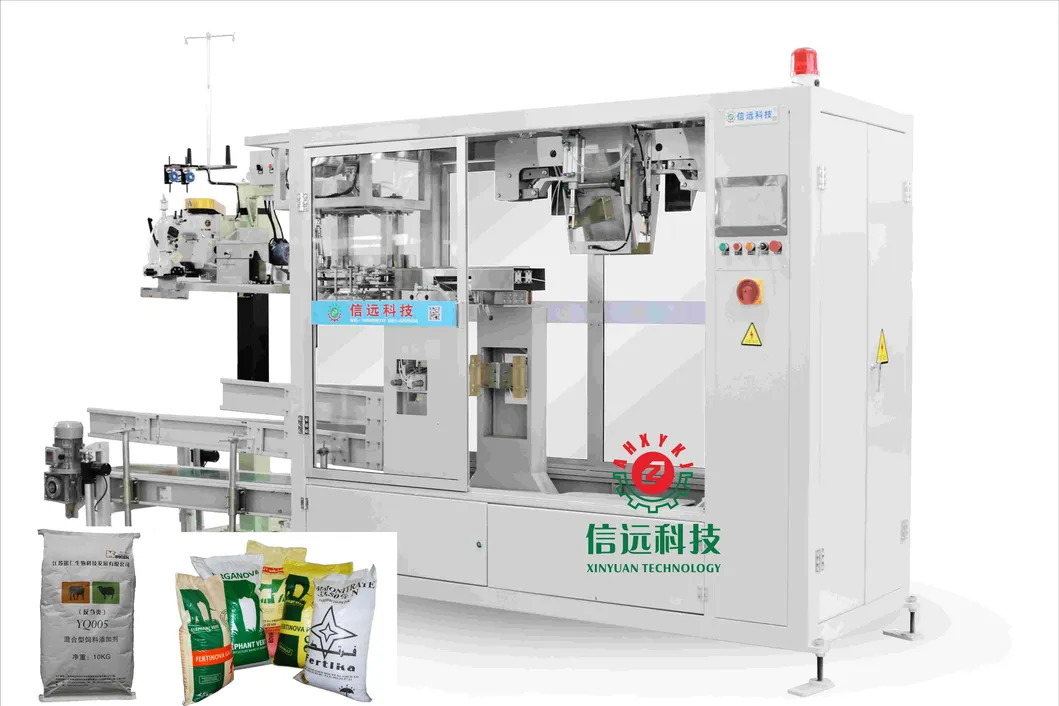

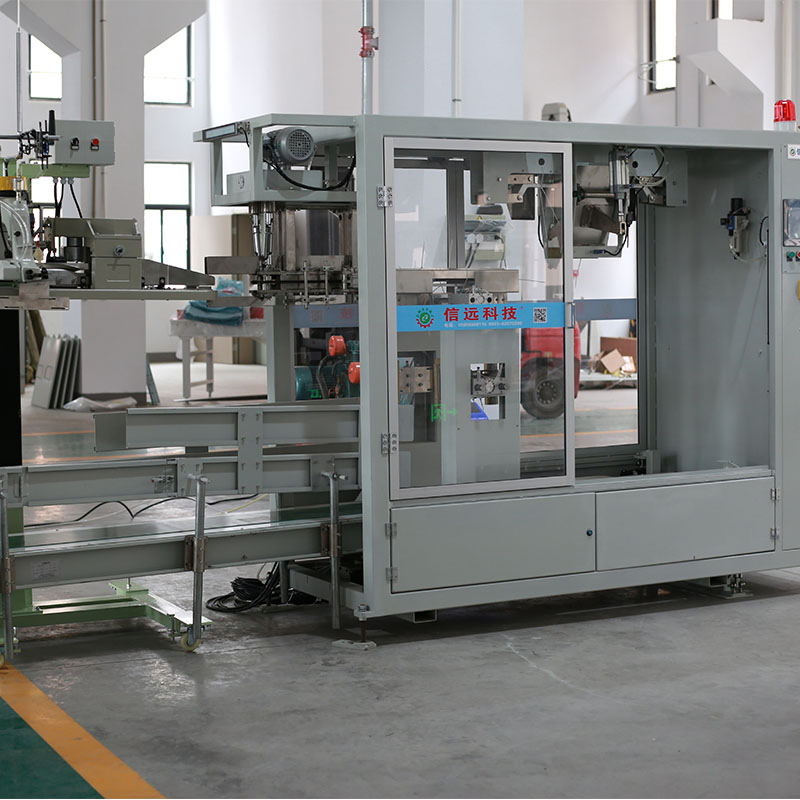

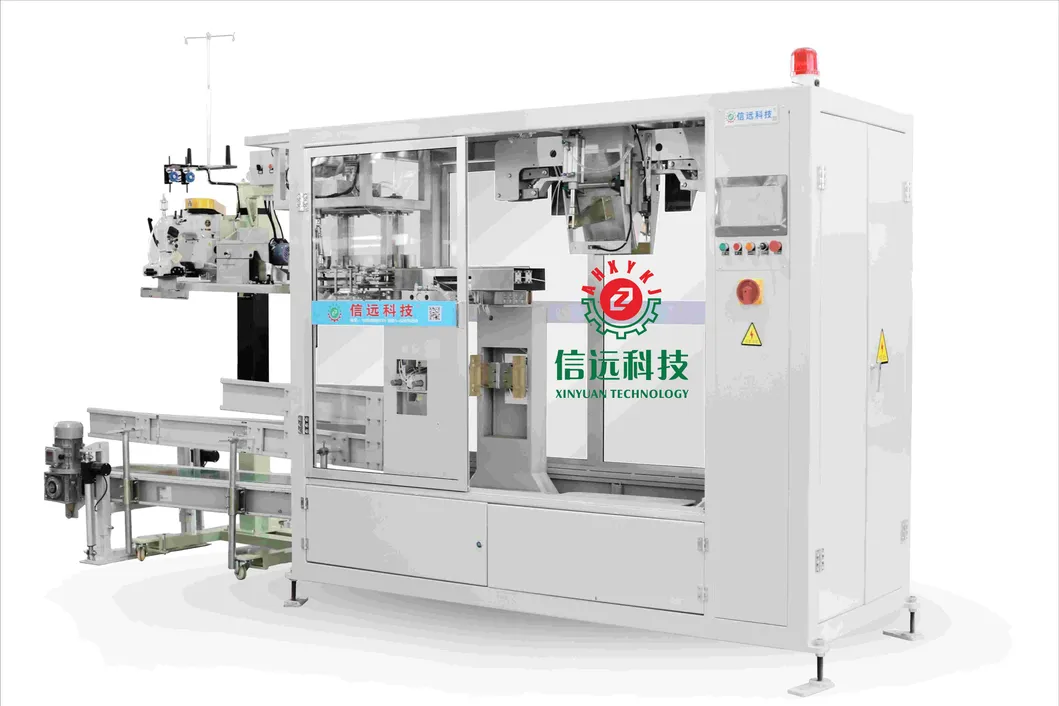

Product Description

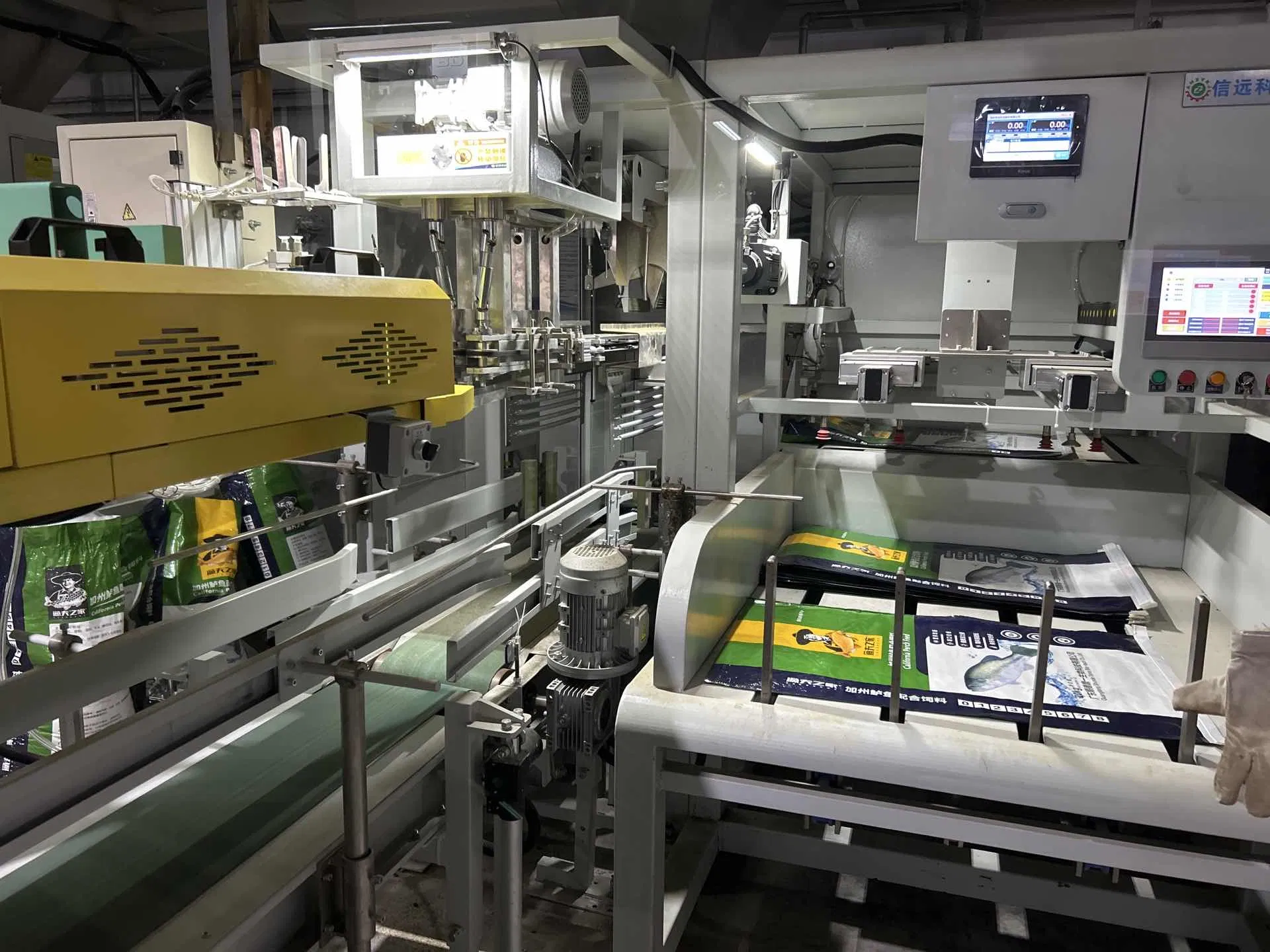

Working processing from Raw material supplying, Semi-automatic manual bagging, autoweighing filling, auto bag feeding, auto bag moving, auto bag sealing, labeling, sewing, finished products output. Its widely used for semi-automatic packaging of livestock feed, agriculture, submerged fish feed, premix and so on. Compared with automatic bag packing machine, its done by hand bagging.
Its designed to solve the problems of less available workers, higher labor cost and unstable manual operating quality for granule material big bag packing requirement. And the relevant equipments like checker weight and robot palletizing system are also available.
More Detailed Advantages

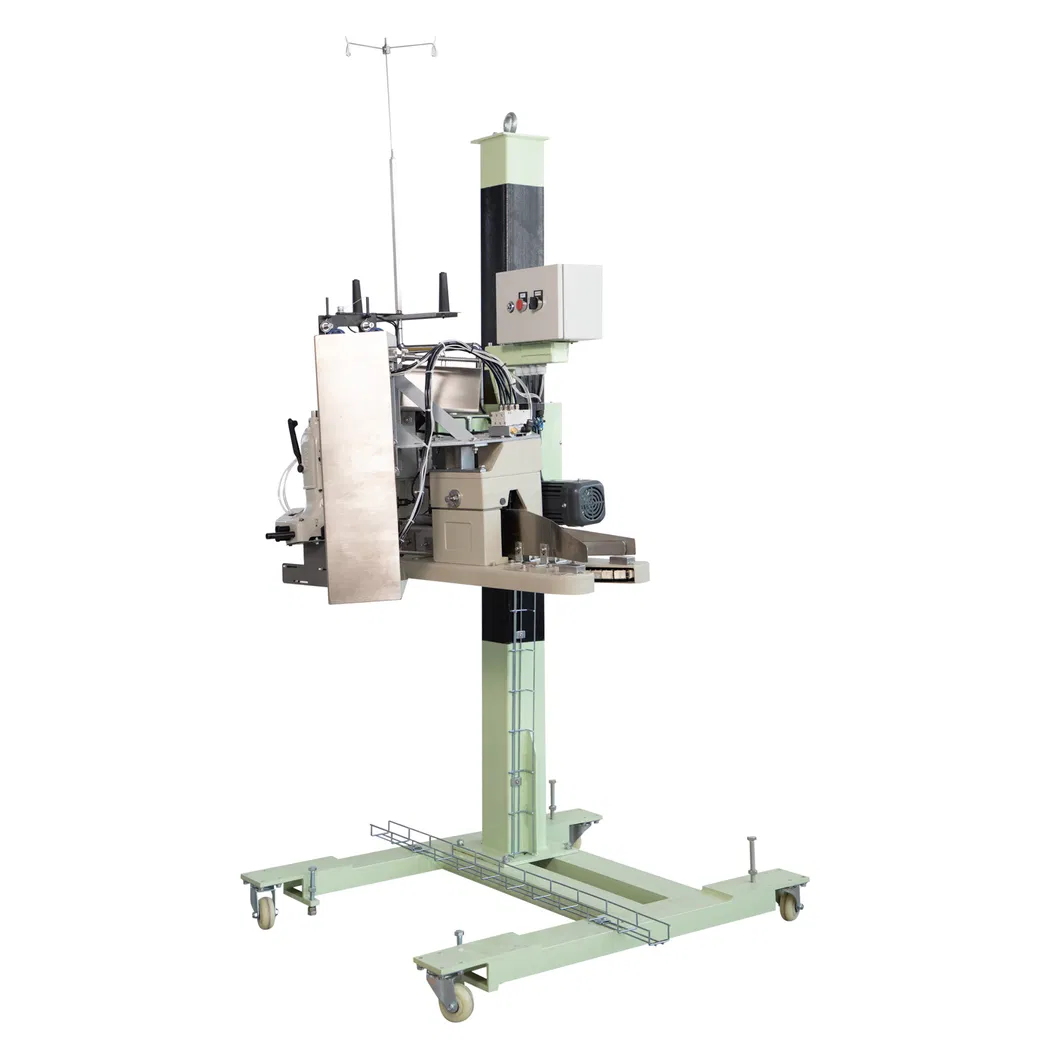

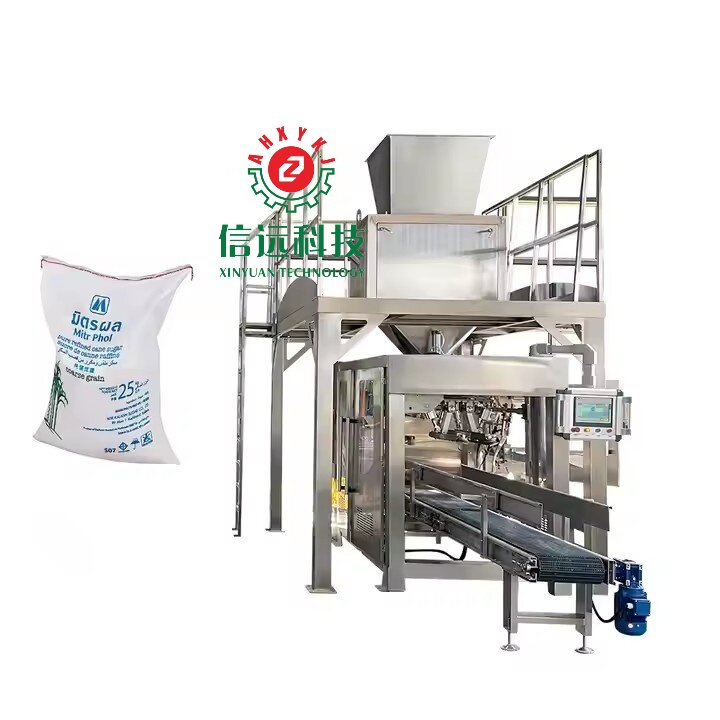

- Unit configuration: material silo, digital weigh-er, packing system, conveying system and sewing system.
- Material: contact parts S.S 304 (or S.S 316L if need)
- Package range: 15-25kg; 25-50kg
- Packing speed: 8~12 bags/min
- 10.2inch touch Screen, support online detection, parameter setting, alarm functions etc.
- Applied material: grain, animal feed, NPK or compound fertilizer, chemical material etc.
Parameters
| Specifications |
Details |
| Machine Name |

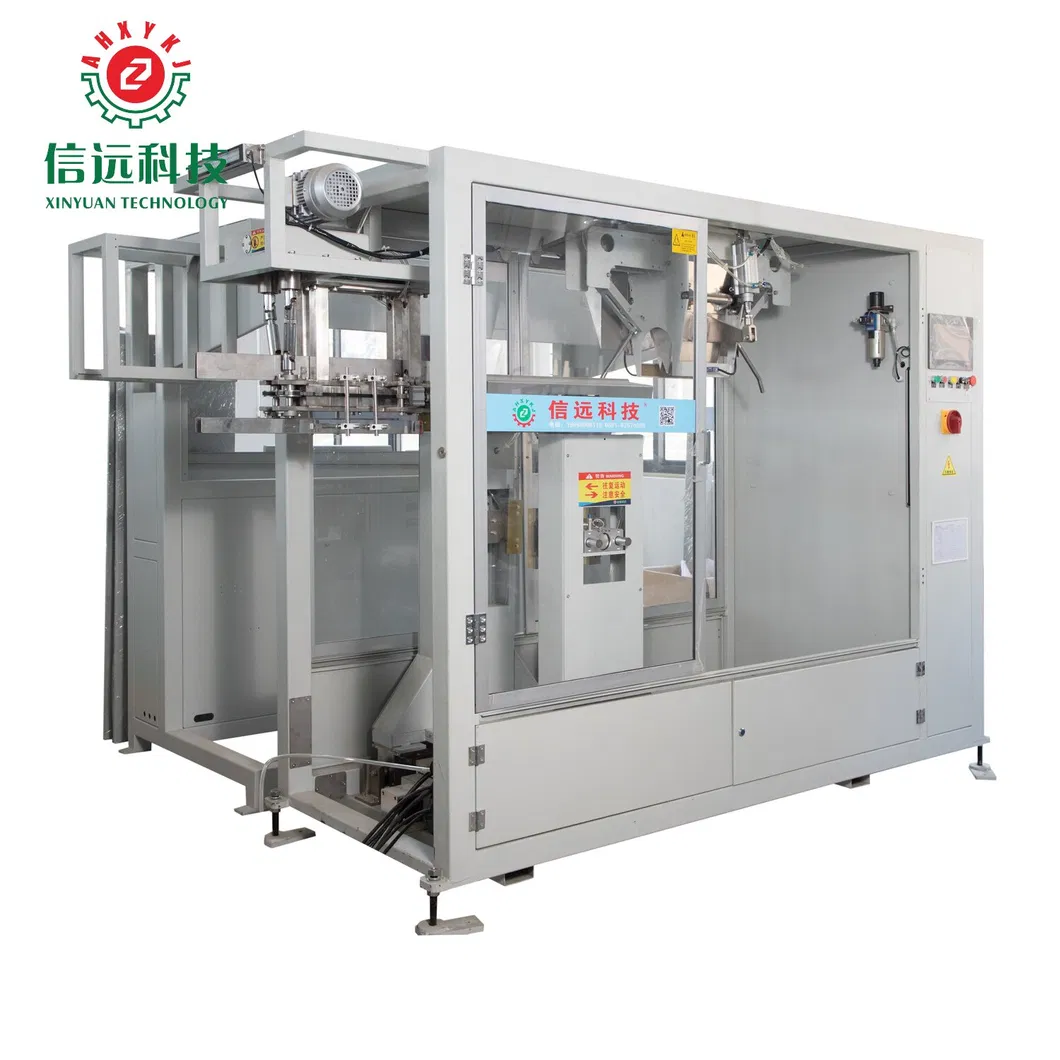

XYSL-B series semi-automatic bag packing machines |
| Model No. |
XYSL-B500; XYSL-B600 |
| Machine configuration |

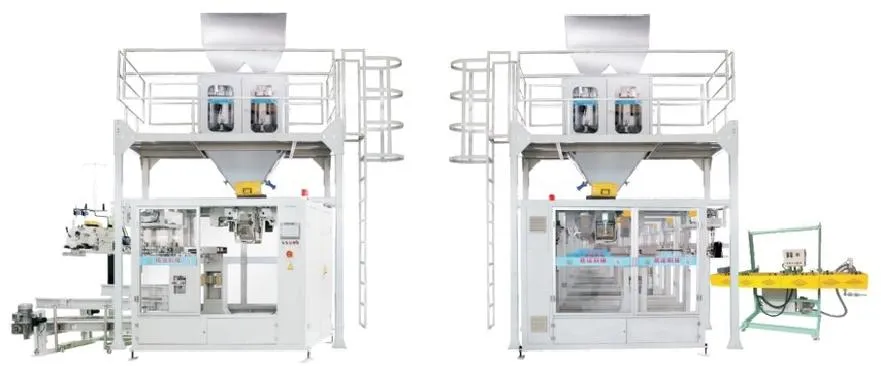

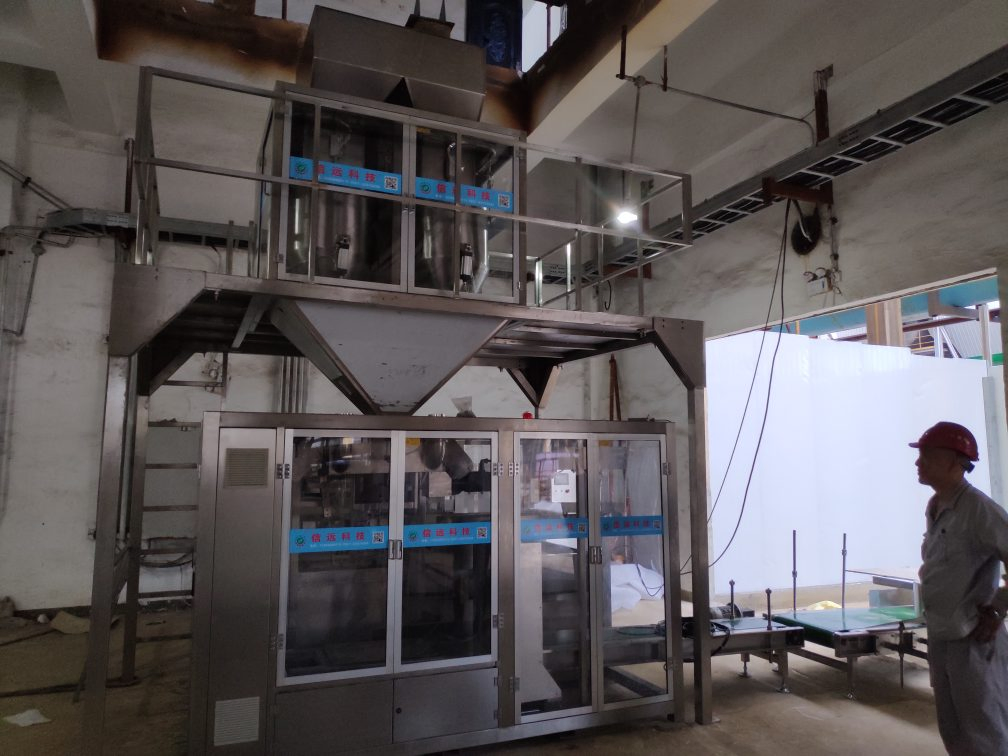

XYSL-50weigher+XYSL-B600 semi-automatic packaging machine+folding sewing machine+product conveyor |
| Packing Speed |
8-12 Bags / min (Varies depending on material status and measuring range) |
| Packing Range |
15-25kg ; 25-50kg |
| Accuracy |
±0.1% ~ ±0.3% (Varies depending on material status and measuring range) |
| Bag Size |
L:750-950 W:400-500mm
L:900-1050 W:500-650mm |
| Bag Type |
Woven bag (outer film), woven bag (PE inner bag) |
| Sealing Model |
Line seam, fold edge seam |
| Bagging mode |
Hand bagging |
| Total Power |
8kw |
| Maximum air consumption |
2m3/min |
Company Profile

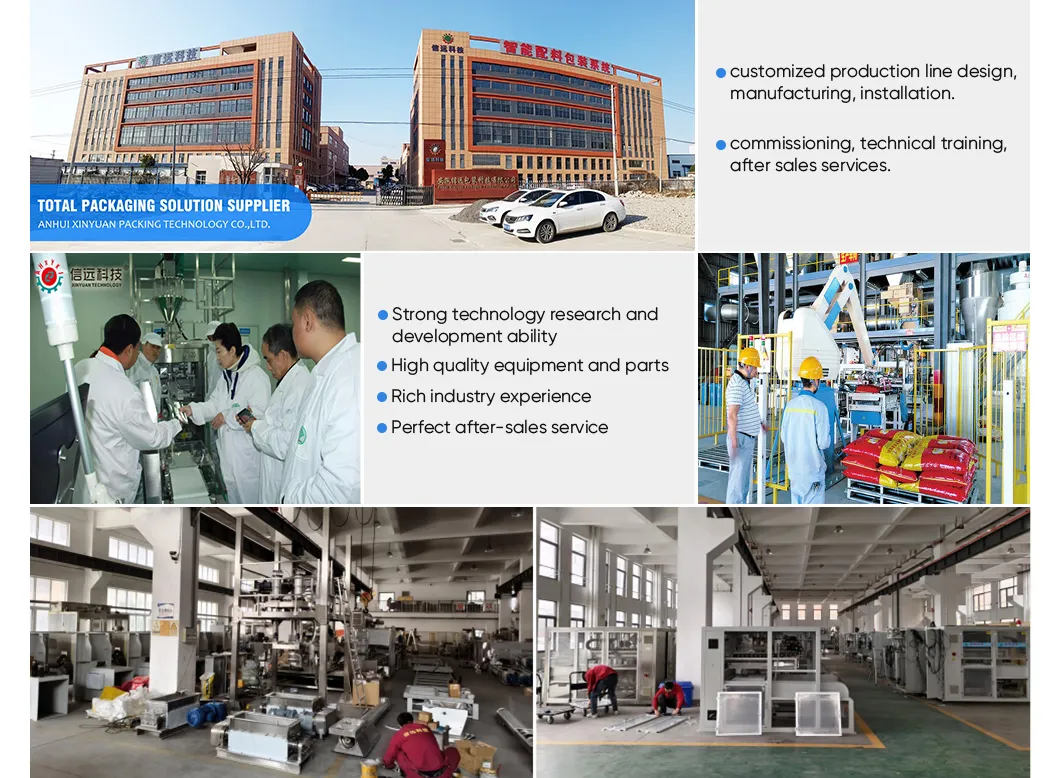

Founded in 2001, we are a national hi-tech research and manufacturing supplier of material preparation, mixing, weighing, packing, cartooning and stacking systems for powder, granule and liquid materials. The facility covers an area of 25000m², building area 20000m². Since our foundation, we focus on the automation production line research and production for industries of chemical, fertilizer, food, seasoning, animal medicine, animal health products, salt, feed, and building materials. We win widely customer recognition with our modern technology, first class products and reliable services.
We provide our customers total project solutions, customized production line design, manufacturing, installation and commissioning, technical training, and after-sales services. With our 20 years experience and well-trained workers, we provide first class products and best services to customers.
