Product Overview

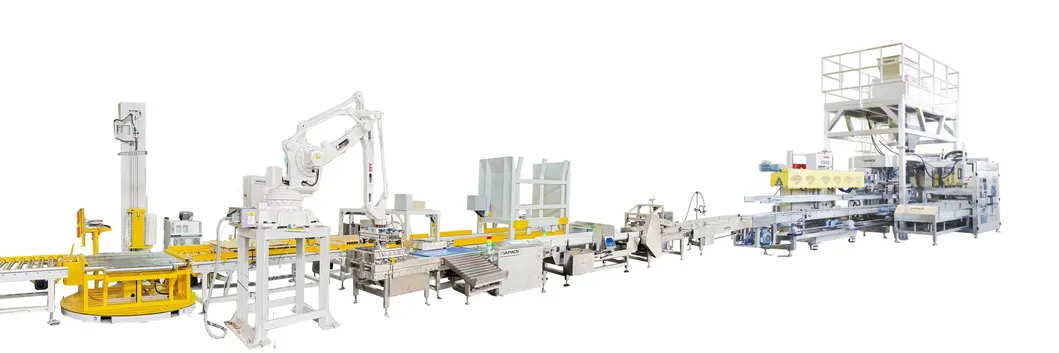

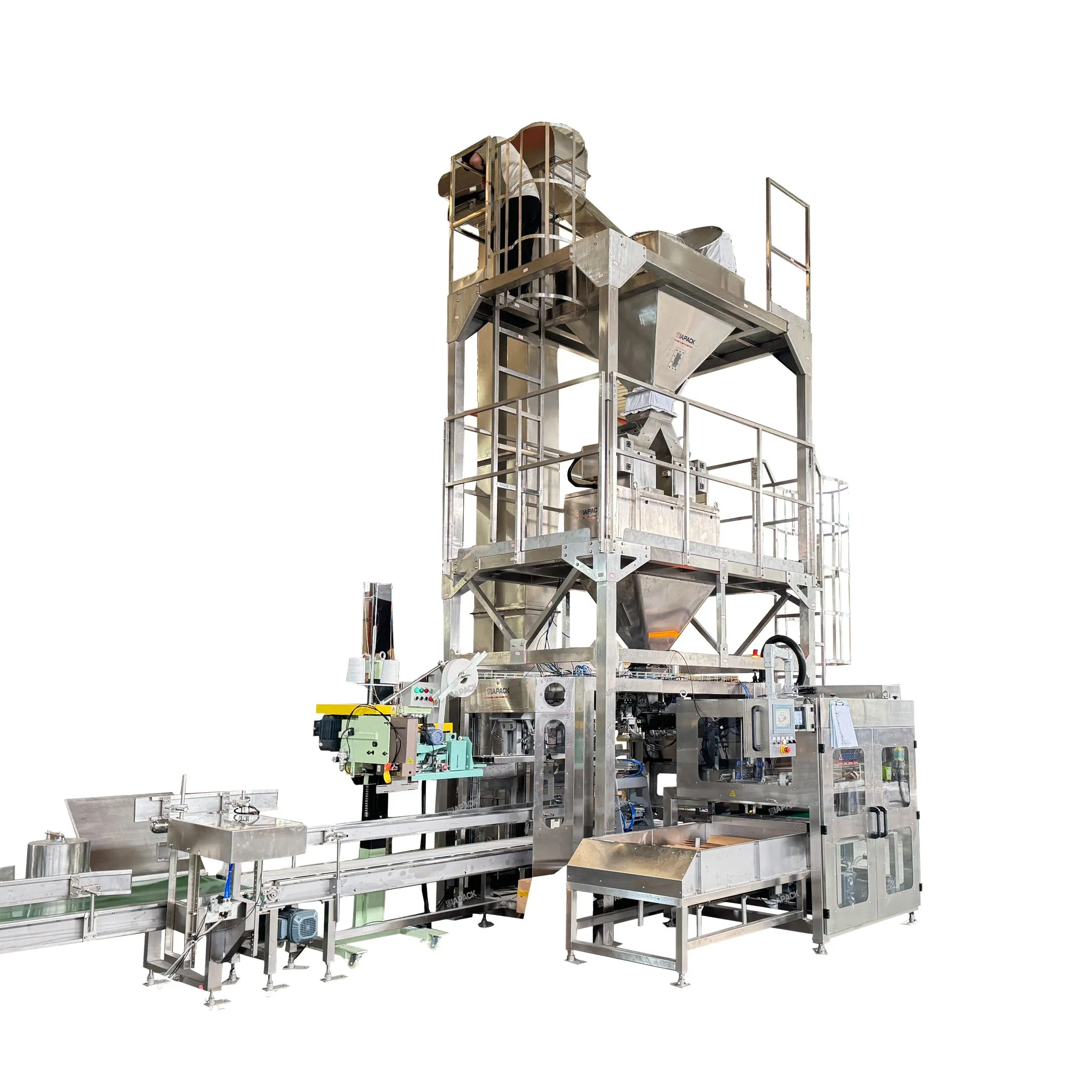

This line is special design for automatic feeding the bulk salt tablets bagging into 25kg PE bag and PP woven bag then sealing the bag. According the client requirement we also need offer the automatic weight check and palletizing. The design, manufacturing and supply of the production line are in strict accordance with the technical requirements and combined with professional packaging line design experience in the sugar industry.

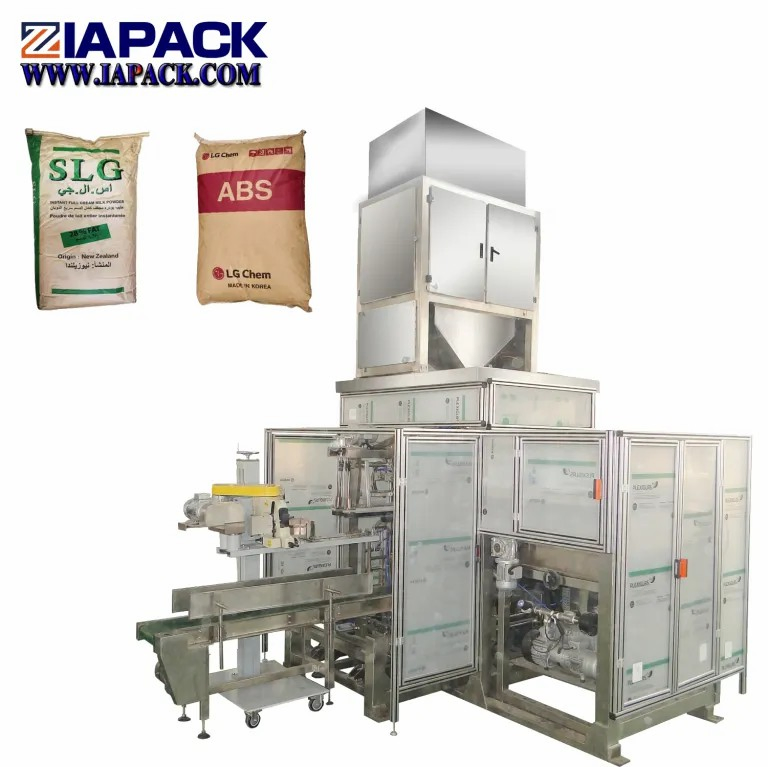

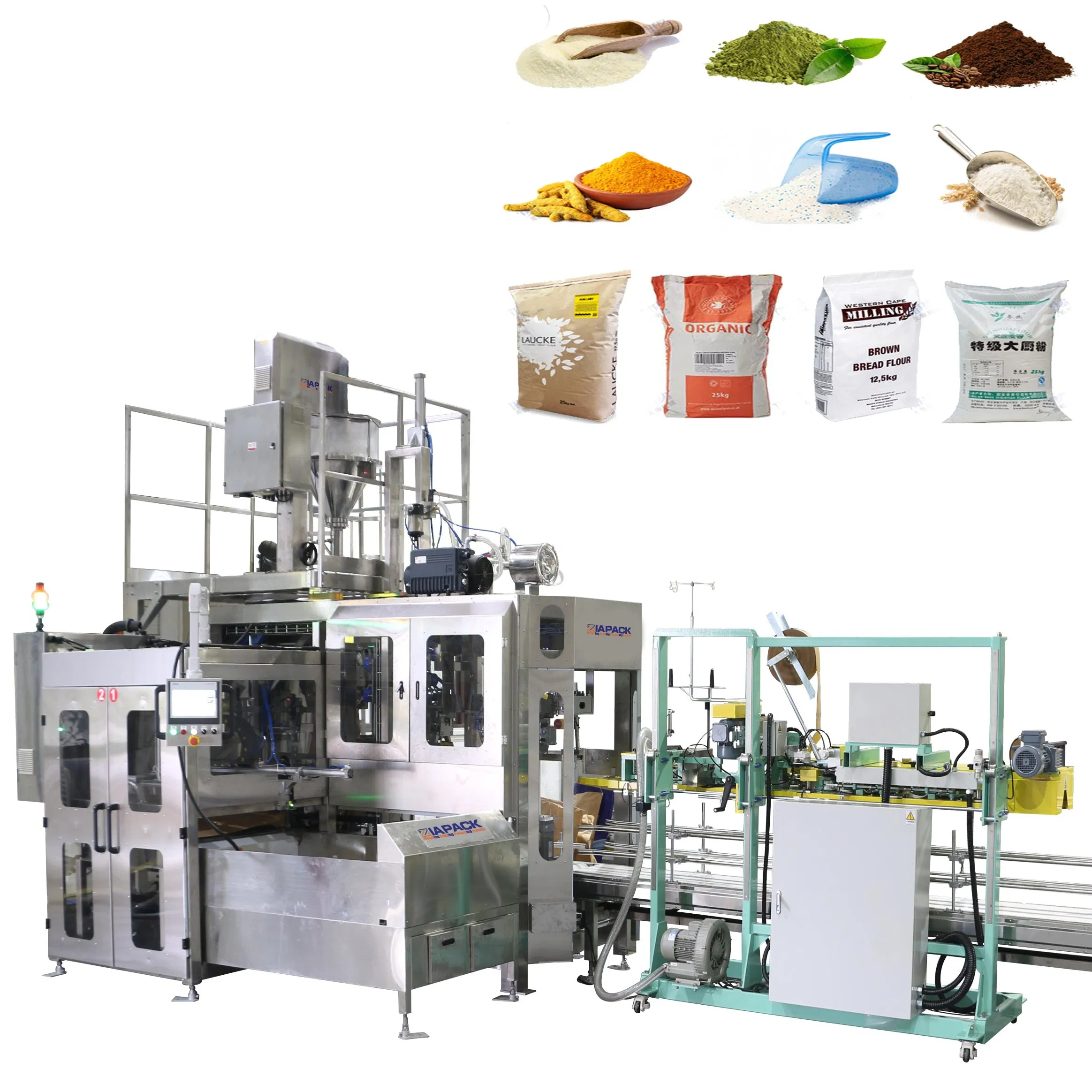

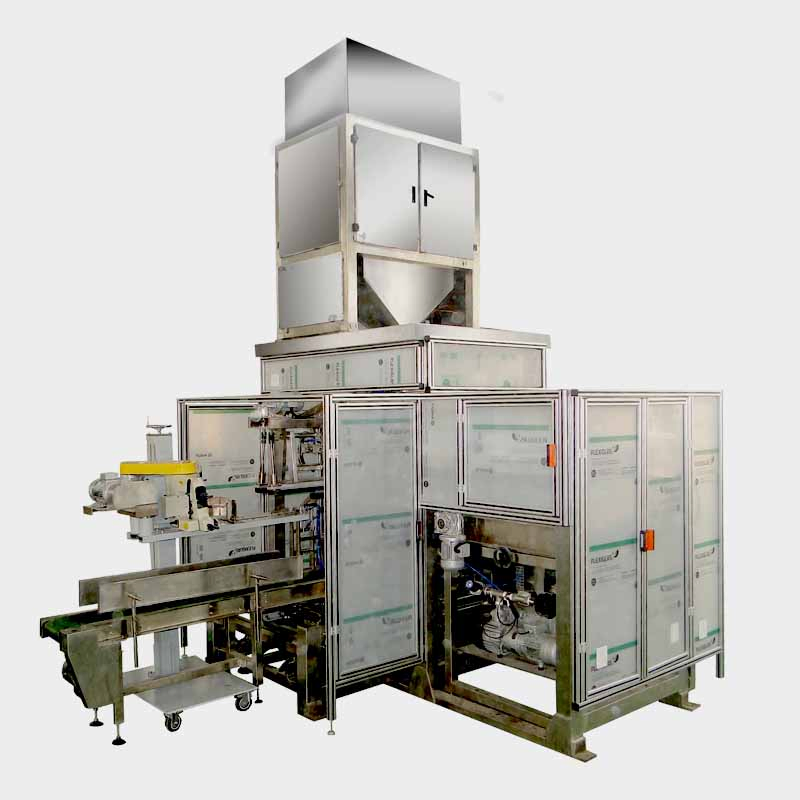

This unit consists of a bag storage bin, bag taking and sorting device, bag loading robot, bag clamping and unloading device, bag pushing device, bag mouth guide device, vacuum system and control system.
Features
- Wide adaptability to packaging bags: The packaging machine adopts the bag picking method, taking bags from the preparation warehouse, centering, positioning, sending forward, pre-opening, and loading with a manipulator arm.
- Servo motor driven manipulator arm: Compared with pneumatic systems, it features faster speed, smoother loading, no impact, and an extended service life.
- Bag clamping and safety monitoring: Equipped with dual proximity switches to detect complete bag opening and clamping, preventing spillage and keeping the workspace clean.
- User-friendly touch screen interface: Parameter setup and operations are simple. The interface features automatic fault display and processing prompts for fast maintenance response.
- Dust-resistant design: Pneumatic components, touch screens, and weighing instruments are sealed and protected, making them ideal for high-dust environments.
- High-quality components: Control and execution components are sourced from reputable domestic and foreign brands to ensure long-term stability.
- Fault self-diagnosis: Features an audible and visual alarm system to alert operators immediately to any operational issues.
- Convenient operating platform: Easy for operators to monitor and handle machine functions.
Technical Parameters
| Parameter Item |
Specifications |
| Size of bag making | (700-1100mm)x(480-650mm) (L*W) |
| Measuring range | granule material 15-50kg/bag |
| Measurement accuracy | ±50g |
| Packaging speed | 10-15 packs/min (depending on materials, bag size etc) |
| Ambient temperature | -10°C~+45°C |
| Power supply | 10-15 Kw, 380V±10%, 50Hz |
| Air Consumption | compressed air 0.5-0.7Mpa |
| External dimensions | 5700 x 2800 x 2100mm (L* W * H) |
| Weight | 3000kg |
Product Detail Media
Frequently Asked Questions (FAQ)
What types of bags are compatible with this automatic bagging machine?

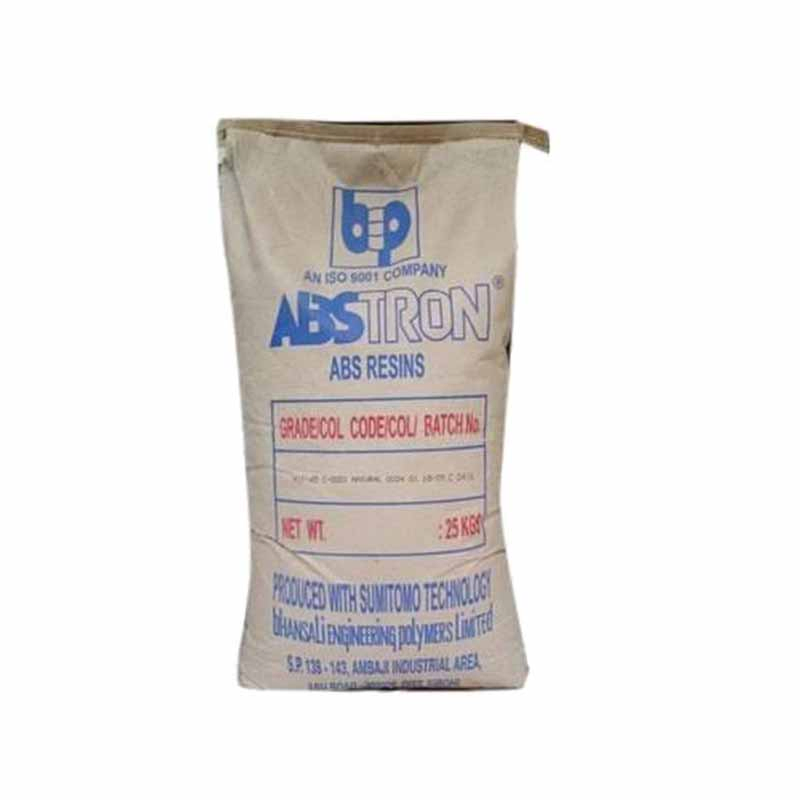

This system supports a wide range of packaging bags including PP Woven Bags, Kraft Paper Bags, and PE Bags within sizes ranging from (700-1100mm) in length to (450-650mm) in width.
What is the packaging speed and measuring range of the ZL25K?
The machine handles a measuring range from 10kg to 50kg per bag. It operates at an automated packaging speed of 8 to 15 bags per minute, depending on the material characteristics and bag dimensions.
How does the machine prevent material spillage during loading?
The bag clamping and unloading device is fitted with two precision proximity switches that verify if the bag is completely opened and securely clamped before discharge. This prevents misjudgments and material spillage on the floor.
Is this packaging machine suitable for harsh or dusty factory environments?
Yes. Crucial pneumatic parts like solenoid valves, along with electrical modules such as the touch screen and weighing instruments, are completely sealed and protected against dust intrusion to ensure a long operational lifespan.
What are the power and air supply requirements?
The machine runs on a power supply of 380V 50Hz or 220V 60Hz with a power rating of 10-15 Kw. It requires compressed air at a pressure of 0.5-0.7MPa for its pneumatic systems.
How are faults monitored and managed?
The machine is integrated with a self-diagnosis system linked to an audible and visual alarm. The user-friendly touch screen displays exact fault details and guides maintenance personnel on prompt resolution steps.
