Product Description

Horizontal Edible Oil Flour Powder Sauce Mayonnaise Beverage Jelly Top Spout Doypack Stand up Plastic Bag Pouch Filling Packing Bagging Machine Factory

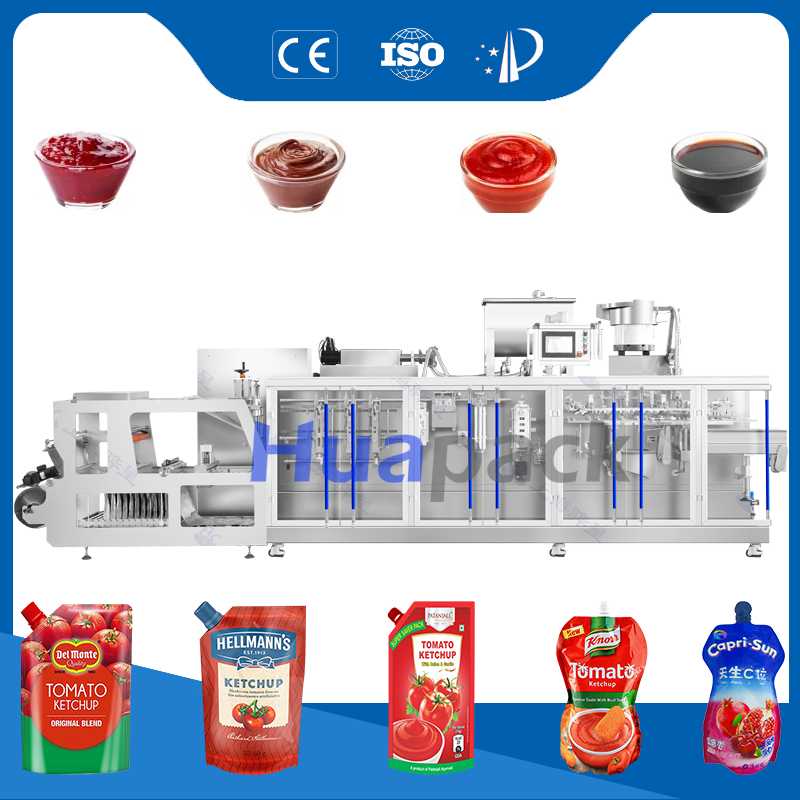

Horizontal Roll Film Forming Spout Doypack Filling and Sealing Machine

HC-SP series designed for doypack with spout, with functions of making hanging hole, special shape.
Adopt Euro technology improving along with production status. Coming up with machine high quality with competitive price.

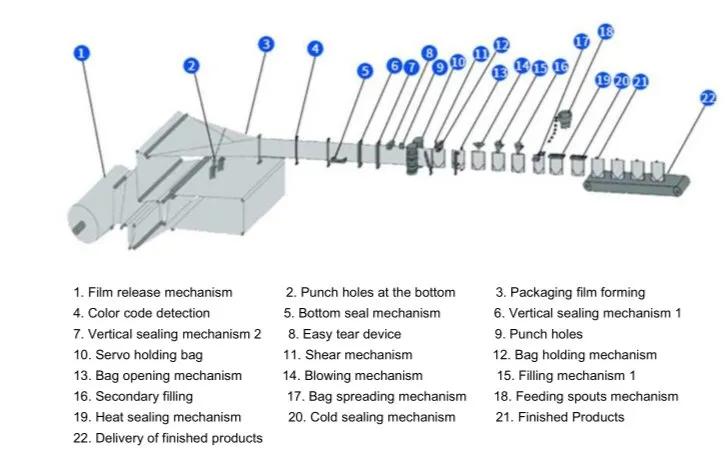

Horizontal Form Fill Seal doypack machines are packaging machines in which Forming, filling and sealing of a package take place on the same machine. Filling occurs through the open-top part of the pouch.
Our packing machine has the wide range of Horizontal Form Fill and Seal machines in the market. Our machines cover all the applications and are customized to be adapted to our customers' needs.
The design is based on the modular frame construction, composed of three independent modules: unwinder, pouch forming and dosing-sealing.
Pouches/sachets that are made using HFFS technology are less expensive than Pre-made ones.

Our Advantages:

  • HMI Display: Includes instruction manual and troubleshooting.
  • Parallel Motion: Vertical sealing bars enable improved sealing quality and easier maintenance.
  • Full Servo Motion: This smart servo-control system allows independent operation between the different stations, offers great reliability and little maintenance.

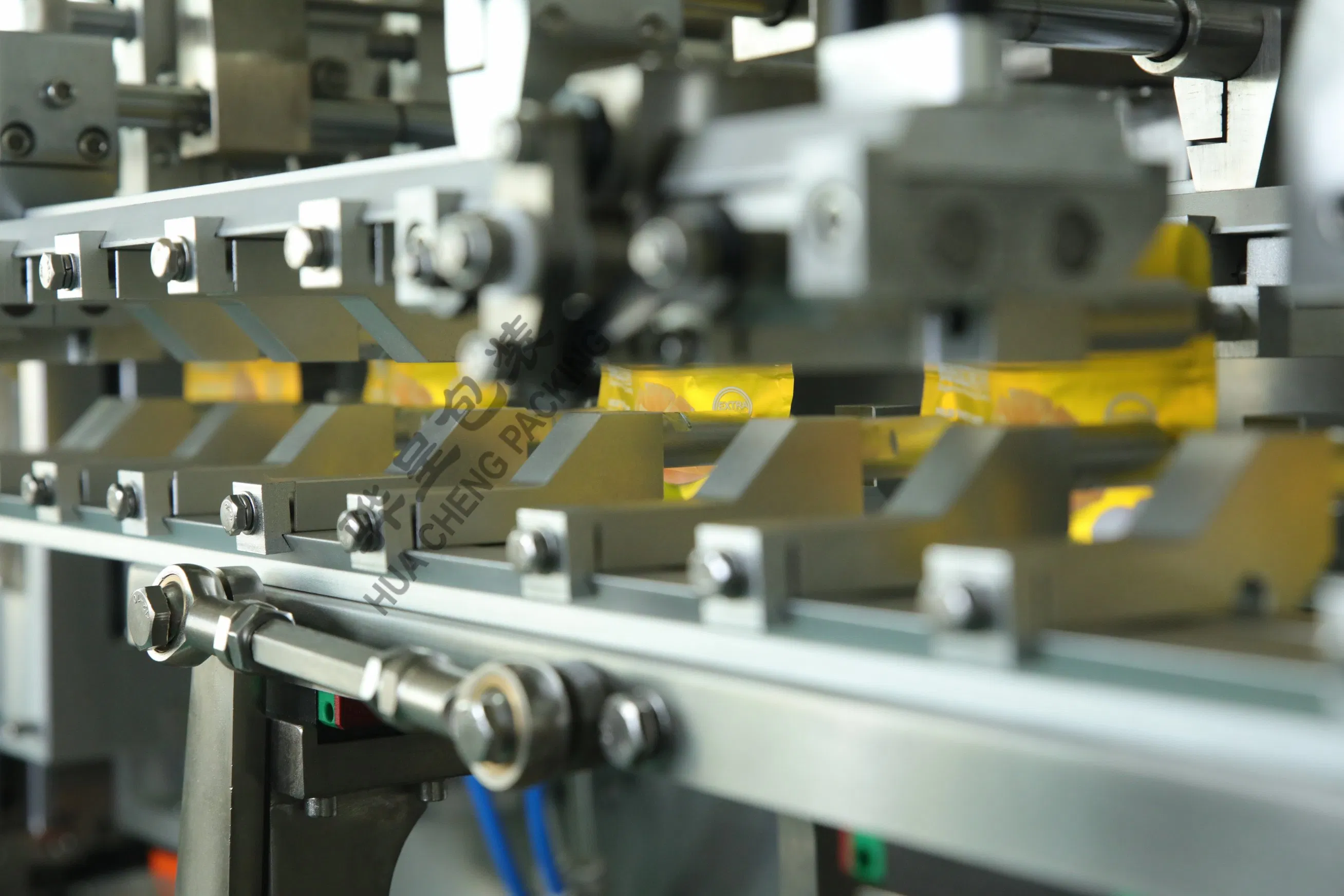

  • Walking Beam: Transport system consisting of beams and grippers. They hold the pouches and transport them through the different stations, from the pouch forming to the pouch closing.
  • Multiple Sealing Steps: Needed to guarantee sealing quality.
  • Flexible Filling: Allows both hot and cold filling.
Horizontal Edible Oil Flour Powder Sauce Mayonnaise Beverage Jelly Top Spout Doypack Stand up Plastic Bag Pouch Filling Packing Bagging Machine Factory
Horizontal Edible Oil Flour Powder Sauce Mayonnaise Beverage Jelly Top Spout Doypack Stand up Plastic Bag Pouch Filling Packing Bagging Machine Factory

Key Components & Features

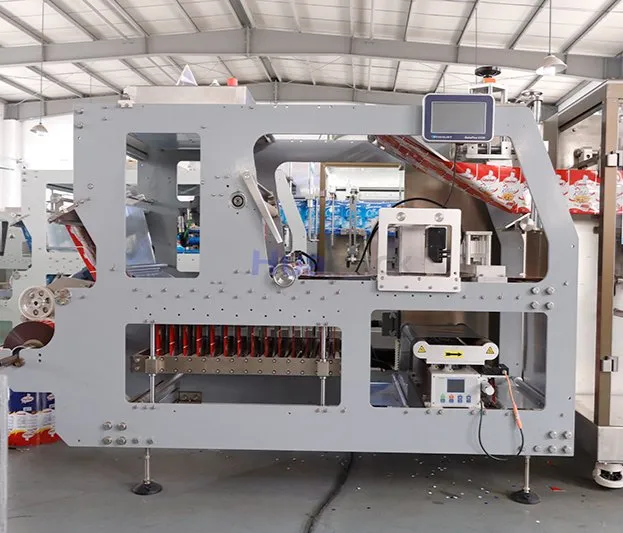

Independent Film Unwind Unit
Independent Film Unwind Unit
1. Adopt air expansion shaft to fix the roll, easy to load and unload.
2. CNC made Powerless roller, low resistance and high concentricity.
3. Multi-layer floating rollers to control tension and prevent film drop.
4. With independent film release motor.
5. Special unwinding high and low limit sensors to control the start and stop of unwinding.

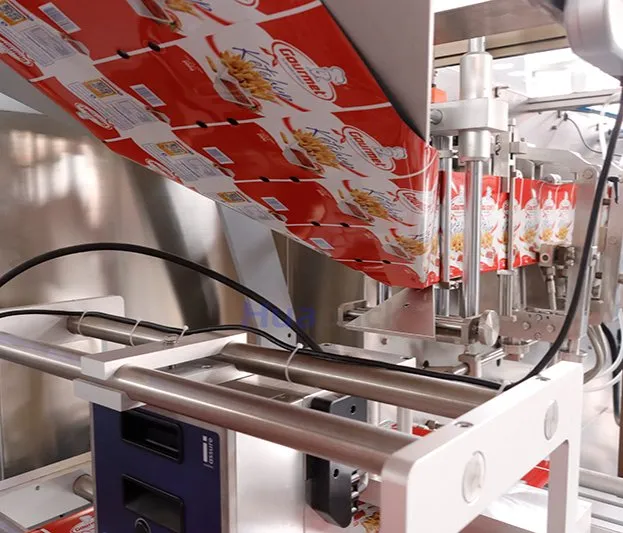

Multi-Specification Molding Device
Multi-Specification Molding Device
Featuring Europe's most popular design, it enables simpler and more convenient switching between multiple specifications. It delivers high forming precision with no film misalignment.

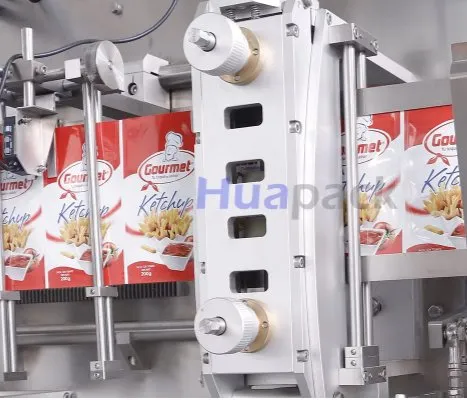

Servo Advance System
Servo Advance System
1. Digital specification switching, simple and convenient.
2. Stable pouch advance with less deviation.
3. Big torque moment of pouch advance, suitable for big volume.

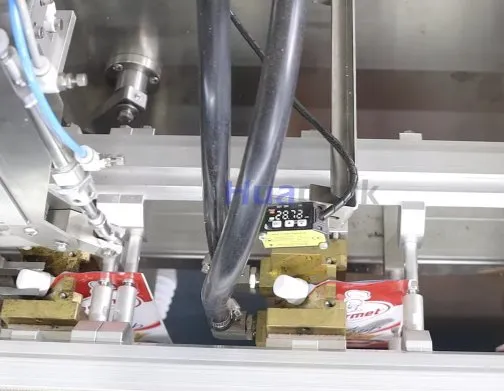

Spout Function
Spout Function
1. Even spout seal with good appearance.
2. High spout seal strength, no leakage.
3. Auto-Adding spout, custom-made working station.

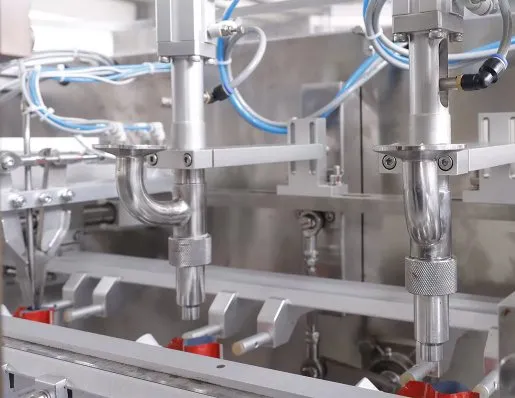

Dosing units
Dosing Units
Dosing units for liquids available with different nozzles for any kind of product. Hygienic design and easy to dismantle filling system, with clamps. Our HFFS machines are suitable to work with different kinds of dosing systems: volumetric dosing units, multihead weighers, piston pumps fillers, etc.

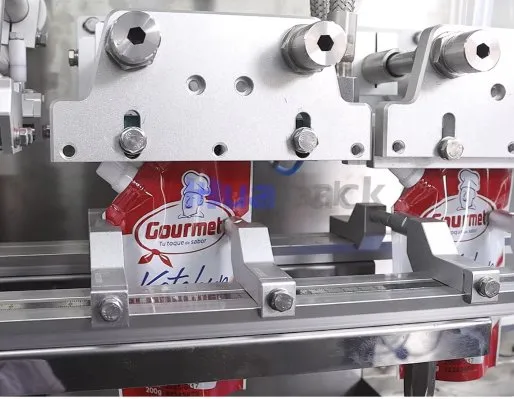

Independent Sealing Device
Independent Sealing Device
1. Higher seal strength, less leakage.
2. Better pouch appearance, Good sealing stability, timely shaping prevents the mouth of the bag from being propped up by the material in the bag. It also prevents creasing caused by high sealing temperature after the bag leaves the platform.

Specifications

Model 180SP 180SDP 240SP 240SDP 280SP 280SDP 330SDP
Pouch Size (mm) Min 80*130 70*110 90*130 90*125 90*140 90*125 90*125
Max 182*250 90*225 240*300 120*250 280*300 140*250 165*250
Filling Volume ml 1000 300 2000 500 3000 500 700
Packaging Speed ppm ≤60 60-120 ≤60 60-120 ≤50 60-100 60-90
Machine Size mm 6500*970*1450 6900*970*1450 7200*970*1460 7200*970*1460 8000*1200*1800 8500*1100*1460 9500*1100*1460
Machine Weight kg 2000 2100 2300 2500 3400 2500 2500
Power kw 8 8.8 9 9.8 9.5 9.8 15.8
Air Consumption l/min 300 400 400 400 650 650 650

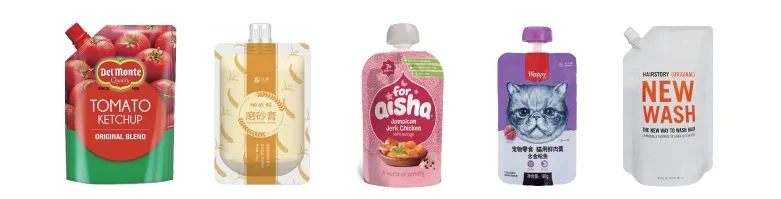

Pouch Samples

Pouch Samples

Dosifying Products

Dosifying Products

Factory Profile

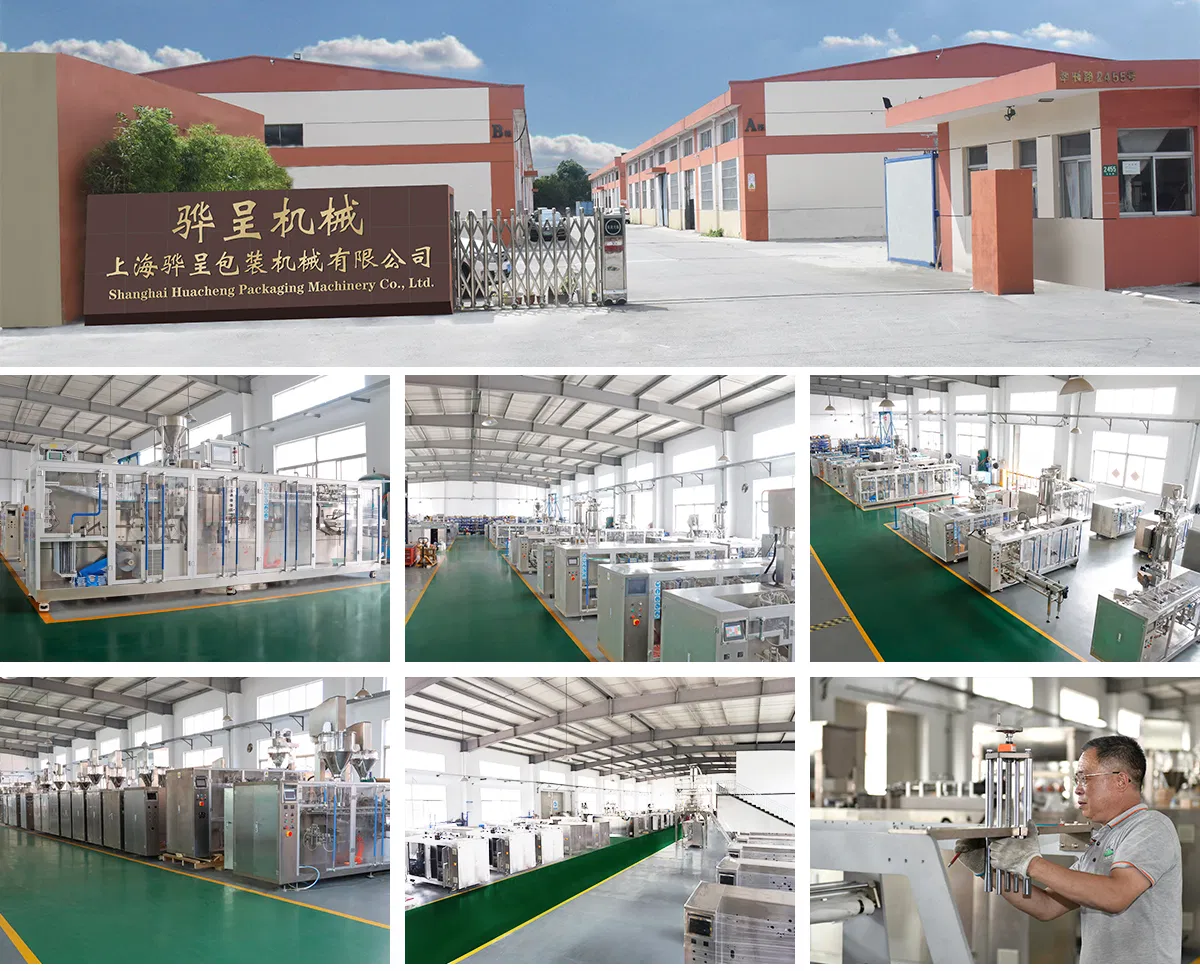

Factory Overview
Production Facility
Manufacturing Area
Assembly Workshop
Manufacturing Facility

Certifications

Machine Certifications

Exhibitions

Industrial Exhibitions

Our Customers

Global Customers

Frequently Asked Questions (FAQ)

Q1 Are you a manufacturer or a trading company?
We are a manufacturer. Our factory warmly welcomes you to visit us.
Q2 What kind of bags can your packing machine pack?
Our packing machine can pack doypack (stand up pouch) and sachet (flat bag). Optional functions include adding zippers, spouts, making shaped pouches, etc.
Q3 What products can your packing machine pack?
Our packing machine can pack different types of products, such as powder, granule, and liquid. Also, our machine can pack irregular products.
Q4 What is the packing capacity (speed) of your machine?
We have simplex machines (35-80 ppm), duplex machines (60-160 ppm), and quadruplex machines (160-180 ppm).
Q5 How long is the delivery time?
It depends on which model you order. Standard machines need 45-60 days. Customized machines need a longer time.
Q6 What is the warranty and after-sales service?
One year warranty and 1 year spare parts, 24 hours online technical service and solutions can be offered. OEM and customization are all accepted.
