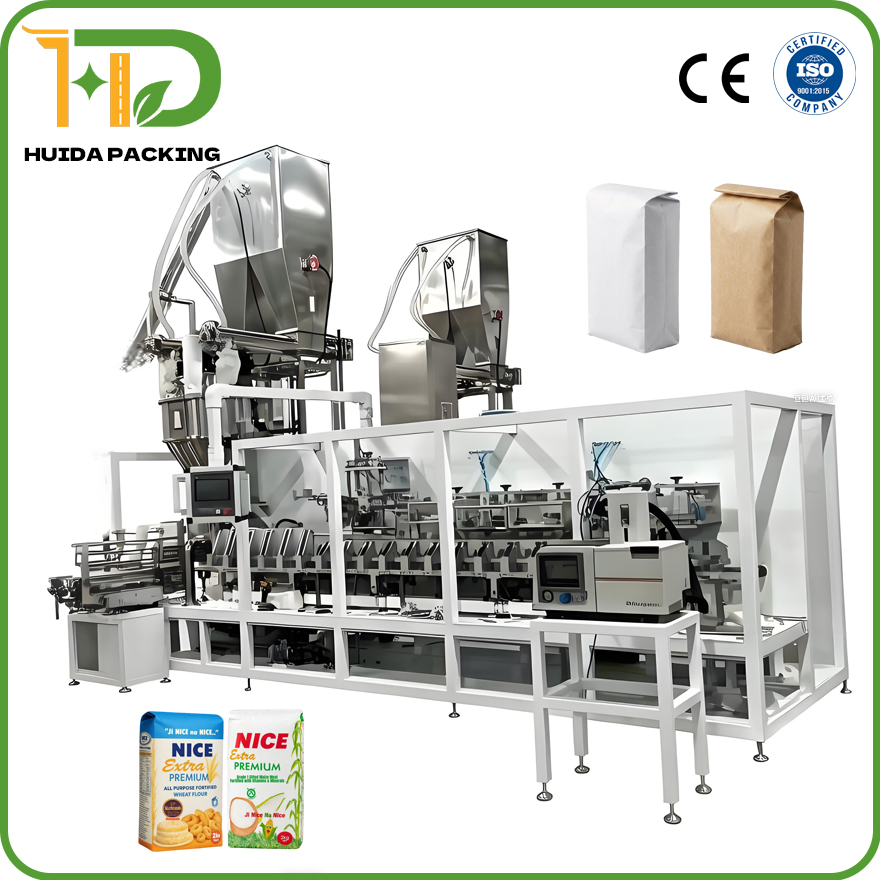

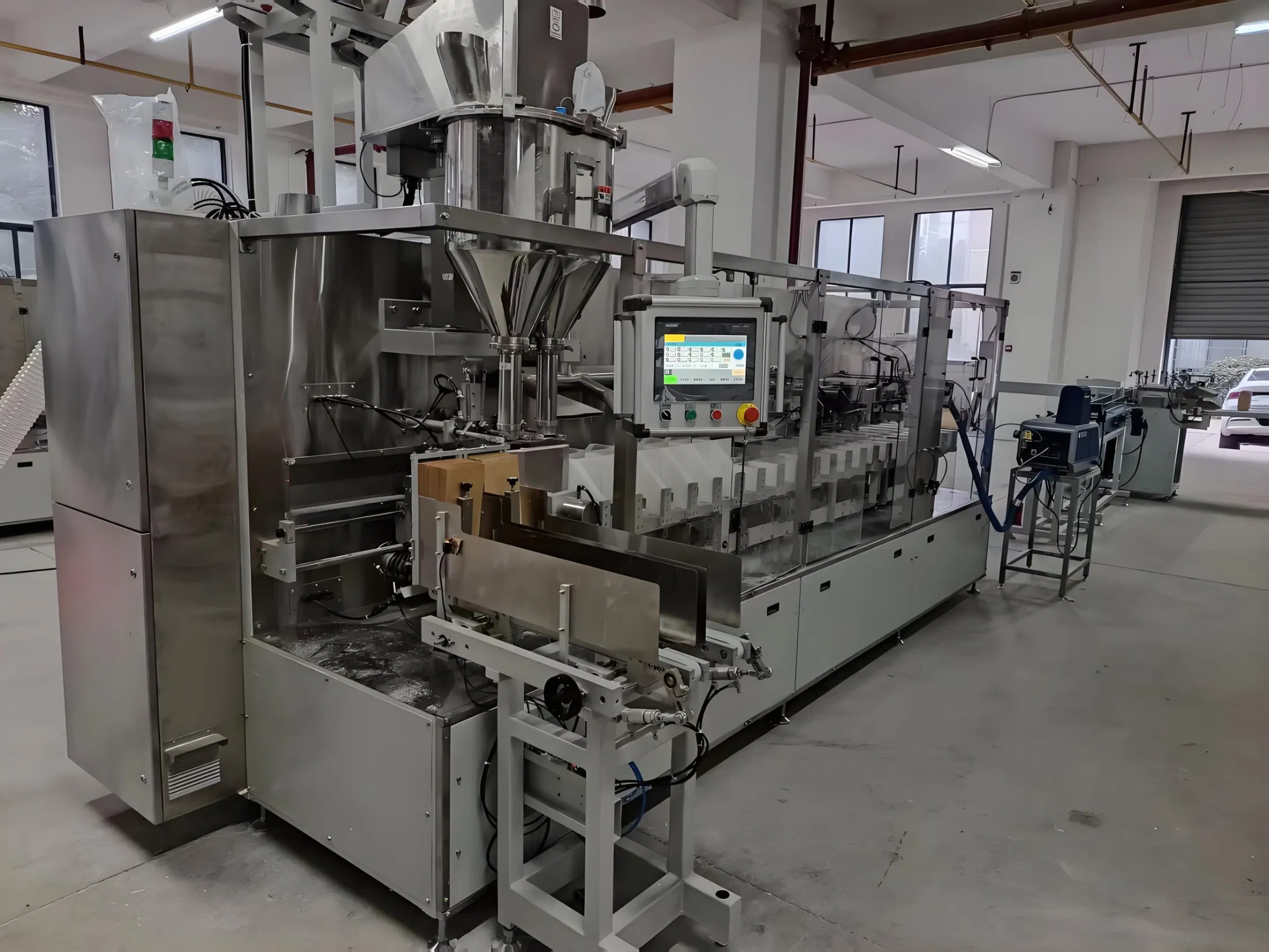

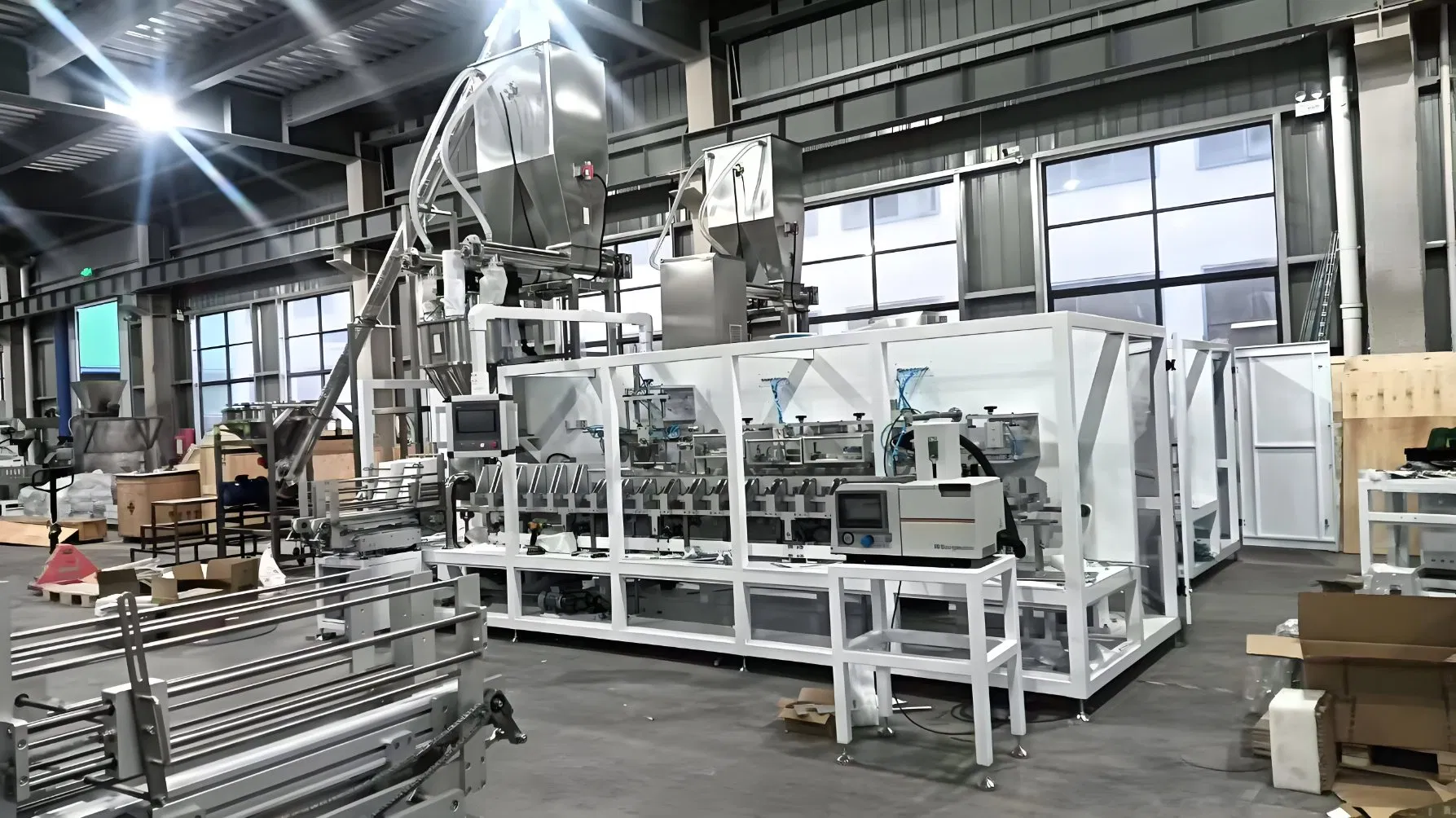

The 1-5kg Flour Kraft Paper Bag Packing Machine is a highly efficient and fully automated solution designed for precise and stable packaging of flour and powder materials. Engineered with advanced auger filling technology, this machine is ideal for producing neat, compact brick-shaped bags widely used in the food industry.
To enhance automation and efficiency, the machine can be integrated into a complete packaging line with:
This fully automated setup significantly reduces labor costs while improving packaging consistency and production efficiency.
This packaging machine is widely used for:

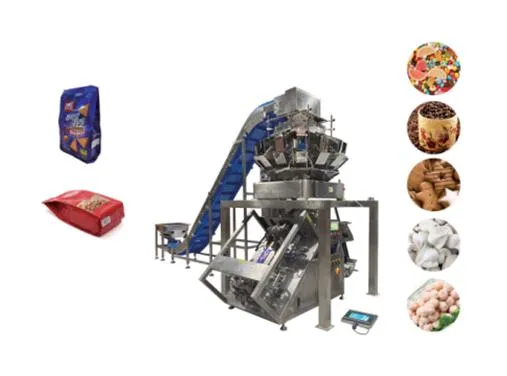

Suitable for the quantitative packaging of a variety of irregular materials, such as snack foods (potato chips, rice crackers, candies), nuts (walnuts, pistachios, hazelnuts, etc.), frozen foods (dumplings, shrimp, frozen vegetables), and various other materials with irregular shapes such as granules, chunks, and balls.

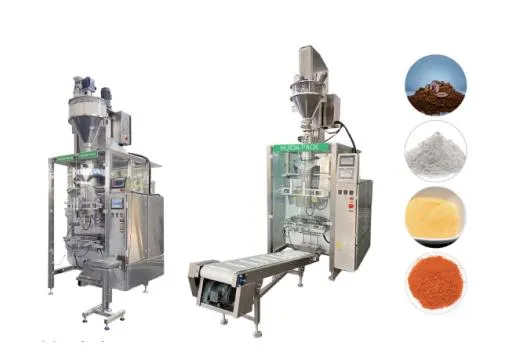

This unit is a combination of a CJSL2000 auger weighing machine and a 5000D/5000B/7300B/1100 vertical filling packaging machine, designed specifically for measuring and packaging ultrafine powders that tend to generate heavy dust. Offers functions including metering, bag-making, packaging, sealing, printing, and counting.
Type of bag: pillow bag, gusset bag and die cut bag

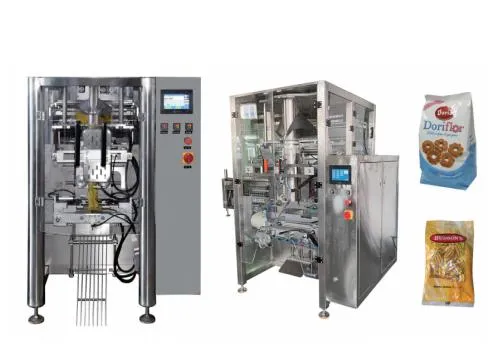

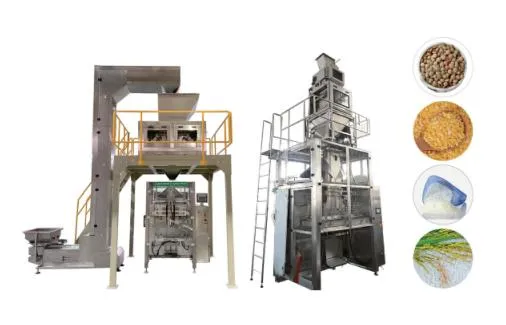

This integrated unit comprises a vertical filling packaging machine, servo-driven scale, and a bucket elevator. Performs weighing, bag-making, edge-folding, filling, sealing, printing, punching, and counting. Best suited for granular packing such as rice, beans, salt, and white sugar.
Type of bag: pillow bag, gusset bag and die cut bag
Designed to pack small particle size materials with uniform specific gravity weighing less than 1kg (rice, beans, salt, white sugar). Integrates automatic metering, bag-making, packaging, sealing, printing, and counting. For salt packing, contact parts are made of 316L stainless steel.
Specifically designed for metering and filling high viscosity cream and paste materials. Adopts a servo rotor metering pump and can be equipped with an insulation storage hopper to keep materials heated. Ideal for packing red bean paste, ketchup, mayonnaise, peanut butter, and similar products.
| Model | Bag Size (mm) | Metering Range | Measuring Accuracy | Packaging Speed (bags/min) |
|---|---|---|---|---|
| VFS5000D | (80-300) x (80-200) | 100-1000g | 0.2% - 0.5% | 30-70 |
| VFS5000B | (100-350) x (100-250) | 200g-2000g | 20-60 | |
| VFS7300B | (100-460) x (100-350) | 1000g-5000g | 10-50 | |
| VFS1100 | (300-650) x (300-550) | 5-10kg | 5-15 | |
| VFS1500 | (300-1000) x (350-750) | 10-25kg | 3-8 | |
| VFS1700 | (200-1000) x (500-850) | 10-50kg | 2-5 |
| Model | External Dimensions (LxWxH) mm | Type of Bag | Range of Bag Width (LxW) mm | Packaging Speed (bags/min) | ID of Reel | Max OD of Reel | Compressed Air Requirement | Power Supply |
|---|---|---|---|---|---|---|---|---|
| VFS5000A5 | 2455 x 1230 x 1660 | Quad bag, bag with hole punching | Front face: 50-190 Side face: 50-90 Corner seal width: 5-8 Bag length: 100-350 Max material width: 520 |
15-55 | Φ75mm | Φ450mm | 0.6MPa 350 L/min | 380V 50-60Hz 3kW |
| VFS7300A5 | 2550 x 1420 x 1930 | Front face: 60-260 Side face: 60-120 Side seal width: 5-10 Bag length: 100-460 Max material width: 730 |
2-45 | Φ75mm | Φ450mm | 0.6MPa 0.36 L/min | 380V 50-60Hz 3kW |
| Model | Bag Size (mm) | Metering Range (g) | Measuring Accuracy | Packaging Speed (bags/min) |
|---|---|---|---|---|
| VFS5000DS | (80-300) x (80-200) | 100-1000g (according to material density) | 1% | 50-70 |
| Model | Bag Size (mm) | Metering Range | Measuring Accuracy | Packaging Speed (bags/min) |
|---|---|---|---|---|
| VFS7300GY | (100-480) x (100-350) | 100-5000g | ≤ 0.5% | 8-25 |
| VFS1100GY | (300-650) x (300-550) | 5-25kg | ≤ 0.5% | 3-8 |
Professional
We have over 20 years of experience in the industry and a highly professional team to provide services such as product manufacturing, R&D, and sales support. We understand the market dynamics, latest trends, and varying customer needs to keep our products ahead of market curves.
Safety
Our products have passed strict safety tests, from raw materials and accessories to the final set of equipment. They align with international testing standards and possess multiple system certifications, ensuring peace of mind for operators.
High Standards
We implement a strict management process in raw materials, production, and sales. We have over 50 product patents and nearly 10 development patents, operating with our own specialized quality control testing laboratory.
Product Quality
Our product quality has passed the testing of various certification systems, built using top-tier materials and processed via advanced manufacturing equipment under strict testing prior to market distribution.

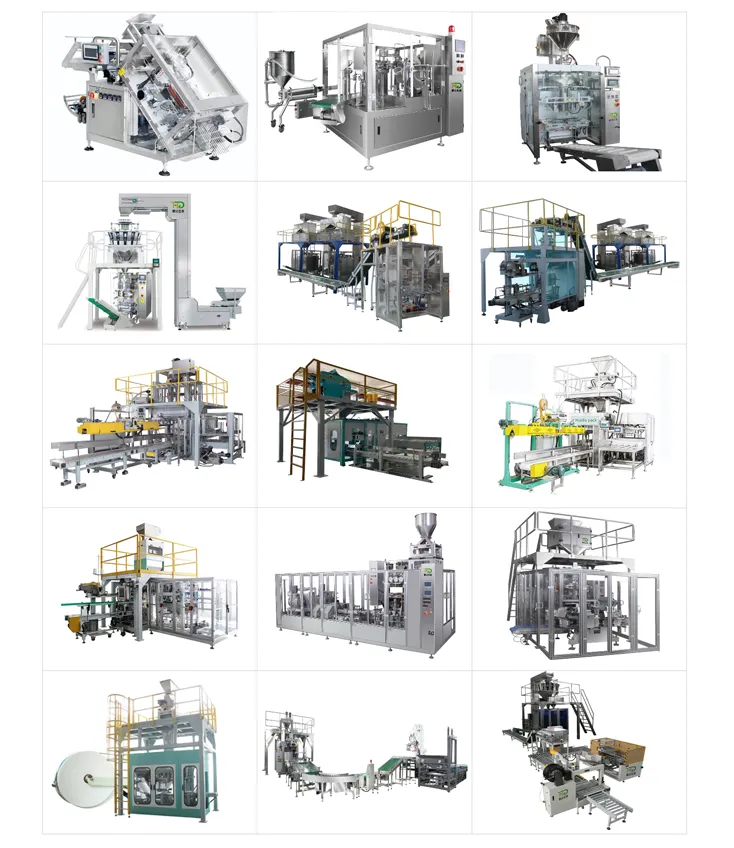

Full Range of Products
We feature a large catalog of product categories and offer professional machinery customization options to meet unique and specialized industrial requests.
Direct Sales
Owning our manufacturing base allows us to oversee production and distribution directly, ensuring we provide optimal cost-to-performance ratios and excellent support services.
The machine supports a wide packaging weight range from 1kg up to 5kg, making it highly versatile for different production and bulk packing requirements.

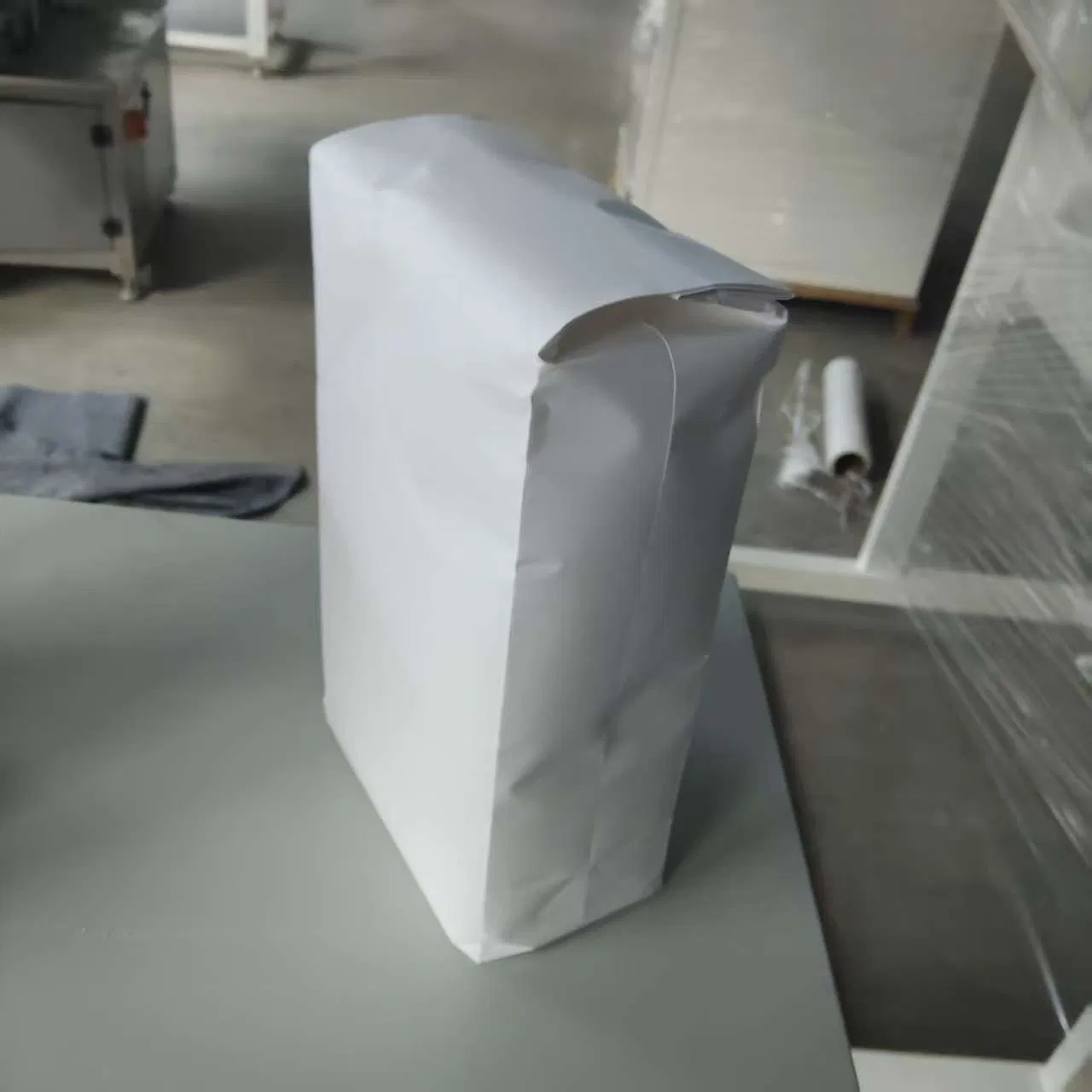

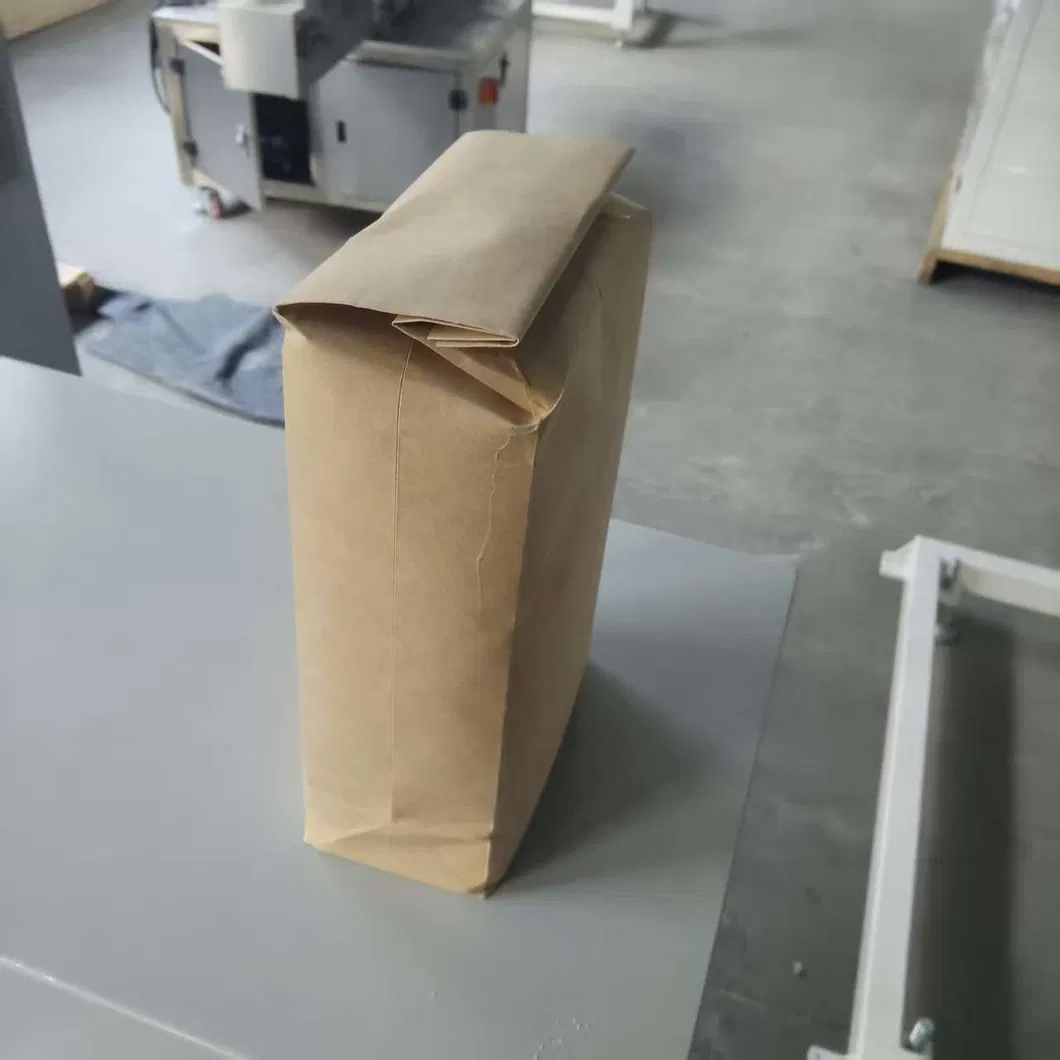

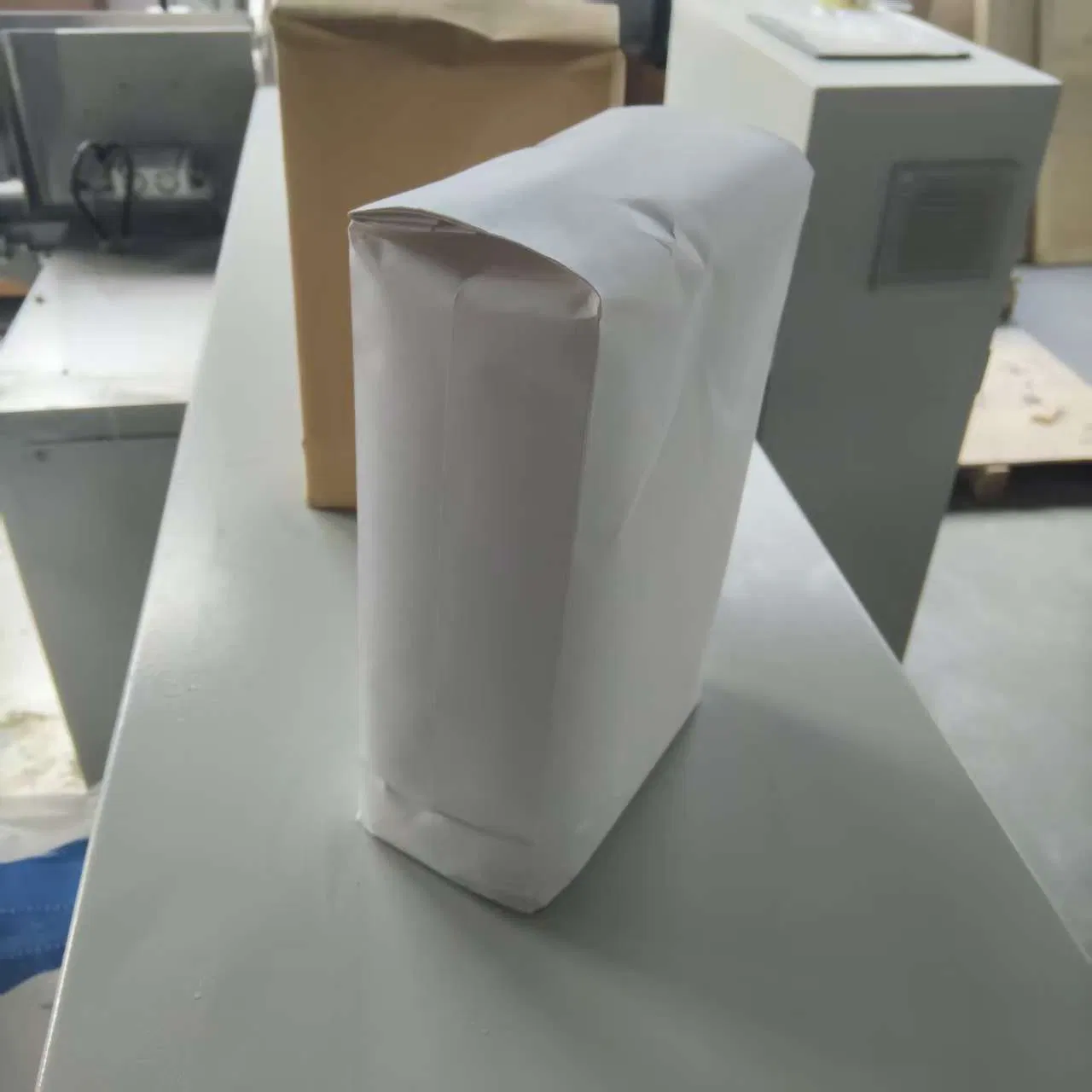

It is primarily designed for Kraft paper bags, specifically creating neat and stackable brick-type square bags. It also supports pillow bags, gusset bags, and die-cut bags depending on the configuration.
Depending on the specific system configuration and speed model chosen, the high-speed option can pack at a rate of 15 to 45 bags per minute.
Yes, it features a highly accurate auger filling system and includes dust extraction outlets in the forming pipe, making it ideal for fine powders like wheat flour, corn flour, and starch while maintaining a clean workshop environment.
Absolutely. It can easily be connected with automatic checkweighers, conveying systems, sealing systems, automatic bag placing machines, and heat shrink wrapping units to create a complete, automated end-to-end packaging line.
