Automatic Grade
Semi-Automatic
Application
Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Hair Care Products
Forming Species
Filling Machine
Packaging
Bags, Sachet, Bottles, Cans
Packaging Material
Plastic, Paper, Bottles, Cans etc
Packing Speed
10-60bags/Minute
Transport Package
Plywood Case for Milk Powder Filling Machine
Production Capacity
100 Units Each Month

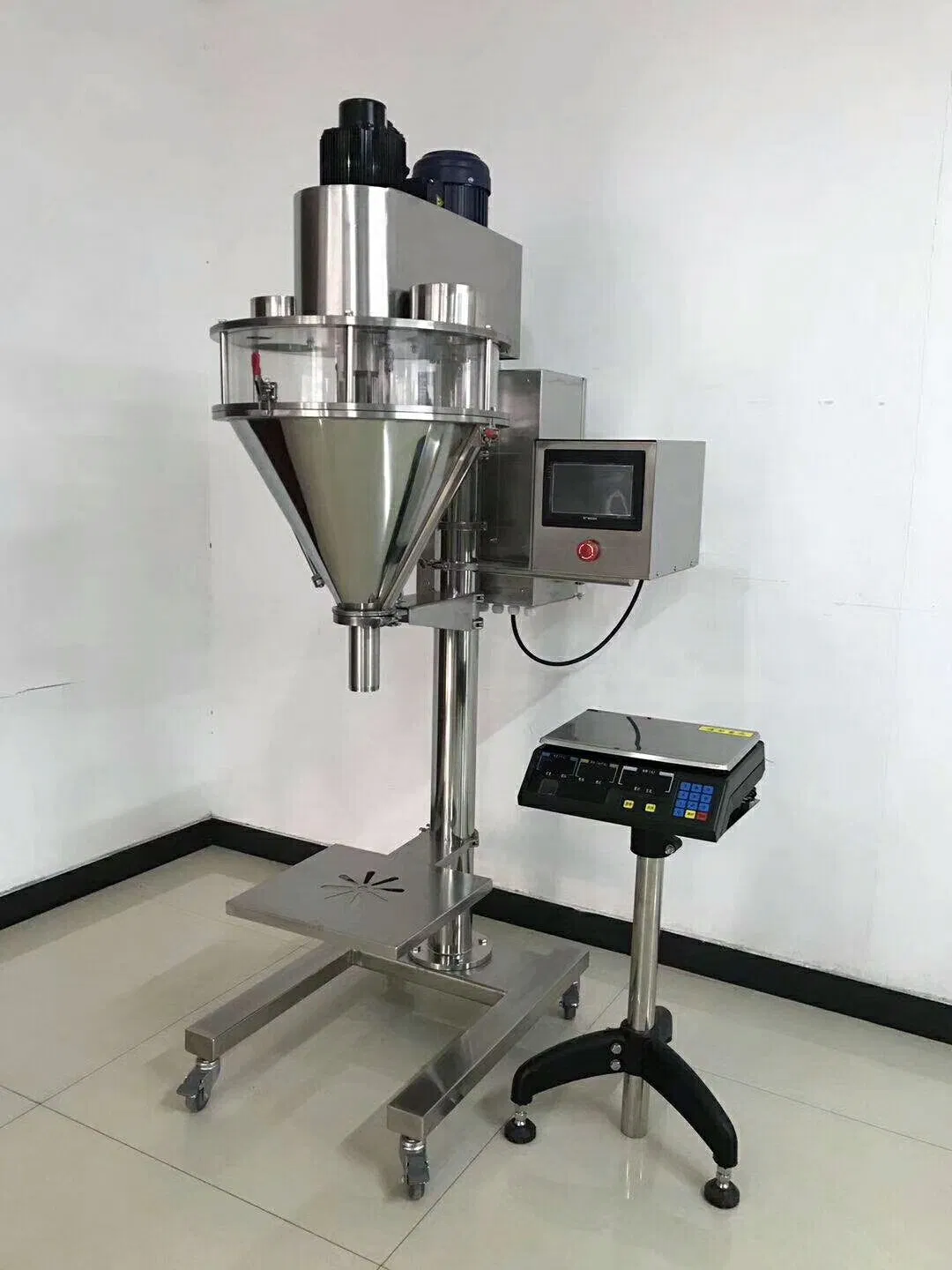

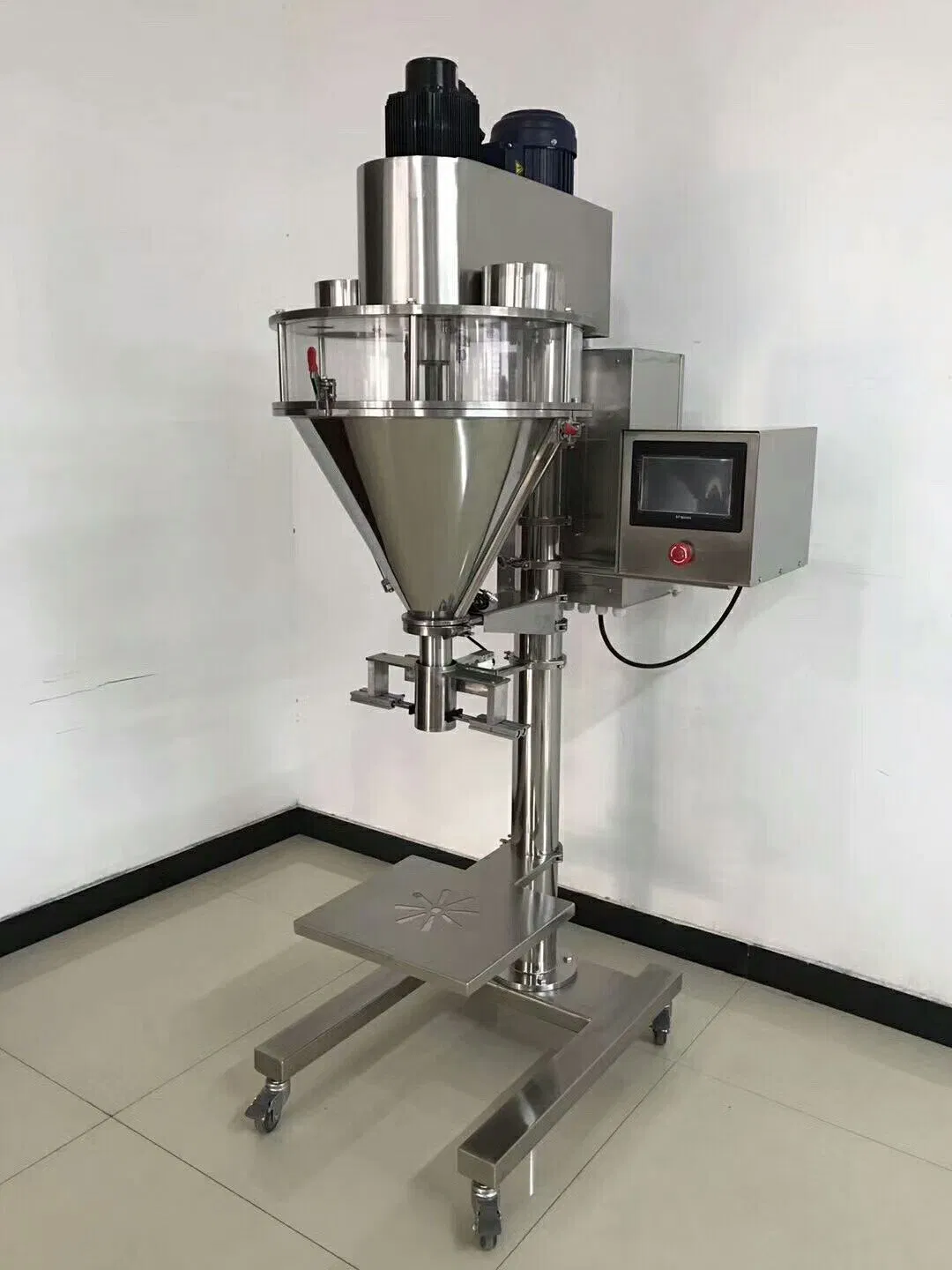

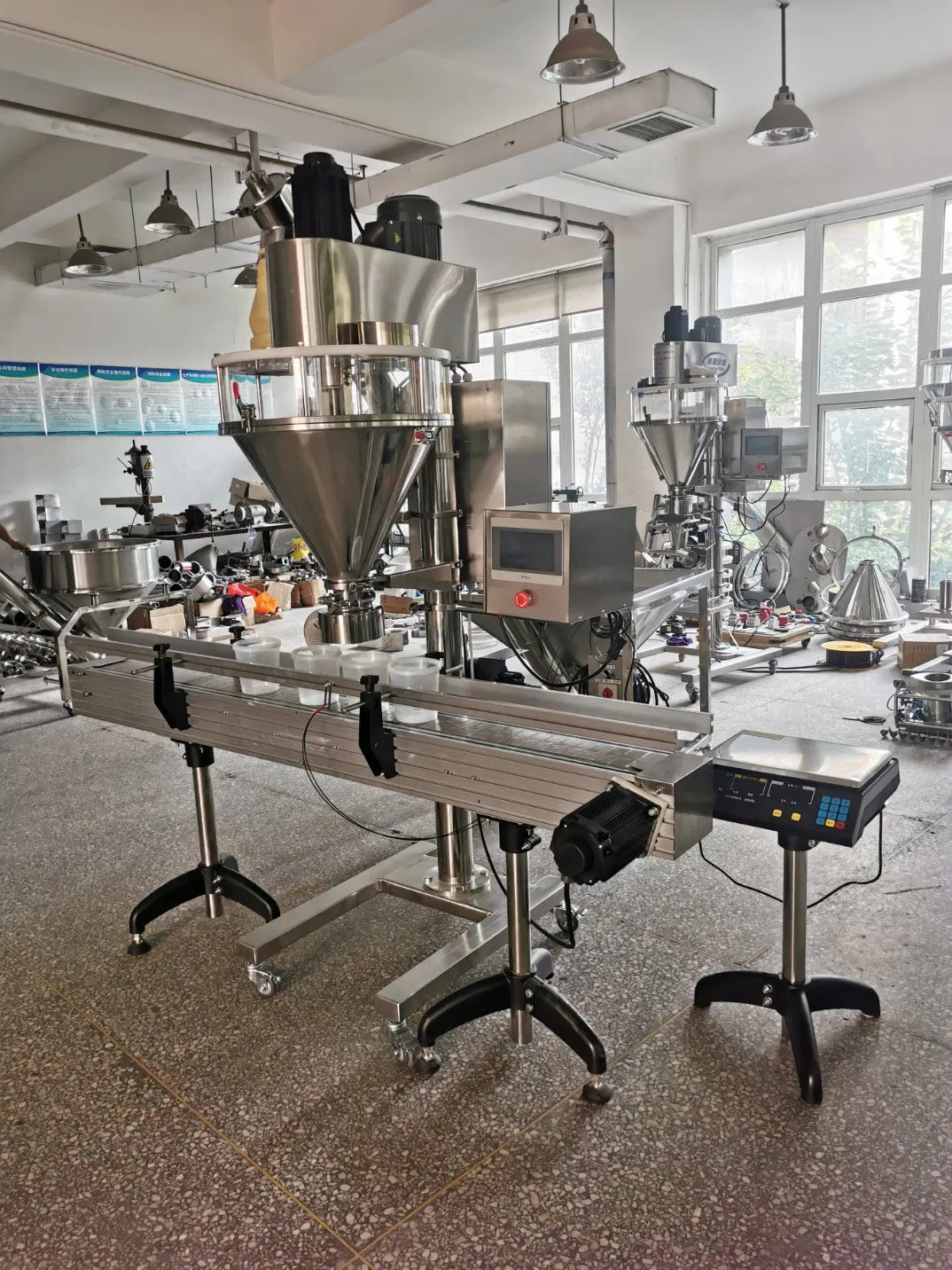

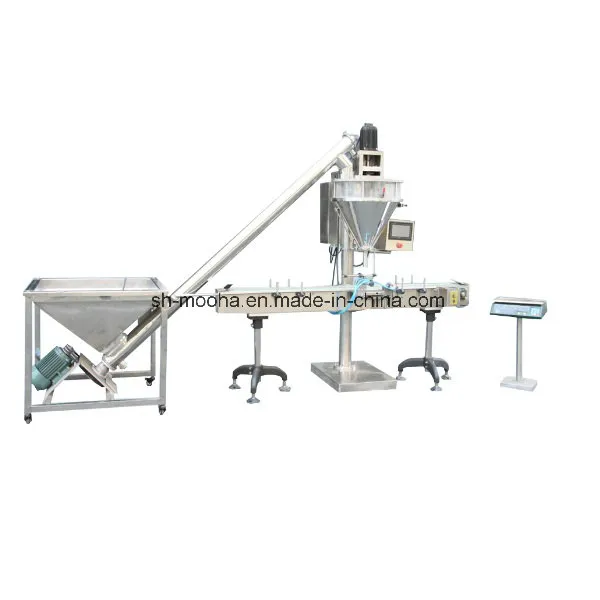

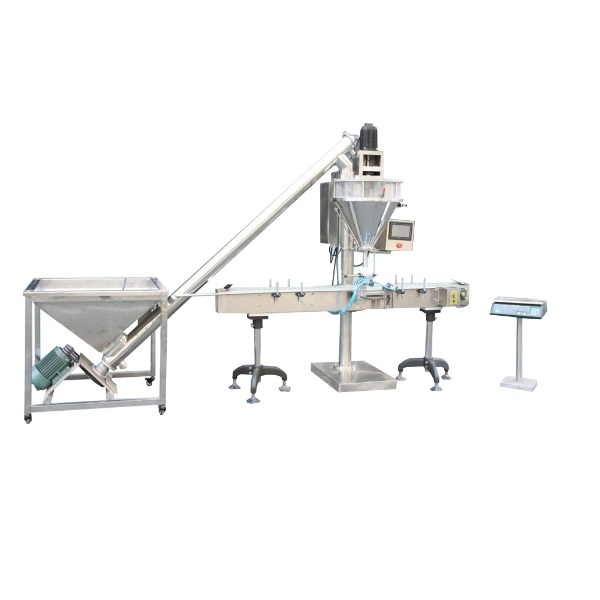

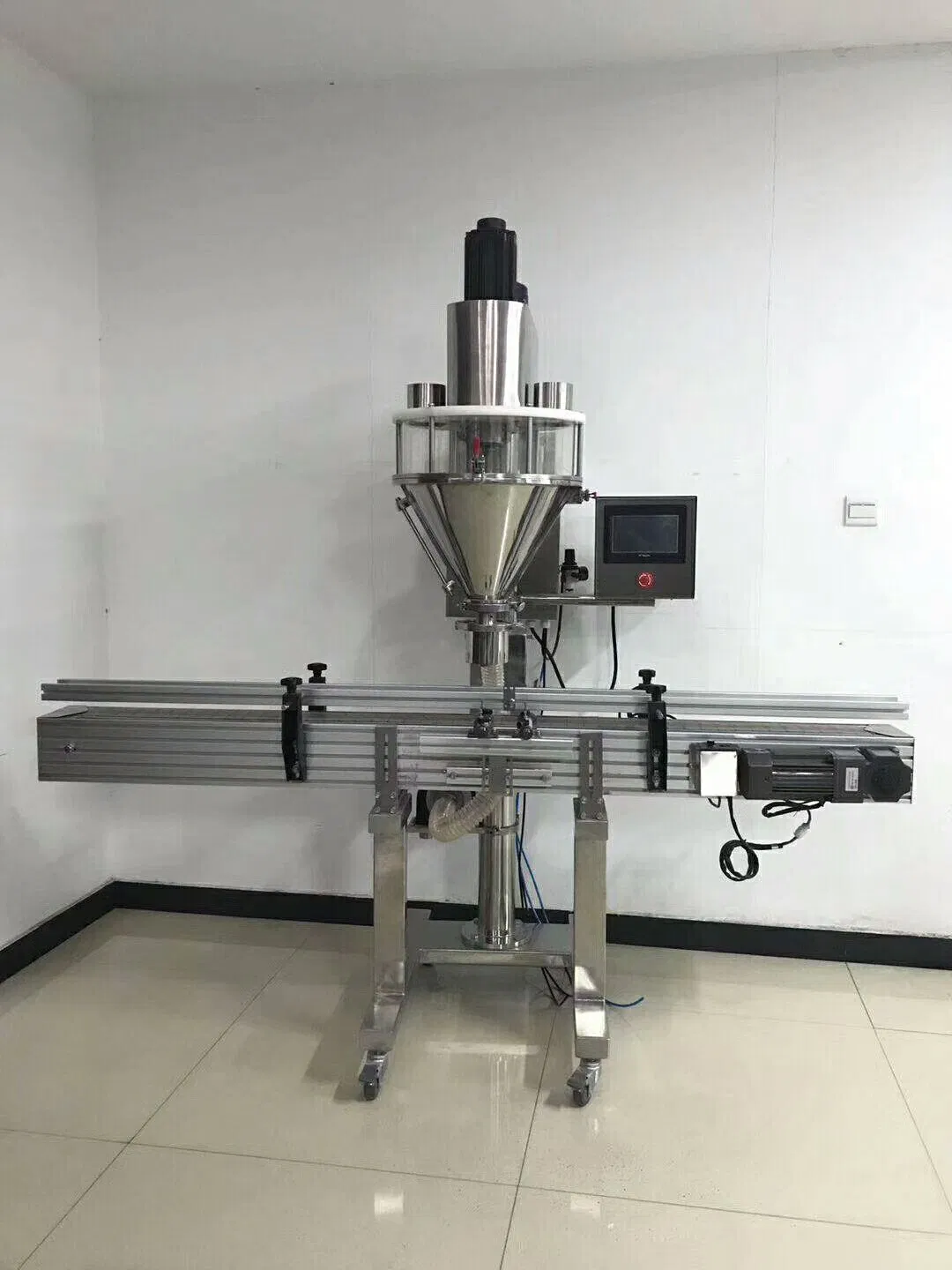

Complete system of milk powder filling and packaging machine
Parameter:
Packing supply: 5-5000g
Packing speed: 10-60bags/minute
Power: AC380V 50HZ, 900W
Machine weight: 300kg
Machine size: LxWxH=1000x650x1900(mm)
Features
- Adopt a stepping motor and electronic weighing technology, the aircraft is slightly lower cost in comparison with the servo motor, and it is economical and practical.
- Spiral cutting, light-control technology.
- Specifications: The same machine within the 2-5000g adjustment and replacement of the keyboard under different specifications of material spiral continuously adjustable.
- Scope: There is a certain fluidity of powder materials, containers (bags, cans) unlimited.
- Materials due to changes in weight and material level of error correction can be automatically tracked.
- Photoelectric switch control, only manual bagging, bag clean, easy to seal.
- Screw feeder can be equipped with automatic feeding control.
Application
It is the ideal packing equipment for pesticides, veterinary drugs, chemicals, additives, flour, milk, detergent powder, salt, drinks, sugar, monosodium glutamate, condiments (such as spicy fresh), natural flavourings (such as 13 aromatic), enzymes, feed and other powder (powders and ultrafine powder) material.
Frequently Asked Questions
What materials can this filling machine pack?
This machine is ideal for filling powder and ultrafine powder materials with a certain fluidity. Common applications include milk powder, detergent powder, flour, chemical additives, sugar, salt, spices, and veterinary drugs.
What is the packing range and speed of the MQD-5F model?
The machine handles a packing range from 5g to 5000g, adjusted through keyboard inputs. The packaging speed ranges between 10 to 60 bags per minute, depending on the material and weight specification.
Is this machine automatic or semi-automatic?
The MQD-5F is a semi-automatic machine. It requires manual bagging or placement of the container, controlled by a photoelectric switch to ensure a clean process that is easy to seal.
What packaging containers are compatible with this equipment?
The machine is compatible with a wide range of containers with no limits on packaging shapes, including bags, sachets, bottles, and cans made of materials like plastic and paper.
What are the power requirements and dimensions of this machine?
The machine operates on AC380V 50HZ with a power consumption of 900W. It weighs approximately 300kg and has dimensions of 1000mm (L) x 650mm (W) x 1900mm (H).
