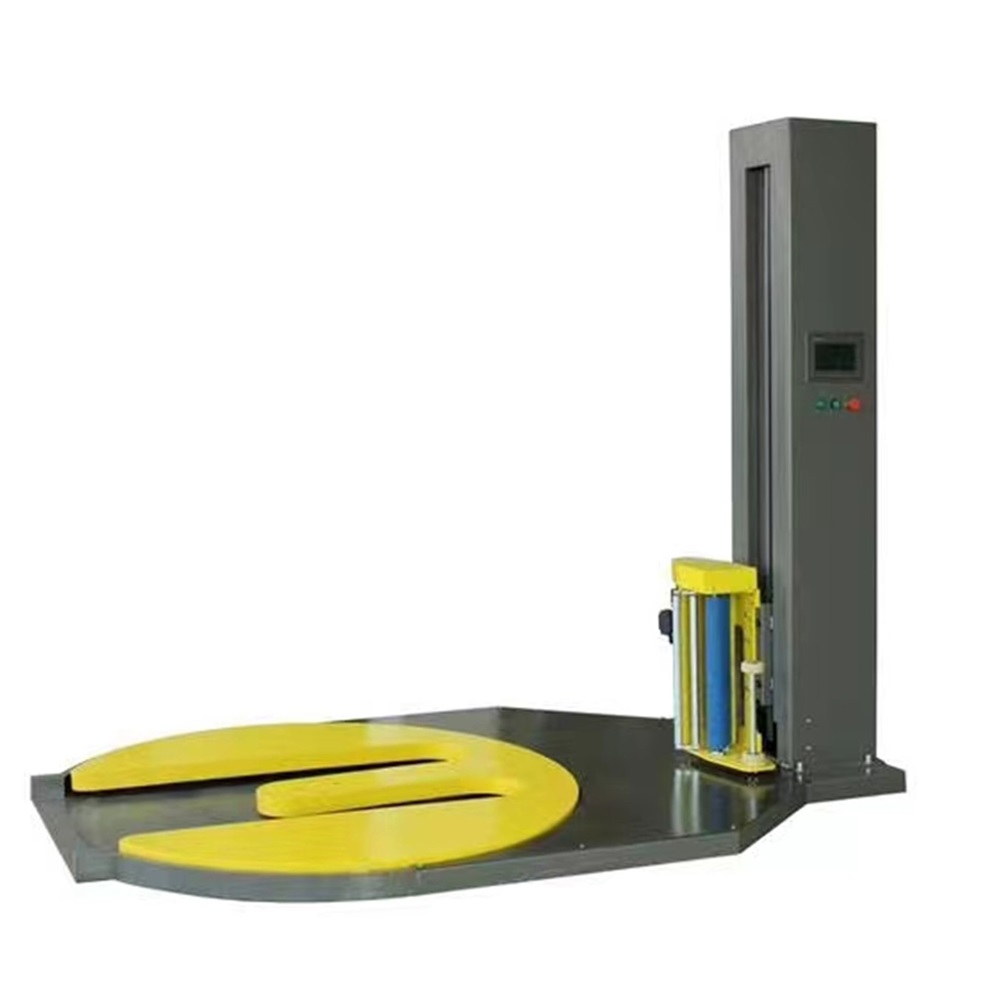

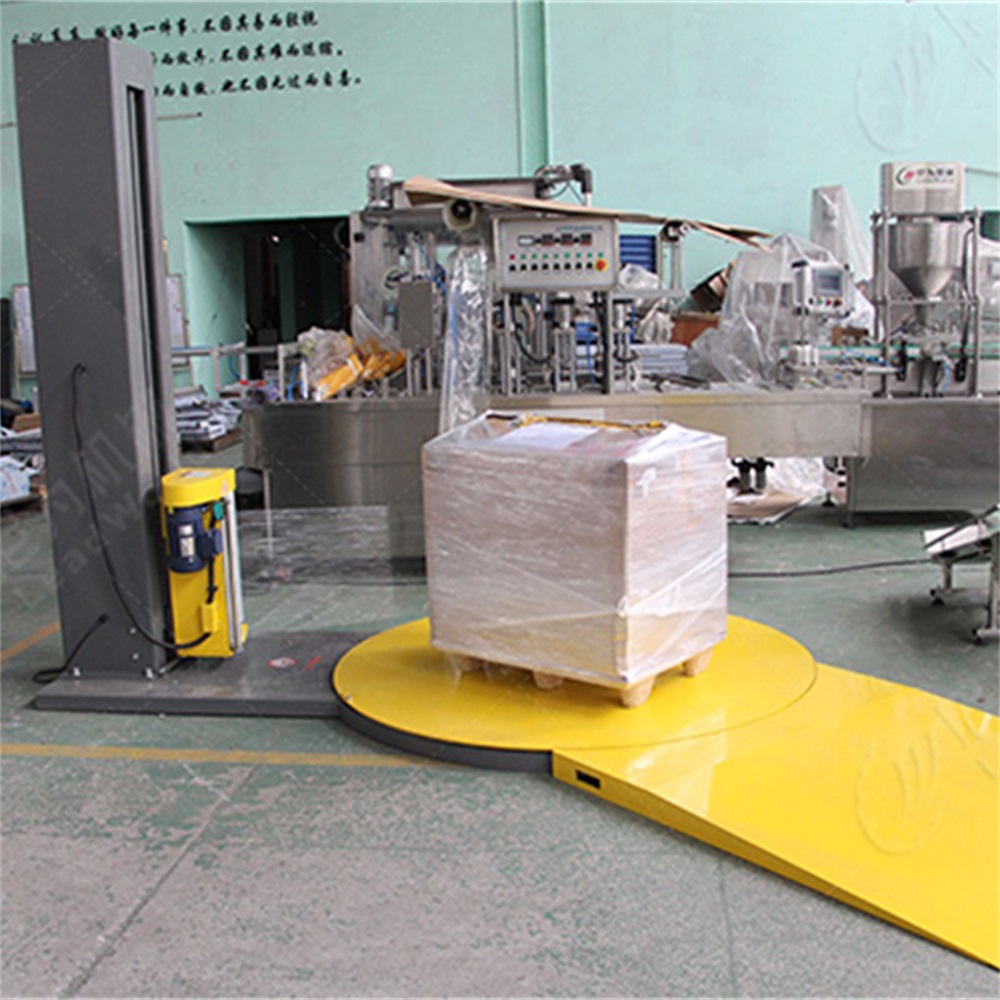

LWT Intelligent Customizable Fully Automatic Packing Pallet Wrapper Machine Stretch Film Wrapping Machine
LWT Intelligent Customizable Fully Automatic Packing Pallet Wrapper Machine Stretch Film Wrapping Machine
LWT Intelligent Customizable Fully Automatic Packing Pallet Wrapper Machine Stretch Film Wrapping Machine
LWT Intelligent Customizable Fully Automatic Packing Pallet Wrapper Machine Stretch Film Wrapping Machine
LWT Intelligent Customizable Fully Automatic Packing Pallet Wrapper Machine Stretch Film Wrapping Machine
1 / 5
LWT Intelligent Customizable Fully Automatic Packing Pallet Wrapper Machine Stretch Film Wrapping Machine
LWT Intelligent Customizable Fully Automatic Packing Pallet Wrapper Machine Stretch Film Wrapping Machine
LWT Intelligent Customizable Fully Automatic Packing Pallet Wrapper Machine Stretch Film Wrapping Machine
LWT Intelligent Customizable Fully Automatic Packing Pallet Wrapper Machine Stretch Film Wrapping Machine
LWT Intelligent Customizable Fully Automatic Packing Pallet Wrapper Machine Stretch Film Wrapping Machine

LWT Intelligent Customizable Fully Automatic Packing Pallet Wrapper Machine Stretch Film Wrapping Machine

Send Inquiry

Product Description

Product Description

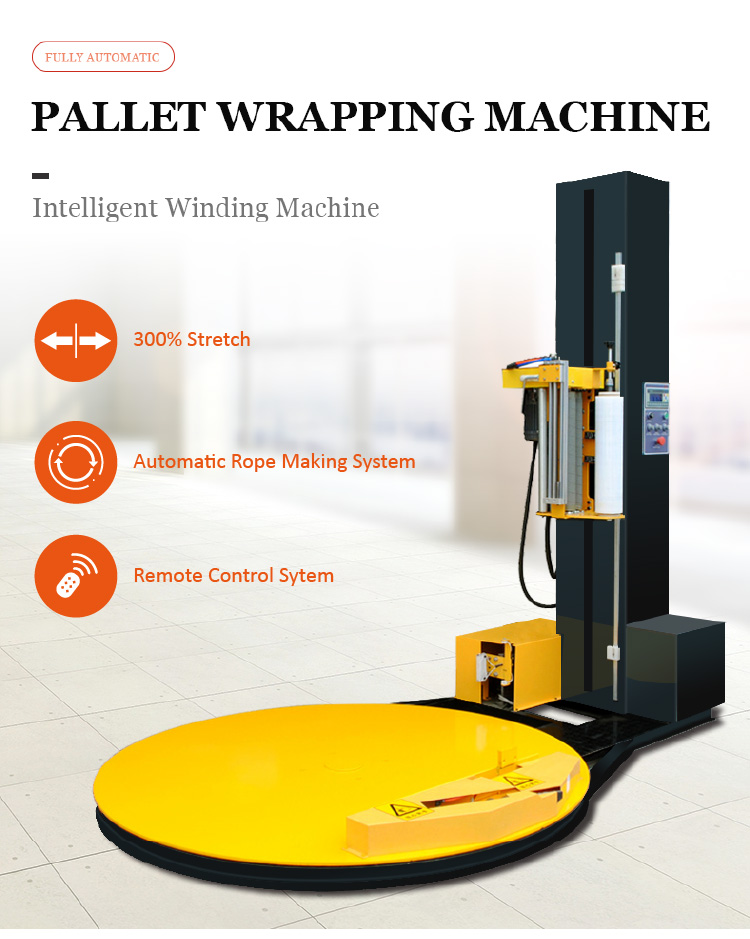

Product Image
Main performance

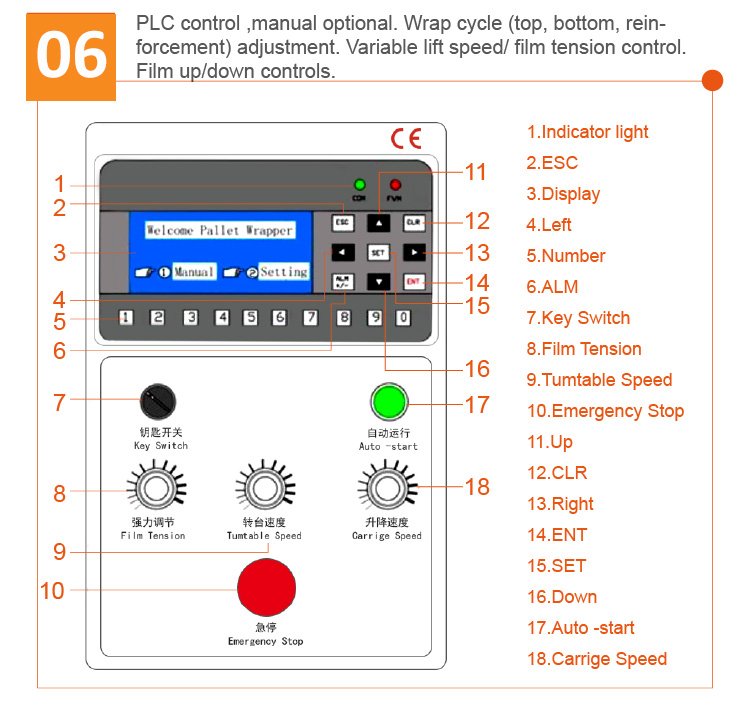

  • PLC programmable control, winding program optional, various parameters adjustable

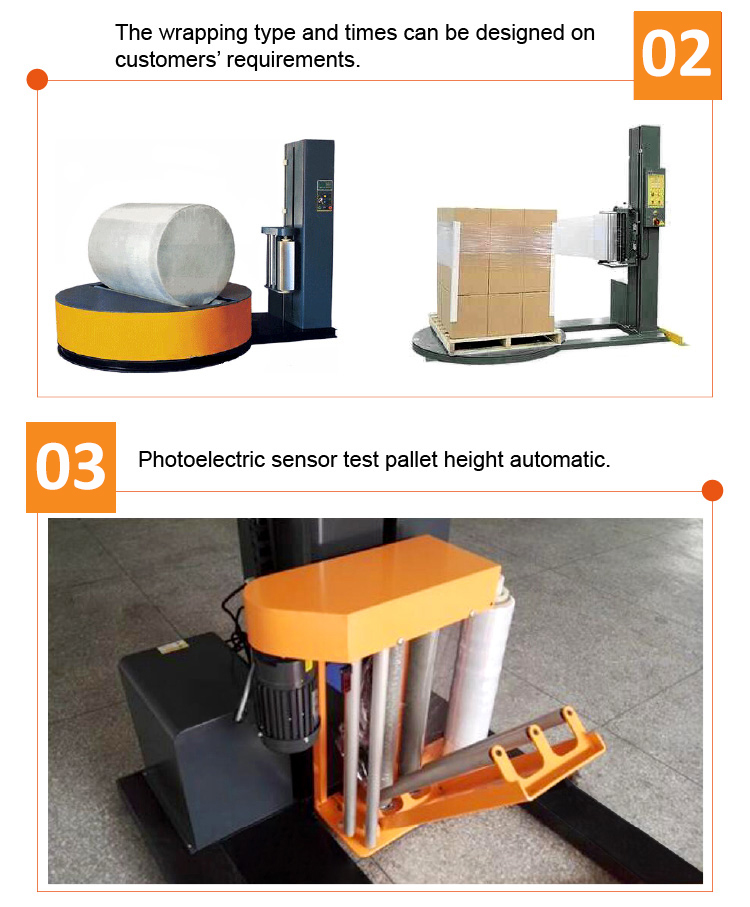

  • Photoelectric switch automatically senses cargo height
  • Pre-stretching automatic film feeding mechanism

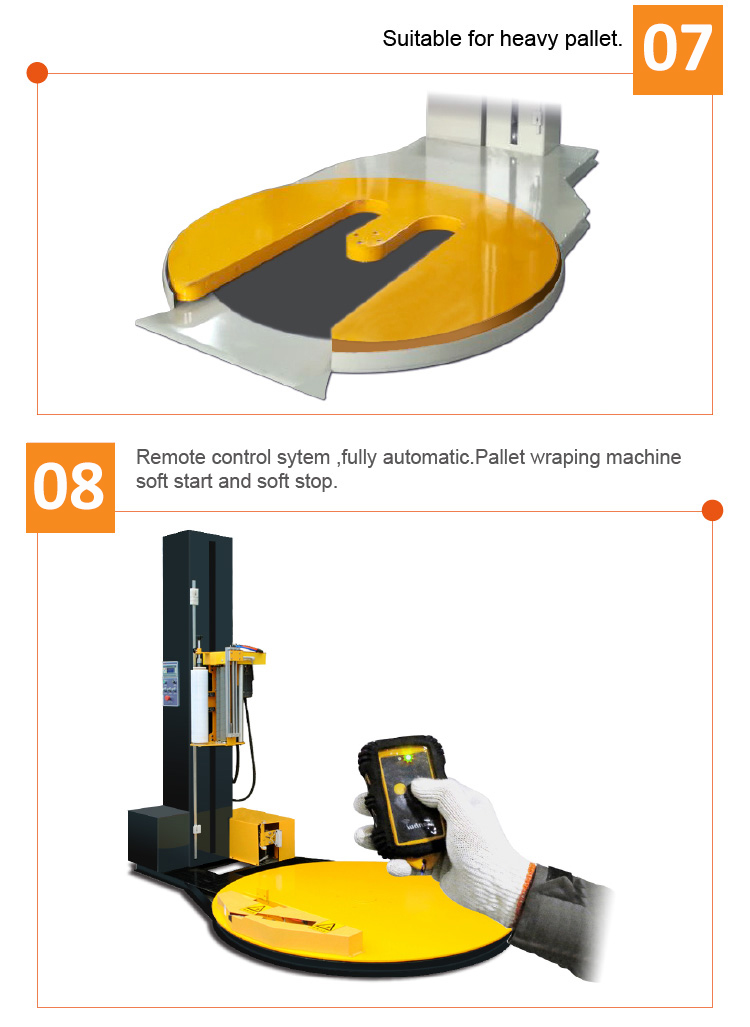

  • Rotary slow start, slow stop, automatic reset
  • The top and bottom winding numbers are individually controlled
  • Automatic, manual switchable, virtually no routine maintenance required
Turntable drive:
  • Turntable frequency control 0~12 rpm adjustable

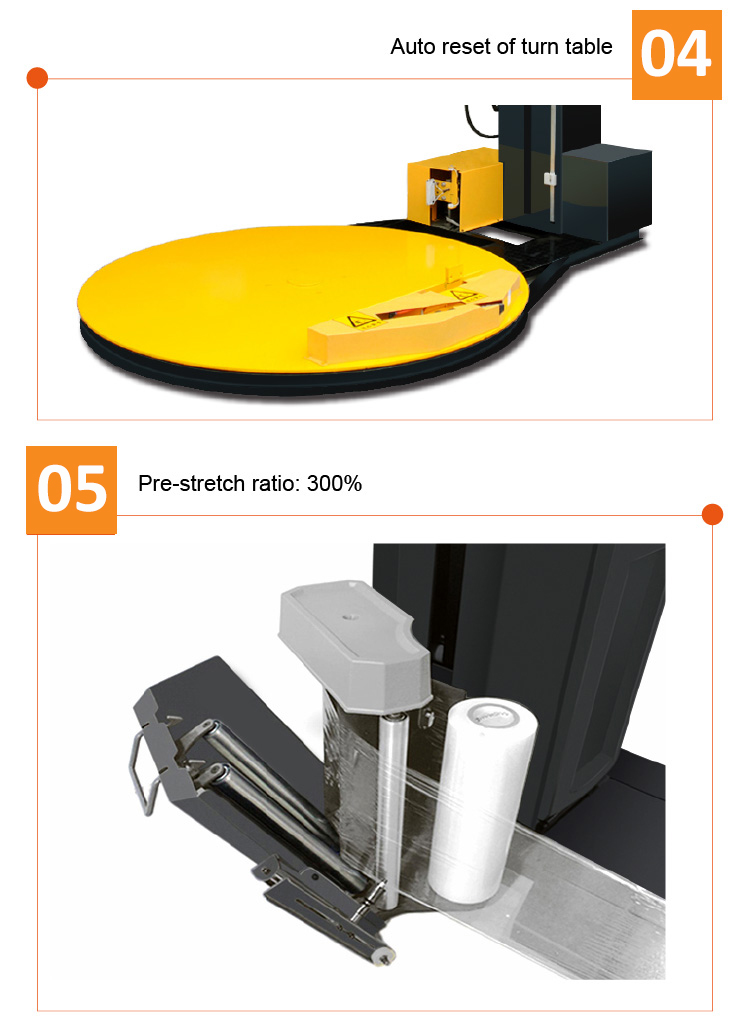

  • The turntable is automatically reset
  • The turntable is made of pure steel and high wear-resistant material
Film system:
  • The membrane frame dynamic pre-stretching mechanism can pre-stretch up to 250%, reducing the amount of film consumption
  • The rise and fall speeds of the membrane frame are respectively adjustable
  • Film feed speed is adjustable; separate DC motor control
  • The top and bottom winding numbers are individually controlled
  • The film system follow-up mechanism, a pull
  • The film frame is a pure cast aluminum frame, which is light and stable
  • Use wear-resistant rubber roller, long service life
  • The lifting column is a single chain structure, which is stable and reliable
Detail Image 1 Detail Image 2 Detail Image 3 Detail Image 4 Detail Image 5 Detail Image 6
Specification
Machine Parameters
Packing size L1200xW1200xH2400mm
Max load 1500kg
Turntable size 1650mm (option 1800mm, 2000mm…)
Turntable height 80mm
Turntable speed 0-12 RPM
Voltage 220V/1phase - 50Hz
Wattage 1.32KW
Packing efficiency 20-40 pallet/h
Dimension L2625xW1650xH2750mm
Accessories parameters
Name Brand
PLC Siemens
Touch screen Kunlun Tongtai, Taiwan
Turntable frequency converter Haily Danfoss, Denmark
Lifting and Frequency Converter Haily Danfoss, Denmark
Pre-pull drive Haily Danfoss, Denmark
Travel switch SCHNEIDER Schneider, France
Photoelectric switch Pegaft, Germany
Proximity switch Phoenix, Taiwan
Membrane frame lifting reducer Deli, China
Turntable reducer Taibang, Taiwan
Film frame pre-pull motor OT, China
Factory Show
We have always adhered to the business philosophy of innovation leading development, quality winning the market, and customer service first. With the goal of becoming the world's leading automatic production Packing line solution expert, we are committed to guiding the Production Packaging line industry's machinery production standards and actively promoting the improvement of the Packaging industry's mechanical automation level.
Factory Facility 1 Factory Facility 2 Factory Facility 3 Factory Facility 4 Factory Facility 5 Factory Facility 6 Factory Facility 7
Frequently Asked Questions
Q What is the maximum load capacity of this wrapping machine?

The standard model supports a maximum weight load of 1500kg, making it suitable for a wide range of heavy industrial pallet packaging needs.

Q Can the turntable speed be customized or adjusted?

Yes, the turntable speed can be adjusted between 0 to 12 RPM using the built-in frequency control system, allowing you to wrap different types of loads safely.

Q How does the dynamic pre-stretching mechanism work?

The dynamic pre-stretching mechanism can stretch the film up to 250% prior to application. This significantly minimizes film consumption while ensuring high tension and stability of the wrapped load.

Q Does the machine support automatic height sensing for different load sizes?

Yes, the machine is equipped with high-precision photoelectric switches that automatically sense the height of the cargo, ensuring accurate wrapping parameters for every cycle.

Q What are the default requirements for the machine's input power?

The standard electrical configuration requires a single-phase voltage input of 220V at 50Hz, with a total power consumption rating of 1.32KW.

Q What brand of components are utilized in the control systems?

To guarantee high reliability, the system integrates top-tier components including Siemens PLC, Schneider travel switches, and Danfoss frequency converters.
