Fully Automatic Pallet Wrapping Machine Skid Turntable Stretch Wrappers for Food Paper Packaging Equipment Wrap on Line

Heavy Duty Large Online Fully Automatic Pallet Wrapping Machine with Conveyor

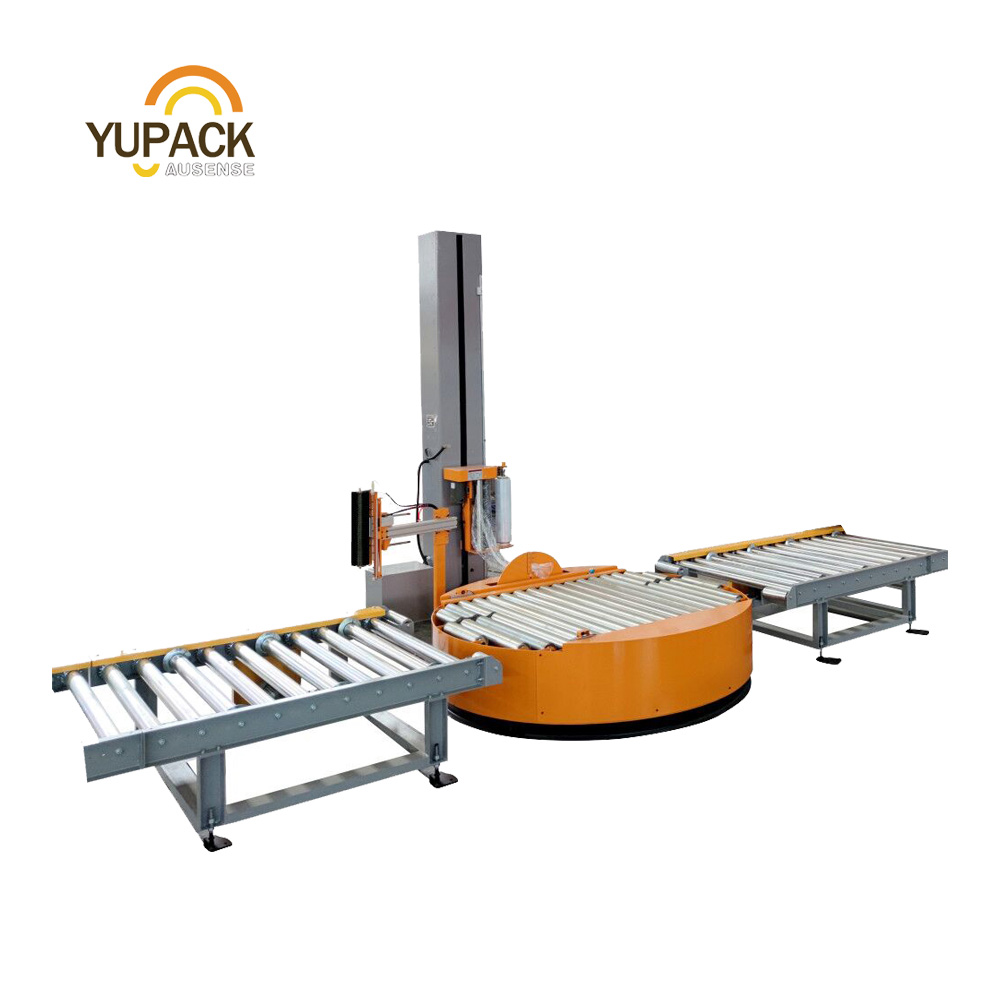

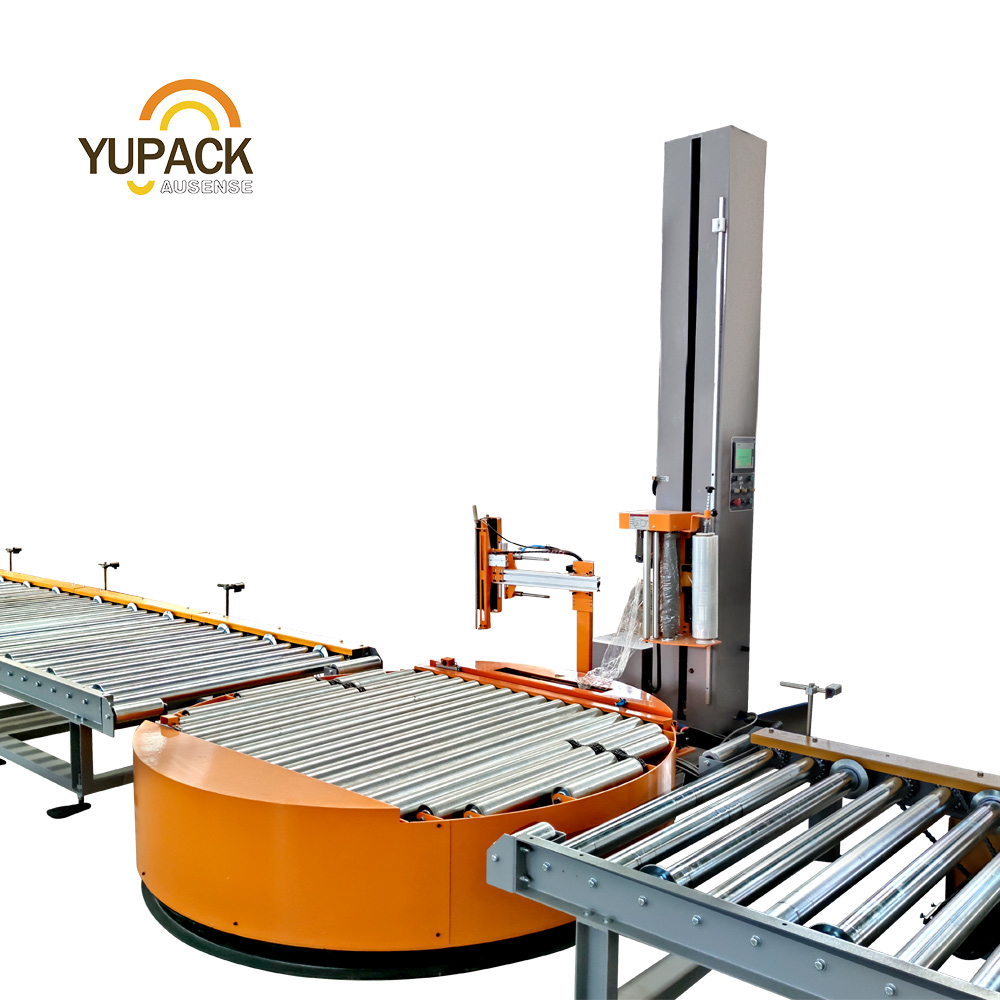

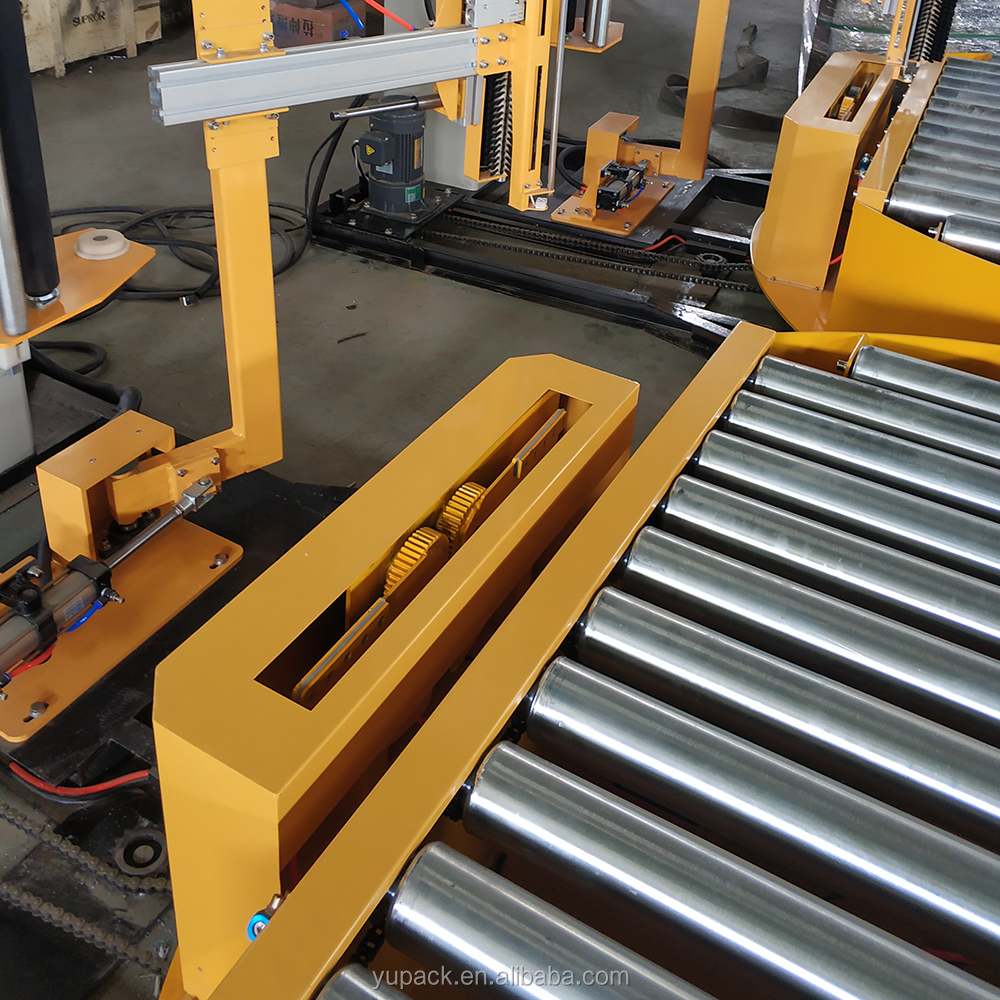

TP2000FZ fully automatic pallet wrapping machine is a traditional turntable type machine that has been designed to be as automatic as possible. Once the film has been loaded into the film jaw clamps there is no need to attach the film to the pallet in the normal way. At the end of the cycle the machine cuts the film with a hot wire, secures the tail end on to the pallet and then grips the film ready for the next load.

Product Parameters

Model	TP2000FZ
Voltage	220/380V 50/60HZ 3P
Power	Turntable Motor: 0.75kw, Film Motor: 0.4kw, Column Motor: 0.37kw
Wrapping Size (L*W mm)	(500-1100)*(500-1200)
Wrapping Height	500-1800/2400
Capacity	20-40 Pallet/Hour
Turntable size	2000mm
Turntable Height	400mm
Max loading	2000kg
Speed	Adjustable
Machine Size	320020002100mm

Product Advantages

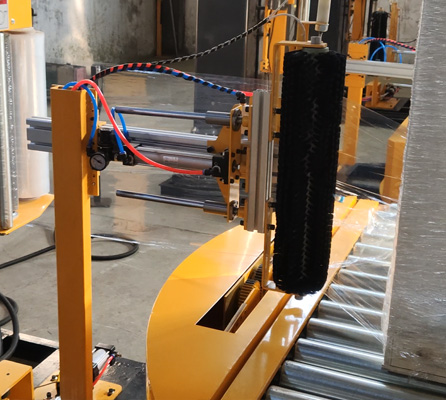

01 Automatic stretch foil cutting and applying system.

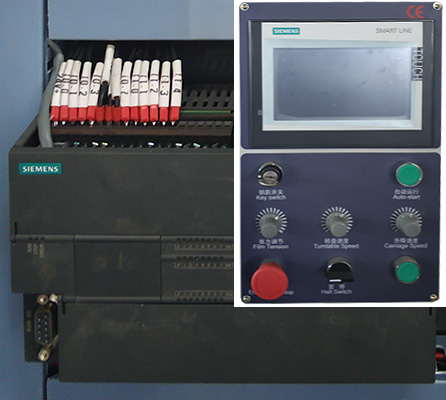

02 Siemens PLC and touch screen.

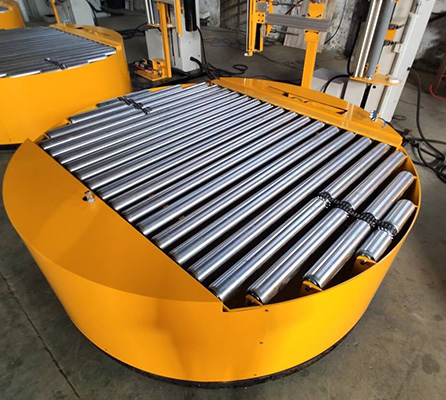

03 Motorized roller conveyor, input and output automatically.

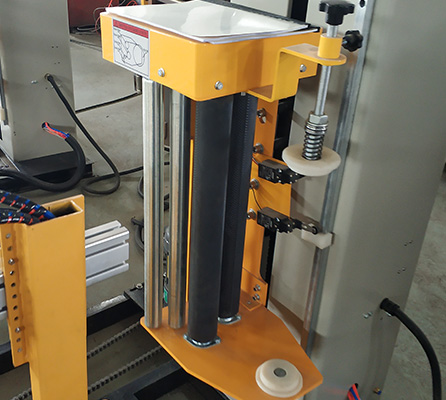

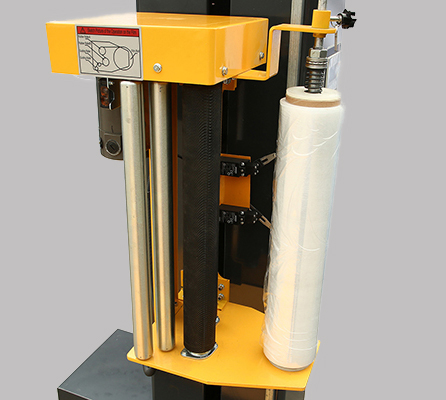

04 Pre-stretch film up to 300%.

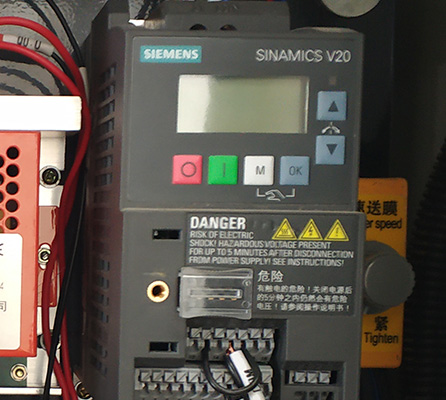

05 Speed adjustable.

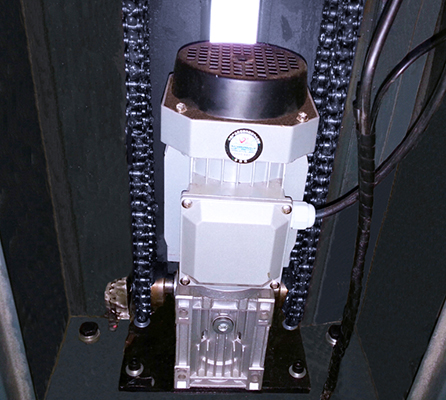

06 Lifting column for double chain structure.

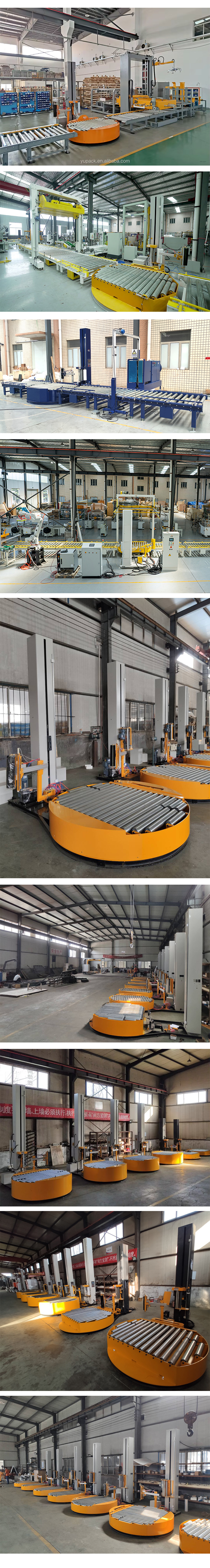

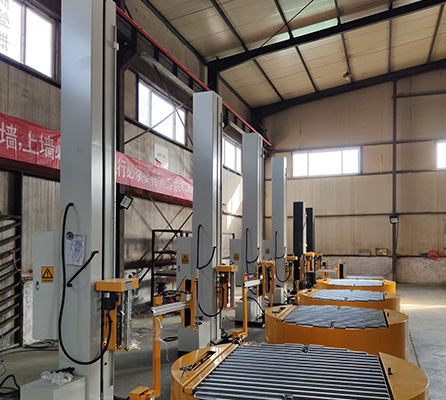

Our Workshop

More Related Products

Company Profile

Established in 2008, we focus on the planning, R&D and manufacturing of automatic packaging production lines, such as automatic carton packing lines, shrinking wrapping lines, fully automatic pallet strapping lines, conveyor systems, and more. All products have passed the CE certification of the European Union. Our productions have been exported to Europe, North America, the Middle East, Southeast Asia, and more than 30 other countries. Since 2017, we have successfully introduced robots into our end of packaging production line, which can effectively integrate into the application of enterprise MES manufacturing execution systems and provide a complete set of automation industry 3.0 to 4.0 transformation and upgrading services.

FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer of packaging machines with over 10 years of experience.

2. Can you do OEM?

Yes, we can do OEM and customize the design as well as print your logo on the machines.

3. Do your machines have CE certification?

Yes, all of our machines are CE and BV approved to ensure international standards of safety and performance.

4. Can you help us contact the shipping agent in the loading port?

Yes, we work with reliable shipping forwarders who consistently offer competitive rates and quality service. You can check the dimensions and weight in our description to verify shipping calculations independently.

5. What is the lead time for standard machine production?

Typically, the production process takes around 20 to 30 days depending on the customization requirements and current factory schedules.

6. How are the machines packaged for export?

We wrap and package all machines in standard, robust export-grade wooden cases to ensure safe delivery and protect the equipment from moisture or impact during transit.
