Customization: Available
Type: Multi Layer Palletizer
Automatic Grade: Automatic
Send Inquiry

Product Description

Overview

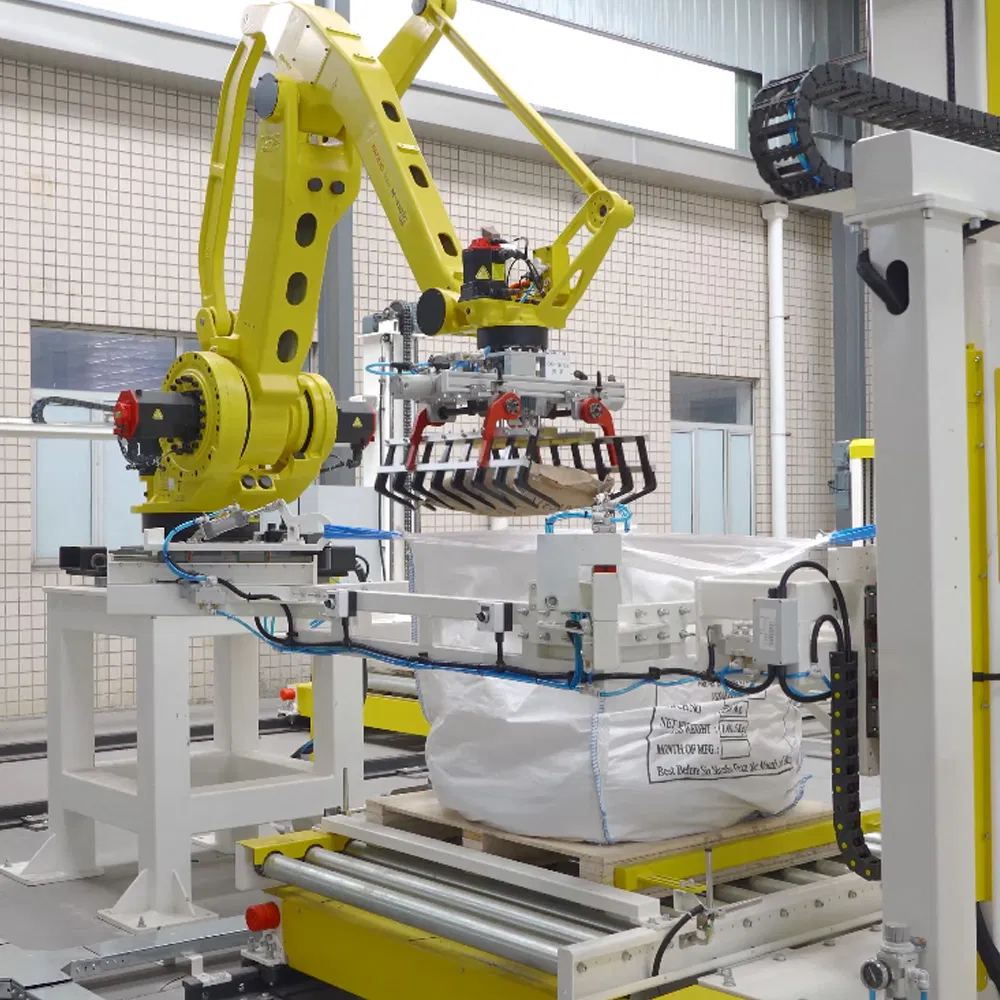

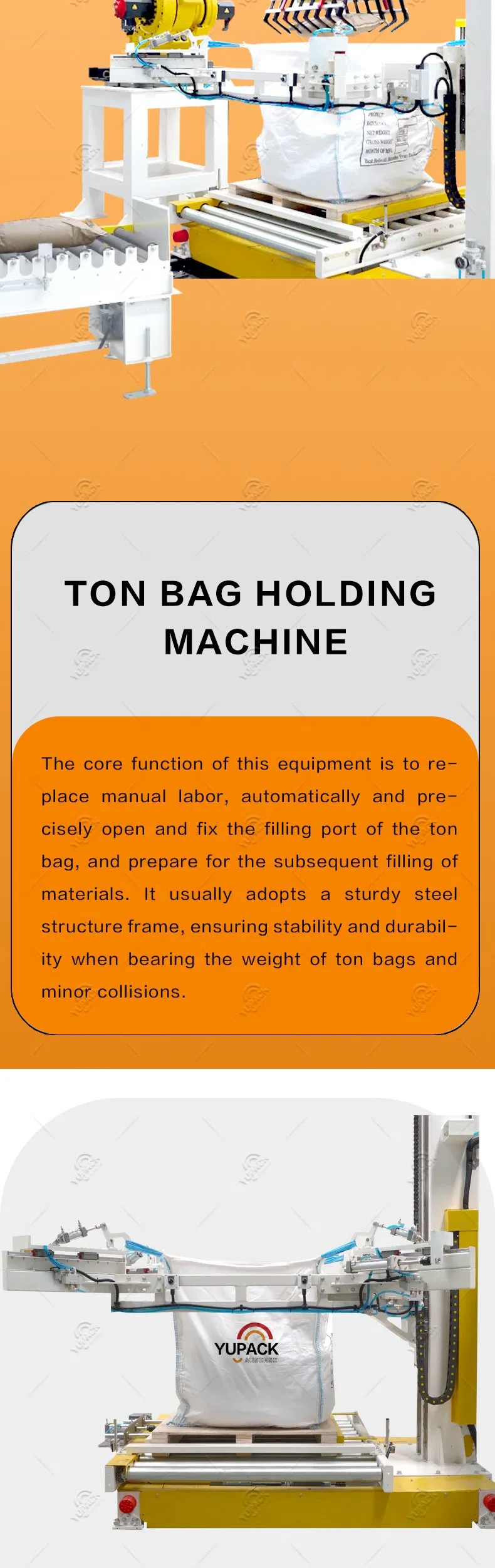

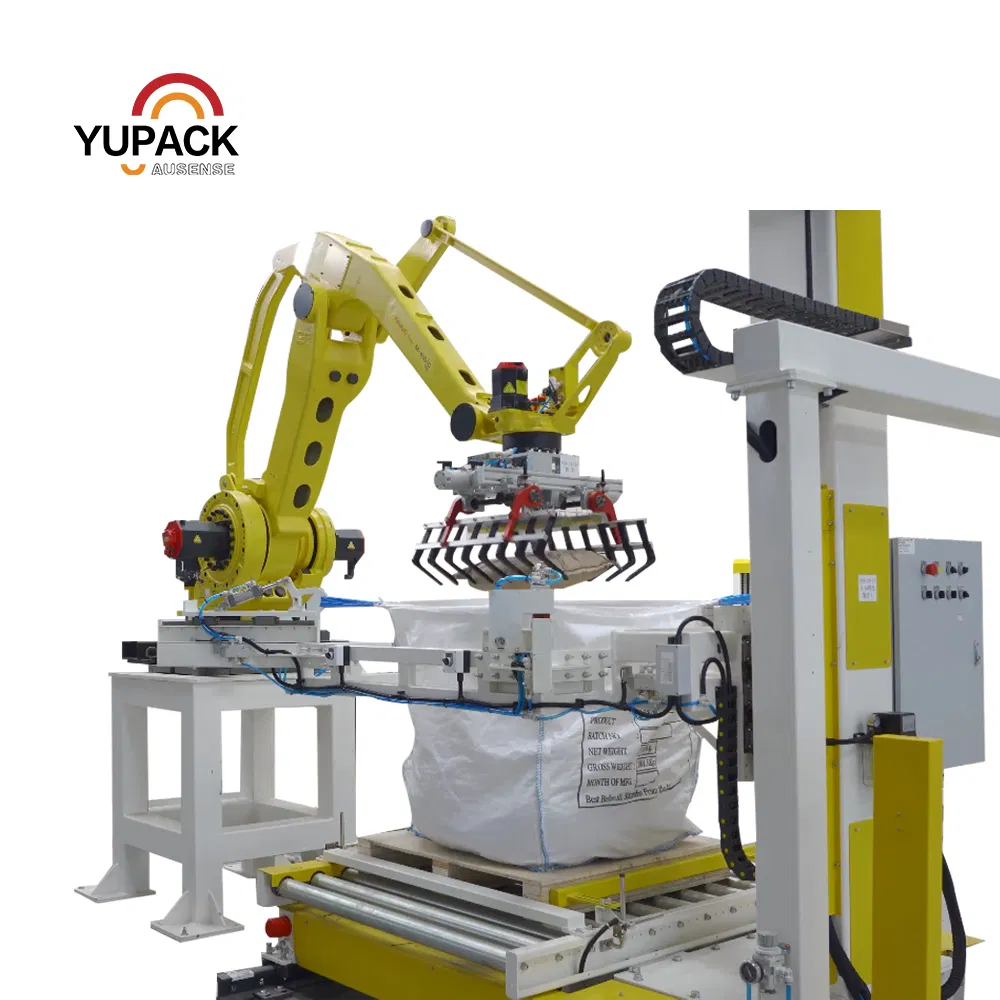

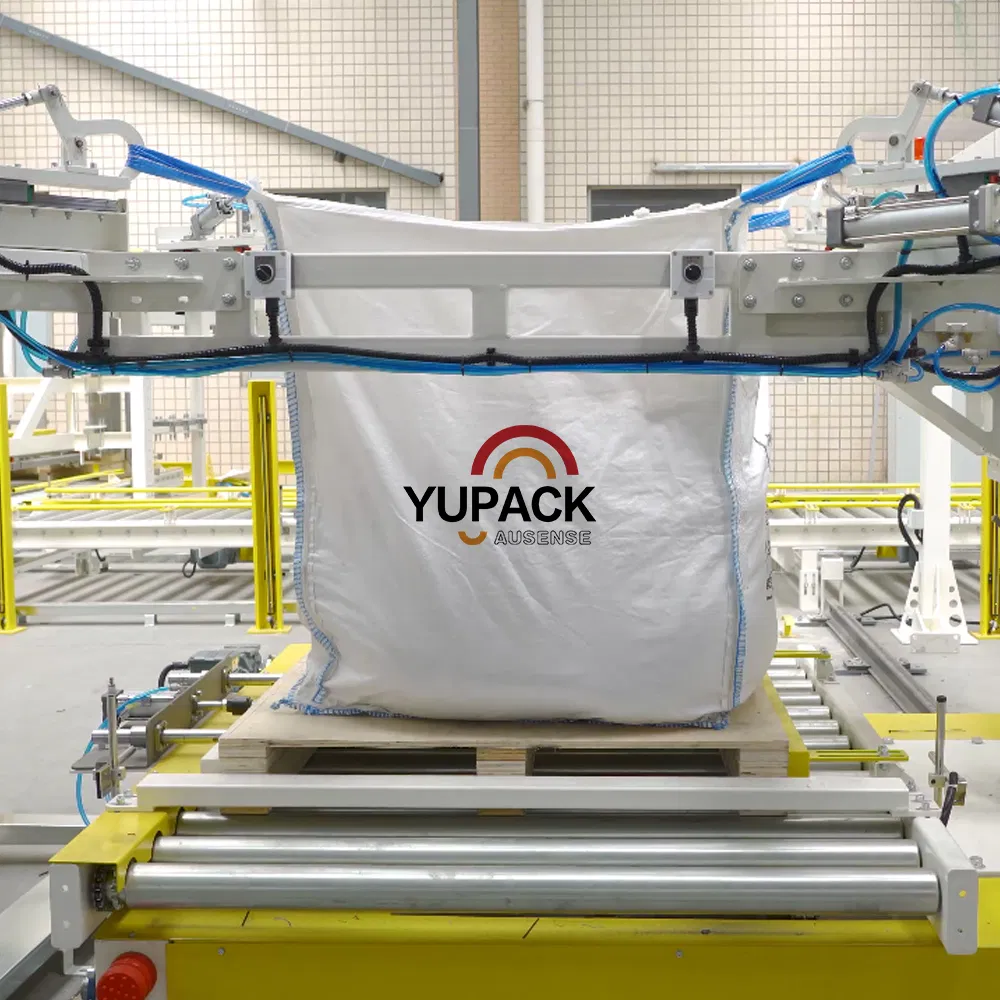

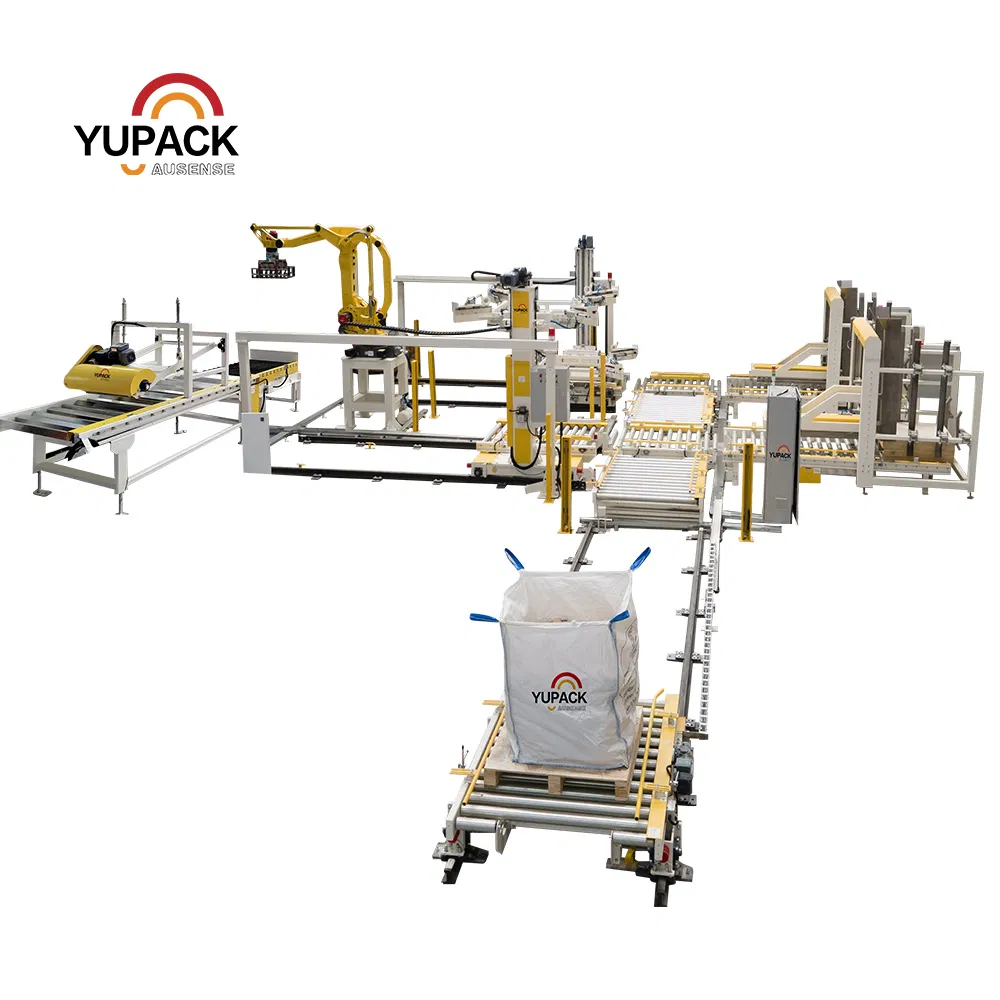

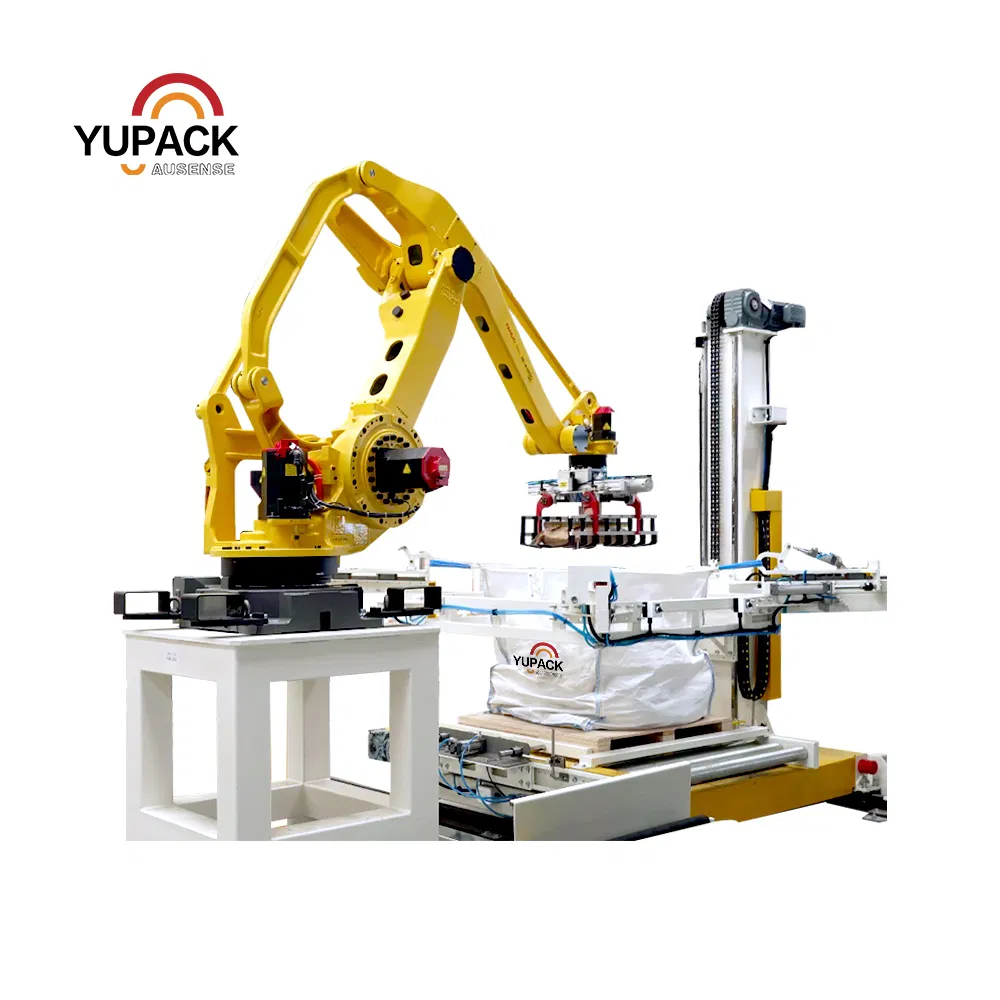

Automatic Bag Palletizer & Ton Bag Holding Packaging Line is a fully integrated, high-efficiency automation solution designed for the filling, handling, palletizing, and securing of bulk materials in industries such as chemicals, fertilizers, cement, feed, plastics, and food. This complete line combines ton bag (FIBC) filling, bag holding, automatic palletizing, and stretch wrapping, delivering seamless operation, enhanced safety, and reduced labor costs. For example, in the chemical industry, this system can reduce the risk of human error and exposure to hazardous materials. In food production, it ensures cleanliness and hygiene during packaging, enhancing product quality and safety. Engineered for large-scale production environments, this system ensures precise weighing, stable stacking, and dust-free operation, making it an ideal choice for modern intelligent factories seeking to improve logistics efficiency and packaging standards. By automating these processes, companies can achieve significant cost savings and increase production capacity.

Basic Info & Logistics

Palletizing Speed
10-30 Bags/Minute
Load Capacity
10-50 Kg/Bag
Repeated Accuracy
± 0.5mm ~ ± 1mm
Degrees of Freedom
Axis 4-6
Working Radius
2-4m
Transport Package
Wooden Box
Specification
Bag palletizer
Origin
China
HS Code
8428700000
Production Capacity
5000 units/Year
Package Size
100.0cm * 100.0cm * 100.0cm
Package Weight
100.0kg

Product Parameters

Category Parameter Item Standard Specification Optimization / Adaptability Options
Basic Performance Palletizing speed 10-30 bags/minute Vision Bag Weight and Stack Type Complexity Adjustment
Basic Performance Load capacity 10-50 kg/bag Heavy-duty version up to 100kg
Basic Performance Repeated positioning accuracy ± 0.5mm ~ ± 1mm Laser-assisted positioning optimized to ± 0.3mm
Mechanical Structure Degrees of freedom (DOF) Axis 4-6 Articulated/Truss Optional
Mechanical Structure Working radius 2-4m Expandable rail increases range
Control System Programming mode Teaching pendant/offline programming (PLC) Support ROS adaptation
Control System Communication Protocol Modbus TCP/EtherCAT Supported
Fixture Adaptation Grasping method Pneumatic gripper/vacuum suction cup Non-slip design (special for woven bag)
Fixture Adaptation Bag size adaptation 300-1000mm long, 200-600mm wide Customizable fixture
Safety Protection Safety Standards ISO 10218/TS 15066 Emergency stop, grating, collision detection
Power & Energy Rated power 3-7.5kW Standby power consumption <0.5kW
Power & Energy Supply voltage 380VAC/220VAC Supported
Environment Working temperature 0 °C - 45 °C Dustproof and waterproof grade IP54 (optional IP65)

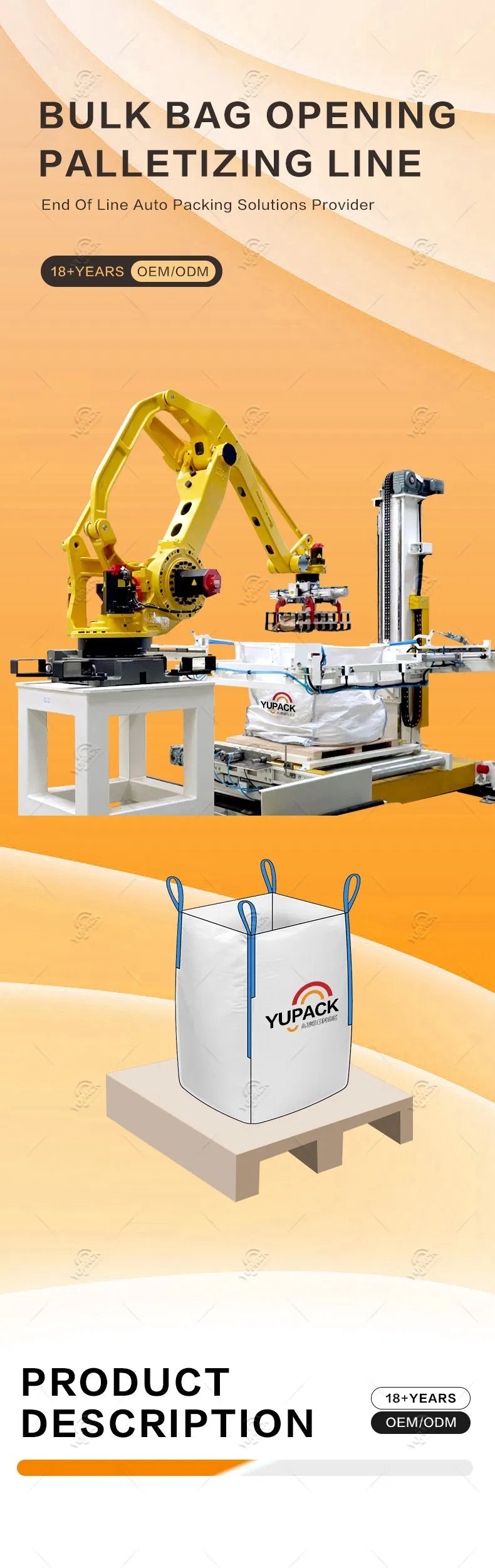

Product Presentation

End-of-Line Automation: From Bag Palletizing to Ton Bag Handling on One Integrated Line
End-of-Line Automation: From Bag Palletizing to Ton Bag Handling on One Integrated Line
End-of-Line Automation: From Bag Palletizing to Ton Bag Handling on One Integrated Line
End-of-Line Automation: From Bag Palletizing to Ton Bag Handling on One Integrated Line
End-of-Line Automation: From Bag Palletizing to Ton Bag Handling on One Integrated Line
End-of-Line Automation: From Bag Palletizing to Ton Bag Handling on One Integrated Line
End-of-Line Automation: From Bag Palletizing to Ton Bag Handling on One Integrated Line
End-of-Line Automation: From Bag Palletizing to Ton Bag Handling on One Integrated Line
End-of-Line Automation: From Bag Palletizing to Ton Bag Handling on One Integrated Line
End-of-Line Automation: From Bag Palletizing to Ton Bag Handling on One Integrated Line
End-of-Line Automation: From Bag Palletizing to Ton Bag Handling on One Integrated Line
End-of-Line Automation: From Bag Palletizing to Ton Bag Handling on One Integrated Line
End-of-Line Automation: From Bag Palletizing to Ton Bag Handling on One Integrated Line
End-of-Line Automation: From Bag Palletizing to Ton Bag Handling on One Integrated Line

Frequently Asked Questions

What industries is this Packaging Line suitable for?
The Automatic Bag Palletizer & Ton Bag Holding Packaging Line is designed for handling bulk materials in industries such as chemicals, fertilizers, cement, animal feed, plastics, and food processing.
What is the maximum palletizing speed and load capacity?
The standard system achieves a palletizing speed of 10-30 bags per minute. It handles weights of 10-50 kg per bag, with optional heavy-duty adaptation up to 100 kg.
How precise is the system's positioning accuracy?
The repeated positioning accuracy ranges between ± 0.5 mm and ± 1 mm. With laser-assisted positioning upgrades, it can be optimized to ± 0.3 mm.
Does the gripper design prevent woven bags from slipping?

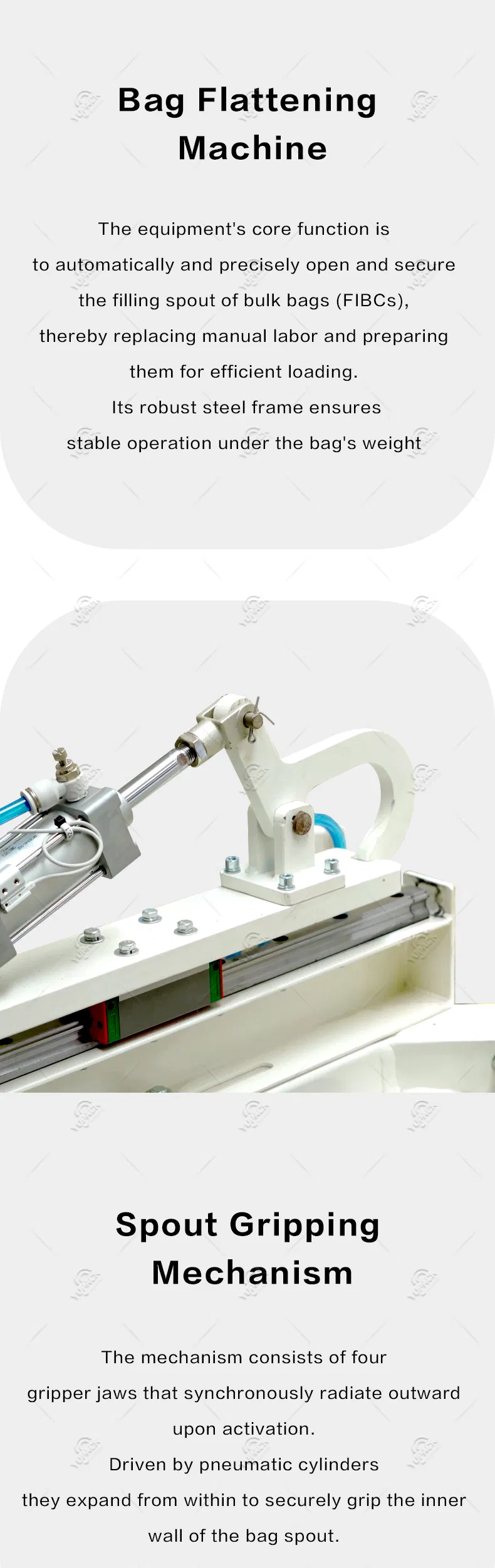

Yes, the fixture system supports specialized grasping methods including pneumatic grippers and vacuum suction cups with non-slip features designed specifically for woven bags.
What safety standards does this packaging line meet?
It complies with ISO 10218 and TS 15066 safety standards and is equipped with emergency stops, safety light gratings, and automated collision detection for secure operation.
What communication protocols does the control system support?
The control system supports Modbus TCP and EtherCAT protocols as standard, allowing for seamless integration with external PLC systems and ROS adaptations.
