10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag
1 / 5
10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag

10-50kg Dry Mortar Bagging Machine with Valve Bag

Customization: Available
Automatic Grade: Automatic
Application: Cleaning, Detergent, Cosmetics, Dairy Products, Rice, Flour
Send Inquiry

Product Description

Basic Specifications

Model NO.
BCS-50
Type
Filling and Sealing Machine
Forming Species
Bag Moulding
Forming Function
Filling
Driven Type
Electric
Material Type
Powder
Packaging
Cartons
Packaging Material
Composite Materials
Automation
Automatic
Condition
New
Processing
Dose, Filling
Product
Flour, Chemical Powder
Usage
Dry Mortar Packing
Capacity
300-360bags/Hour
Packing Range
5-50kg
Feeding Type
Low Pressure Air
Transport Package
Woodbox
Specification
CE
Trademark
NW
Origin
Jiangsu
HS Code
8422303090
Production Capacity
200PCS/Year

Product Overview

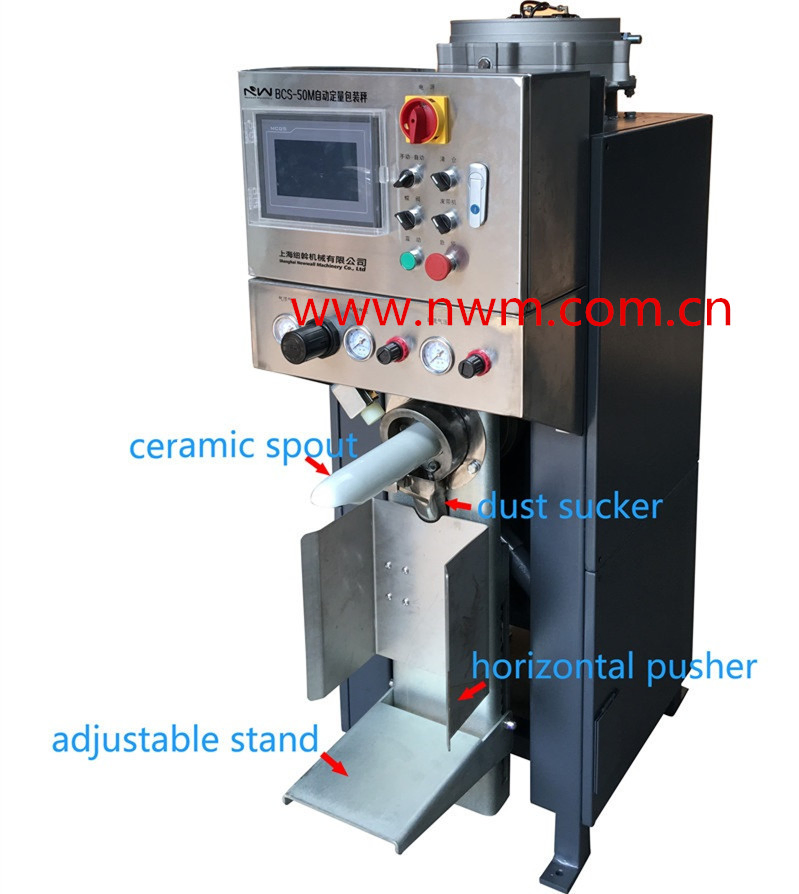

Valve Bag Packer: BCS-50M automatic dosing valve bag packer represents a new generation of packing technology. Designed for high efficiency and precision, it is the ideal solution for modern dry powder packing applications.
Four Patented Core Technologies
  • Low air pressure pulse conveying
  • Super wearable airfloating device
  • Automatic adjust double stroke gate valve

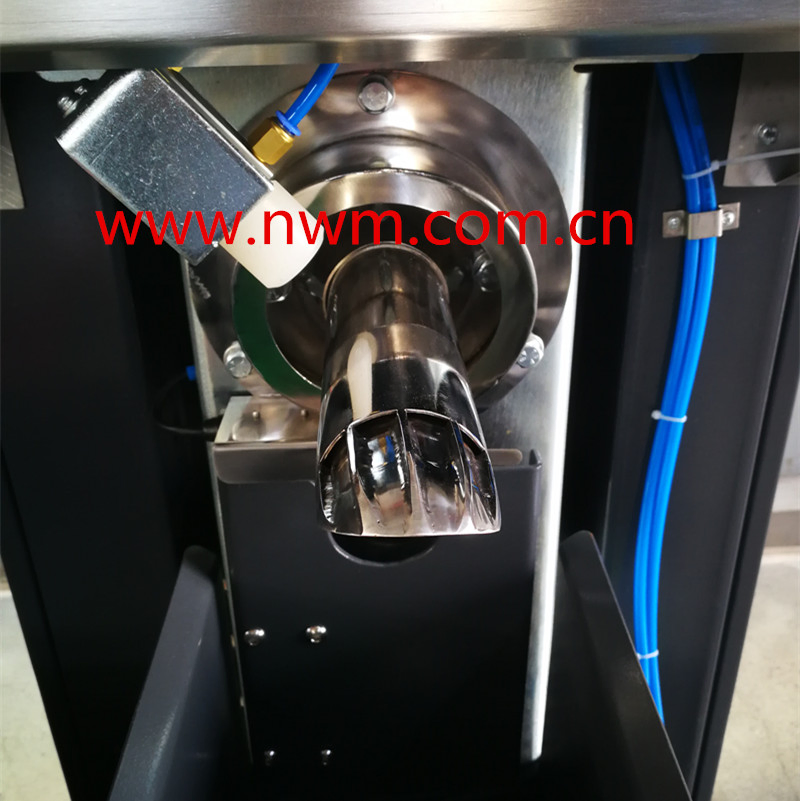

  • Ceramic spout
Applicable Materials: The packer is highly suitable for packing different types of raw materials, such as industrial micro-powder, powdery pigment, powdery chemical, flour, food additives, all types of dry mortar, and others.
10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag

Technical Parameters

Parameter Specification Details
Capacity5-7 bags/min (Note: actual speed depends on material properties)
Precision level±1%
Packing range5-60kg
Material inlet sizeΦ300mm
Ceramic spout sizeΦ63mm
Valve bag mouth size≥Φ70mm
Max. Aggregate granular size5mm
Working ambient0-40ºC, humidity ≤90%RH (no dew)
Working powerAC220V/50HZ
Voltage fluctuation range-15% ~ +10%
Frequency fluctuation range±2%
Working air sourcePressure ≥0.5Mpa, air consumption is 0.2m³/min
Dust collection air volume≥2000m³/h
Standard outline dimension1000mm x 550mm x 1500mm (L x W x H)

Component Configuration

Air cylinderAirtac
Magnetic valveAirtac
Electric componentSchneider
Control unitToledo
Touch panelKunlun tongtai(China)
Pneumatic butterflyWAM, Italy
Electric control boxSUS304
Surface treatmentElectrostatic spray (mobile: galvanized)

Frequently Asked Questions

What is the packing range and capacity of the BCS-50 valve bag packer?
The BCS-50 valve bag packer supports a packing range from 5kg up to 60kg. It features a packaging capacity of 5-7 bags per minute, translating to approximately 300-360 bags per hour depending on material traits.
Which materials are suitable for this automatic bag filling machine?
It is ideal for a variety of dry powders including industrial micro-powder, powdery pigment, chemical powders, flour, food additives, and all types of dry mortar. The maximum aggregate granular size should not exceed 5mm.
What patented technologies make this packer unique?
The BCS-50M is designed with four unique patented technologies: a low air pressure pulse conveying system, a super wearable airfloating device, an automatic adjustable double stroke gate valve, and a highly durable ceramic spout.
What are the power and air source requirements for the machine?
The packer operates on AC220V/50HZ power. It requires a working air source pressure of ≥0.5Mpa and an air consumption rate of 0.2m³/min. Additionally, it requires a dust collection air volume of ≥2000m³/h.
What brands are used for the machine's critical components?
The machine features premium, reliable configurations including Airtac air cylinders and magnetic valves, Schneider electrical components, Toledo control units, Kunlun Tongtai touch panels, and WAM pneumatic butterflies.
