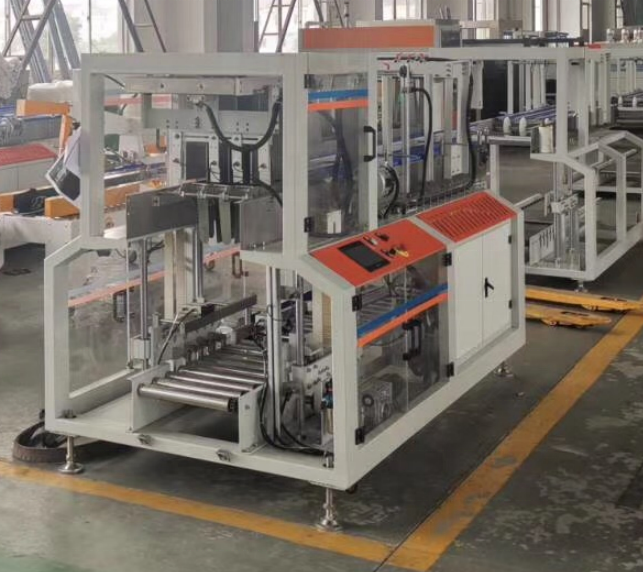

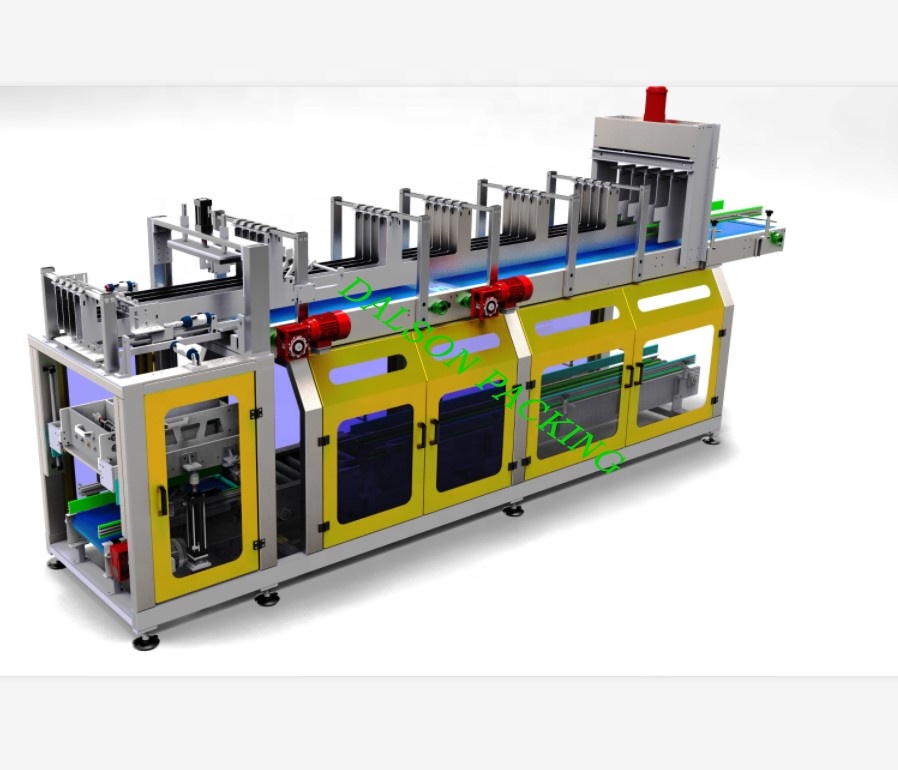

DDZX Series Full Automatic Drop Type Carton Packer Machine:
This machine adopt advanced processing tech and software technology. This carton packer is use for automatically packing of kinds of steel or plastic bottles, cans, barrels etc products into opened empty carton box. And this drop type carton packer suitable for the carton packing process of water, beverage, oil, etc production line, and also suitable for bottle/cans shape products carton packing work in other industries. Drop type carton packer is a kind machine with strong compatibility, which can be used for different specifications of cartons and bottles.

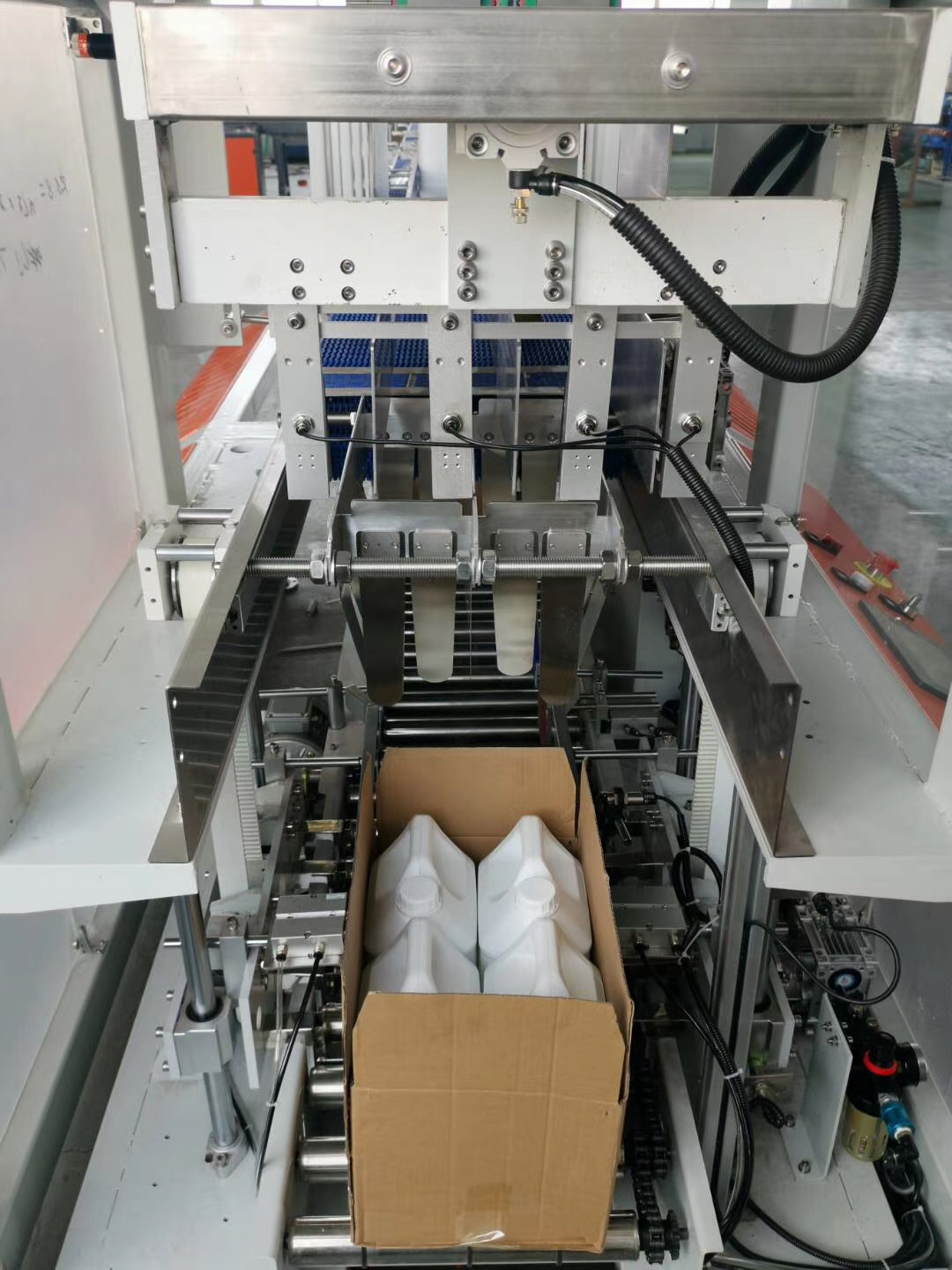

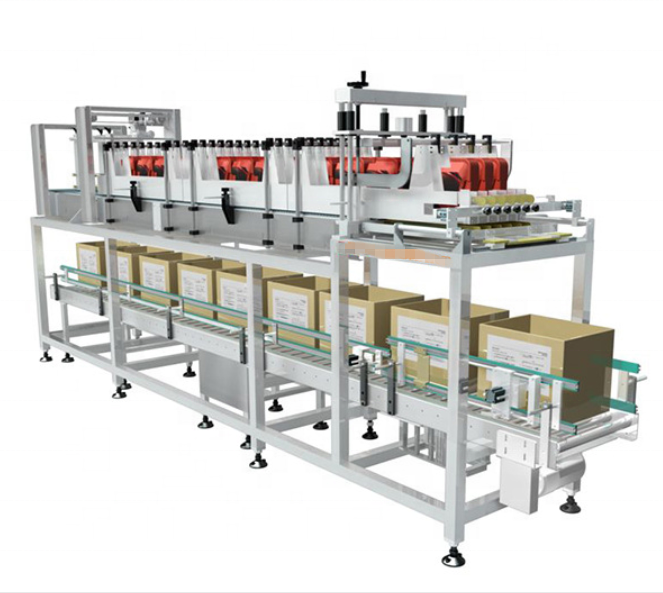

According to the packing requirements, the products can be arranged in automatically. After that, the whole train of mechanism will feeding the products to the top of the empty carton box, and then open the products supporting device to drop the products into the carton naturally.

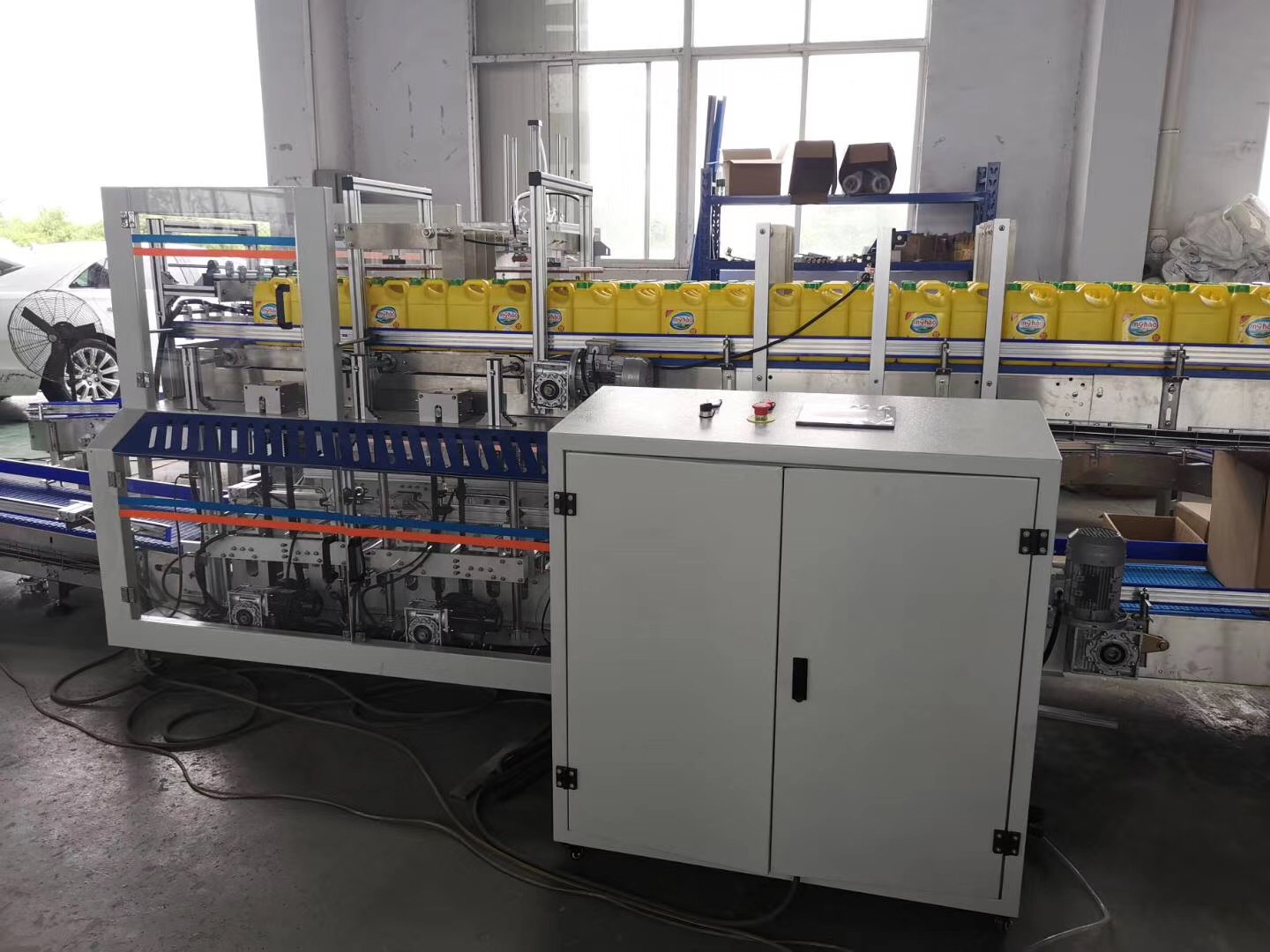

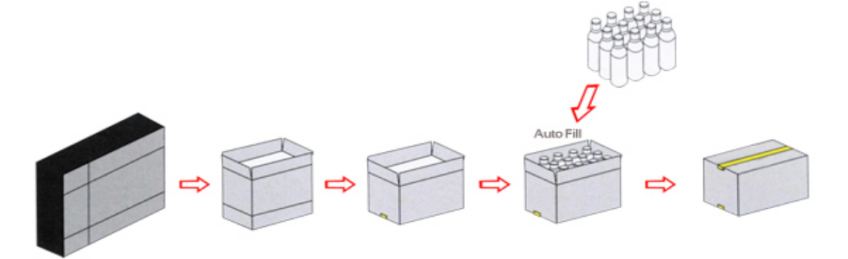

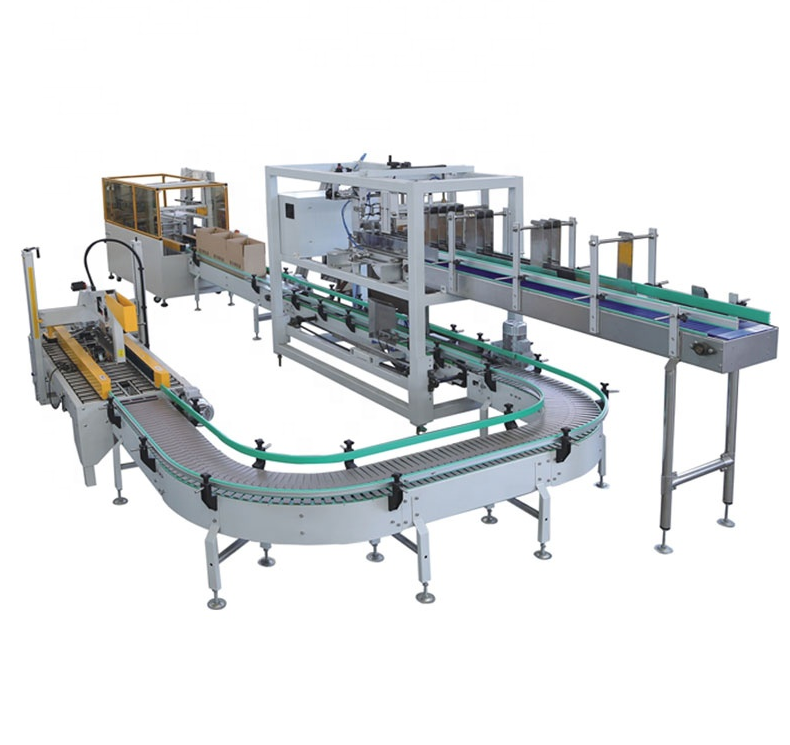

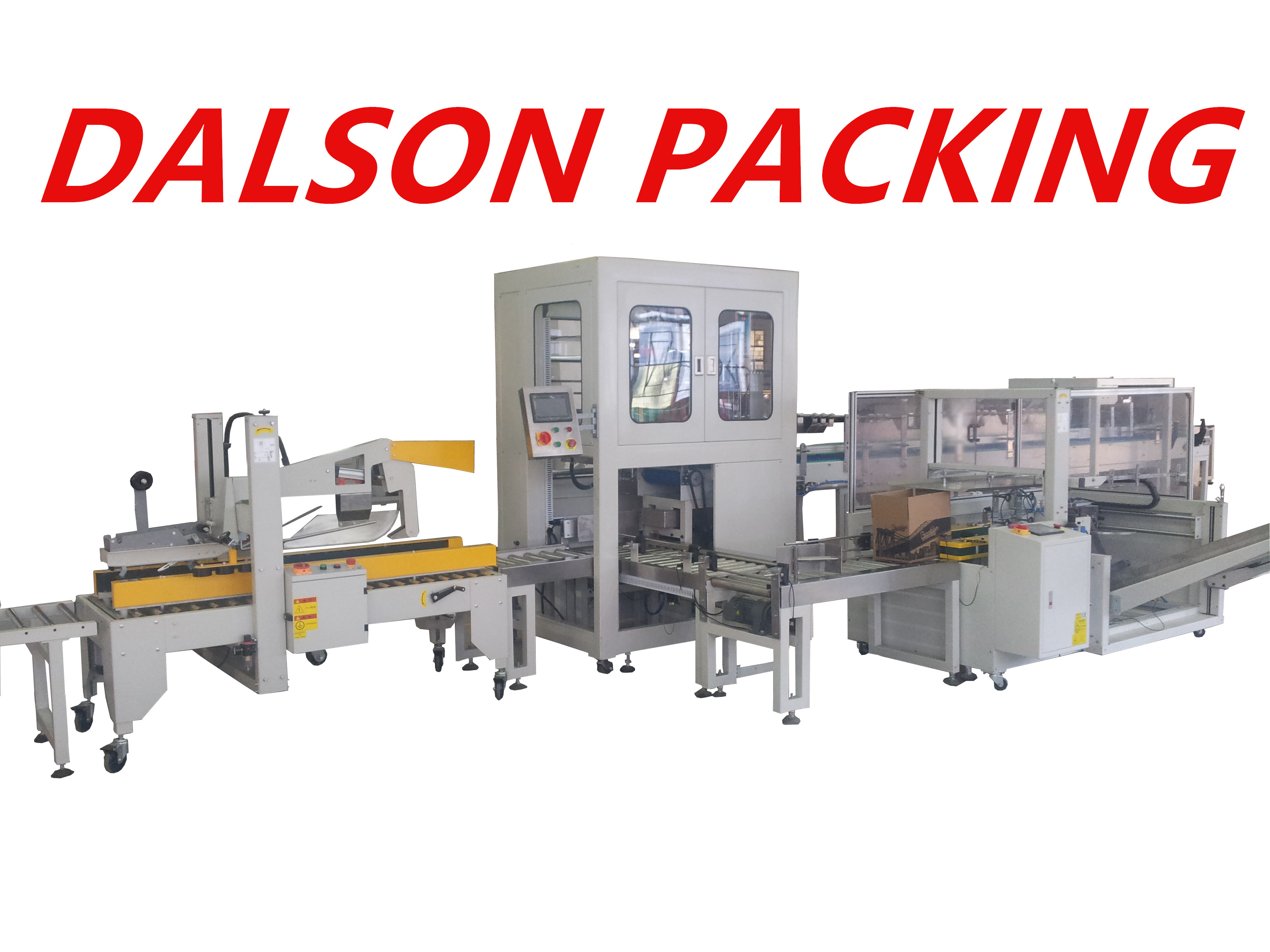

DDZX-12 drop type carton packer normally need match with carton erector and carton sealer machine working together, for finished carton box open, carton packing and carton sealing works.
Also could according to client’s different products special requirement to improve design for achieved carton packer works!
Machine Characteristics:
| Model: | DDZX-12 |
| Speed: | 8~14 cartons/min |
| Applicable Products: | Various Bottles, Barrels, Cans etc Products |
| Main Supply Power: | About 1.5KW |
| Voltage: | 220V/380V, 3Phase, 50Hz/60Hz |
| Air Consumption: | 0.9m³/h |
| Air Pressure: | 0.5-0.8Mpa |
| Working Noise: | ≤75db |
| Machine Weight: | About 950KG |
| Machine Dimension: | 2450*1500*1800mm |
Main Products Orientation:

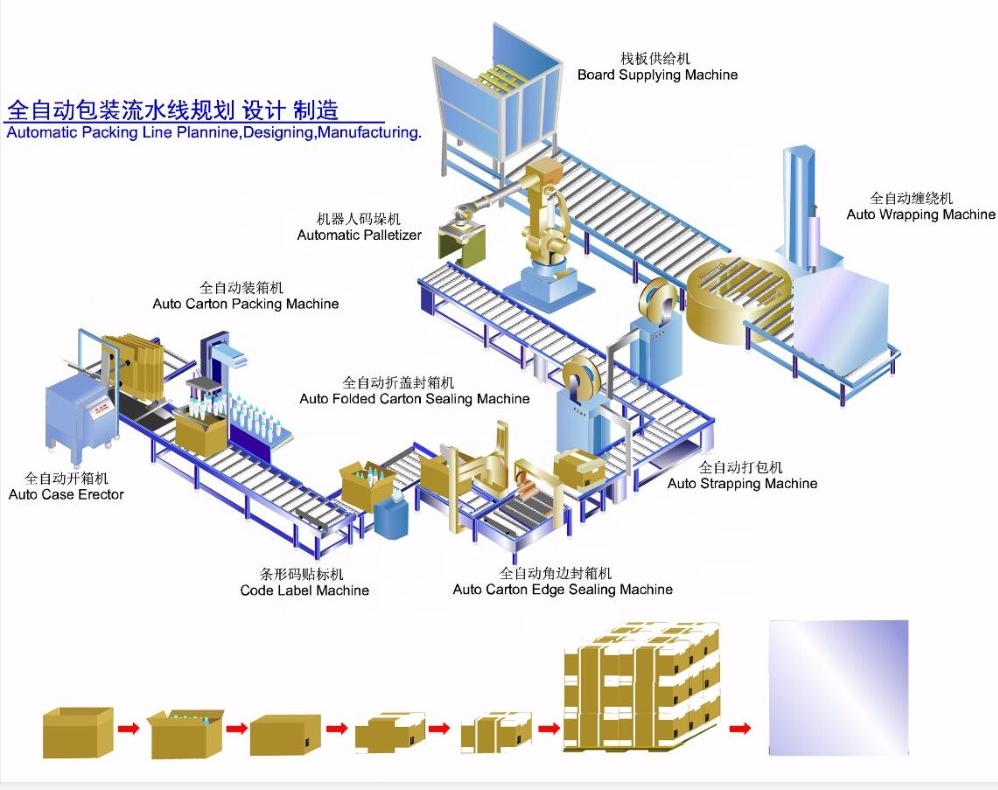

We focus on various posterior segment packing machine’s R&D, Design, Production, Sale and Service in R & D, design for different industries. We have the comprehensive ability to provide professional high-quality single machine equipment and whole line planning and design, general contracting integration, installation and after-sales service for customers in various industries, including food and beverage industry.
Professional, Innovation, Conscientious is our basic attitude!
Certificates

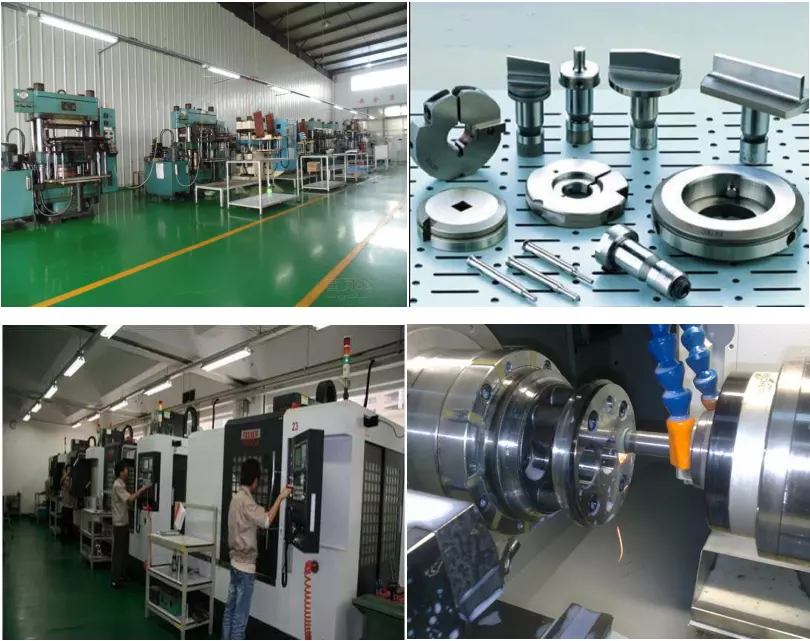

Machining Center

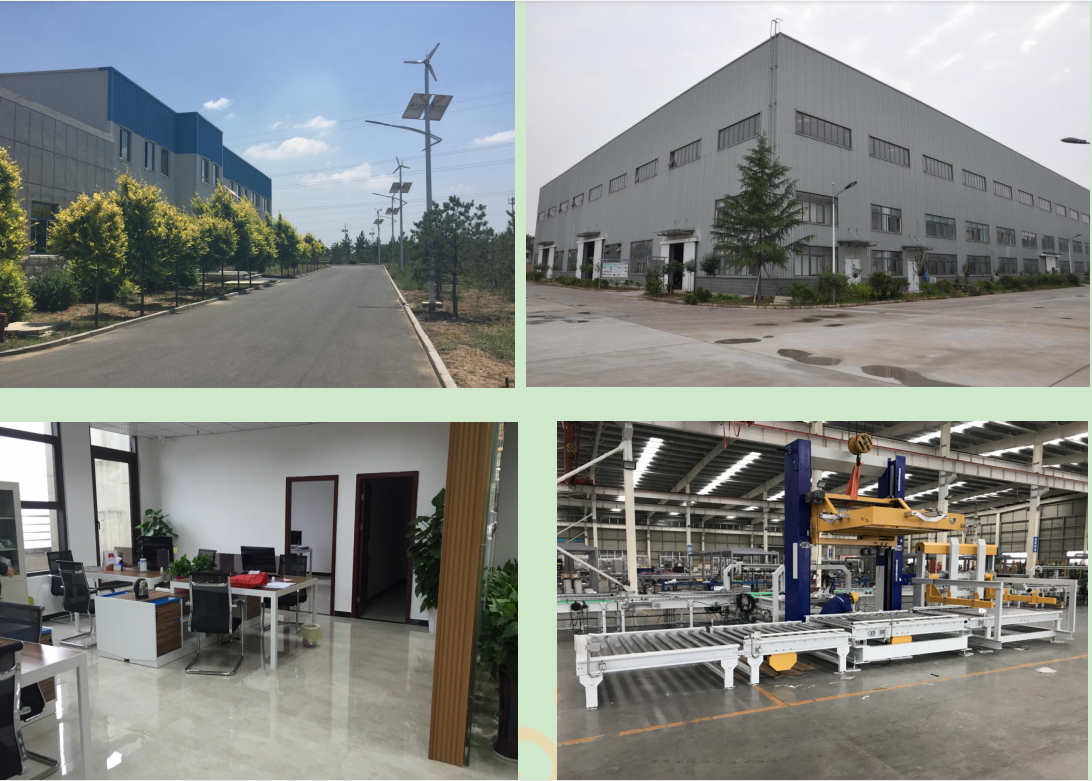

Factory & Office

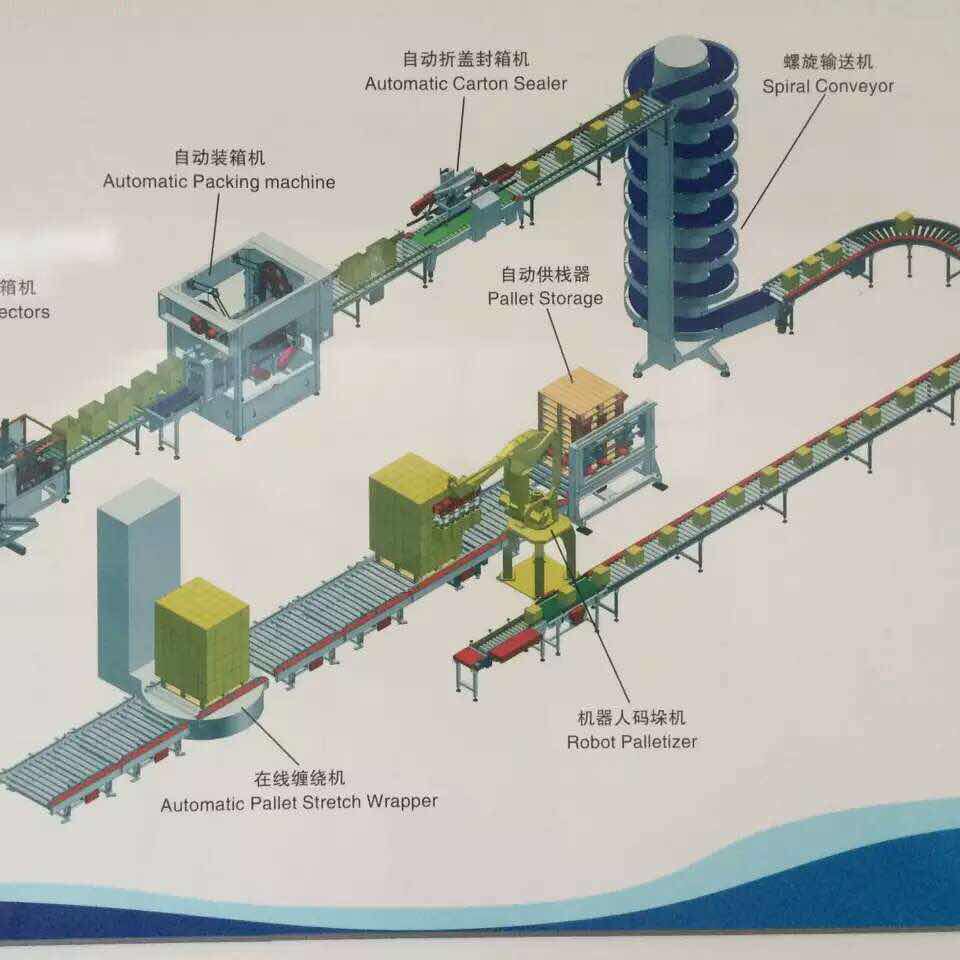

Various packing machines, such as various Filling Machine, kinds of Carton Erector, Carton Packer, Carton Sealer, Palletizer Machine, Depalletizer Machine, PE Film Shrink Wrapper Packing Machine, Spiral Conveyors, Lifter Elevator Conveyor, Roller Conveyors, Slat Chain Conveyors, etc.
We are manufacturers and we have our excellent service team all over the world. We offer excellent after-sales service.
1. We have completed working system and procedures and we follow them very strictly.
2. Our different worker is responsible for different working process, their work is confirmed, and will always operate this process, so very experienced.

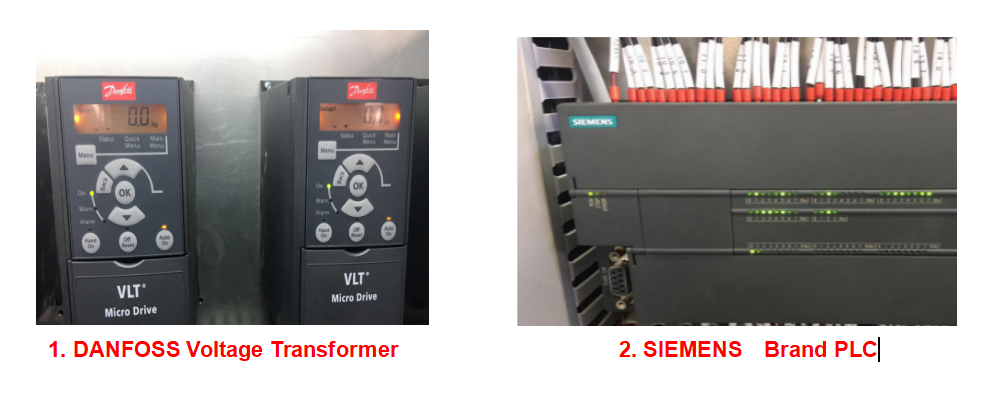

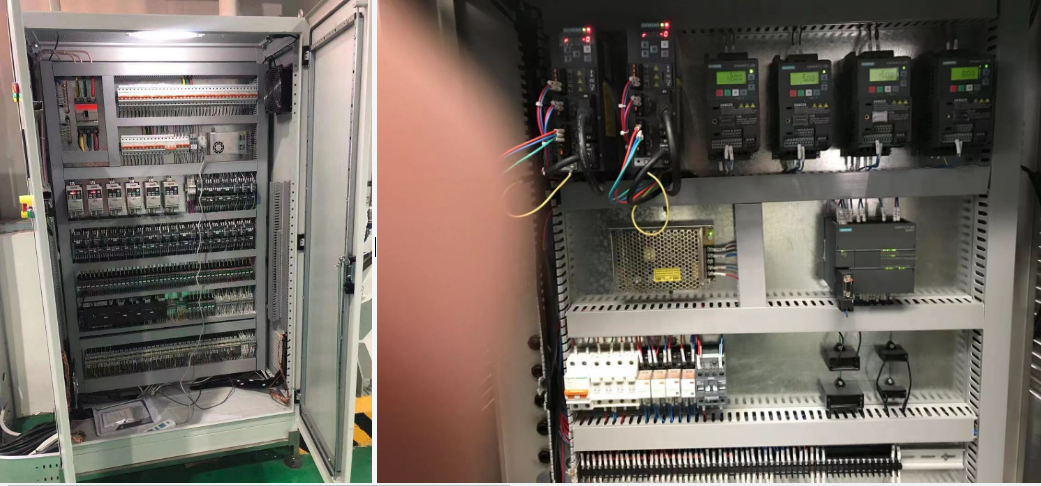

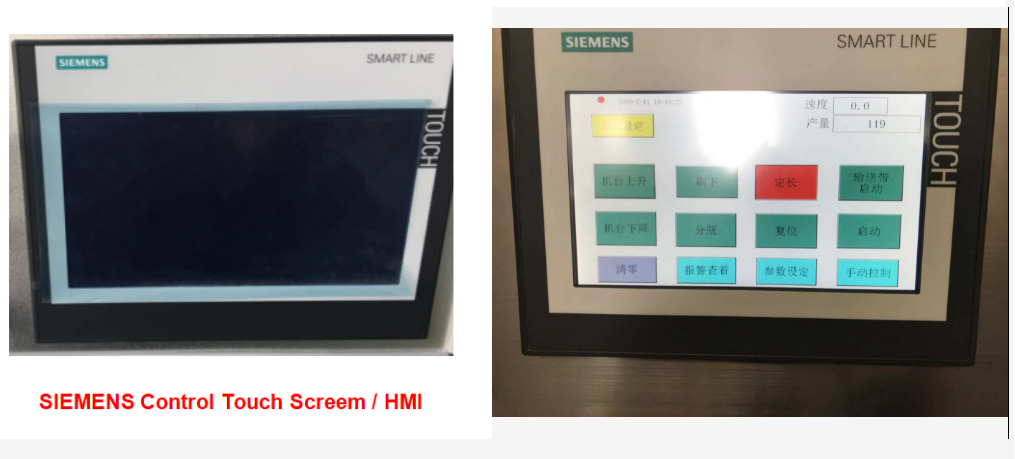

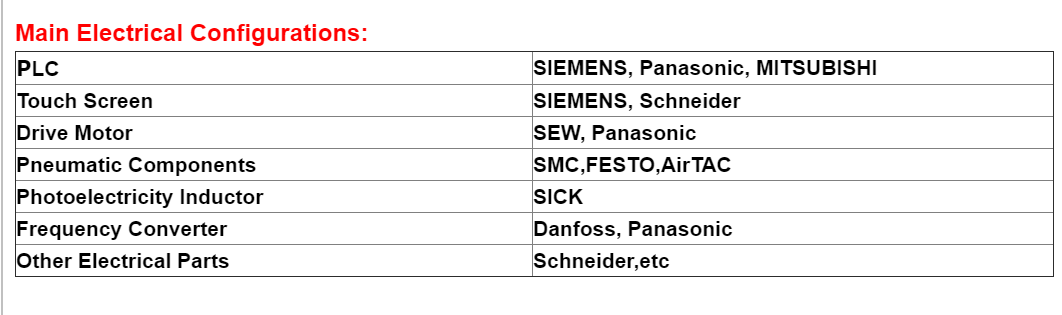

3. The electrical pneumatic components are from the world famous companies, such as Germany's Siemens, Japanese Panasonic etc.
4. We will do strict test running after the machine is finished.
Yes. We not only can customize the machine according to your technical drawing, but also can make new machine according to your requirements.
Yes. We sure support dispatch engineers to your company to set the machine and train your worker if needed.
1. Manufacturer
2. We Have Stocks
3. Delivery Fast
4. Senior Engineer
5. Competitive Price
6. High Quality
7. Strict Quality Control
8. Over 10 years Experience
9. Provide Test
10. Variety of Goods
11. Excellent After-sales Services
12. Advanced Machinery and Equipments.
