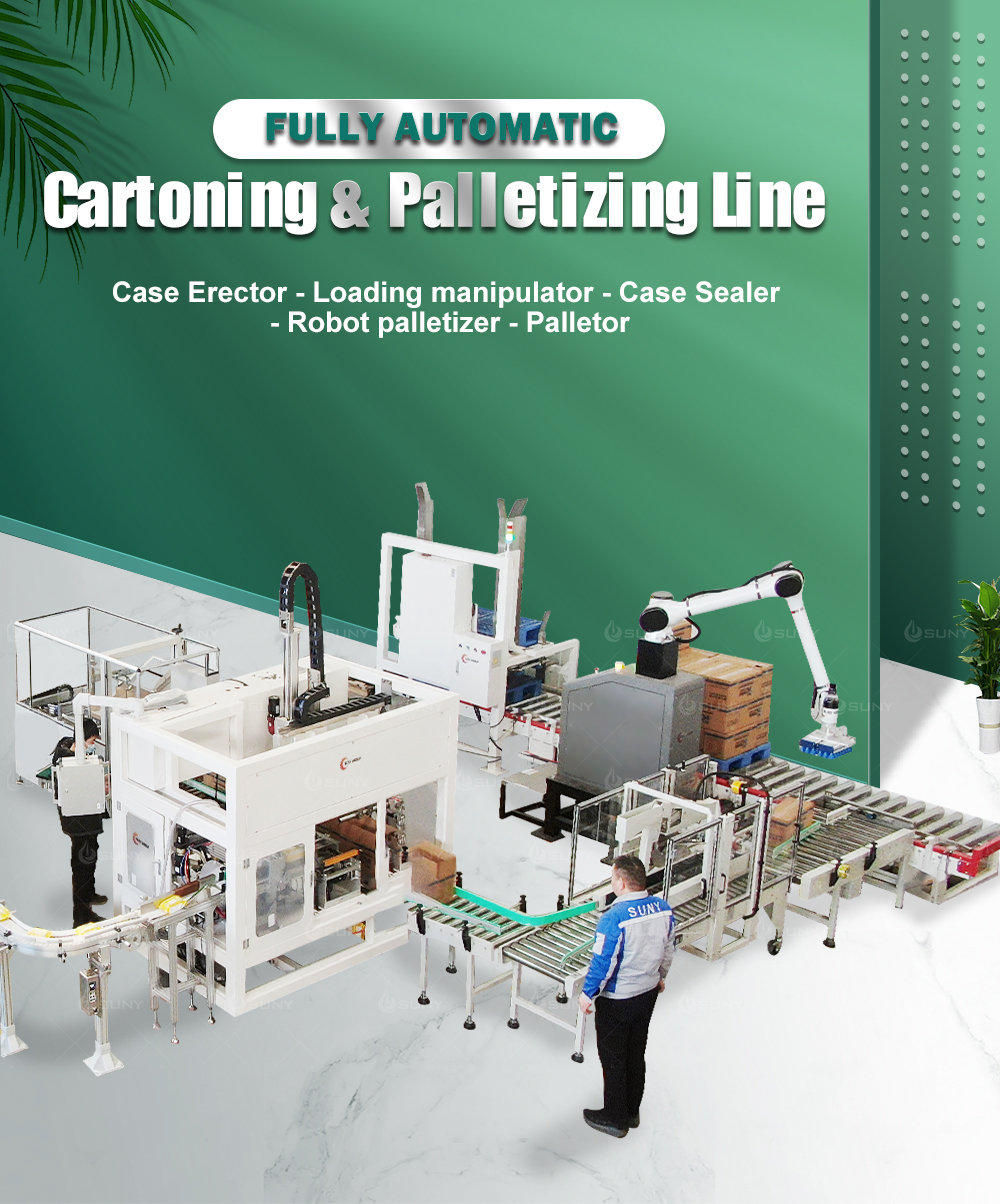

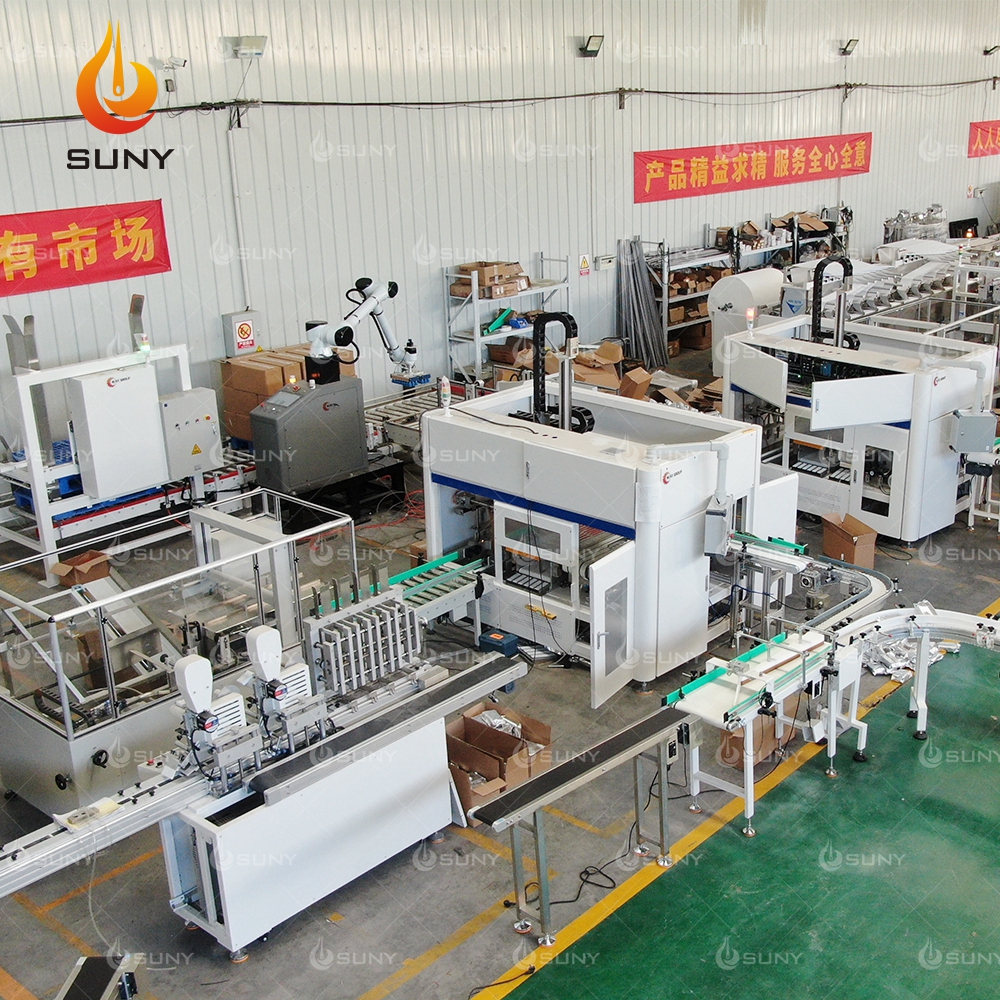

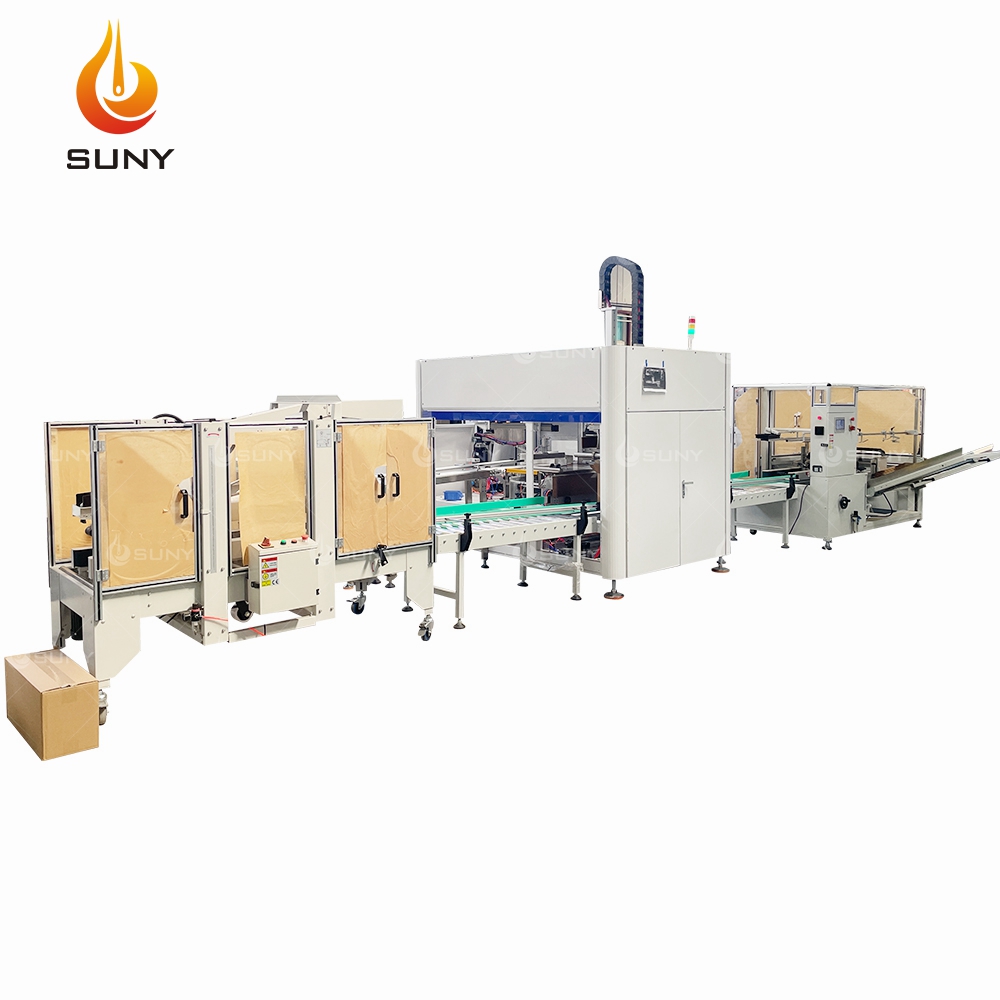

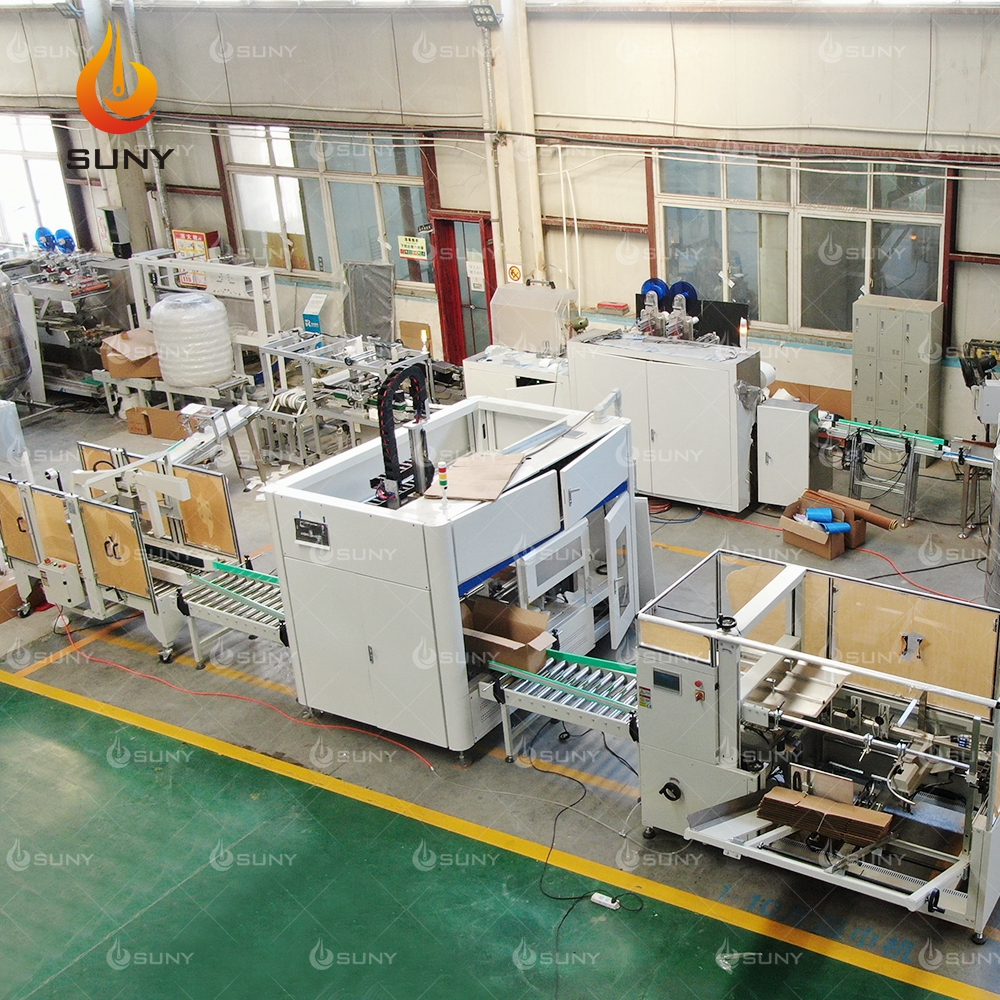

This is a complete packing line consisting of a case erector, case packer, carton sealing machine, and robot palletizer. It can realize large-scale packaging and unmanned operation of the stacking process. Each part of the cartoning line can be sold separately.

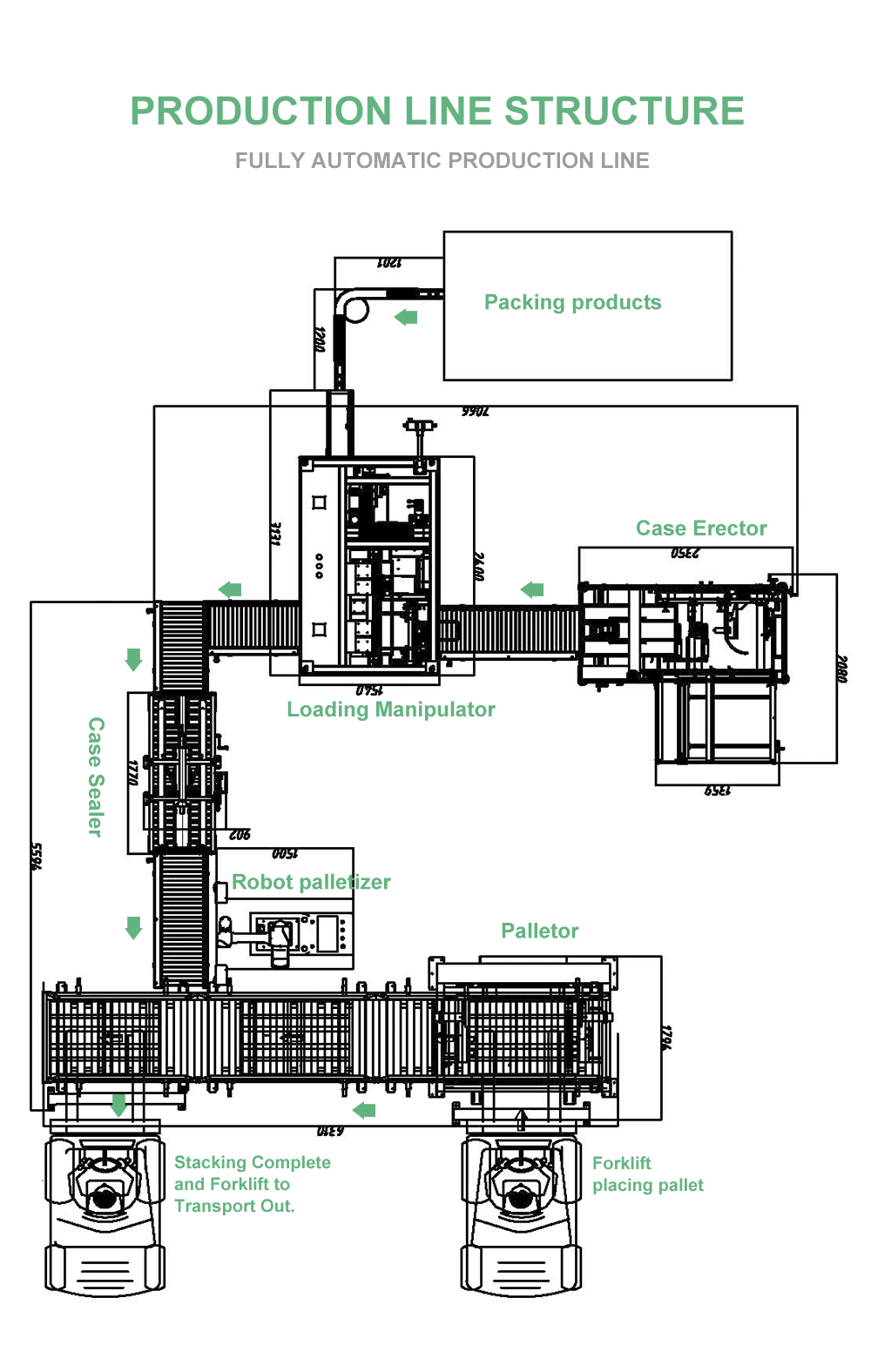

Operation Process: Case Erector — Case Cartoning — Case Sealer — Robot Palletizer — Palletor

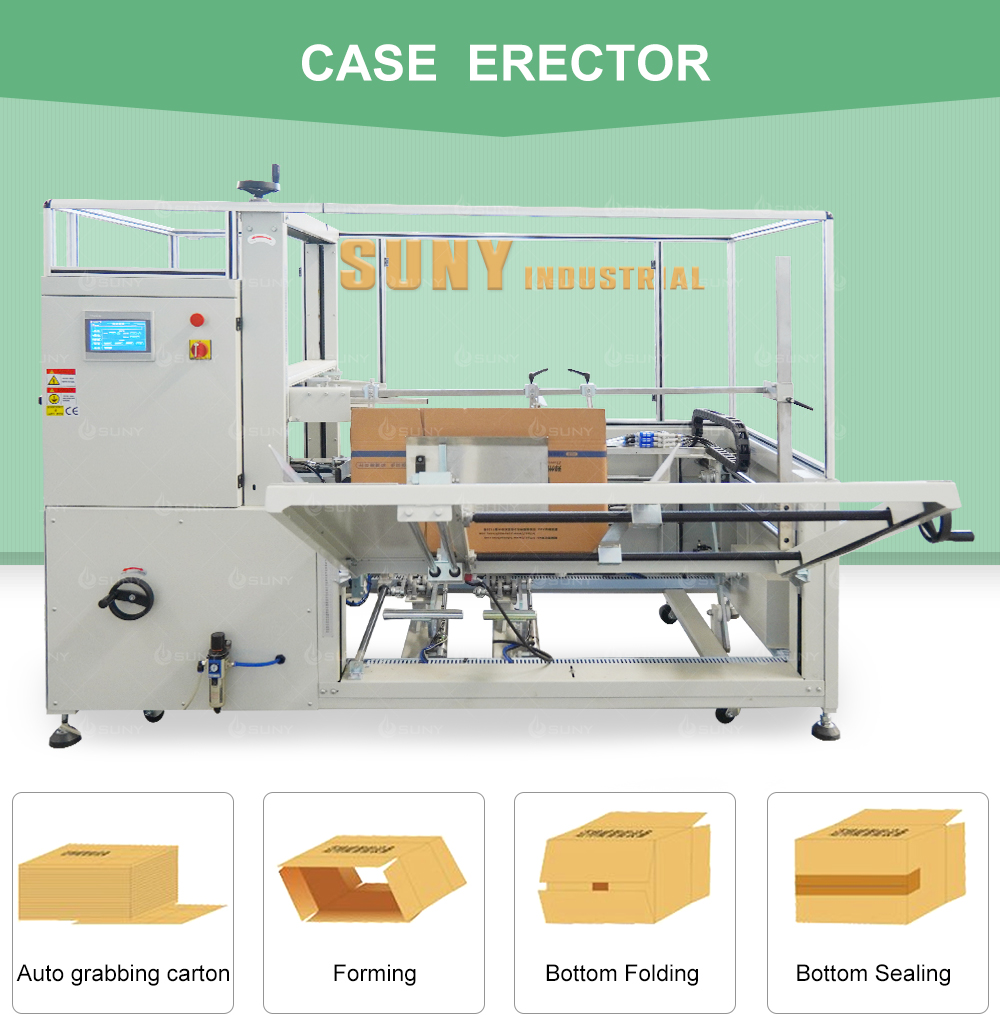

| Item | SN40E | SN50E |
|---|---|---|
| Carton Opening Speed | 10-12 boxes/min | 8-10 boxes/min |
| Carton Size | L250-460; W150-400; H100-400mm | L280-650; W150-500; H150-500mm |
| Voltage, Frequency | 220V 50/60Hz | 220V 50/60Hz |
| Power | 240W | 240W |
| Machine Weight | 450kg | 600kg |

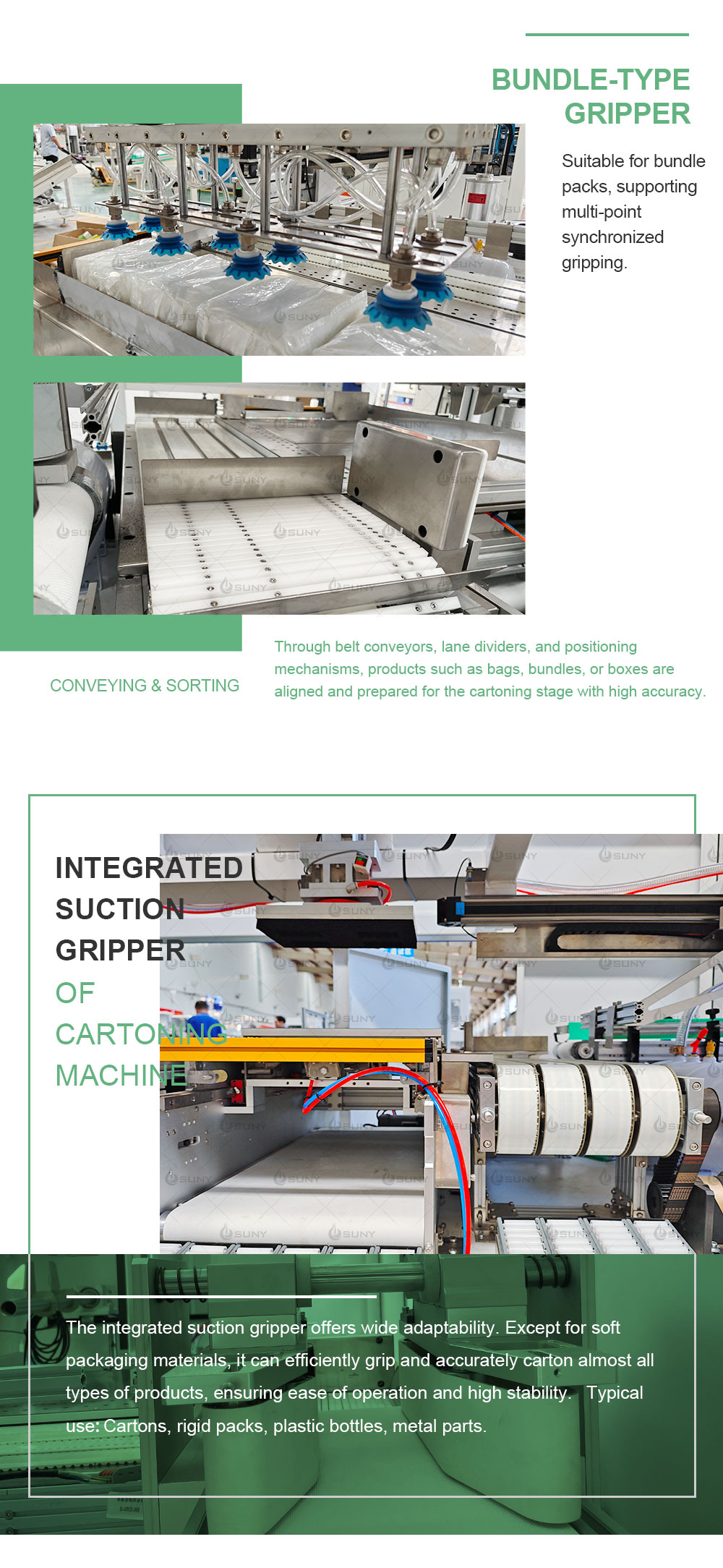

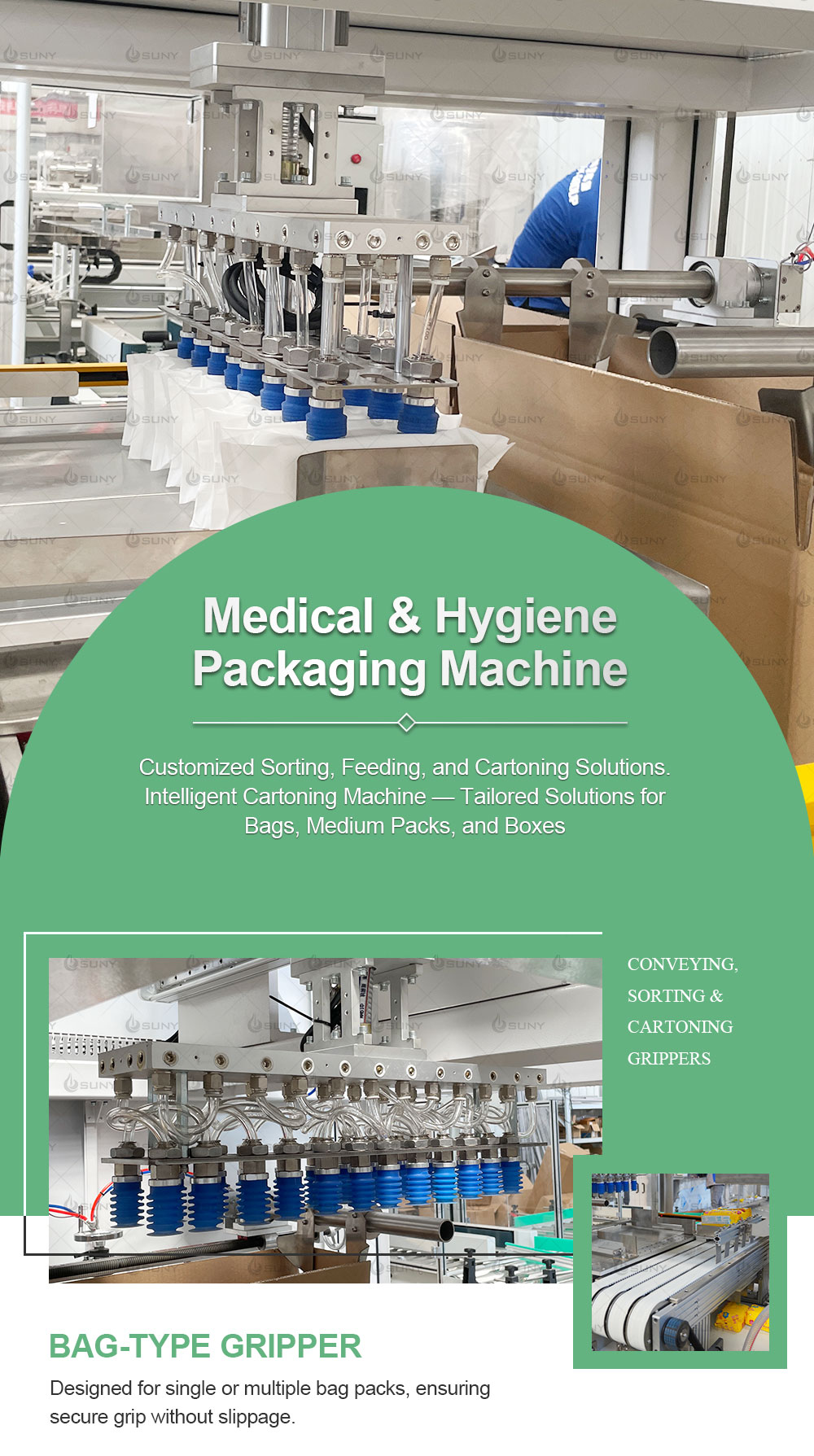

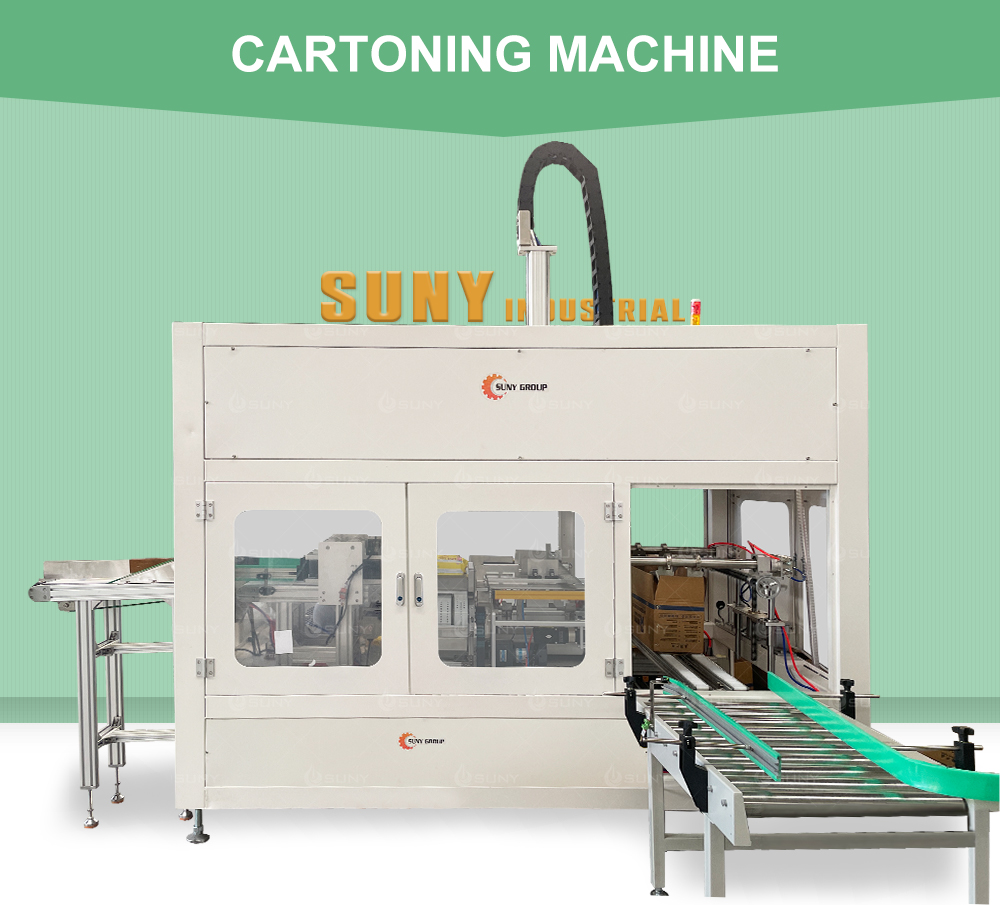

| Item | Specifications |
|---|---|
| Feeding Speed | ≤80 packs/min |
| Robot Speed | ≤20 cycles/min |
| Voltage | 3-phase 5-wire, AC380V±5% |
| Power | 6KW |

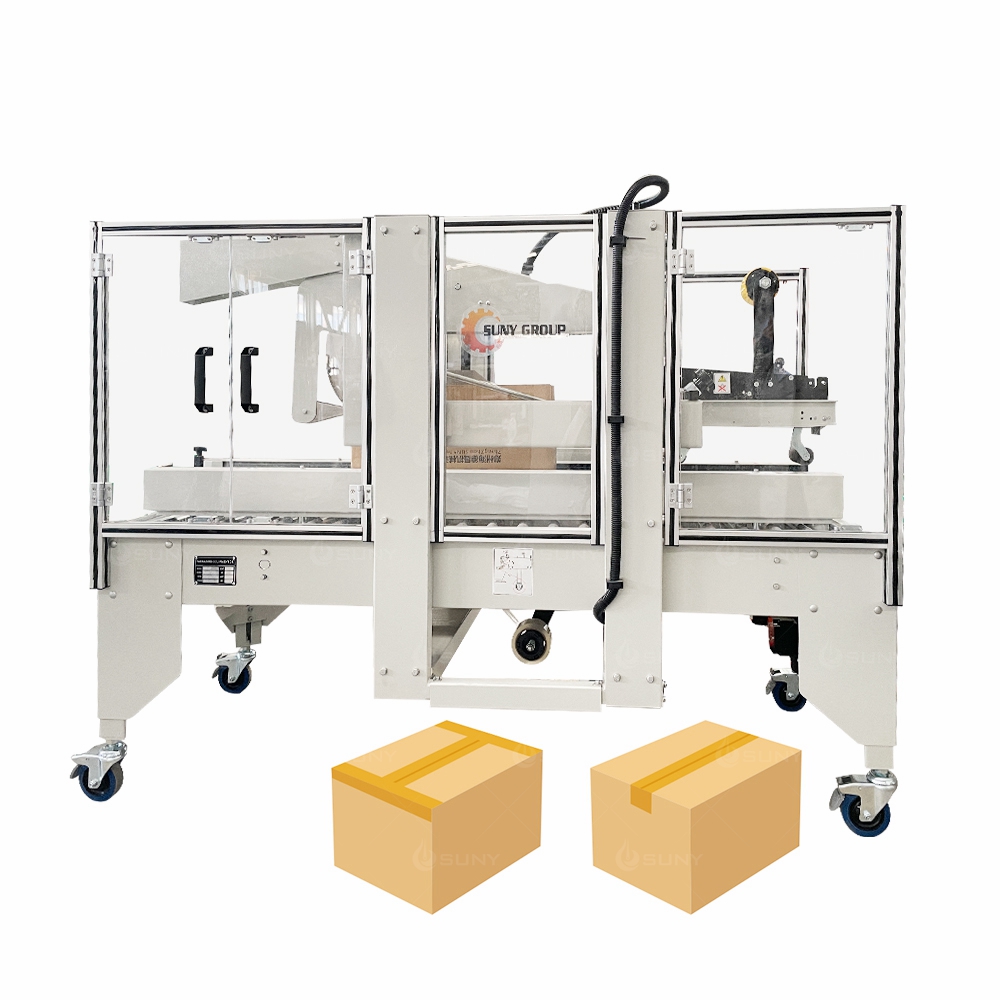

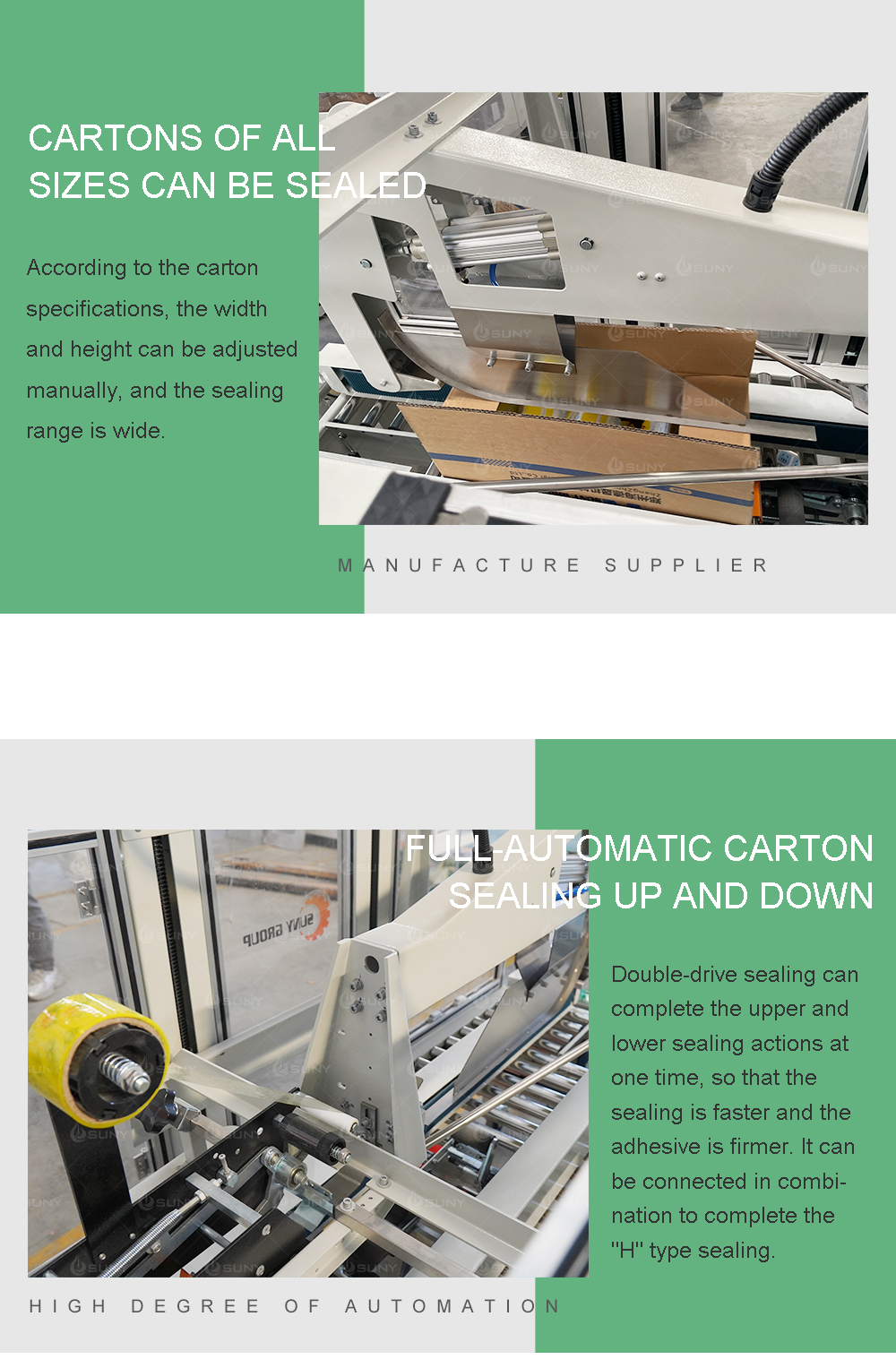

| Item | Specifications |
|---|---|
| Sealing Speed | 480-600pcs/h |
| Power | 1050W |
| Machine Weight | 400kg |
| Item | Specifications |
|---|---|
| Palletizing Speed | 8-10 cycles/min |
| Load Capacity | 30kg |
| Working Radius | 1800mm |
| Repeatability | ±0.05mm |

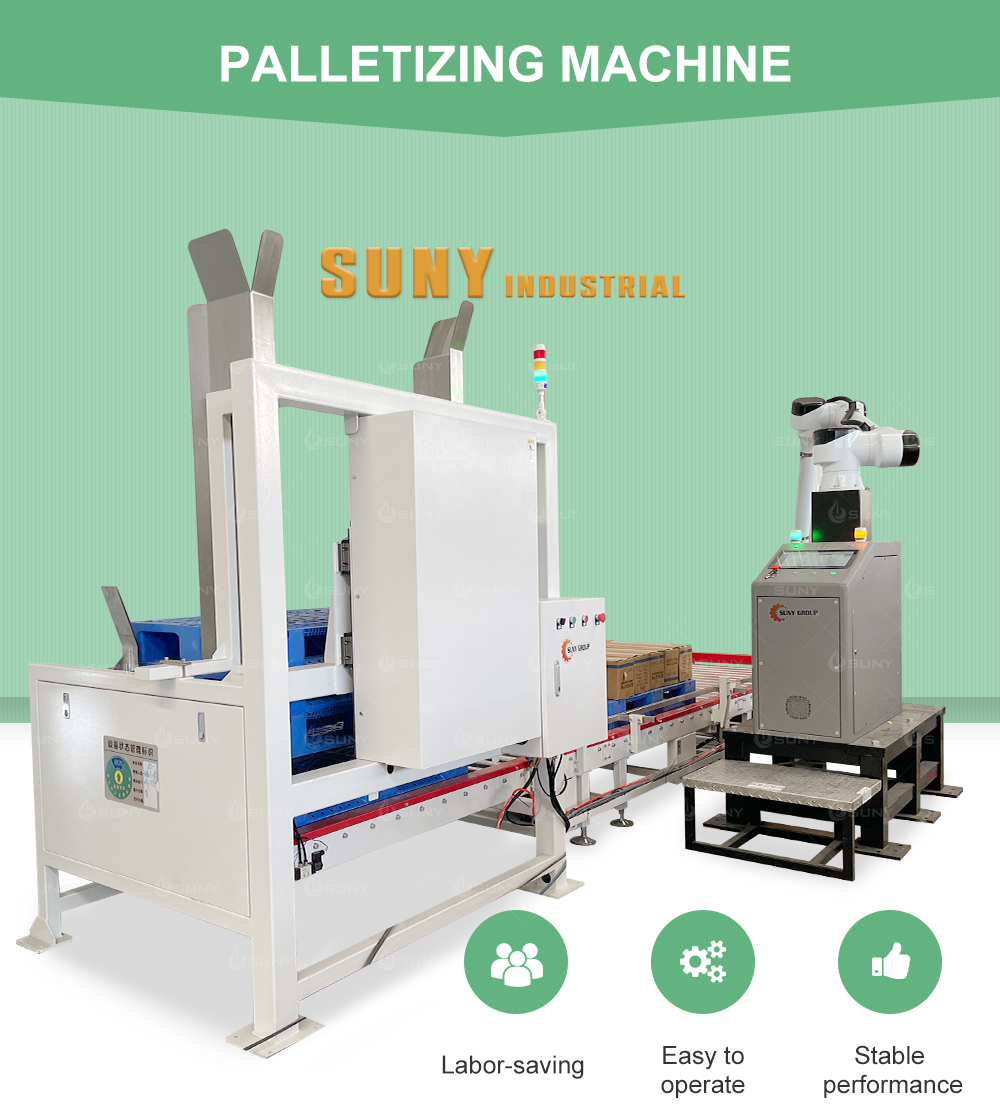

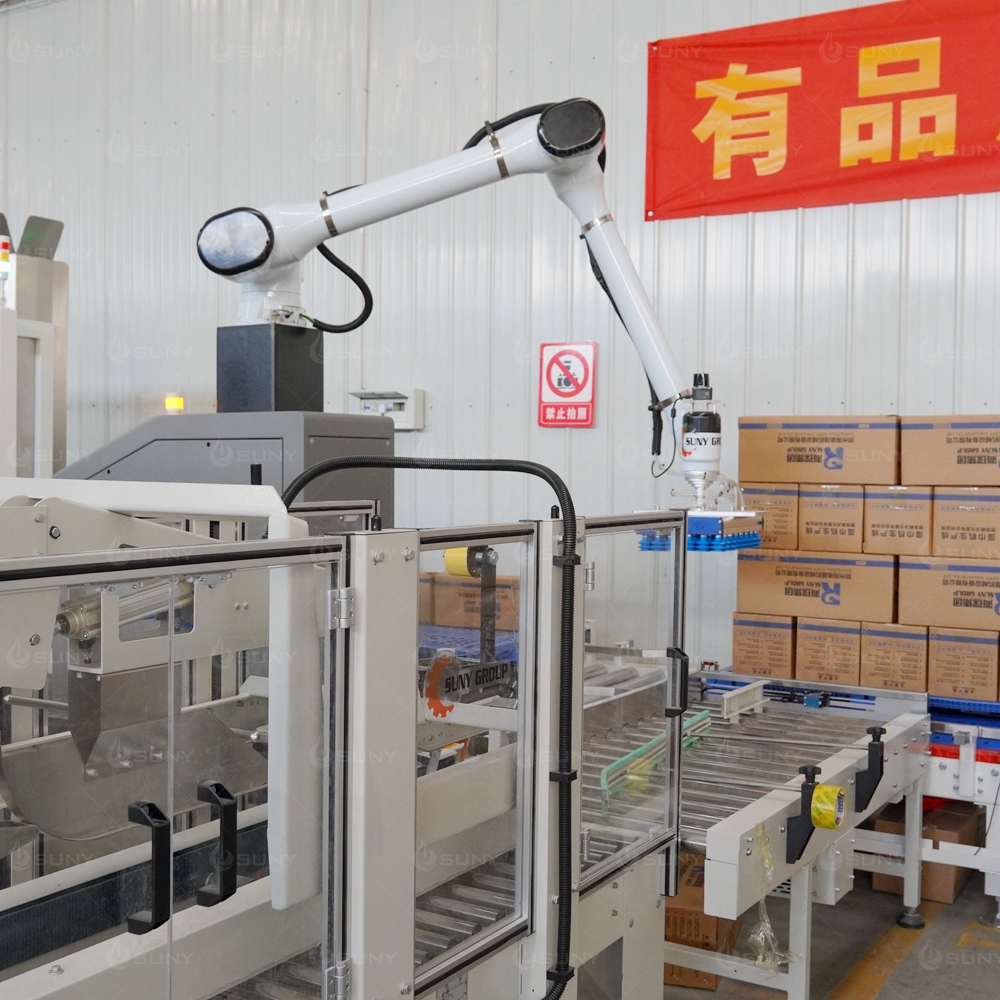

Robot palletizer is used for packing bags, cartons, and other products onto pallets one by one. The system is mature with automatic 3D palletizing, no programming required. Mainly used in automotive, logistics, home appliances, pharmaceuticals, chemicals, and food and beverage industries.
