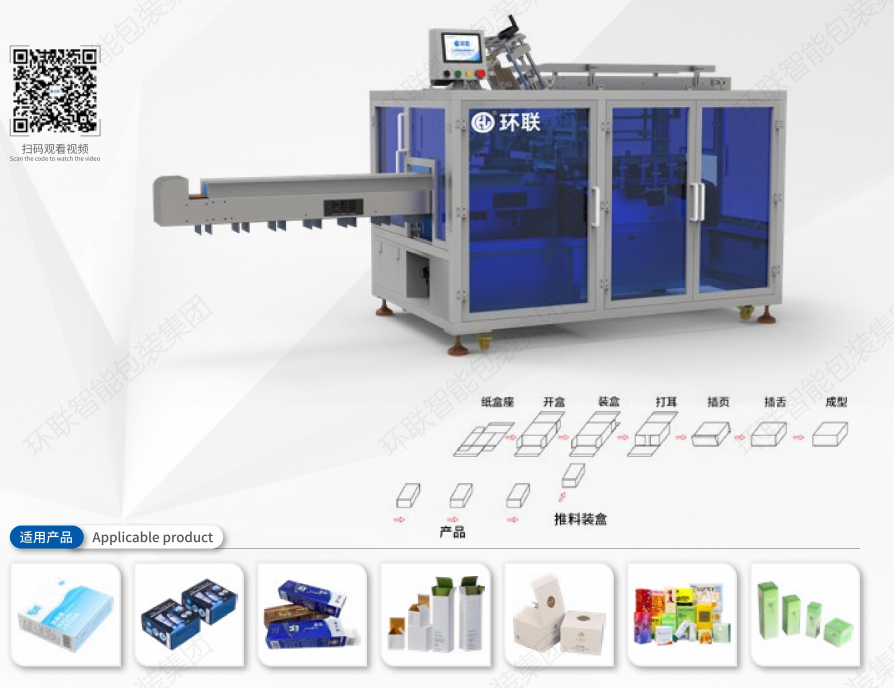

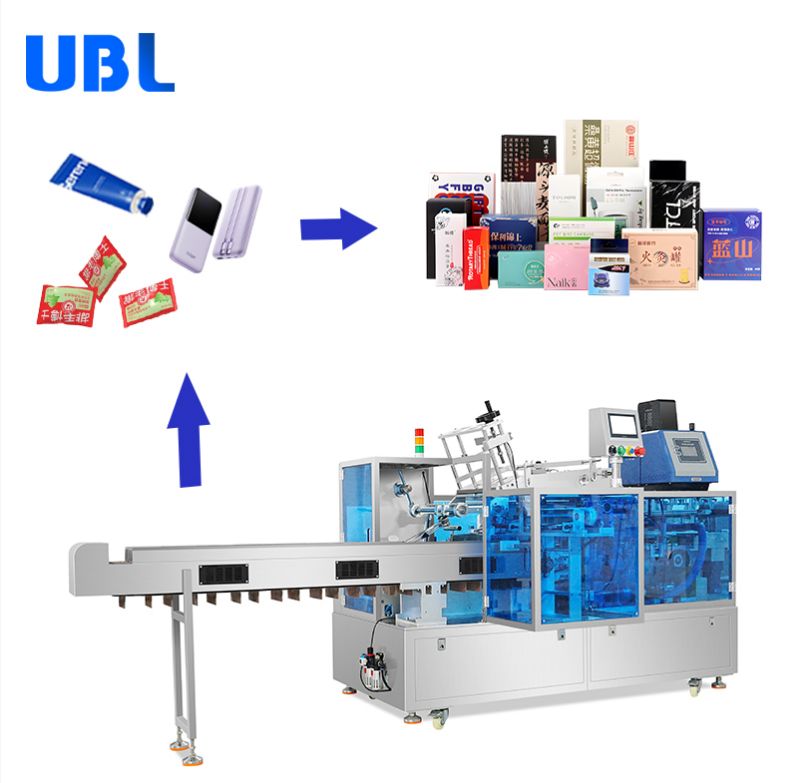

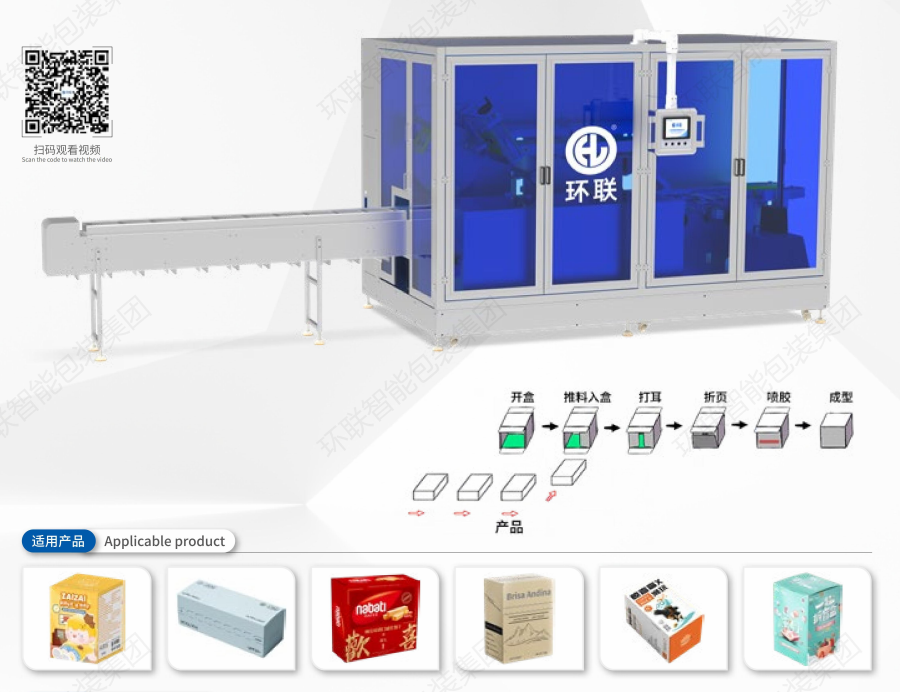

UBL Glue-Free Fully Automatic High Speed Case Cartoning Machine With Multi-Voltage Compatibility
UBL Glue-Free Fully Automatic High Speed Case Cartoning Machine With Multi-Voltage Compatibility
UBL Glue-Free Fully Automatic High Speed Case Cartoning Machine With Multi-Voltage Compatibility
UBL Glue-Free Fully Automatic High Speed Case Cartoning Machine With Multi-Voltage Compatibility
UBL Glue-Free Fully Automatic High Speed Case Cartoning Machine With Multi-Voltage Compatibility
1 / 5
UBL Glue-Free Fully Automatic High Speed Case Cartoning Machine With Multi-Voltage Compatibility
UBL Glue-Free Fully Automatic High Speed Case Cartoning Machine With Multi-Voltage Compatibility
UBL Glue-Free Fully Automatic High Speed Case Cartoning Machine With Multi-Voltage Compatibility
UBL Glue-Free Fully Automatic High Speed Case Cartoning Machine With Multi-Voltage Compatibility
UBL Glue-Free Fully Automatic High Speed Case Cartoning Machine With Multi-Voltage Compatibility

UBL Glue-Free Fully Automatic High Speed Case Cartoning Machine With Multi-Voltage Compatibility

Send Inquiry

Product Description

Automatic Cartoning Machine Banner
Products Description
Automatic Cartoning Machine Intro
  • Automatic cartoning machine is a machine that can integrate the functions of automatic carton opening, cartoning, folding and sealing. The design structure is compact, the operation is simple, the occupied area is small, and the transportation cost is low.
  • The structure of the Automatic cartoning machine design has independent protective devices to ensure easy operation and ensure the safety of operators. Transmission and friction parts are strictly implemented in accordance with the standards, with less later wear and less replacement of parts.
  • The whole Automatic cartoning machine adopts 304 stainless steel structure, which is suitable for medicine, food, daily chemical, electronics, hardware and other industries.
  • The front section can be connected to a pillow packaging machine; a vertical packaging machine; the back end can be connected to an automatic labeling machine, automatic coding machine, weighing detection and rejection, automatic boxing and other devices.
  • Widely used: masks, gloves, biscuits, bagged milk powder, tea bags, egg rolls, lotions, lotions, lipsticks, toys, stationery, auto parts, lamps, hardware, and other small products are automatically boxed.
Products Detail
The self-developed organization is the most advanced structure in the industry, with easy adjustment of length, width and height, and a scale display. When switching between boxes of different sizes, debugging is simple, saving debugging time.

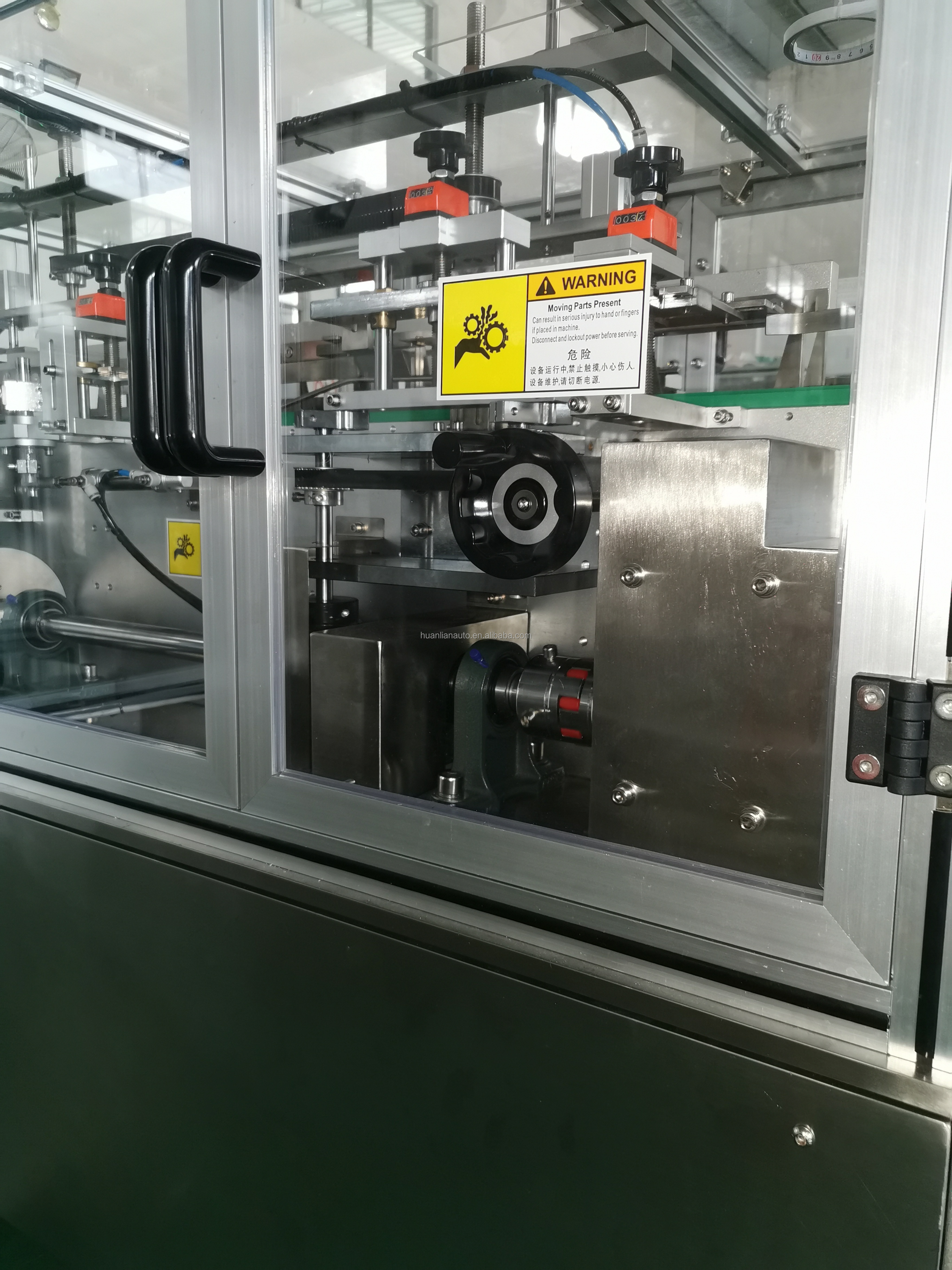

Product Detail Part 1

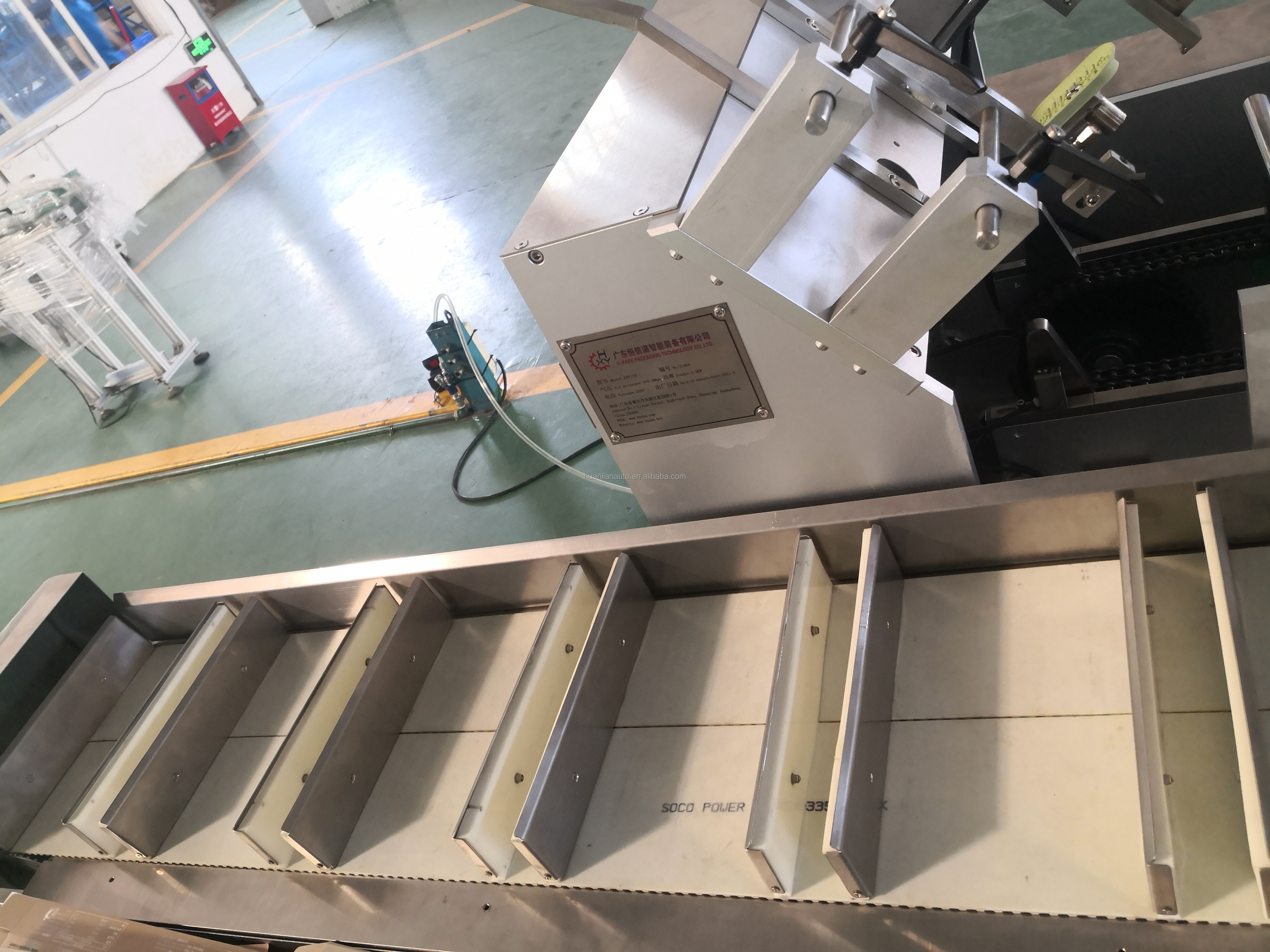

Product Detail Part 2

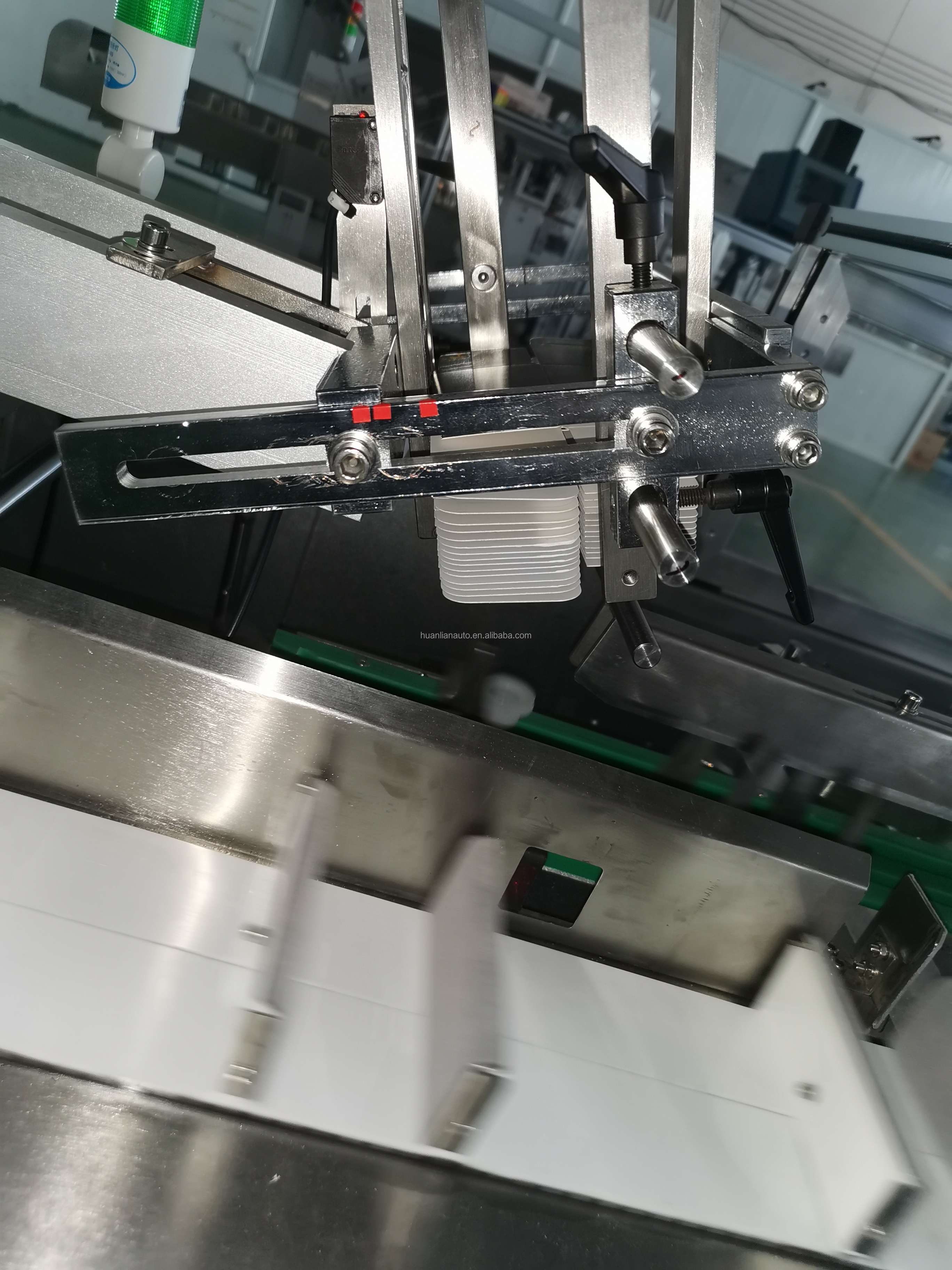

Product Detail Part 3

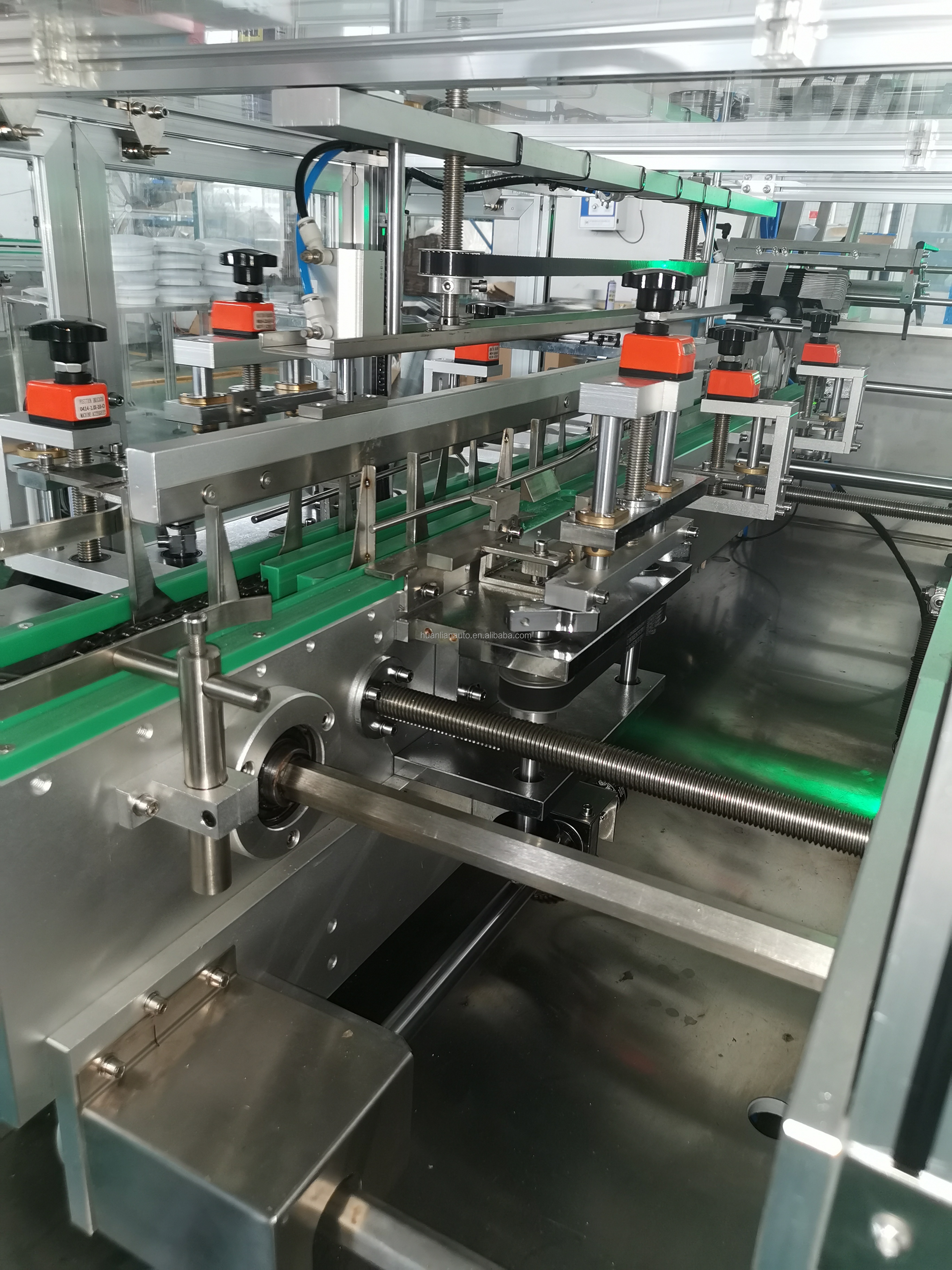

Product Detail Part 4

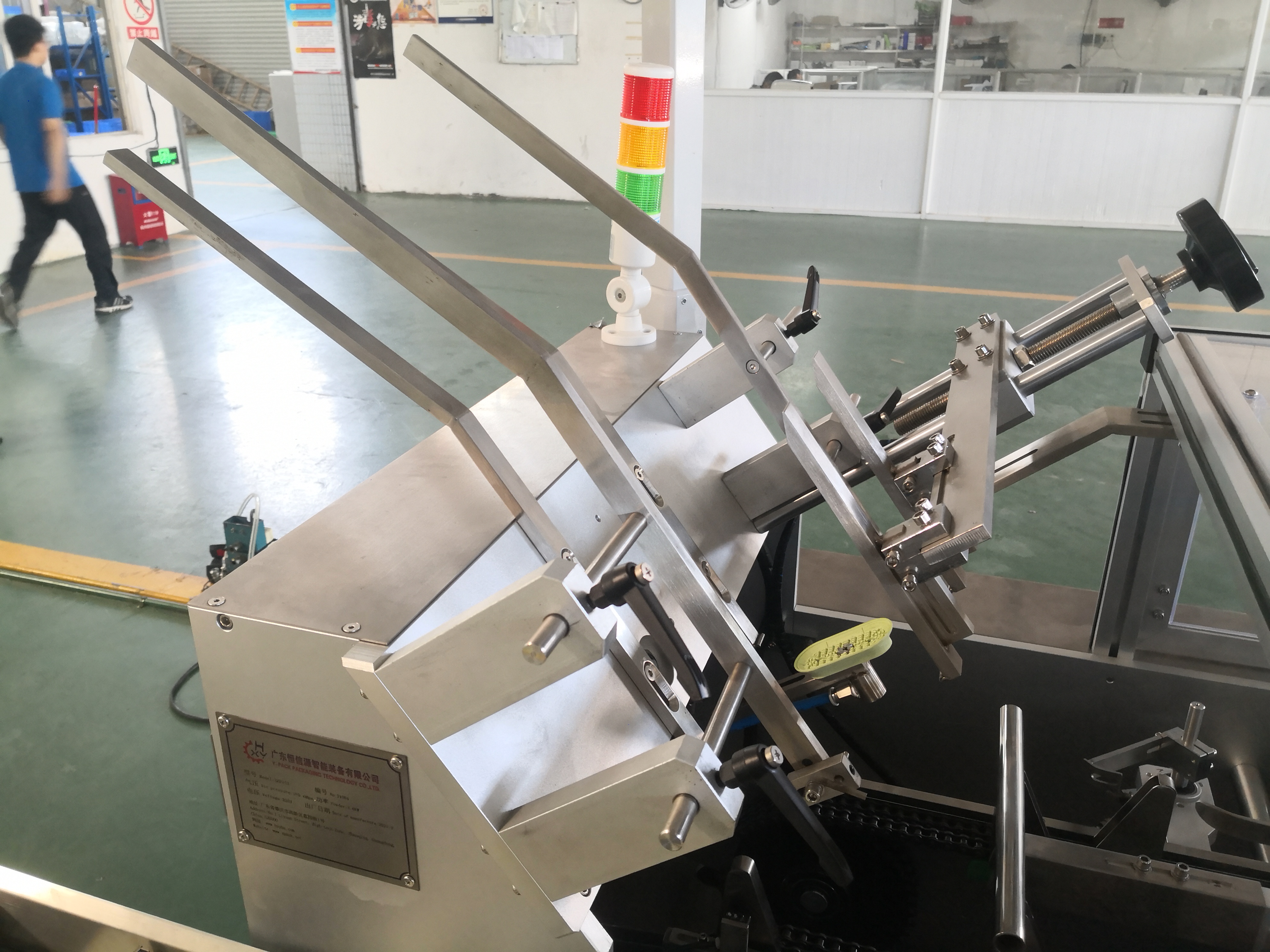

Product Detail Part 5

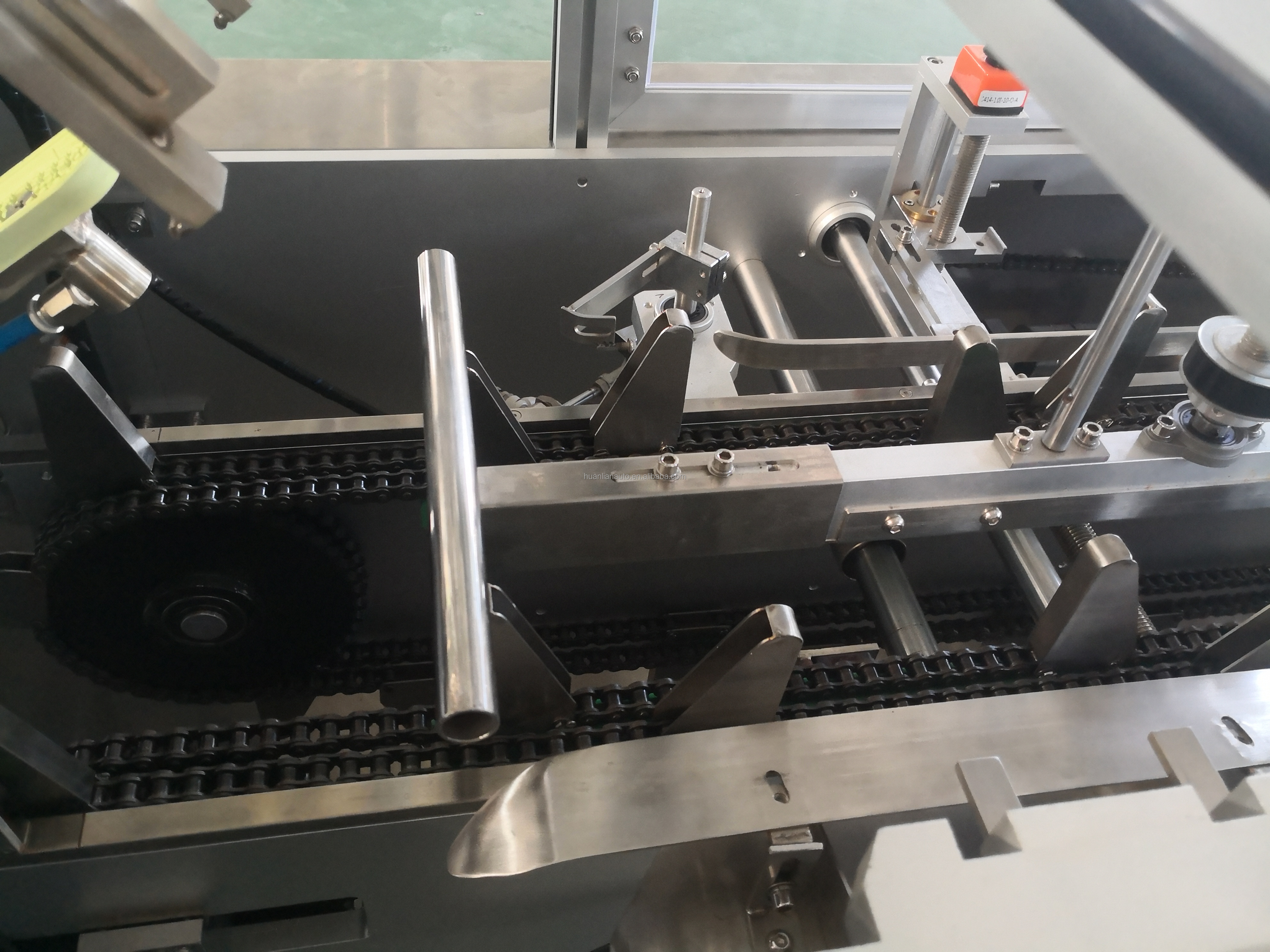

Product Detail Part 6
Product Parameters
Machine name Medium insert box cartoning machine
Power supply type 220V, 50Hz
Power 1.1KW
Speed 30-180 boxes/minute
Carton compatibility range Length 220-120 X width 170-50 X height 120-40 mm
Height of the cardboard stack 500mm
Cardboard requirements 250-350 grams of white cardboard, the carton indentation is not less than 0.4mm With pre-folding effect, ear pages and short pages need to be chamfered
Gas source requirements ≥0.6mpa
Machine net weight About 1200KG
Machine size 3150X1710X1770mm
Company Profile
Factory Overview 1
Factory Overview 2
Certifications
Product Certifications
Frequently Asked Questions
What products can the automatic cartoning machine pack?
This machine is widely compatible with various small items, including masks, gloves, biscuits, bagged milk powder, tea bags, egg rolls, lotions, lipsticks, toys, stationery, auto parts, lamps, hardware, and more.
Can this cartoning machine be integrated into an automatic production line?
Yes, it features excellent connection capabilities. The front end can connect to a pillow packaging machine or a vertical packaging machine, while the back end can link with automatic labeling, coding, weighing detection, and boxing devices.
What are the carton cardboard requirements?
The machine requires 250-350g of white cardboard. The indentation of the carton must not be less than 0.4mm with a pre-folding effect. Ear pages and short pages need to be chamfered for smooth assembly.
Is it difficult to adjust the machine for different box sizes?
No, the structure allows easy adjustment of carton length, width, and height. It comes equipped with a clear scale display, making debugging fast and simple when switching between different sizes.
How is operator safety ensured during operation?
The automatic cartoning machine is designed with independent protective shielding and safety devices. Transmission and friction parts strictly comply with standard safety guidelines to ensure simple, safe operation.
What materials are used to construct the machine?
The entire structure of the machine is constructed from high-grade 304 stainless steel, which makes it durable and suitable for industries such as medicine, food, daily chemical, electronics, and hardware.
