| Full pallet height | ≤2000mm(including pallet) | Metering range(g) | 1000-5000 |
| Full pallet weight | Maximum 2 tons | Packaging speed | 15-30 bags/min |
| Working form | Cold Stretch Hood | Applicable type of bag | Paper bag |
| Equipment material | Carbon steel spray | - | - |
| SH-60 | 60 pallets/hour (pallet height≤2400mm) |
| SH-80 | 80 pallets/hour (pallet height≤2000mm) |
| SH-100 | 100 pallets/hour (pallet height≤1600mm) |
| Applicable pallet | Pallets for bag, ton bag, carton, barrel, etc. |

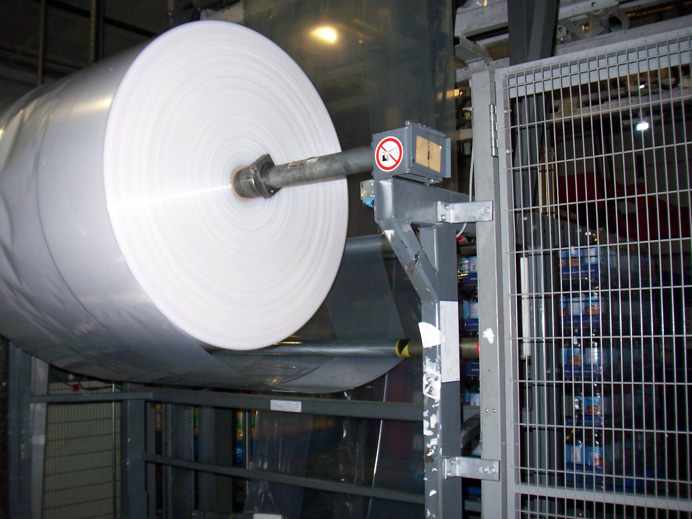

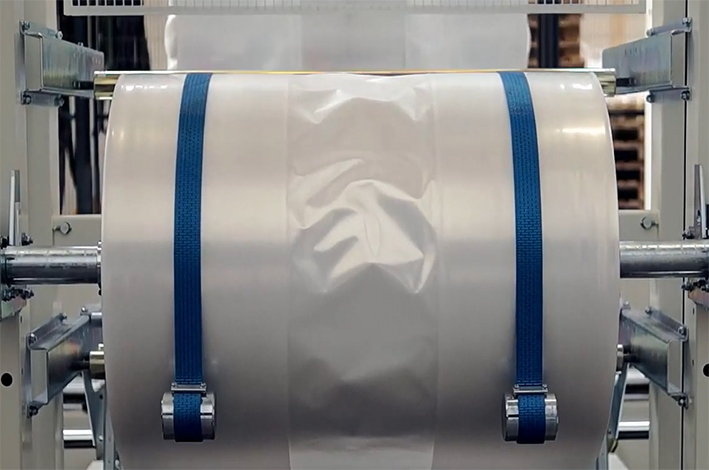

| Film roll material | Heat-sealable PE film roll |
| Applicable film thickness | 120~150μm |
| Inner diameter of reel | Φ76 mm |
| Diameter of film roll | ≤ Φ1000 mm |
| Film roll width | ≤ 1000 mm |
| Pallet material | Wooden, plastic, iron, corrugated paper |
| Fork form | Two-sided or four-sided fork |
| Full pallet size | 1200mm*1000mm or 1100mm*1100mm |

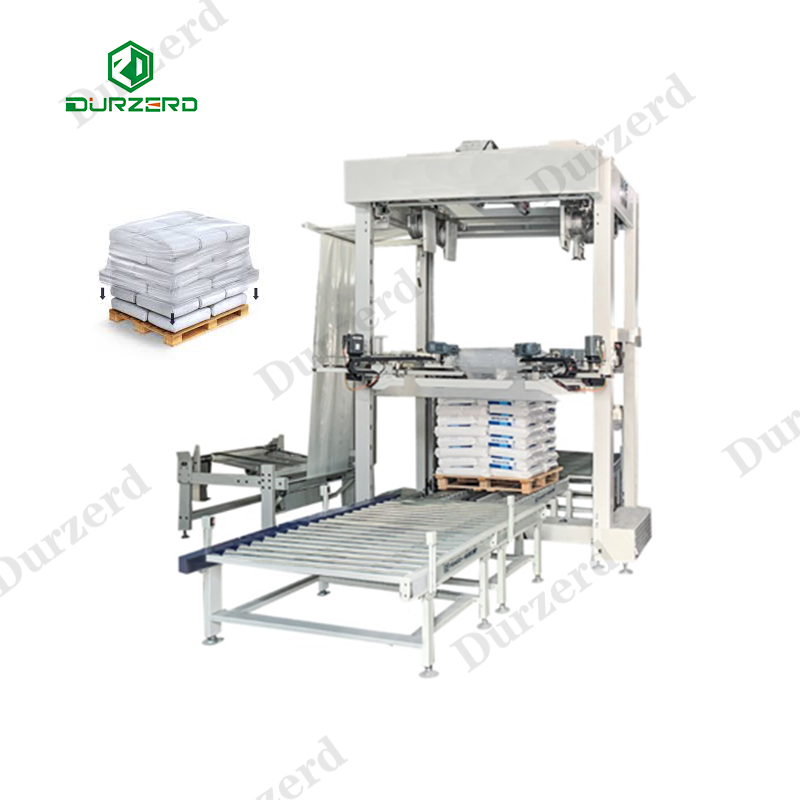

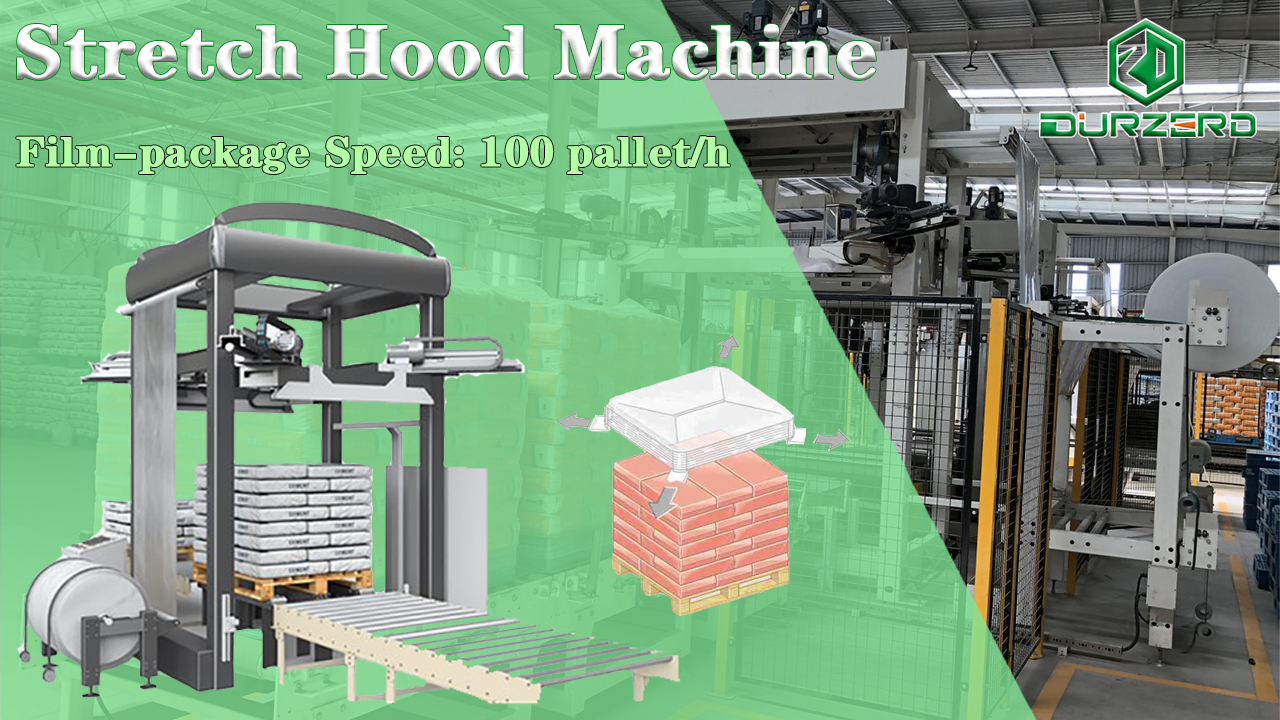

How Stretch Hooder Works

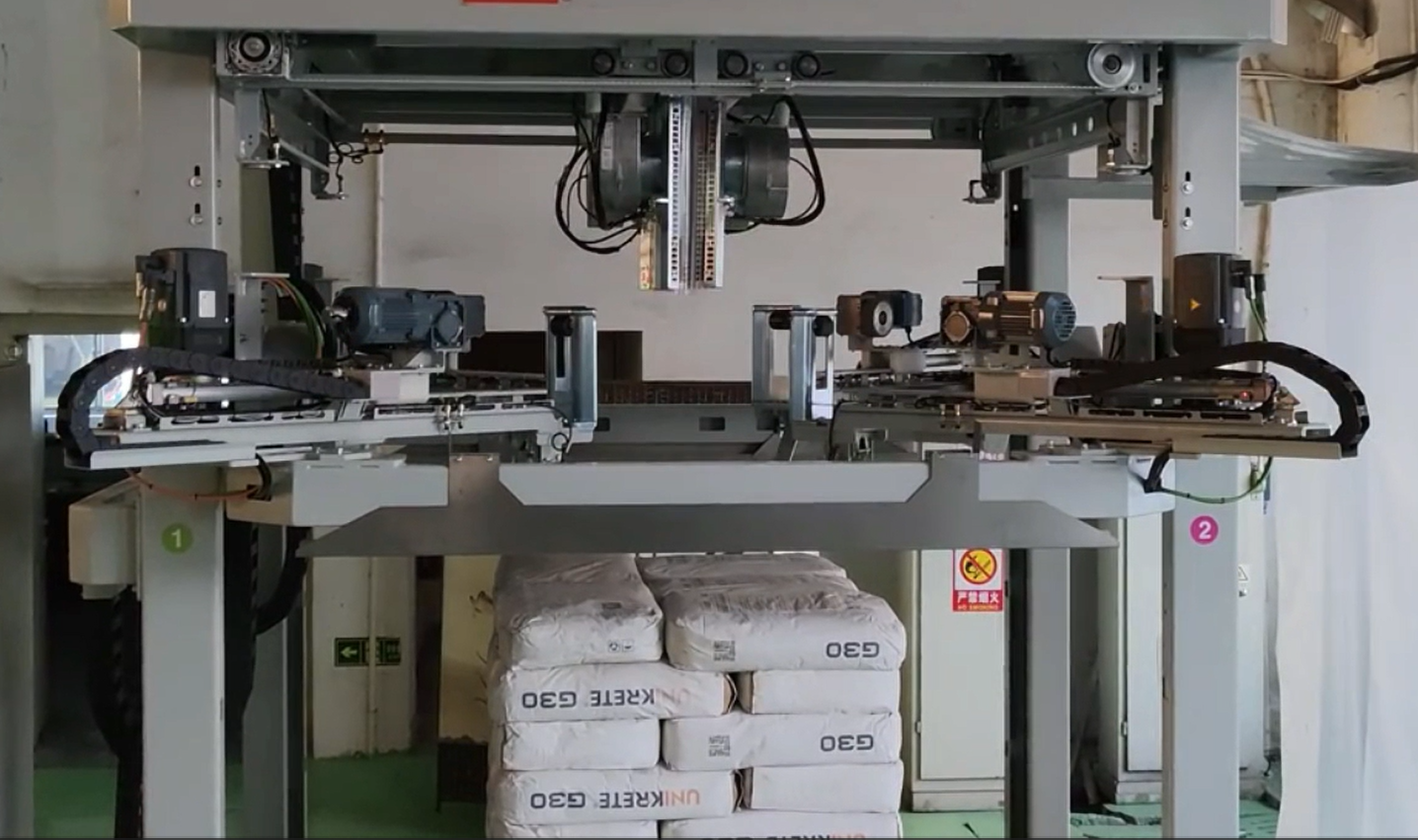

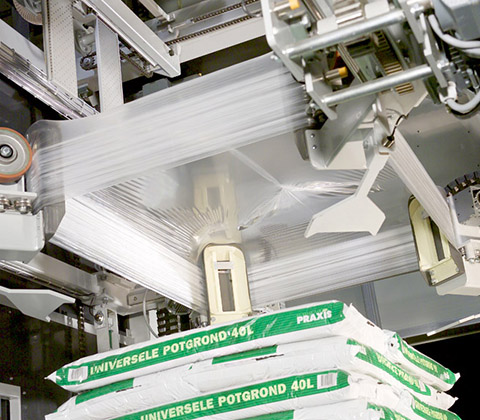

The Stretch Hooder creates a cover from tubular film and stretches it over the pallet to secure the load. When the pallet enters the machine, the dimensions are determined. After sealing, the film is rolled onto gripper arms, which stretch and guide it downwards over the pallet. Once the hooding is complete, the machine releases the pallet for the next cycle.
Key Advantages
- Automatic stretch hooding replaces manual winding for improved stability and productivity.
- Automatic film length determination via ultrasonic sensing.
- Cold stretch film reduces packaging costs significantly.
- Compact footprint for easy installation.
- Modular design for convenient assembly.
- Compatible with Chinese and international standard pallets.
- Siemens frequency drives, servo mechanisms, and PLC for reliable operation.

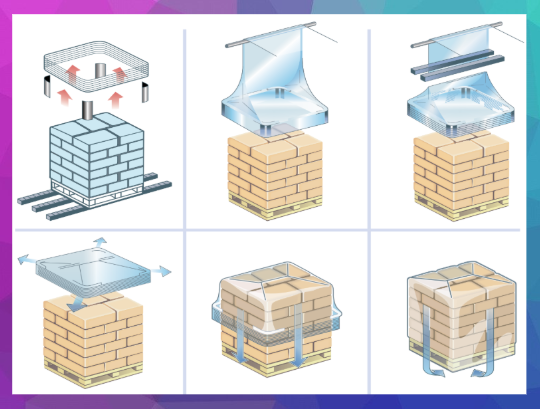

Working Process

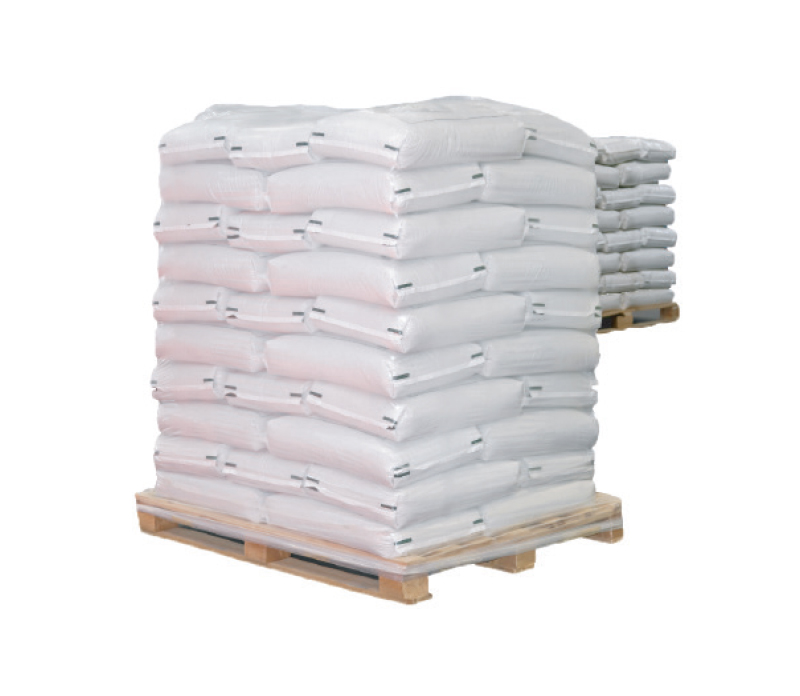

1. Load Preparation: Products are securely placed on a pallet.
2. Film Placement: Specially designed film is fed, stretched, and positioned.
3. Stretching and Sealing: The film is sealed around the load for a secure package.
4. Cutting and Finishing: Excess film is trimmed for a professional finish.
Frequently Asked Questions
Q1: Are you a factory or a trading company?
A1: We are the factory with manufacturing and self-supporting import and export rights for more than 25 years.
Q2: How to choose a suitable packaging machine?
A2: Please provide your material details and requirements, such as packaging speed, weight, bag type, and bag size.
Q3: What payment methods are accepted?
A3: Payment can be made via T/T, L/C, etc. We offer FOB, CNF, and CIF terms by sea.
Q4: How do you ensure machine quality?
A4: We perform rigorous inspections in our factory, including running the machine for three days before delivery. We also support third-party inspections.
Q5: How is the equipment installed?
A5: We provide manuals and detailed installation videos. If needed, we can send technicians to your site (customer covers travel and daily subsidy).
