Product Description

Products Description

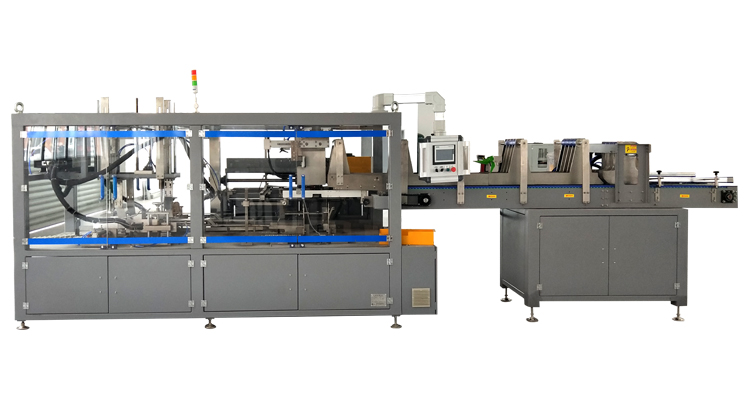

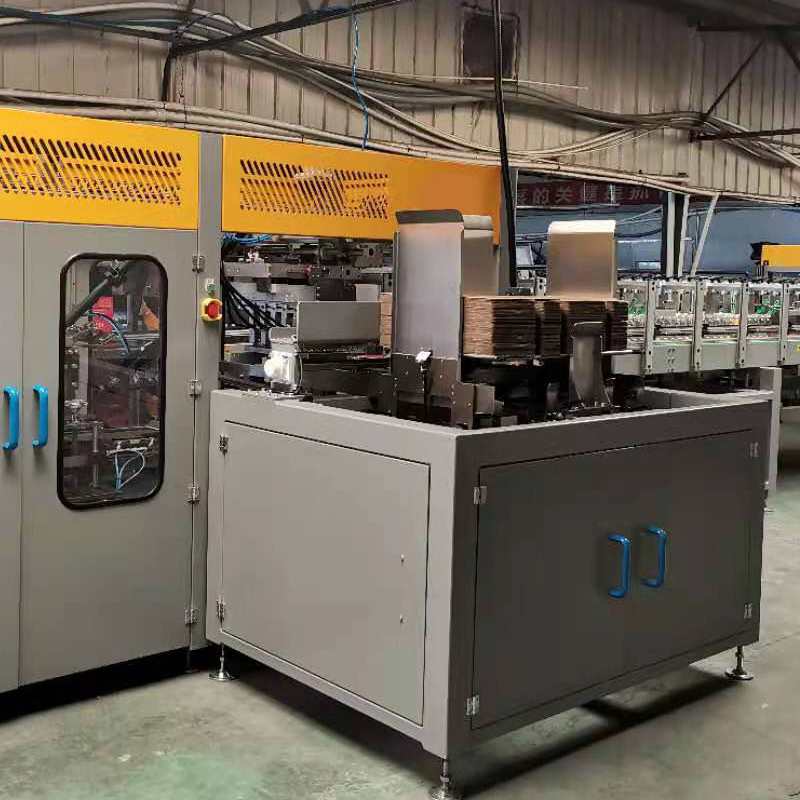

Automatic wrap-around case packer for glass or plastic

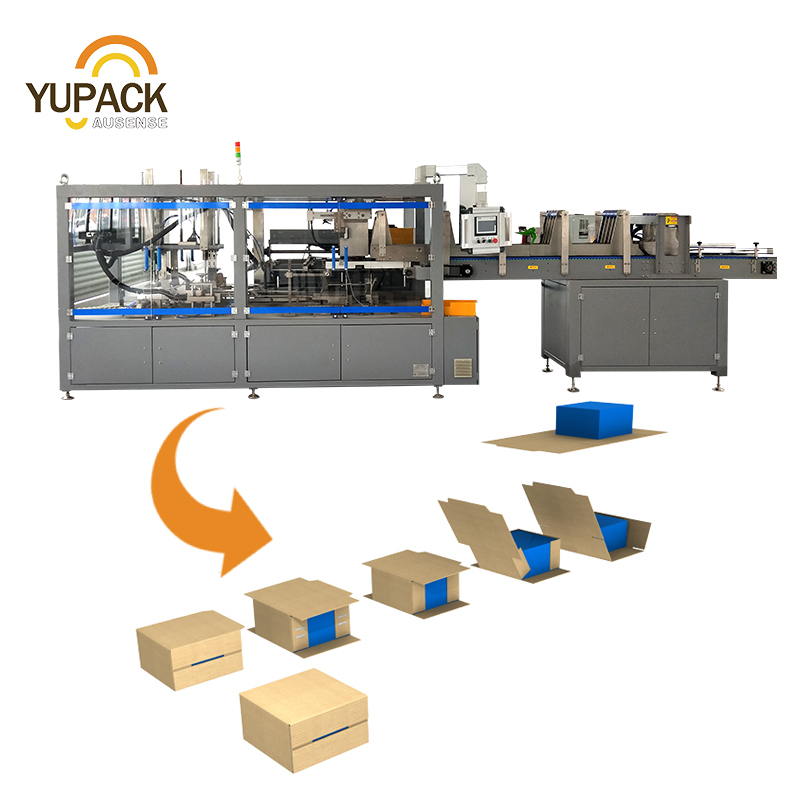

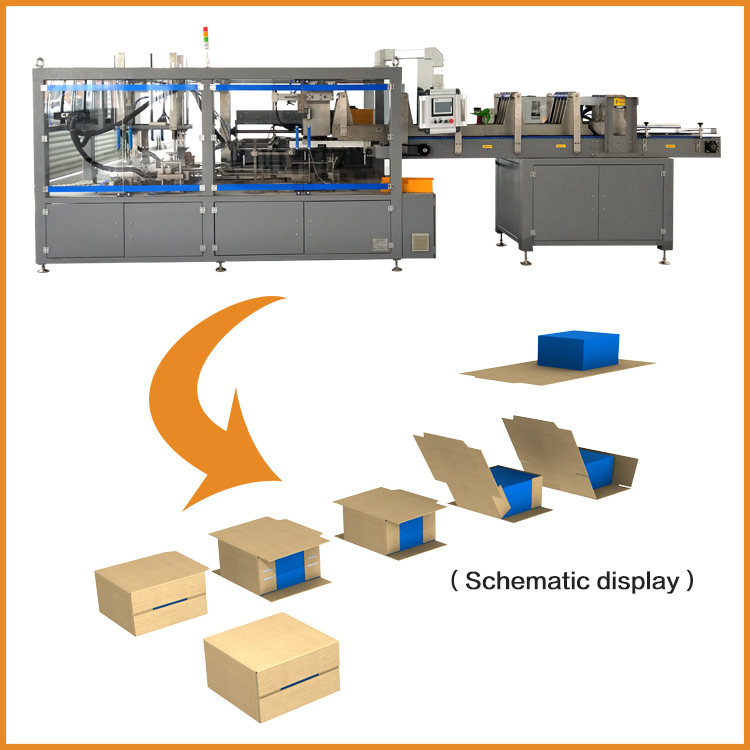

As far as the product packaging is concerned, the Wrap Around Packaging is folded around the product and closed laterally by means of four short flaps. It is usually used for containers made of glass, PET, PVC, polypropylene, cans, etc., mainly for the food & beverage, personal hygiene and cleaning industries.

Product Parameters

Model	GBJ25
Voltage	380V 50Hz 3P
Power	10kw
Speed	20-25 carton/min
Feed height	1100mm
Machine size	L3000W2000H1800mm
Machine weight	≤1.9T
Out of box height	750mm
Air source/consumption	0.5-0.7MPA ; 1000L/MIN
Applicable Carton	L200-500mm * W150-500mm * H100-350mm

Product Advantages

Easy to operate

Touch screen setting, simple operation, intuitive interface.

International Configuration

Siemens PLC control, durable, stable operation, long service life and high efficiency.

Hot melt machine

Using Swiss Robatech hot melt glue machine, hose and glue gun. Fixed above the wrapping machine to facilitate manual glue addition.

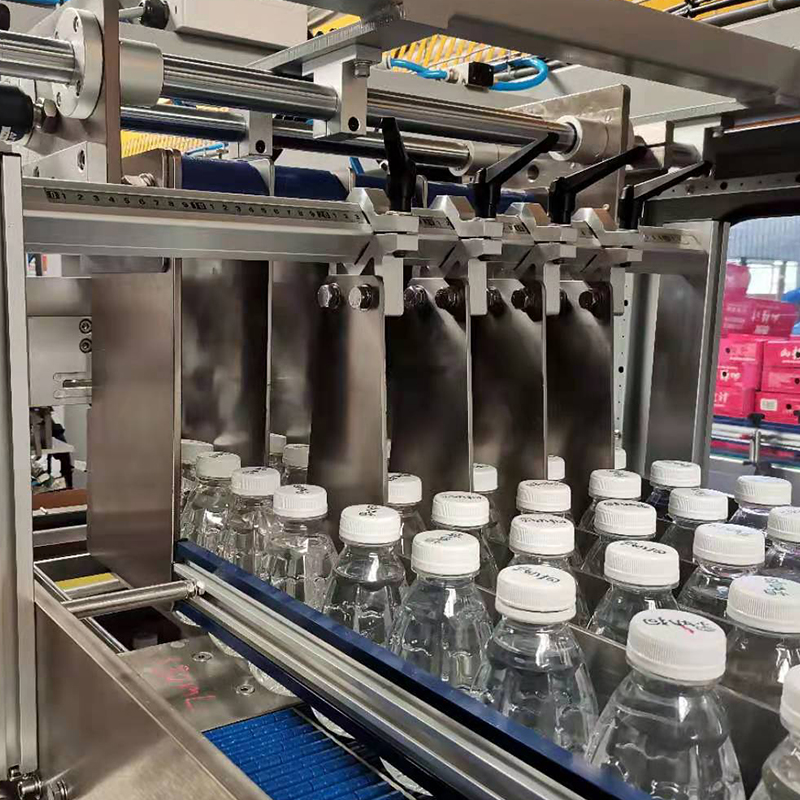

Bottle dropping mechanism

When the cardboard is sent to the bottom of the bottle, the cylinder pushes the bottle drop mechanism to make the bottle quickly fall from the gap.

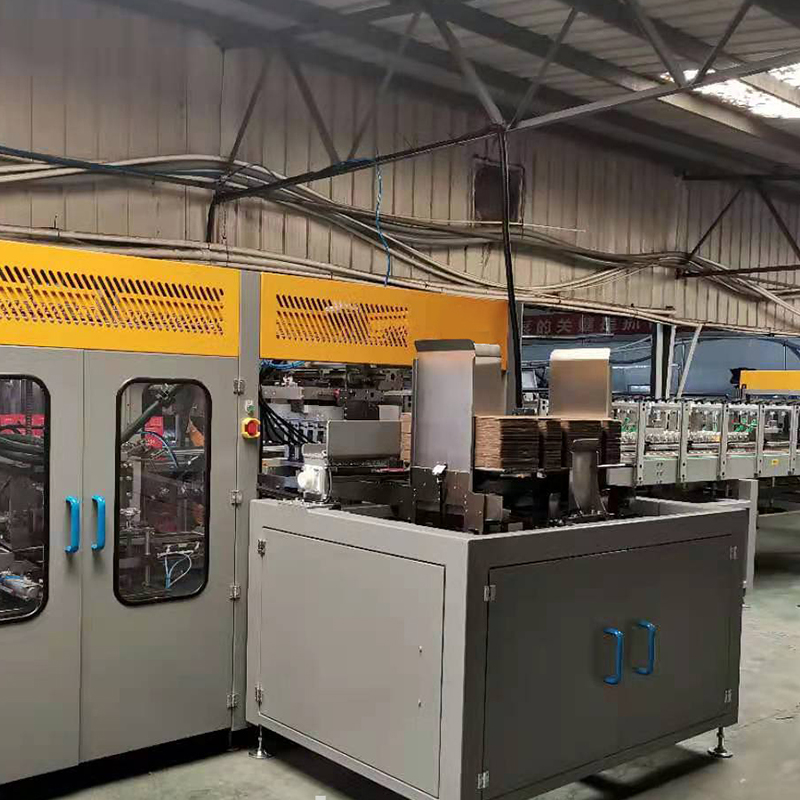

Paper feeding mechanism

Designed to store cardboard and deliver it one by one to the bottom of the falling bottle as required.

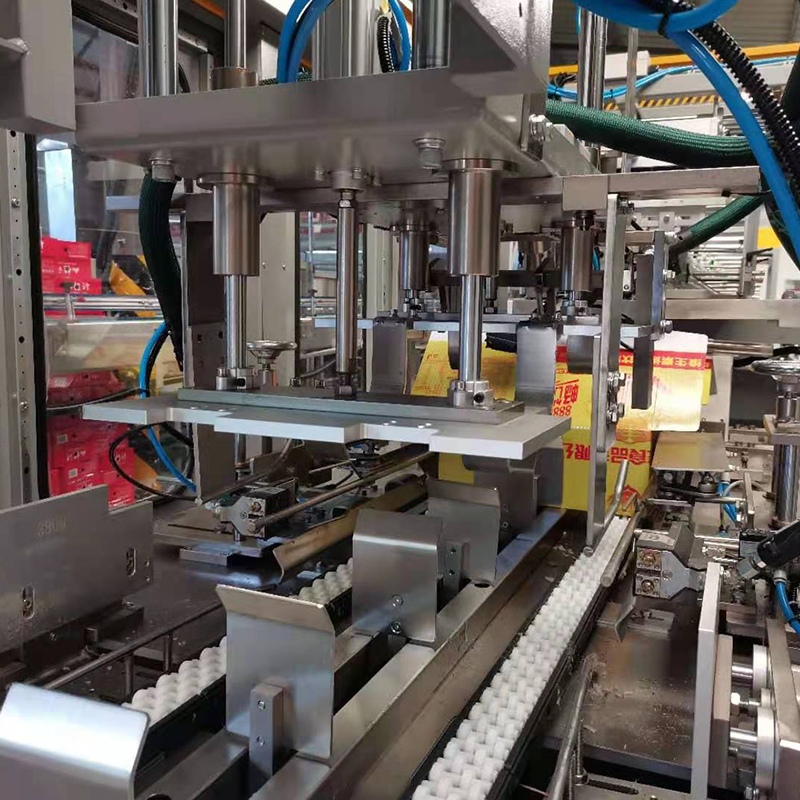

Drop box mechanism

Servo motor driven synchronization. Left and right suction cups secure the cardboard, ensuring the bottle falls between the clamping chain plates.

More Details & Features

Key Benefits:

Anti-shock and vibration damping properties.
Excellent protection: moisture-proof, heat dissipation, easy handling.
Low transportation costs and high automation potential.
Flexible size changes for various items.
Improved aesthetic appearance for the final product.

Main Features:

Servo control for precise positioning and stable speed.
Digital display scales on adjustment points for convenience.
Double chain link design for carton stability.
Robust frame construction using 100*100*4.0 carbon steel.
Transparent acrylic viewing doors and professional aesthetic finishing.

Product Gallery

Frequently Asked Questions

1. What types of containers can this machine pack?

It is suitable for containers made of glass, PET, PVC, polypropylene, and various metal cans.

2. Is the operation interface user-friendly?

Yes, it features an intuitive touch screen interface designed for simple and precise setting adjustments.

3. What is the power requirement for the GBJ25?

The machine operates on a 380V 50Hz 3-phase power supply with a power rating of 10kw.

4. How is the packing stability ensured?

The machine uses a servo-controlled main drive and a double chain link system to ensure carton stability during motion.

5. Can this machine handle different carton sizes?

Yes, the machine design allows for easy size adjustments to adapt to various carton dimensions from L200-500mm to W150-500mm.

6. Does the machine support automation integration?

Yes, the machine is designed for seamless integration into automatic packaging lines and supports modern automation standards.
