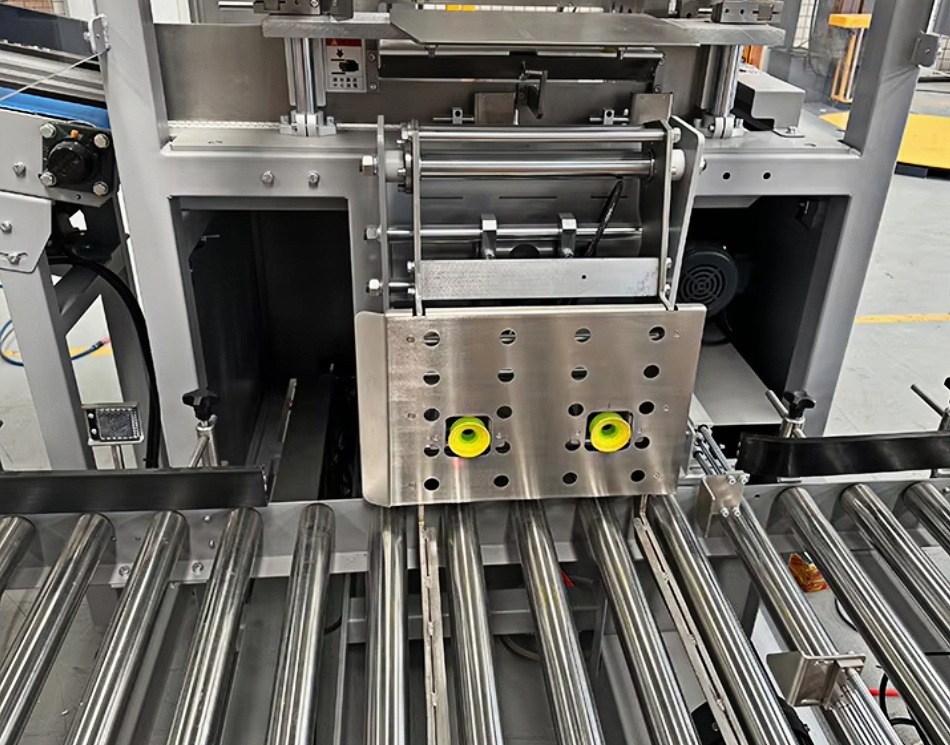

Automatic Case Packer Carton Box Packing Machine with Stainless Steel 304 Multifunctional for Chemical & Food Applications

Product Description

Automatic Case Packer Carton Box Packing Machine for Packing Box
Products Description

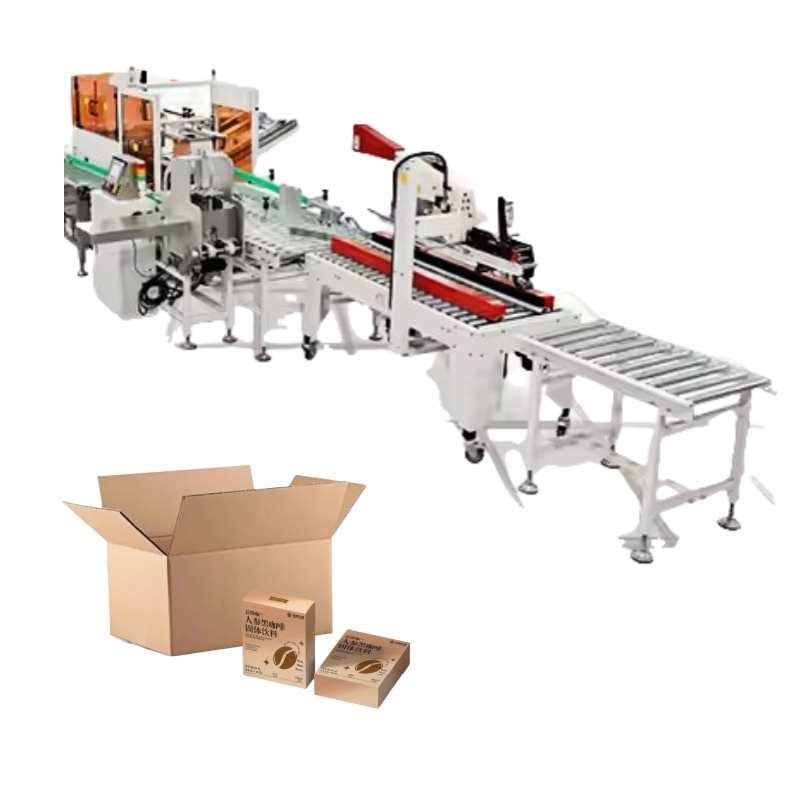

Automatic Case Packer Carton Box Packing Machine
This machine adopts an advanced spider robot hand and software control technology. This series spider hand type carton packer machine is used for automatically packing of kinds of soft bags shape products into opened empty carton box. And this carton packer is suitable for the carton packing process of milk, water, beverage, oil, powder, etc production line, and also suitable for various bag shape products carton packing work in other industries.
Product Parameters
Power supply 3Phase, 380v, 50/60HZ, 10kw
Machine size L2000 * W500 * H630 ± 50mm
Packing speed ≤ 20 cases/min
Flip speed 5 cases/min
Conveyor speed 20m/min
Air pressure 0.5-0.7Mpa
Carton size L300-600 * W225-500 * H200-400

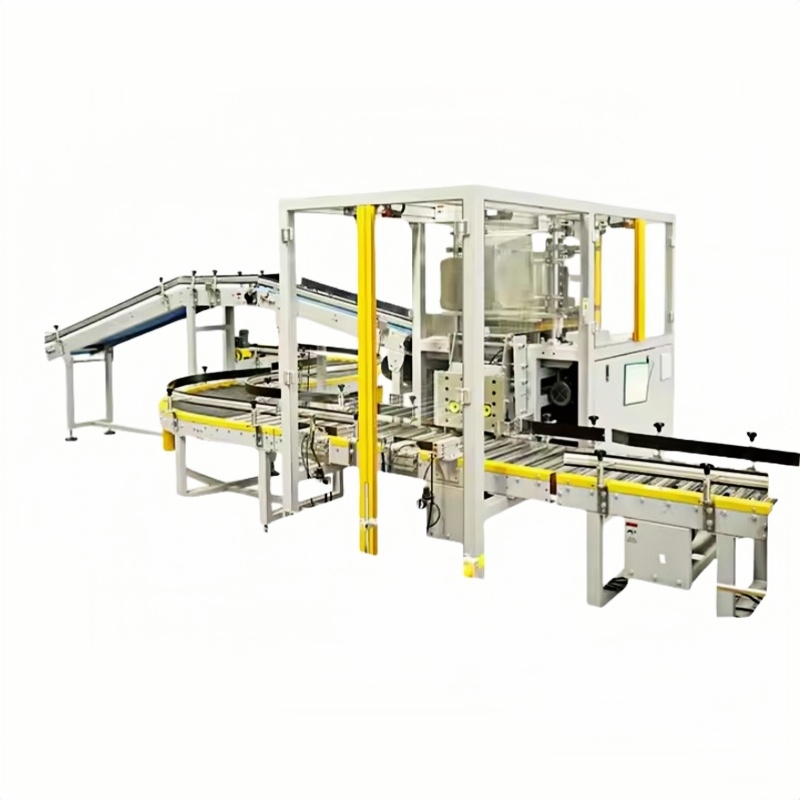

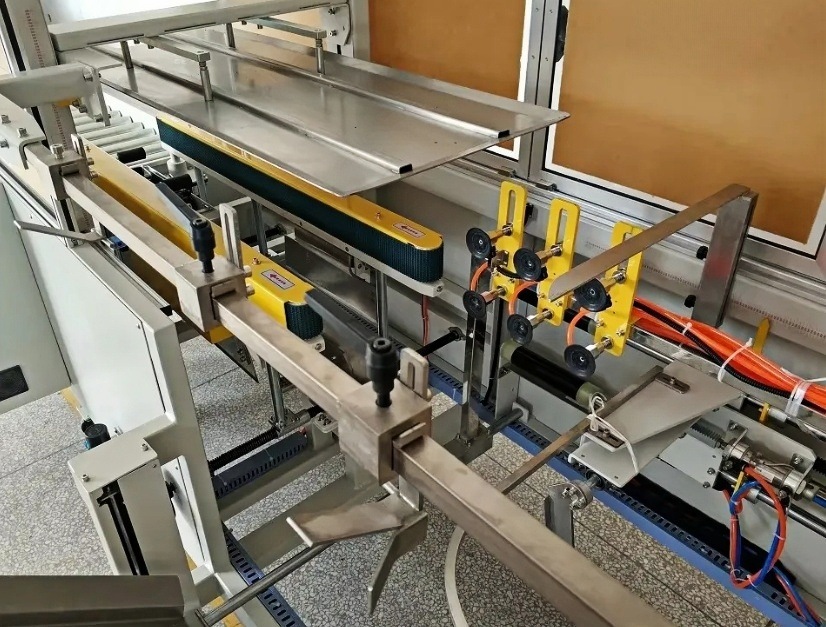

Machine details 1 Machine details 2 Machine details 3
Characteristic
  • Integrated design of fully automatic packing machine.
  • The concept of modularity applies to a wide range of applications.
  • Quick and intuitive specification adjustment instructions.
  • Equipped with various monitoring devices to ensure safety and stability.
  • Four servo control system, to ensure the accurate movement of the position.
  • It is convenient to change the gripper and adapt to different products.
  • The whole machine is in full compliance with GMP standard.
  • Multi-functions, including goods sorter, goods stacker, case erector, case filler and case sealer etc.
  • Wide application, suitable for sachet, carton, bottle, folding products etc. to pack into the cases as single layer or multi-layer.
  • The way put into the box: Adopt parallel to pull the material into the box, avoid equipment vibration and make the packaging faster and more stable.
  • Carton Packing speed is adjustable (controlled by frequency converter).
  • Automatic alarm for lack of products, effectively reducing the probability of carton packing error.
Application
Wide application, suitable for soft pouch, carton boxes, folding products etc. to pack into the cases as single layer or multi-layer.

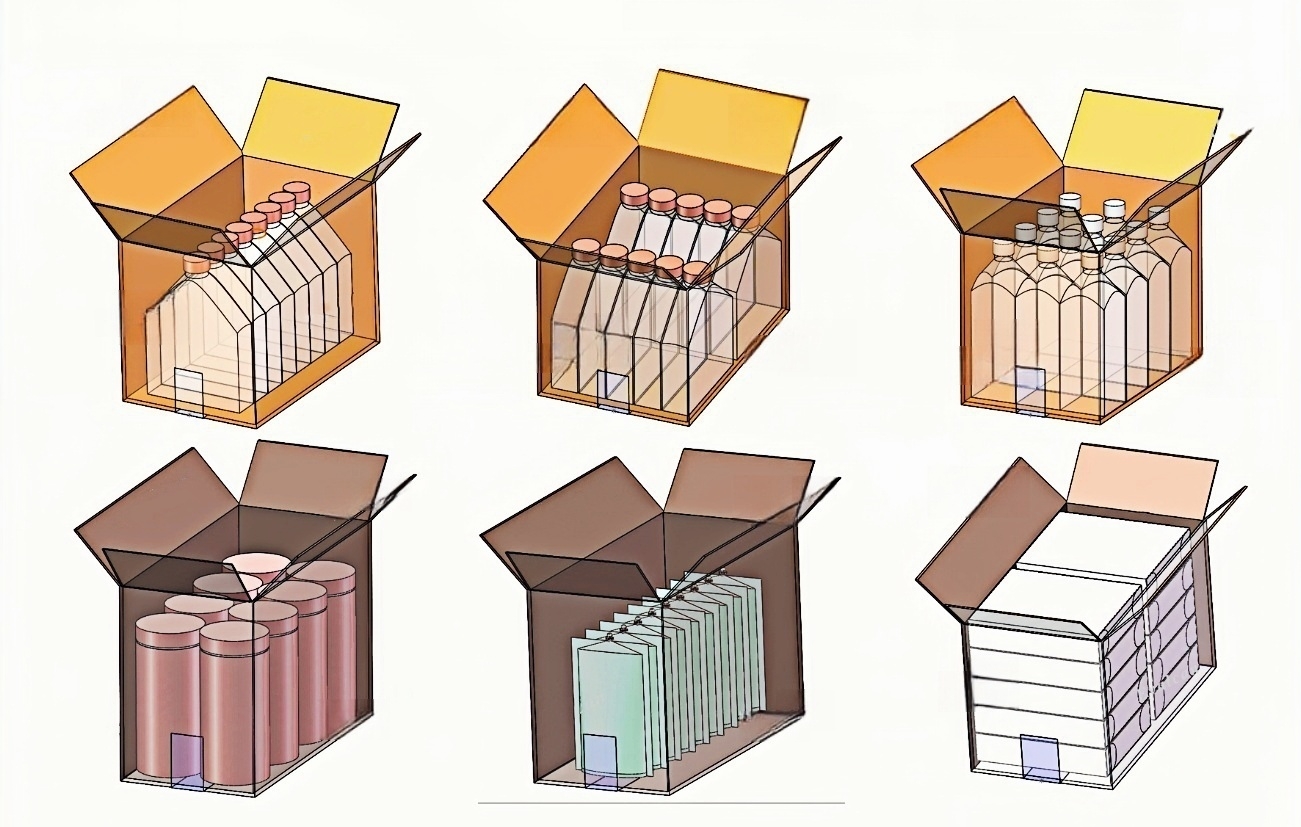

Application sample

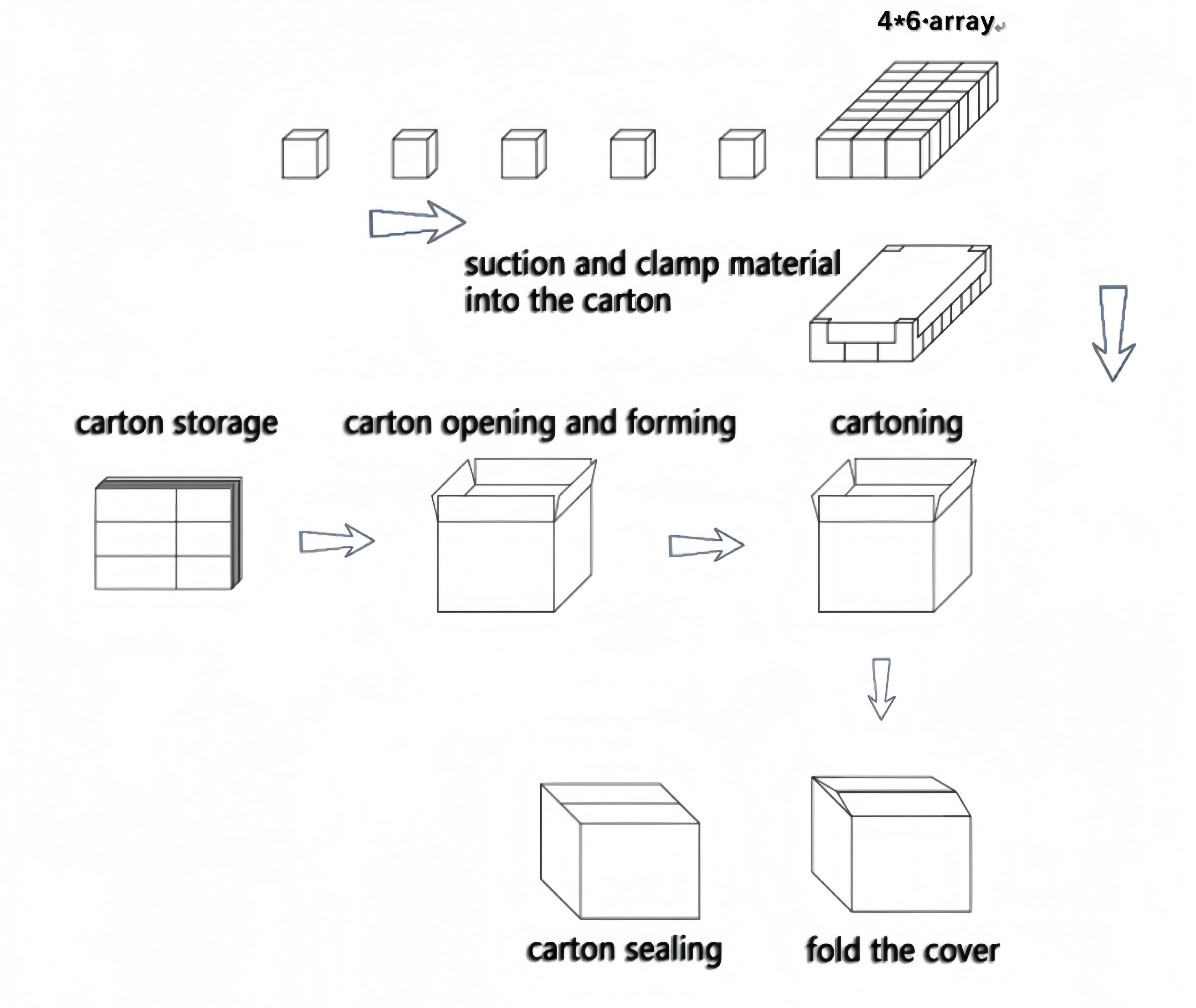

Flow chart

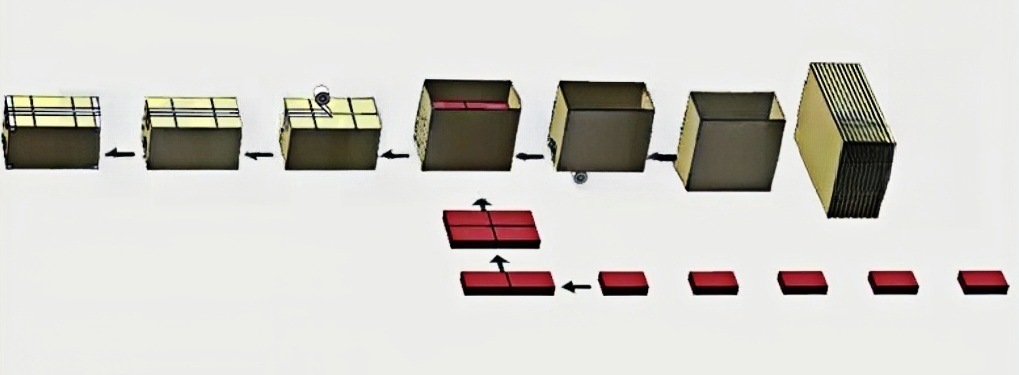

Flow chart step 1 Flow chart step 2
Machine details

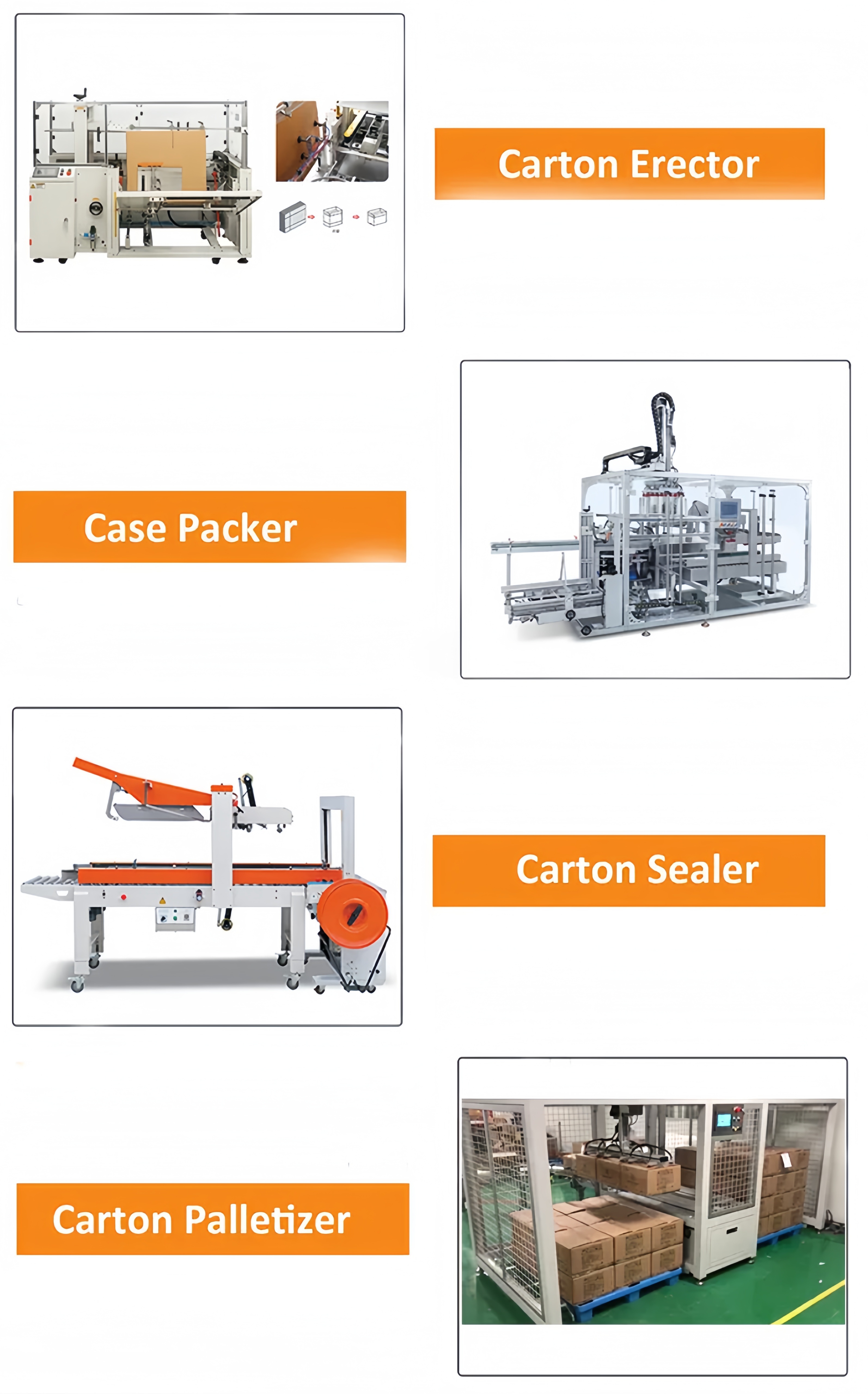

Detailed views
Exhibition
Exhibition booth
Customer Photos
Customer visiting
Our Advantages
Advantage 1 Advantage 2
FAQ
Which machine suitable for me? How can I choose?
All our machines are customized for a big factory or a small business.
  • To figure out the product you will pack.
  • The dimension of the product or the dimension of the packing. If you want to design a special packing machine, we can manufacture the packing machine as your requirements.
How to ensure our after-service?
We are a professional manufacturer with a solid technology and technical team. We can supply professional, comprehensive technical service which includes the whole process from selling to after-service, and solve all problems of craftwork options, process design, equipment installation and commissioning in production.
How long is the warranty?
We offer a 1-year warranty. We will provide detailed information as soon as possible.
What should we do if we encounter problems while using the machine?
If you encounter any issues while using our machines, please contact our customer service team. We offer prompt assistance and can dispatch engineers for on-site support if necessary.
What information does the quotation require?
Some of the basic information we need is what product you need to pack and what their dimensions are. Additionally, we would need to know the type of packaging you need, the desired output, and the area available for our machinery.
