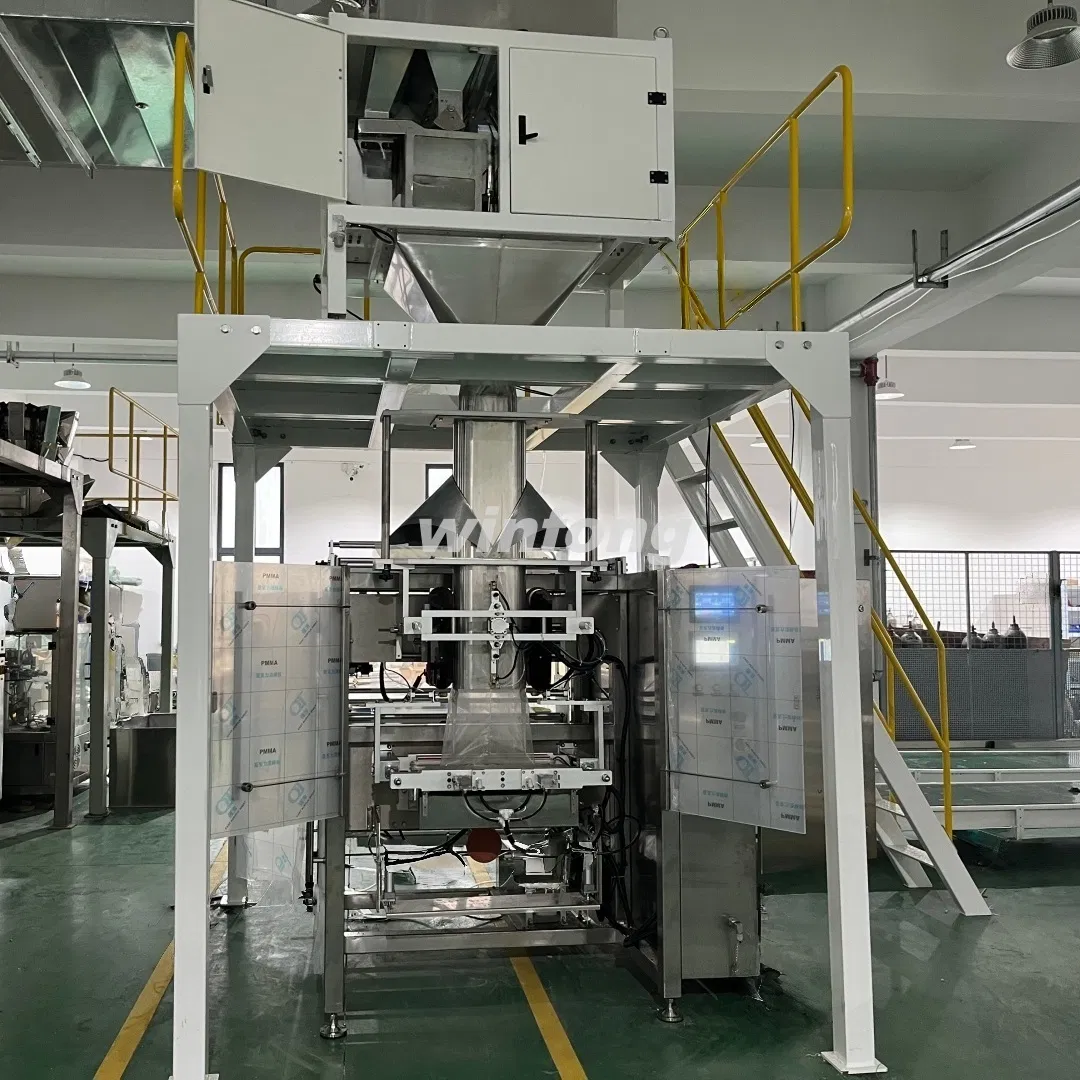

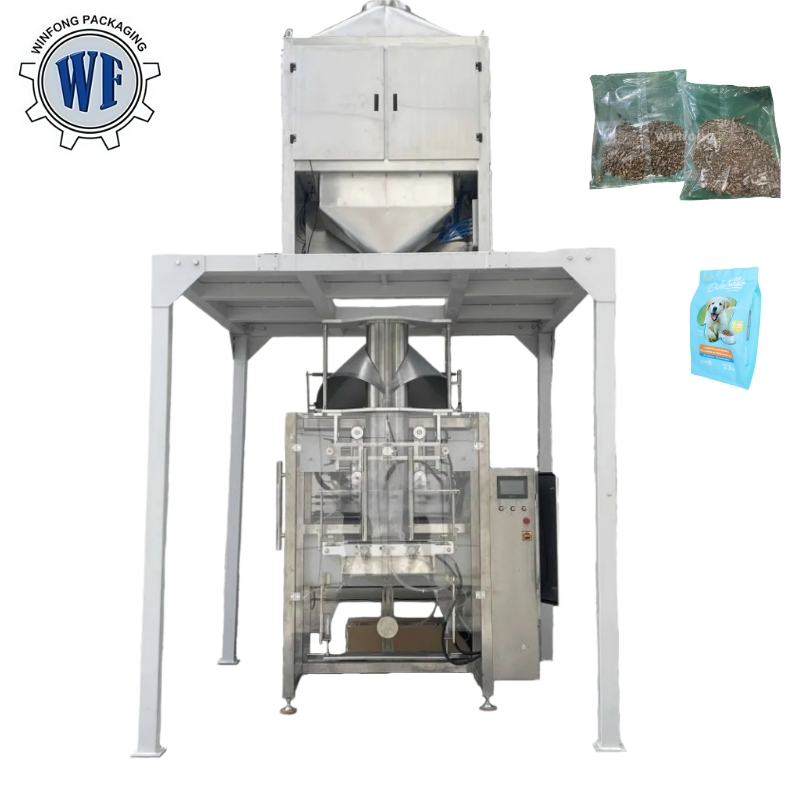

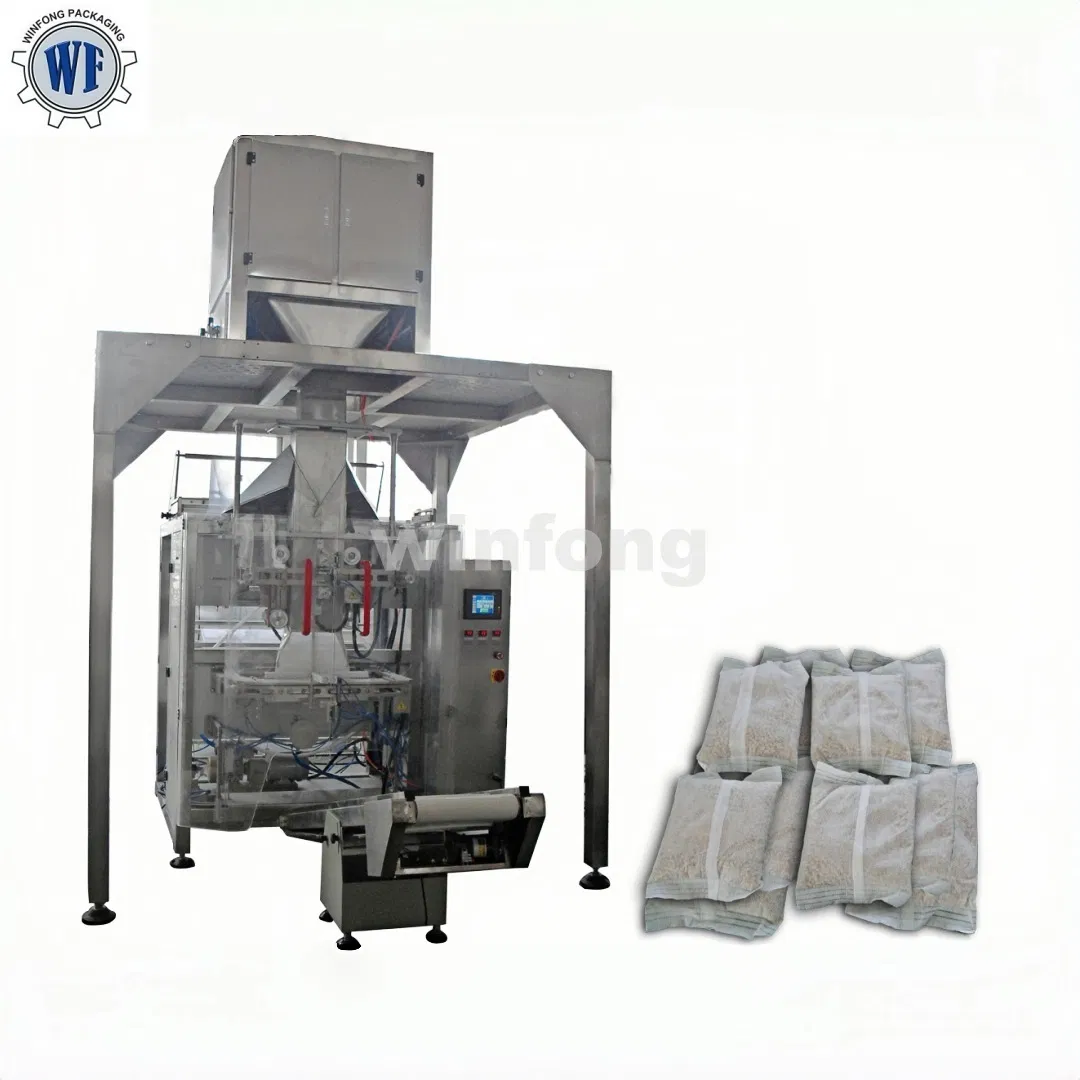

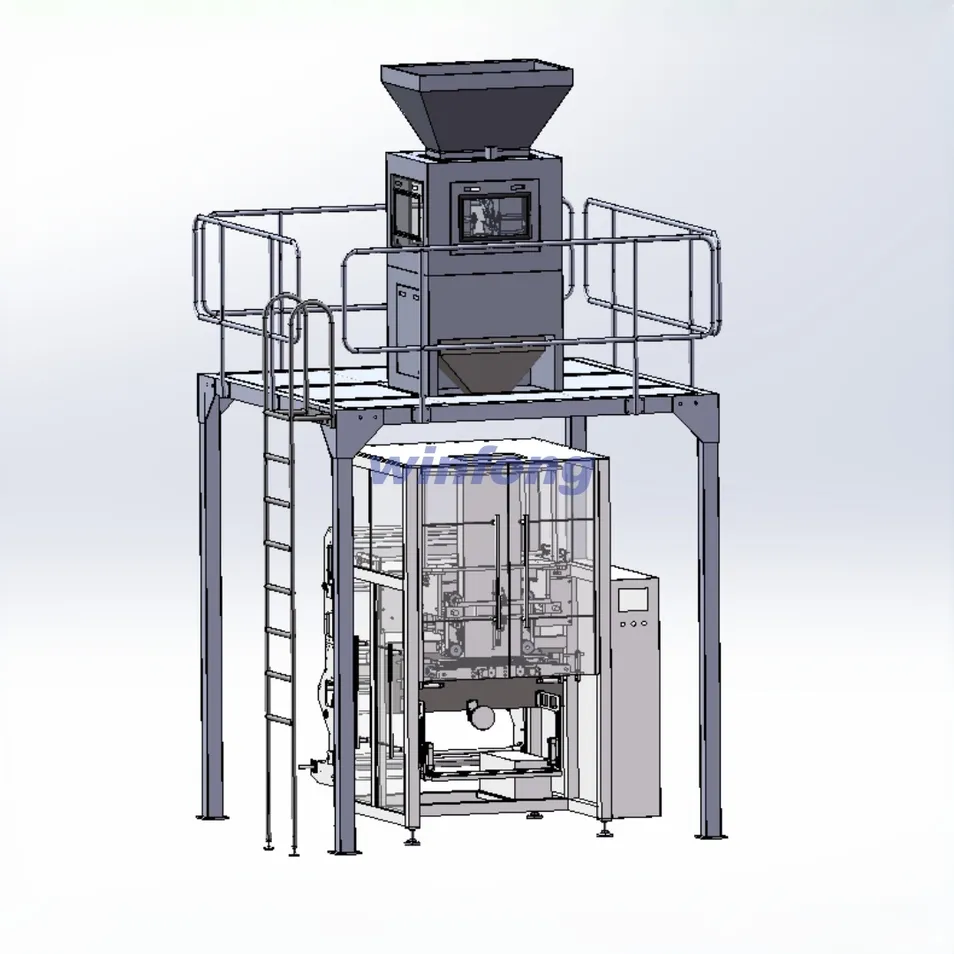

This packing unit consists of one vertical packing machine for bagging, one set double heads linear filler for weighing, one chain plate elevator for feeding, and one conveyor for taking off the finished bags. It integrates functions of automatic bag-making, weighing, filling, sealing, printing, punching, cutting, and sealing into one. The advanced design has guaranteed this machine suits for cube ice, tube ice, crushed ice, etc. Its adjustment, operation, and maintenance are very convenient.
| The complete packing line includes | Quantity |
|---|---|

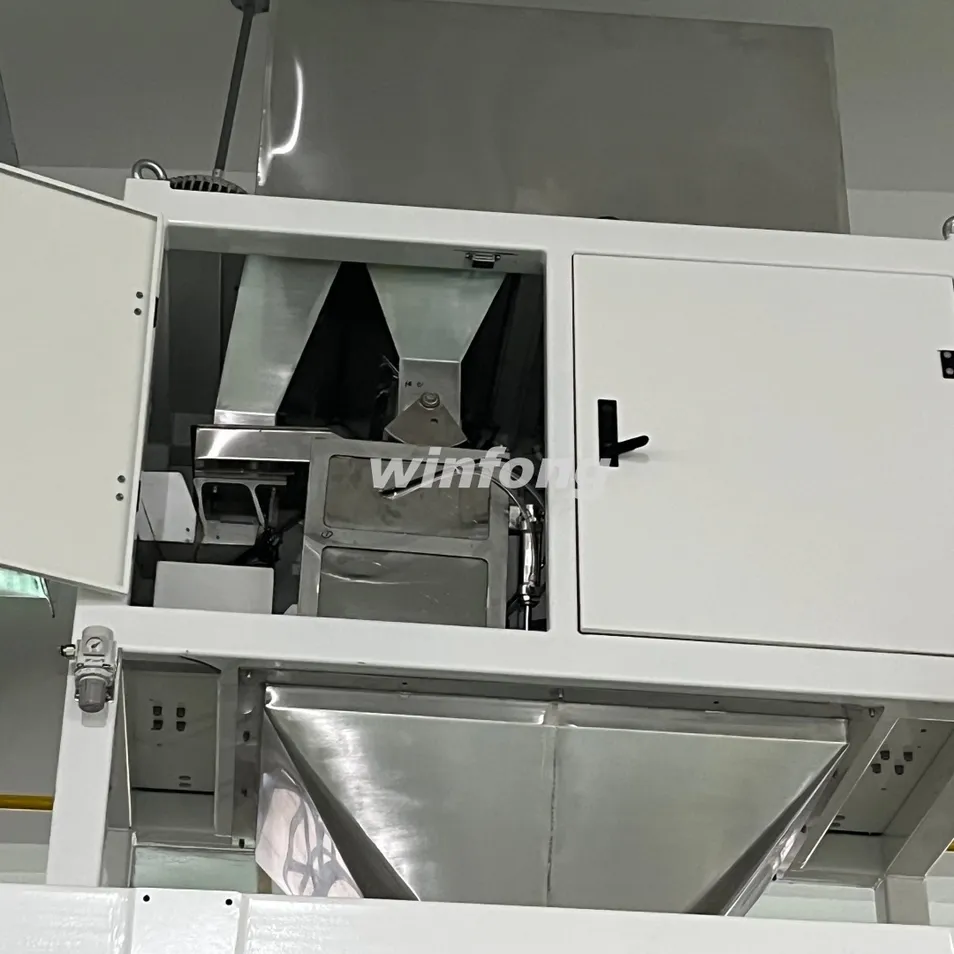

| Double heads 10-25kg linear weigher | 1set |

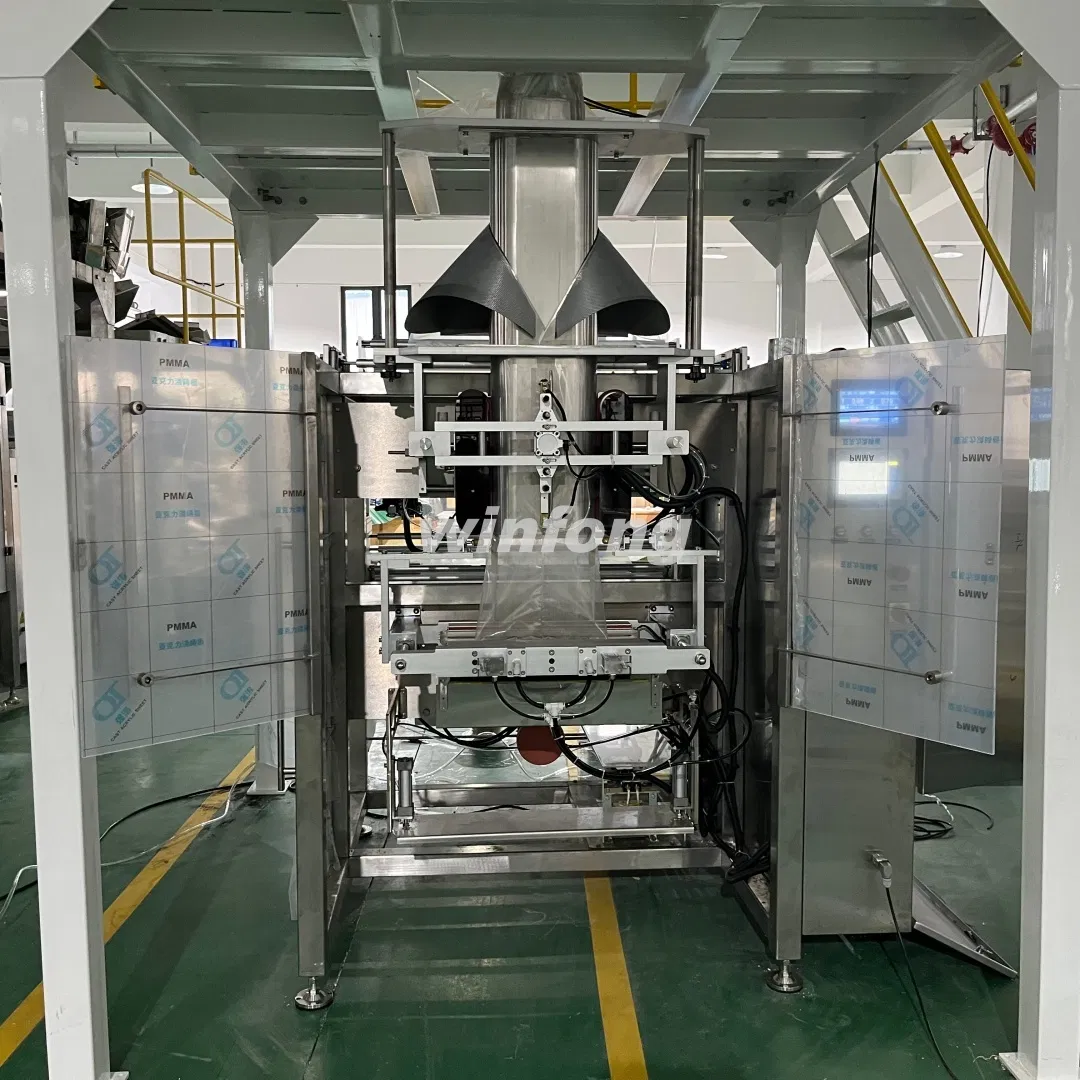

| VFS1100 Automatic packaging machine | 1set |
| Chain plate elevator | 1set |
| Take-off conveyor | 1set |
Auto feeding elevator feeds material in buffer hopper of linear filler → linear filler will weigh and fill materials at target weight automatically → VFS bagging machine realizes bag-making, filling, date printing, sealing, cutting, etc. → Take-off conveyor will convey out the finished bags automatically.
| Parameter | Specification |
|---|---|
| Metering capacity | 5-25kg |
| Speed | 5-8bags/min |
| Bag shape | Pillow/gusset/punching bag |
| Bag size | (300-650)×(300-535)mm(L×W) |
| Accuracy | ±0.3—0.5% |
| Compressed air requirement | 0.6 MPa 0.36 M3/min |
| Reel outer dia | φ400 mm |
| Core inner dia | φ75 mm |
| Machine weight | 1000 kg |
| Power source | 10 kW 380 V±10% 50 Hz |

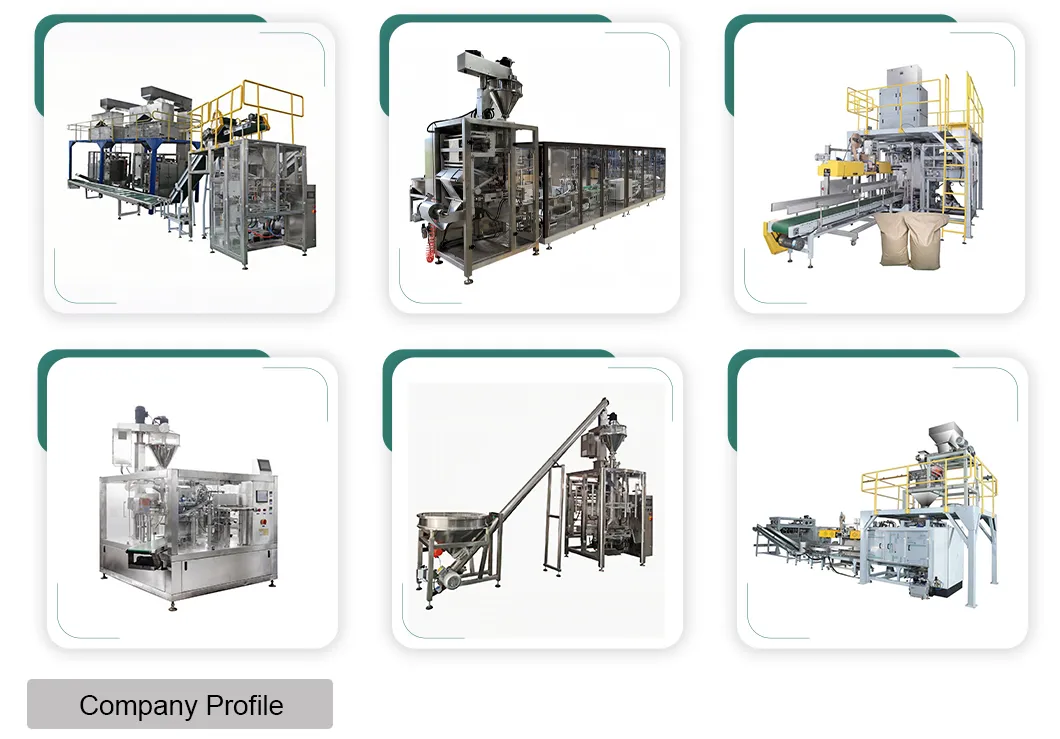

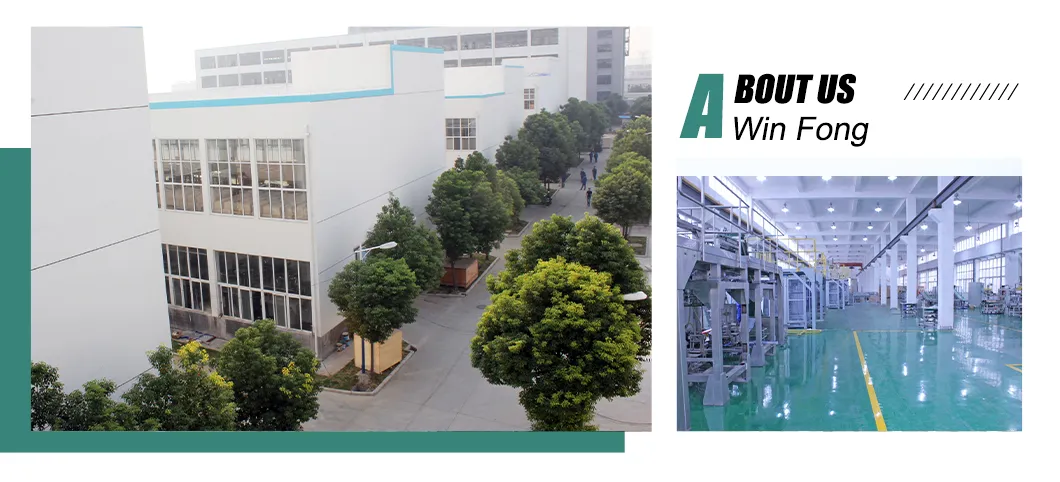

We are a domestic manufacturer specializing in automatic machinery's integrating R&D, production, sales and service. Our team has worked in packaging field more than 15 years. We have successfully supplied over hundreds of different packaging designs to customers worldwide. The primary packaging machines for granule, powder, liquid, secondary packaging machines, vacuum packaging machines, and heavy-duty bag packing & palletizing lines are our main products, which are widely used in food, chemical, agriculture, and building material sectors, etc. and passed CE certificate.
Professional technology, efficient management, strict quality control, and long-term after-sales support. We continuously adjust and update our production and R&D plans based on market conditions, keeping pace with our customers' needs, winning the favor of well-known enterprises. For example, we provided woven bag secondary packaging machines for well-known pet food companies and offered coffee powder vacuum packaging machines for well-known coffee brands.
Looking ahead, the company plans to advance its development along two main strategic directions. The first is sustainable development - developing energy-efficient equipment and ensuring its compatibility with recyclable and biodegradable materials to meet increasingly stringent global packaging regulations. The second is continuous product upgrades and updates to help customers achieve automated industrial upgrades, providing stable and efficient packaging solutions, such as automated packaging and palletizing of heavy bags and unmanned secondary packaging.
1. What products do you export?
We export primary & secondary packaging machines for granules, powders, and liquids – also can equipped with palletizing robot, wrapping machine to realize complete lines.
2. Do you have experience with export?
Yes, over 20 years. We have shipped to more than 50 countries worldwide.
3. How are machines packed for export?
Each machine is wrapped in VCI anti-rust film, braced inside an export standard wooden cases, with foam padding, etc.
4. What shipping methods do you offer?
Sea freight (LCL or FCL) and air freight for urgent spare parts or small units. We ship from Shanghai, Ningbo, Shenzhen, or Qingdao.
5. What documents do you provide?
Commercial invoice, packing list, bill of lading, certificate of origin, and operation manuals (digital).
6. What is your warranty?
12 months on servo motors, After-sales support via video call, email, or on-site visit.
