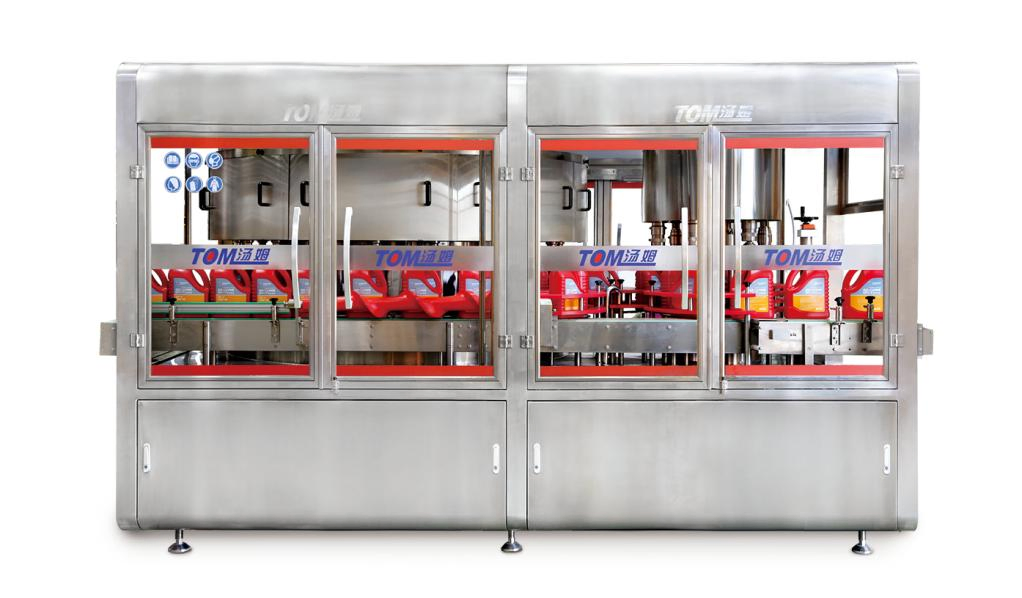

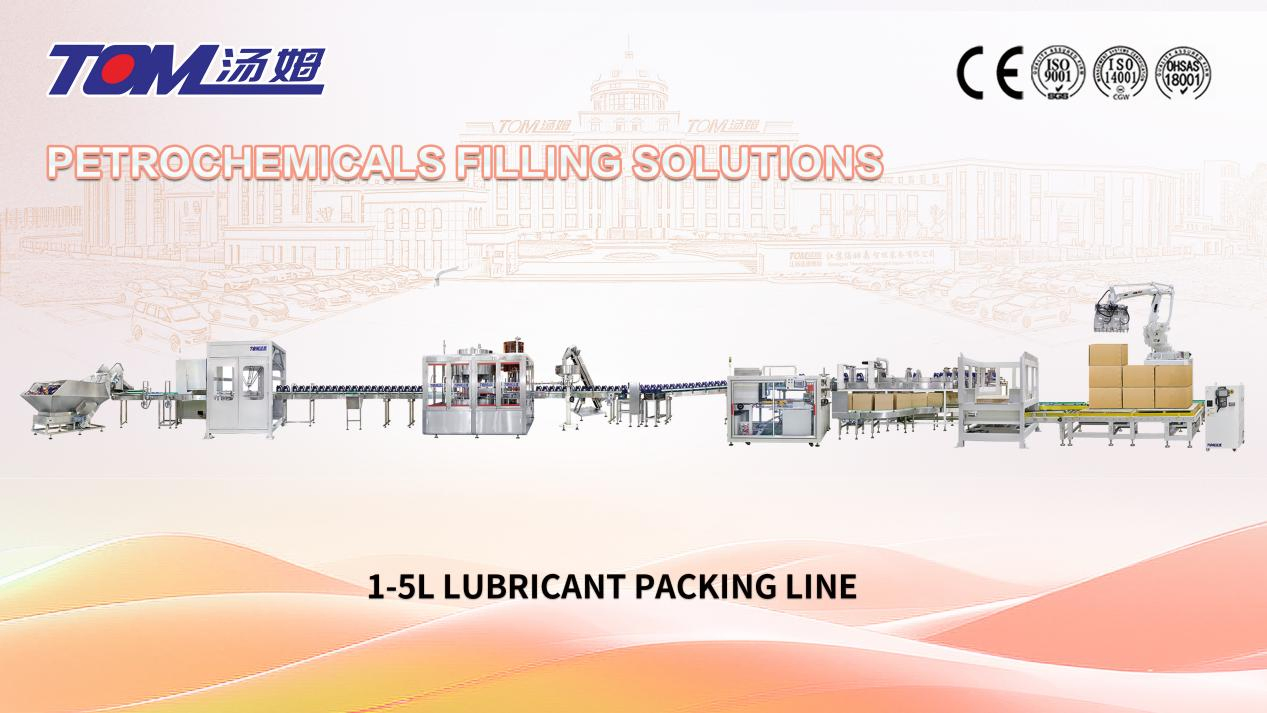

Advanced Automated Lubricant Packaging System for 1-5L Containers

Send Inquiry

Product Description

Production Capacity: 3000-18000 BPH
Applicable Product: 1-5L
Applicable Bottle Type (Max): 180mm (width) x 220mm (height)
Applicable Bottle Type (Min): 80mm (width) x 80mm (height)

Main Features

This assembly line is mainly applicable to the automatic metering and packaging of powders, particles, liquids and other materials;
The whole assembly line can be operated by 2-3 people, which reduces labor intensity and labor costs;
The whole line packaging speed is 10-60 packs/minute;
The packaging accuracy is 0.5-1.5%, which is accurate and reduces unnecessary waste;
The whole line is made of stainless steel, which is beautiful and generous in appearance, and improves the grade of the customer's production workshop.

Main Parameters

Parameter Name	Specifications
Power supply	AC38OV, 50/60HZ
Single line power	Approximately 40KW
Gas source pressure	(0.6-0.7) MPa Dry, clean and stable gas source
Single line gas consumption	0.8m³/min

Product Parameters

This line is applicable for filling small packages of products such as antifreeze, lubricating oil, brake fluid and automotive maintenance products.

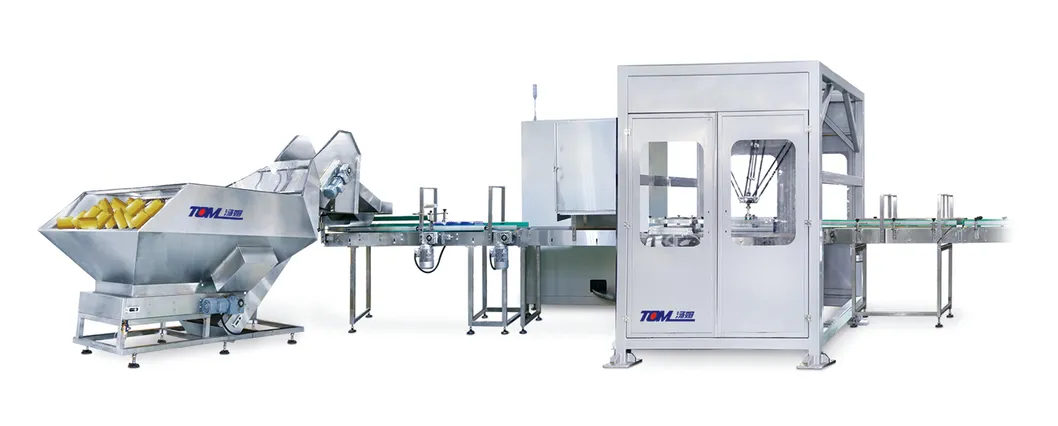

1. Intelligent rotary bag packing machine

1. Vertical bag feeding, imported customized suction cups, suitable for a wide range of bag types, large bag storage capacity, 100% filling rate for each bag.

2. No bag opening or filling during operation, bags can be reused without waste.

3. Pre-filling + online weighing micro-compensation technology, accurate measurement and fast speed.

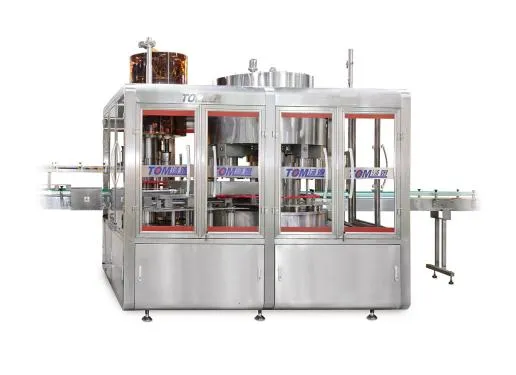

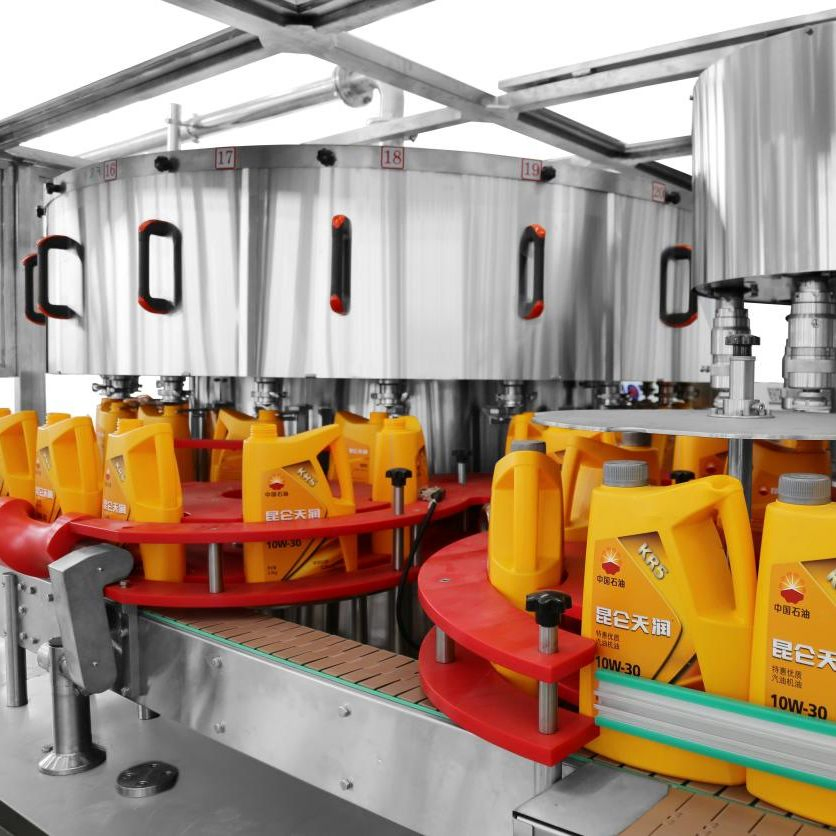

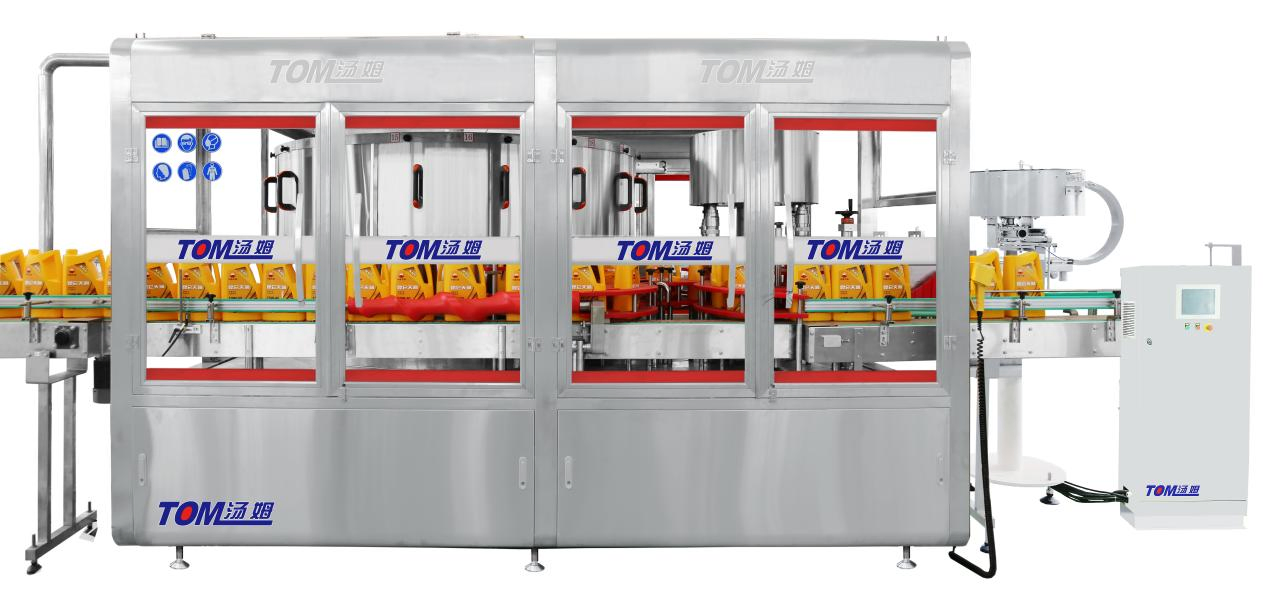

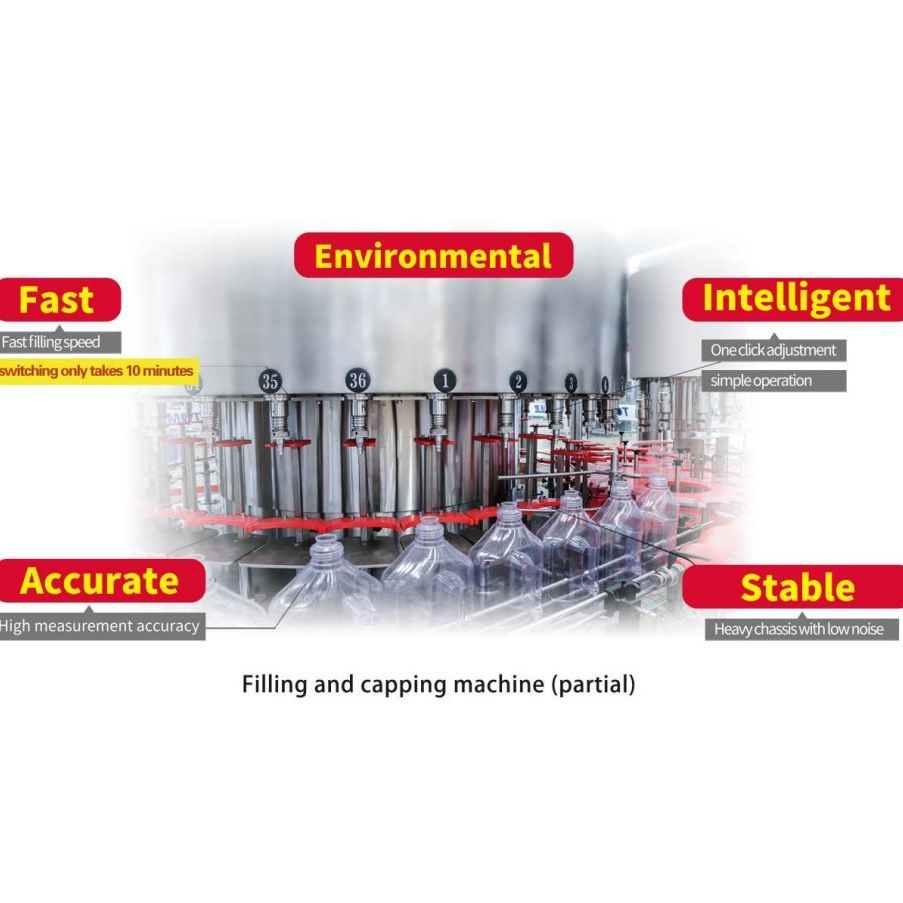

2. DGP-CZ weight filling and capping machine

Main parameters:
1. Production speed: 3000-18000 bottles/hour (according to 5L)
2. Applicable bottle type: ≥ Φ 18mm
3. Packaging specifications: 500 ~ 6000ml

3. Intelligent carton opening machine

Main parameters:
1. Applicable carton: L200-500×W150-400×H100-450mm
2. Table height: minimum 600mm, maximum 720mm
3. Carton opening speed: 8-12 cases/min
4. Air source: 0.6Mpa
5. Applicable tape: 48/60/72mm

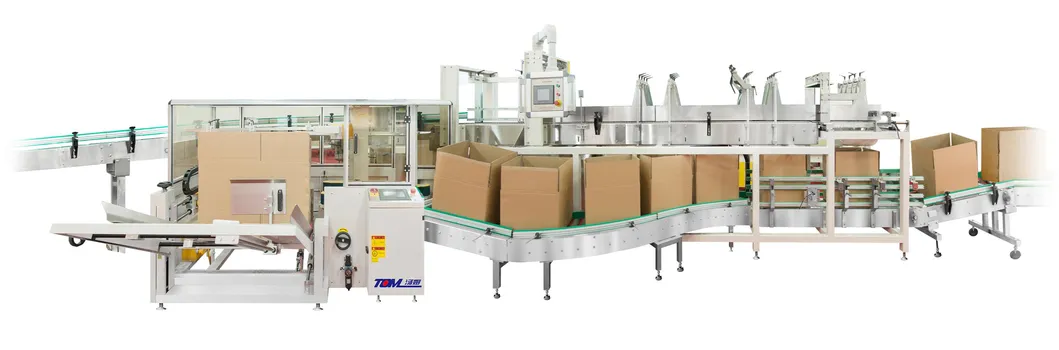

4. Intelligent drop type carton packing machine

1. Variety of carton packing forms

2. Production capacity: ≤12 cases/min

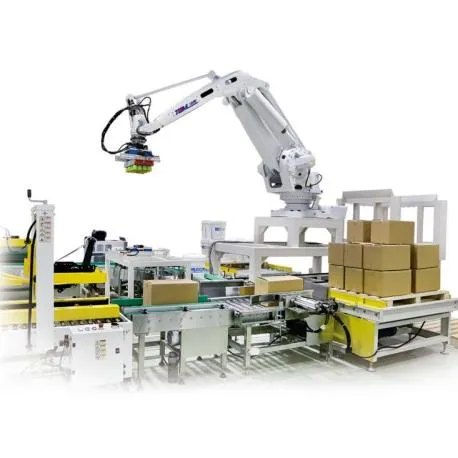

5. Collaborative palletizing robot

Maximum load: 20Kg
Capacity: 4-8 boxes/minute
Working radius: 1600mm
Vertical distance: 2100mm

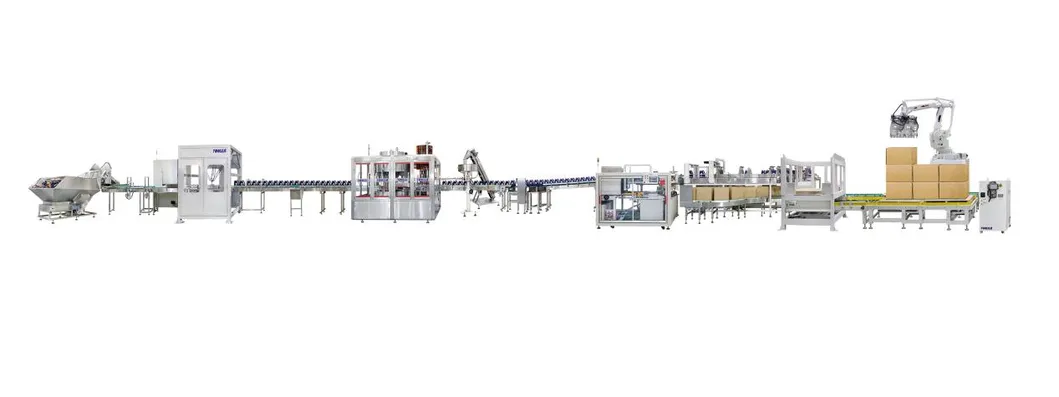

Fully automatic spider-hand bottle handling machine, reverse barrel detection, fully automatic filling and capping integrated machine with online weight inspection and rejection, aluminum foil sealing machine, inkjet printer, photo inspection. High-speed unpacking machine. Fully automatic drop-type packing machine. Online box weight inspection and rejection machine. Sealing machine, fully automatic stack supply machine. Robot palletizing machine.

Application

Our Advantages

Certifications

Frequently Asked Questions (FAQ)

What product sizes are compatible with this packaging line?

This line is specifically designed to handle containers ranging from 1L to 5L in volume, with bottle widths from 80mm to 180mm and bottle heights from 80mm to 220mm.

What products can be filled using this packaging assembly line?

The packaging line is highly versatile and ideal for filling small packages of products such as antifreeze, lubricating oil, brake fluid, automotive maintenance products, and other chemical or liquid formulations.

How many operators does it take to manage this packaging line?

Due to the high level of automation throughout the process, the entire line only requires 2 to 3 operators, reducing manual labor overheads.

What is the production capacity and packaging accuracy of the system?

The system features a production capacity of 3,000 to 18,000 BPH (calculated using 5L parameters) with a high filling and packaging accuracy rating of 0.5-1.5%.

What features ensure the durability and sanitation of the machine line?

The entire assembly line is constructed using premium stainless steel, providing robust corrosion resistance, easy cleanability, and a neat look for production facilities.

What does the end-of-line packaging process involve?

The process includes automated drop-type carton packing, online box weight inspection and rejection, tape sealing, and collaborative robotic palletizing to wrap up the line operations securely.
