| Model | D-250(X) | D-320 | D-400 | D-450(X/W) | D-600(X/W) |
| Capacity (B/M) | 40-330 | 40-230 | 30-180 | 20-80 | 20-80 |
| Bag width (mm) | 30-110 | 50-160 | 50-180 | 50-160 | 50-200 |
| Bag length (mm) | 45-280 | 65-330 | 130-400 | 120-450 | 120-450 |
| Film width | Max 250mm | Max 300mm | Max 400mm | Max 450mm | Max 600mm |
| Packing volume | 3.6m³ | 4.5m³ | 4.7m³ | 5.5m³ | 6.2m³ |
| Power supply | 220V 50/60Hz | ||||
| Power | 1.5KW | 1.7KW | 2KW | 2.3KW | 3KW |
| Machine weight | 300kg | 380kg | 420kg | 450kg | 500kg |

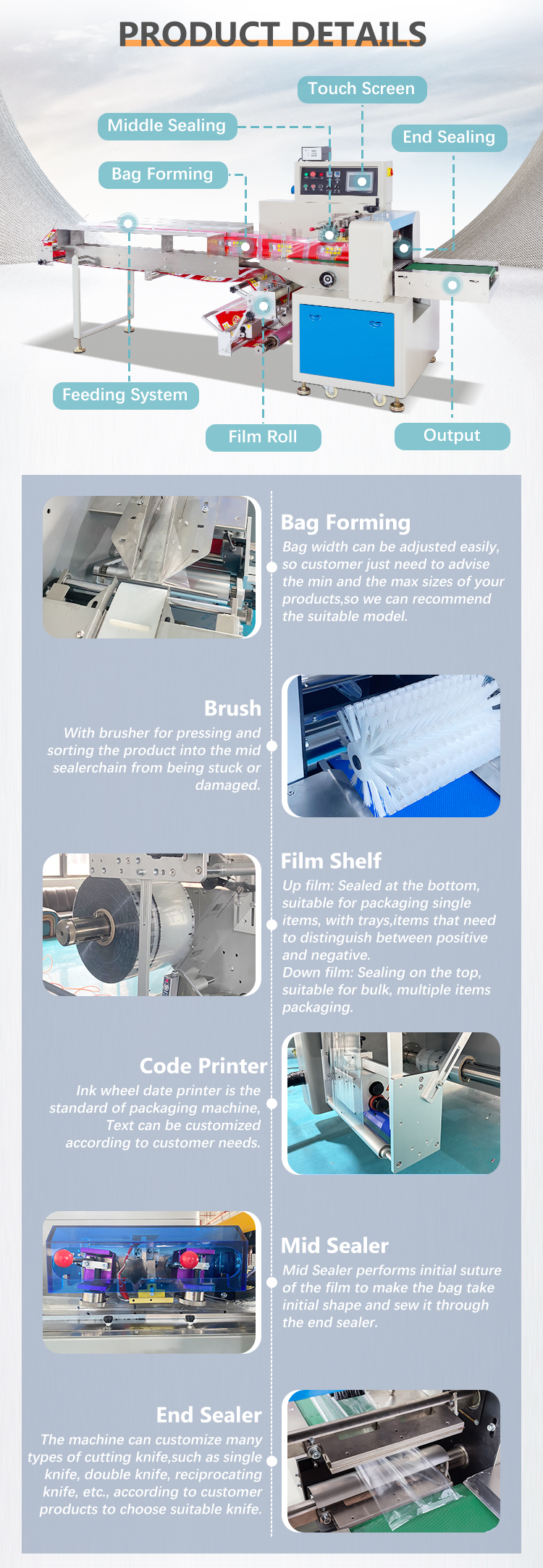

The dual frequency conversion system allows the bag length to be set and cut in a single step. This eliminates the need for manual adjustment, which reduces packaging film waste and saves operation time.

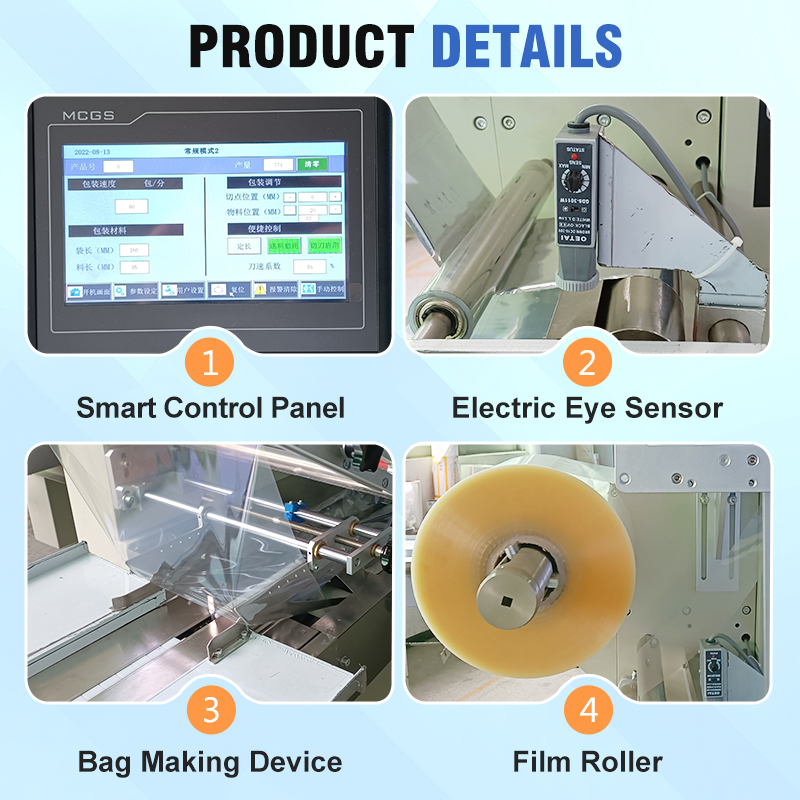

The photoelectric eye tracks the color mark on the packaging film accurately. This ensures that the sealing and cutting positions are precise, maintaining uniform product presentation.
Selecting the right model depends on your package dimensions (width and length) and capacity requirements. For instance, the D-250 model is suitable for smaller bags up to 110mm wide, while the D-600 model handles wider bags up to 200mm.
Yes. The machine features a positioned stop function that automatically prevents the sealing knife from sticking to the film, ensuring smooth operations and preventing film wastage during stops.
Yes. All machine controls are managed via software. This architecture makes it very easy to adjust functions, update operations, and perform technical upgrades in the future.
