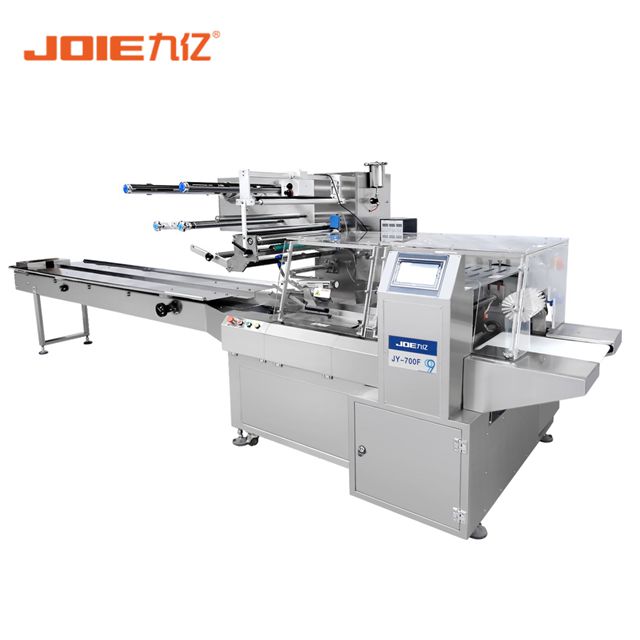

| MODEL | Max. FILM WIDTH | Max. BAG WIDTH | Max. BAG HEIGHT | CONTROL SYSTEM |
|---|---|---|---|---|
| JY-280 | 280MM | 130MM | 65MM | 1 SERVO/3 SERVO |
| JY-320 | 320MM | 150MM | 70MM | 1 SERVO/3 SERVO |
| JY-350 | 350MM | 175MM | 80MM | 1 SERVO/3 SERVO |
| JY-450 | 450MM | 215MM | 90MM | 1 SERVO/3 SERVO |
| JY-700 | 700MM | 340MM | 120MM | 3 SERVO |

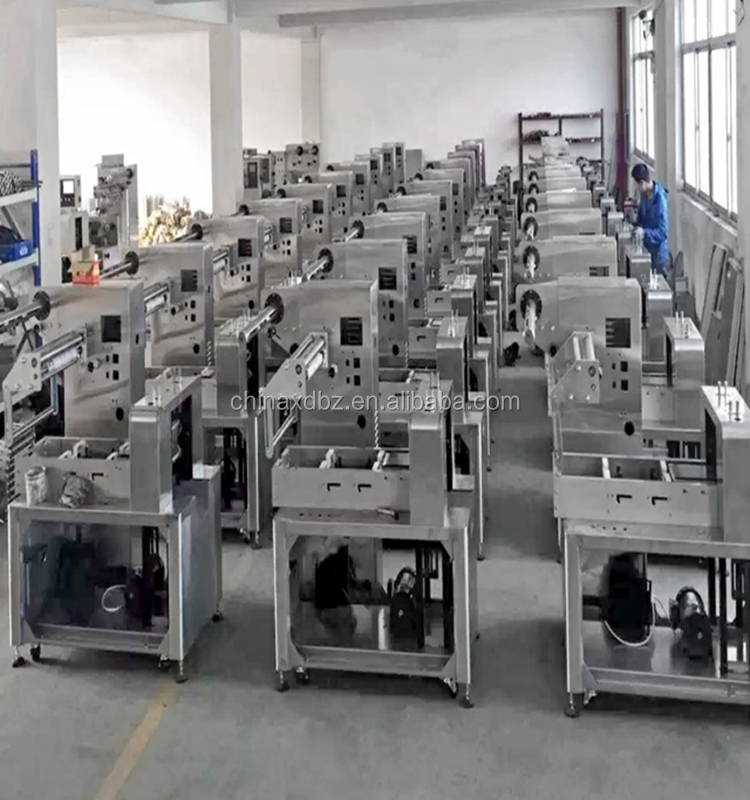

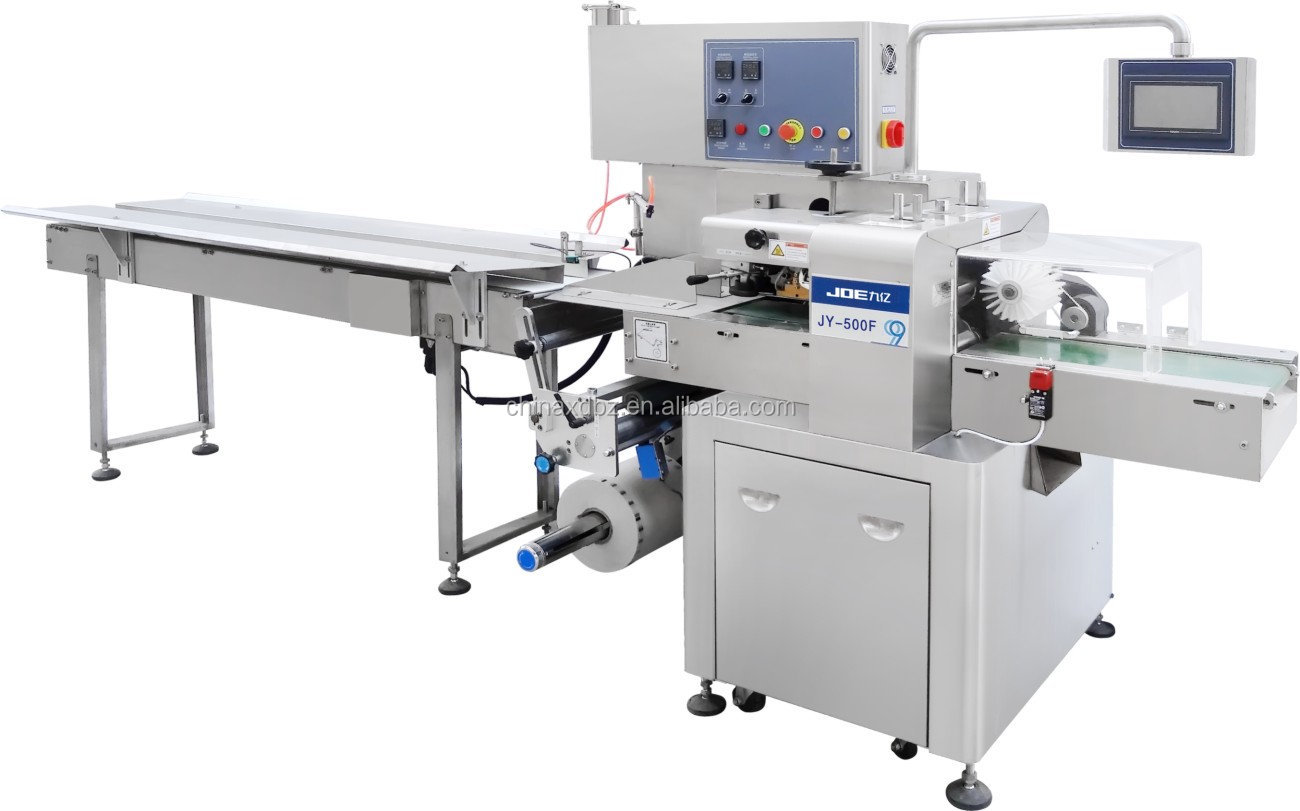

all of packing machine structures are making in-house,with high inspection before assembling;we have carbon steel machine body or stainless steel machine body for customer choose.

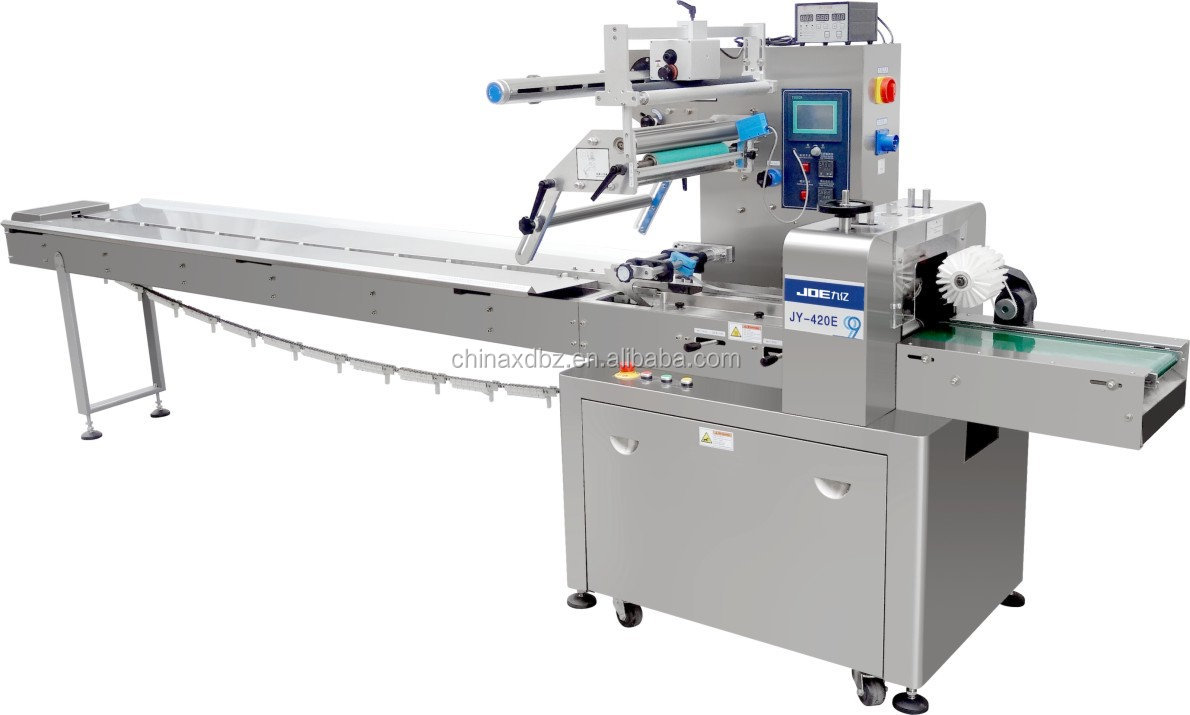

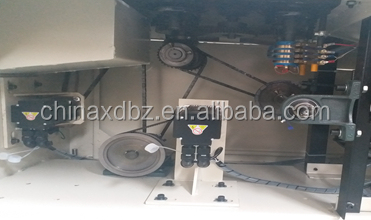

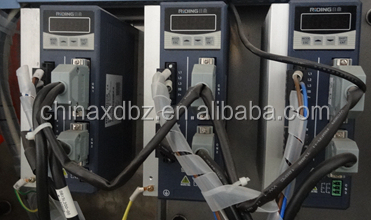

Our flow wrapping machines are controlled by Servo Drive,each machine we give 1 set servo drive or 3 sets servo drives.In order to make our packing more smarter. Servo Drive control product feeding/bag length setting/bag sealing separate.
The control system of servo motors has high reliability, good control function and convenient application. Better than dual frequency conversion system.
Digital temperature control for horizontal and vertical seal. Chinese/English/Russia/Arabic/Franch/Spainish language. The system has simple structure, high system reliability, and the data recorded are reliable and the operation and maintenance are convenient.

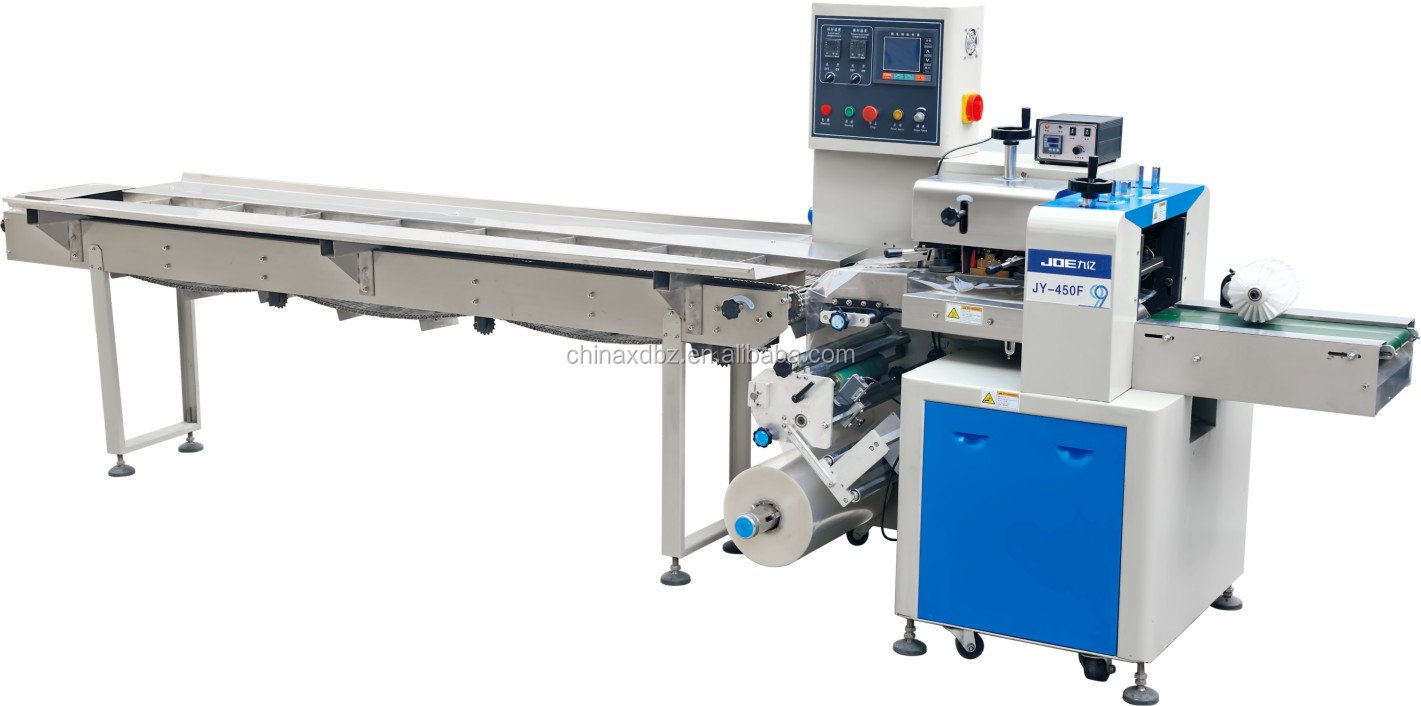

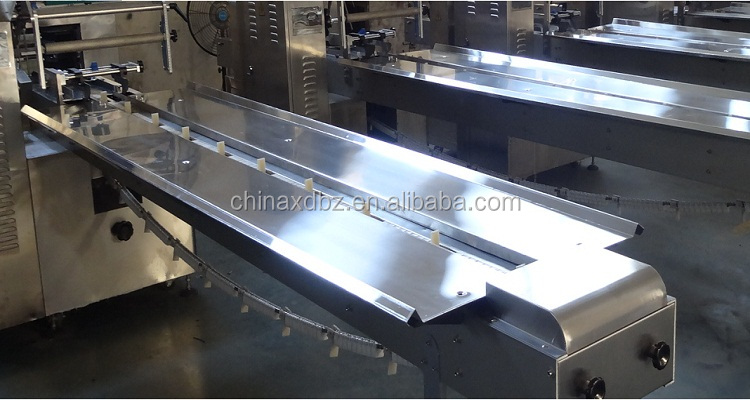

Our flow wrapping machine have product feeding system with chian and finger pusher, suitable for solid products such as cakes/breads/cookies etc... Chain and pusher made by stainless steel 304. Pusher size can be customized depends on product size.

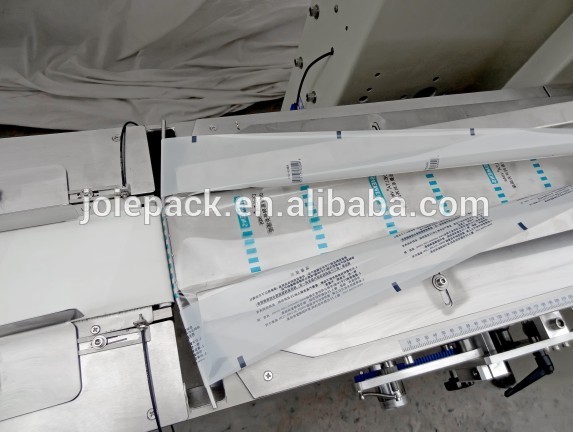

Our flow wrapping machine also have conveyor belt feeding system for sticky products or multi-pieces pack in one package. conveyor belt is food standard plastic/rubber material. it is easy to clean and replace.

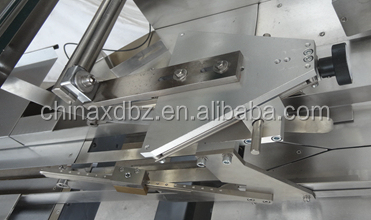

Adjustable bag forming system for different bag size.

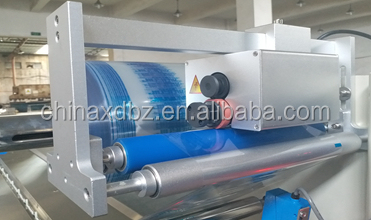

Our flow wrapping machine has installed ink roll date coder for manufacturing date/expiry date/lot no. printing.

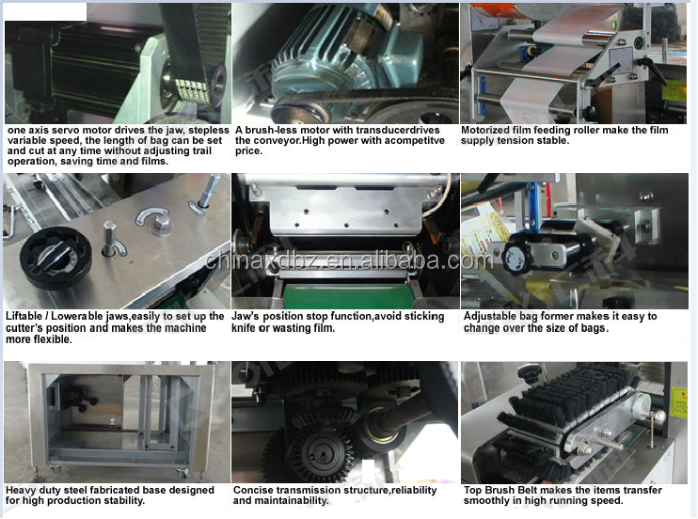

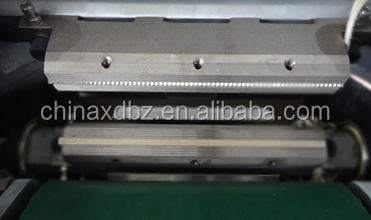

Our flow wrapping machines have single jaw or double jaws different product height/width. we will give 90/99/120/135mm center distance of jaws.

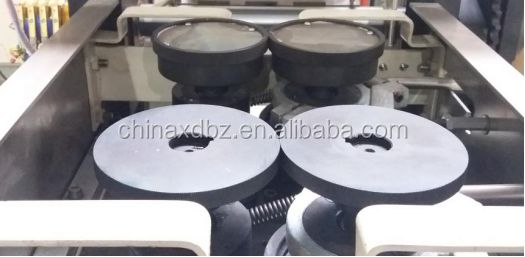

Our flow wrapping machine adopt wheel heating type, quite different from plate heating, the bag seals well, not leakage, beautiful sealing effect on the back sealing (pillow type). It's very stable and high quality.

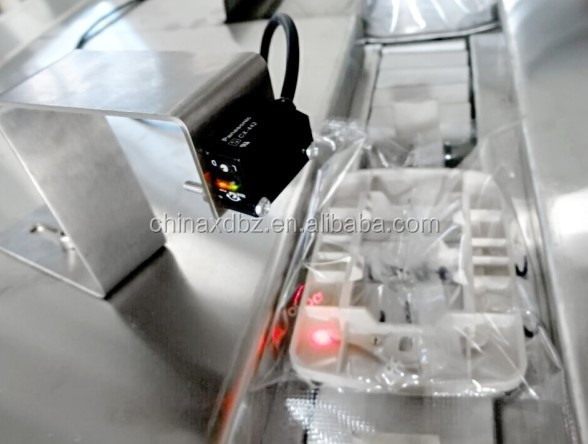

Our flow wrapping machine adopt Panasonic eye mark to track product, no product, no packing, prevent empty bag from packing. Advantage: Save film.

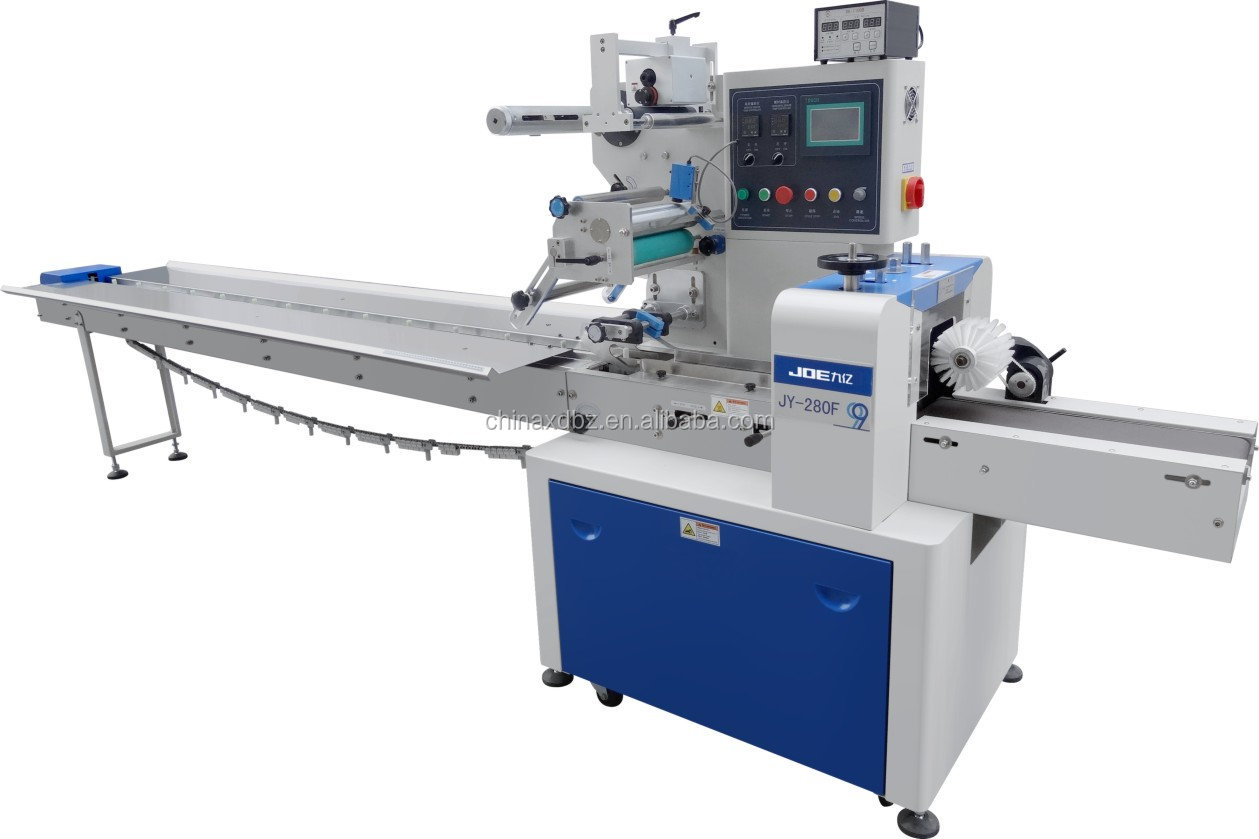

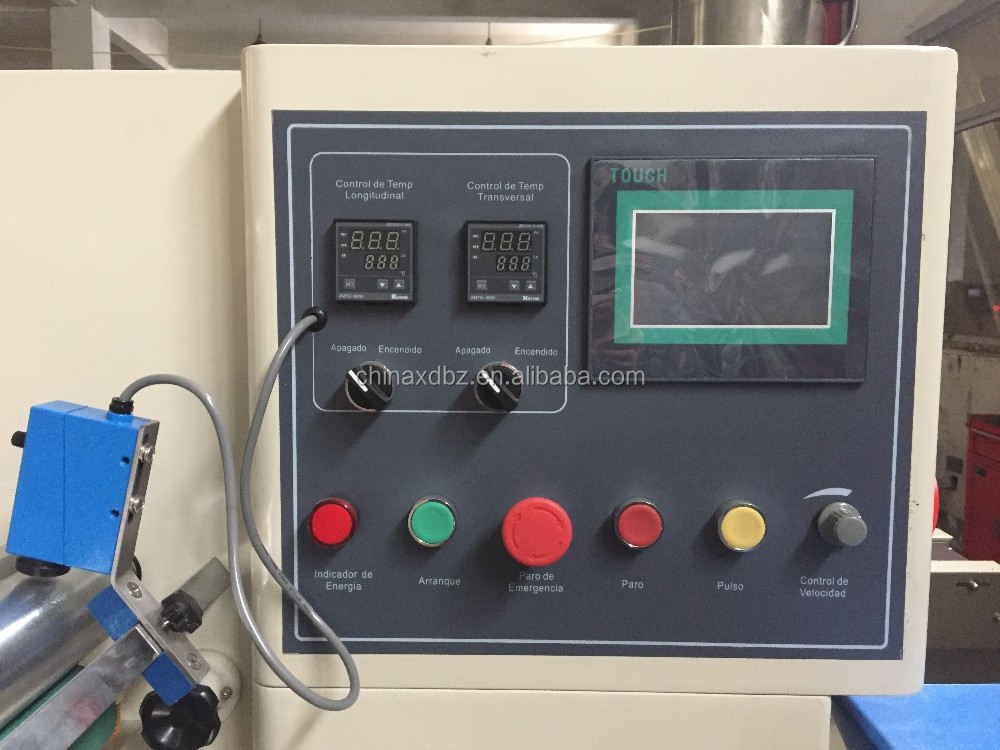

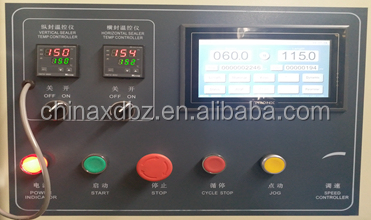

Smart control panel, digital display temperature controller, touch screen with different language to choose, flexible buttons to make the operation easily and conveniently.

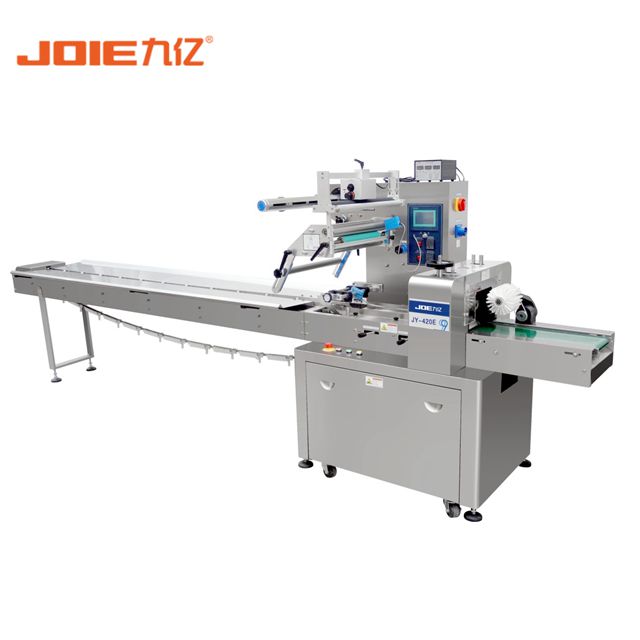

It is designed to wrap solid items with a regular shape. This includes bakery items like cakes, bread, biscuits, candy, tortillas, and mooncakes, as well as non-food products like face masks, boxes, bottles, and general block items.
The system utilizes independent servo motors to control the conveyor belt, center sealing, and end sealing. This guarantees higher system reliability, precise control, simplified maintenance, and prevents material waste.
Yes, the machine features an intelligent Panasonic eye mark tracking system. If no product is detected on the conveyor belt, the machine will not feed film or form a bag, effectively saving packing materials.
Yes, the machine is equipped with an adjustable bag forming system. Operators can modify parameters (like bag length, speed, and position) directly on the 7" digital touch screen, which stores up to 99 parameter groups.
Absolutely. All machine parts that come into contact with the product are made of SUS 304 food-grade stainless steel to ensure sanitation and hygiene standards.
Yes, the machine comes equipped with an ink roll date coder that automatically prints the manufacturing date, expiry date, and lot numbers on the film during the packaging process.
