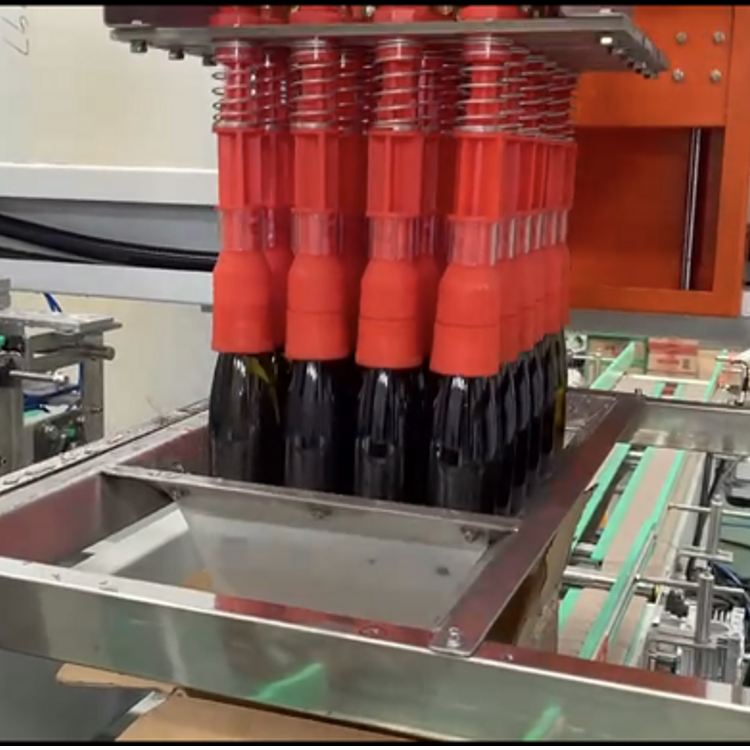

Case Packer with Robotic Pick and Place Arm for Bottled Beverage and Food Products
Case Packer with Robotic Pick and Place Arm for Bottled Beverage and Food Products
Case Packer with Robotic Pick and Place Arm for Bottled Beverage and Food Products
Case Packer with Robotic Pick and Place Arm for Bottled Beverage and Food Products
Case Packer with Robotic Pick and Place Arm for Bottled Beverage and Food Products
1 / 5
Case Packer with Robotic Pick and Place Arm for Bottled Beverage and Food Products
Case Packer with Robotic Pick and Place Arm for Bottled Beverage and Food Products
Case Packer with Robotic Pick and Place Arm for Bottled Beverage and Food Products
Case Packer with Robotic Pick and Place Arm for Bottled Beverage and Food Products
Case Packer with Robotic Pick and Place Arm for Bottled Beverage and Food Products

Case Packer with Robotic Pick and Place Arm for Bottled Beverage and Food Products

Send Inquiry

Product Description

Product Overview

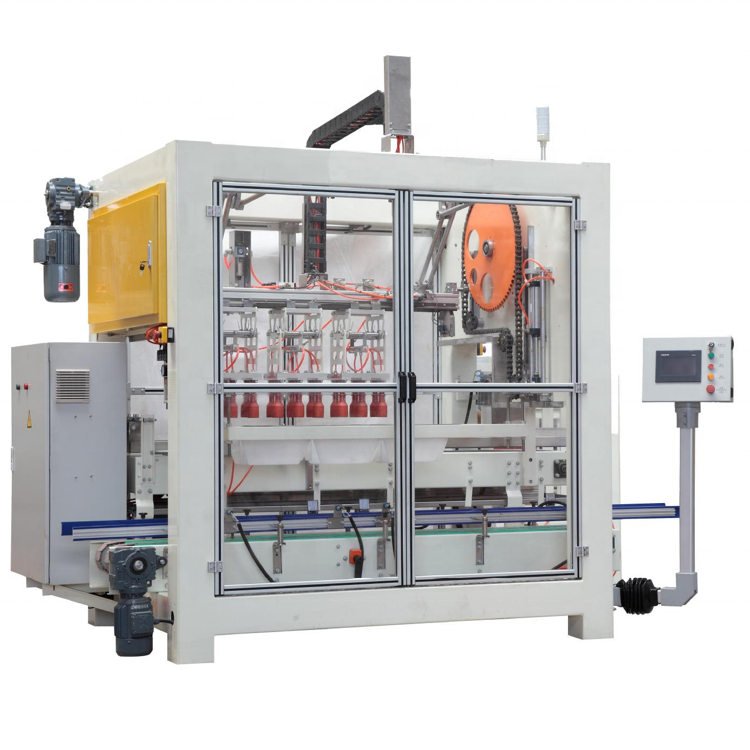

Automatic Vertical Pick and Place case Packer Top Loading case Packer Top Load case Packing Machine for Bottles
This equipment is a frame-type cartoning machine with pneumatic and electric operating modes. It has compact structure, beautiful appearance, low energy consumption, stable operation and convenient operation. The rocker arm works flexibly and is driven by a variable frequency motor for smooth operation.
Advantages of the equipment
The side-feed bottle method occupies a small area, simplifies the conveying system in front of the cartoning machine, and reduces the investment cost of the entire line of equipment.
Adopting a rocker-type structure
The structure is more advanced and reasonable, the movement is faster and smoother, and the power consumption is smaller.
PRODUCT SPECIFICATIONS
Model XY-KZF600
Rated power 3PH380V/50H
Air pressure 0.6-0.8Mpa, 350NL/min Gas pipe port: Φ12
Measurement 6000*14500*2300
Max. packing size L < 550, W < 400, H < 350 (mm)
Output Block/h 10-25 bags/min
Applicable bottle type Φ50-100 bottles
Power consumption 2.8KW/38KW
Table height (mm) 580 ± 50mm
PRODUCT CONFIGURATION

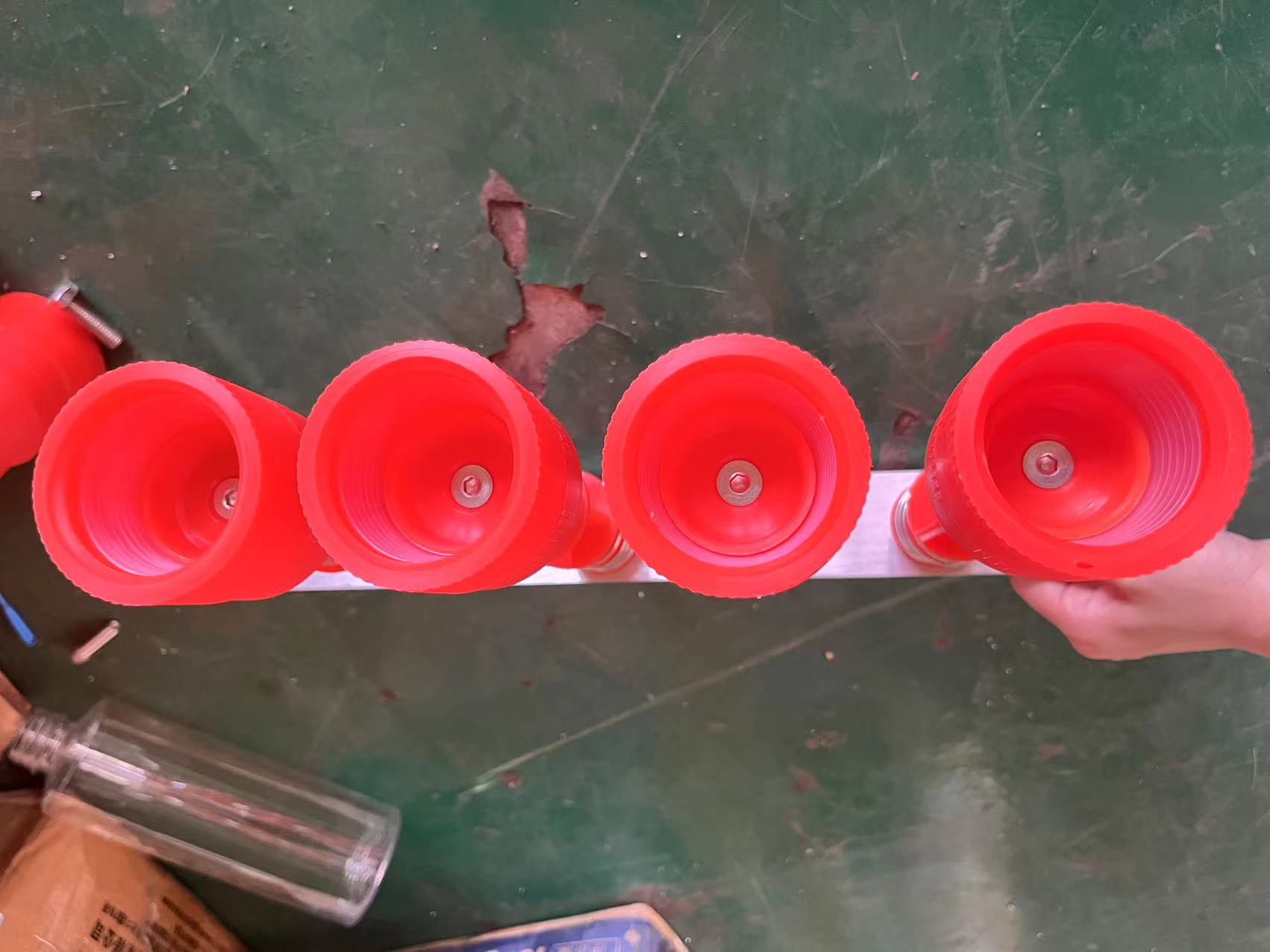

Product Configuration 1
Product Configuration 2

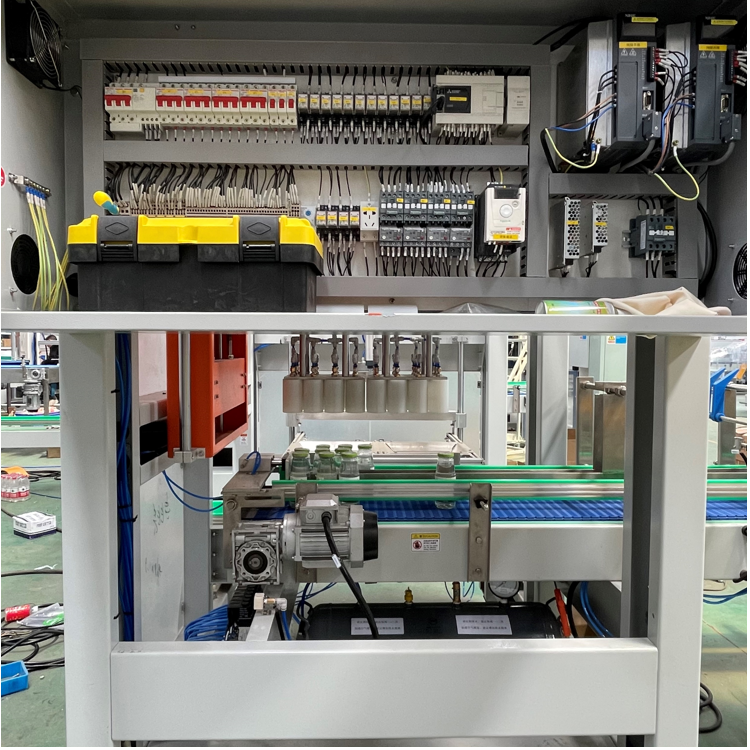

Product Configuration 3
Successful Project
Successful Project 1
Successful Project 2
Successful Project 3
Process details 1
Process details 2
Process details 3
Process details 4
Process details 5
Process details 6
Process details 7
SIMILAR PRODUCTS

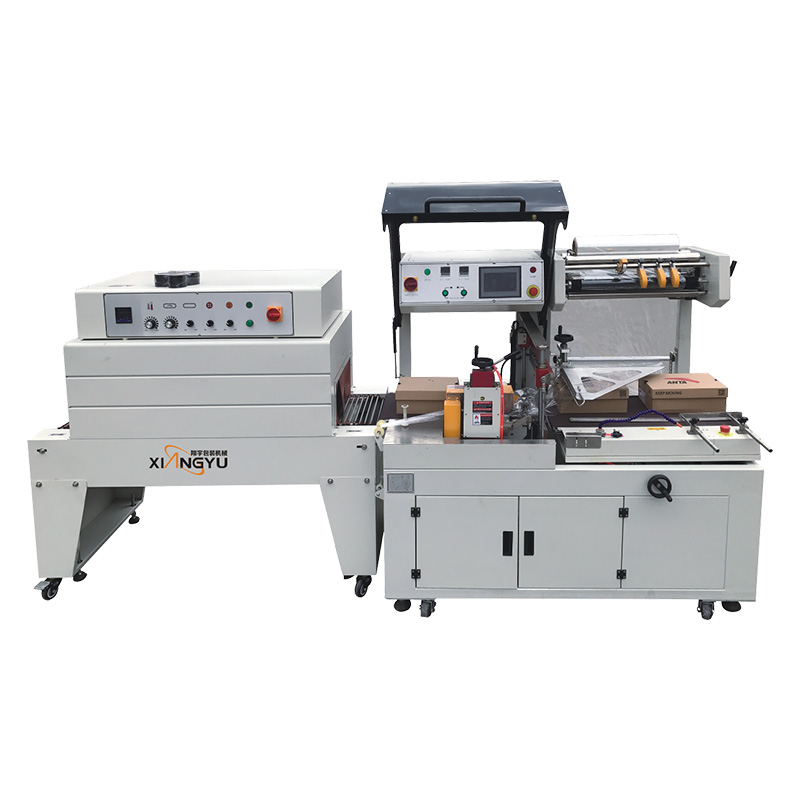

Similar Product 1

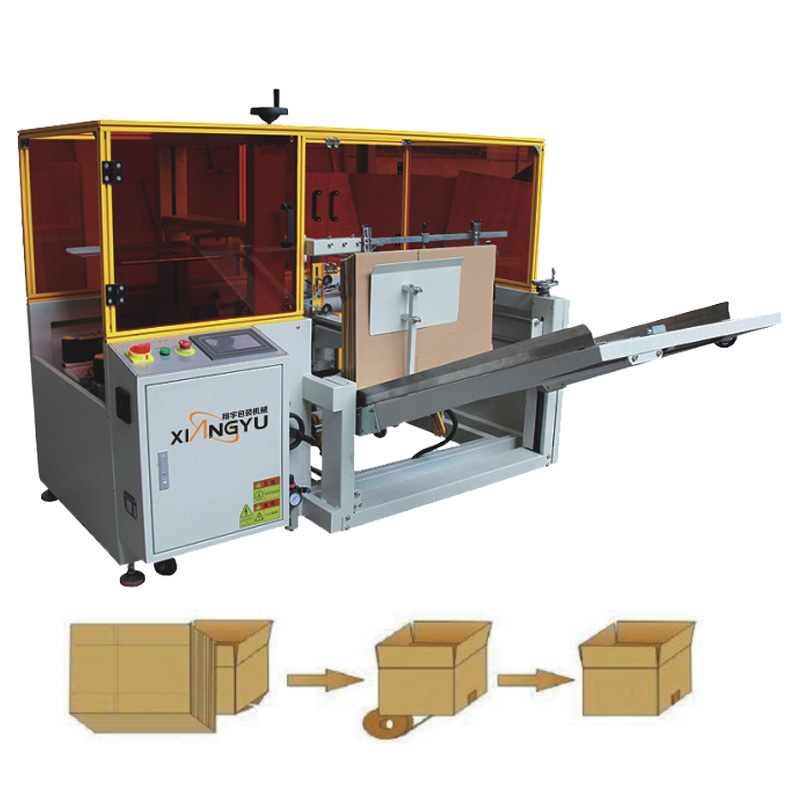

Similar Product 2

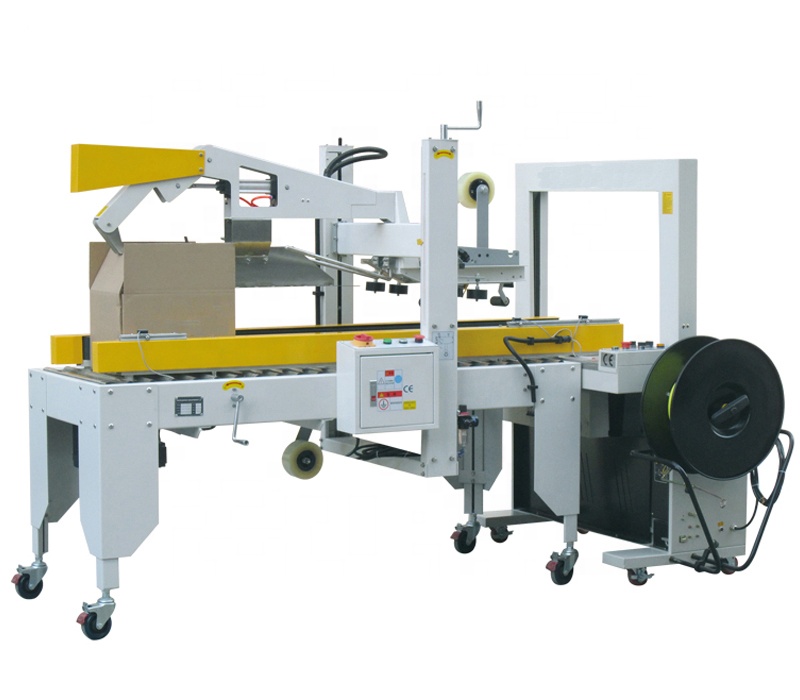

Similar Product 3
FAQ
FAQ info
What is the packing speed of the XY-KZF600 Case Packer?
The machine runs at a capacity of 10 to 25 bags/min, depending on the packing sizes and materials.
What bottle sizes are applicable for this top load case packing machine?
It is designed to handle bottle types with diameters ranging from Φ50mm to Φ100mm.
What are the advantages of the rocker-type structure?
The rocker-type structure is highly advanced and reasonable, ensuring faster and smoother movement while maintaining low power consumption.
How does the side-feed bottle system save investment costs?
The side-feed bottle method occupies a smaller footprint. This layout simplifies the conveying system prior to the cartoning stage, effectively reducing the overall equipment line investment costs.
What are the power and air pressure requirements for the equipment?
The equipment requires 3PH 380V/50Hz rated power with a power consumption of 2.8KW/38KW. The required air pressure is 0.6-0.8Mpa with a consumption of 350NL/min, utilizing a Φ12 gas pipe port.
