Advanced Palletizing Solutions
Our palletizer robots deliver exceptional efficiency and reliability for automated material handling and packaging applications. Featuring multiple series with payloads from 16kg to 50kg for various palletizing requirements.
High-Speed Operation
Rapid palletizing cycles with high throughput capabilities for maximum efficiency.
Flexible Payloads
Multiple payload options from 16kg to 50kg for diverse palletizing applications.
Smart Carton Handling
Advanced carton erecting and packing solutions for automated packaging processes.
Reliable Performance
Durable construction designed for continuous operation in demanding environments.

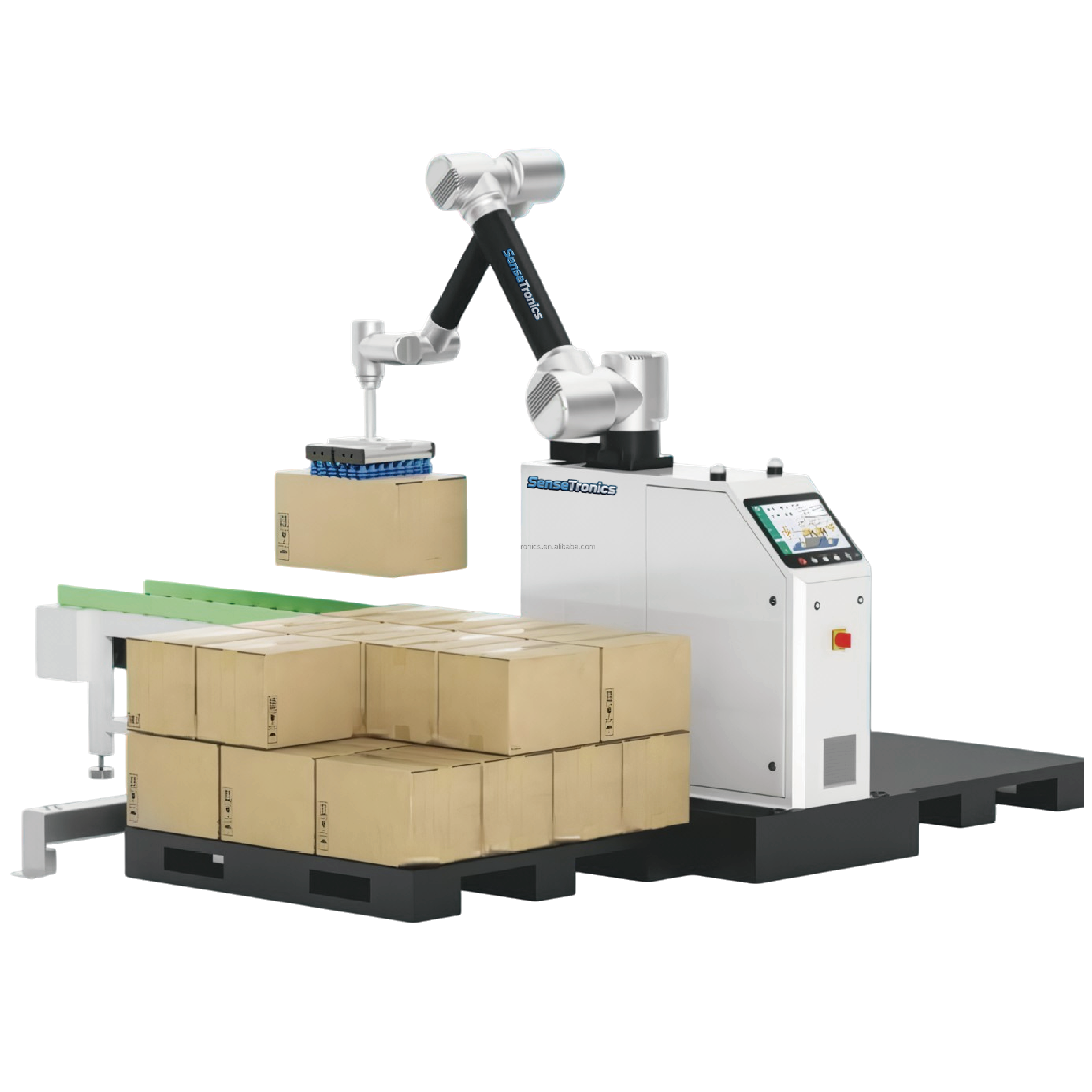

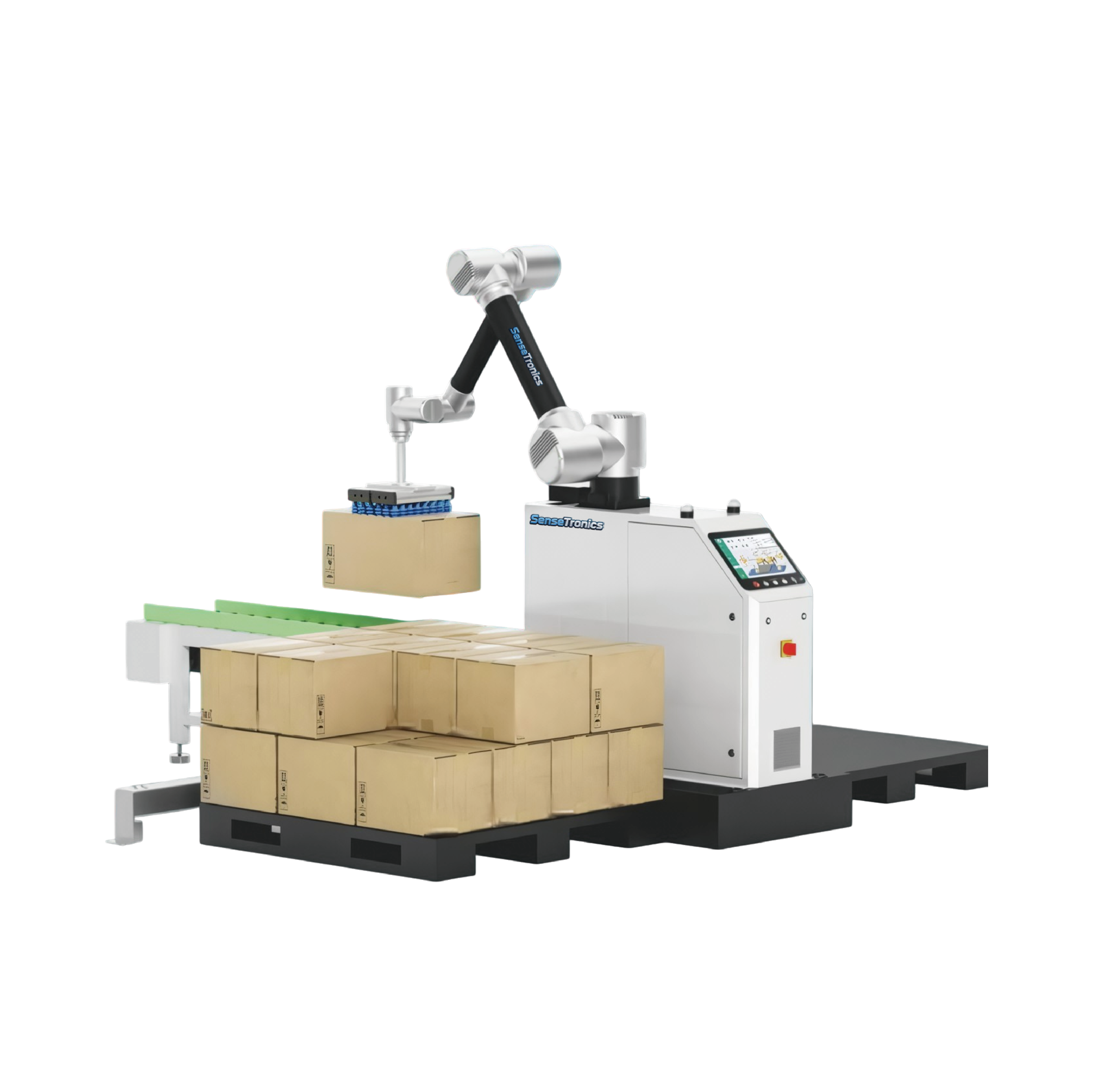

ST-20PL-MAX Palletizer Robot
ST-20PL-MAX enhances palletizing with a 20kg payload and robust performance, ideal for demanding, continuous industrial applications.

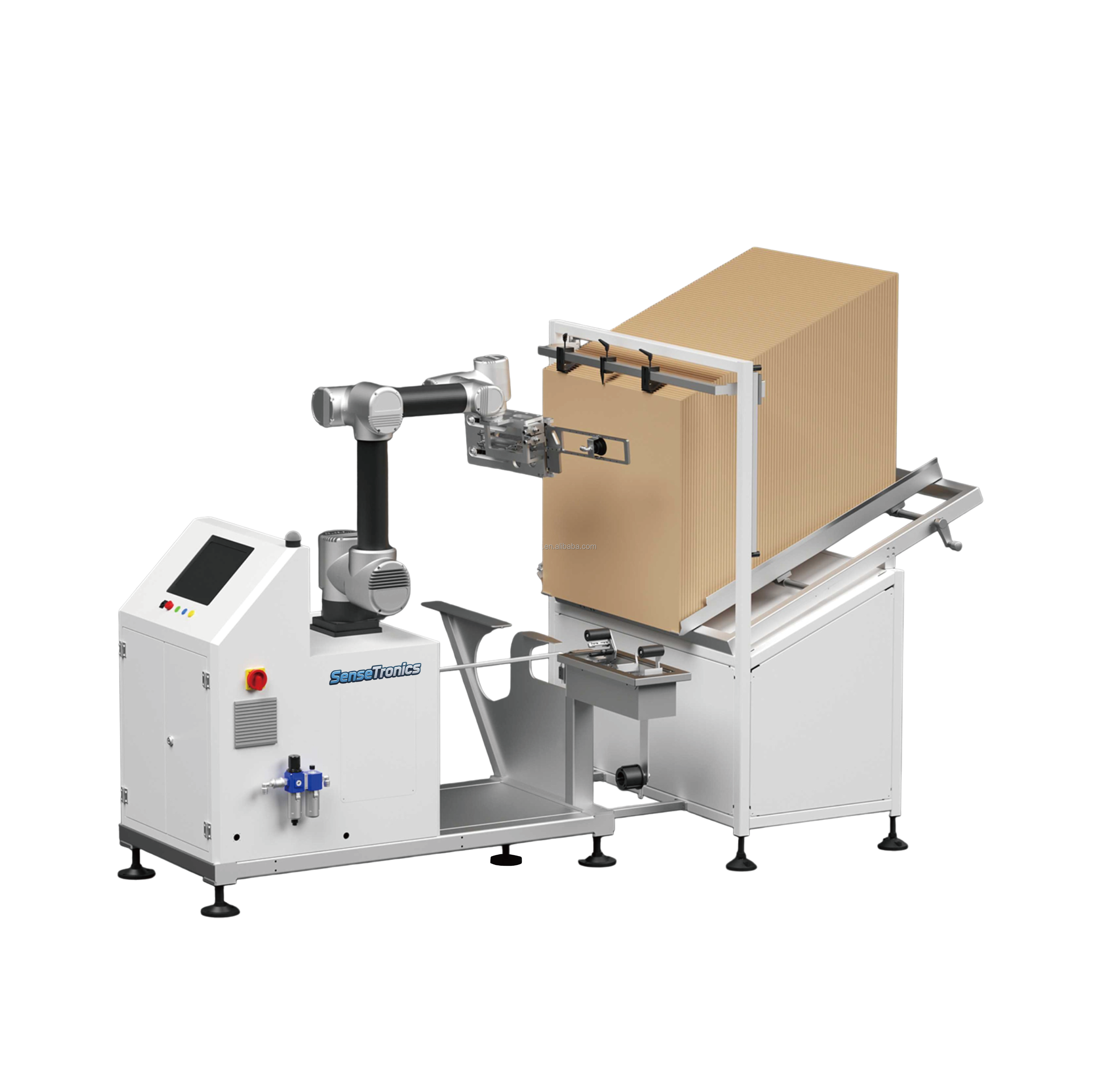

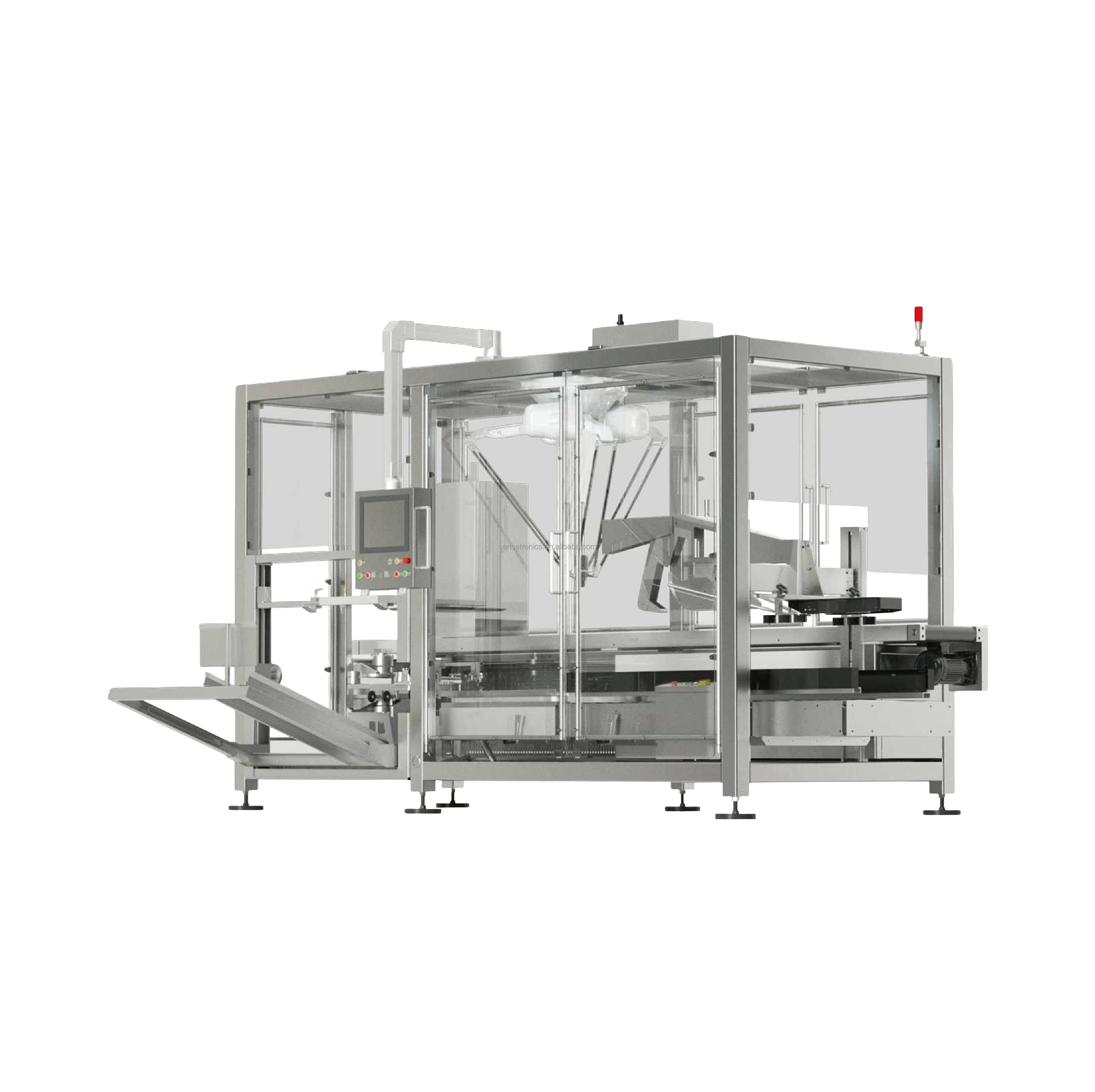

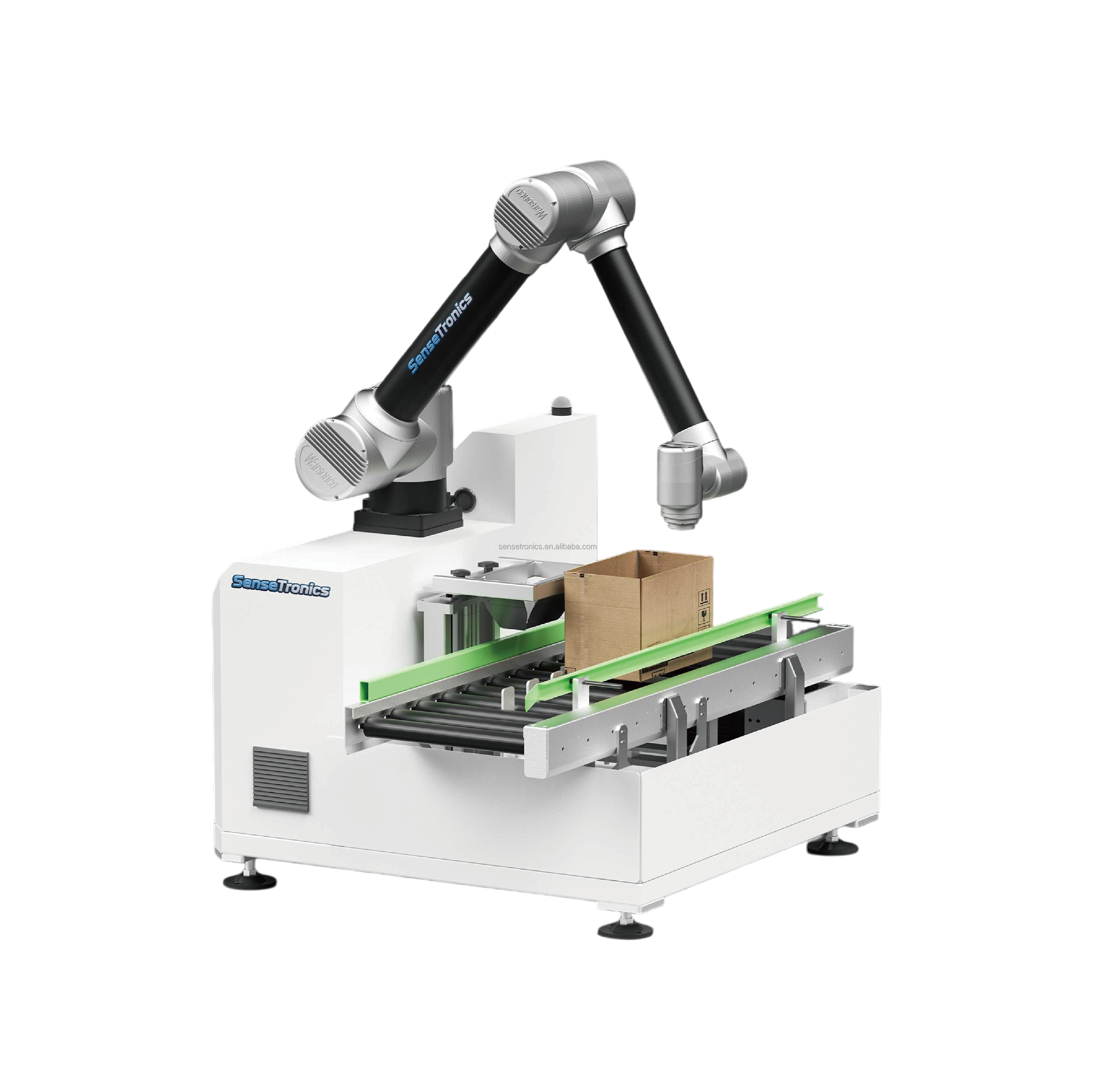

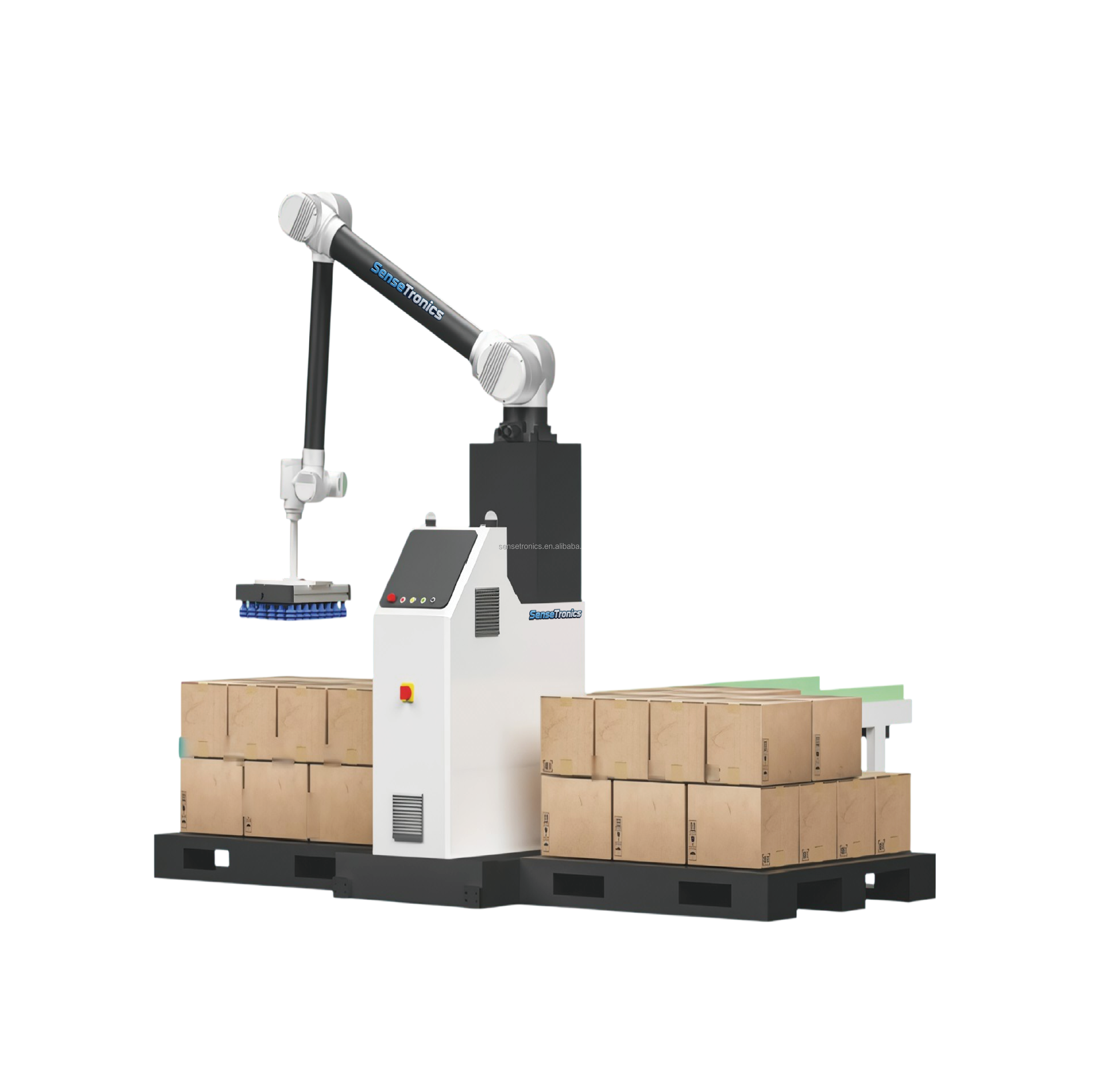

More Products for Your Reference
Datasheet
| Technical Specifications |
| Effective Load |
20kg |
| Motion Radius |
1900mm |

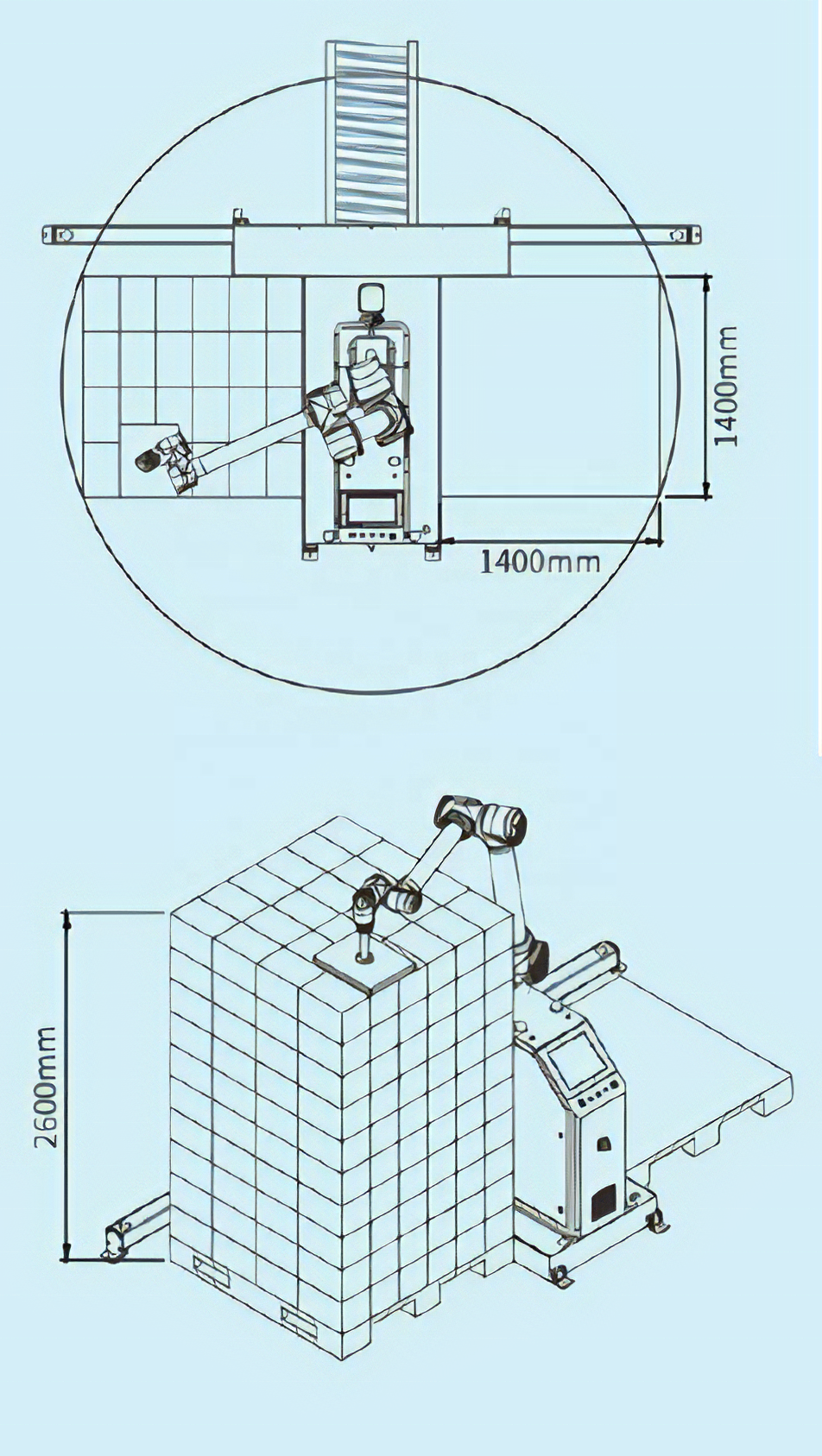

| Stacking Height |
2600mm |
| Stacking Speed |
MAX: 9pcs/min • MAX-G: 12pcs/min |
| Repeatability |
±0.04mm |
| Power Capacity |
3.3KVA |
| Robot Weight |
350kg |
| Communication Mode |
TCP/IP |
| Protection Rating |
IP54 |
| Equipment Floor Area |
1510×1720mm |
| Operating Area |
3550×1720mm |
| Floor Height |
3200mm |

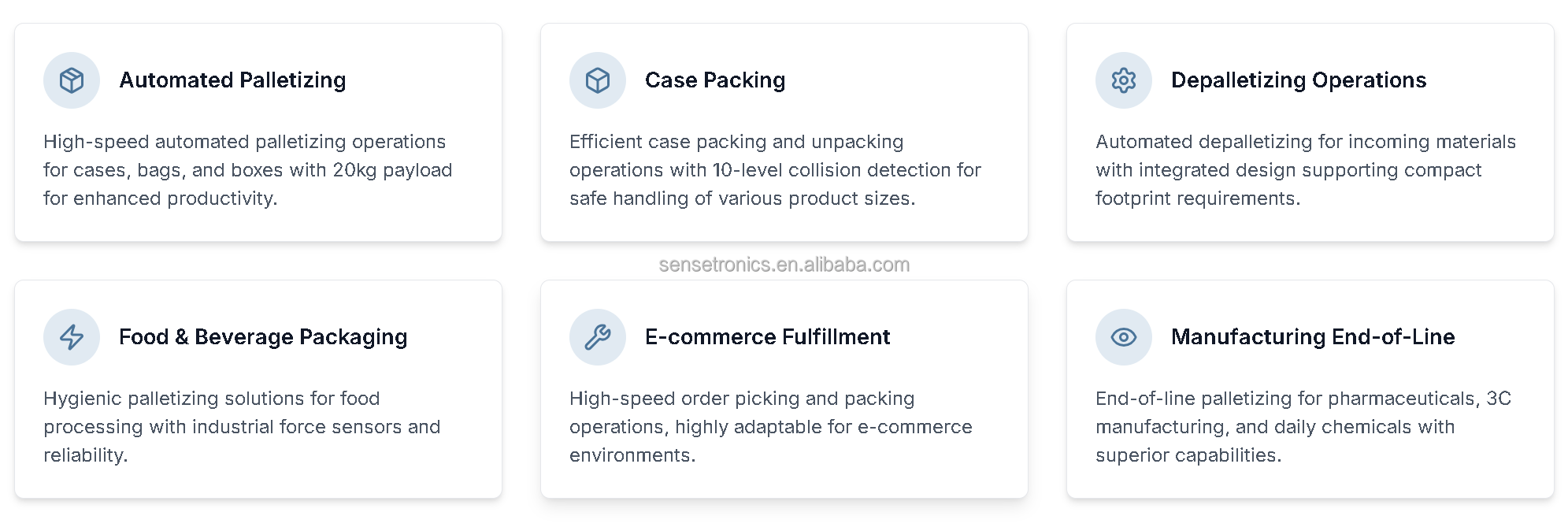

Applications
Versatile solutions for various industrial applications
About Us
We are a leading provider of integrated AI, robotics, and digital manufacturing solutions. We are dedicated to revolutionizing the manufacturing landscape by empowering businesses worldwide with cutting-edge technology that enhances productivity, ensures worker safety, and drives sustainable growth.
We believe in delivering more than just products; we provide comprehensive, transformative solutions that optimize manufacturing processes and create lasting value for our clients.
Technical Support
Our technical support services put you in direct contact with a team of robotics engineers who are experienced in both robotics and applications.
We offer assistance via phone, online chat, and e-mail.

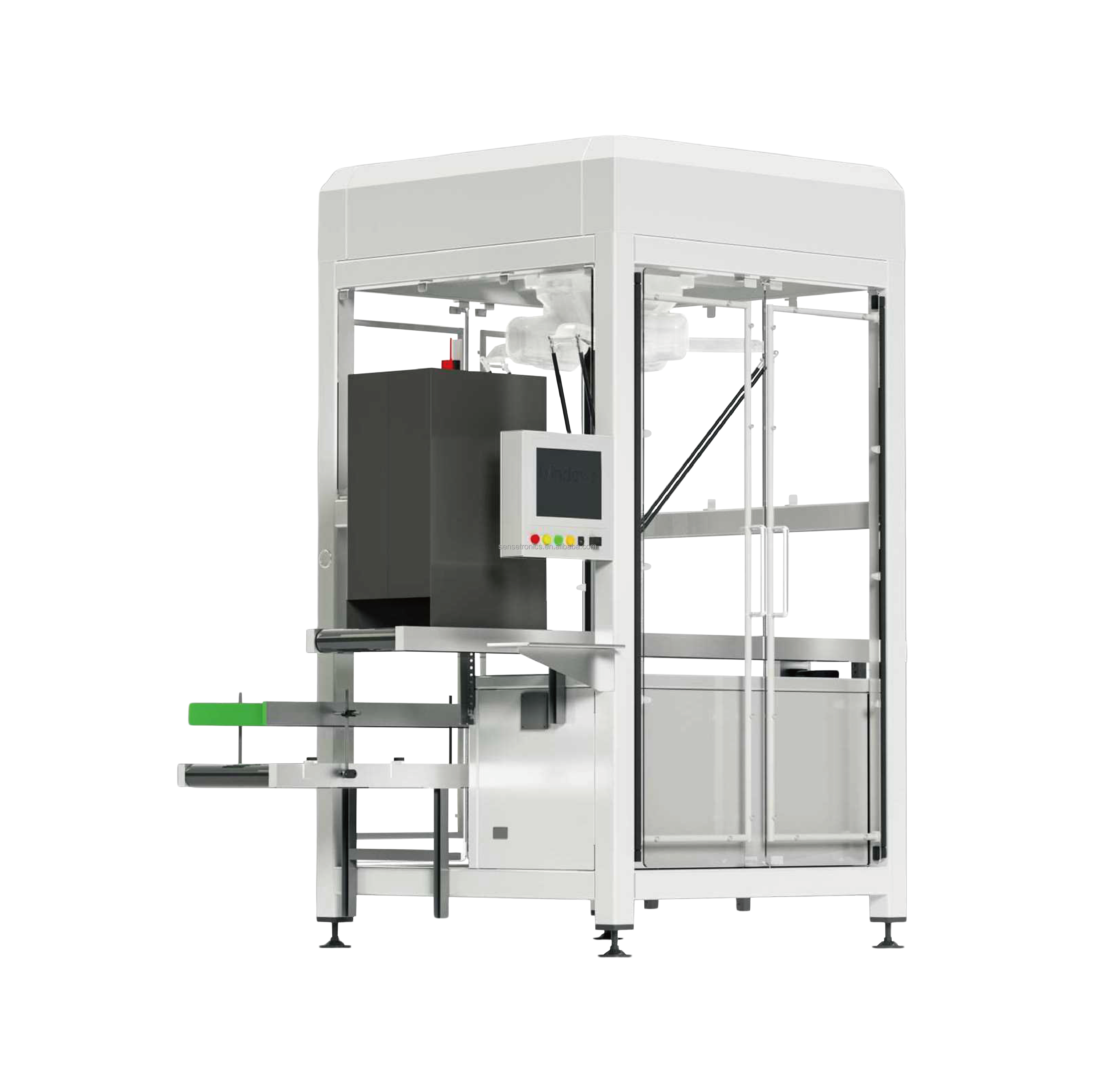

Product Showcase
Why Choose Us
Frequently Asked Questions
Q
What payload capacities do your palletizer robots support?
Our palletizer systems offer multiple payload configurations ranging from 16kg to 50kg, satisfying diverse material handling and packaging specifications.
Q
What is the maximum stacking speed of the ST-20PL-MAX?
The standard ST-20PL-MAX model supports a stacking speed of up to 9 pieces per minute, while the MAX-G high-speed version reaches up to 12 pieces per minute.
Q
Can these robots integrate with existing systems?
Yes, our robots use standard TCP/IP communication modes, allowing for seamless integration with modern automated manufacturing and packaging equipment.
Q
What protection rating do these industrial robots carry?
Our systems feature an IP54 protection rating, ensuring robust, reliable, and dust-resistant performance inside standard industrial environments.
Q
How accurate is the ST-20PL-MAX palletizer robot?
The ST-20PL-MAX offers extreme precision with a repeatability measurement of ±0.04mm, allowing accurate stacking operations.
Q
How is technical support provided?
We offer direct access to experienced robotics engineers for assistance. You can reach out to our support channels via phone, online chat, or email.
