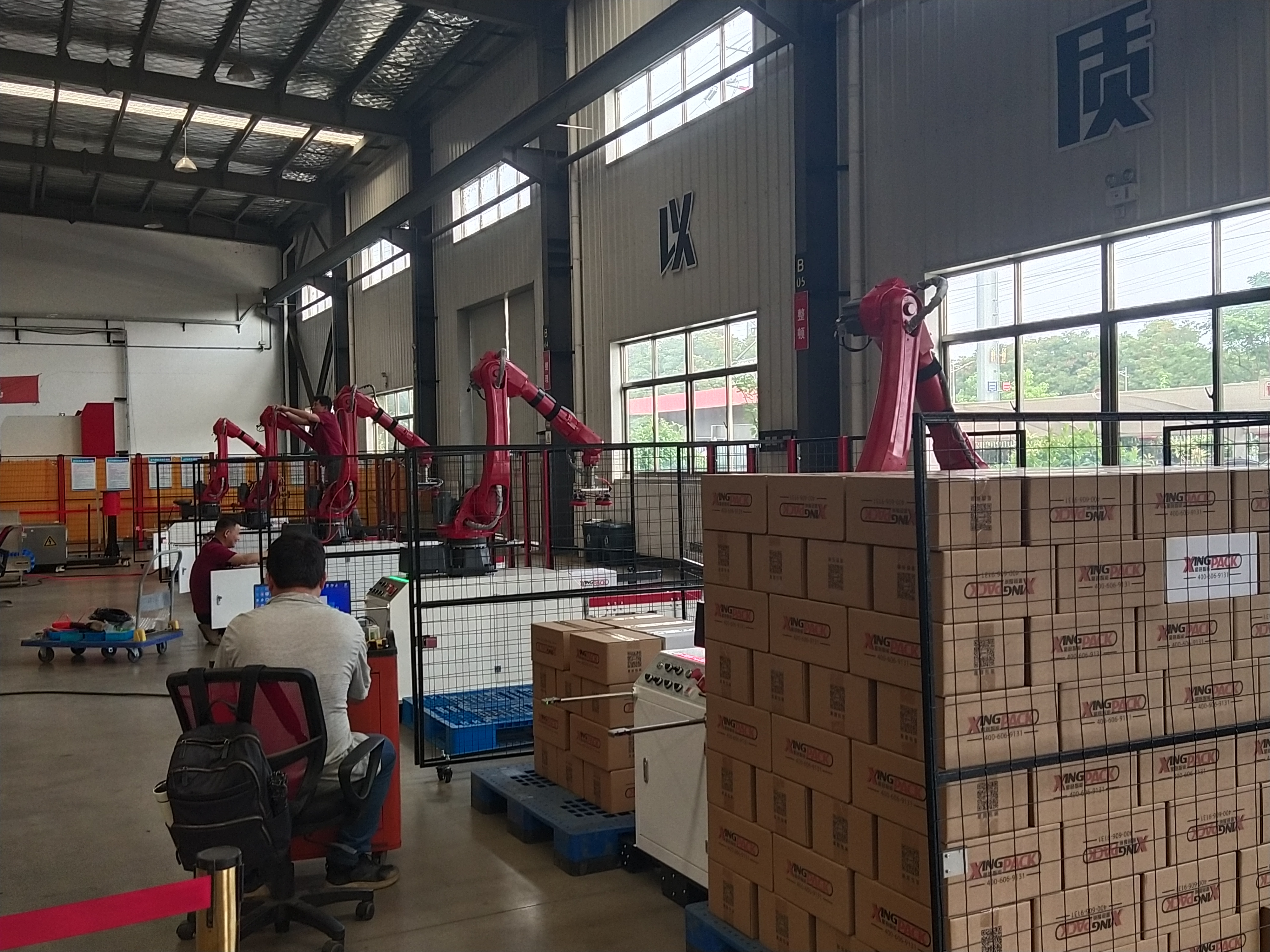

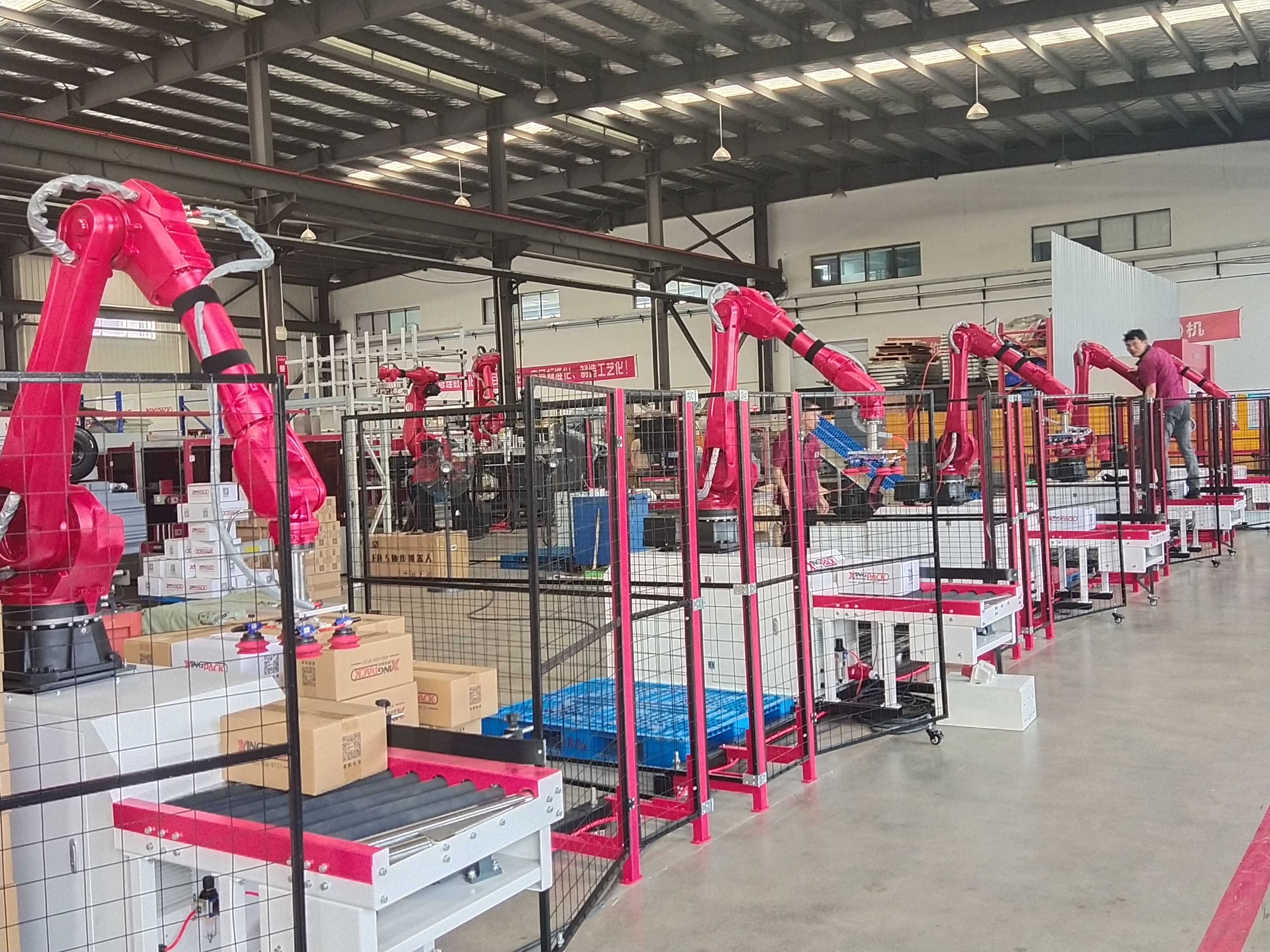

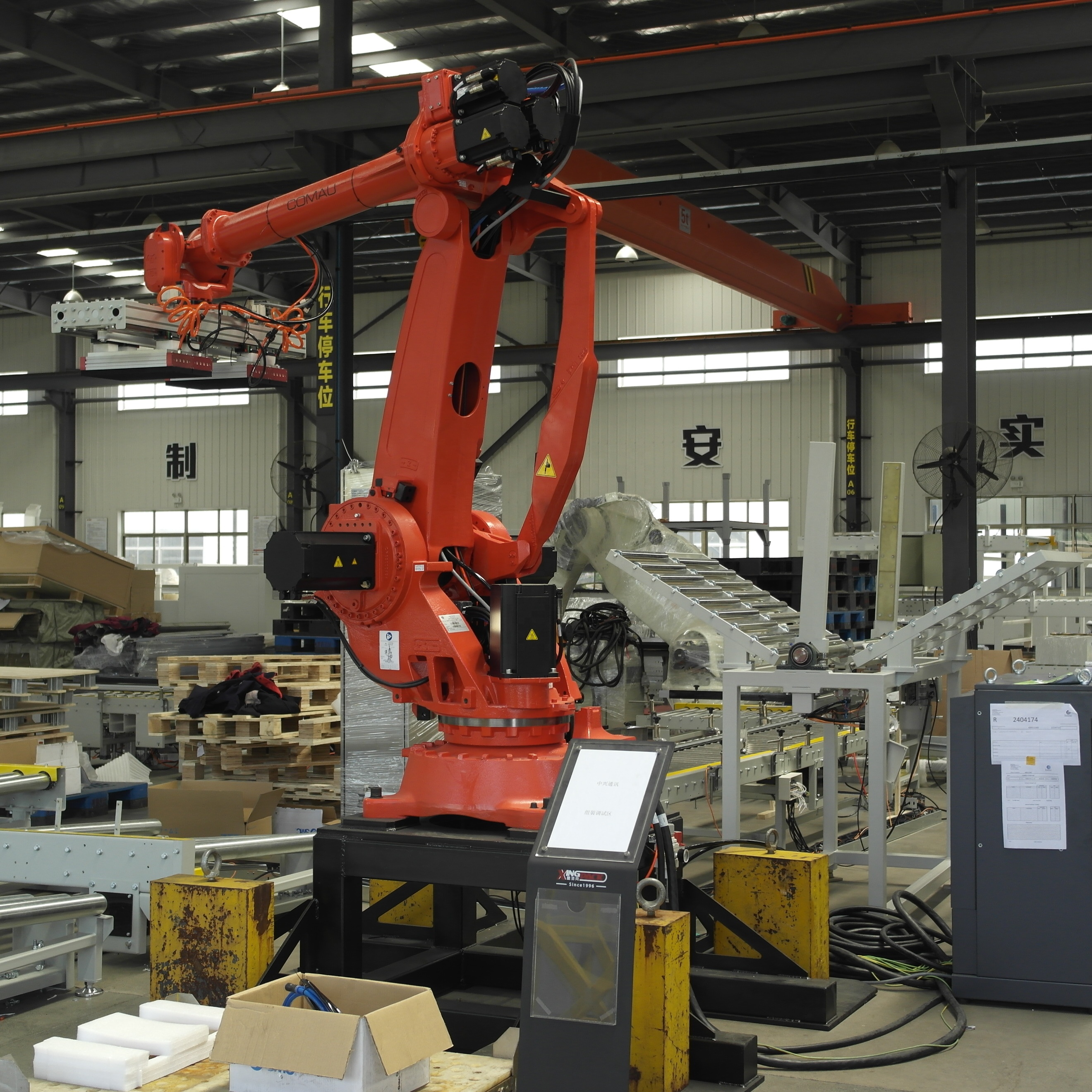

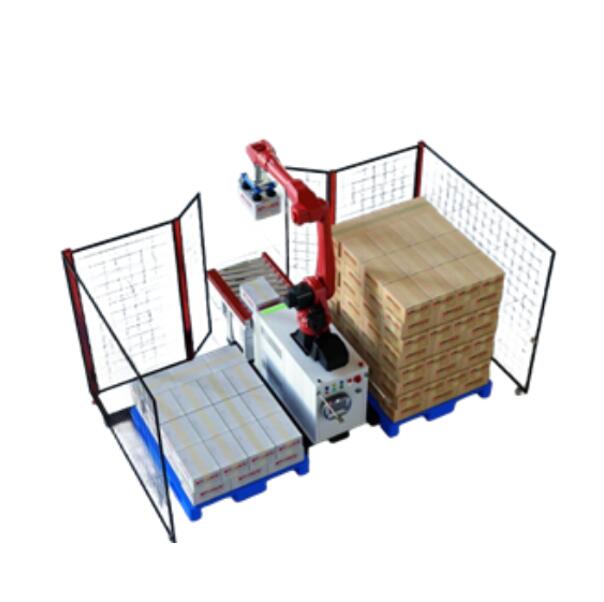

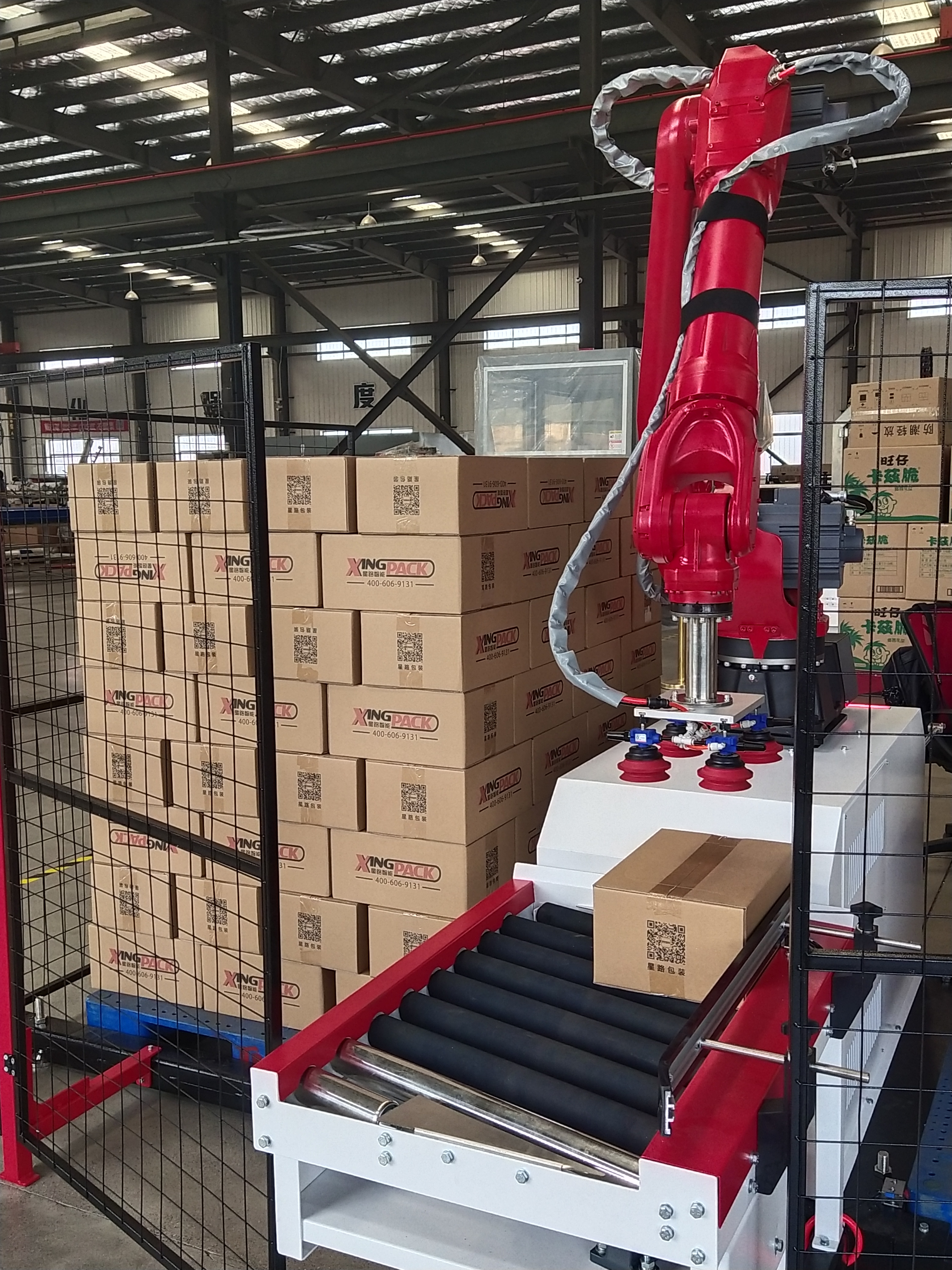

Automatic Robot Palletizer
Robot palletizer is suitable for chemical, pharmaceutical, beverage, food, beer, plastic, air conditioning and other production enterprises to cartons, boxes, cases, bags, bottles and cans filling, boxes, bottles and other shapes of finished products for packing and palletizing. The structure is very simple, easy to maintain and repair; The main components are few, fewer accessories, so the maintenance cost is very low; The robot palletizer can be set in a narrow space and can be used effectively. All controls can be operated on the screen of the control cabinet, and the operation is very simple. It can work all day, and equipped with a robot can replace the workload of many workers, which can save hundreds of thousands of human resources costs every year and achieve efficiency reduction. The changing gripper can realize the mixed production of a variety of products. Robot payload 50-450kg.
Scope of application: corrugated box, plastic box, barrel packaging, bag packaging.

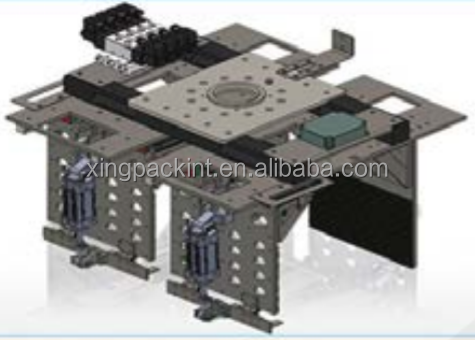

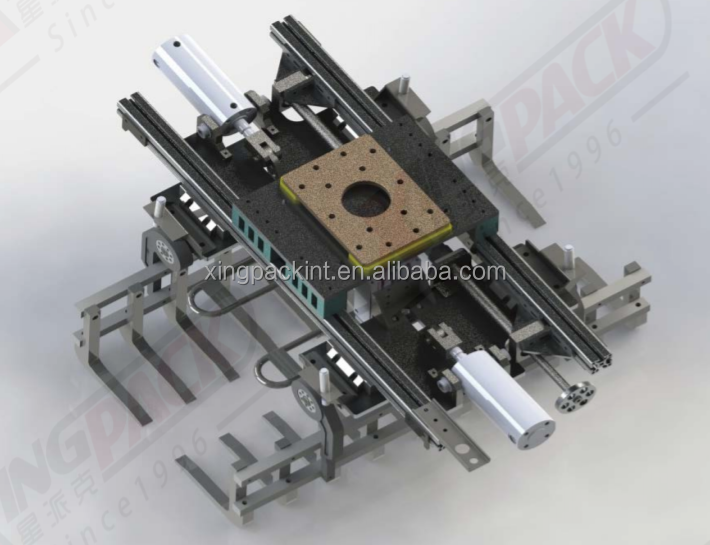

Customized gripper 1

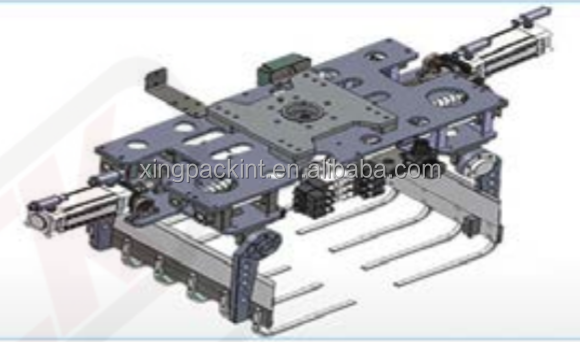

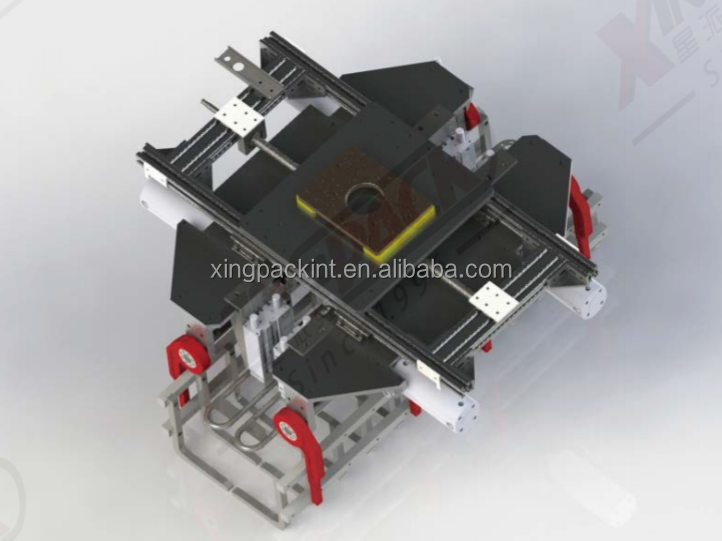

Customized gripper 2

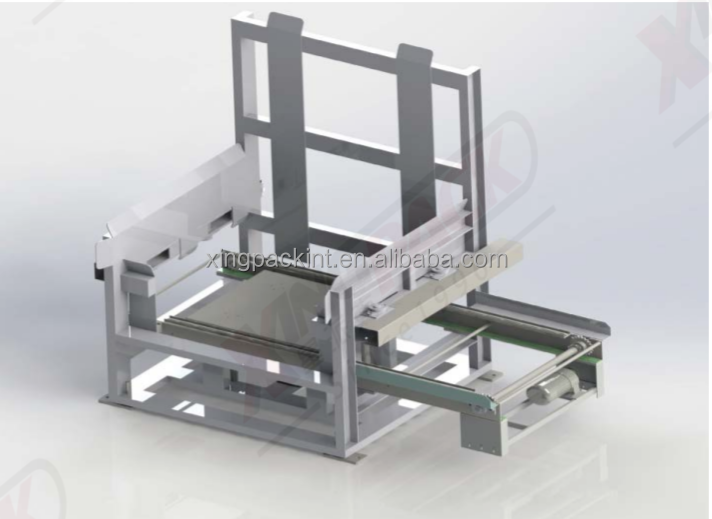

Customized gripper 3

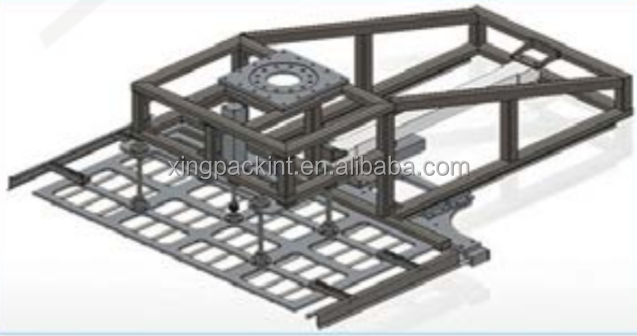

Customized gripper 4

Customized gripper 5

Customized gripper 6
| Item | Data |
|---|---|
| Machine model | RA-01/RA-02 |
| Voltage/power | 380V 50HZ |
| Application | Bags, cases, cartons, bottles, cans |
| Carrying speed | 14 cartons/min, 20 bags/min or customized |
| Main components | Siemens PLC & Touch screen; SMC/FESTO/CHELIC pneumatics |
| Machine weight | 1000 kg |
| Max. load weight | 10-100 kg |

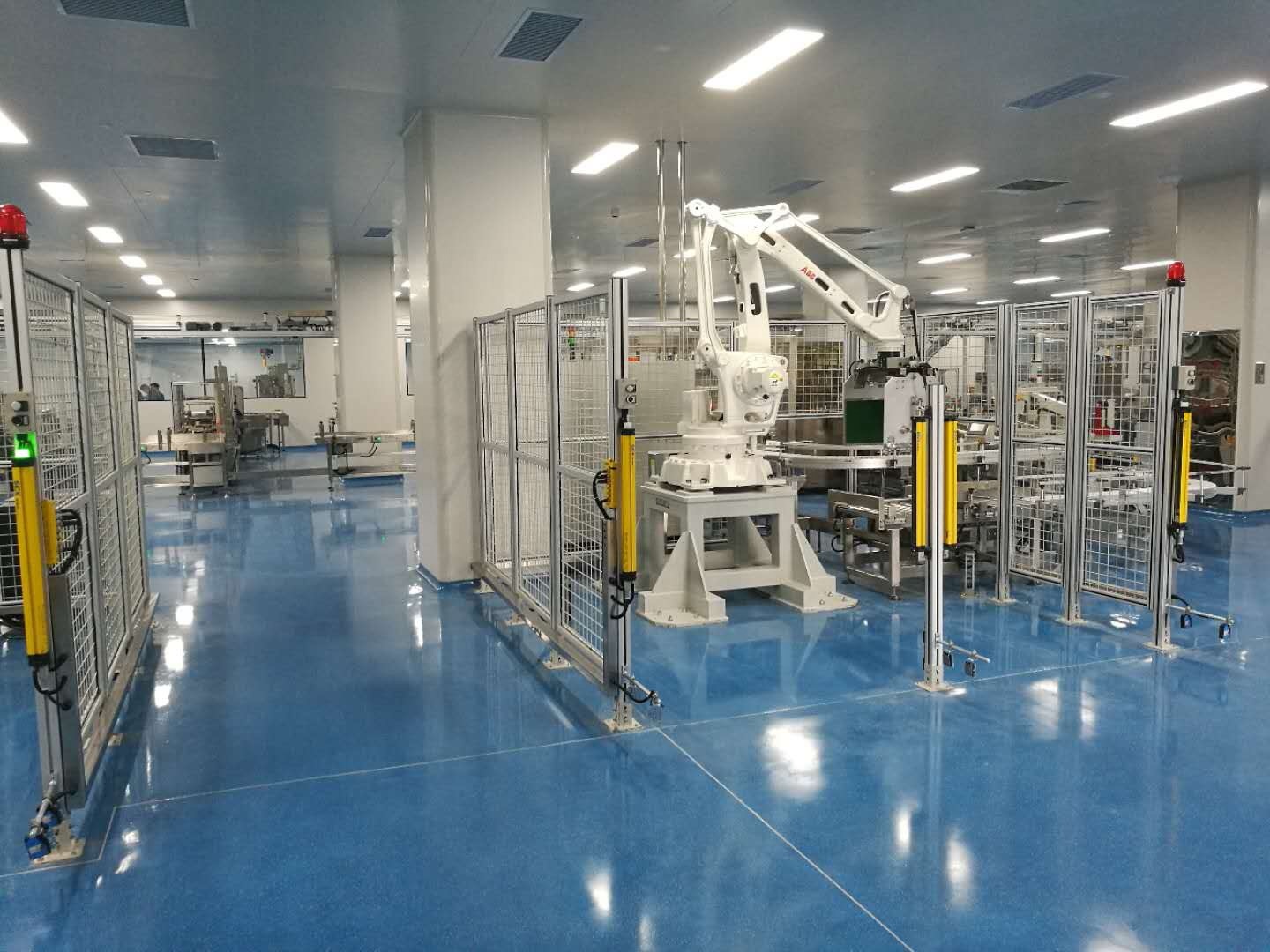

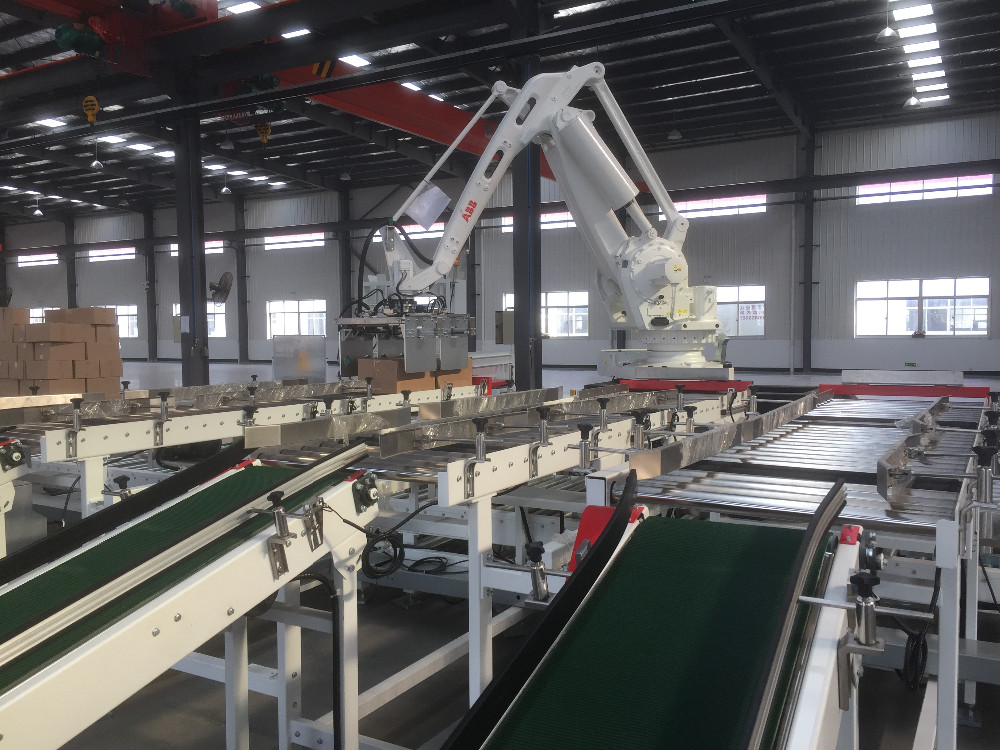

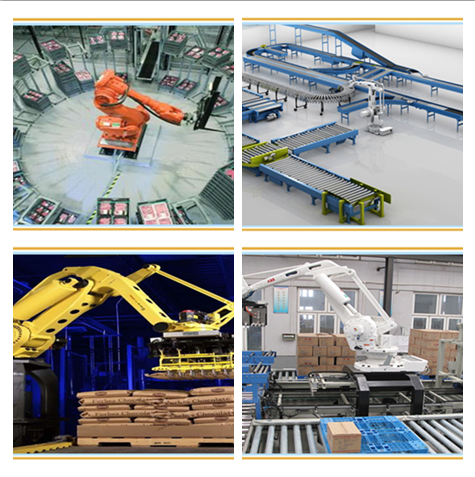

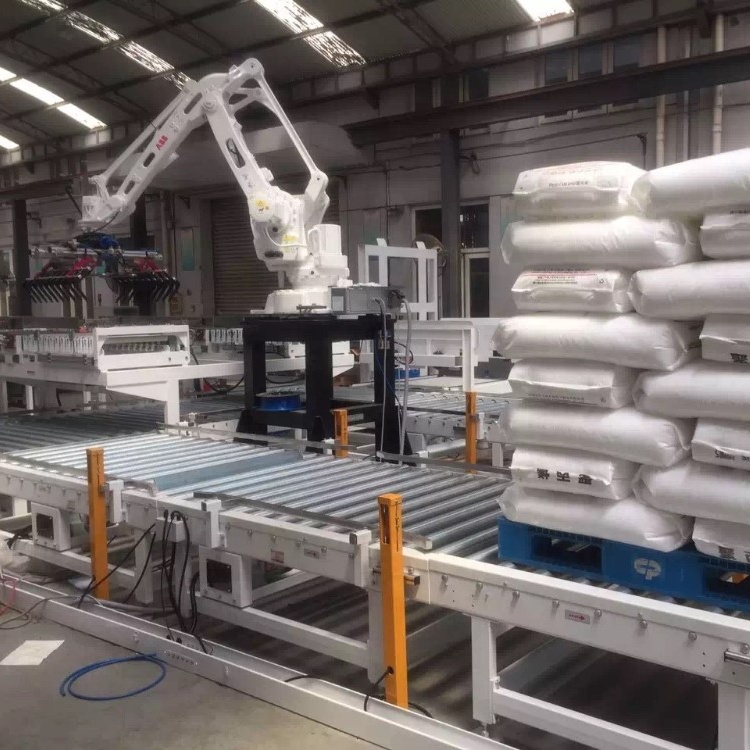

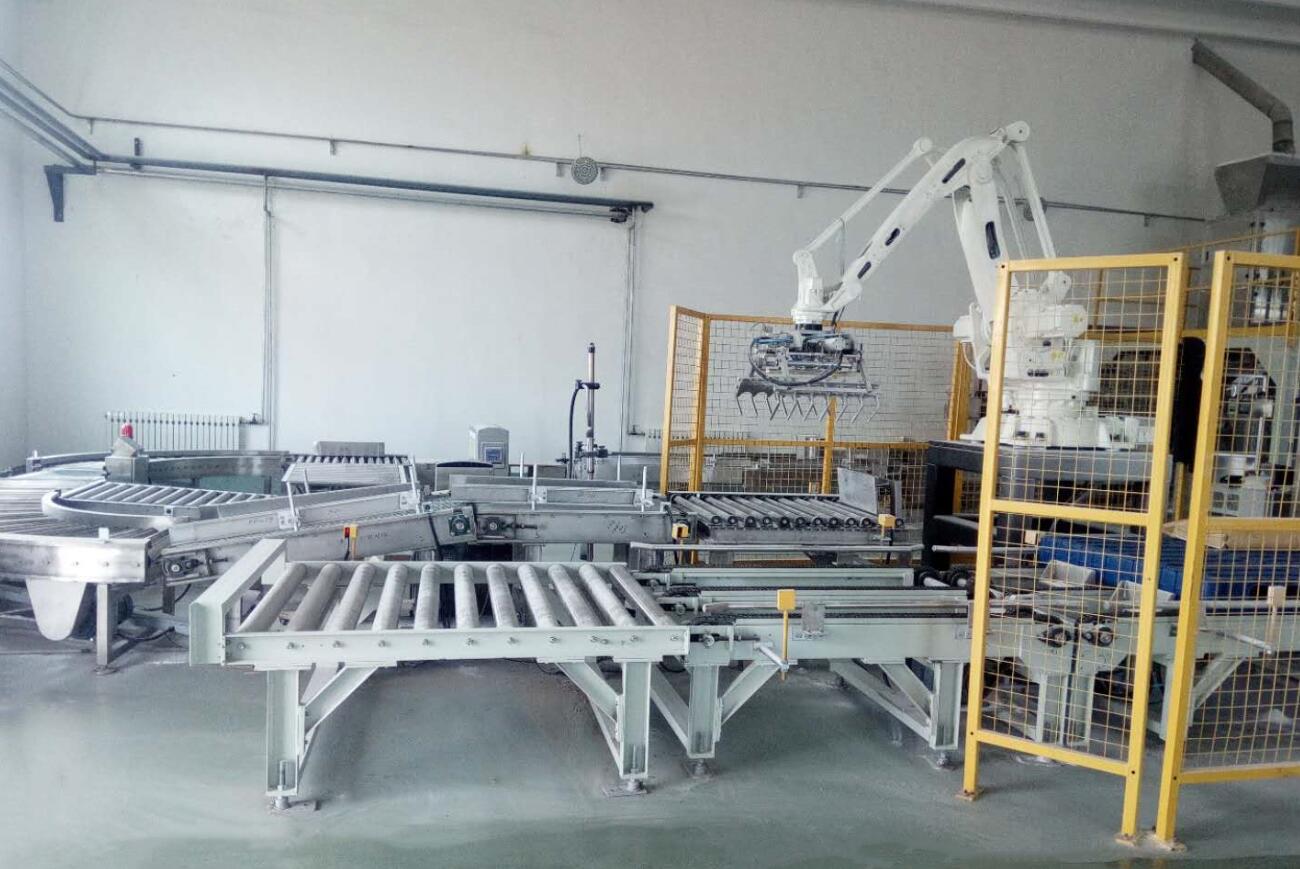

Project 1

Project 2

Project 3

Project 4

Project 5

Project 6
