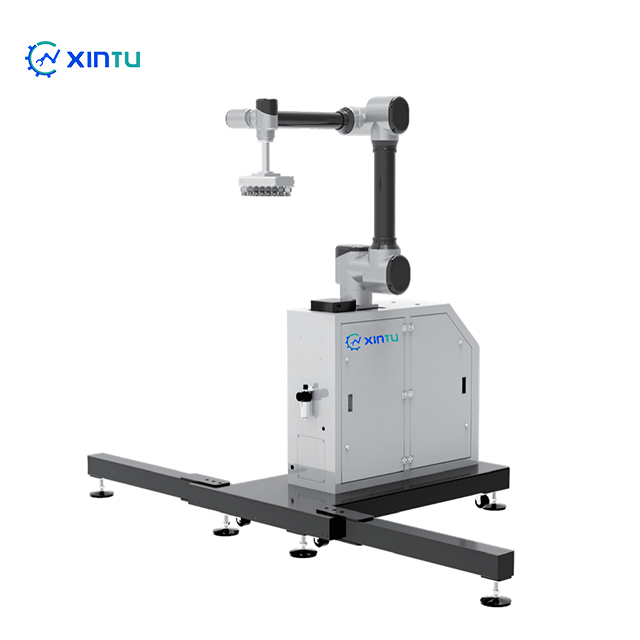

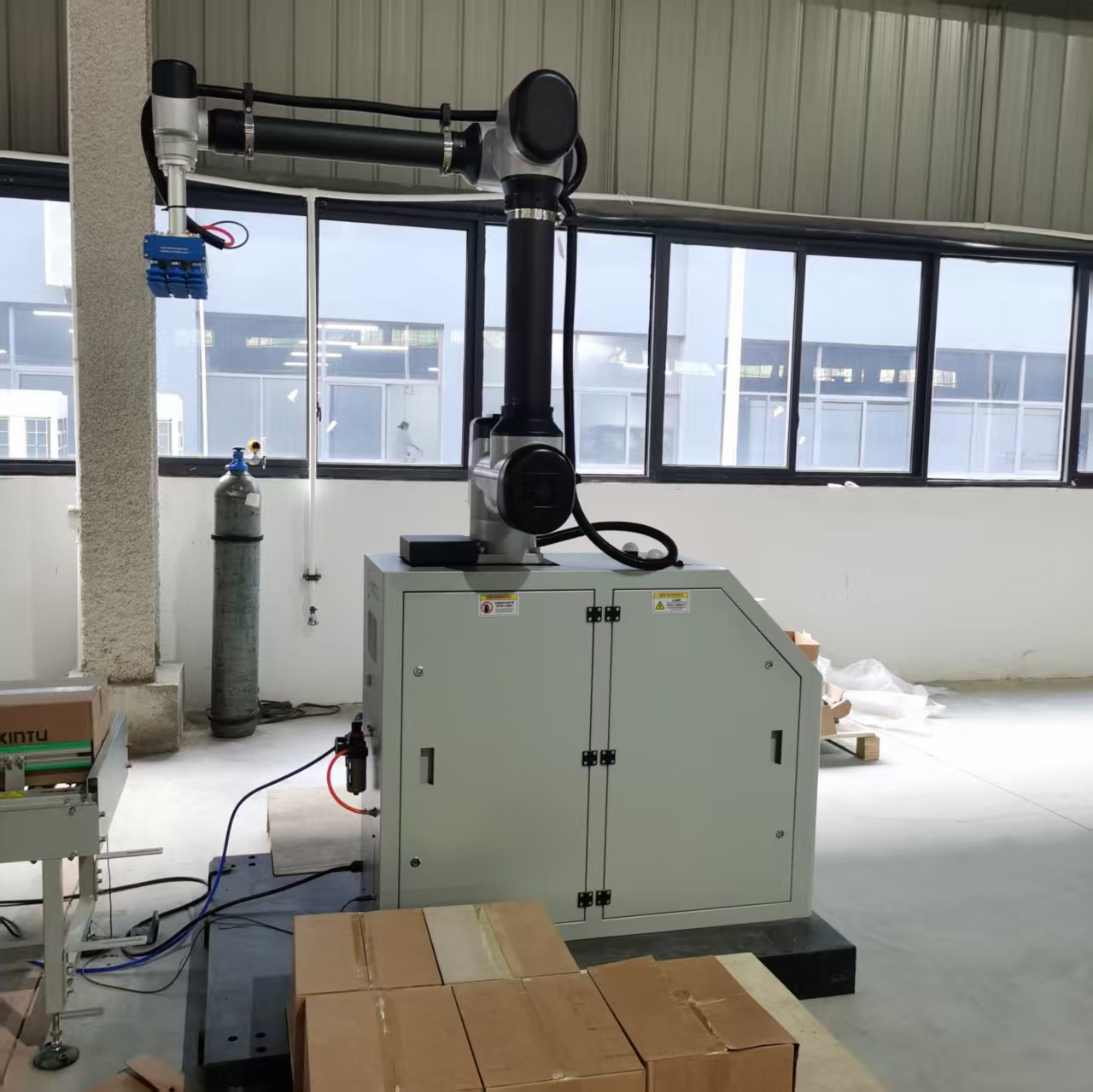

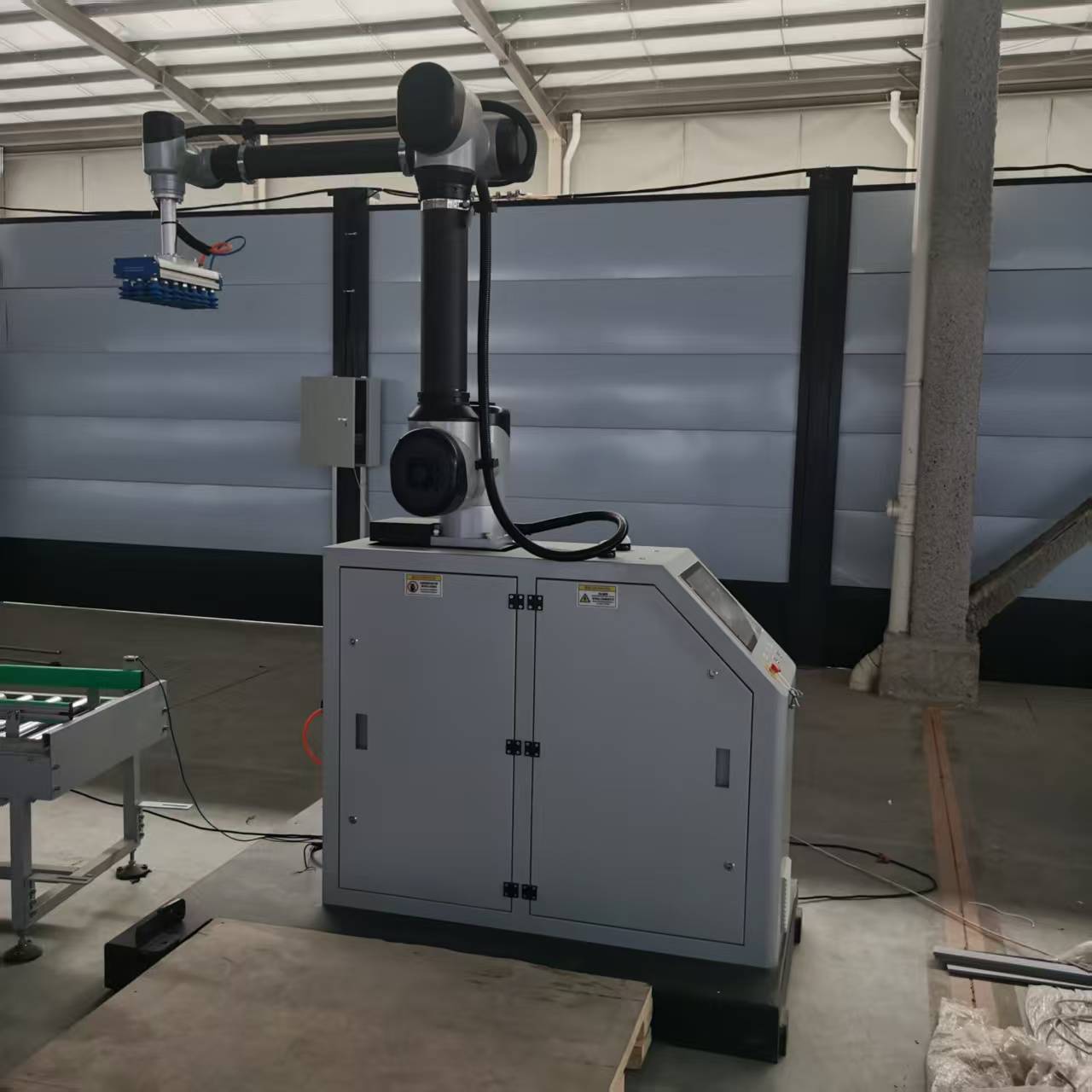

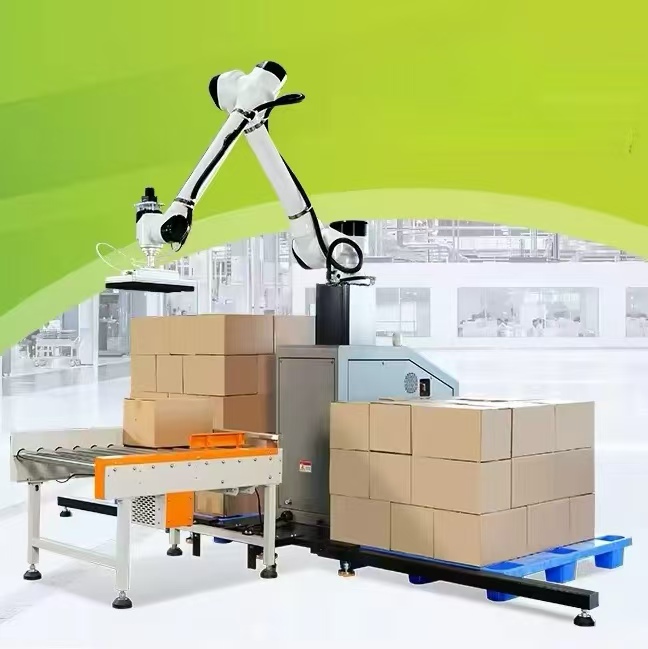

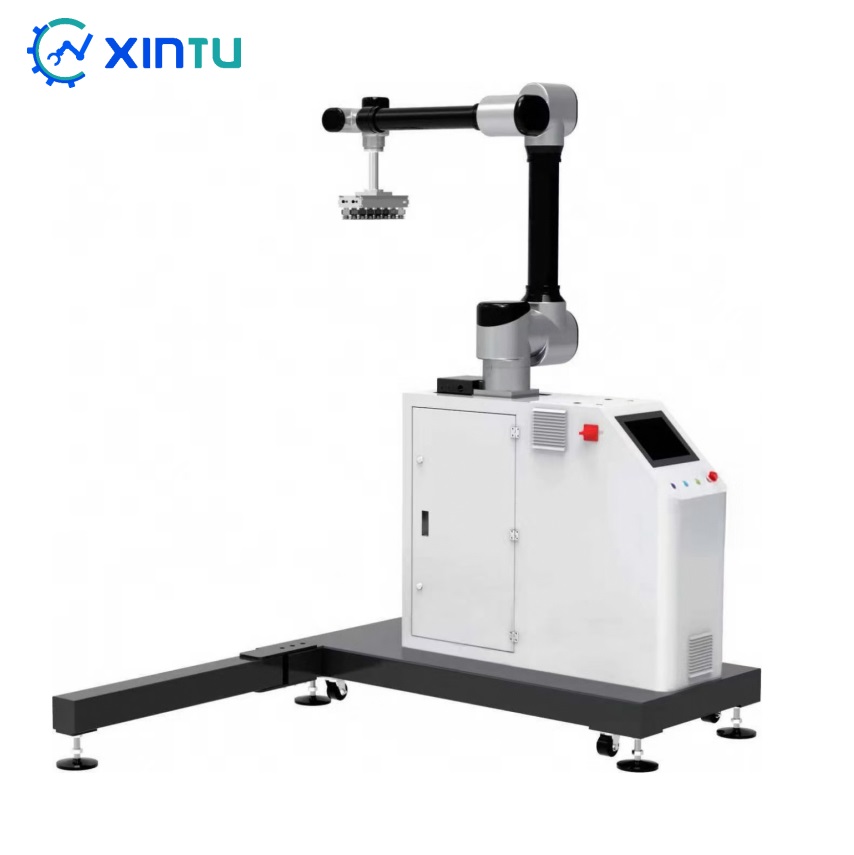

A collaborative robot palletizer, or "cobot palletizer," is a compact, flexible automation solution designed to automate the stacking of products onto pallets while safely working alongside human operators.
Equipped with force-limiting sensors and rounded designs, cobots can operate without traditional safety cages (after a risk assessment), sharing workspace with humans.
Intuitive, hand-guided teaching allows operators to train new pallet patterns quickly without advanced coding skills, enabling fast changeovers for high-mix, low-volume production.
Their small footprint and lightweight design make them ideal for space-constrained environments. They can be easily redeployed on mobile carts for different tasks across the facility.
With lower initial investment, simplified integration, and ability to automate repetitive, strenuous tasks, cobot palletizers offer a compelling return on investment for small to medium-sized enterprises (SMEs).
| Model NO. | CRP-20 |
| Robot load capacity | 30kgs Max |
| Pallet placement type | BOTH LEFT and RIGHT SIDE |
| Palletizing Height | 2600mm (including pallet height) |
| Palletizing Speed | 8-12 times/minutes |
| Rated power | 3000W |
| Compressed air supply | 0.5-0.7 KPA |
| Net weight | 600kgs |
| Machine size (MAX) | 3.4 * 1.7 * 3.1m |
| Power supply | 220V/50HZ (optional for different countries) |

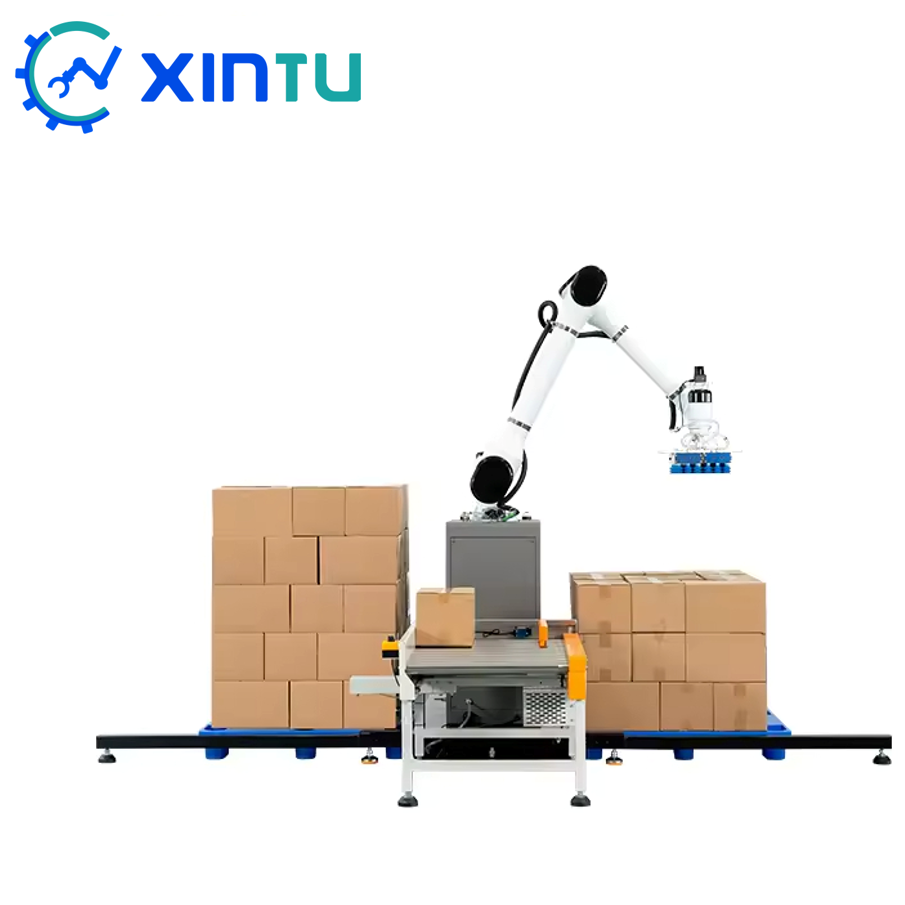

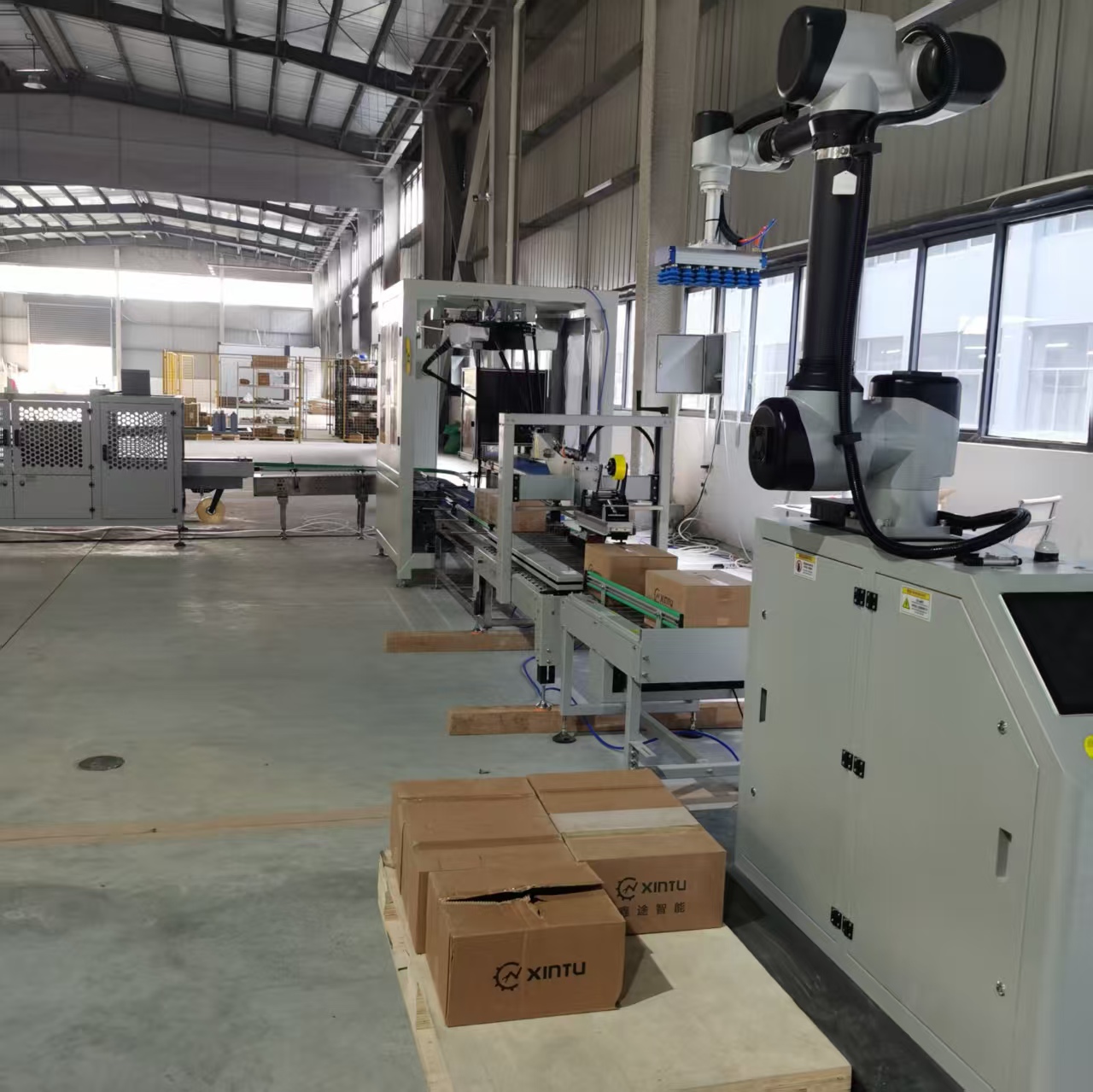

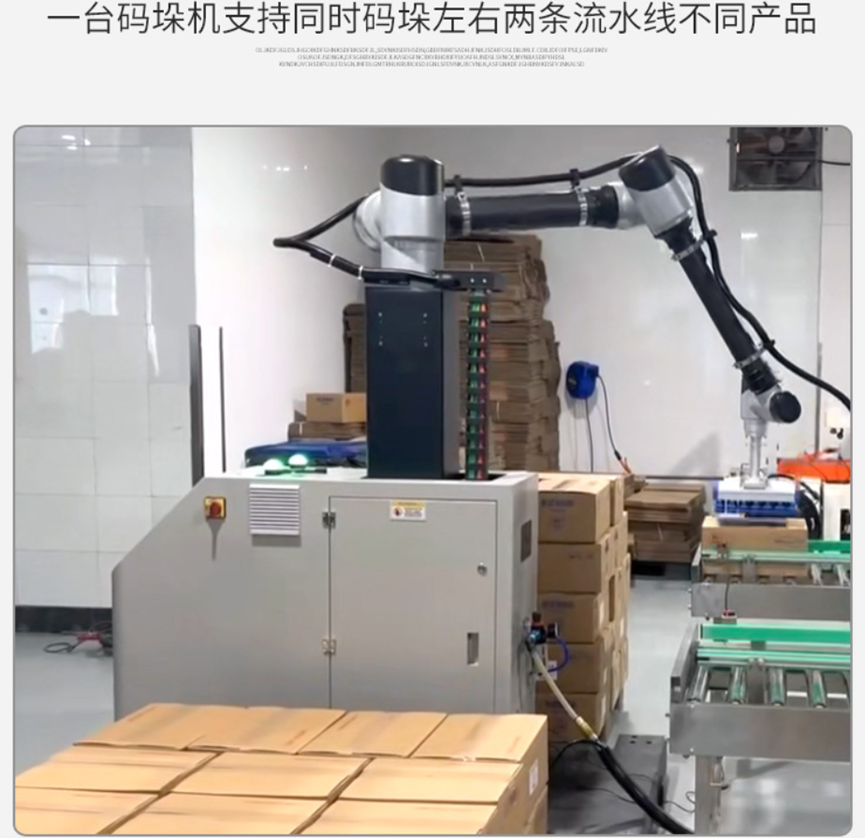

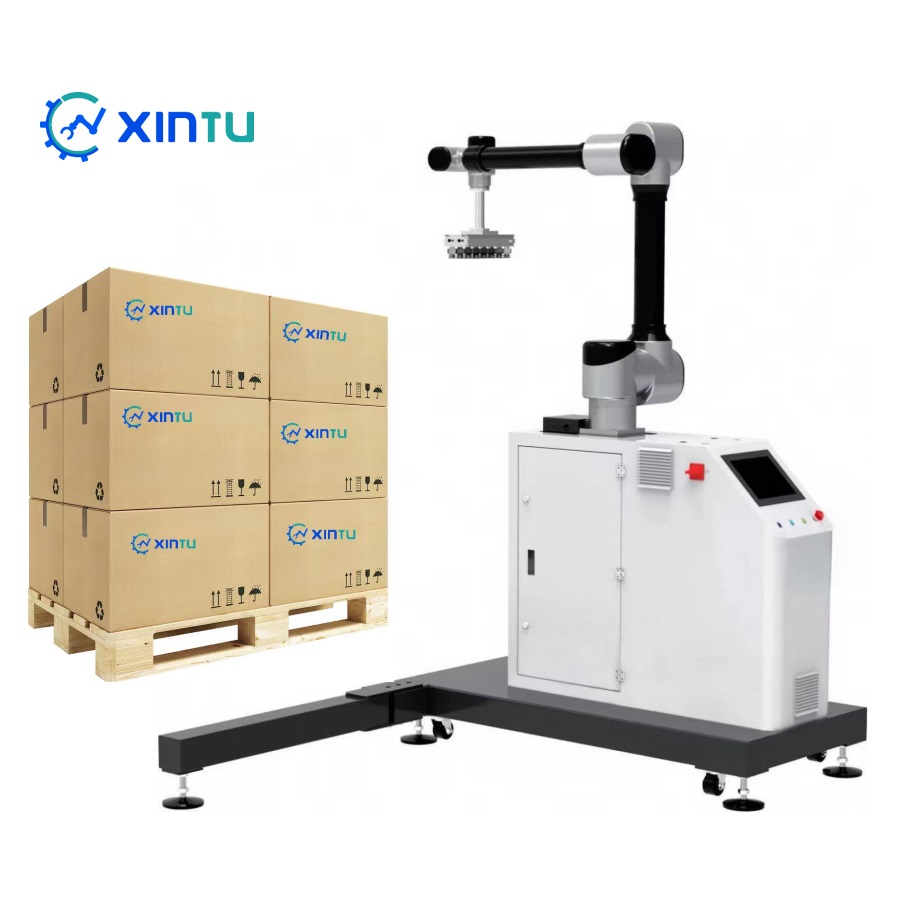

It supports operating two production lines simultaneously, stacking on both sides at the same time.

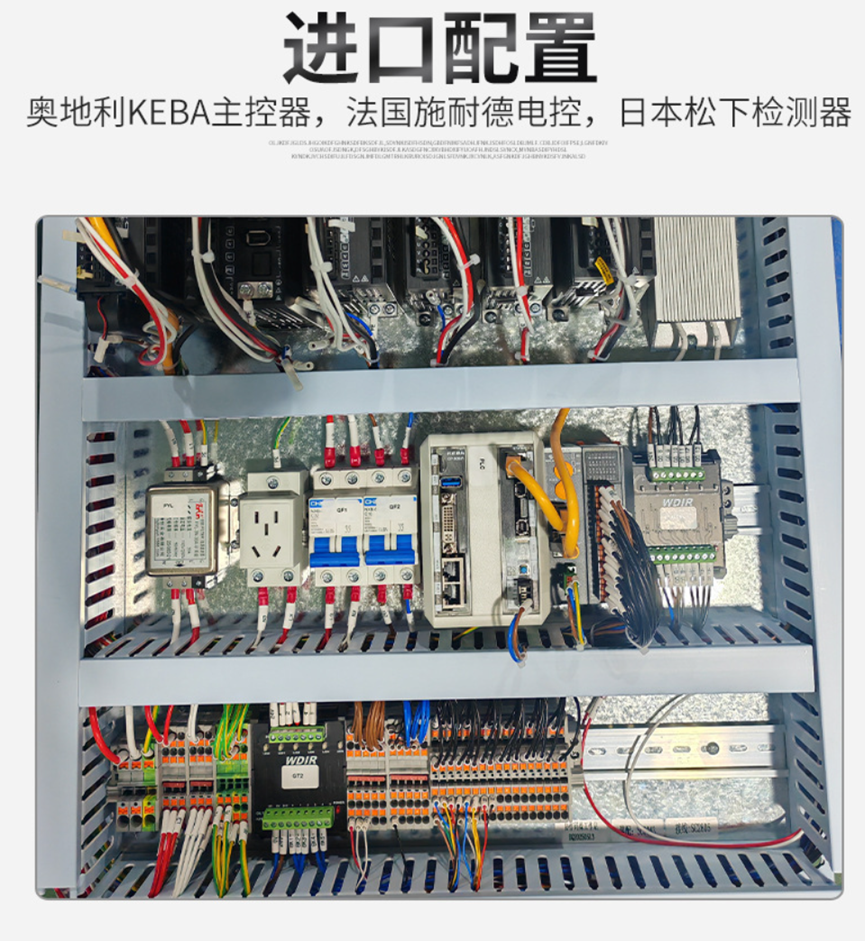

We use famous brand components to confirm quality. Such as Siemens etc.

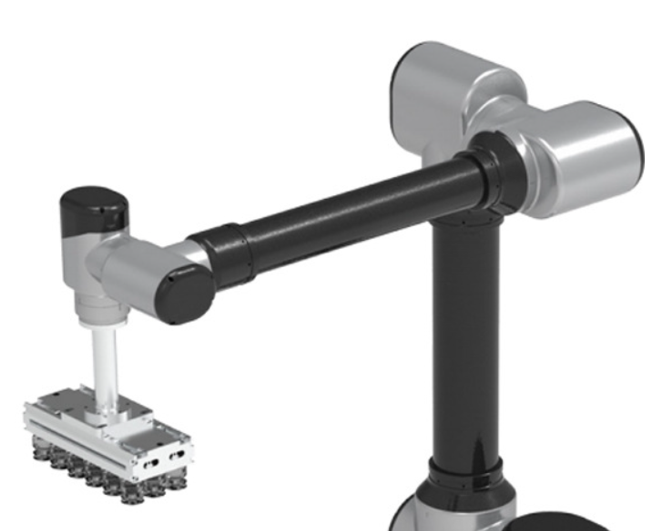

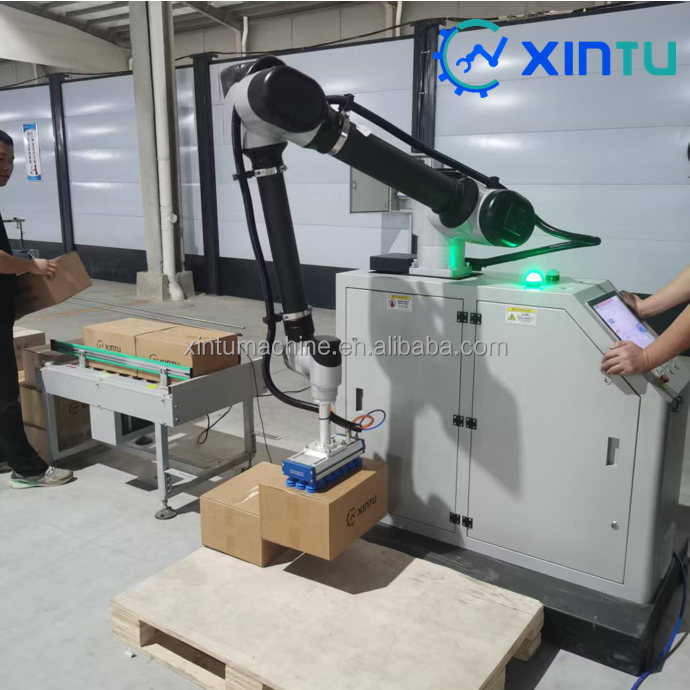

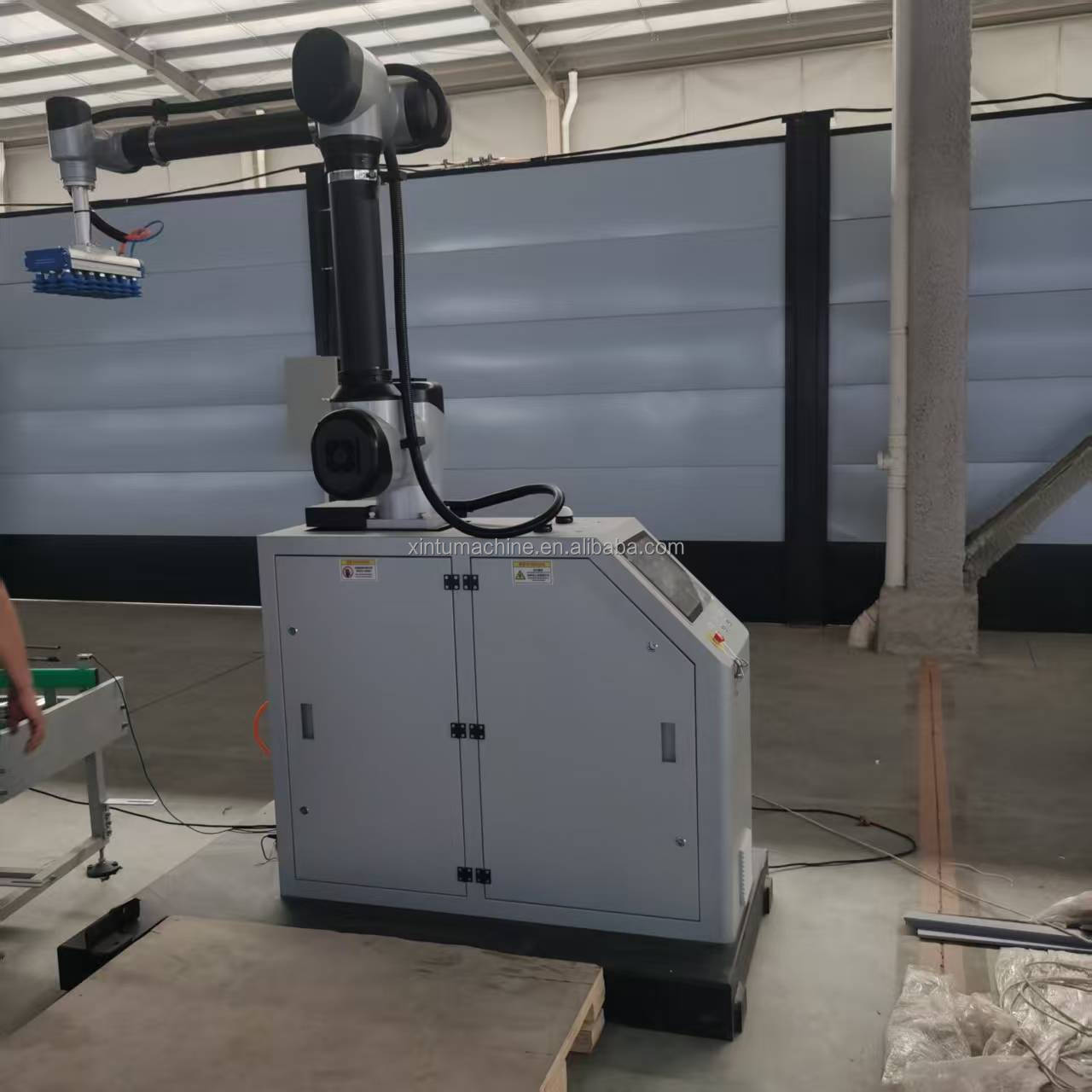

Rapidly draw the cartons or cases through the suction cup for faster, more convenient handling, ensuring the cartons are properly picked and placed.

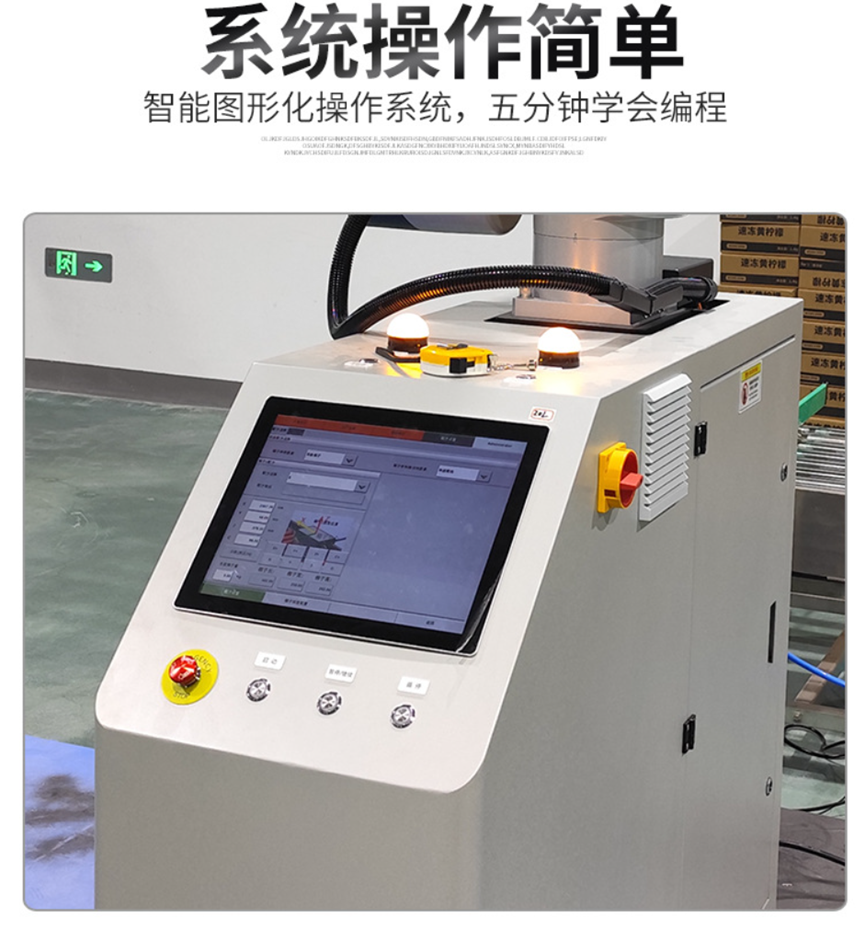

Complete functions, simple and clear operation, with an emergency stop switch for safer use.

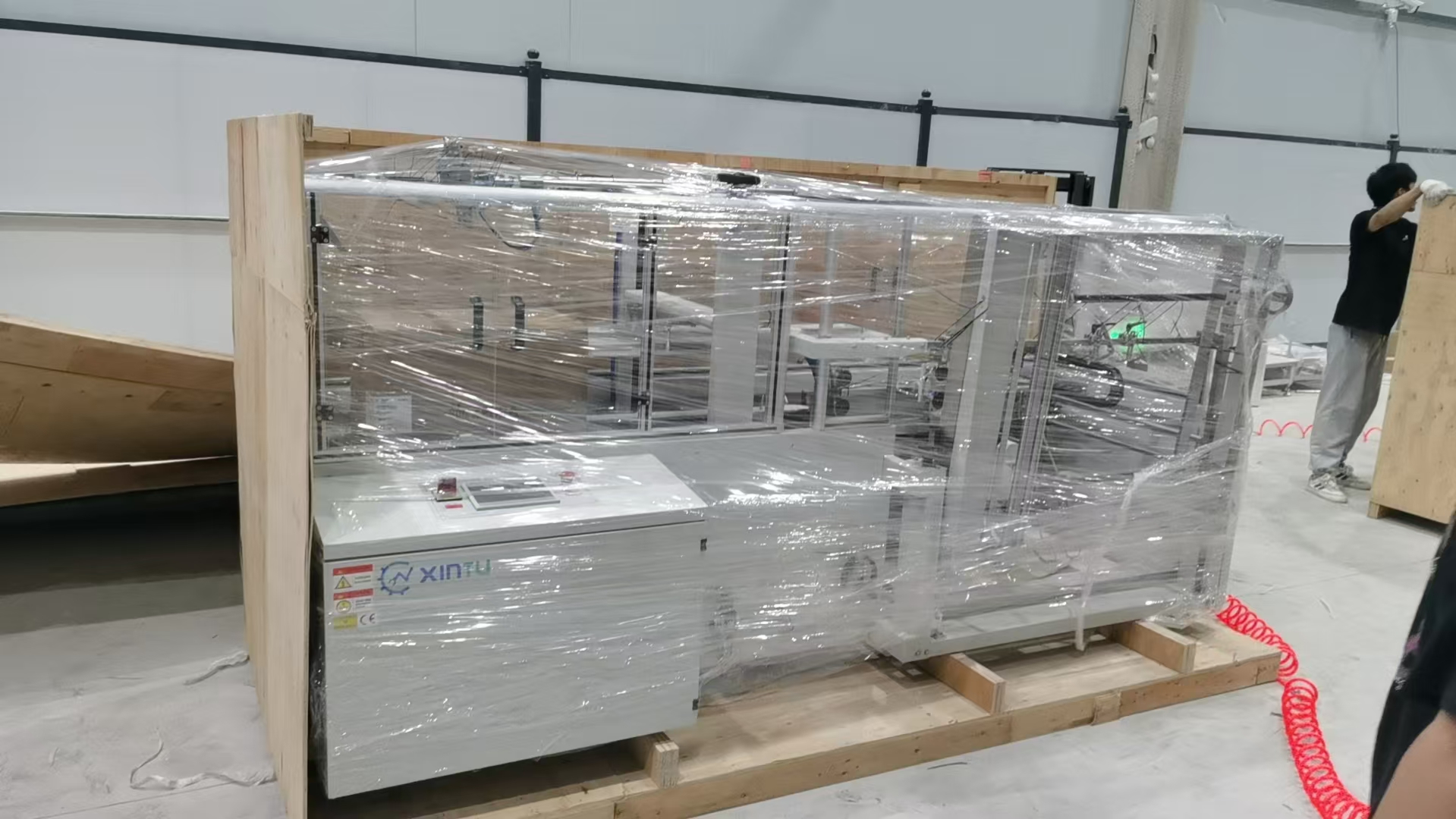

Polywood case packing to ensure goods safety: We always pack our machines properly to help our customers save freight costs and ensure transport safety.
