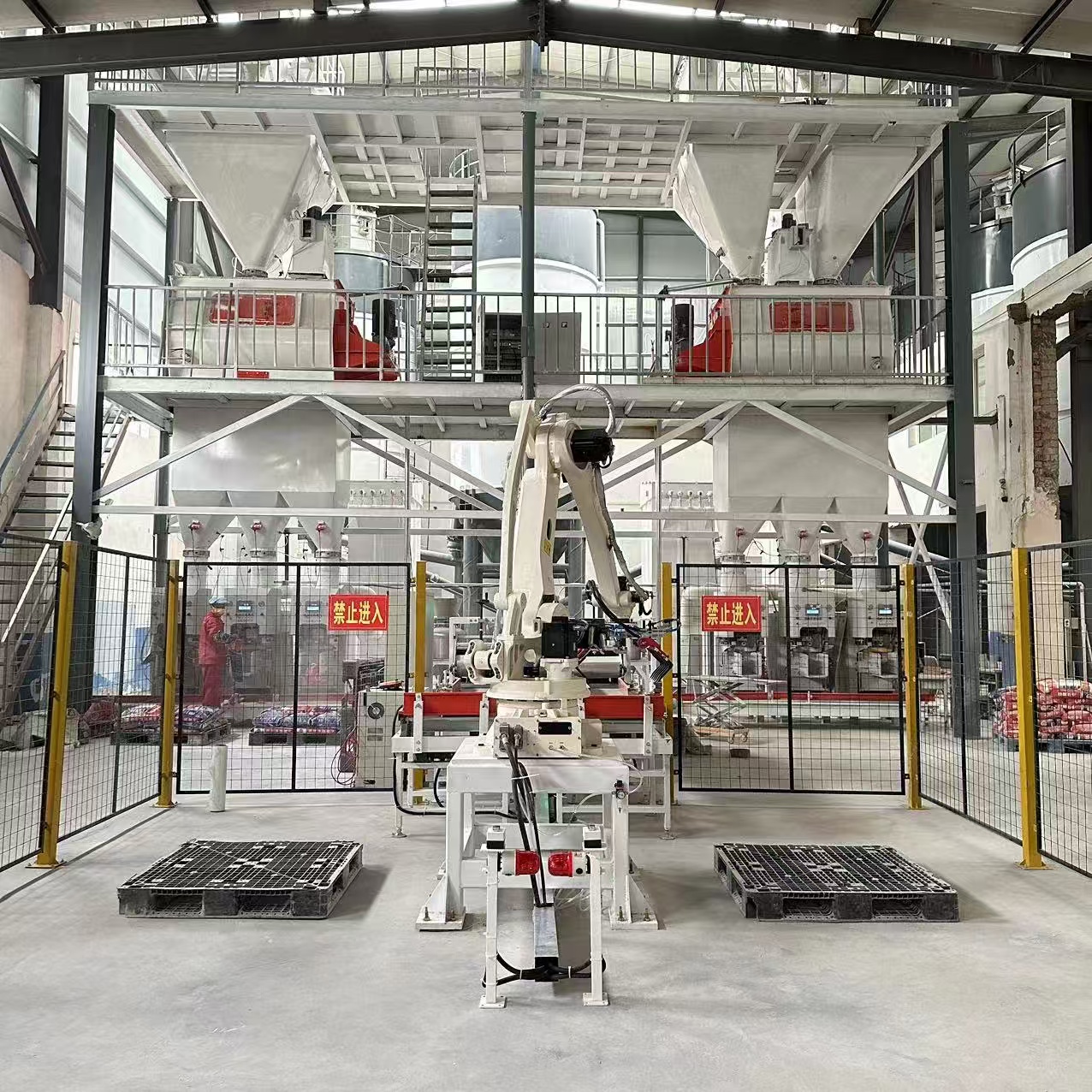

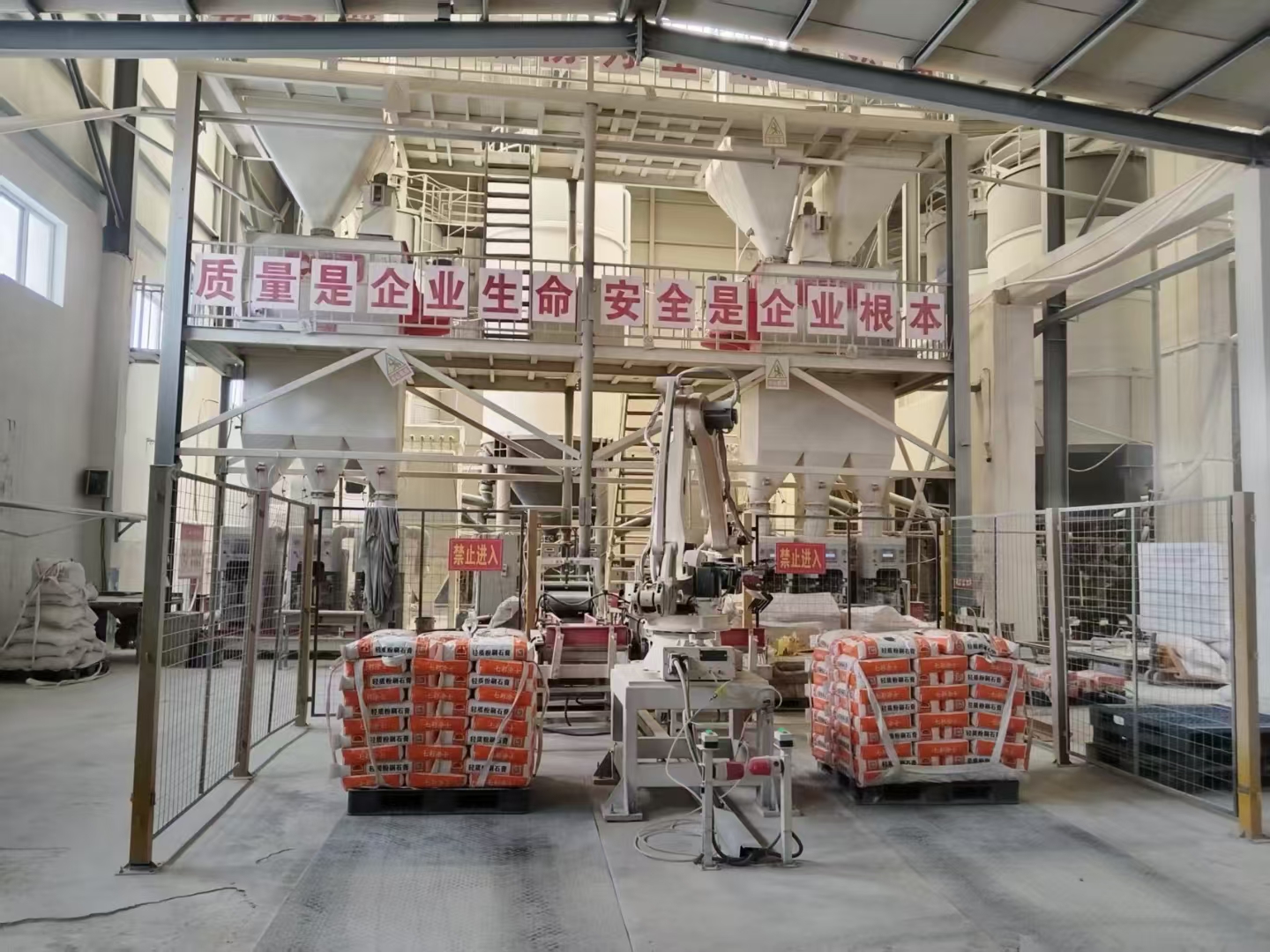

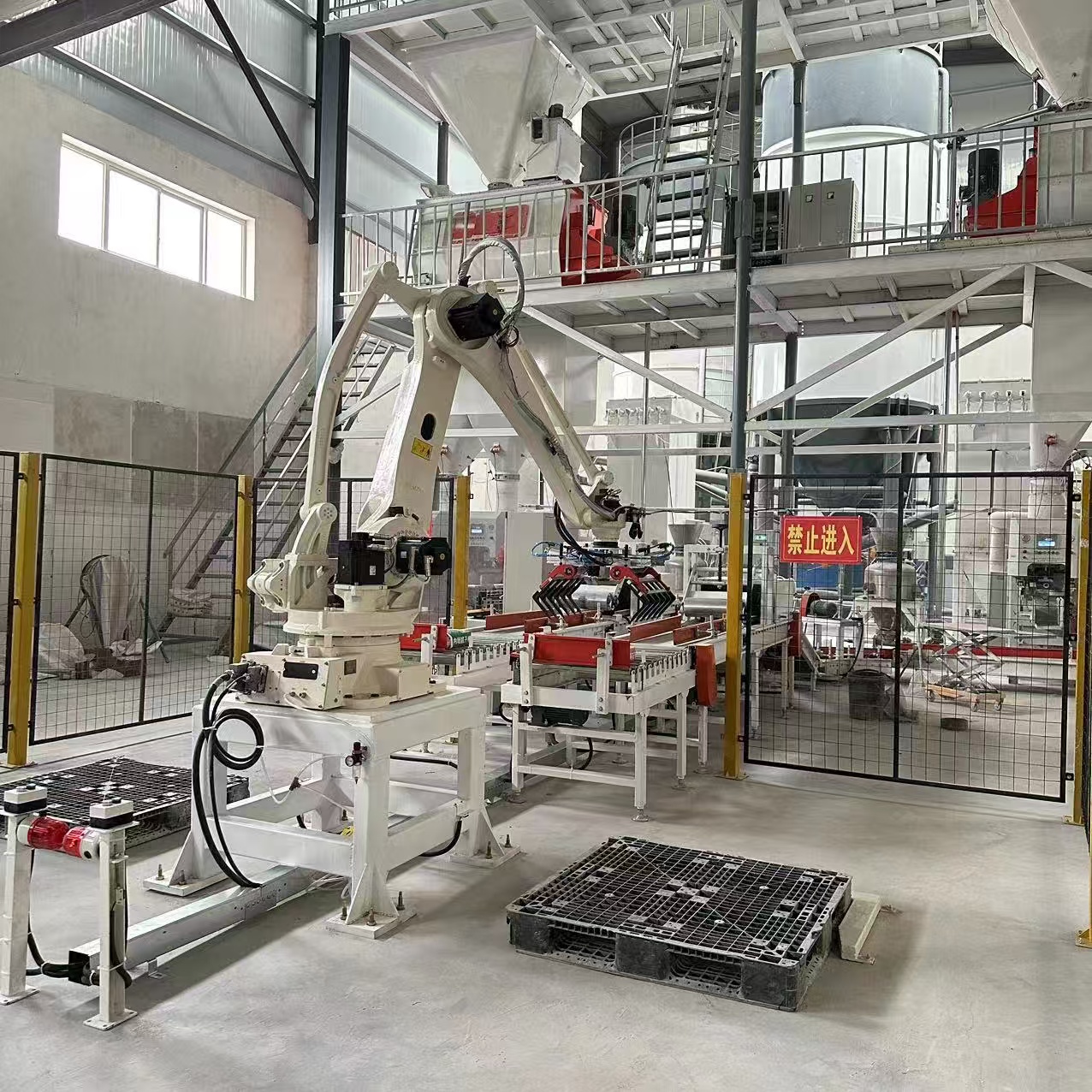

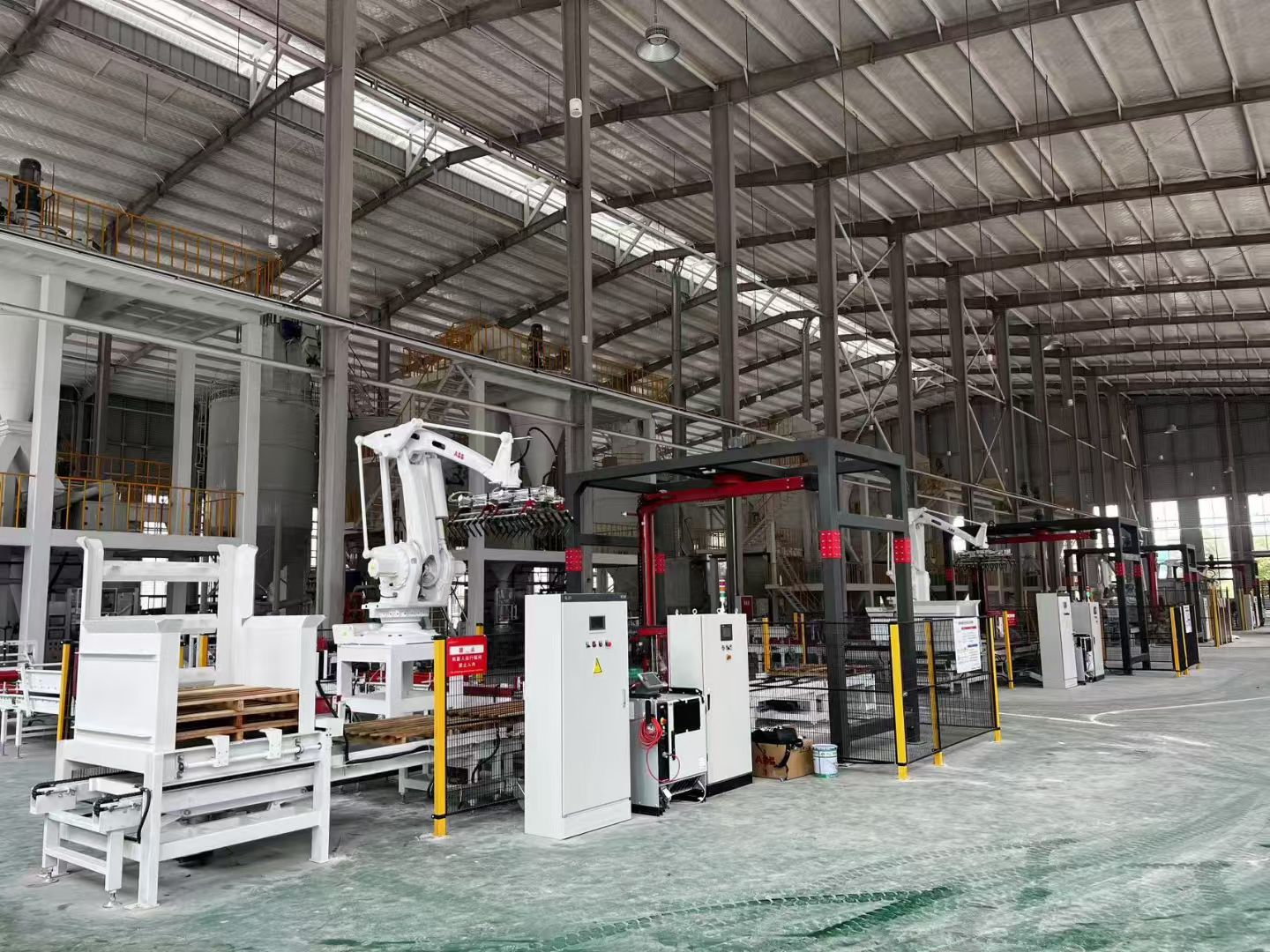

The Palletizing Manipulator enables 24/7 fully automated, efficient, and stable operation—replacing manual labor while boosting productivity. Featuring a high-precision servo system for accurate, repeatable motion and low downtime, it supports diverse materials (cartons, bags, barrels) across food, chemical, logistics, and more. With an intuitive PLC touchscreen interface (Chinese/English), compact footprint, and flexible integration, it’s easy to operate and space-efficient. Built-in safety features, robust construction, and simple maintenance ensure reliability, longevity, and low operating costs. Customizable solutions and full-service support are available.
| Specifications Table | ||
|---|---|---|
| Institutional form | Four-axis palletizing | |
| Degree of freedom in motion | 4 | |
| Arm span | 3200mm | |
| Payload | 180KG | |
| Host weight | 1260KG | |
| Repeatable positioning accuracy | ±0.5mm | |
| Motion range of each axis | 1 axis | ±178° |
| 2-axis | +80°, -10° | |
| 3-axis | Overall: +120° to -20° | |
| Coupling: +65° to -65° | ||
| 4-axis | ±360° | |
| Speed of each axis | 1 axis | 120°/s |
| 2-axis | 120°/s | |
| 3-axis | 100°/s | |
| 4-axis | 360°/s | |
| Environment and Protection | Operating Temp | 0 - 45 °C |
| Storage Env | -25 °C to 45 °C | |
| Other Details | Avoid flammable and corrosive gases and liquids; avoid contact with water, oil, dust, etc.; do not approach electrical noise sources | |
| Reduction gear parameters | 1 axis | 320C |
| 2-axis | 320E | |
| 3-axis | 320E | |
| 4-axis | 40E | |
| Motor parameters | 1 axis | 5.5KW |
| 2-axis | 5.5KW | |
| 3-axis | 5.5KW | |
| 4-axis | 1.5KW | |
