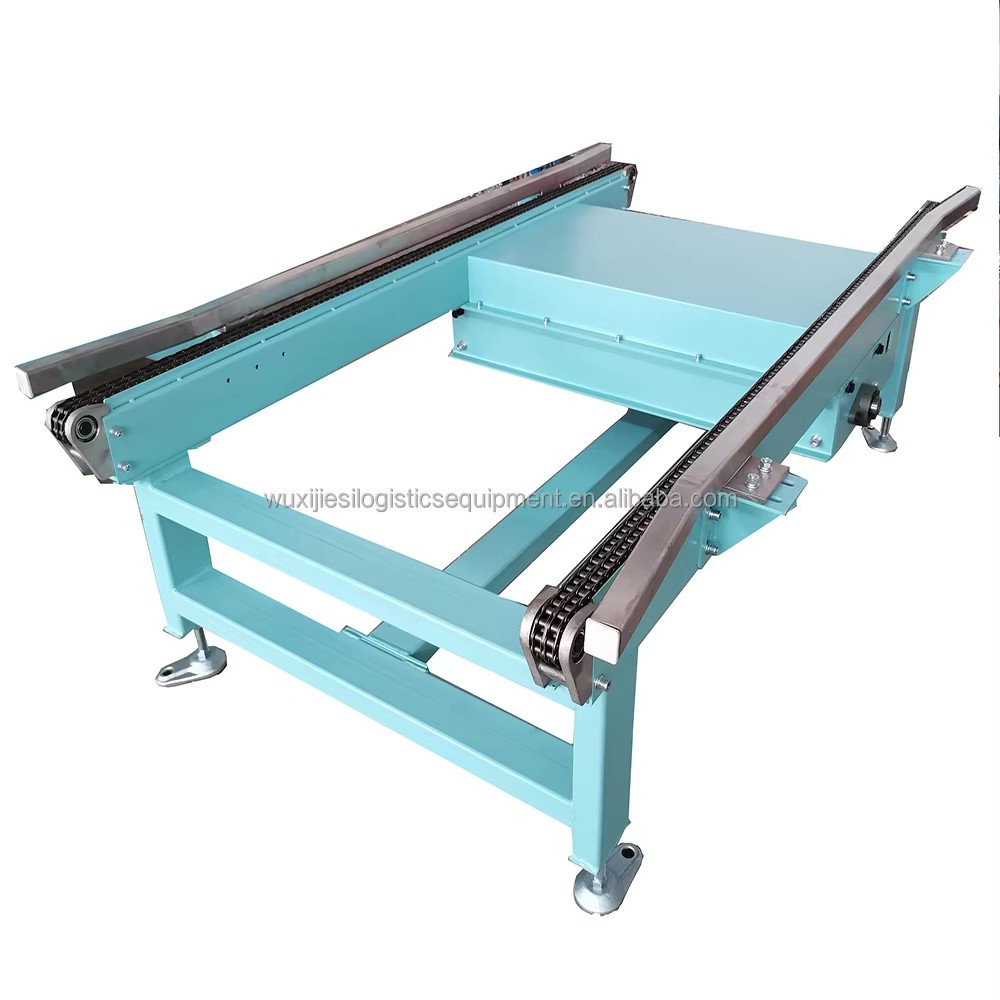

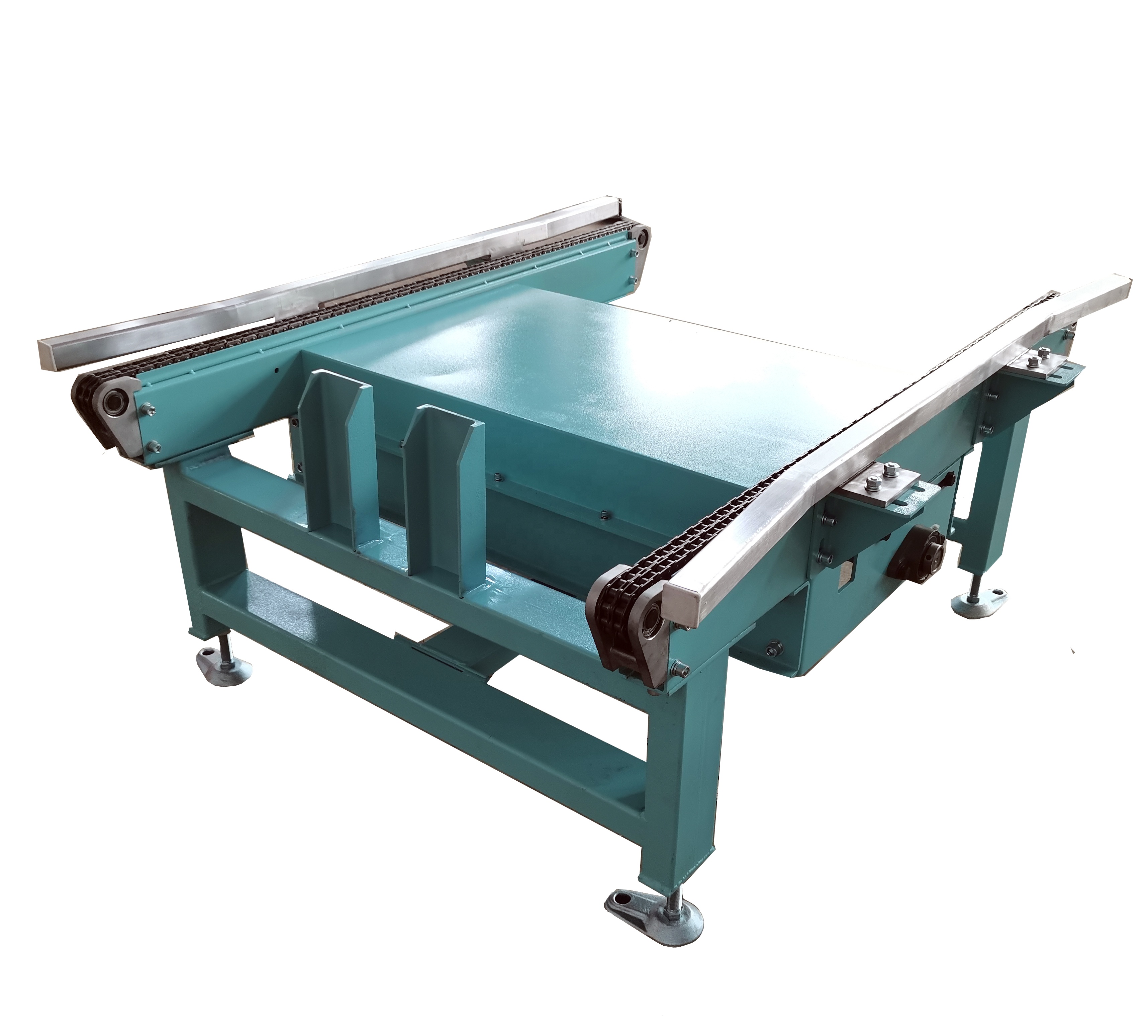

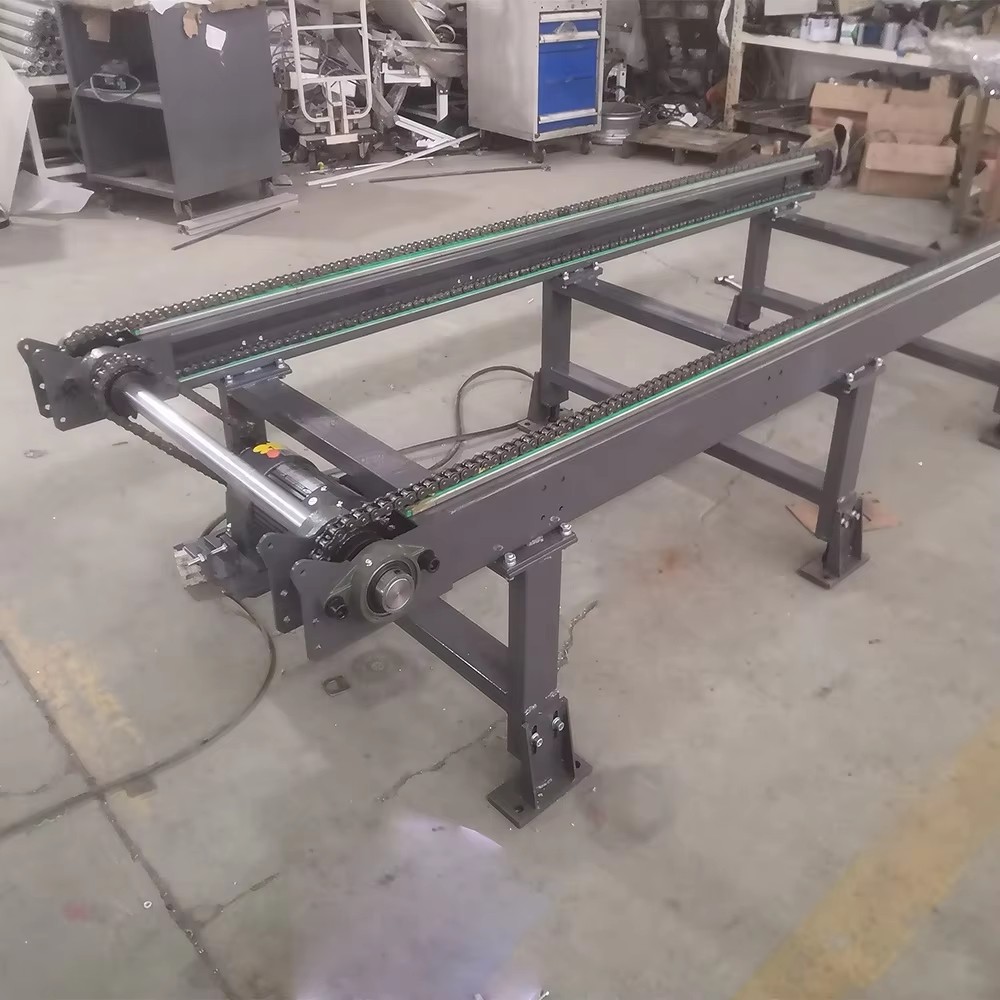

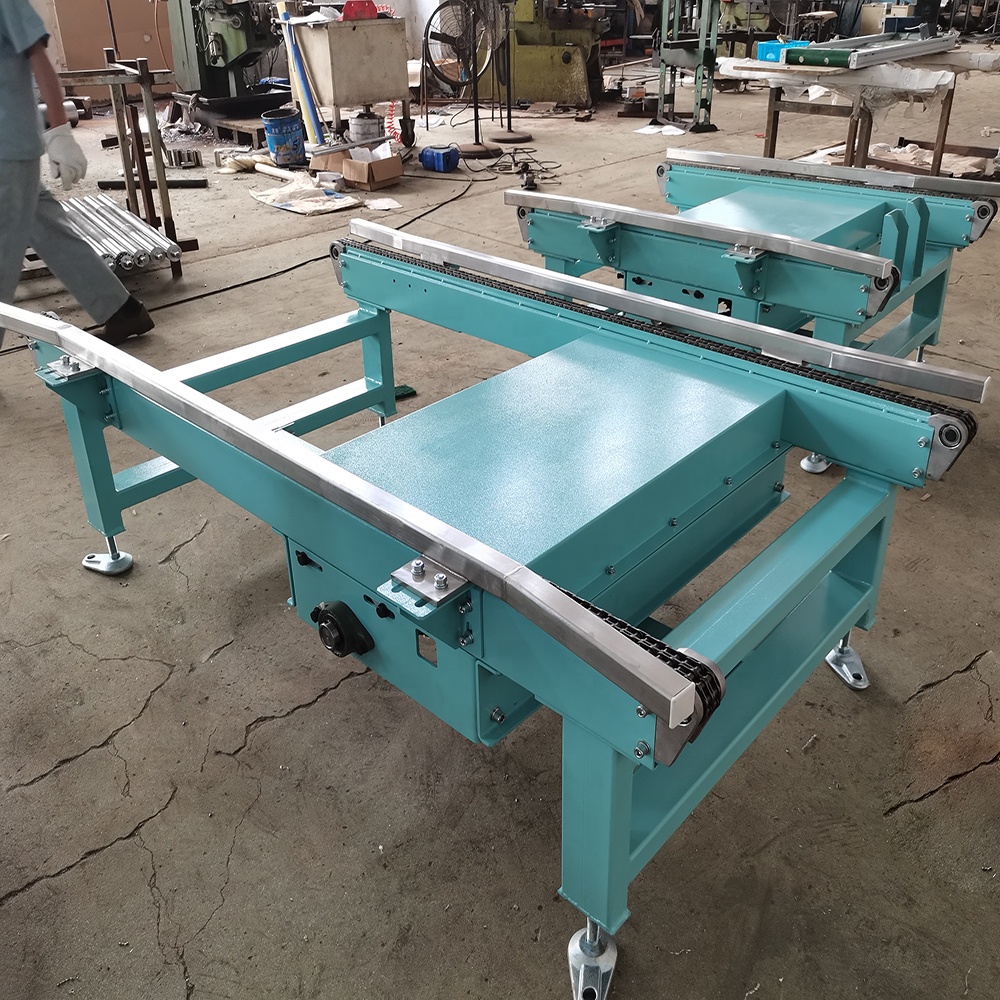

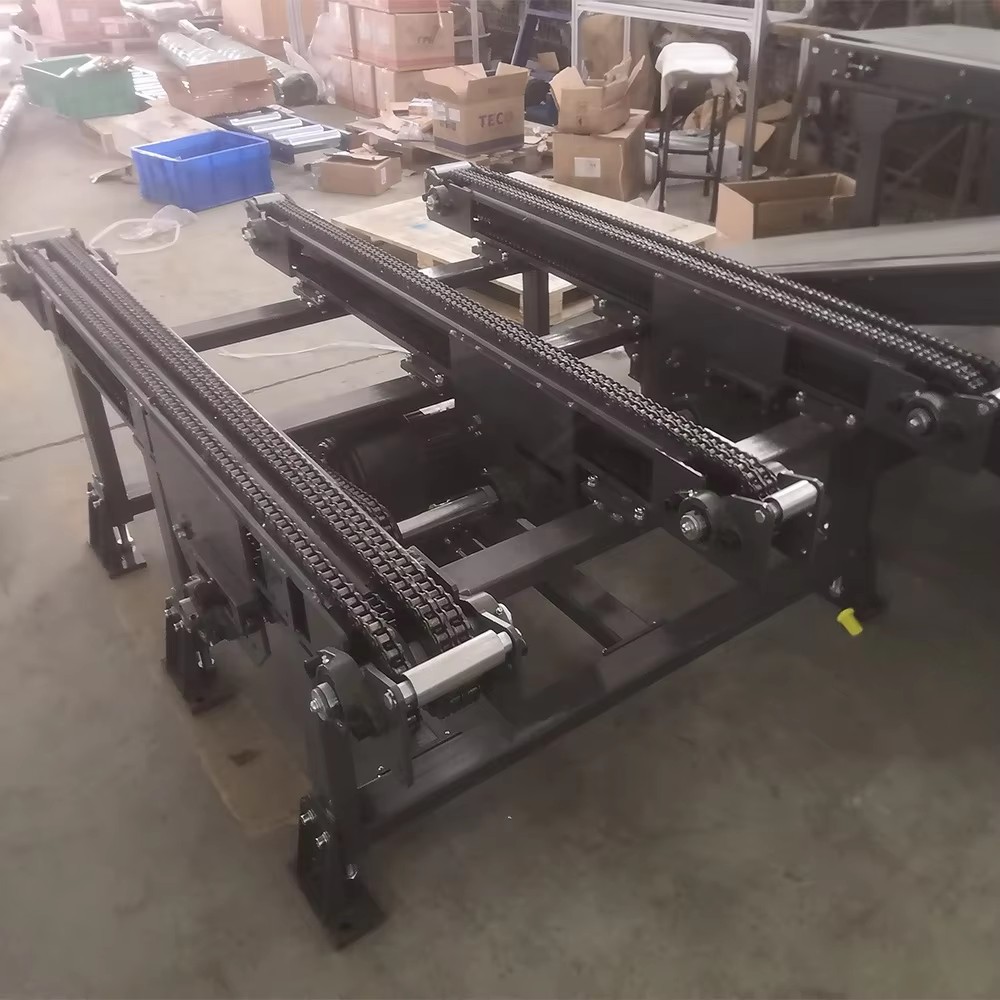

The chain machine is mainly composed of frame assembly, drive assembly, outrigger, conveyor chain, and guardrail components.
The motor on the driving frame drives the conveying chain through the transmission shaft, so as to realize the conveying action of goods on the conveying chain.
It is suitable for flat bottom, Sichuan bottom, Tian bottom, etc. where the bottom is relatively flat, for the transport of large boxes / boxes and pallets.
| Model | BDC-2 |
| Chain Model | 10B-2 |

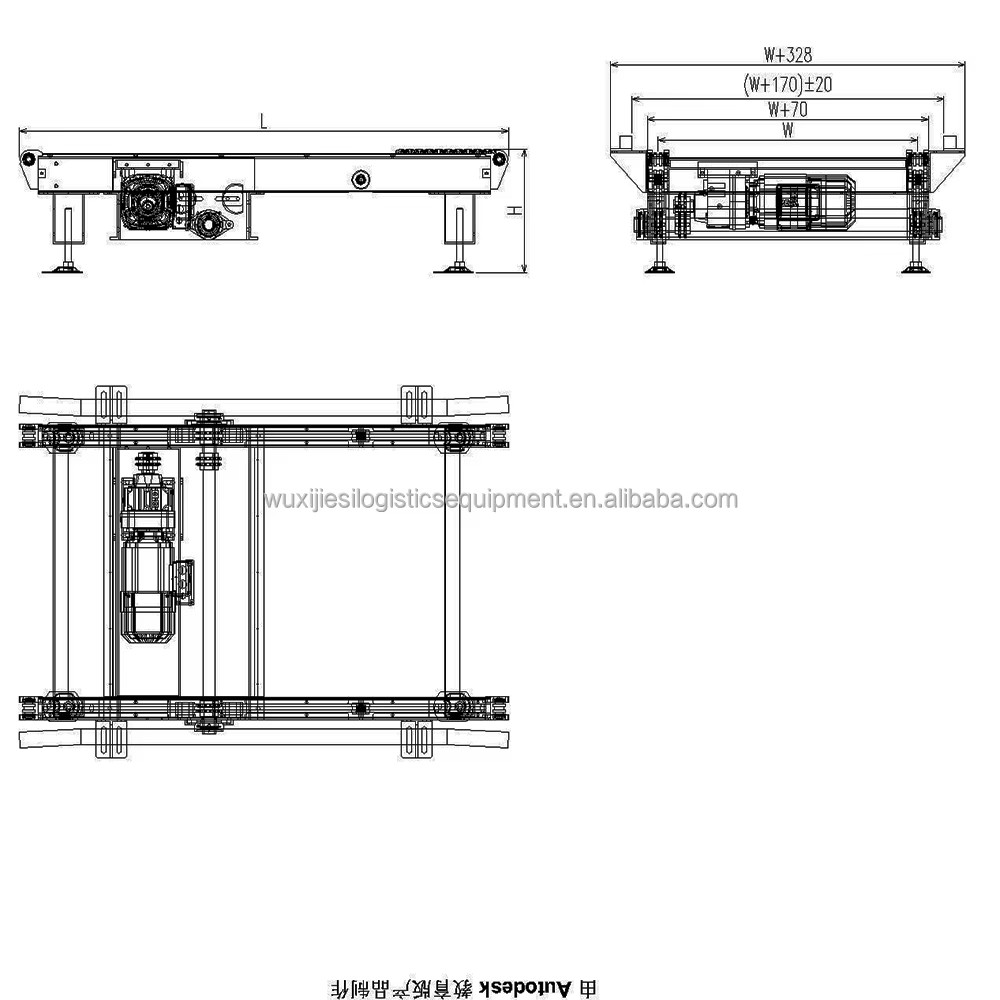

| Width of chain(W) | 850~1450 |
| Frame Size | C120*70*15*4T |
| Length(L) | 1,200~6000 |
| Width of conveyor | W+70 |
| Height(H) | min500 |
| Capability(kg/m) | max1500 |
| Speed(m/min) | max20 |
| Power(kw) | 0.37 0.55 0.75 1.5 |
| Voltage | AC380V/3Ph/50Hz |
(Note: talk more details with sales; you could get better price and accurate products)
