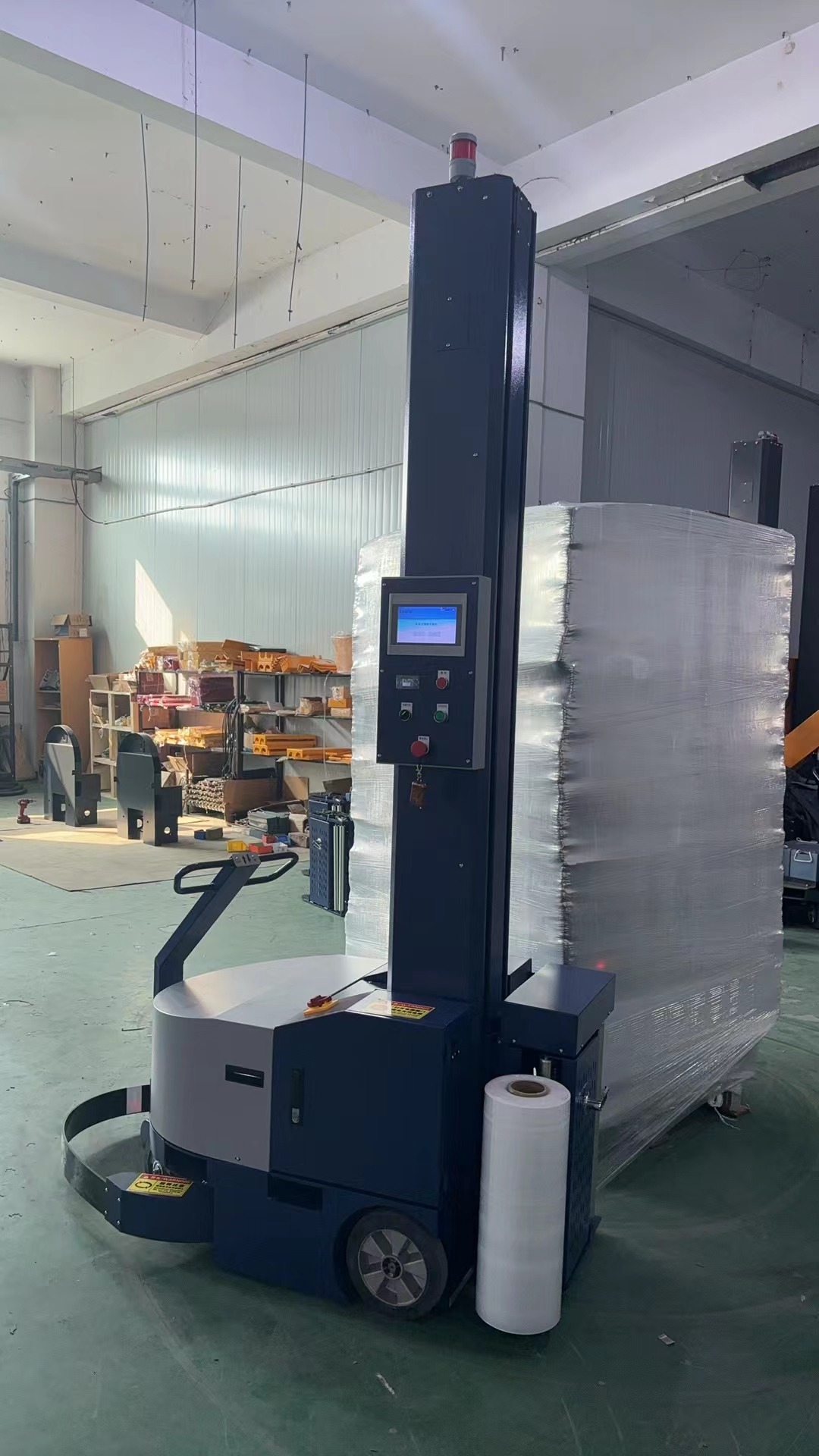

Intelligent Self-propelled Stretch Robot Electric Pallet Wrapping Machine PLC Control System Robot Wrapper

Product Description

Products Description

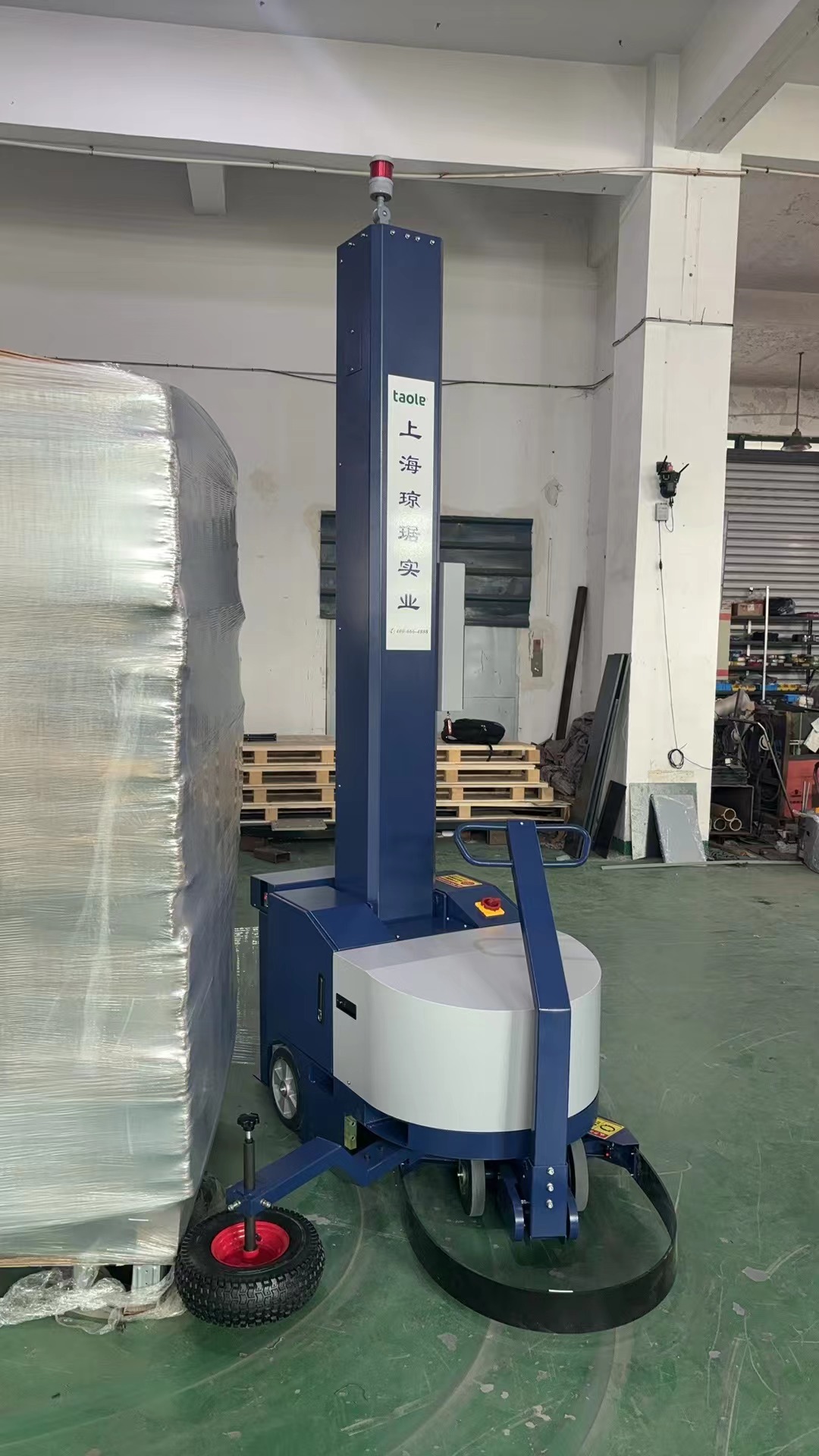

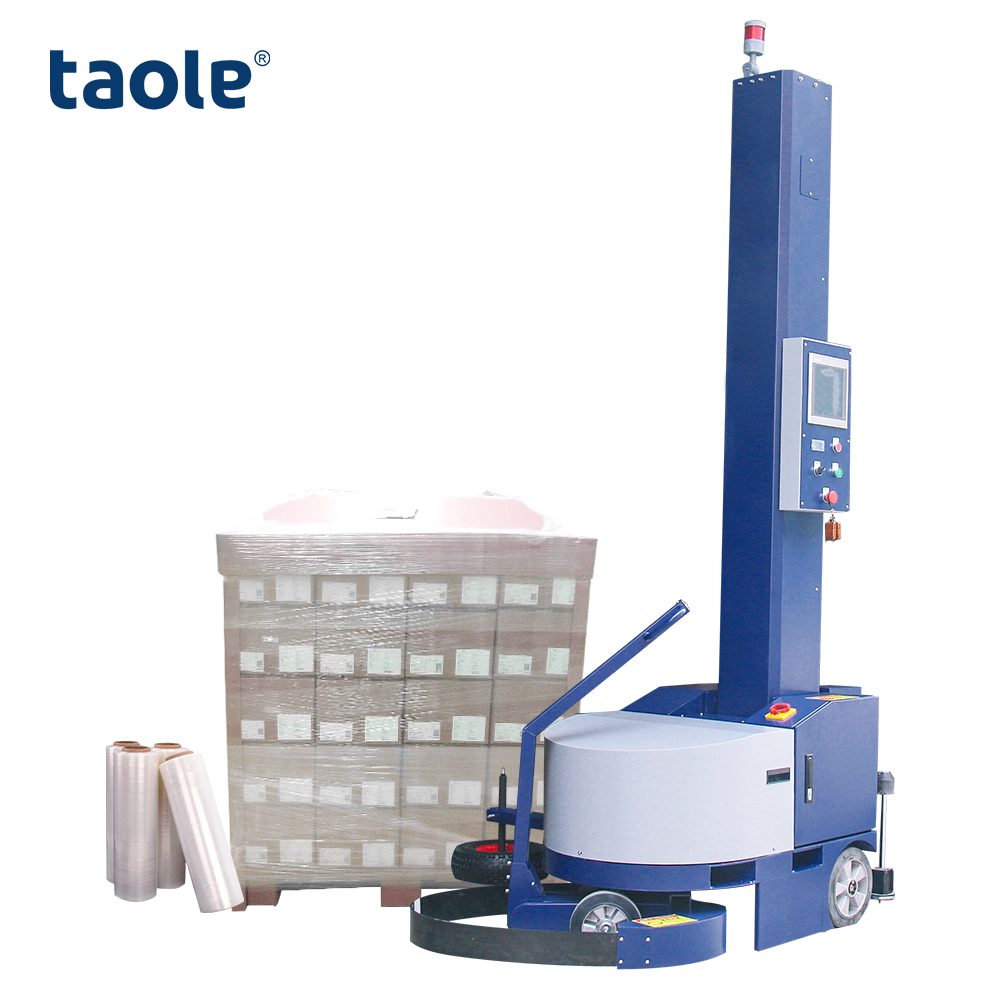

Mobile robotic stretch pallet wrappers are ideal for both standard and non-standard size pallet loads. The machine works by placing the guide tire against the pallet or if necessary against the load. To position the guide wheel, use the drive button on the handle of the machine until it is properly aligned. It is suitable for heavy goods or special-shaped pallets. The pallet is stationary on the ground. The mobile robot pallet wrapper automatically rotates 360 degrees around the pallet to automatically detect the height of goods. The wrapping height of the standard machine can reach 2.4m and the maximum customized height can reach 2.8m. The mobile robot pallet wrapper adopts a PLC control system, and the performance of the whole machine is stable.

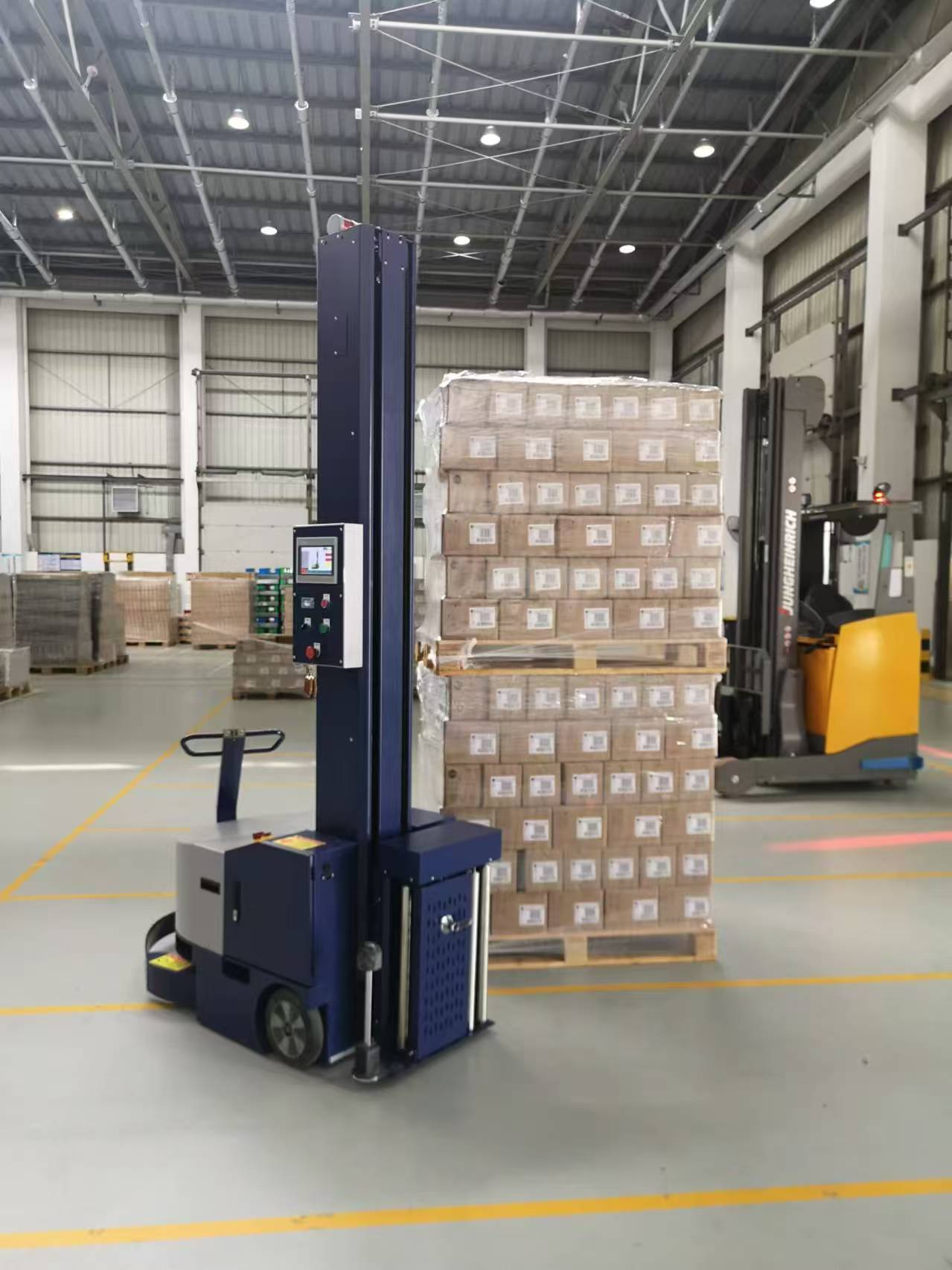

Mobile Robotic Stretch Pallet Wrapper
Main Figures
  • Photoelectric detect pallet height up to 2.4/2.8/3 meters.
  • Rotating speed adjustable, accurate resetting after wrapping.
  • Die carrier up and down speed can be adjustable.
  • There has emergency switch in front of the machine to avoid run into the wrapping.
  • PLC control system will be more stable.
  • Wrapping number of turns can be setting: bottom adjustable 1-9 turns; up adjustable 1-9 turns.
Specification
Model No. TP-600 Mobile Robot Pallet Wrapper
Control panel Touch screen
Control system PLC
Max wrapping height 2.4 Meters (Optional for 2.8 or 3 meters Height)
Moving Speed 90m/min
Continuous working time 200-300 pallets Per Charge
Suitable for film roll LLDPE Film Wide ≤500mm Inner diameter 76mm OD ≤ 250mm
Pallet size Min L600*W600mm, Max no limit
Machine weight 450kg
Robot Pallet Wrapper Details
Detailed Images

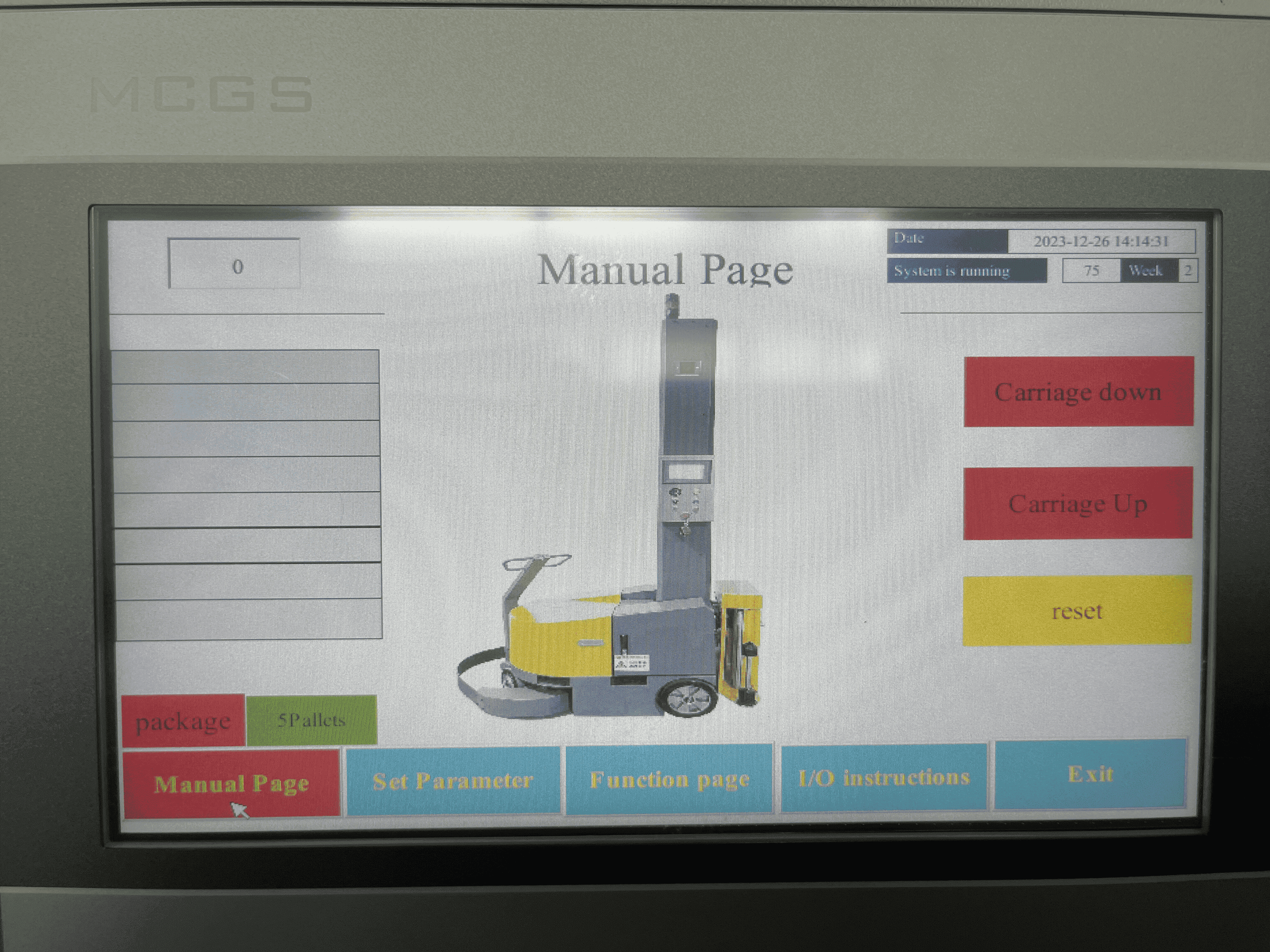

HMI Interface Operation
HMI Interface Operation
Characteristics:
1. Optional Language
2. Easy Parameter Setting and operation
3. Fault Alarm
4. Wrapping Records

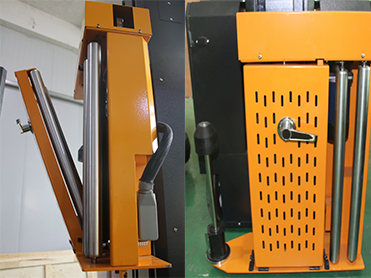

Open Door Type Wrapping Film Carriage
Open Door Type Wrapping Film Carriage
Characteristics:
1. Easy to Install Film Rolls and Stronger
2. Pre-stretching Rate
Safety Protection Device

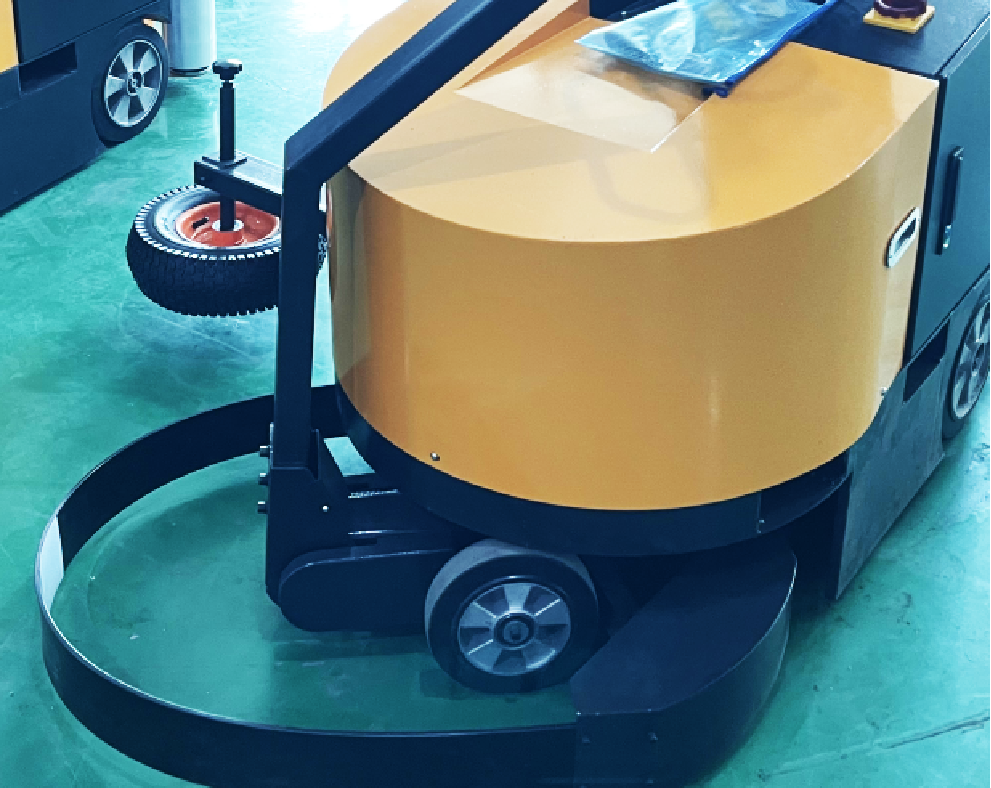

Safety Protection Device (Nylon Material)
When the protection device collides with an obstacle and undergoes deformation, the Photoelectric Sensor will detect the change. The machine will immediately stop and alarm in 1-2 seconds.

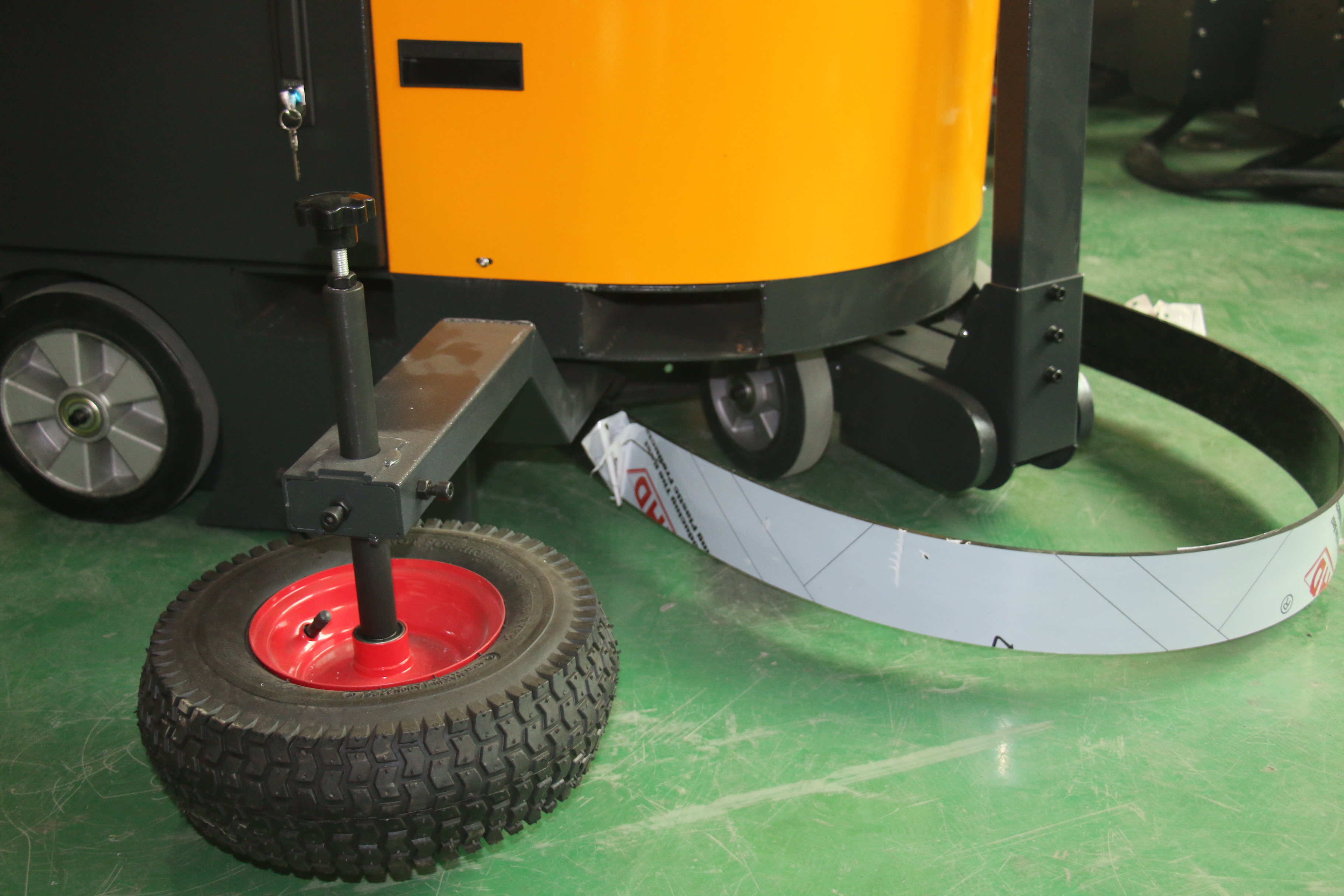

Heavy Duty durable Guide Tire
Heavy Duty Durable Guide Tire
Height Adjustable.

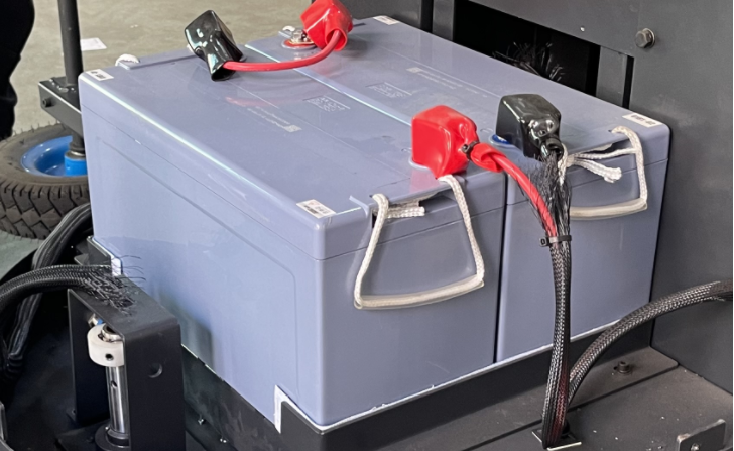

Lead-acid Cell
2 pcs of 120A Lead-acid Cell
High capacity power supply unit for extended operational support.

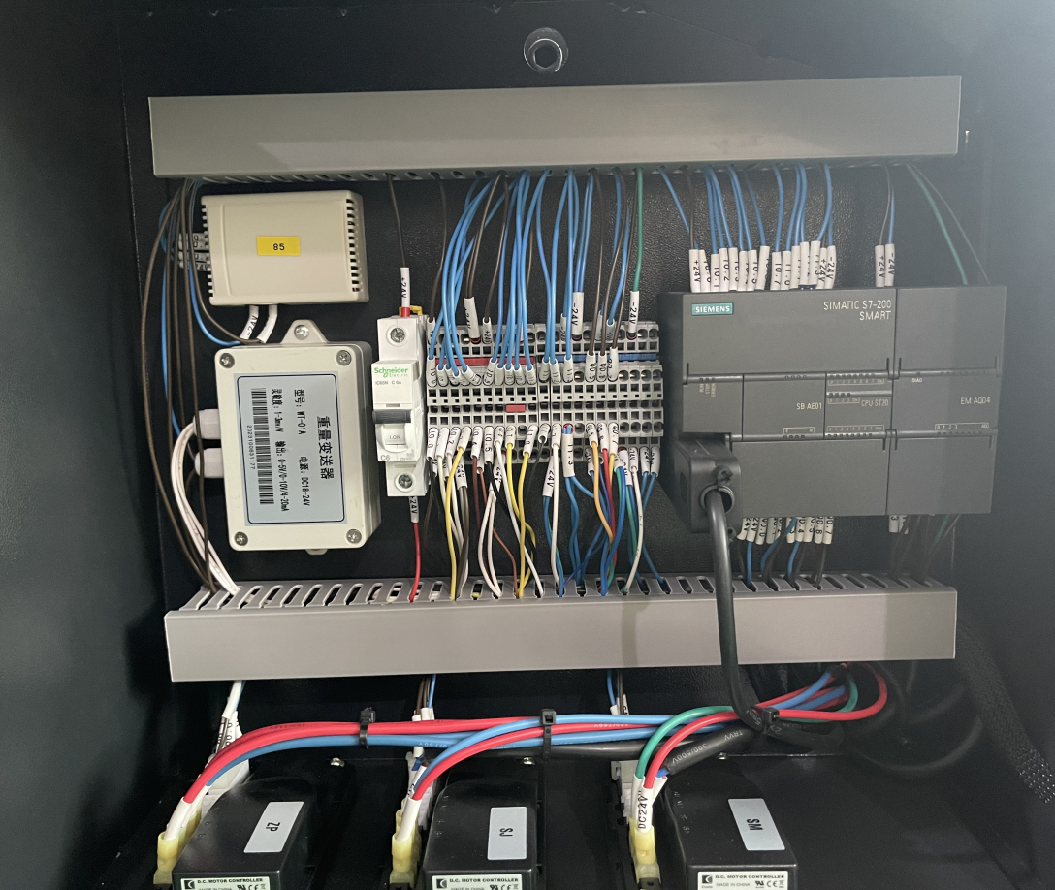

Siemens PLC
Siemens PLC
Famous brand PLC and electrical components ensure stable operation.
Robot Pallet Wrapper Side View
Design

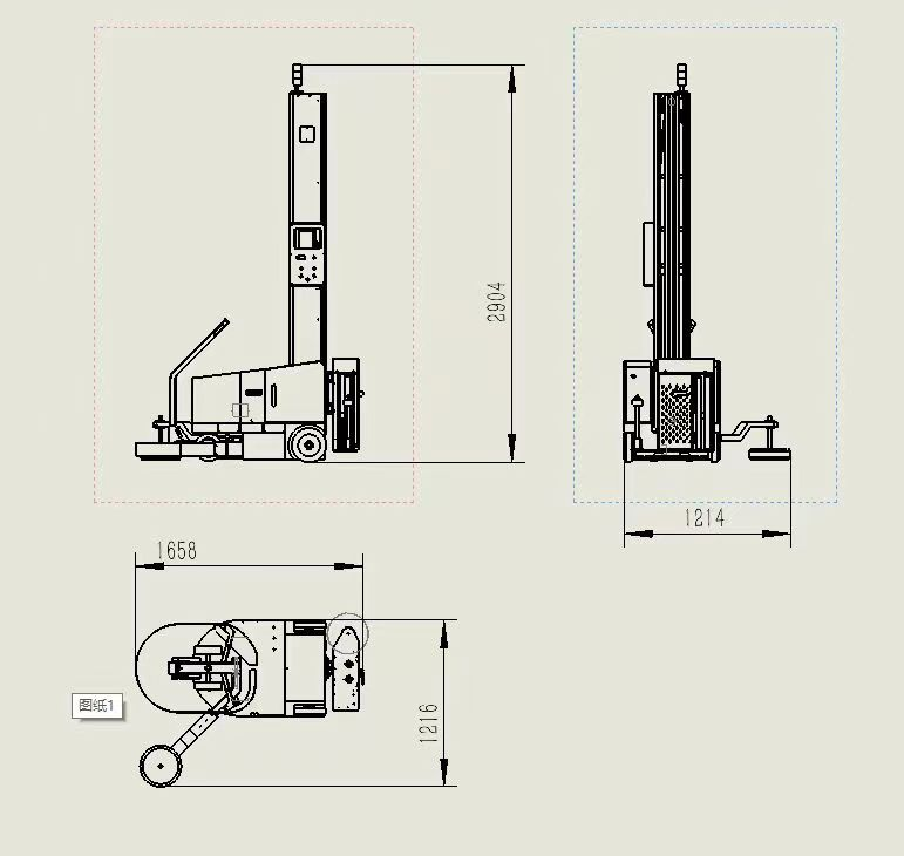

Design Drawing
Company Profile
Founded in 2004, the enterprise specializes in the manufacturing, research and development, and design of automatic packaging equipment. We have a standardized office building and a modern production workshop of 2000 square meters. Since 2004, our machines have over 18 years of experience in both domestic and overseas markets, and have a high reputation in this industry. Capable of customizing packaging products according to customer requirements, providing complete packaging solutions from design to generation. Our engineering team continuously develops and updates equipment for the purpose of energy conservation, efficiency, and safety. Our mission is to provide customers with the best solutions and high-quality services through quality, service, and commitment.

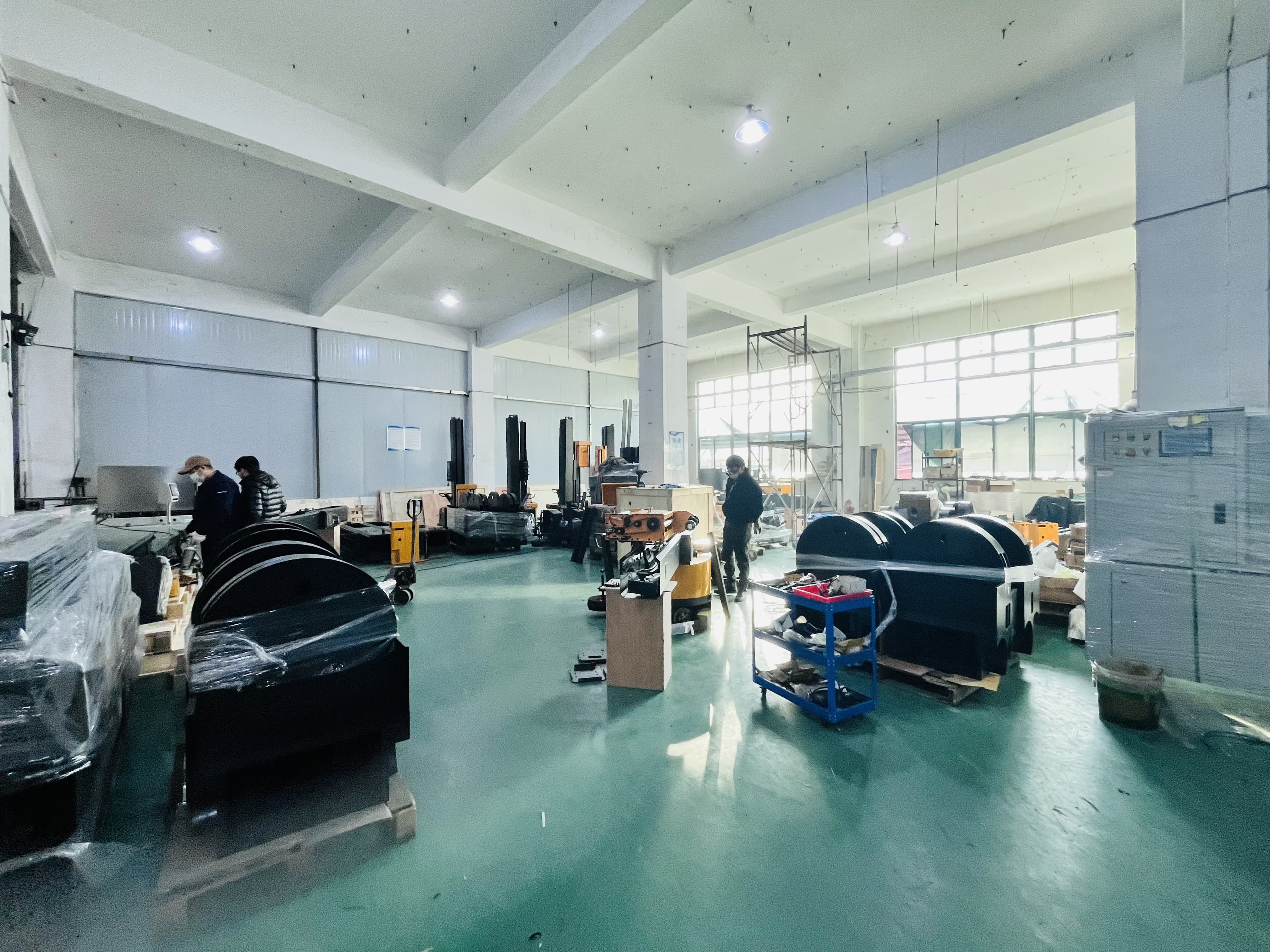

Production Workshop

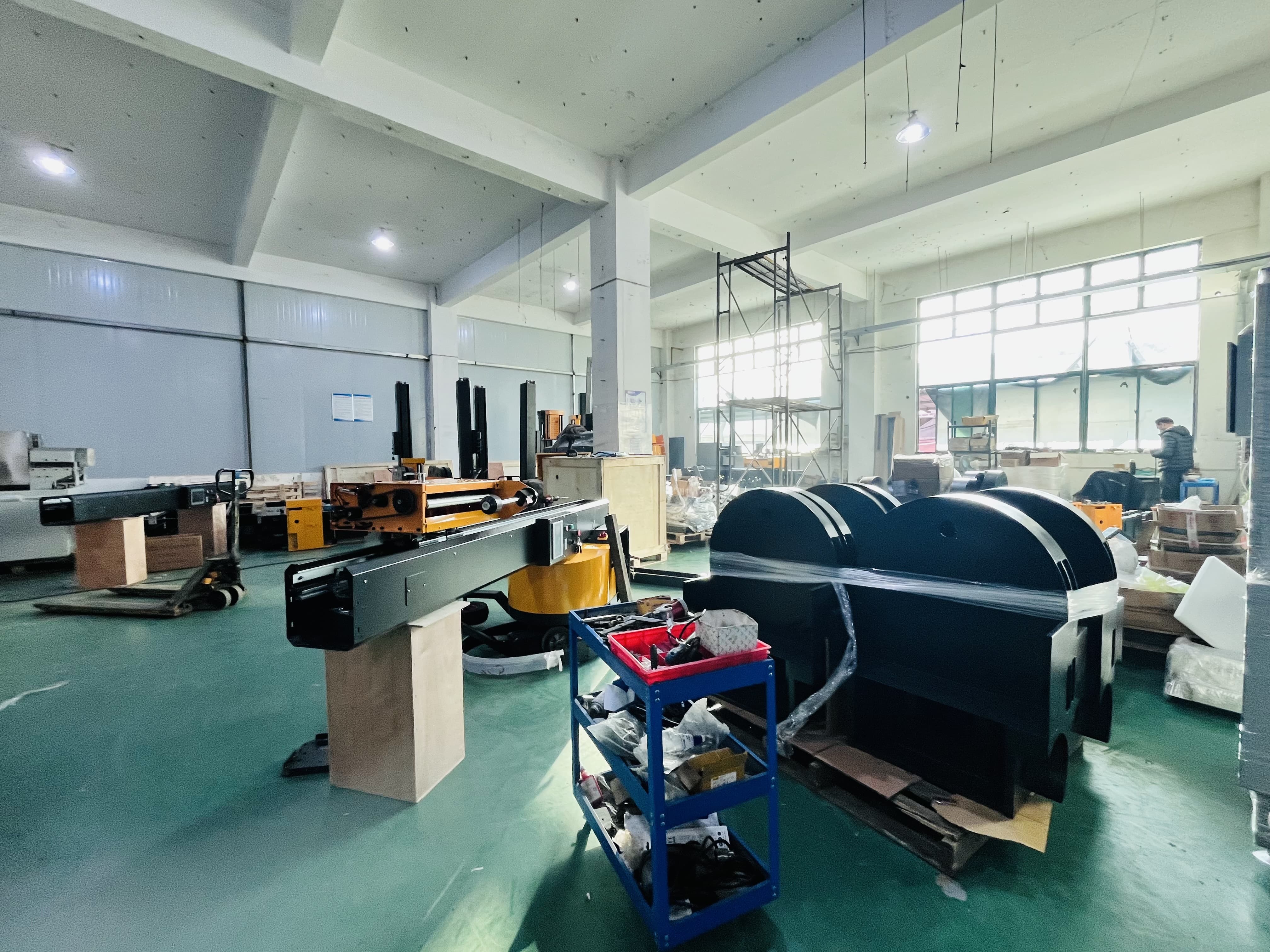

Manufacturing Area

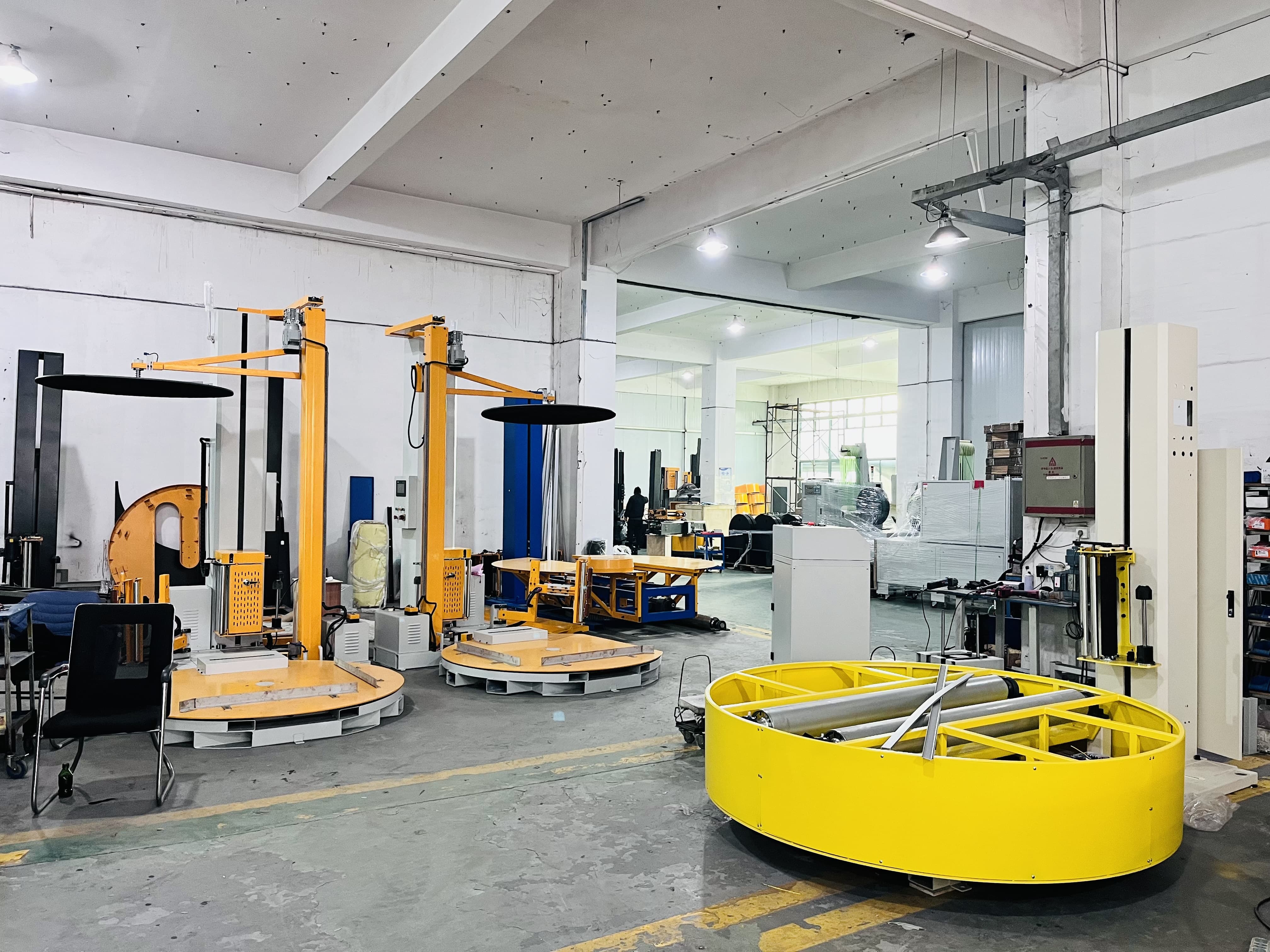

Assembly Line

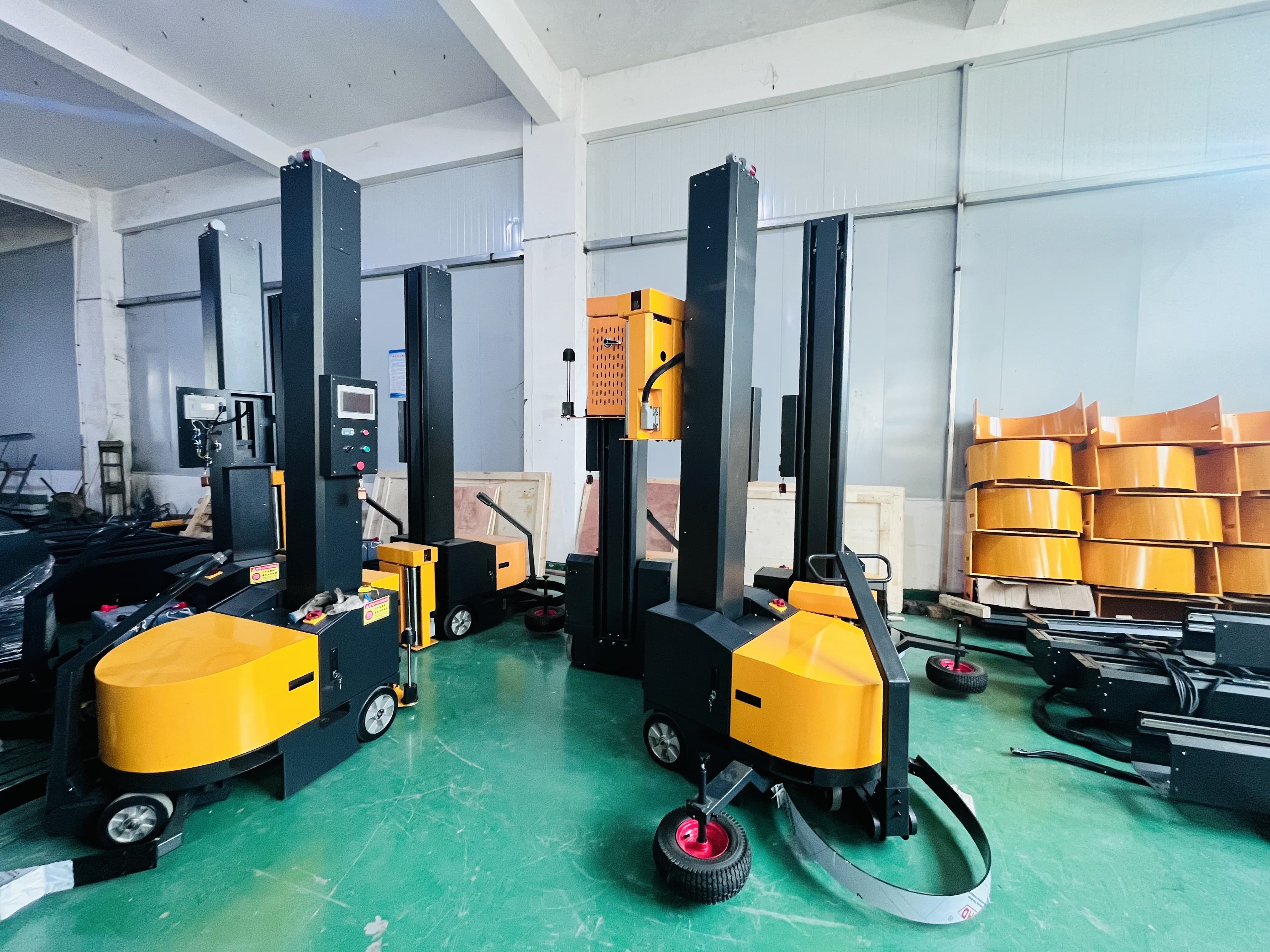

Testing Facility
Factory Overview
Packaging Area
Factory Building
Certifications & Exhibition
Certificates
Exhibition Booth
Packing & Shipping
Packing Details
Shipping Preparation
Frequently Asked Questions
Q1 What is the power supply of the Robot Pallet Wrapping machine?
Power Supply is 220V 50Hz with a replaceable 120A lead-acid cell.
Q2 How many models do you need and how can I choose?
We offer the wrapping machine with optional heights up to 2.4, 2.8, or 3 meters. Please share your pallet specifications and weight, so we can evaluate and present you with the most suitable solution.
Q3 What is the delivery time?
Standard machines are in stock or have spare parts available to be ready in 3-7 days. If you have special requirements or customized service, it normally takes 10-20 days for production after order confirmation.
Q4 What is the warranty period and after-sales service?
We provide a 1-year warranty for the machine except for wearing parts or consumables. Optional video guides, online service, or local service by third parties are available.
Q5 What are your payment terms?
We support multiple payment terms depending on order value and requirements. We suggest 100% payment for fast shipment, or deposit and balance terms for cycle orders.
Q6 How do you pack the machinery for delivery?
Small strapping tools are packed in toolboxes and carton boxes for courier express. Heavy machines exceeding 20 kg are packed in wooden cases on pallets for safe shipment by air or sea.
Warranty
A 1-year warranty is provided (excluding wearing parts and parts damage caused by improper use). The final interpretation rights for decision on free delivery of parts belong to our side.
