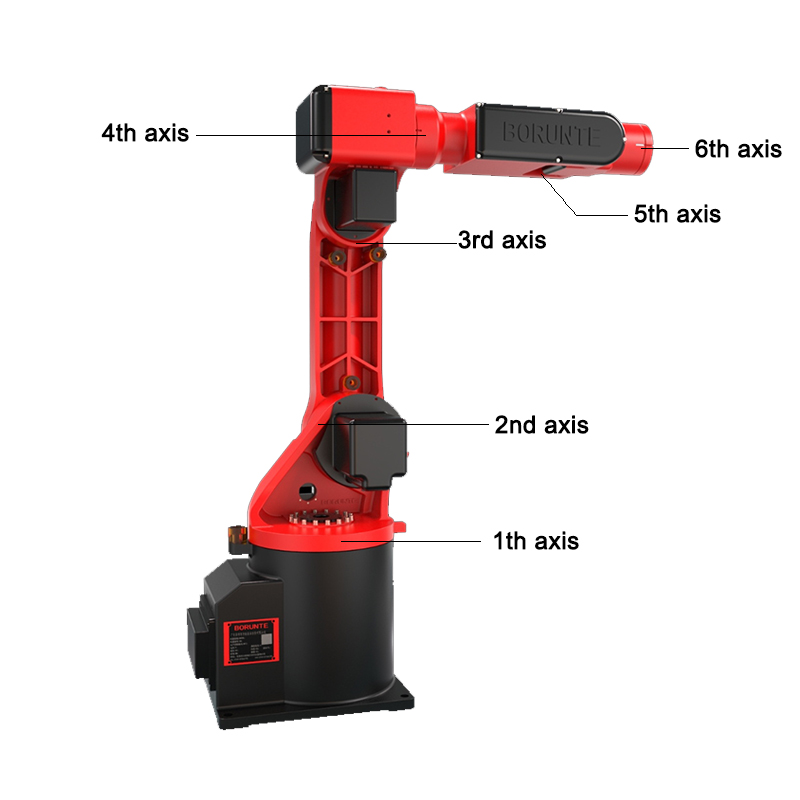

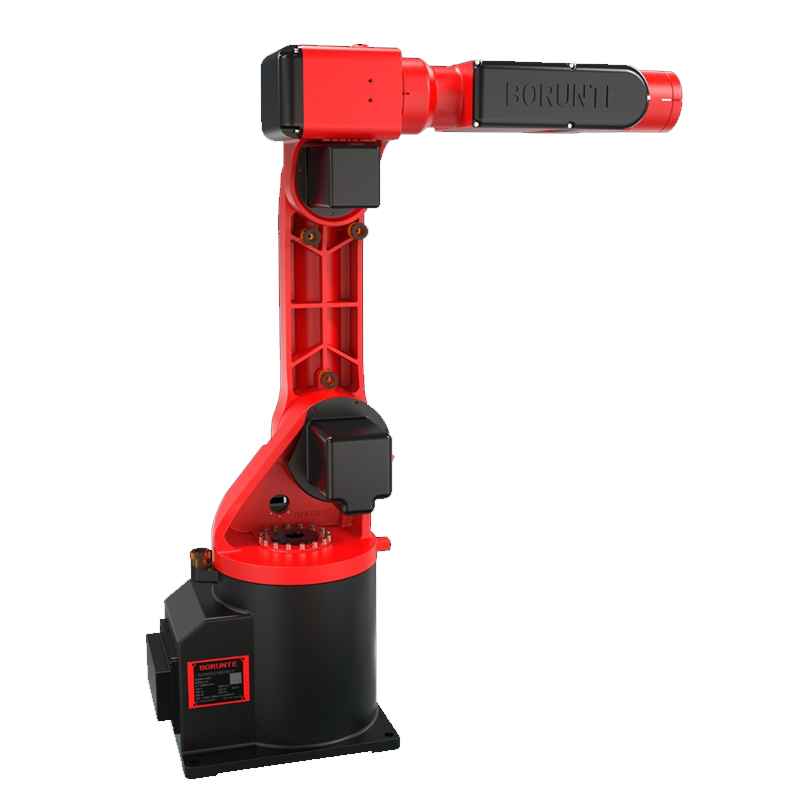

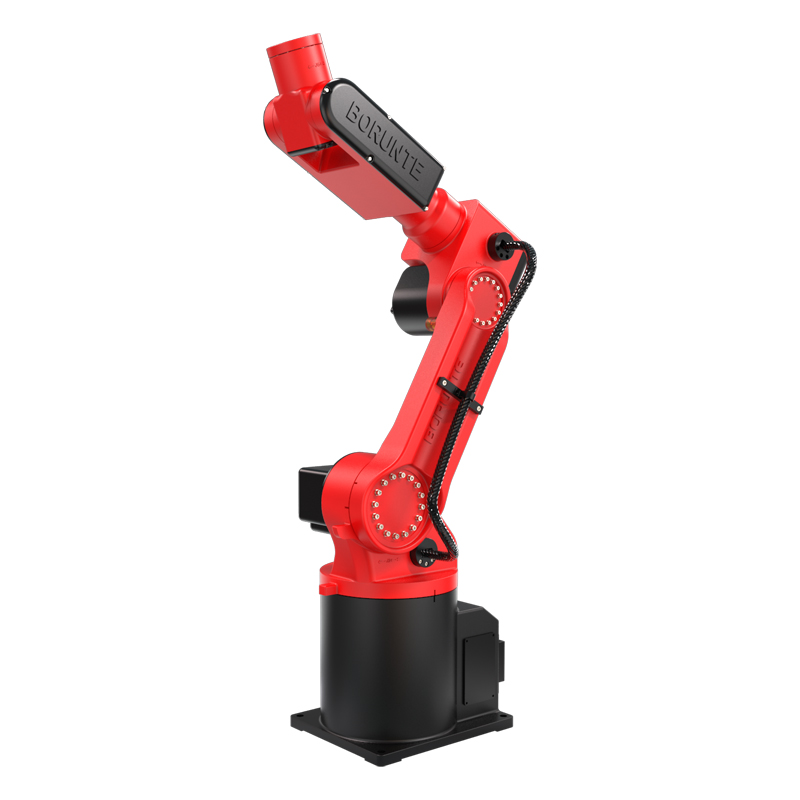

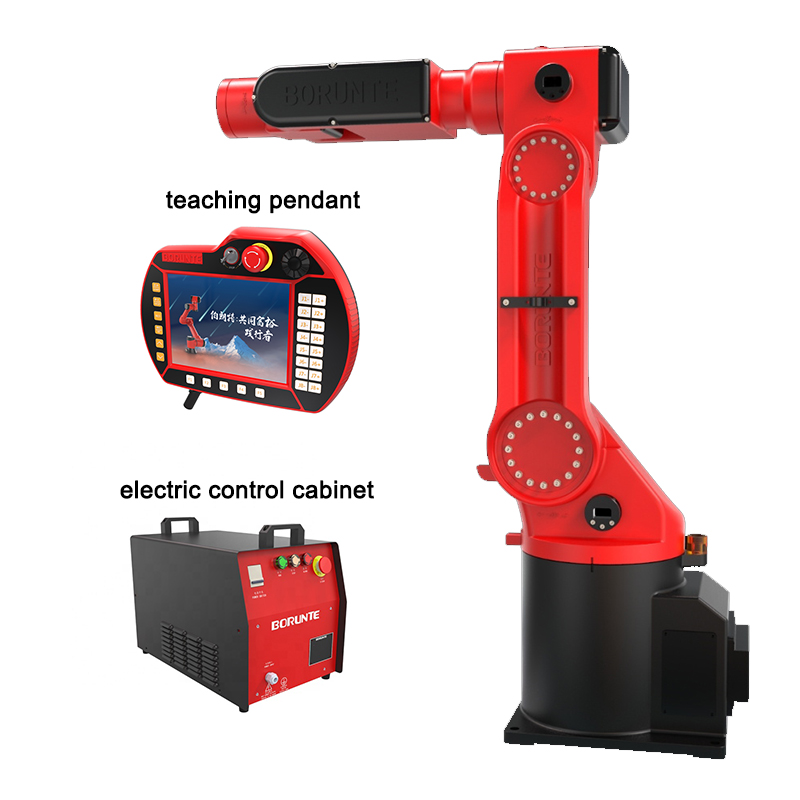

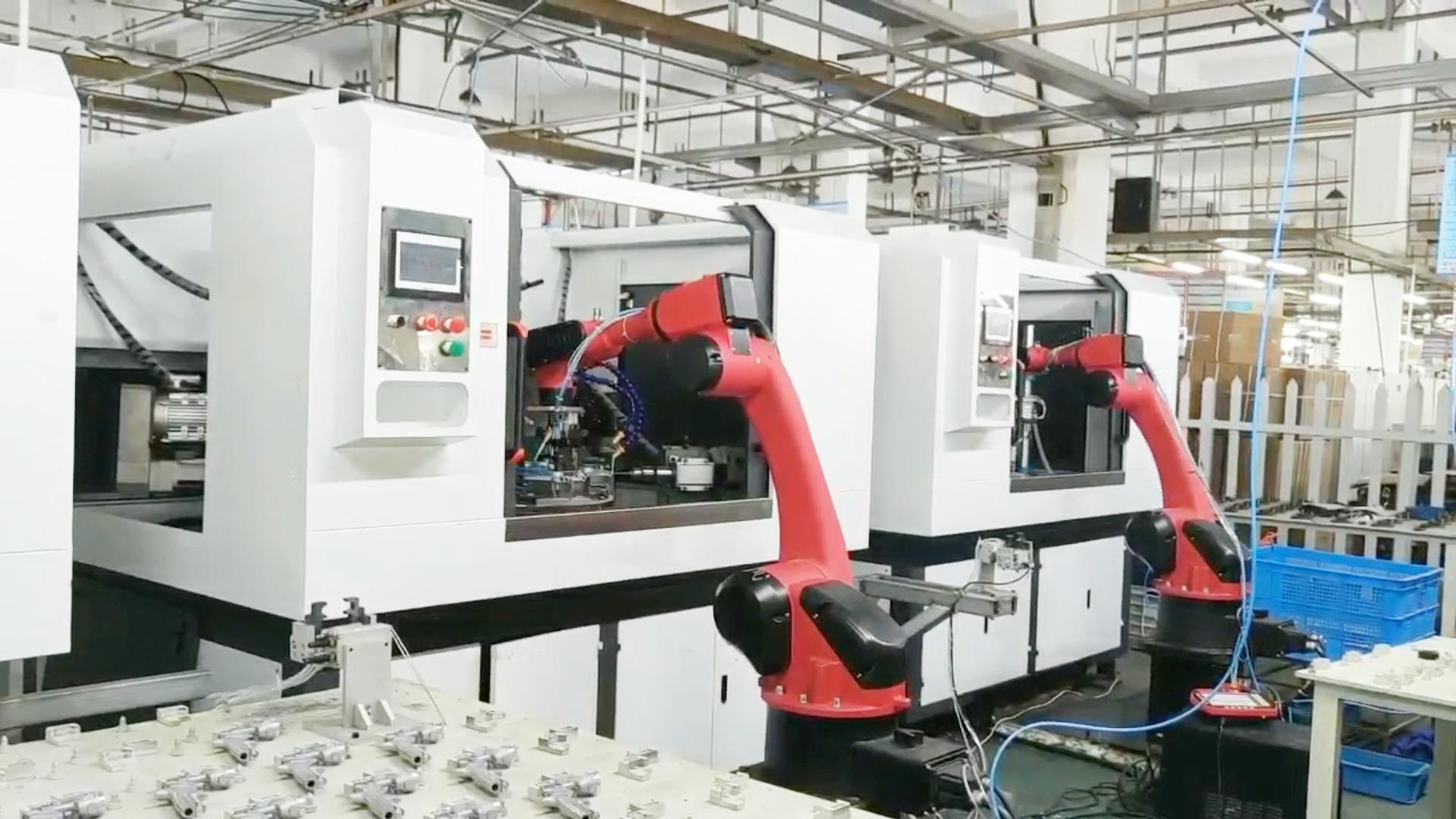

This is a six-axis cooperative robot with drag teaching function independently developed. with a maximum load of 5kg and a maximum arm length of 930 mm. It has the functions of collision detection and track reproduction. It is safe and efficient, intelligent and easy to use, flexible and light, economical and reliable, low power consumption and other characteristics, which greatly meet the needs in man-machine cooperation. Its high sensitivity and quick response can be applied to high density flexible production line, to meet the needs of product packaging, injection molding, loading and unloading, assembly and other operations, especially for man-machine collaborative work application demand. The protection grade reaches IP 50, Dust-proof. The repeat positioning accuracy is ±0.05mm.
| Model | BRTIRXZ0805A | ||||||||||
| Axes | 6 axis | ||||||||||
| Loading Ability | 5kg | ||||||||||
| IP Code | IP54 dust-proof and water-proof | ||||||||||
| Repeated Positioning Accuracy | ±0.05mm | ||||||||||
| Maximum Arm Span | 816mm | ||||||||||
| Weight | 35kg | ||||||||||
| Max Speed |
|
||||||||||
| Motion Range |
|
||||||||||
| Allowable Torque | J4: 746N*m | J5: 746N*m | J6: 368N*m | ||||||||||
| Allowable Moment of Inertia | J4: 65kg*m2 | J5: 65kg*m2 | J6: 38.6kg*m2 | ||||||||||
| Mounting Environment |
Operating temperature: 0℃~40℃ Best temperature: 25℃~40℃ Relative humidity: 20~80%RH (No condensation) Air Pressure: 0.5~0.7MPa |
||||||||||
| Power Supply | 380V±10% 50Hz/60Hz | ||||||||||
| Core Components |
|
||||||||||
| Oil Content |
|
||||||||||
| Vulnerable Parts | None | ||||||||||
| Robot Accompany Materials | USB |
