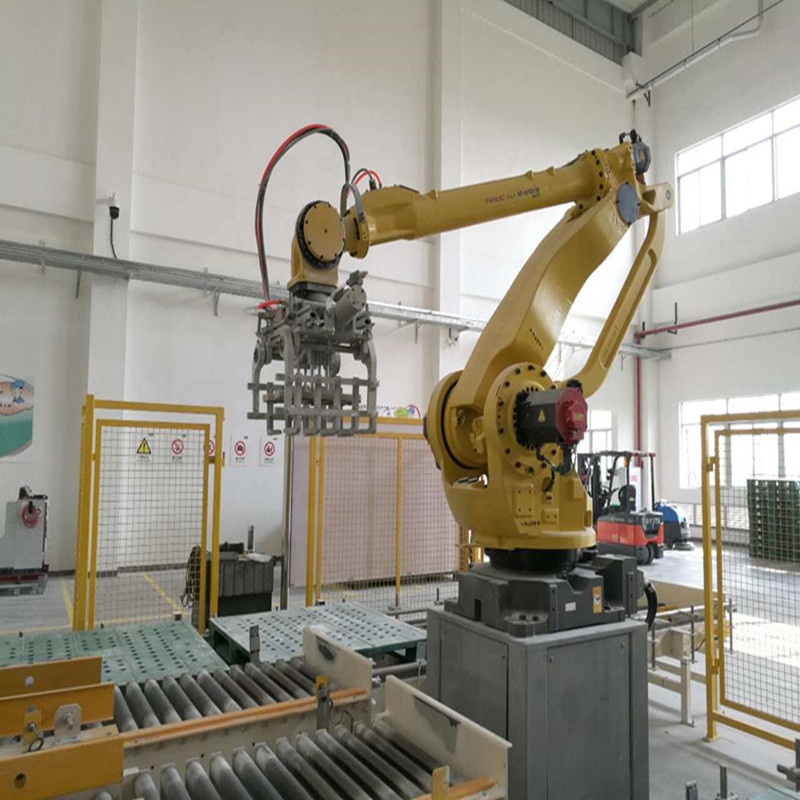

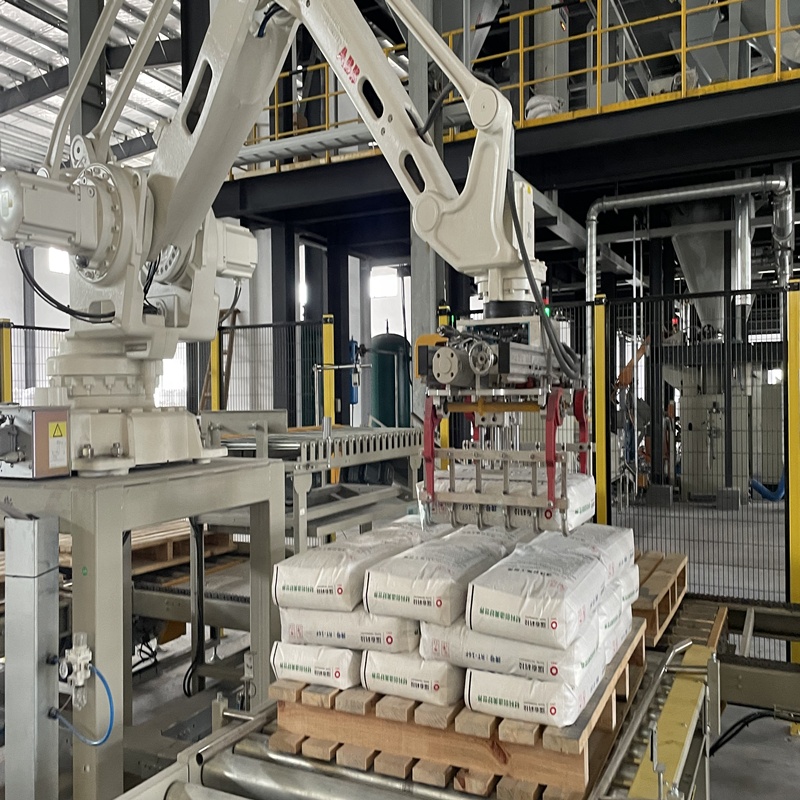

High-Speed Automatic Industrial Robot Palletizer Machine System for Plastic and Paper Packaging with Price

Product Overview

JQ-1200/1500 High level Palletizer / Robot Palletizer

The high-level palletizing system is designed to place the bagged products at layers onto the pallet or convey bags to the belt for palletless palletizing, according to the PRESET program. Normal procedures include flattening, servo-drive turning, grouping, layering, etc.

• High level palletizer is based on counting of infeed bags and grouping each layer then stacking onto pre-made pallets.

• The bag format is adjusted by the servo-drive turner to realize the PRESET stacking pattern.

• The grouping system can figure out the real-time position of each bag.

• The row-sweeper pushes a layer of the grouped bags accurately onto the stripper plate.

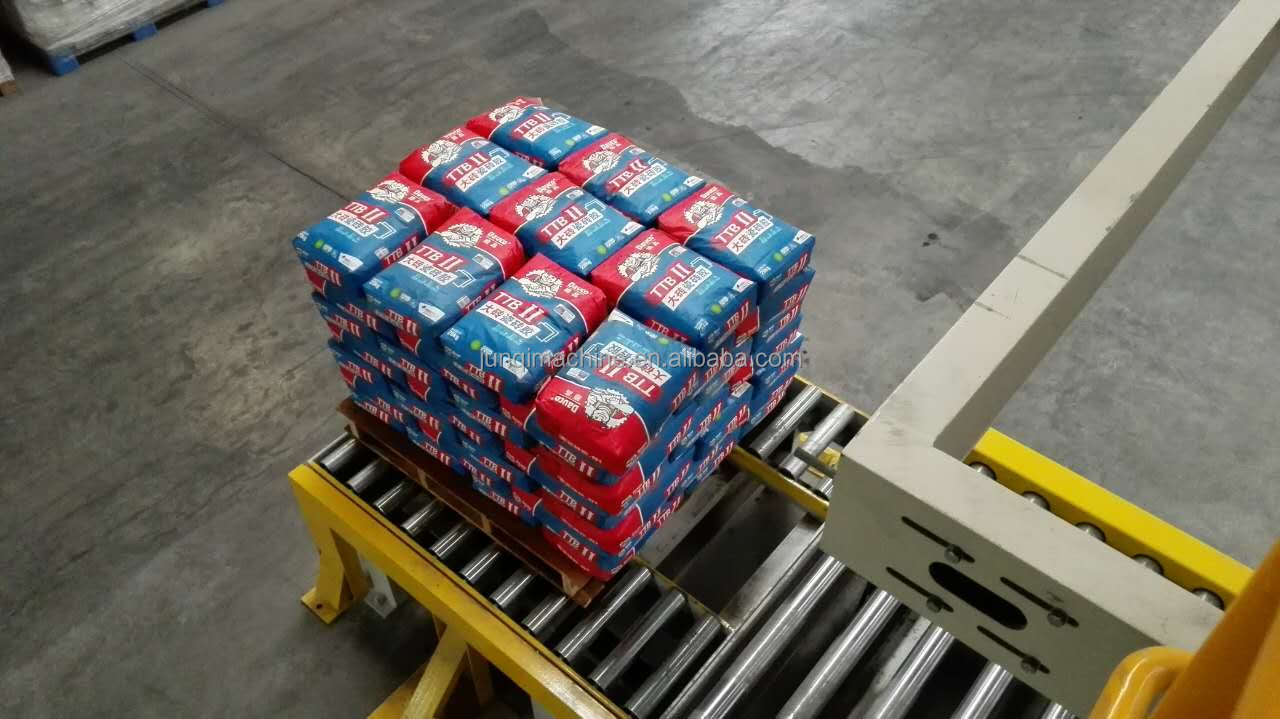

• When a pallet is fully stacked according to the program, the pallet elevator will lower the loaded pallet on the roller conveyor, which will take it out to the end conveyor for the forklift to take to the warehouse.

Features at a Glance

Compact Dimensions: Size: 18 * 1.2 * 2.5m

Capacity: 1200 bags/h; 1500 bags/h; 1800 bags/h

Stable Air Pressure: 0.5 - 0.6 MPa

Air Consumption: 35 M³/h

Voltage: 380V 50HZ 3PH

Principle: Based on counting of infeed bags and grouping each layer then stacking onto pre-made pallets.

Compact Dimensions High Level Palletizer

Product Specifications

No	Item	Data
1	Power	25KW
2	Capacity	1200 - 1500 bags/h
3	Size	18 * 1.2 * 2.5m
4	Stable Air Pressure	0.5 - 0.6 MPa
5	Air Consumption	35 M³/h
6	Voltage	380V 50HZ 3PH
7	Robot Brand	ABB / SIEMENS
8	Bag Type	Any type

Product Configuration

CHANGCHAI high power engine

Imported EATON control valve

Japan Shimadzu hydraulic motor

Sales and Service Network

Successful Project

Project in Russia

Project in Saudi Arabia

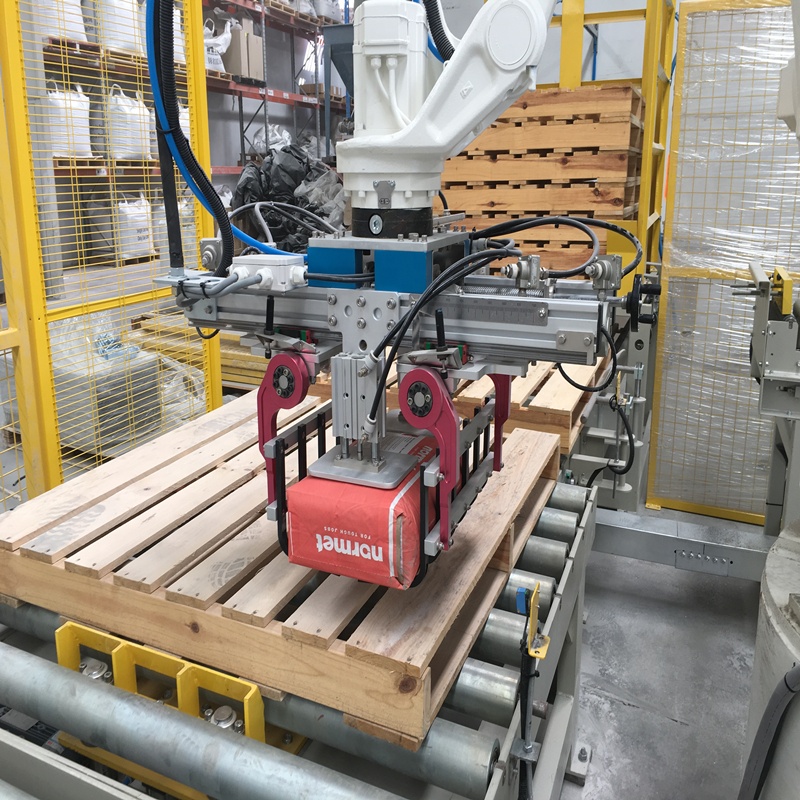

Project in Thailand

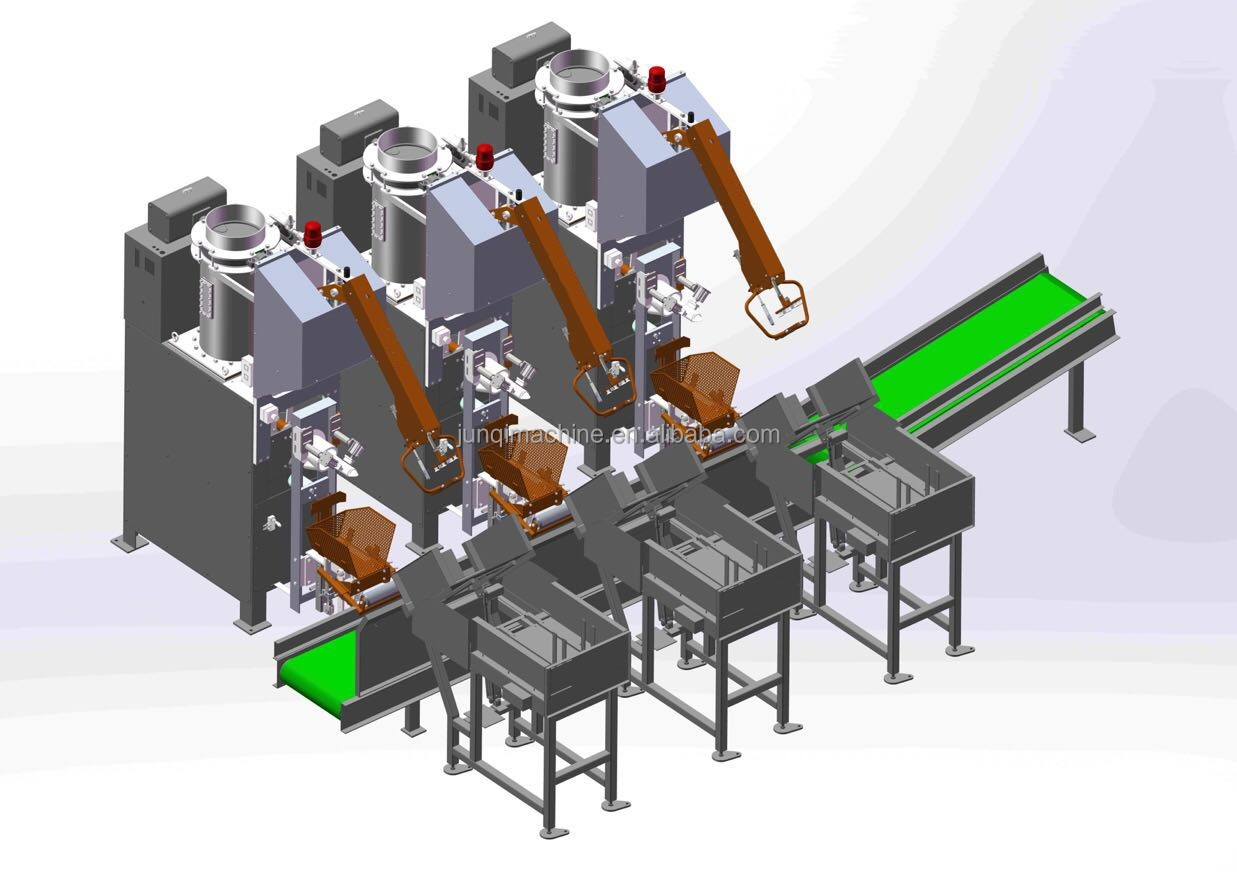

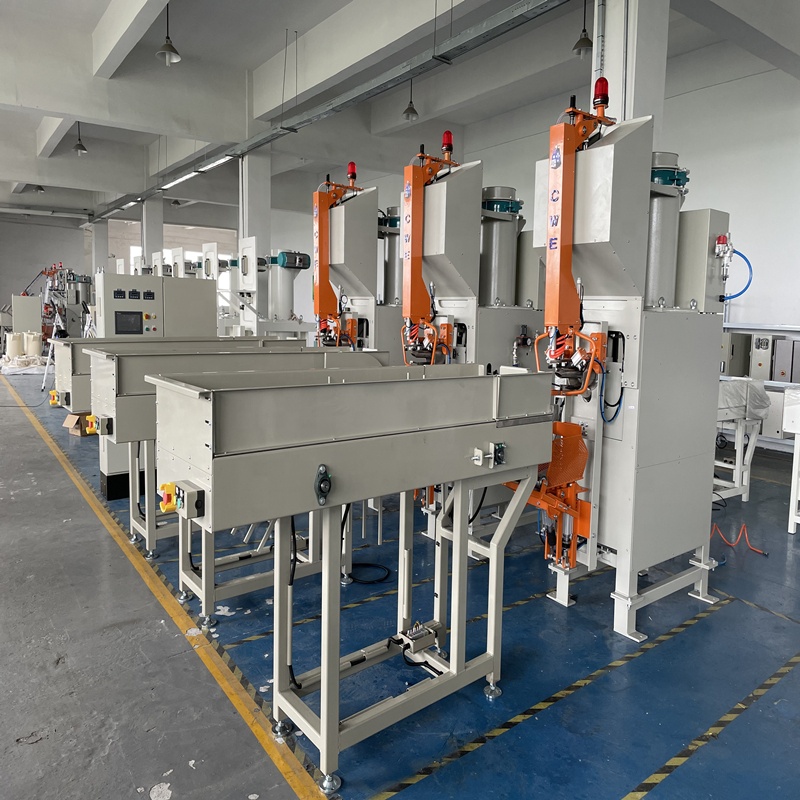

Similar Products

Frequently Asked Questions

What services and warranty support do you provide?

We offer 7*24h online service, a one-year free warranty, professional local installation and debugging services, and comprehensive operator training for your workers. We reply quickly and put forth our best efforts to support your requirements.

What is the production capacity of the JQ-1200/1500 system?

The system features adjustable processing capacities including 1200 bags/h, 1500 bags/h, and up to a maximum of 1800 bags/h depending on the preset program and configuration.

What types of bags are compatible with this palletizer?

This high-level palletizing system is designed to handle any type of bag configuration.

What are the power, air, and voltage requirements for operation?

The system requires a total power of 25KW, a stable air pressure of 0.5-0.6 MPa, an air consumption of 35 M³/h, and operates on a voltage of 380V 50HZ 3PH.

Which robot and component brands are integrated into the machine?

We integrate high-quality components from leading manufacturers including ABB and SIEMENS for the robot systems, a CHANGCHAI high power engine, imported EATON control valves, and Japan Shimadzu hydraulic motors.

How does the automatic stacking and grouping process work?

Operation is based on counting infeed bags and grouping each layer. The bag format is adjusted by a servo-drive turner to match preset stacking patterns, and real-time positioning is determined by the grouping system before the row-sweeper pushes the layer onto the stripper plate.
