Since our factory's establishment in 1989, we have dedicated decades to specializing in the vacuum packaging industry. Recognized as a National High-Tech Enterprise by the Chinese government and holding 100+ patents, we serve as a certified supplier to distinguished clients including:
Industry Leadership & Recognition:
WE ARE A FACTORY.
We are a professional manufacturer with 36 years of experience in vacuum packaging machines, offering customized solutions based on local market needs. With successful partnerships in North and South America, we provide reliable products, competitive pricing, and full support.

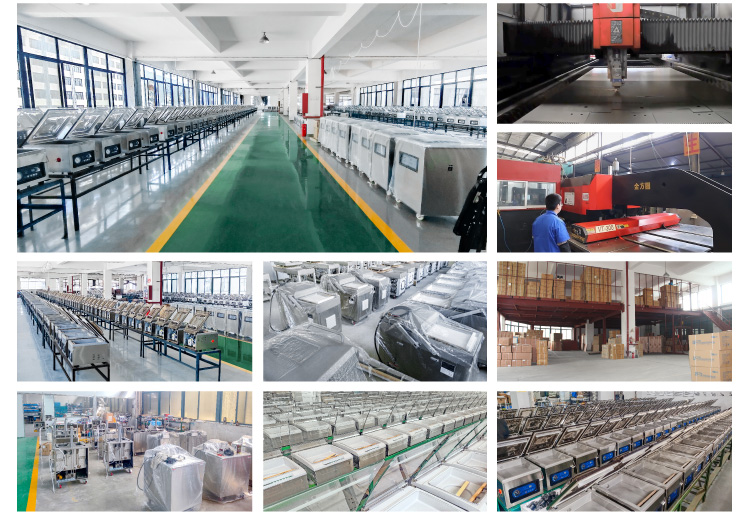

Global Distributor Program | 12+ International Exhibitions Annually
With 36+ years of vacuum packaging expertise, we showcase CE-certified, self-designed machinery at premier exhibitions including CANTON FAIR, INTERPACK, PROPAK, and SWOP.
Annual production capacity exceeding 2,000,000 units. Exported to 100+ countries.
Our team delivers professional vacuum packaging solutions leveraging extensive experience, backed by reliable after-sales service.
We treat every customer as a valued partner, prioritizing their needs and concerns to ensure tangible benefits.
| Model / Specification | DZQ-400 2SA | DZQ-500 2SA | DZQ-600 2SA |
|---|---|---|---|
| Voltage (Selectable) | 1-phase 110V/127V/220V 50/60Hz 3-phase 220V/230V/380V 50/60Hz |
1-phase 110V/127V/220V 50/60Hz 3-phase 220V/230V/380V 50/60Hz |
1-phase 110V/127V/220V 50/60Hz 3-phase 220V/230V/380V 50/60Hz |
| Pump Power (Selectable) | 1-phase 0.9kw/1.8kw 3-phase 2.2kw/3kw |
1-phase 1.8kw 3-phase 2.2kw/3kw |
1-phase 1.8kw 3-phase 2.2kw/3kw |
| Cycle Time | 10-30 seconds | 10-30 seconds | 10-30 seconds |

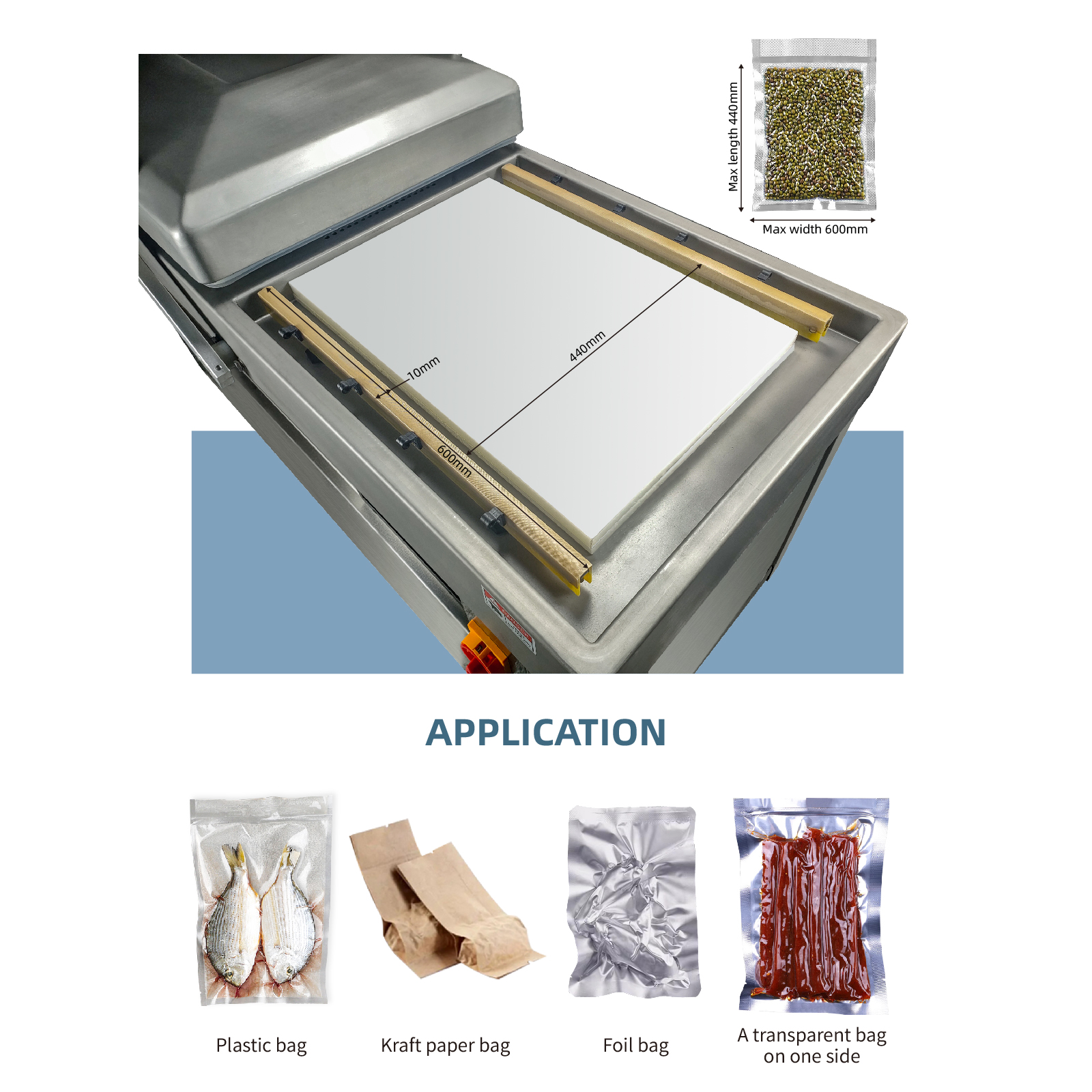

| Sealing Length | 15.7 × 0.4 inches (400 × 10 mm) |
19.7 × 0.4 inches (500 × 10 mm) |
23.6 × 0.4 inches (600 × 10 mm) |
| Chamber Size (without cover) | 17.7 × 18.3 × 2.0 inches (450 x 465 x 50 mm) |
22.2 × 21.1 × 2.0 inches (565 × 535 × 50 mm) |
26.1 × 21.5 × 2.0 inches (662 × 546 × 50 mm) |
| Pump Capacity (Selectable) | 706.3 - 3531.5 cft/h (20 - 100 m³/h) |
1412.6 - 3531.5 cft/h (40 - 100 m³/h) |
1412.6 - 3531.5 cft/h (40 - 100 m³/h) |
| Dimension | 40.4 × 24.0 × 38.2 inches (1025 × 610 × 970 mm) |
49.4 × 26.8 × 39.2 inches (1254 × 680 × 995 mm) |
57.5 × 27.2 × 37.8 inches (1460 × 690 × 960 mm) |
| Weight | ≈ 297.6 lbs (≈ 135 kg) |
≈ 385.8 lbs (≈ 175 kg) |
≈ 451.9 lbs (≈ 205 kg) |

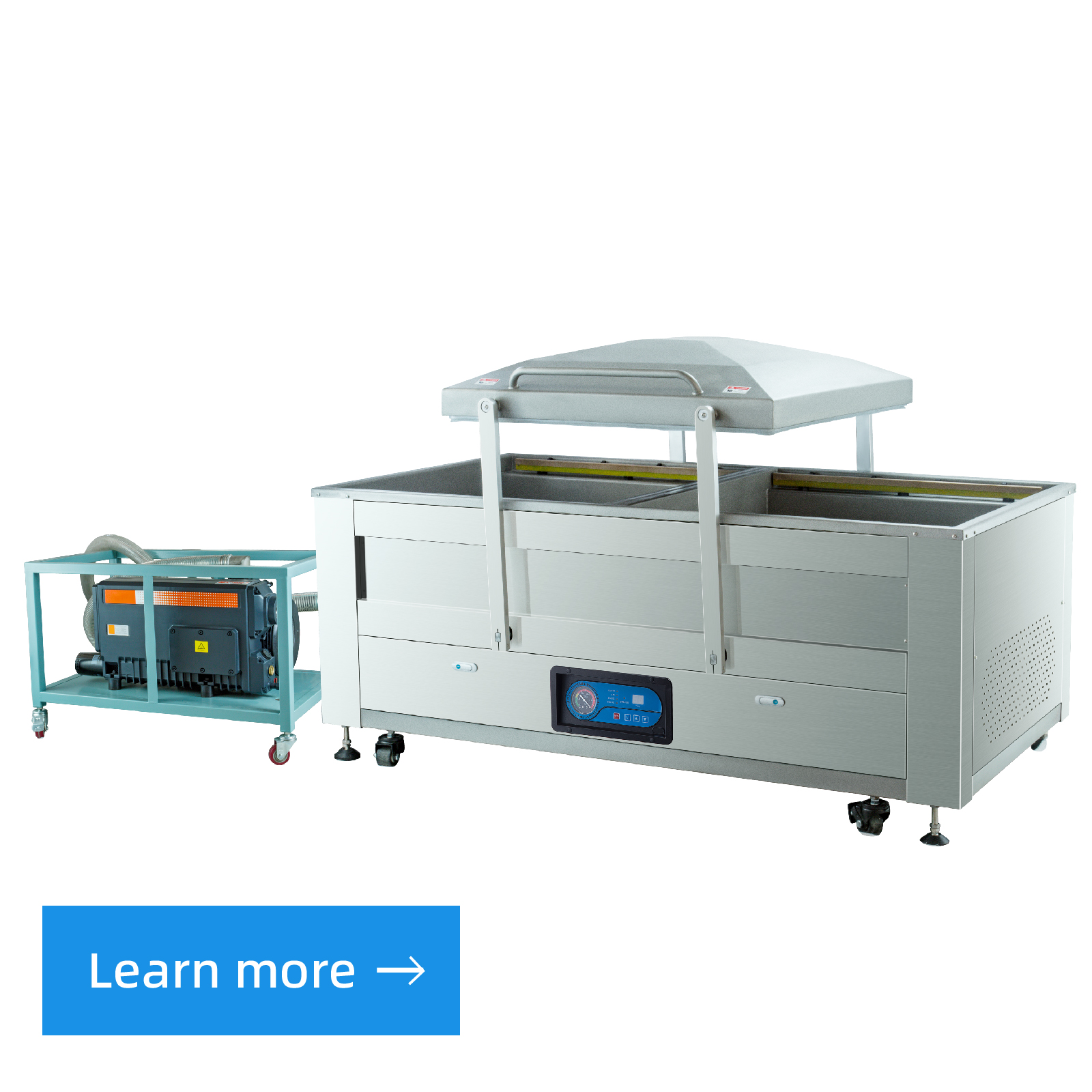

1. Four 35.4 inches removable seal bars
2. Optional vacuum pump brands (e.g. Busch)
3. Customizable: chamber size, pumping speed...
1. Four 27.6 inches removable seal bars
2. The ideal solution for automated high-volume vacuum packaging in film bags

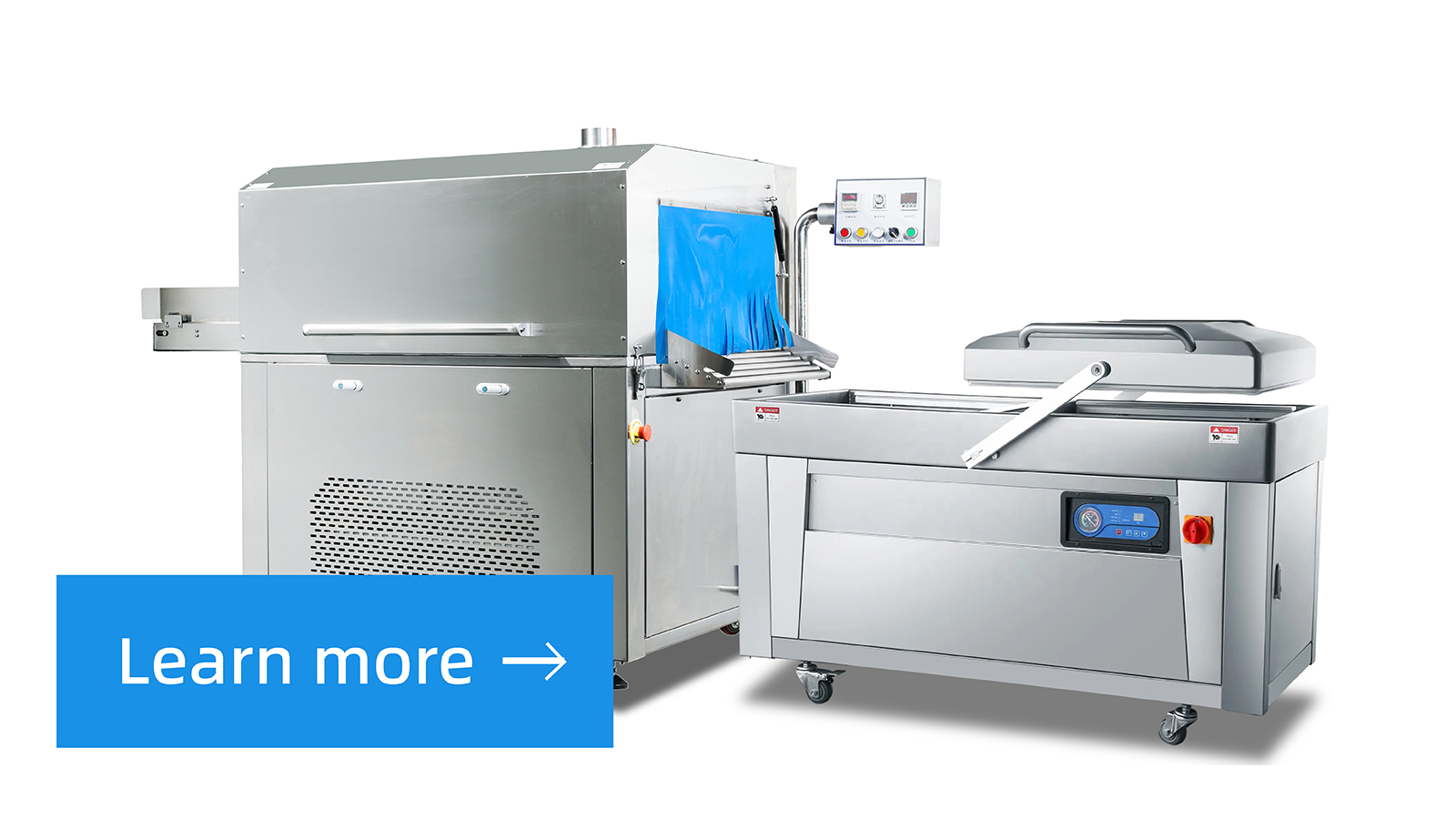

1. Vacuum packaging + hot water shrinkage
2. Four 23.6 inches removable seal bars
3. Tank Dimension: 23.6 × 19.7 × 19.7 inches

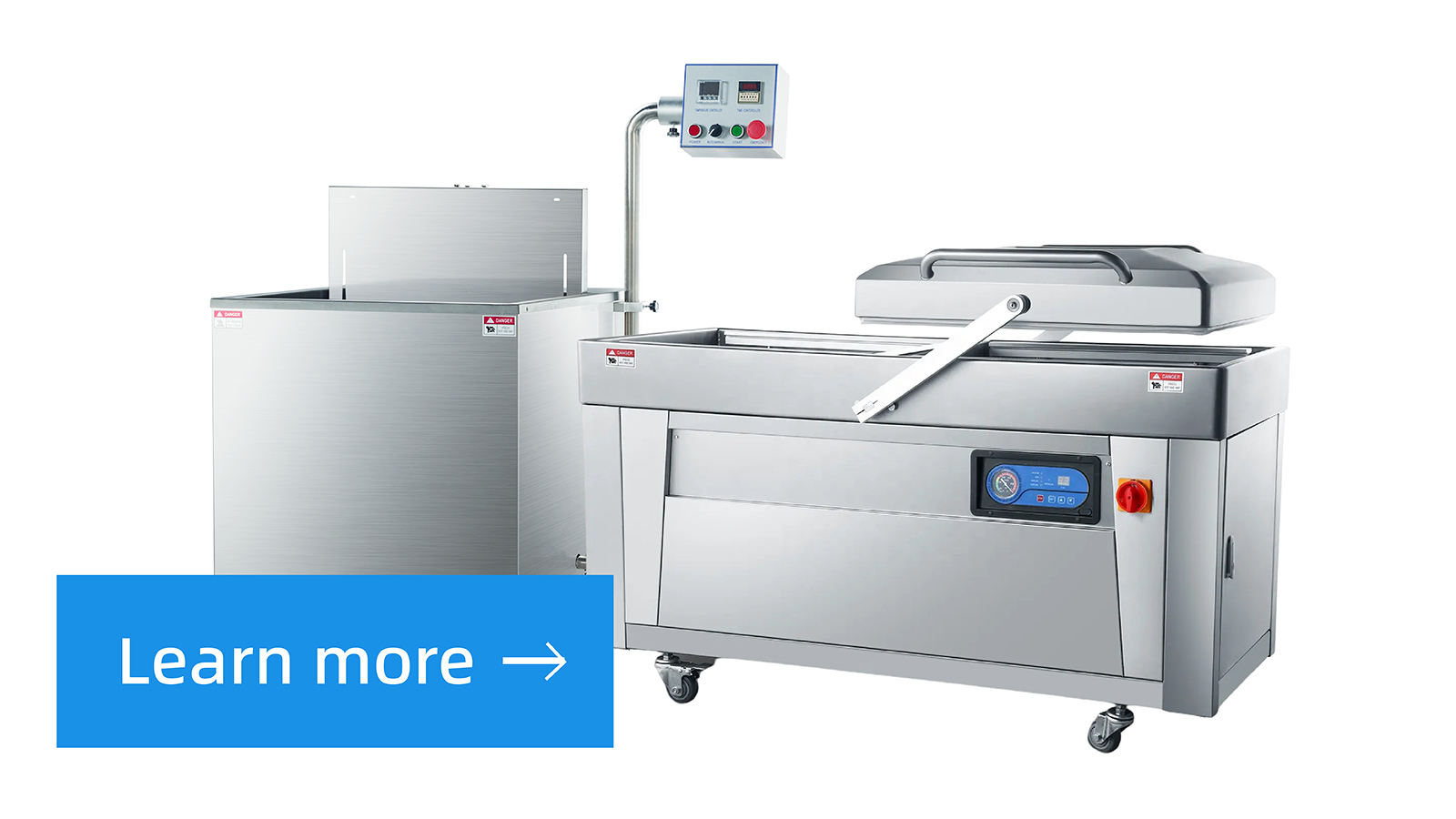

1. Vacuum packaging + hot water shrinkage
2. Four 23.6 inches removable seal bars
3. Water tank size: 33.1 × 24.7 × 18.9 inches
Ten Strengths, One Unstoppable Solution. 10X the Benefits, Zero Compromise

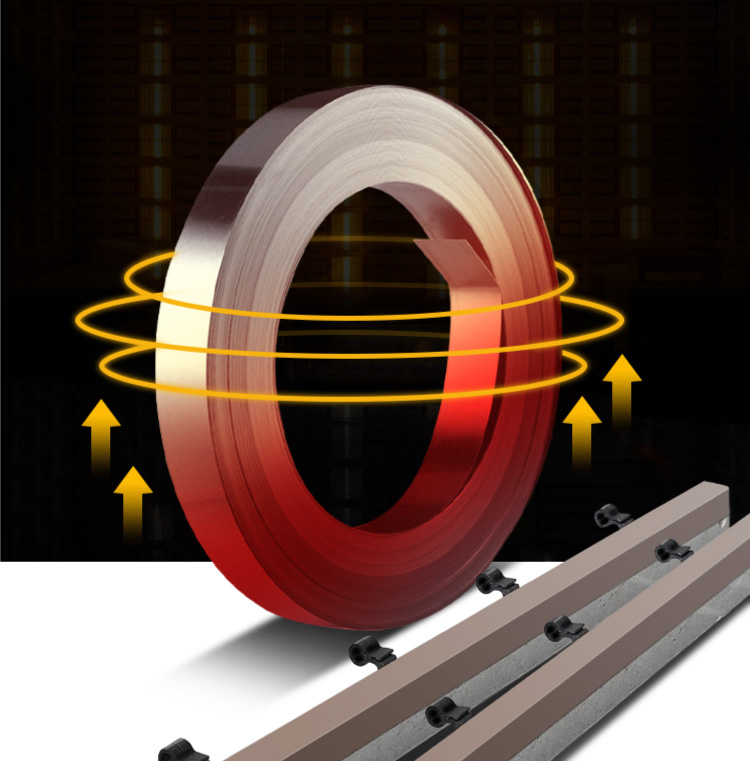

High temperature and anti-oxidation resistance, plug and play design, easy to replace (includes 2 spare wires).

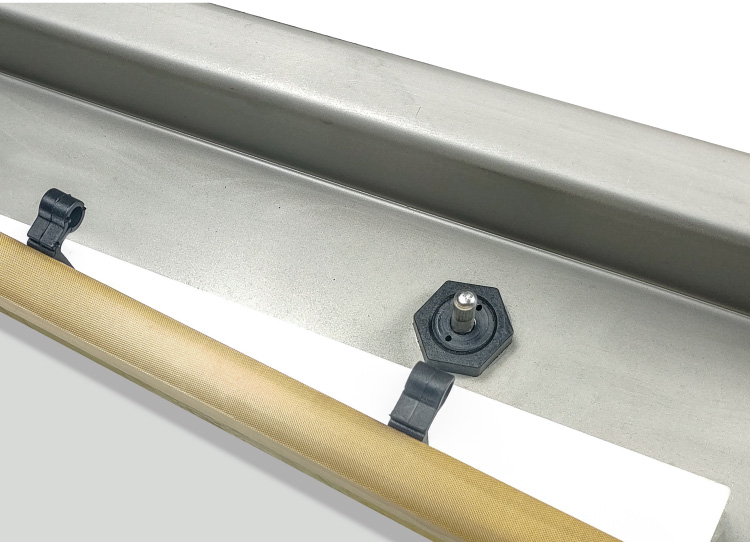

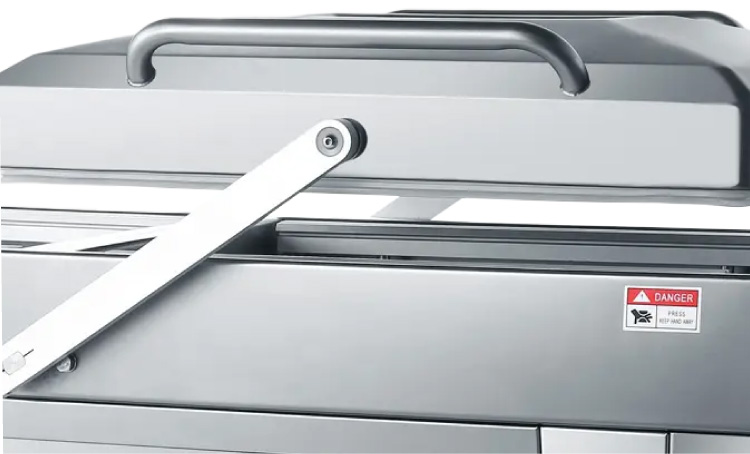

The machine body is made of durable 304 stainless steel. Includes FDA-grade silicone seals with <0.05% leakage rate (1 spare set included). Robust stainless steel structure withstands 100,000+ closures.
Stainless steel frame with an aesthetic appearance, excellent wet and corrosion resistance for a long service life.

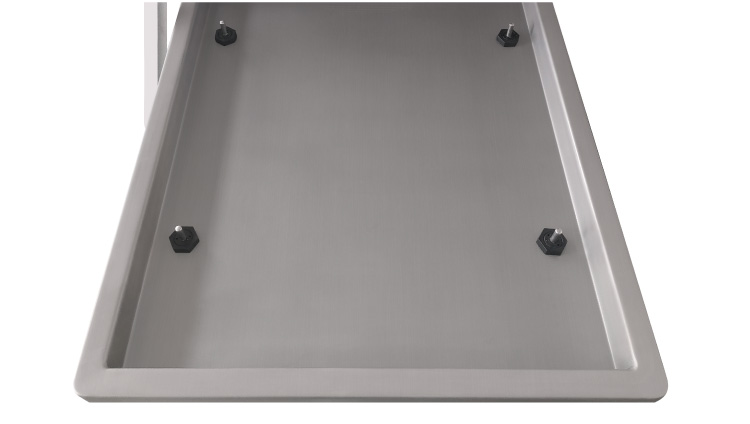

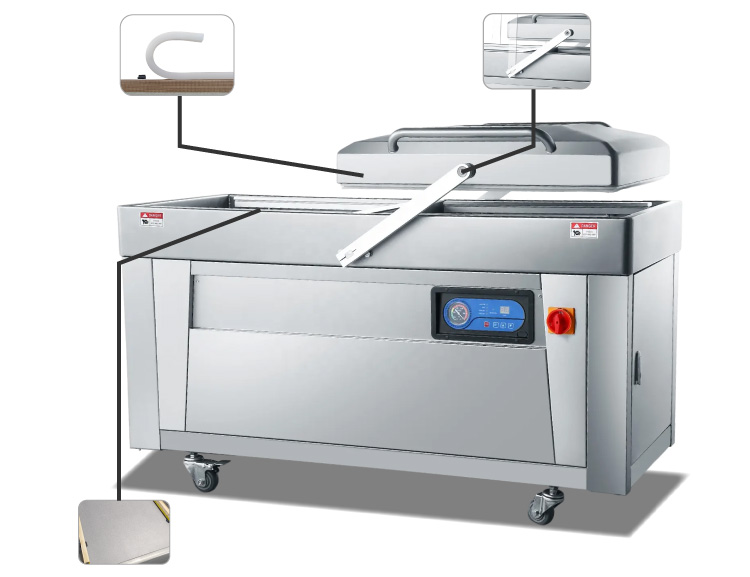

Sealing bars and filling plates can be removed easily without tools, simplifying cleanups and quick maintenance.
Core components have been subjected to 50,000 cycles of fatigue testing. With regular maintenance, the operational service life is more than 10 years.
Equipped with an anti-corrosion pump featuring wear-resistant blades to support extended heavy-duty operation.

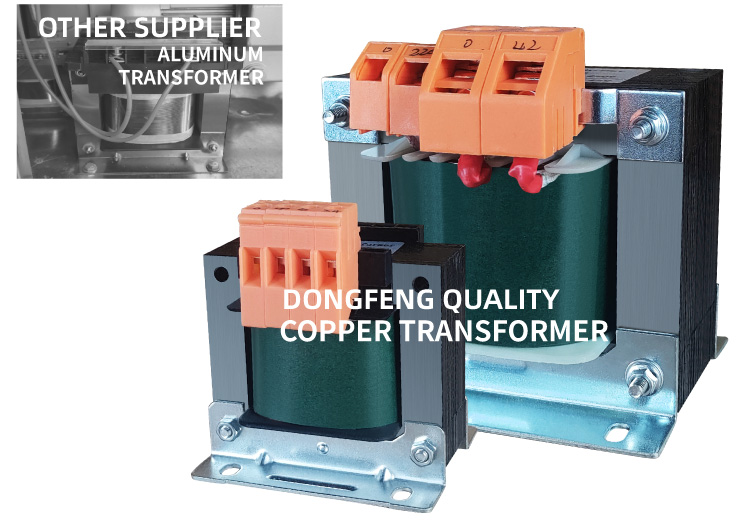

Our dual pure-coil transformers ensure maximum conductivity and superior heat resistance for highly stable operations. Lower-cost alternative machines often utilize aluminum coils, which increase overall electrical resistance and elevate fatigue failure risk during continuous industrial use.
| Parameters | Copper Wire Transformer | Aluminum Wire Transformer |
|---|---|---|
| Electrical Conductivity | Strong | Weak |
| Fusing Point | High | Low |
| Short-circuit Resistance | Strong | Weak |
| Mechanical Strength | Higher | Lower |
| Electrical Resistivity | Low | Easy to increase |
| Volume | Lesser | Larger |

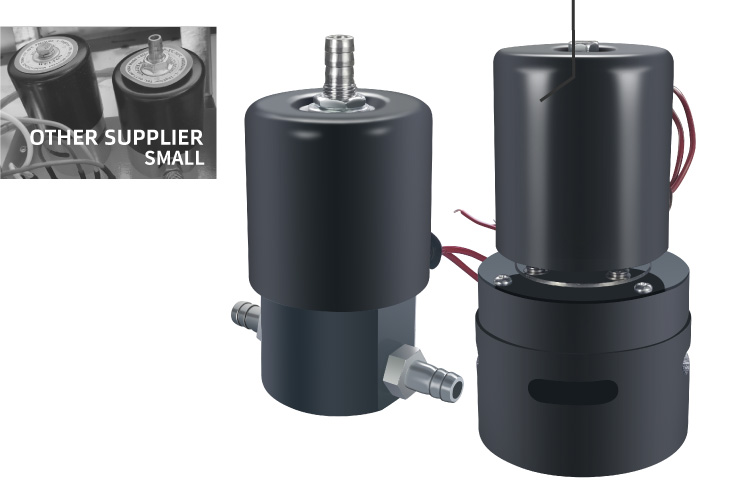

Our machines feature large, high-capacity solenoid valves designed to accelerate pumping cycles, sustain overall efficiency, and deliver stable, long-term sealing quality.

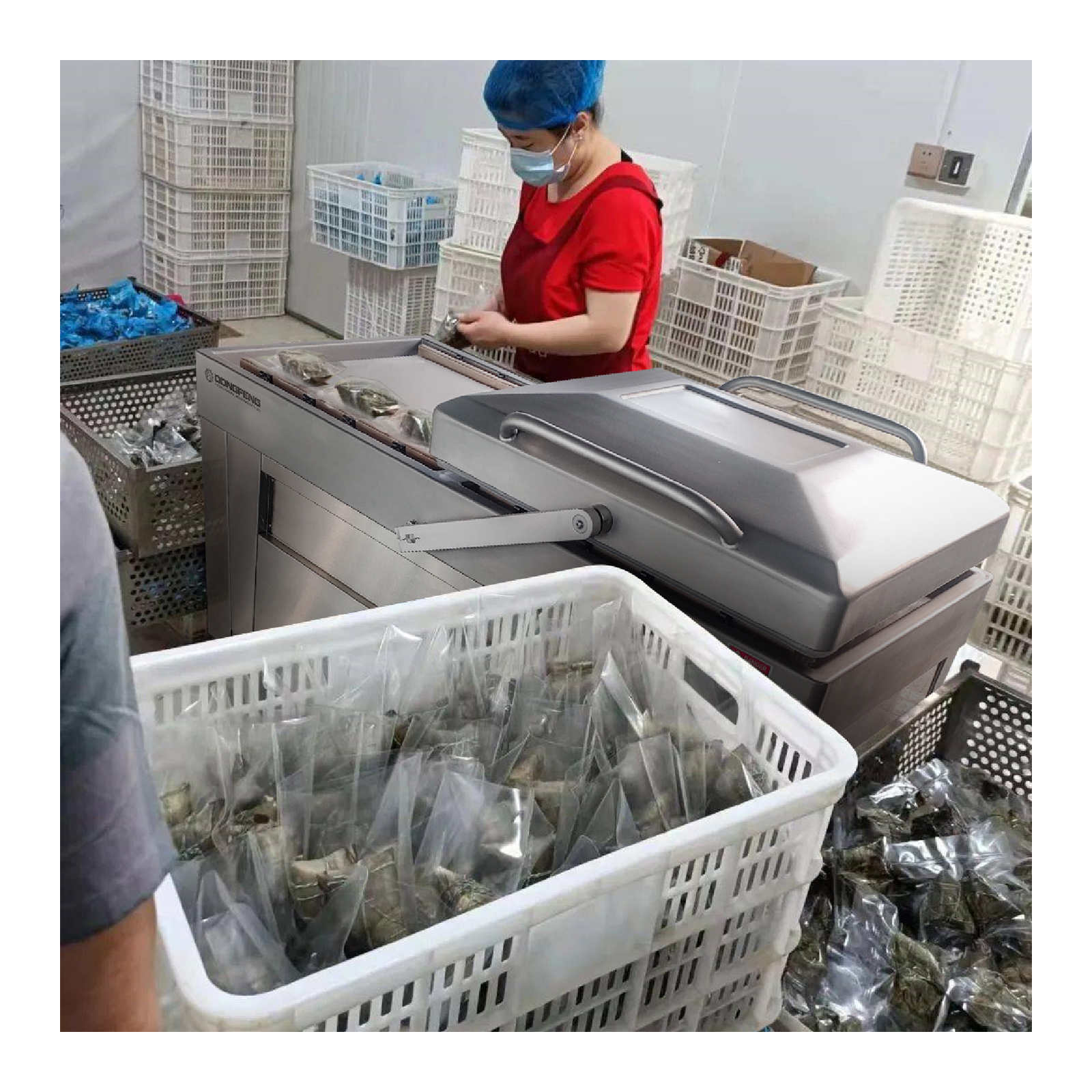

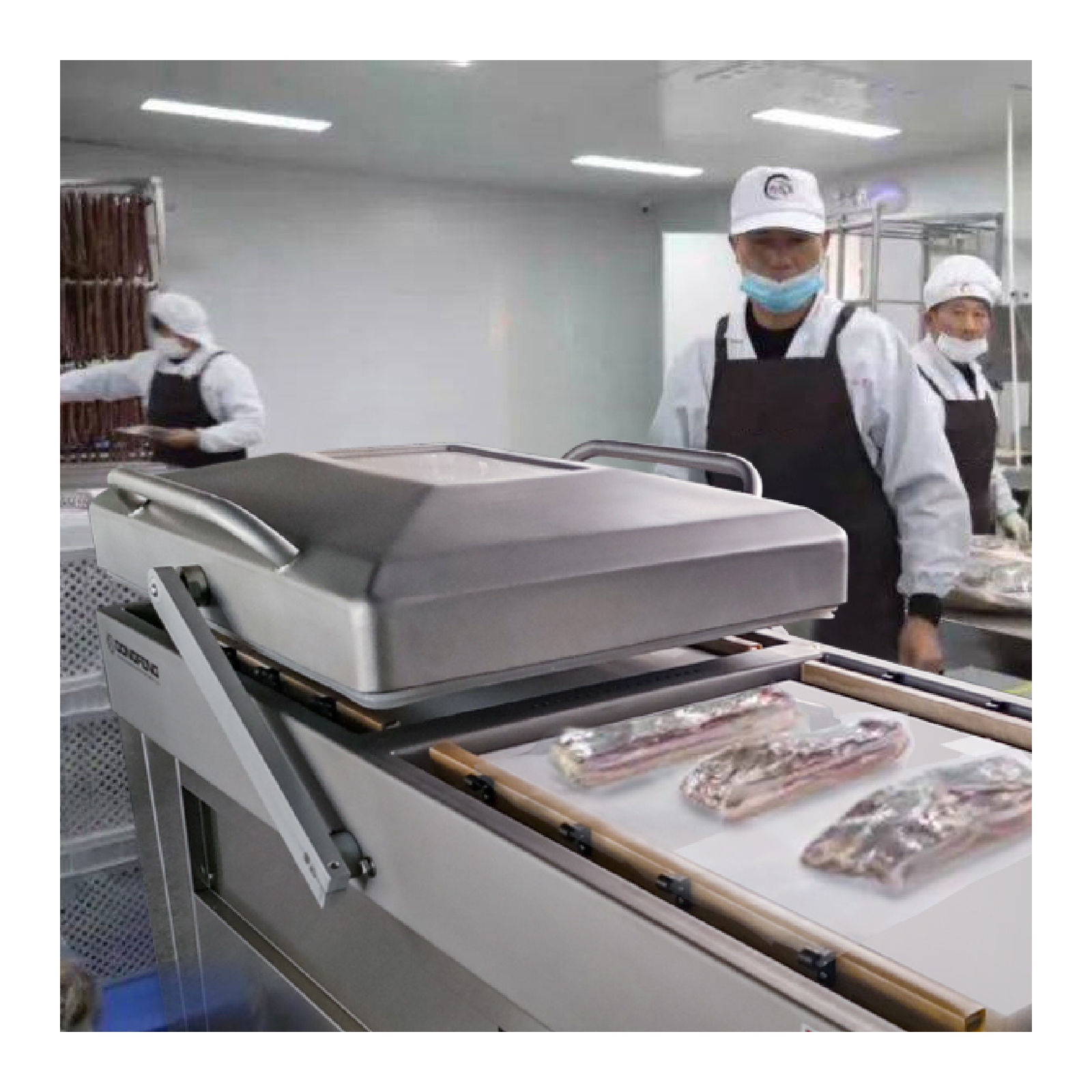

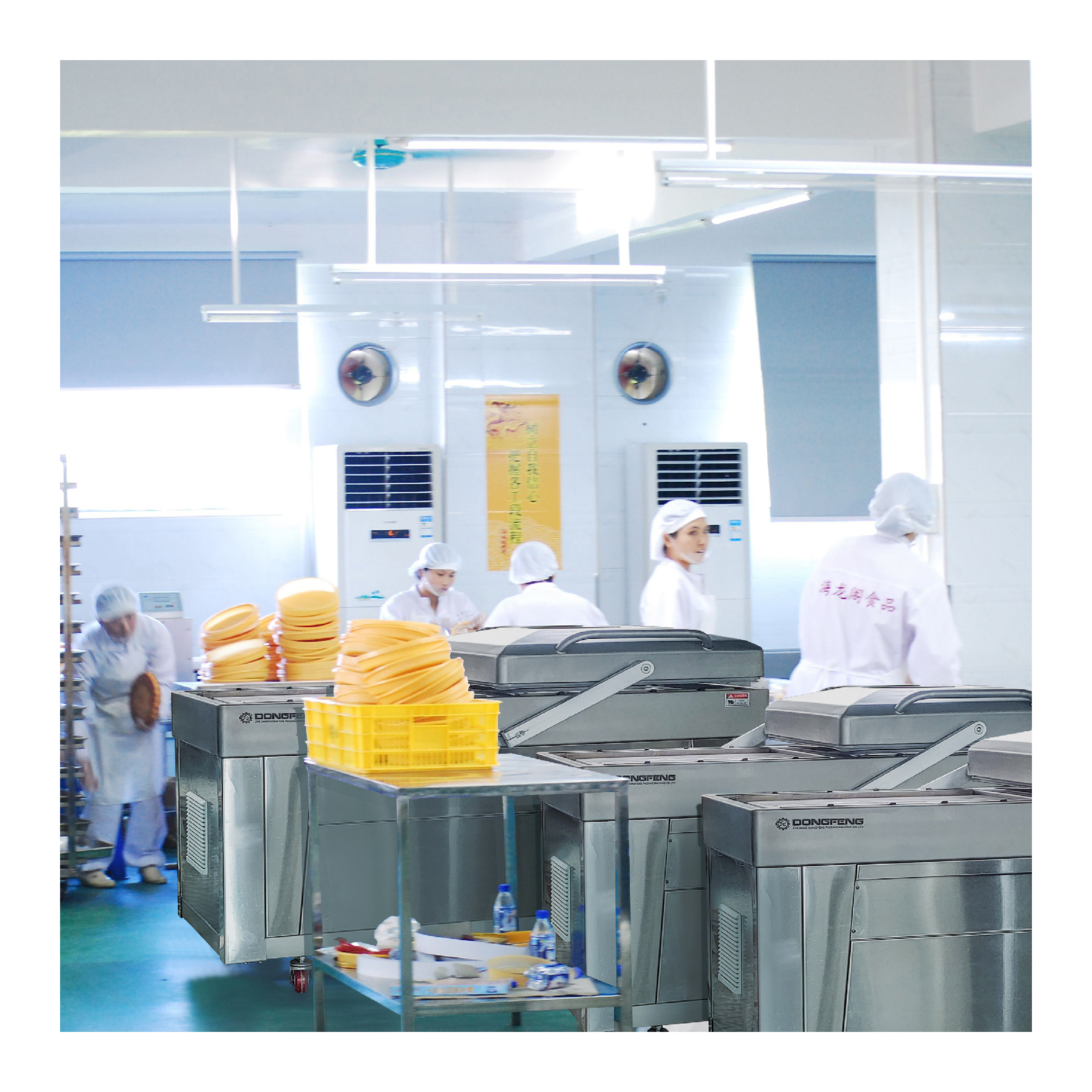

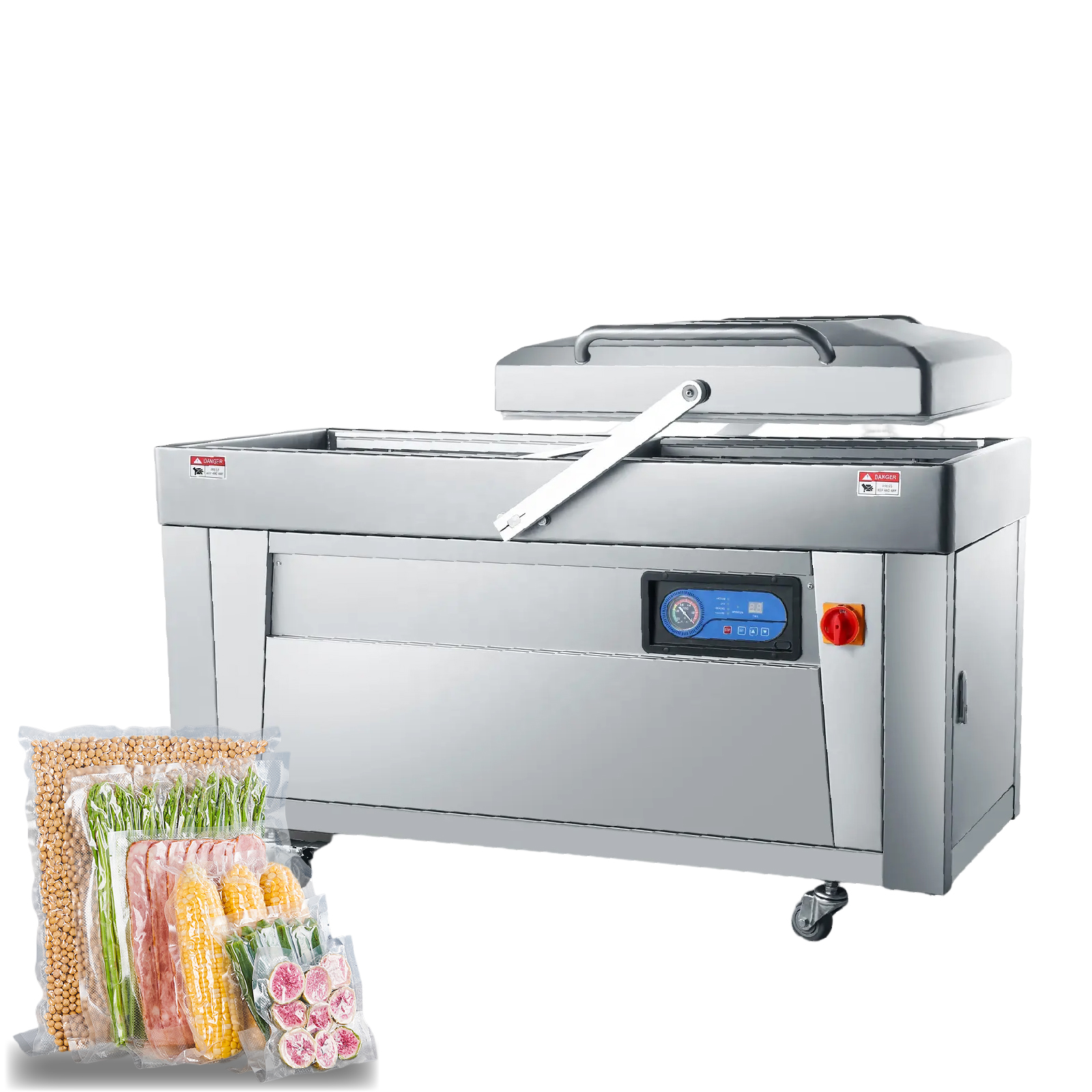

Our double chamber machines offer the highest throughput on the smallest footprint. Its two chambers enable an exceptionally efficient packaging process: while vacuuming takes place in one chamber, the second chamber can be unloaded and reloaded. The high level of seal seam quality guarantees maximum pack security.

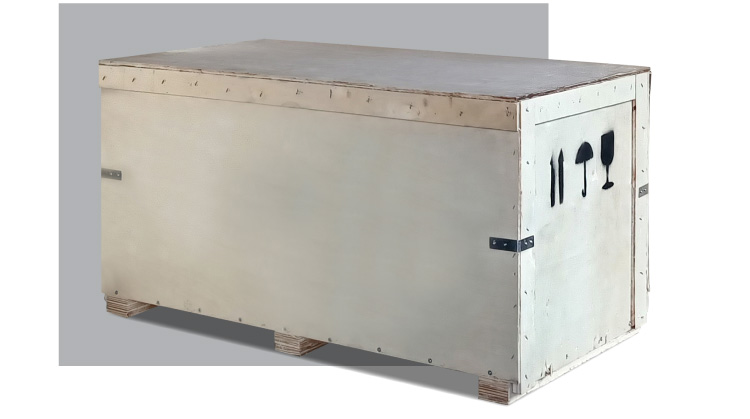

Your machine will be delivered by sea, air or express according to your needs. Before packaging, the goods are first wrapped with protective film to prevent scratches and corrosion, and then placed in sturdy wooden boxes for shipment.

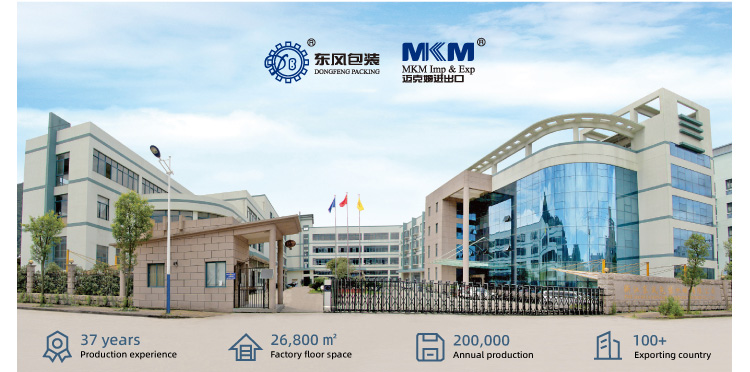

Our factory covers an area of 26,800 square meters and has more than 300 workers, among whom there are 40 engineering and technical personnel. As a national high-tech enterprise, we have a mature management system covering R&D, production, sales, quality inspection and after-sales service. After 36 years of efforts, our annual production capacity is currently approximately 2,000,000 sets, and our products are exported to over 100 countries.
