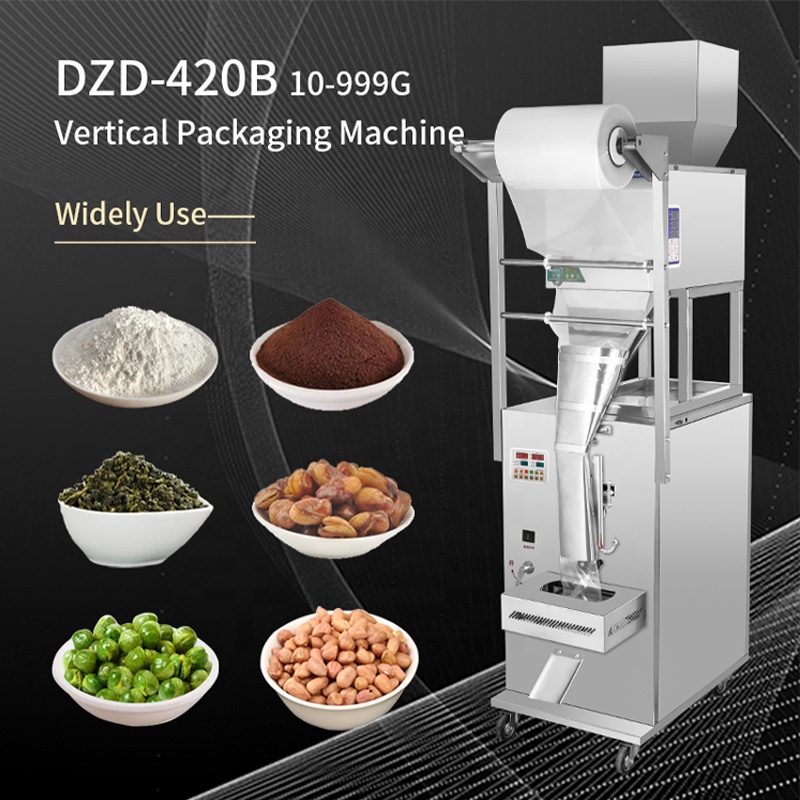

| Machine Model | DZD-420B |
|---|---|
| Application | Particle/Powder |
| Production Capacity | 5-20bag/min |
| Packaging Weight | 10-999g |

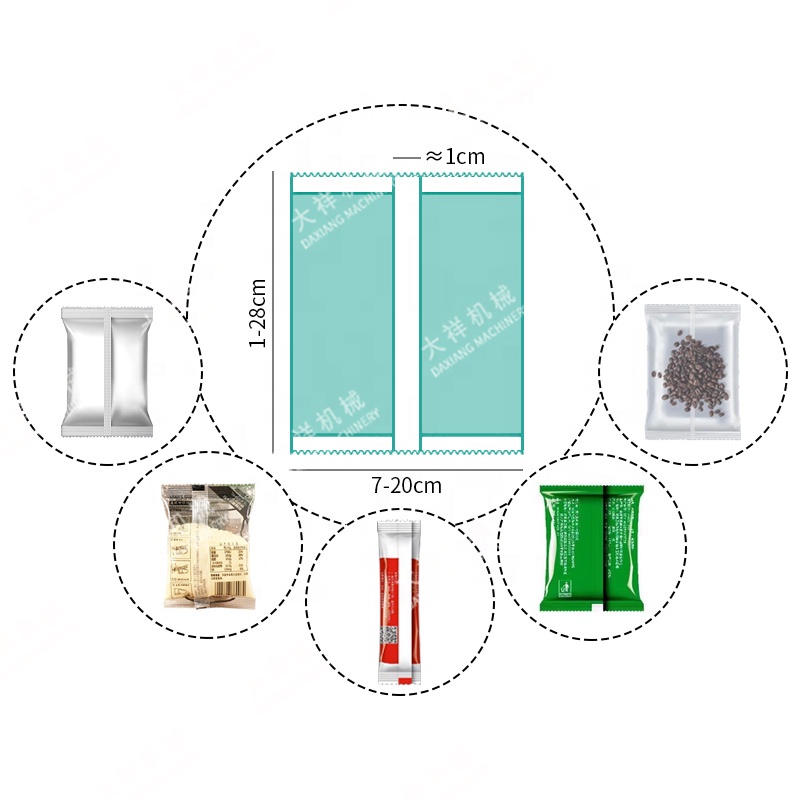

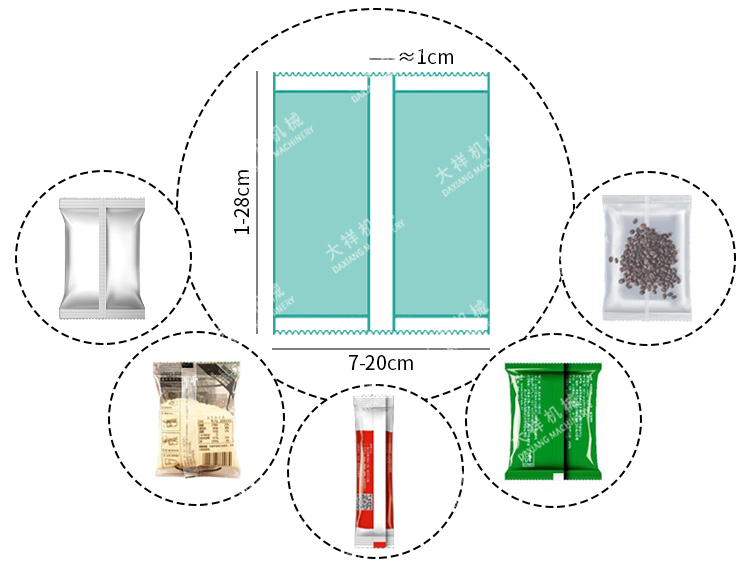

| Packaging Length | 1-26cm |
| Packaging Width | 7-20cm (Film 16-42cm) |
| Packaging Accuracy | 1-2g |
| Voltage | 220V 50Hz 600W |
| Machine Weight | 90kg |

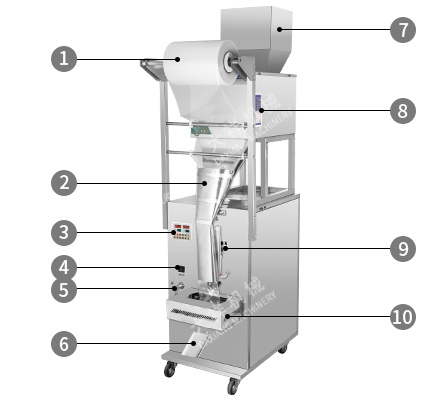

1. Packaging film
2. Former
3. Sealing controller
4. Switch
5. Sealing locker
6. Output
7. Feeding storage hopper
8. Subpackage controller
9. Vertical heat-seal
10. Horizontal heat-seal

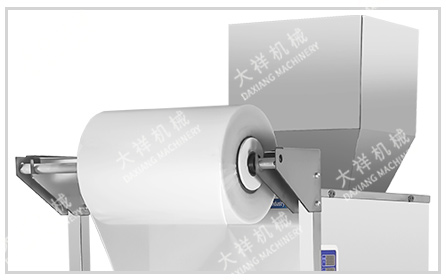

Big volume hopper, made of stainless steel, easy to maintain. Various heat sealing film materials can be used in the machine.

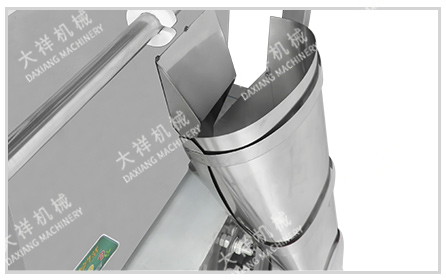

Materials come out from the feeder after weighing. The former size can be customized. It determines the width of final product.

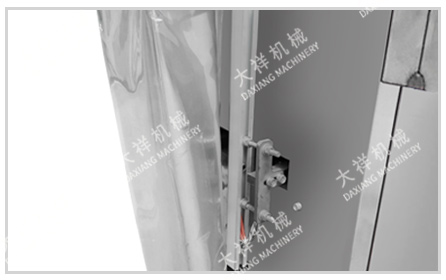

Heat seal the side of the pouch automatically. Temperature can be adjusted according to different materials.

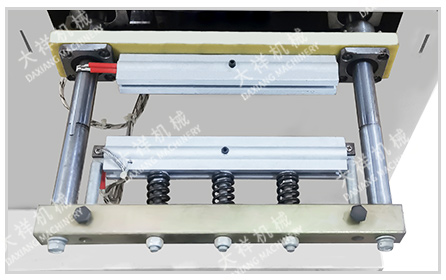

Heat seal the top and bottom side of the pouch automatically. Temperature can be adjusted according to different materials. Then cut pouches one by one.

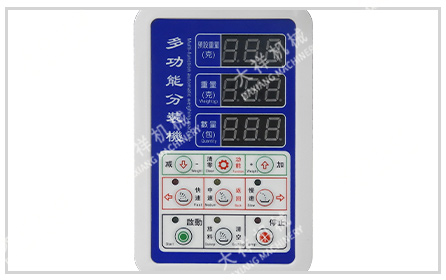

Control the weight of pouch, automatic and accurate. Adjust the packing speed—slow, medium and fast.

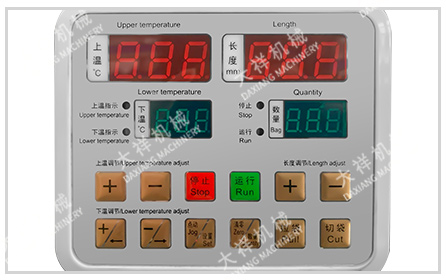

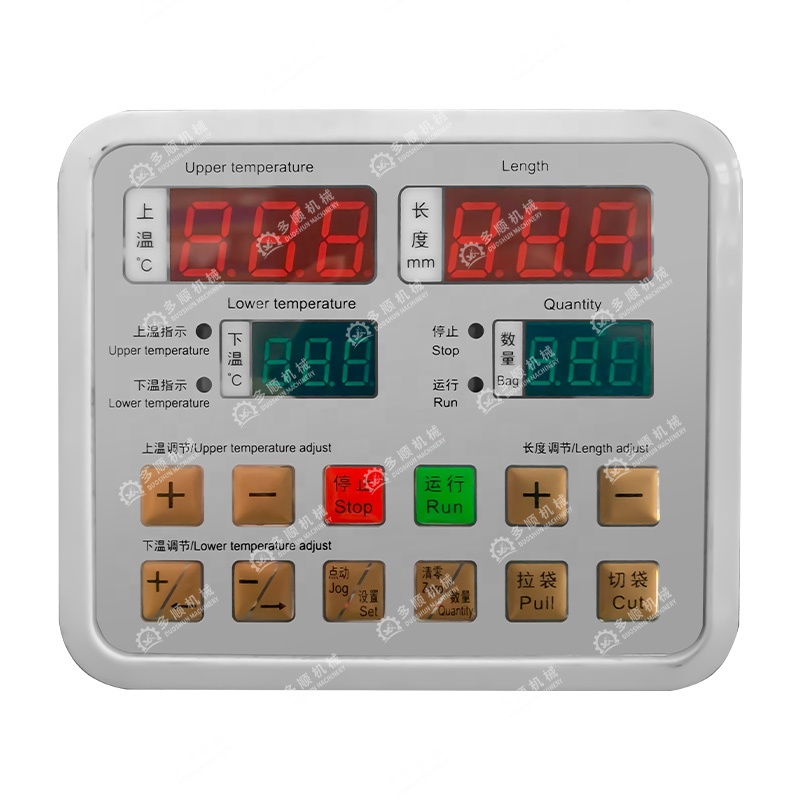

Adjust the length of pouch. Control the temperature of sealing according to different packaging film.
| Product Model | DZD-220B | DZD-320B | DZD-420B |
|---|---|---|---|
| Application | Particle/Powder | Particle/Powder | Particle/Powder |
| Production Capacity | 5-20bag/min | 5-20bag/min | 5-20bag/min |
| Packaging Weight | 1-100g | 10-500g | 10-999g |
| Packaging Length | 1-15cm | 1-22cm | 1-26cm |
| Packaging Width | 2.25-10cm | 7-15cm | 7-20cm |
| Packaging Accuracy | 0.1-0.3g | 1-2g | 1-2g |
| Voltage | 500W | 550W | 600W |

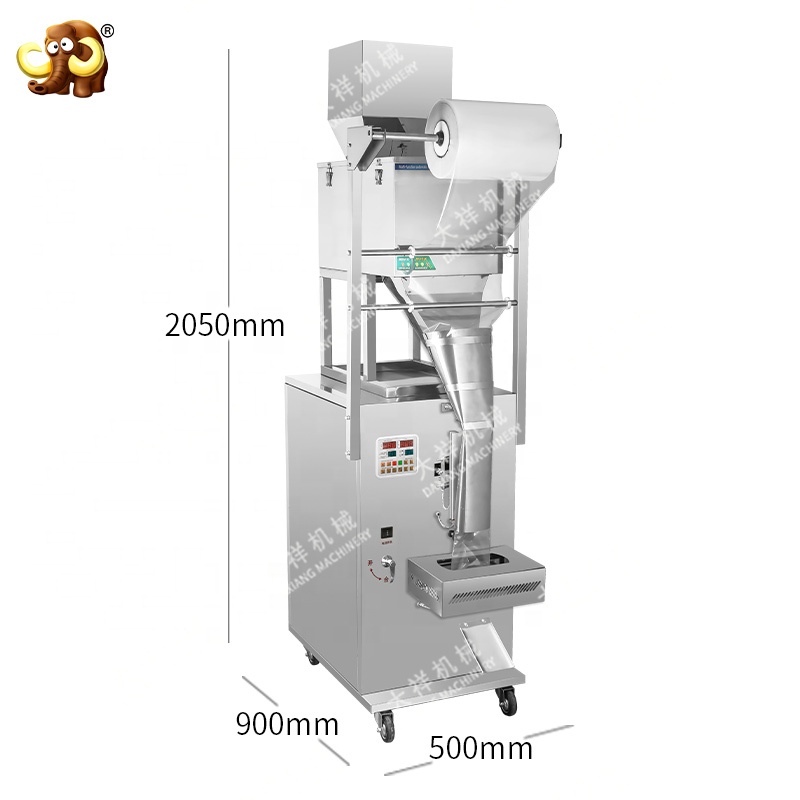

| Machine Dimensions | 420*520*1600mm | 480*680*1730mm | 500*900*2050mm |
| Machine Weight | 50kg | 70kg | 90kg |
Our company is specialized in producing and selling packaging equipment and processing equipment for food, health care, chemical and cosmetics industries, including multi-functional packaging machine, blister packaging machine, vacuum packaging machine, grinding machine, sugar coating machine and so on. We have been serving customers all over the world with professional process and strong technical force to ensure that customers are provided with equipment that meets GMP requirements. All our products have CE and ISO certification.
We produce packaging equipment and processing equipment for food, health care, chemical and cosmetics industries.
We accept T/T, Alibaba credit orders, Western Union, PayPal, and various RMB payments.
Most machines are in stock and can be delivered within 3 days. Customized machines usually require 10-30 days.

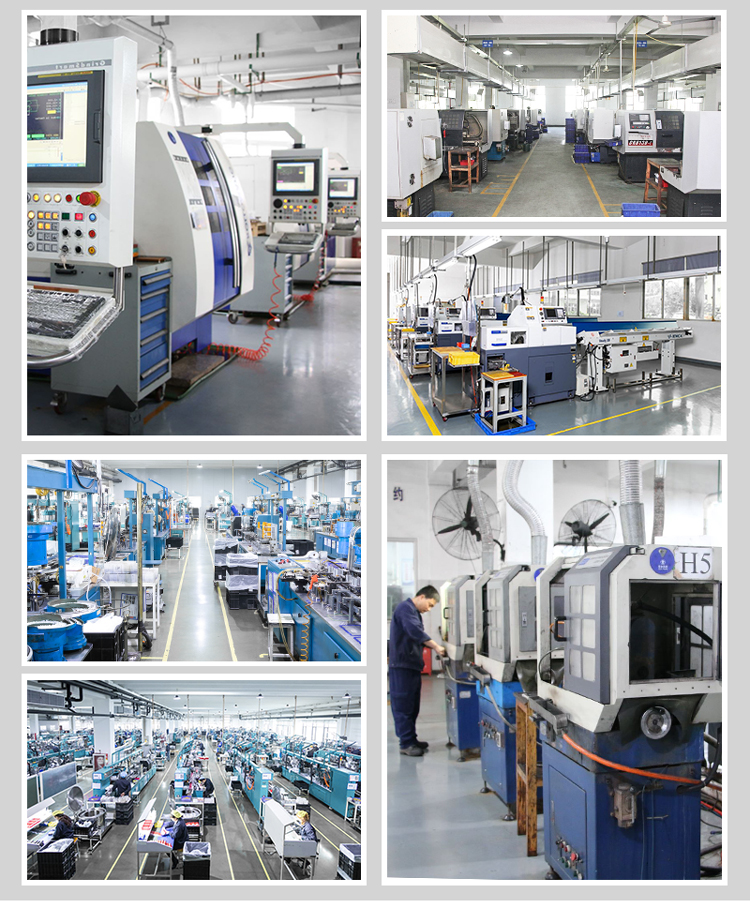

We have over 20 years of experience in production. All machines have passed CE and ISO certification to ensure quality.
We provide customization, professional packaging, operating videos, online support, and on-site engineer installation/training.
We offer a one-year warranty. During this period, unartificial damaged parts are replaced free of charge. Spare parts are provided at cost thereafter.
