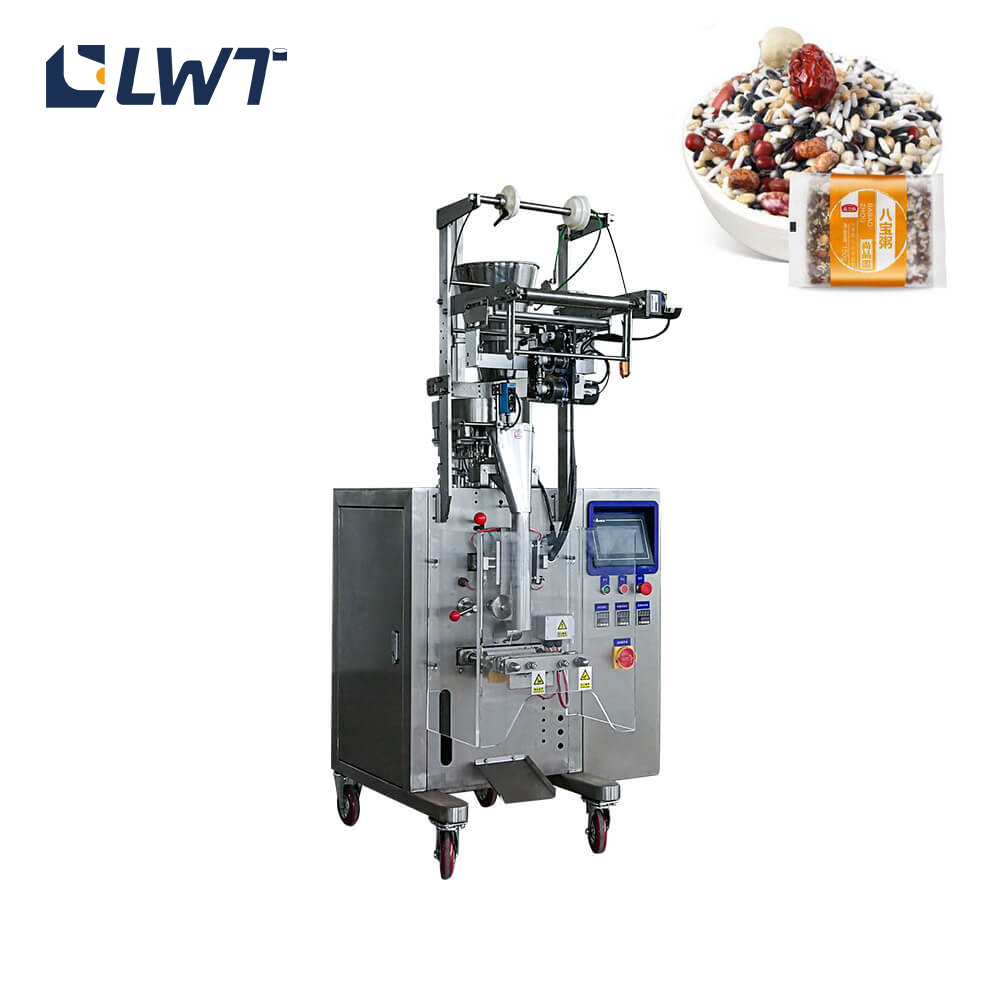

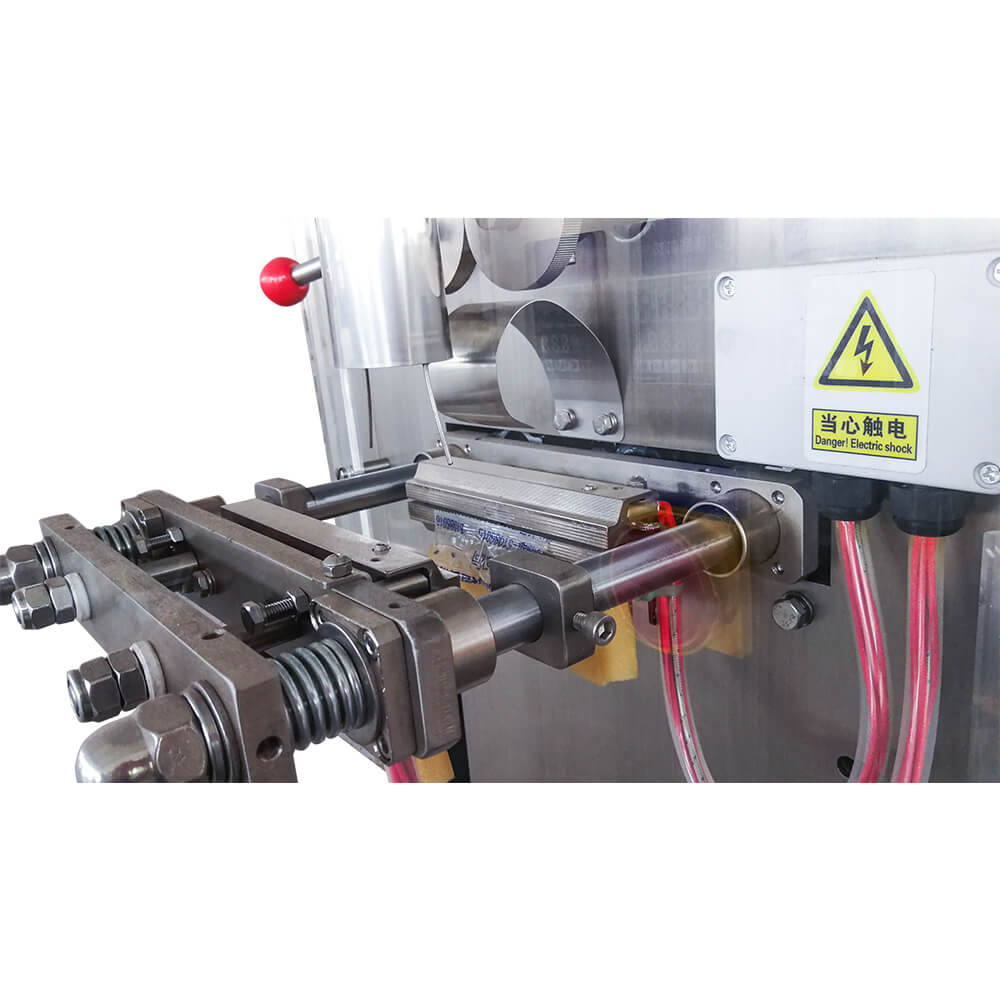

Automatic Vertical Rice Sugar Salt Bagging Machine Rice Grain Bean Cereal Bag Filling Machine 1kg 5kg Sugar Packing Machine

Product Description

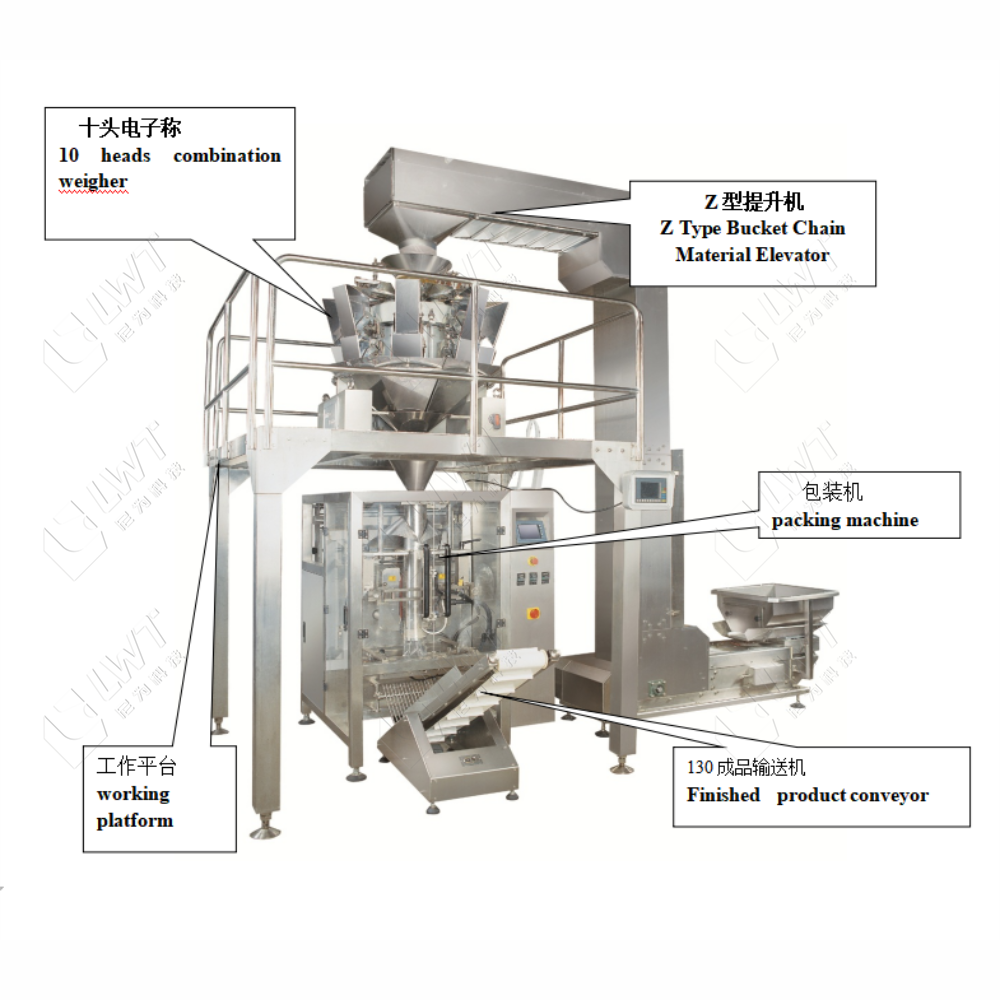

Product Show
Product Show Image
Application
Suitable for automatic weight packaging requirement of various of material in piece and grains. Such as puffed food, potato chips, frozen foods, biscuits, dried fruits, pet food, hardware, and so on.
Compatible Bag Materials:
PP CPP PVC PS EVA PET PVDC/PVC OPP/CPP
Features
  • The computer weigher ensure the stable and accurate packaging weight.
  • Medium-speed and high-speed machine can be selected, meeting different production requirements.

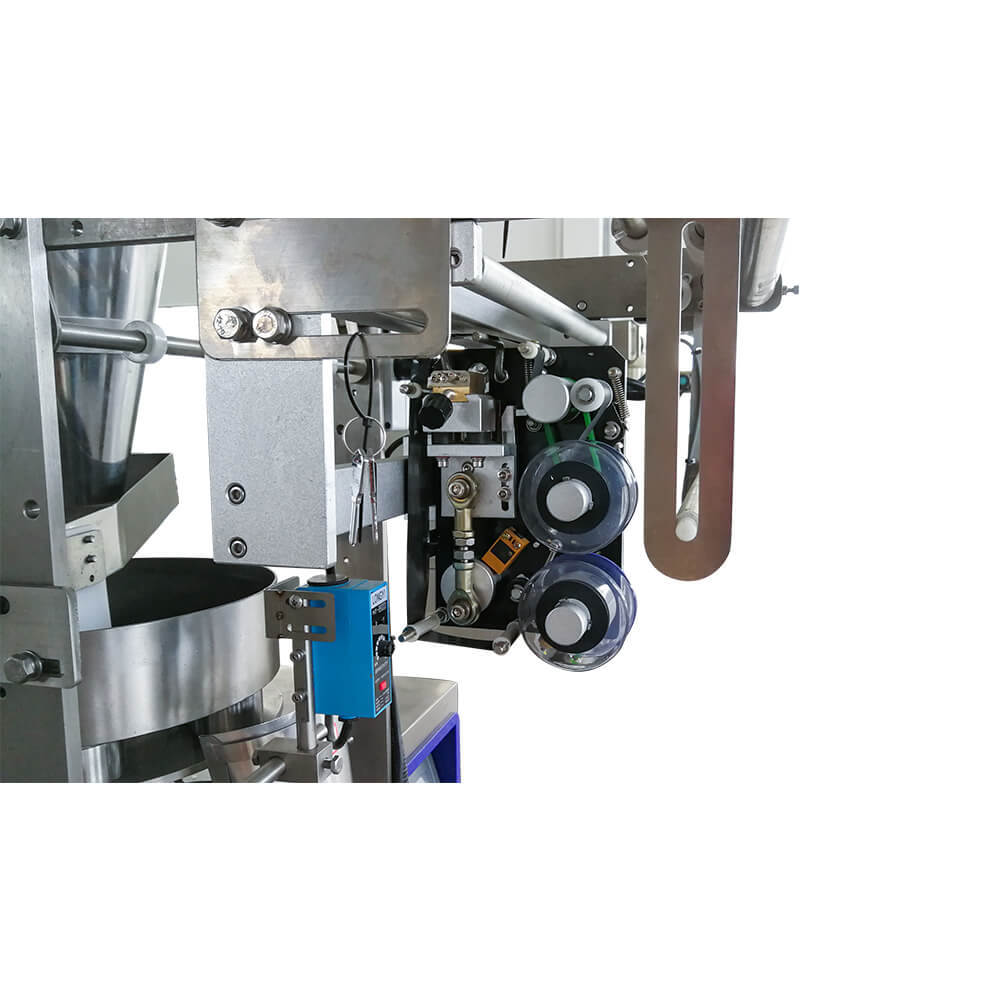

  • The packaging machine can be equipped with a variety of functional options, such as Alphascope, punching etc.
  • The computer weigher can be installed with hopper as required and suitable for different material.
  • Each machine has stainless steel and carbon steel structures, suitable for all levels of the customers' requirements.

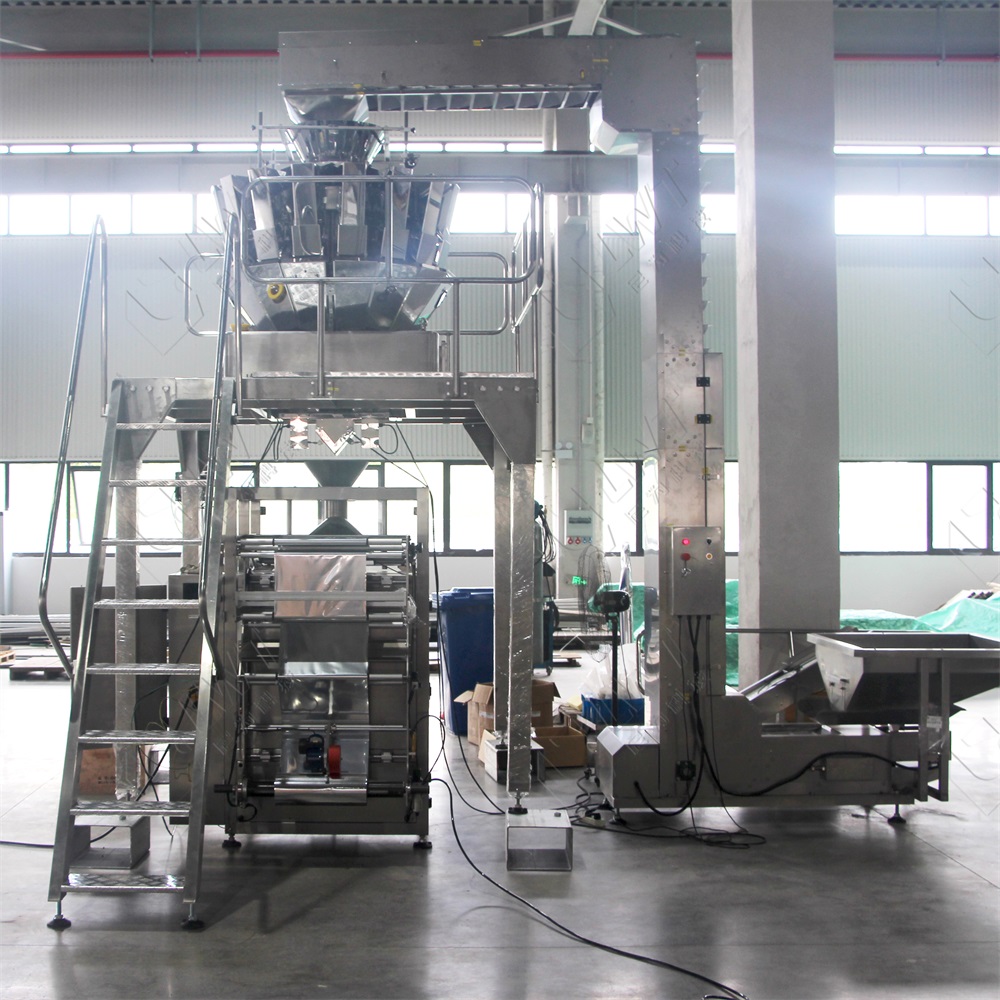

Feature Image 1

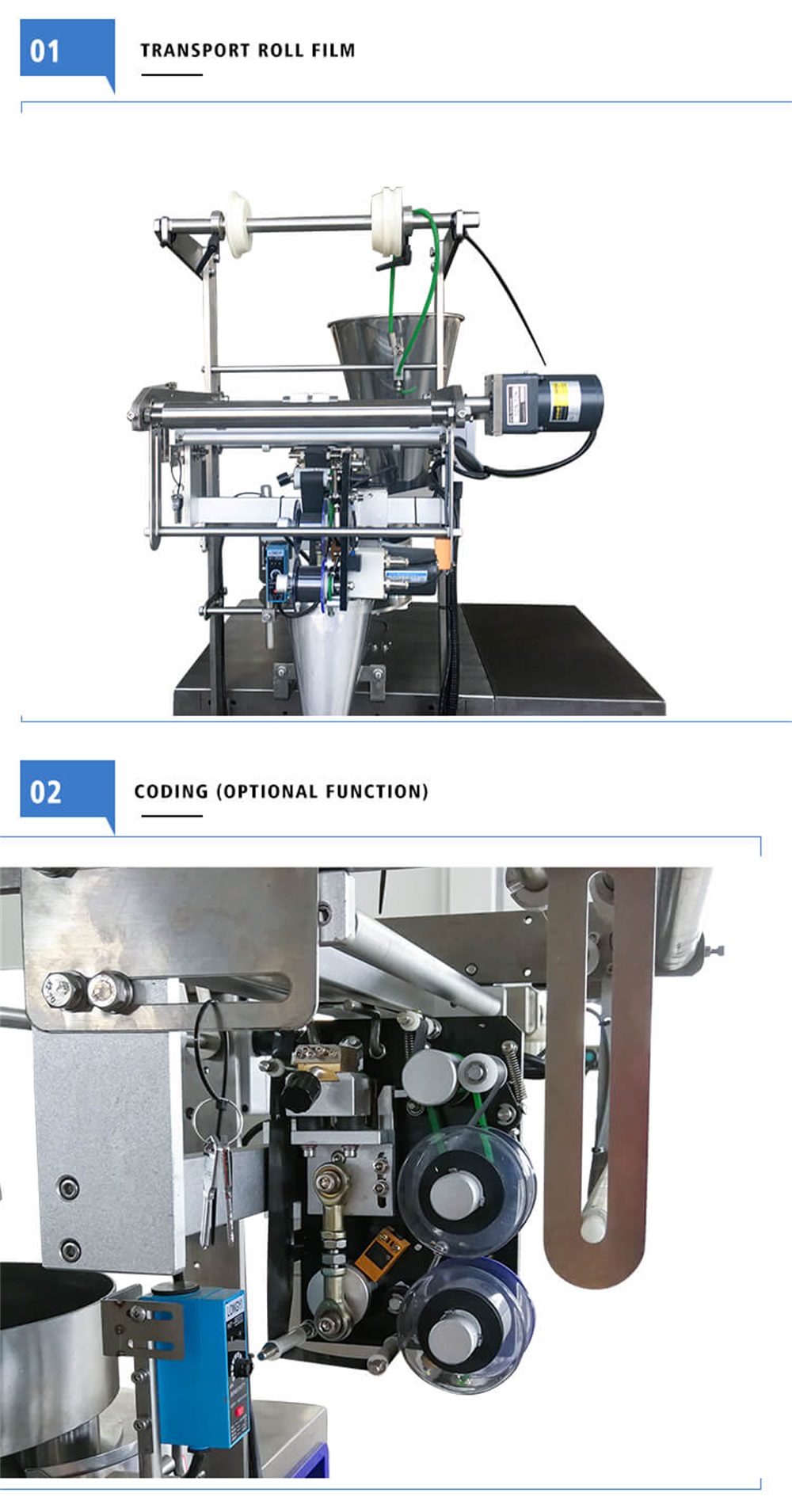

Feature Image 2

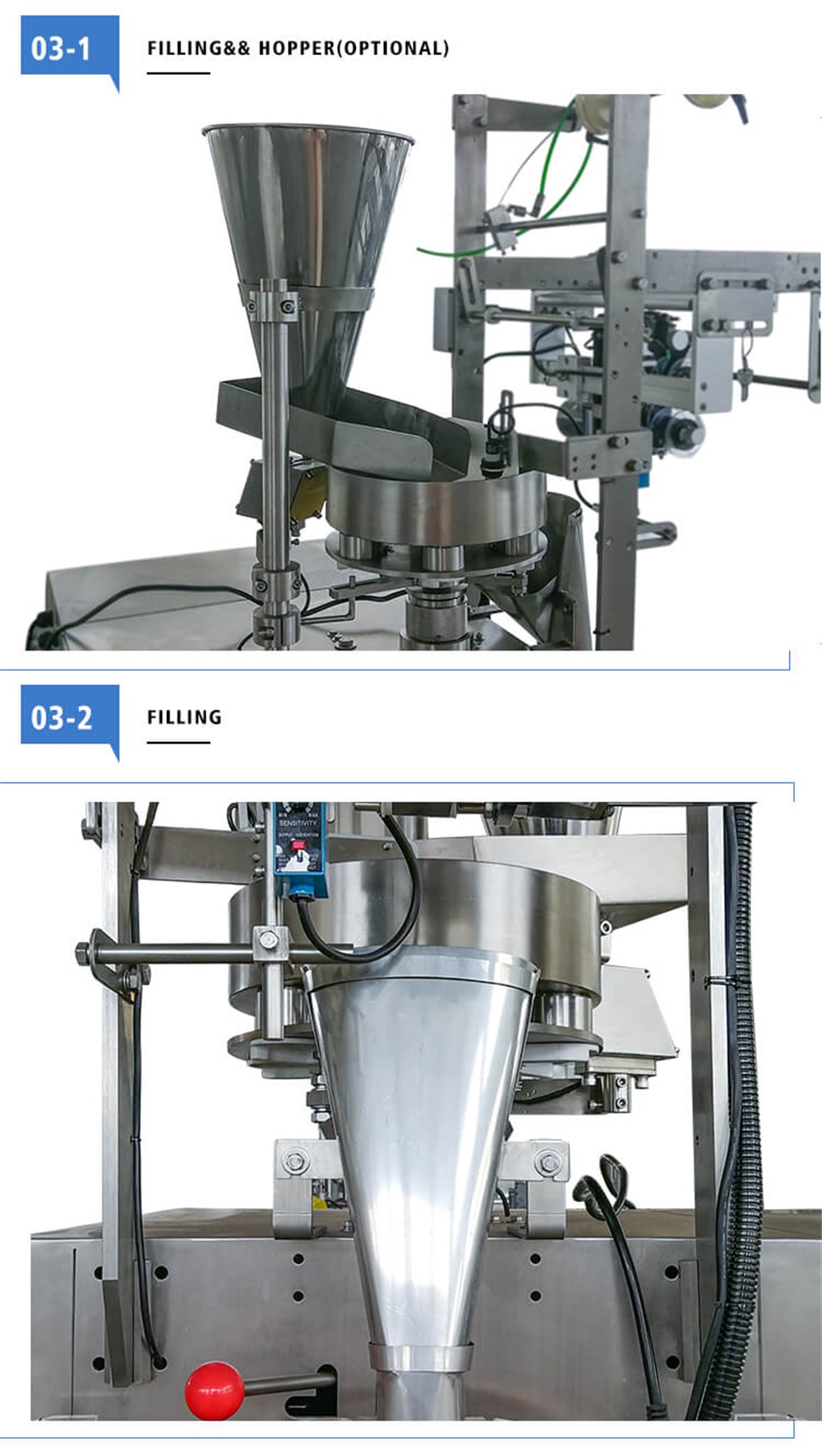

Feature Image 3

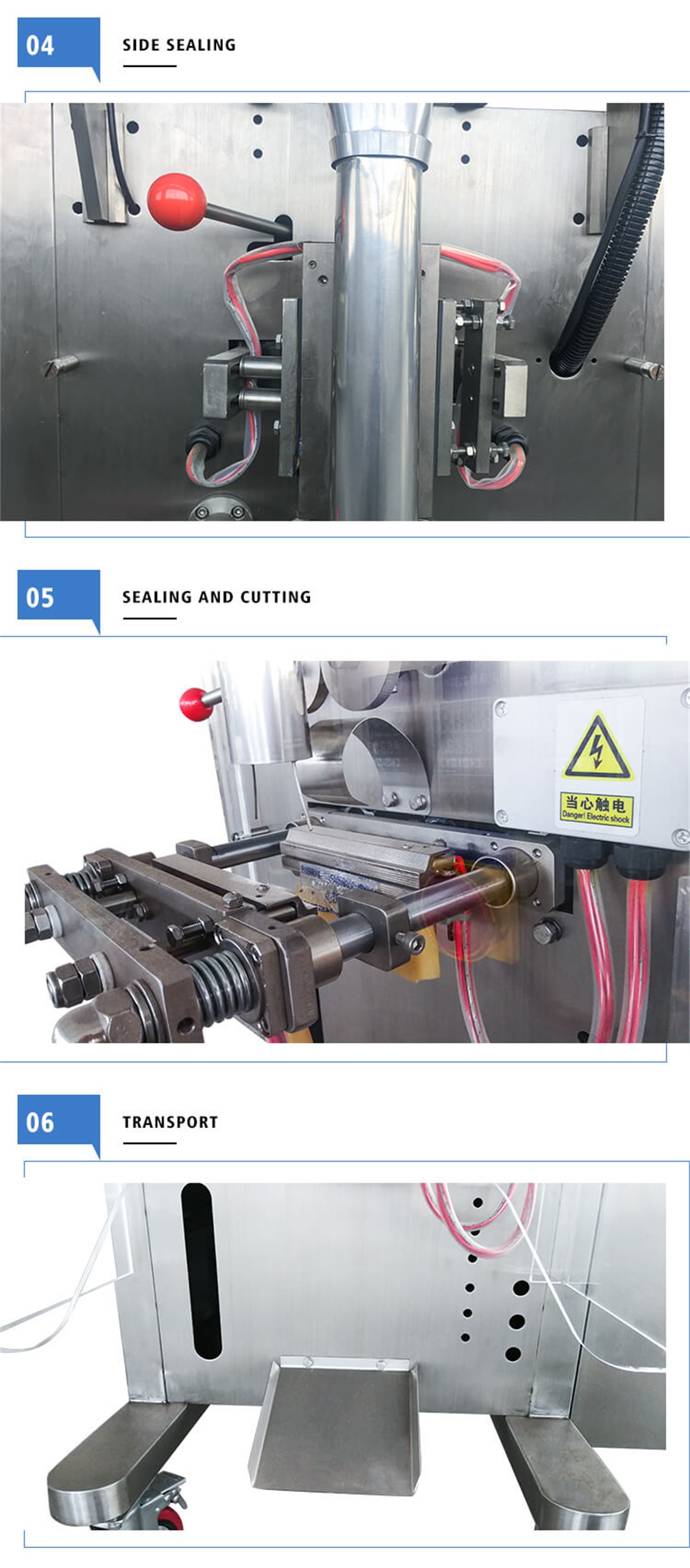

Feature Image 4
Product Assembly Visual
Product Process Visual
Optional Products

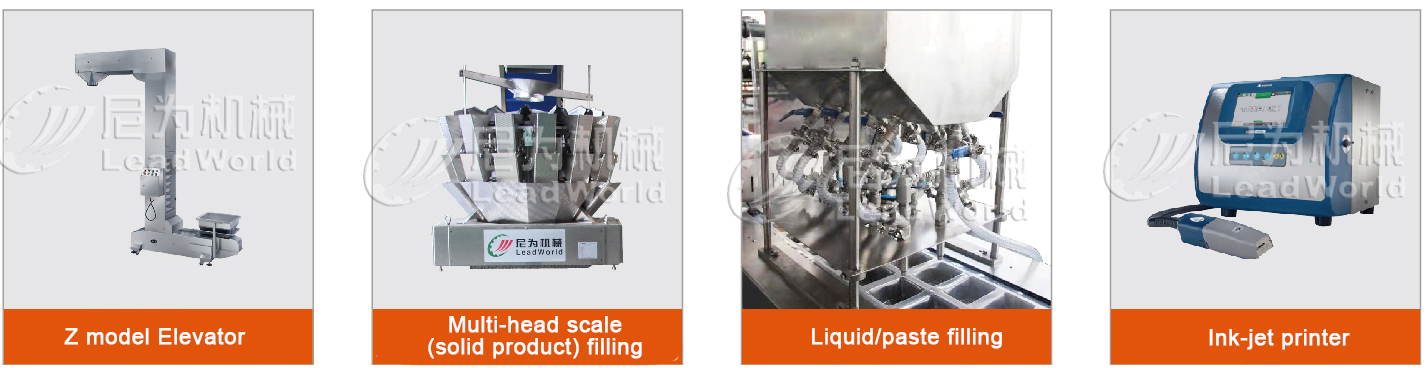

Optional Products Diagram
Component 1
Component 2

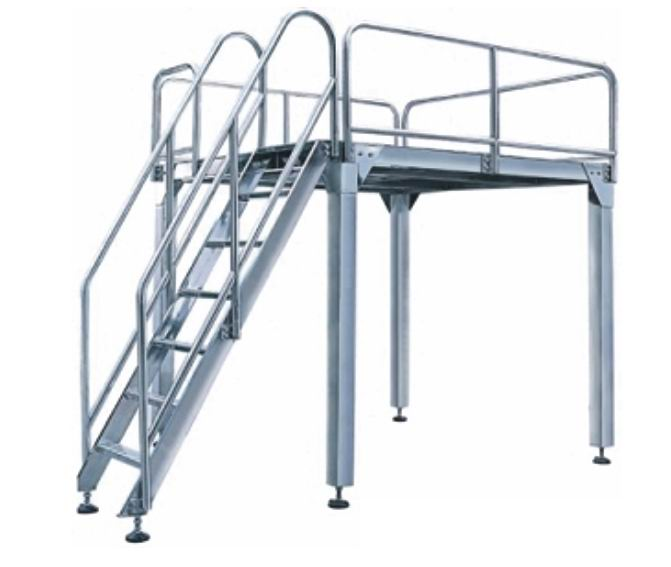

Platform Elevator
Model 2Platform Model 300
Maximum Loading Weight 2T-3T Convey Speed 3750mm/min
Equipment Size 2000mm * 2000mm * 2000mm Power 750W
Net Weight 350kg Convey Measure 4T/H (Rice)
- - Overall Size 3000(L) × 650(W) × 3750(H)mm
Platform Drawing
Elevator Drawing

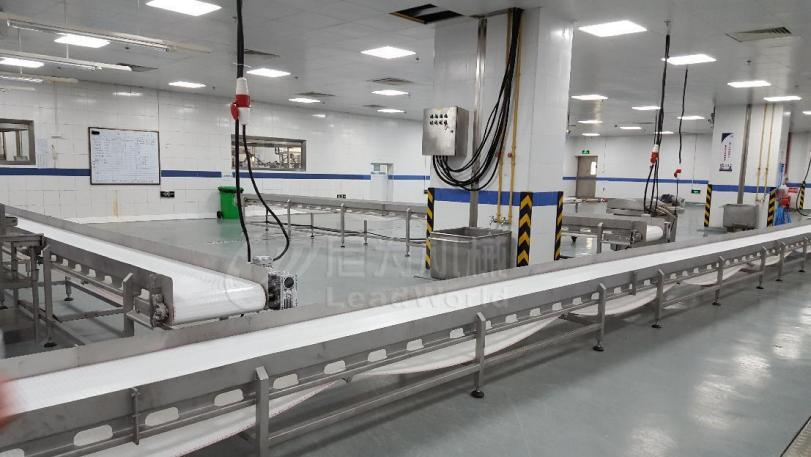

Collecting table Bag former

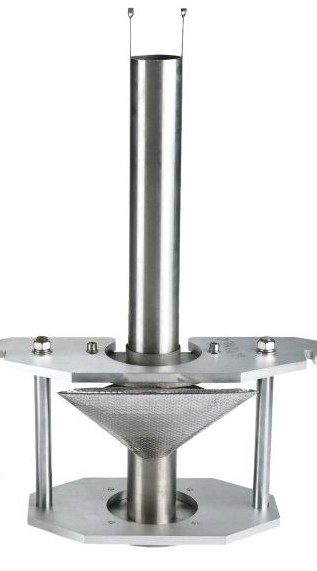

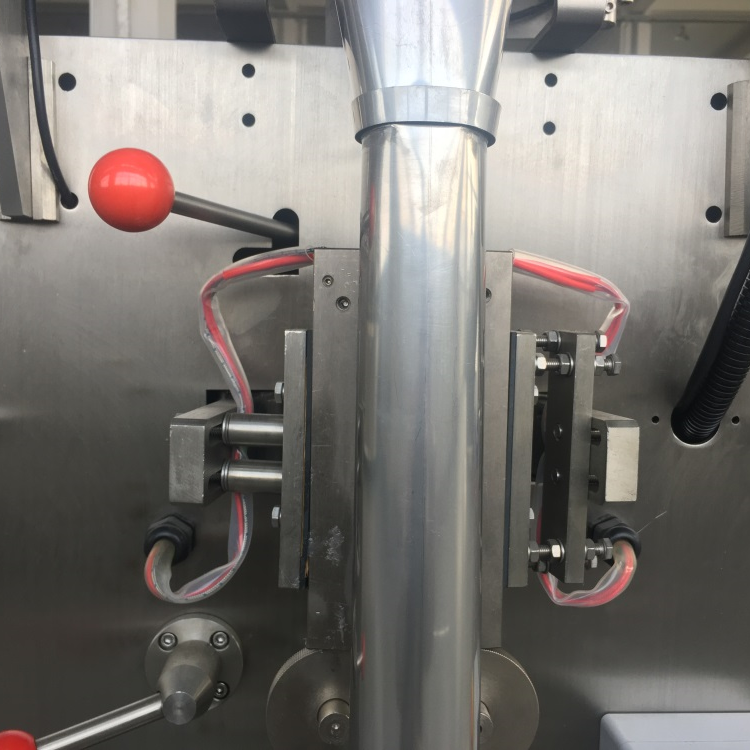

Model C Packing machine has one bag forming tube. If the bag width is fixed, no need to buy extra tube. If you have different bag widths, you have to buy extra tubes. For example, you have 3 bag widths, you have to buy extra two tubes. If only the bag length change, no need to buy extra bag forming tube. You can modify the parameter on the touch screen.
Convey speed Speed can be changed (fast or slow depends on your choice)
Diameter 1.2m
Surface Concave
Power 220V/370W/50HZ
Weight of machine 100KG
Packaging size 1300mm(L) * 380mm(W) * 1300mm(H)

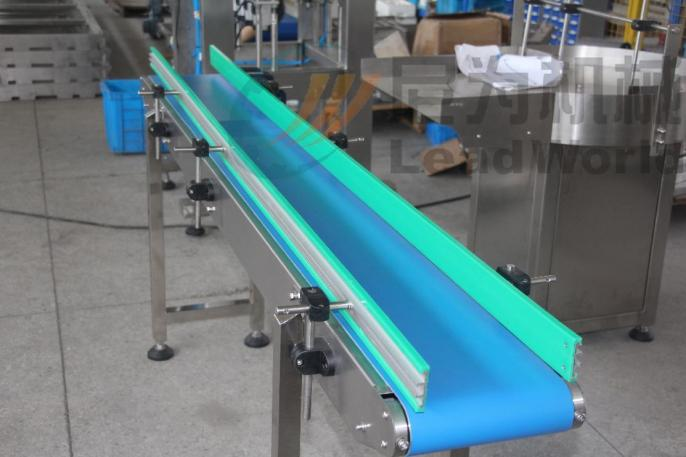

Collecting Table View
Bag Former View
Detailed Instruction
1. Conveyor body part:
1.1 Main body side chain plate: Plate thickness: δ2.0mm. Material: SUS304. Produced according to the actual size.
1.2 Roller: Material SUS304, diameter is based on the actual load, cooperate with the plus or minus tolerance.
1.3 Riding wheel: Material Nylon processing molding, diameter is based on the actual load, cooperate with the plus or minus tolerance.
1.4 Bun foot: Nylon injection molding, cooperate with stainless steel adjusting screw M16.
1.5 Guardrail part adopts big C aluminum track. Cooperate with wear-resisting sheath.
1.6 Connecting plate: plate thickness δ3.0mm. Material: Stainless steel bending forming.
1.7 Accessories: Mounted Bearings, kinds of SUS304 screws, etc.

2. Conveying carrier part:
2.1 Belt length
Conveyor Design 1

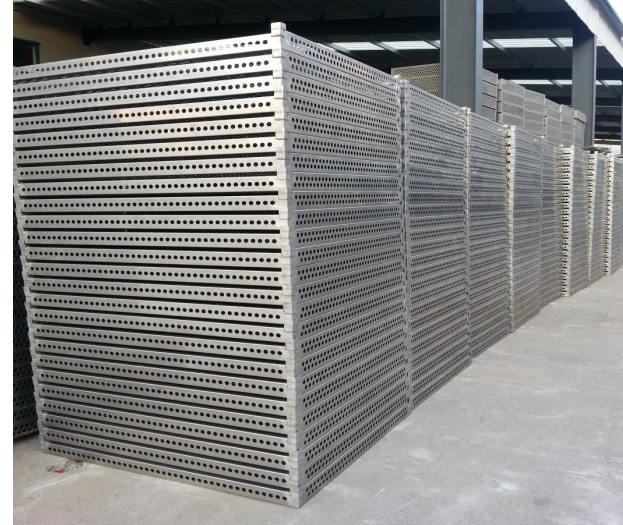

Conveyor Design 2
Explanation of the Design Plan

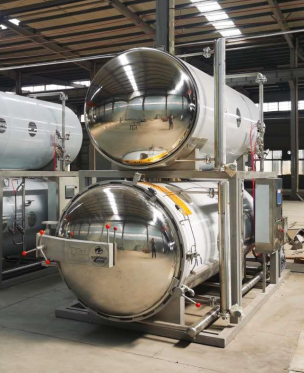

  • Based on the product specifications, the use of a stainless steel computerized automatic double-layer water bath/steam sterilizer is recommended.
  • The hot water is stored in the upper tank, which can be quickly filled during sterilization, enabling the product to heat up quickly. The product is completely immersed in the sterilization water, allowing temperature to penetrate in all directions for fast maturation.
  • The design of this product is based on canned and flexible packaging sterilization (excluding glass bottles). The heating method is direct heating by a heating tube, the sterilization method is a circulating water bath, and the cooling method is direct cooling.
  • The control method is fully automatic computer control. The operator is only responsible for loading and unloading the material. All sterilization processes are automatically controlled, with manual control also available.
  • The quality of the equipment is stable and durable. The optimally designed sealing structure ensures durability and easy maintenance. The ergonomic design makes the machine safer and more convenient.
Project Content
Retort inner diameter / cylinder length / volume 1200mm / 3600mm / about 4.5m³
Effective use size of sterilizer (length/width/volume) 3600mm / 800mm / 800mm
Design pressure 0.35Mpa
Maximum working pressure 0.3Mpa
Pressure test pressure 0.44Mpa
Maximum operating temperature 143℃
Total installed power Water pump 7.5kw, cycle pump 5.5kw, exchange use
Voltage 380V
Pot body material SUS30408
Pot body wall thickness 5mm
Footprint (L/W/H) About 5500mm × 2200mm × 3100mm
Production & Packing Line Overview
We have always adhered to the business philosophy of innovation leading development, quality winning the market, and customer service first. With the goal of becoming a leading canning automatic production packing line solution expert, we are committed to guiding the production packaging line industry's machinery production standards and actively promoting the improvement of the canning & packaging industry's mechanical automation level.
Production Equipment Grid
Plant Operations

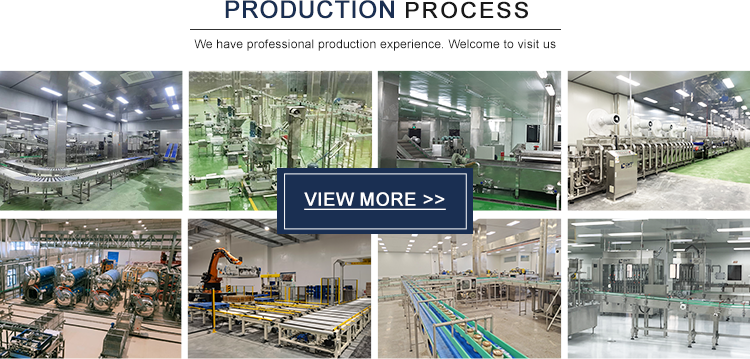

Packaging Flow
Assembly Process
System Component A
System Component B
System Component C
Line Showcase
Frequently Asked Questions (FAQ)
Q: What types of materials are suitable for this automatic weighing and packaging machine?
A: The machine is highly suitable for automatic weight packaging of various piece and grain materials, such as puffed foods, potato chips, frozen foods, biscuits, dried fruits, pet food, and hardware components.
Q: What types of bag materials can be processed?
A: It supports a wide array of bag materials, including PP, CPP, PVC, PS, EVA, PET, PVDC/PVC, and OPP/CPP structures.
Q: Do I need to buy additional bag forming tubes for different bag sizes?
A: If the bag width is fixed, no extra forming tube is required. If you use multiple bag widths, extra tubes must be purchased (e.g., 3 bag widths require 2 additional tubes). If you are only modifying the bag length, parameters can be directly updated on the touch screen without extra hardware.
Q: How does the sterilizer heating and cooling mechanism work?
A: The sterilizer utilizes direct heating via a heating tube, circulating water bath for sterilization, and direct cooling for product temperature reduction. The system fully immerses the product in sterilization water for multidirectional heat penetration.
Q: Is manual operation supported on the automatic computer-controlled sterilizer?
A: Yes, although the control system is fully automatic (managing all stages of the sterilization process autonomously while the operator only manages loading and unloading), a manual control override is also integrated.
Q: What structural options are available for the machinery?
A: The equipment structures are available in both high-grade stainless steel and carbon steel variants, allowing customers to select the model that matches their budget and hygienic standards.
