Factory Area
More than 30,000 m²
📦
Quantity in Stock
More than 5,000 sets
👥
Team Power
More than 100 employees
⚙️
Monthly Yield
More than 2,000 sets
📅
Established Time
More than 15 years
📈
Monthly Sales
More than 1,000 sets

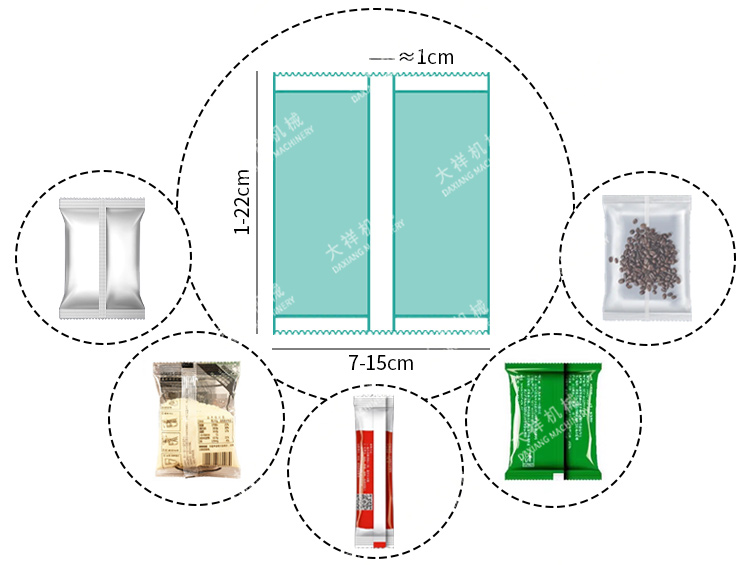

Product Application

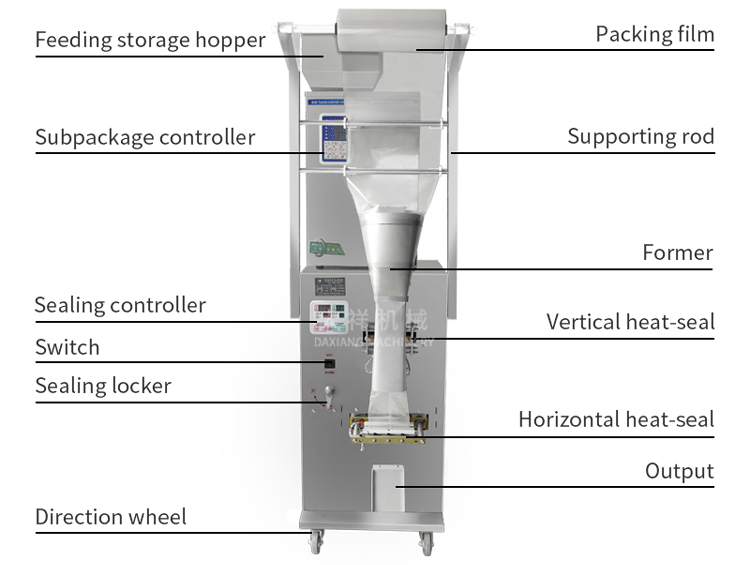

Product Description

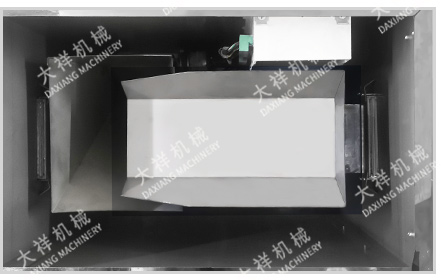

Weighing Device:
Equipped with electronic scale, accurate measurement and slight error.

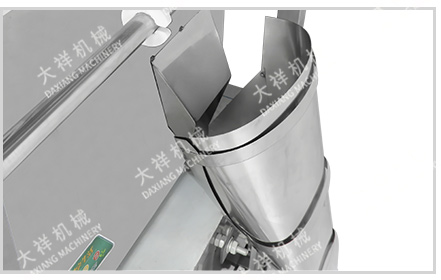

Feeder and Former:
Materials come out from the feeder after weighing. The former size can be customized. It determines the width of final product.

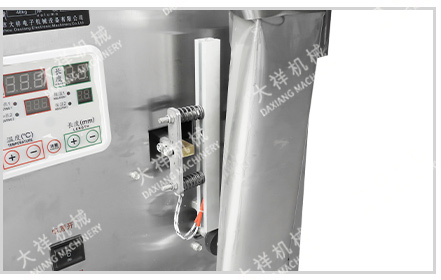

Vertical Heat-seal:
Heat seal the side of the pouch automatically. Temperature can be adjusted according to different materials.

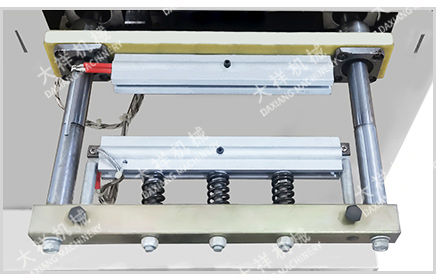

Horizontal Heat-seal:
Heat seal the top and bottom side of the pouch automatically. Temperature can be adjusted according to different materials. Then cut pouches one by one.

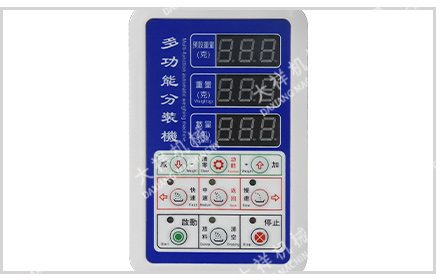

Subpackage Controller:
Control the weight of pouch, automatic and accurate. Adjust the packing speed—slow, medium and fast.

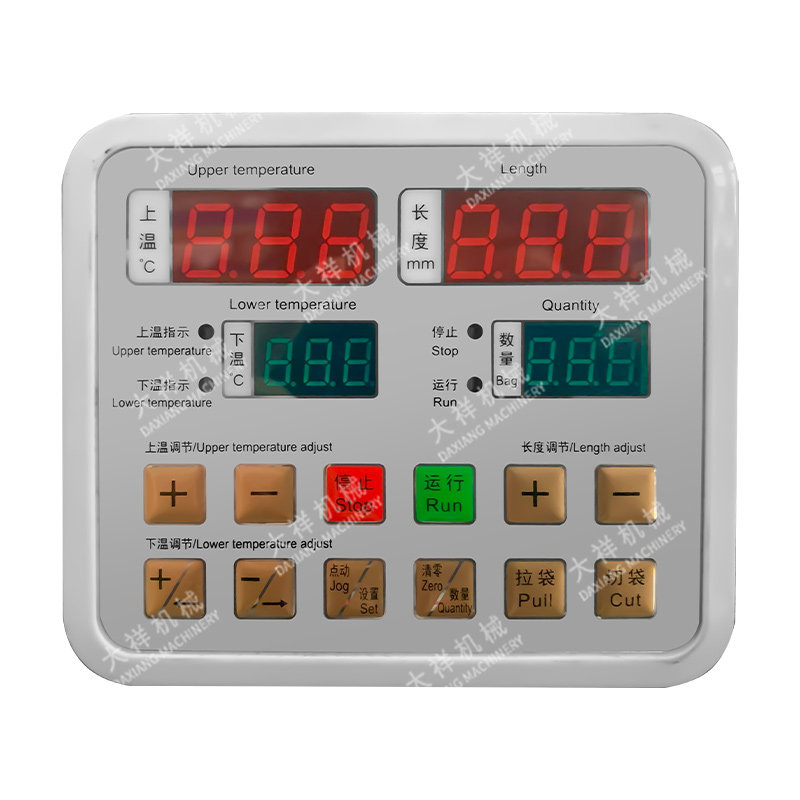

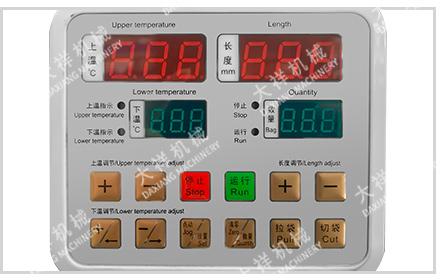

Sealing Controller:
Adjust the length of pouch. Control the temperature of sealing according to different packaging film.

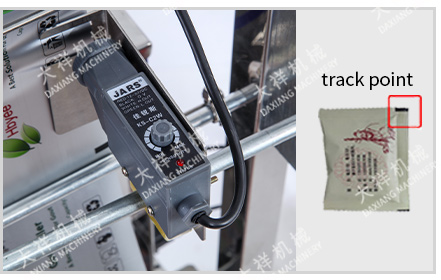

Cursor: (optional)
If the film is blank, no need for cursor. If the film is printed, the cursor help locate the track point, so each picture will be in the right position.

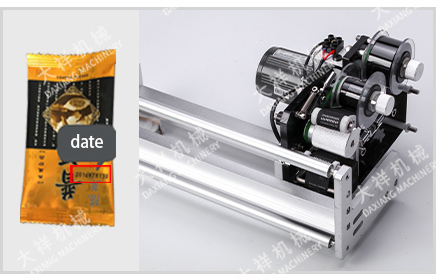

Ribbon Coding: (optional)
Print date and batch number automatically. Printing content can be customized according to actual needs.
Product Parameters
| Machine Model |
DZD-220B |
DZD-320B (Featured) |
DZD-420B |
| Application | Particle/Powder | Particle/Powder | Particle/Powder |
| Production Capacity | 5-20bag/min | 5-20bag/min | 5-20bag/min |
| Packaging Weight | 1-100g | 10-500g | 10-999g |

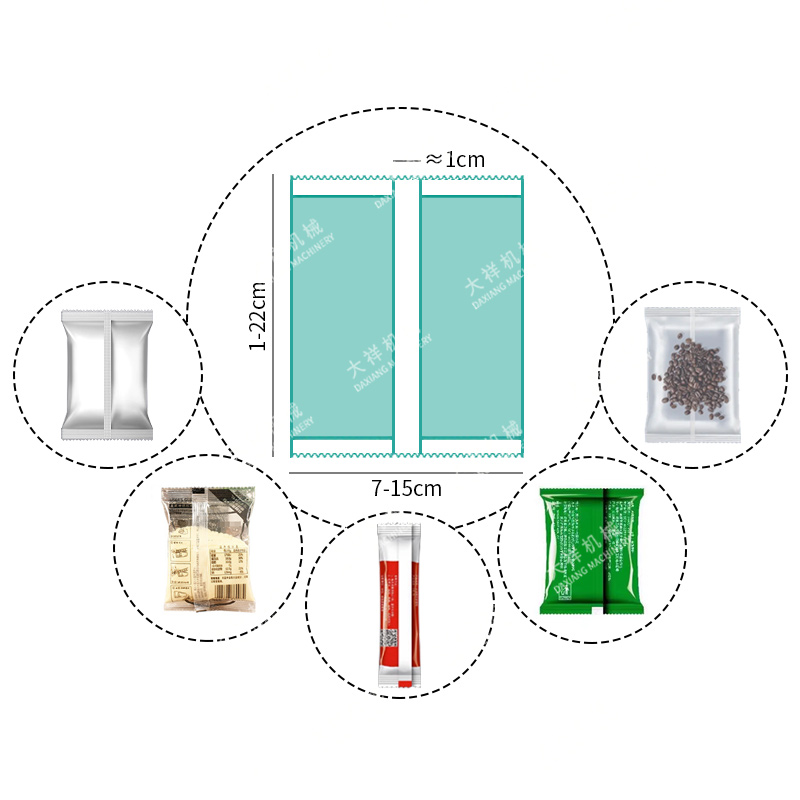

| Packaging Length | 1-15cm | 1-22cm | 1-28cm |
| Packaging Width | 2.25-10cm | 7-15cm | 7-20cm |
| Packaging Accuracy | 0.1-0.3g | 1-2g | 1-2g |
| Voltage | 220V 500W | 220V 550W | 220V 600W |

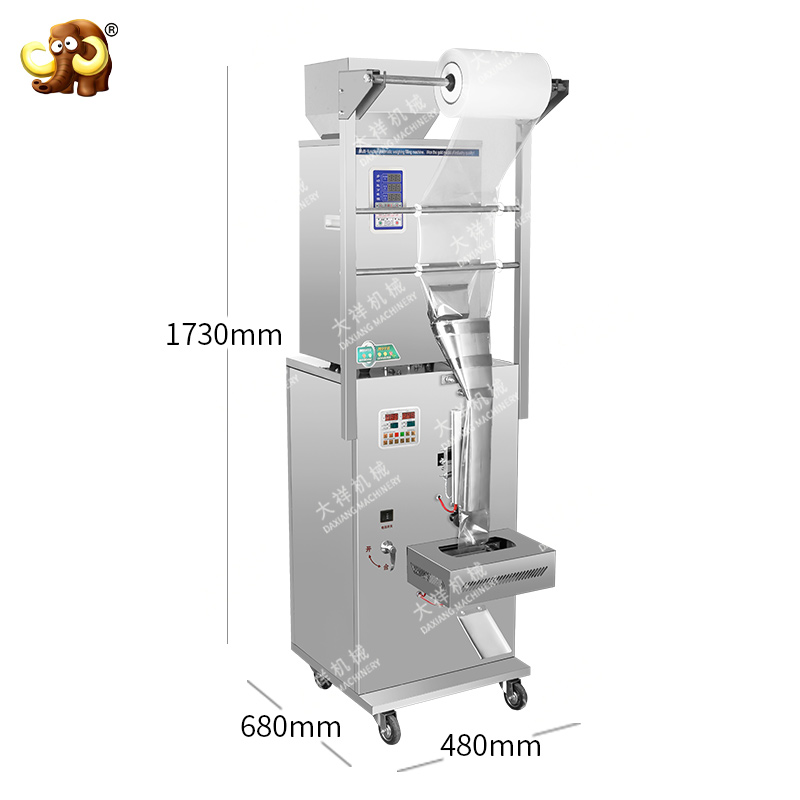

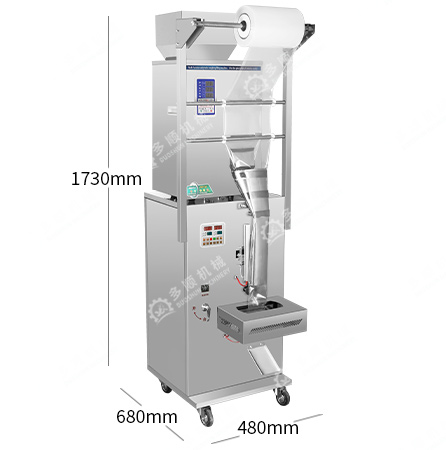

| Machine Dimensions | 420*520*1600mm | 480*680*1730mm | 500*900*2050mm |
| Machine Weight | 50kg | 70kg | 90kg |
Company Profile
Our company is specialized in producing and selling packaging equipment and processing equipment for food, health care, chemical and cosmetics industries, including multi-functional packaging machine, blister packaging machine, vacuum packaging machine, grinding machine, sugar coating machine and so on.
We have been doing domestic business since 2008, and in 2014, we started international trade for customers all over the world. Our company has various equipment and customization service that meets customers' actual needs, such as mould, voltage, plug, product appearance and so on. All our products have CE and ISO certification.
Exhibition and Certification
Frequently Asked Questions
What are your main PRODUCTS?
We produce packaging equipment and processing equipment for food, health care, chemical and cosmetics industries.
What are your PAYMENT terms?
1) T/T 2) Alibaba credit order 3) Western Union 4) Paypal 5) Various RMB payments.
How about your DELIVERY time?
Most machines are in stock and can be delivered within 3 days. Customized machines usually require 10-30 days.
Why should I TRUST your company?
We have been producing and selling machines for over 20 years. All machines have passed CE and ISO certification. You are welcome to visit our factory any time.
What kind of SERVICE do you provide?
We offer customization, professional packaging/delivery, operating videos, online support, and on-site engineer installation/training if needed.
What is your AFTER-SALE SERVICE?
We provide a one-year warranty. During this period, any unartificial damaged parts are replaced free of charge. Beyond the warranty, spare parts are provided at cost.
