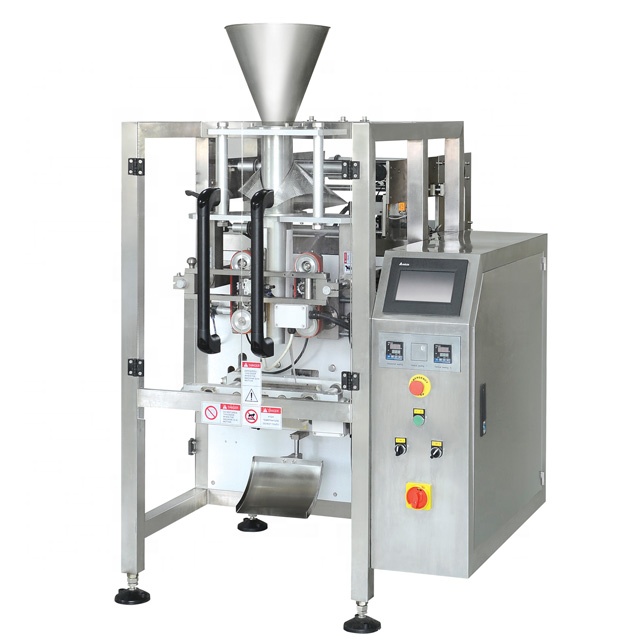

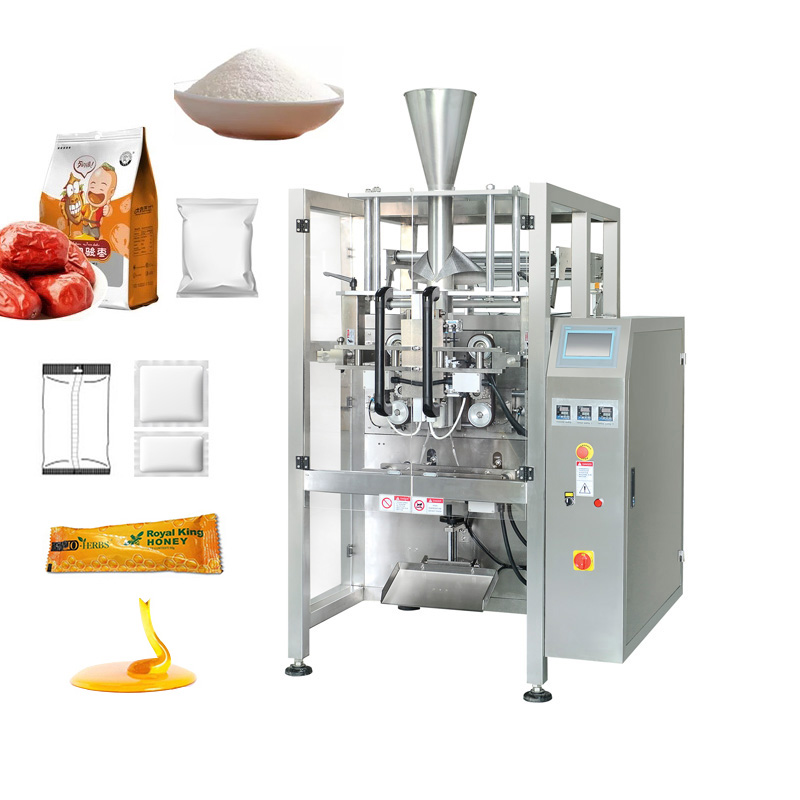

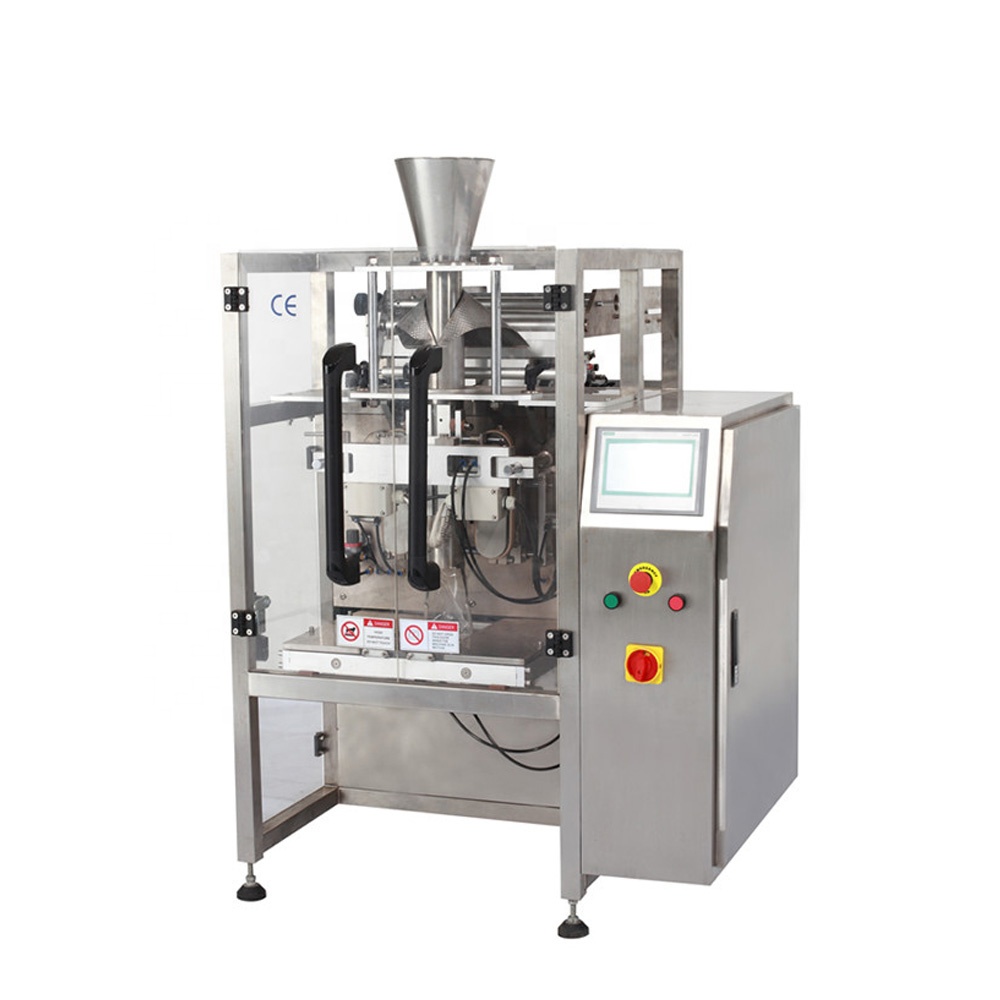

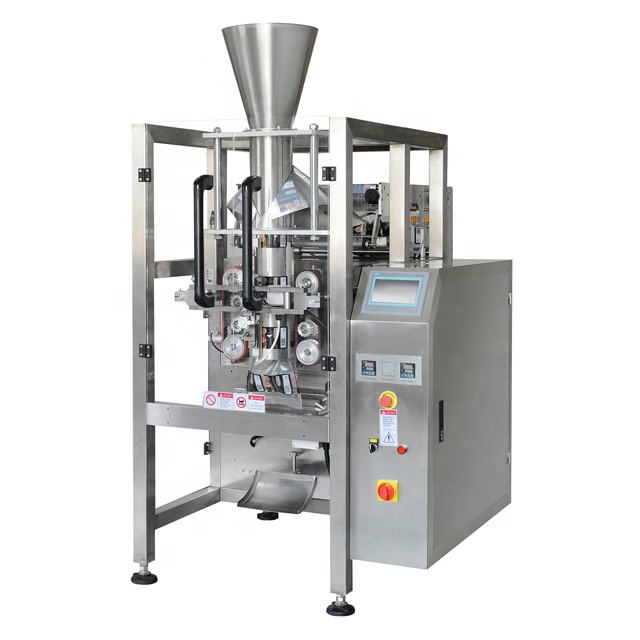

Product Description
Main Features
- Low cost high gain, high speed and efficiency.
- The whole system is linkage control, automatic feeding, stop working without materials.
- The contact parts with food is made of 316# high quality stainless steel, it will never get rust.
- Minimize the loss with complete automatic warn protection function.
- The way of bag making: the machine can make pillow-type bag and standing bag according to customer's requirements.
We can customize the suitable one for you according to your requirement. Just Tell us: Weight or Bag Size required.
| Model |
EC-320 |
EC-420 |
EC-520 |
EC-620 |
EC-720 |
| Bag Length(mm) |
80-180 |
80-300 |
80-400 |
100-400 |
100-400 |
| Bag Width(mm) |
45-150 |
50-200 |
80-250 |
150-300 |
180-350 |
| Max Width of Roll(mm) |
320 |
420 |
520 |
620 |
720 |
| Packing Speed(bags/min) |
40-90 |
5-80 |
5-70 |
5-65 |
5-10 |
| Air Consumption(Mpa) |
0.65 |
0.65 |
0.65 |
0.65 |
0.65 |
| Gas Consumption(m3/min) |
0.3 |
0.3 |
0.4 |
0.4 |
0.4 |
| Power Voltage (v) |
220v |
220V |
220v |
220v |
220v |
| Power (kw) |
3kw |
2.2KW |
4kw |
4kw |
5kw |
| Dimension(cm) |
122*90*175 |
132*95*136 |
115*179.5*165 |
165*125*2000 |
178*134*210 |
| Weight(kg) |
350 |
540 |
600 |
800 |
900 |

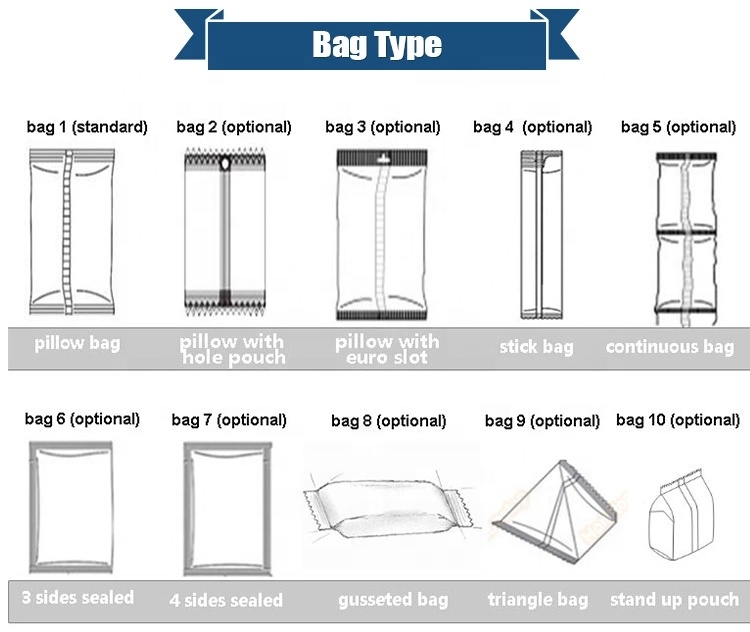

Various bag types are available:
All types of side seal bags, e.g. pouch, back-sealing bag, linking bags, etc.
Suitable Applications & Materials:
Liquid
Detergent, fruit juice, miller wine, soy sauce, vinegar, drinks etc.
Thick liquid:
Chilli sauce, tomato sauce, peanut butter, jam, bean sauce etc.
Solid
Candy, peanut, green bean, pistachio, brown sugar, cake, daily commodities, cooked food, pickles, puffed food etc.
Granule
Grain, granular drug, capsule, seed, condiments, granulated sugar, chicken essence, melon seeds, nuts etc.
Powder
Milk powder, coffee powder, food additives, condiments, tapioca powder, coconut powder, pesticide powder, fertilizer granules etc.
Kindly Reminder
Please share the following packing details when you request a quote, so that we can check the compatibility of the machine model with your specific requirements:
- Product details (type of material)
- Bag dimensions (width and length)
- Target bag shape
- Packing film material specifications
- Machine frame requirements
Our professional team continuously develops and innovates packaging solutions to provide the highest standard for your project.
Frequently Asked Questions
What types of bags can the automatic vertical packing machine make?
The machine supports various bag styles including pillow-type bags, standing bags, back-sealing bags, and side-seal linking bags depending on your packaging requirements.
Is this packaging system suitable for hot or sticky liquids?
Yes, it handles a wide range of liquids and thick sauces, such as detergent, fruit juice, chili sauce, tomato sauce, peanut butter, and vinegar.
What materials are used in the machine's construction?
All parts that come into contact with food products are built using high-grade 316 stainless steel to prevent rust and maintain strict hygienic standards.
What guarantees and warranties do you offer?
We offer a comprehensive one-year warranty. Free replacement parts are provided for any non-human faults occurring within the first year, backed by lifelong maintenance options.
Can I get custom specifications for unique bag sizes?
Absolutely. We provide personalized customization. Simply supply us with your target weight, bag dimensions, or film specifications, and our engineering team will design the optimal setup for you.
How do you support troubleshooting remotely?
We offer specialized online assistance. In the event of system trouble, our technical support engineers provide immediate one-to-one guided troubleshooting to resolve issues quickly.
