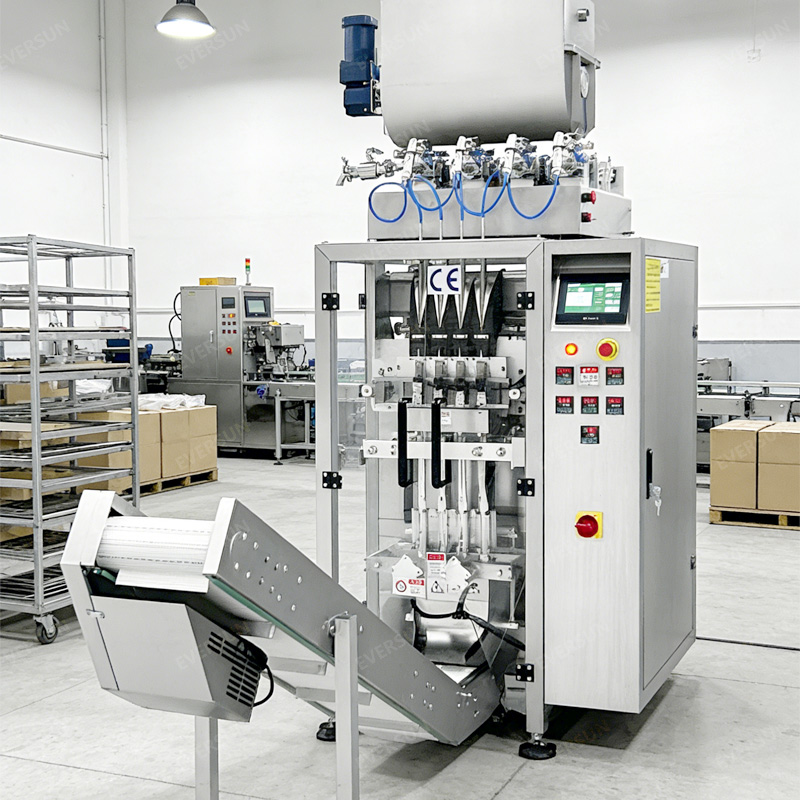

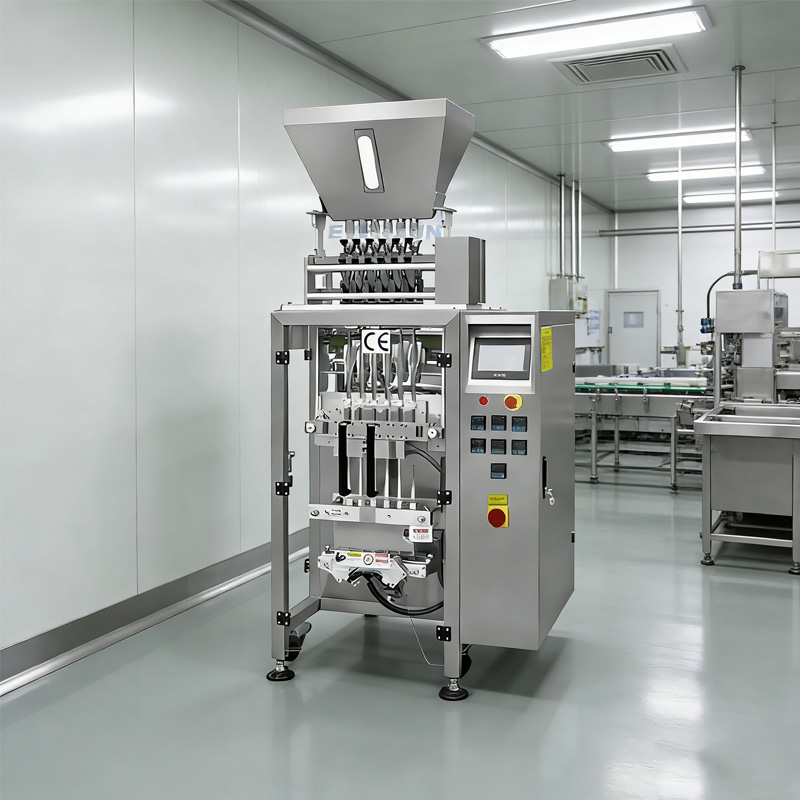

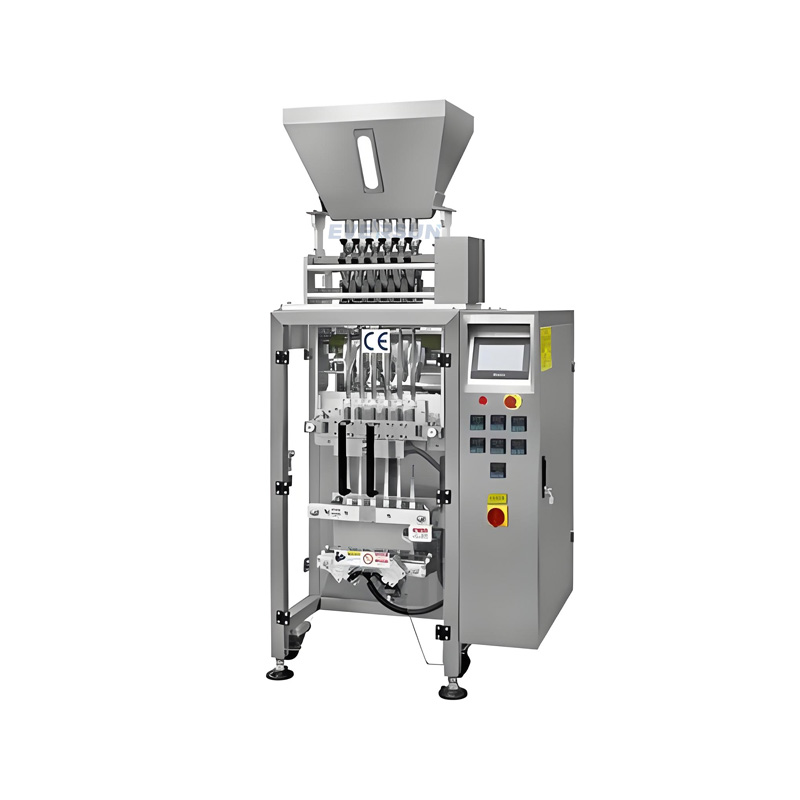

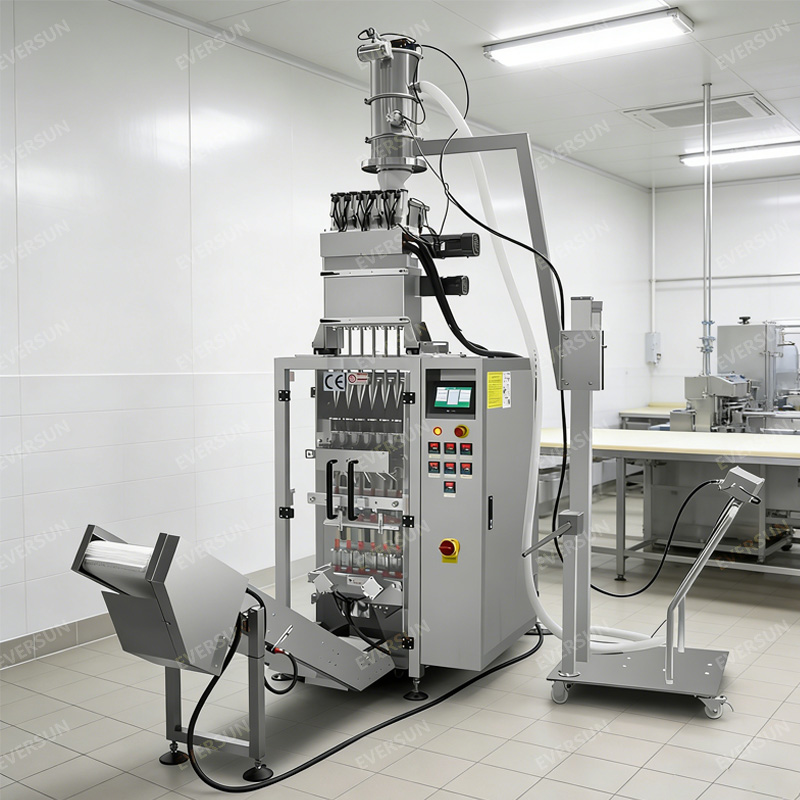

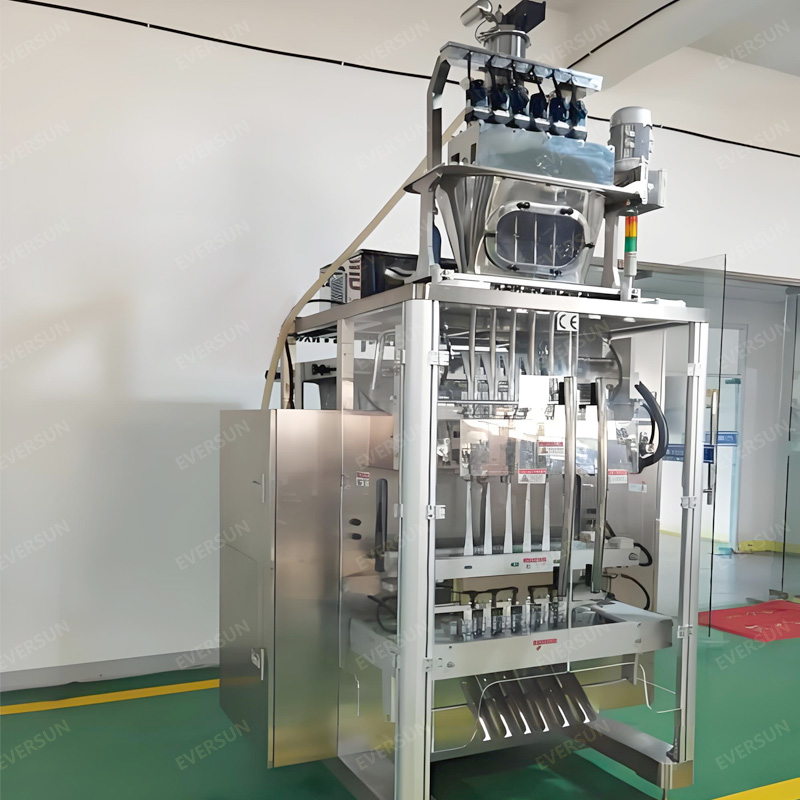

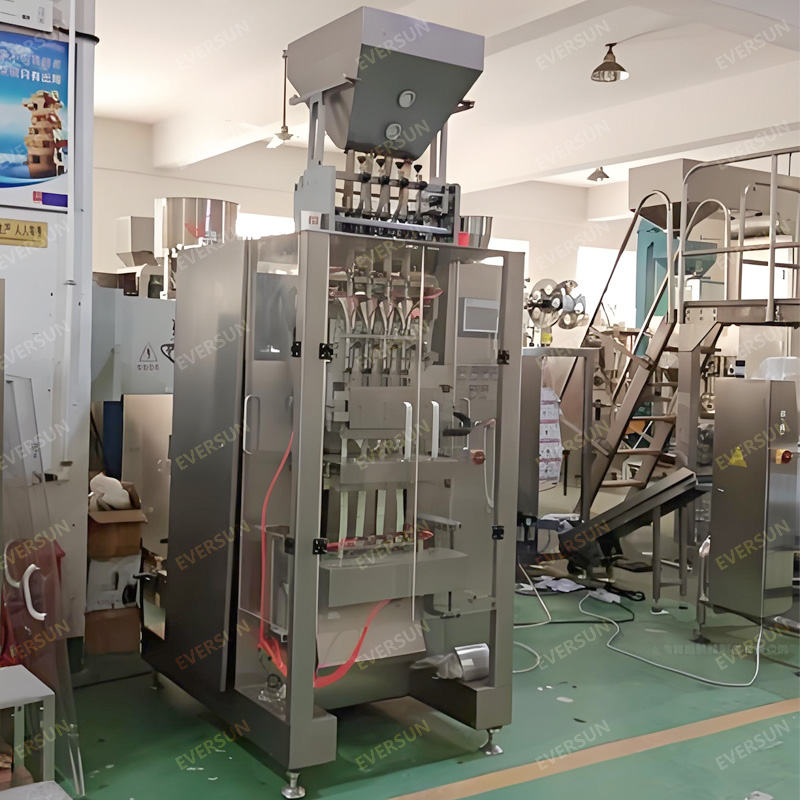

The multi-column packaging machine is a highly efficient and modern fully automatic packaging equipment. Its core advantage lies in the ability to simultaneously complete the filling and sealing of multiple independent packaging bags. It is equipped with multiple packaging channels arranged side by side vertically on a single main unit. Its appearance resembles the ingenious integration of multiple single-column packaging machines into one, hence it is named "multi-column". This design makes it particularly suitable for small-sized products that require large-scale and high-efficiency production, such as seasonings in the food industry, tablets and powders in the sugar sector, and shampoo samples and skin care powders in the cosmetics industry. The multi-column packaging machine, with its outstanding production speed, compact floor space, and stable operating performance, significantly enhances the automation level and overall production capacity of the production line. It is a key equipment in modern packaging assembly lines.

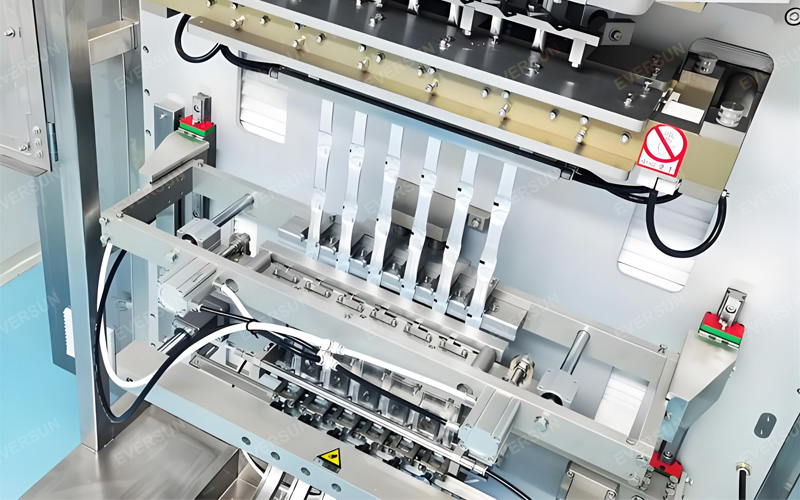

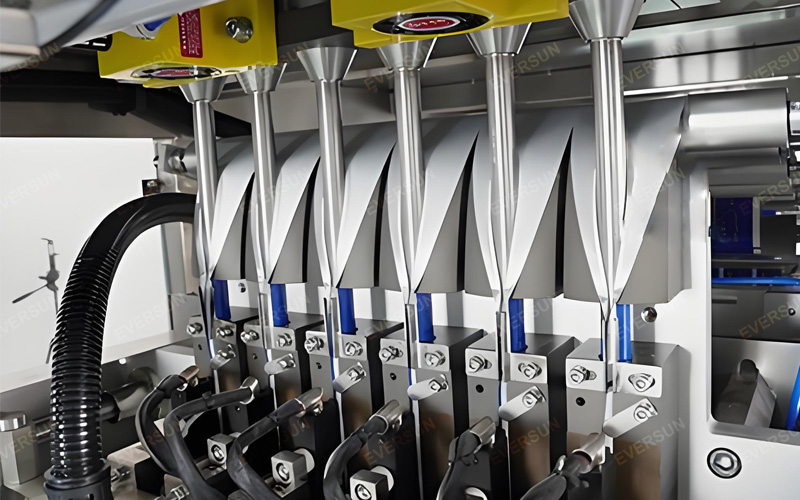

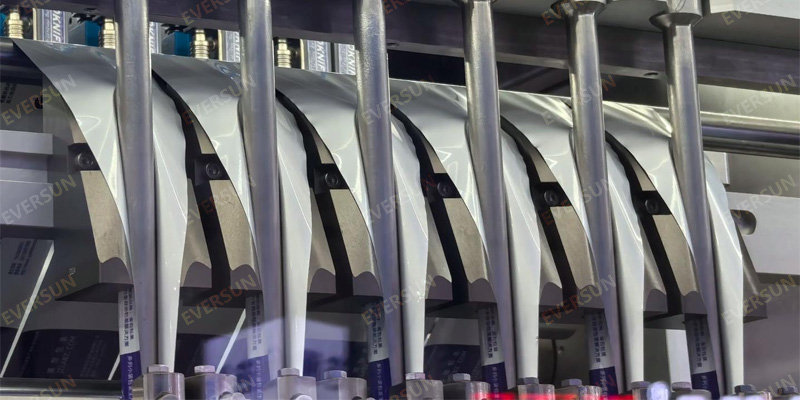

The working principle of the multi-column packaging machine is a highly synchronized and parallel process. It starts with a single roll of composite packaging film, and through multiple parallel forming devices, the film is simultaneously rolled into several parallel tubes. Subsequently, these tubes are sealed on the sides by the longitudinal sealing device and pulled down stepwise by the synchronous traction mechanism. During each working interval, the independent metering and filling systems of each column precisely inject materials into the corresponding film tubes. Immediately after that, the cross-sealing device, which integrates multiple sets of heat sealing heads and cutting knives, simultaneously presses down, completing the top sealing, bottom sealing, and lateral cutting of all the parallel tubes in one action, thereby synchronously producing a complete row of independent finished small bags. The entire process precisely realizes the efficient cycle of "forming one roll, filling multiple routes, and synchronous sealing and cutting", transforming single-point linear production into multi-point parallel production, which is the core for achieving high-speed packaging.
| Model | D-720F |
|---|---|
| Maximum Film Width | 720mm |
| Packaging Film Material | Composite Packaging Film |
| Fastest Packing Speed Per Column | Single Row 25-45 bags/min |
| Maximum Bag Length | 45-120mm |
| Maximum Bag Width | 30- 60mm |
| Seal Form | Four-side Sealing |
| Machine Weight | 500kg |
| Operating Voltage | 220V/50HZ |
| Power | 2.8KW |
With 13 years of specialization in the production of screening and conveying equipment, our manufacturing standards rank among the top in the industry. We have successfully provided matching and OEM services for numerous major global enterprises. Our high-quality products are regularly exported to Australia, Thailand, Indonesia, New Zealand, and various other international markets. We warmly welcome customers and distributors to visit our production facilities.
