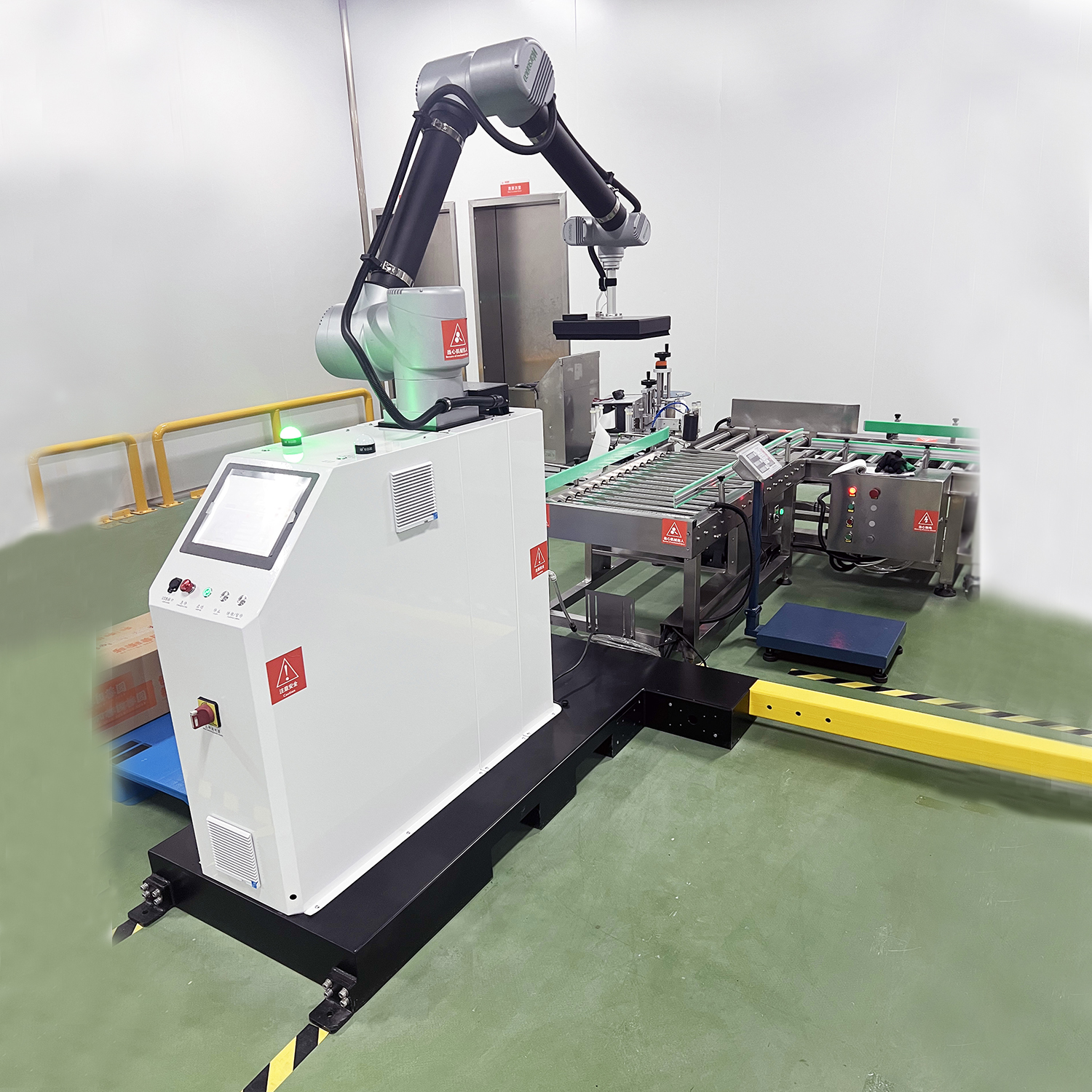

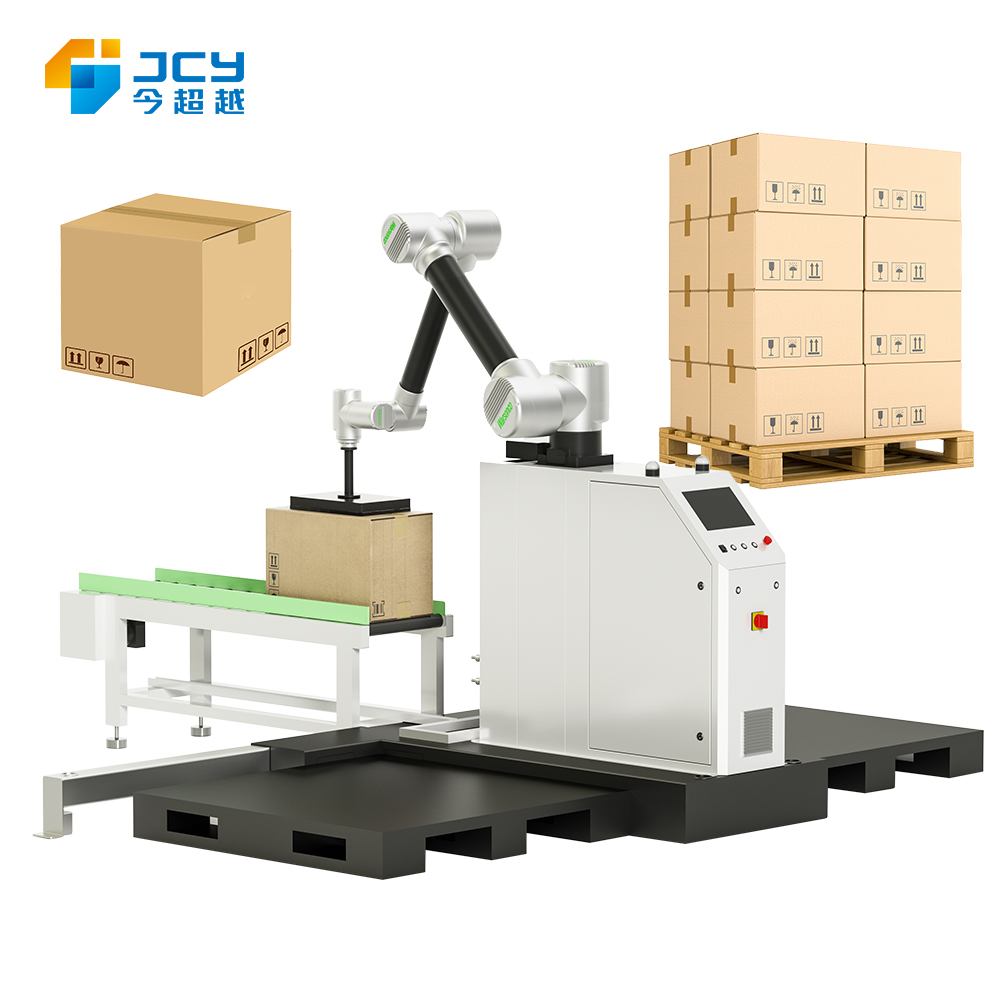

20kg/25kg/30kg Automatic Pallet Gripper Palletizing Machine Collaborative Palletizer
20kg/25kg/30kg Automatic Pallet Gripper Palletizing Machine Collaborative Palletizer
20kg/25kg/30kg Automatic Pallet Gripper Palletizing Machine Collaborative Palletizer
20kg/25kg/30kg Automatic Pallet Gripper Palletizing Machine Collaborative Palletizer
20kg/25kg/30kg Automatic Pallet Gripper Palletizing Machine Collaborative Palletizer
1 / 5
20kg/25kg/30kg Automatic Pallet Gripper Palletizing Machine Collaborative Palletizer
20kg/25kg/30kg Automatic Pallet Gripper Palletizing Machine Collaborative Palletizer
20kg/25kg/30kg Automatic Pallet Gripper Palletizing Machine Collaborative Palletizer
20kg/25kg/30kg Automatic Pallet Gripper Palletizing Machine Collaborative Palletizer
20kg/25kg/30kg Automatic Pallet Gripper Palletizing Machine Collaborative Palletizer

20kg/25kg/30kg Automatic Pallet Gripper Palletizing Machine Collaborative Palletizer

Send Inquiry

Product Description

Products Description

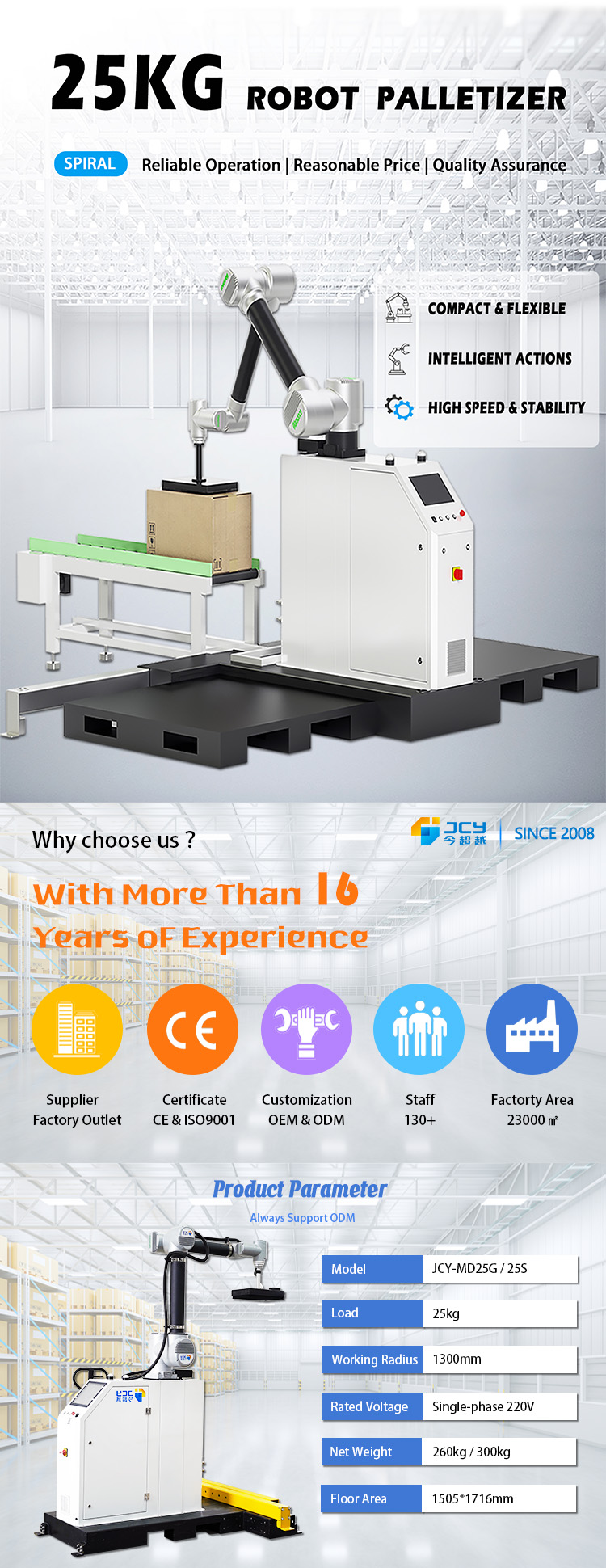

Collaborative Palletizer Robot Overview
The collaborative palletizer robot is a device that automatically stacks bags, cartons or other packaging materials sent by the conveyor into pallets according to the working method required by the customer's process, and transports the palletized materials. Realize intelligent operation management, simple and easy to master. It can greatly reduce labor force and reduce labor intensity.

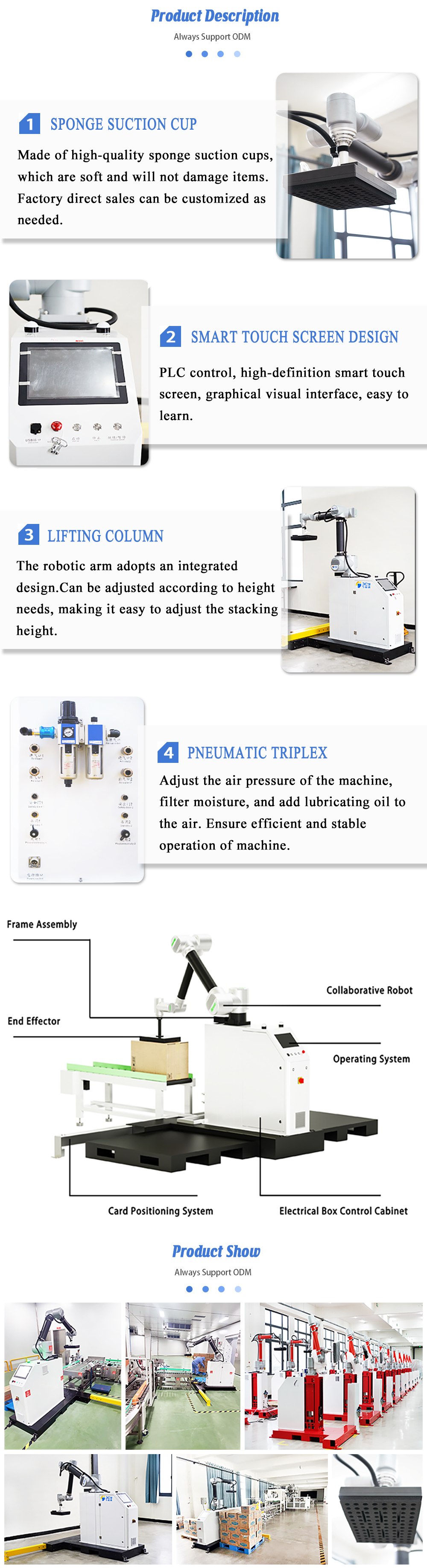

Collaborative Palletizer Robot Setup Palletizing Process Demonstration

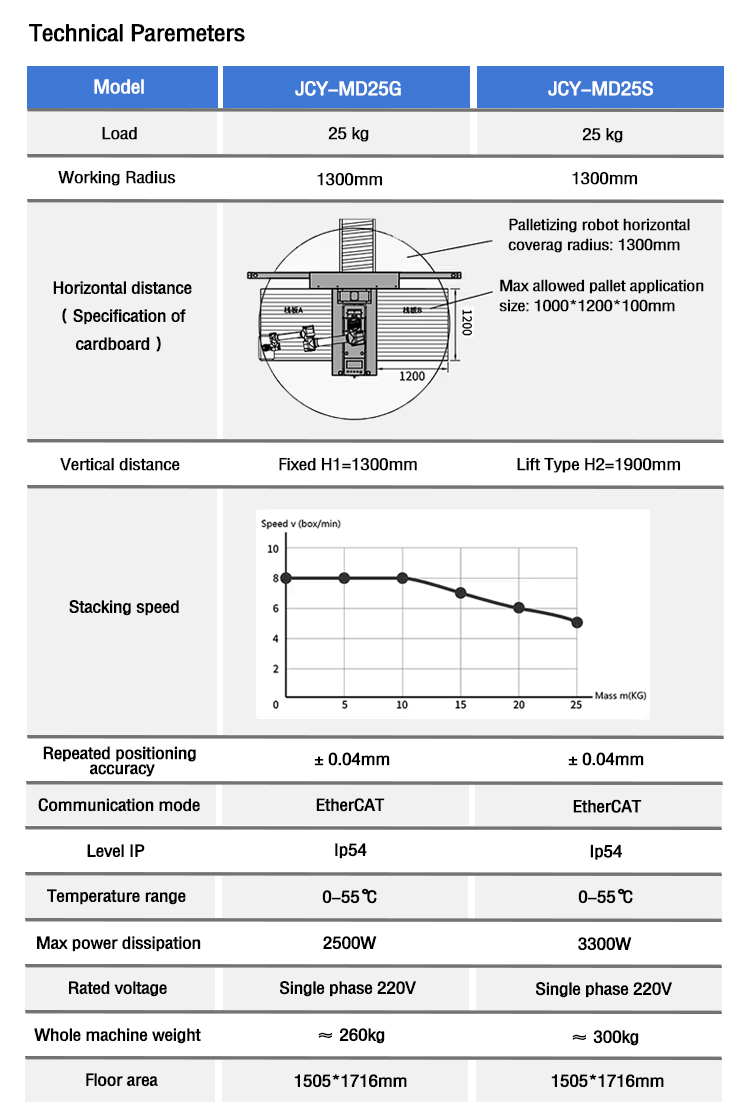

Product Parameters
Model JCY-MD25G JCY-MD25S
Load 25KG 25KG
Working Radius 1300MM 1300MM
Vertical Distance Fixed H1=1300MM Fixed H2=1900MM
Repeated Positioning Accuracy ± 0.04MM Fixed
Communication Mode EtherCAT EtherCAT
Level IP IP54 IP54
Temperature Range 0-55°C 0-55°C
Max Power Dissipation 2500W 3300W
Rated Voltage 220V 220V
Net Weight About 260KG About 300KG
Floor Area 1505*1716MM 1505*1716MM
Details Images

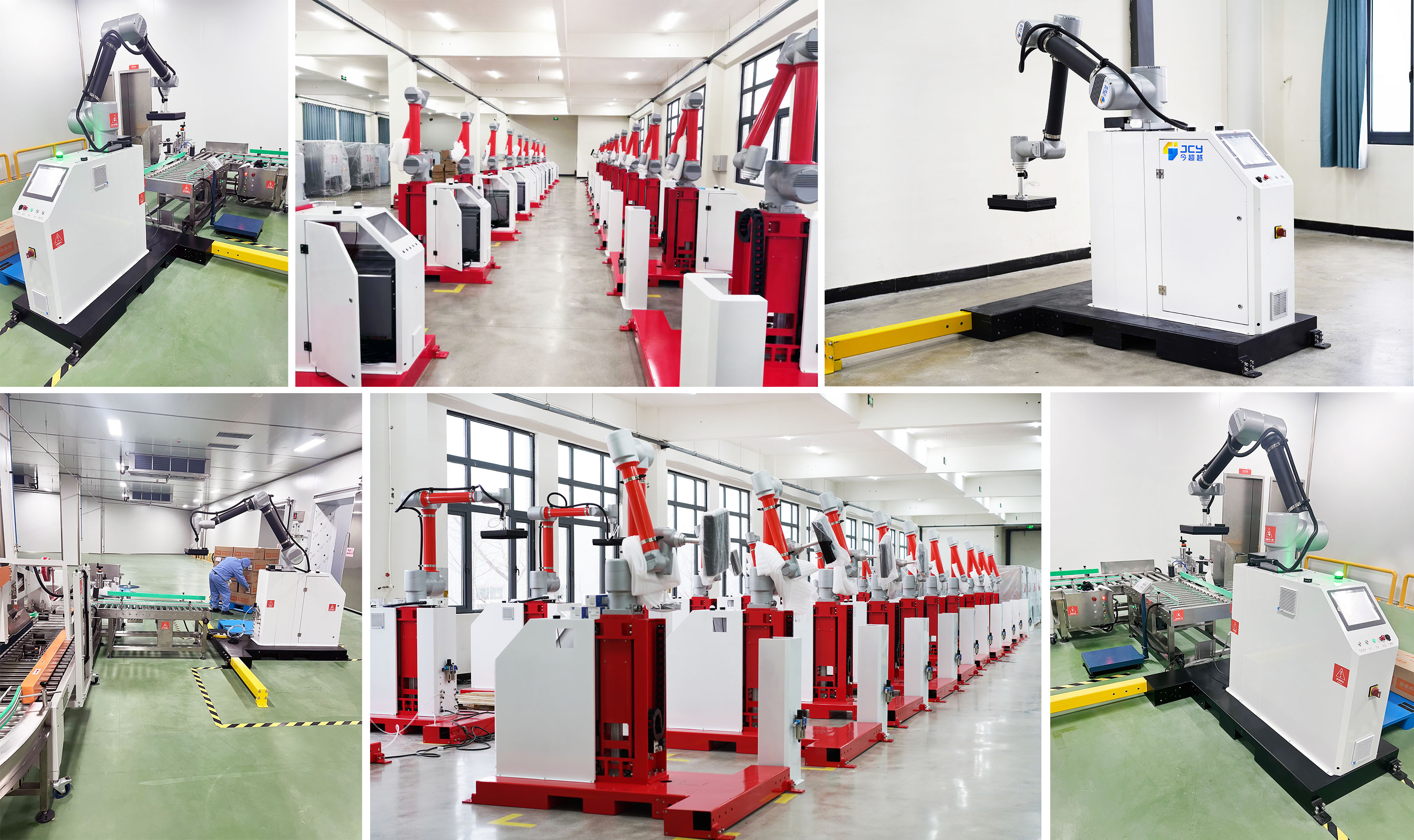

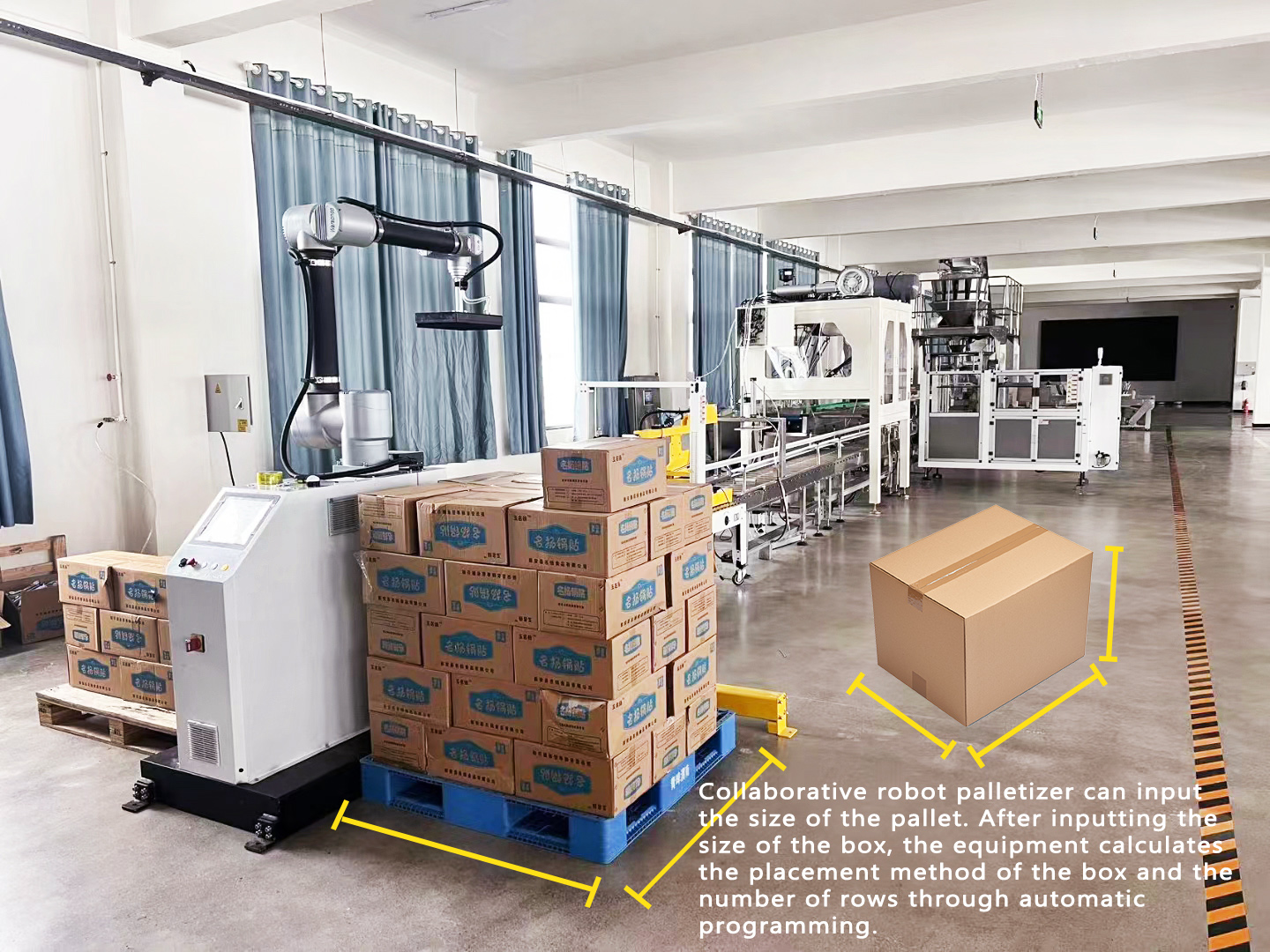

Detailed View 1 Detailed View 2
Production Process
Production Process
Related Products

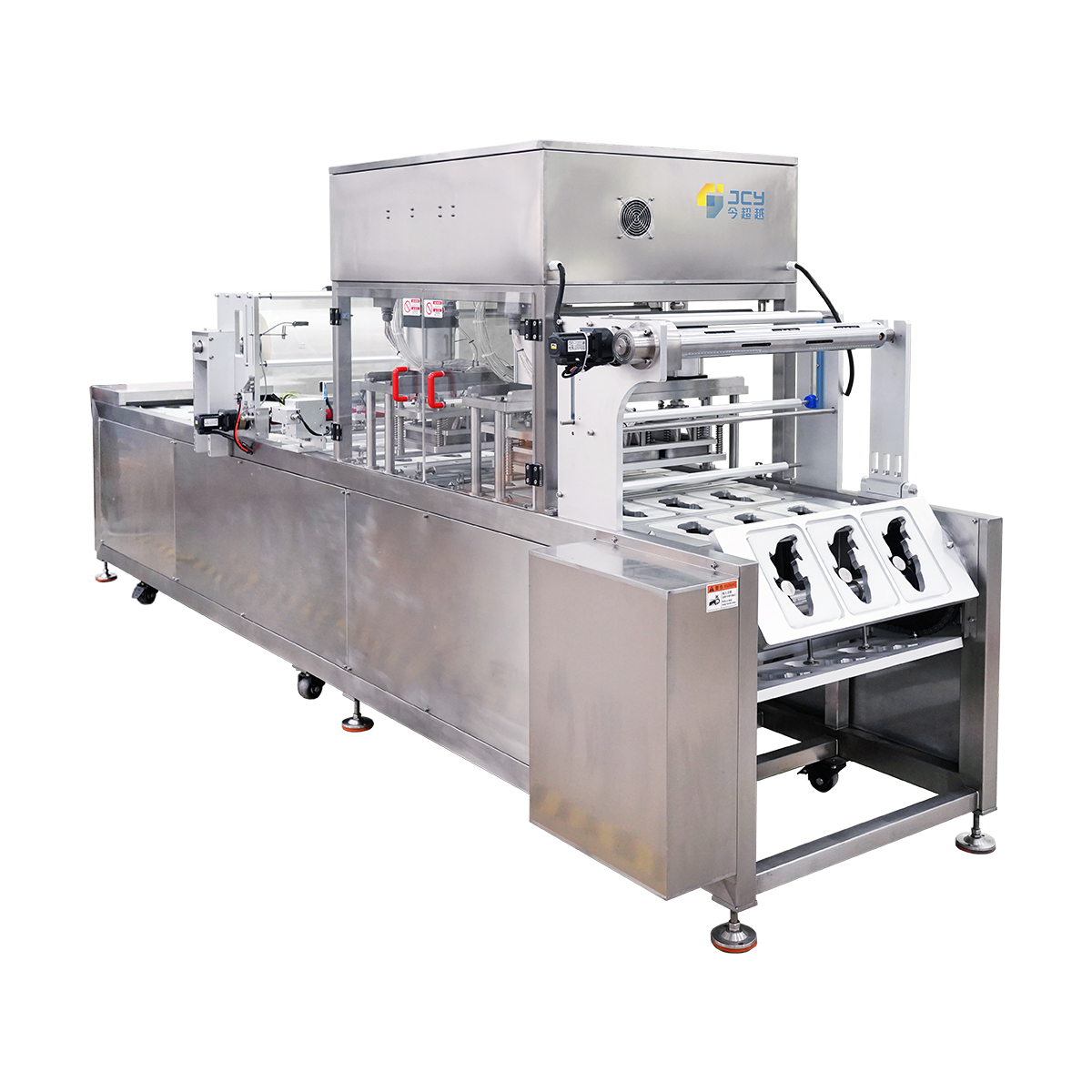

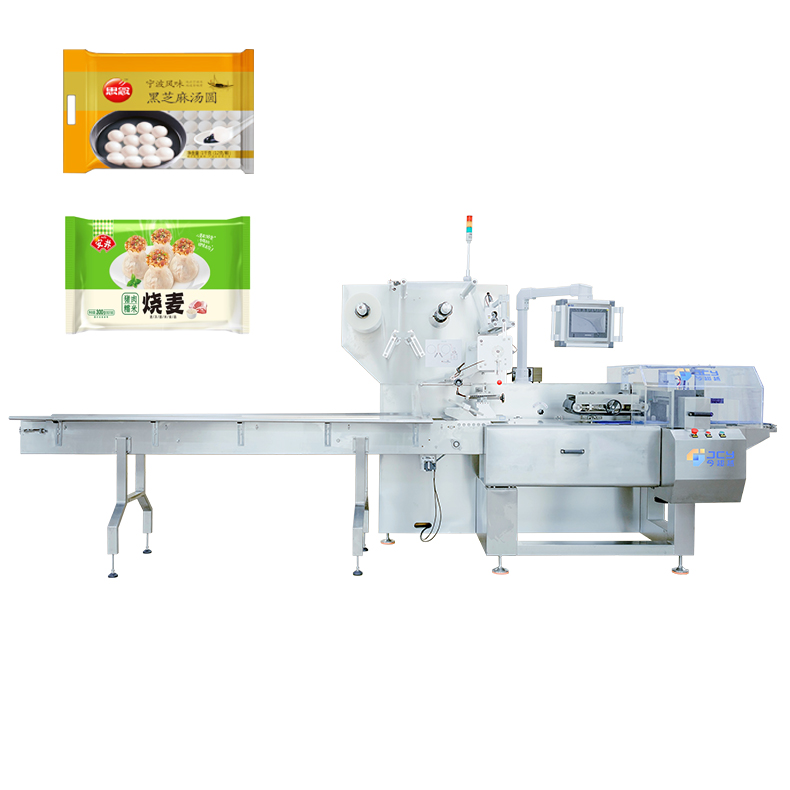

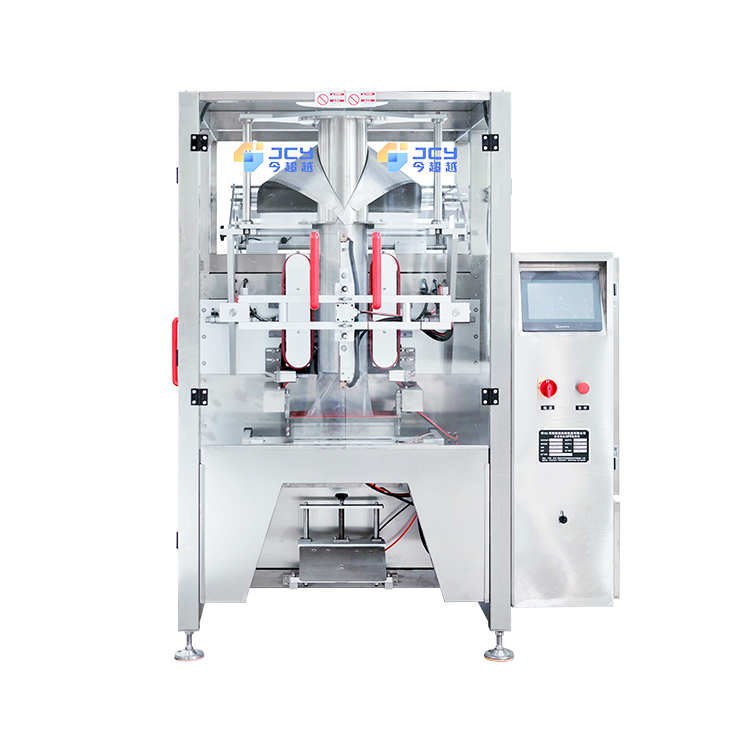

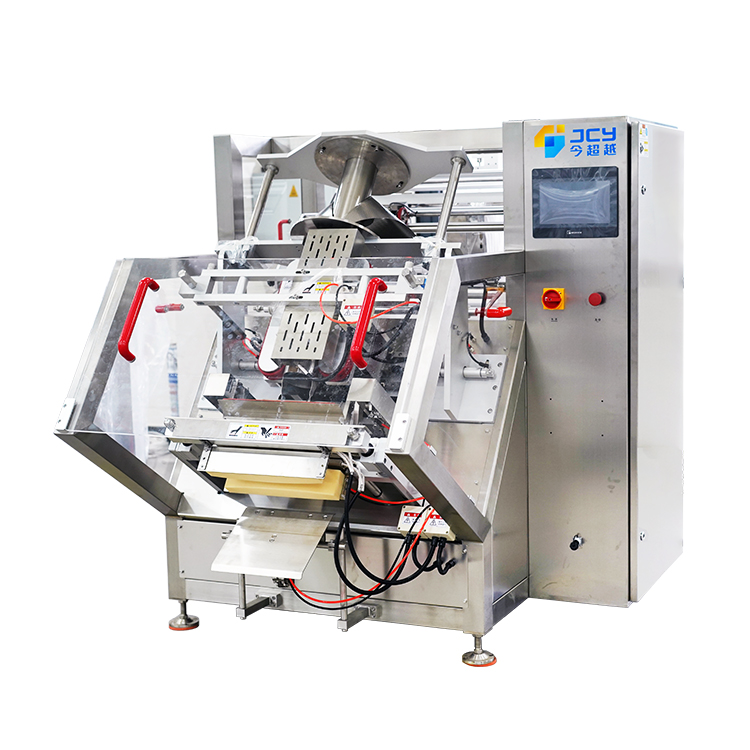

Related Machine 1 Related Machine 2 Related Machine 3 Related Machine 4
Company Profile
Enterprise Profile Overview Production Facility Technical Center
Customer Photos
Customer Visit Customer Feedback
Certifications
System Certifications
Partners
Global Partners 1 Global Partners 2 Global Partners 3
Frequently Asked Questions
What is a collaborative palletizer robot?
It is an automated device designed to stack bags, cartons, or other packaging materials onto pallets systematically. It functions collaboratively to optimize workflow efficiency, reduce labor load, and ensure consistent palletizing quality.
What are the load capabilities of the JCY-MD25 series?
Both the JCY-MD25G and JCY-MD25S models feature a maximum load capacity of 25KG, making them suitable for a wide range of industrial packaging demands.
What is the difference in vertical distance between the two models?
The JCY-MD25G model has a fixed vertical height reach of H1=1300MM, whereas the JCY-MD25S model offers an extended fixed vertical height reach of H2=1900MM.
What is the positioning accuracy of these palletizer robots?
The JCY-MD25G features a high repeated positioning accuracy of ±0.04MM, ensuring precise stack placement during continuous operations.
Can these robots work under harsh environmental temperatures?
Yes, both models are designed to operate efficiently within an ambient temperature range of 0°C to 55°C and feature an IP54 protection class level.
What communication protocol does the system use?
The JCY-MD25 series utilizes the industrial EtherCAT communication interface, which guarantees high-speed data transmission and reliable synchronization.
