Product Description

Product Overview

Automated Palletizing Logistics Robot Equipment: Features advanced teaching without programming capabilities, allowing for seamless integration into your production line.

Automated Palletizing Logistics Robot Equipment Automated Palletizing Logistics Robot Equipment

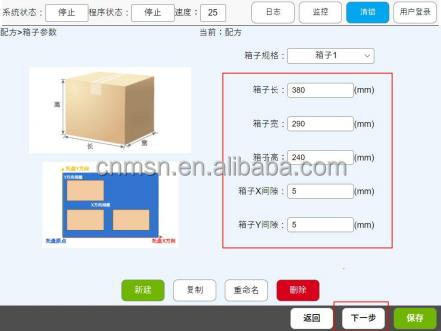

This intelligent robot equipment supports programming-free teaching. Users can achieve automatic production of palletizing programs simply by inputting the specific size of the carton.

Technical Specifications
Name Parameter
Maximum Load30KG
Working Radius1460mm
Power SupplySingle Phase 220V/50Hz
Max Palletizing Height2100mm
Power Consumption4KW
Repeated Positioning Accuracy±0.4mm
Gas Consumption360-460L/min
Communication InterfaceEtherCAT, Extension IO
Operating Temperature0-50°C
Mechanical StructureFixing and Lifting
Lifting Shaft Range0-500mm
Advantages of the Palletizing Workstation
✔ Precision Control: Utilizes proprietary algorithms ensuring stable performance, tested over 30,000 cycles without errors.
✔ High-Speed Output: Achieves a cycle rate of 10-12 boxes per minute, 20% faster than industry standards.
✔ Rapid Deployment: Ready for production in just 30 minutes with no complex pre-adjustment required.
✔ High Flexibility: Easily adapts to various types of goods and diverse palletizing environments.
✔ User-Friendly Interface: Designed for ease of use; operators can reach proficiency within a single day.
✔ Extensive Configuration: Supports multi-language interfaces and includes over 1,000 recipe and stacking pattern options.
Frequently Asked Questions (FAQ)
1. Does the robot require complex programming?
No, the system features a programming-free teaching mode. Simply input the carton dimensions to automatically generate palletizing programs.
2. What is the maximum load capacity?
The robot is capable of handling a maximum load of 30KG.
3. How long does it take to deploy the equipment?
The system is designed for rapid deployment and can be ready for production in just 30 minutes.
4. What power supply is required for this equipment?
The robot operates on a single-phase 220V/50Hz power supply.
5. Is the interface available in multiple languages?
Yes, the system supports multi-language interface switching to accommodate global operators.
6. What is the positioning accuracy of the robot?
The robot maintains a high repeated positioning accuracy of ±0.4mm.
